Gas Leaf Blower

Model # 316794970 Official Craftsman blower/vacuum

Here are the diagrams and repair parts for Official Craftsman 316794970 blower/vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Line Trimmer Primer Bulb And Hose Assembly (replaces 791-683947b, 791-bq03241) 791-683974B
#9

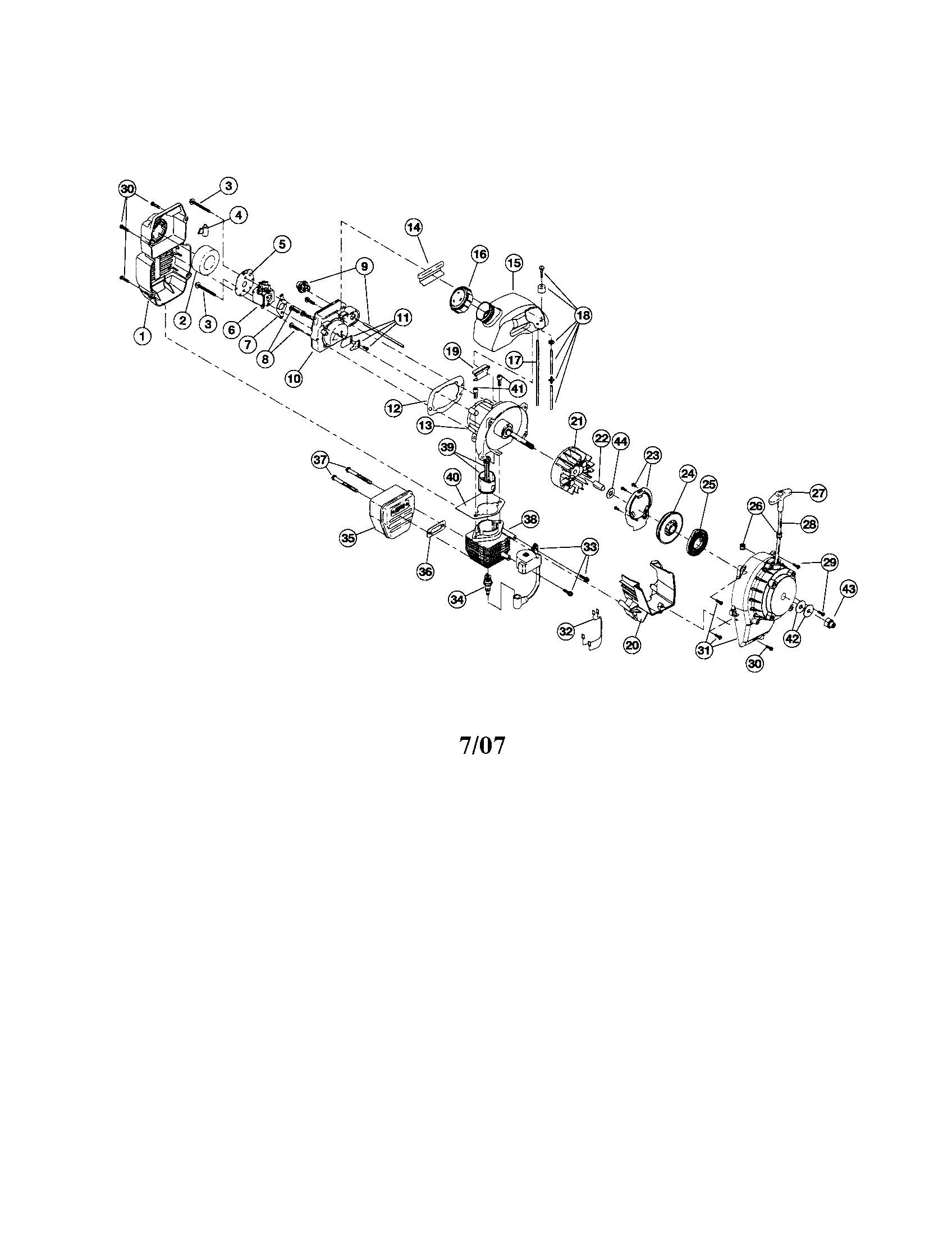

Engine diagram

Line trimmer primer bulb and hose assembly (replaces 791-683947b, 791-bq03241)

Part #791-683974B

BEST SELLER
$28.51 |
15% OFF Phone Price : $33.51
In Stock
Line Trimmer Fuel Line Assembly (replaces 753-04886) 791-682039
#18

Engine diagram

Line trimmer fuel line assembly (replaces 753-04886)

Part #791-682039

This item is not returnable
$20.87 |
23% OFF MSRP : $27.00
In Stock
Line Trimmer Fuel Line (replaces 791-180243, 791-181168, 791-182495) 791-181086
#17

Engine diagram

Line trimmer fuel line (replaces 791-180243, 791-181168, 791-182495)

Part #791-181086

$10.88 |
16% OFF Phone Price : $12.88
In Stock
Lawn & Garden Equipment Engine Air Filter 791-180350B
#2

Engine diagram

Lawn & garden equipment engine air filter

Part #791-180350B

This item is not returnable
$13.02 |
13% OFF Phone Price : $15.02
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope 791-613103
#28

Engine diagram

Lawn & garden equipment engine recoil starter rope

Part #791-613103

This item is not returnable
$15.79 |
11% OFF Phone Price : $17.79
In Stock
Leaf Blower Shoulder Strap 791-682075B

#NI06

All parts diagram

Leaf blower shoulder strap

Part #791-682075B

Get free shipping with Automatic Reorder

$40.57
In Stock
Washer 791-182396
#42

Engine diagram

Washer

Part #791-182396

Replaced by #9162-1

?
Manufacturer substitution
This part replaces 791-182396. Substitute parts can look different from the original.
This item is not returnable
$7.20
In Stock
Leaf Blower Carburetor 753-04807
#6

Engine diagram

Leaf blower carburetor

Part #753-04807

$113.07 |
8% OFF Phone Price : $123.07
In Stock
Line Trimmer Recoil Starter Spring (replaces 753-1236) 753-04286
#25

Engine diagram

Line trimmer recoil starter spring (replaces 753-1236)

Part #753-04286

This item is not returnable
$27.87 |
15% OFF Phone Price : $32.87
In Stock
Lawn & Garden Equipment Engine Start/stop Switch (replaces 182405) 791-182405
#8

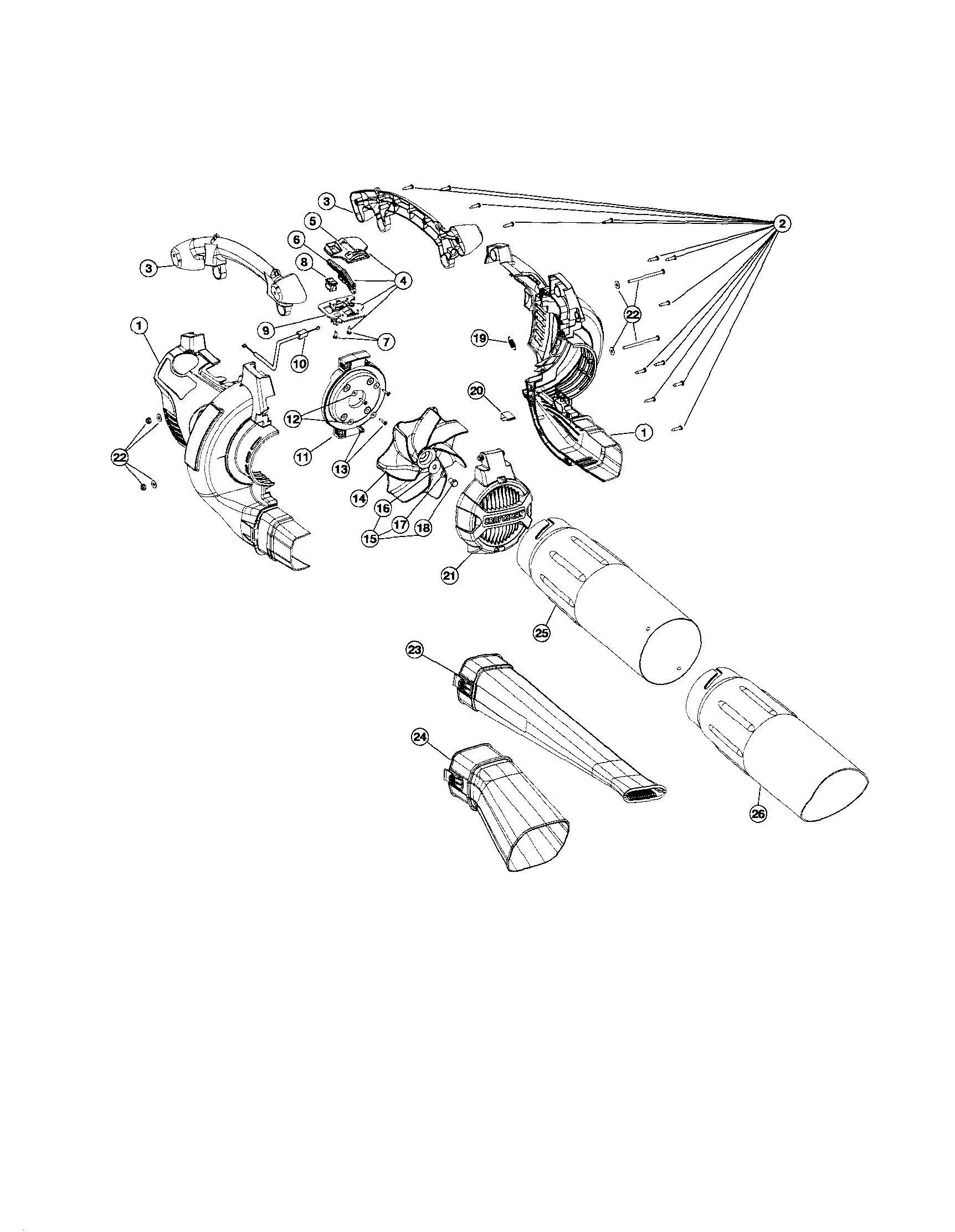

Housing diagram

Lawn & garden equipment engine start/stop switch (replaces 182405)

Part #791-182405

$13.29 |
22% OFF MSRP : $17.00
In Stock
