GE GFE28GSKFSS bottom-mount refrigerator Parts

On the GE GFE28GSKFSS bottom-mount refrigerator, the bottom grille (base grille) typically comes off by releasing its retaining tabs or removing a couple of screws (model variations exist). Once released, pull the grille straight out from the front to remove it.

Steps to remove the bottom grille

1. Unplug the refrigerator or switch off power at the breaker (recommended when working near wiring).
2. Look along the top edge of the grille for fasteners.
3. Remove any screws (usually Phillips or 1/4-inch hex head).
4. If there are no screws, press in on the grille near the ends to release the clips.
5. Pull the grille forward and off.

• Use a flashlight to spot hidden screws or clip locations.
• Pull straight out; twisting can crack plastic tabs.
• Keep screws in a cup so they do not get lost.
• If the grille feels stuck, recheck for a screw at each end.

Reinstalling the grille

Line the grille up with the slots, then push it in until it snaps into place. If your grille uses screws, reinstall them snugly (do not overtighten).

What you see	What it usually means	What to do
Screws at the ends or along the top	Screw-mounted grille	Remove screws, then pull grille forward
No screws, grille flexes slightly	Clip-mounted grille	Press to release clips, then pull forward
Grille won’t budge	Hidden fastener or tight clips	Recheck edges and top lip before pulling harder

Why it matters

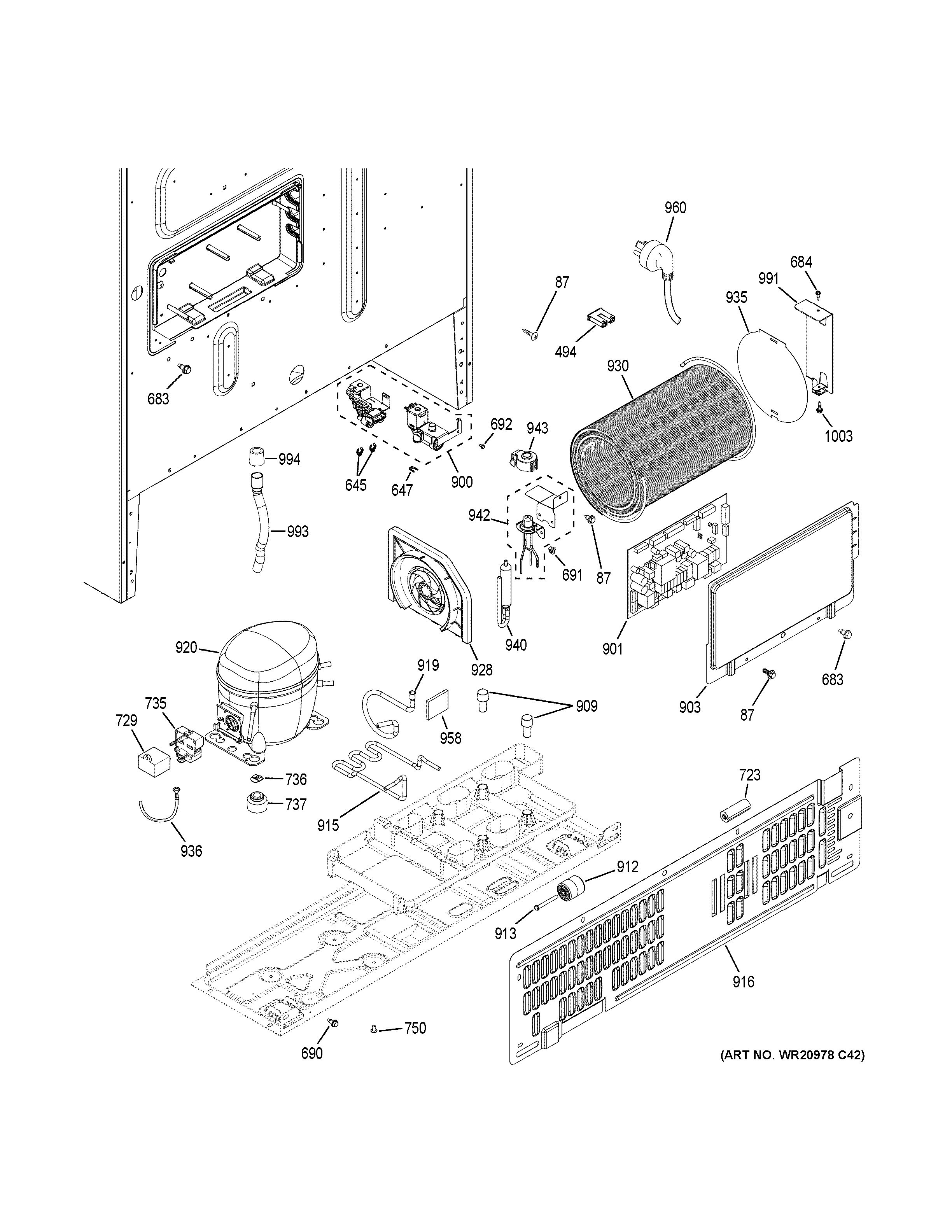

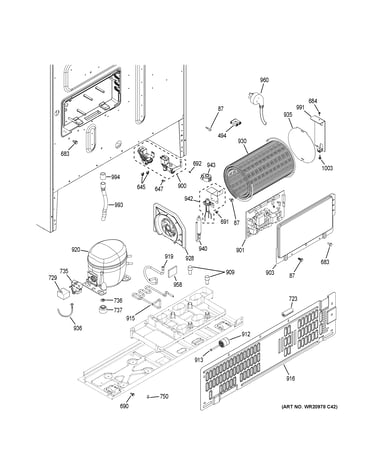

We remove the bottom grille to access the condenser area for cleaning, to check for water leaks, or to reach service components. A clean condenser area helps the refrigerator cool efficiently.

Helpful references

• Use the GFE28GSKFSS owner’s manual for model-specific access and care guidance.

Last updated: January 2026

Cooling problems are the most common issue we see on GE refrigerators like model GFE28GSKFSS. In many cases, the refrigerator is running but not staying cold enough because airflow is restricted, the defrost system is not clearing frost, the condenser area is dirty, or a door gasket is leaking.

Most common causes (and what to check first)

• Dirty condenser coils: reduces heat removal and raises fresh food and freezer temps.
• Evaporator fan not running: weak or no airflow to the fresh food section.
• Frosted-over evaporator (defrost problem): heavy frost blocks airflow and causes warm temps.
• Door not sealing (torn gasket, door out of alignment): warm air leaks in and creates frost.
• Controls/settings: temps set too warm or a mode like Sabbath/holiday affecting operation.
• Air vents blocked: food packages blocking return vents or supply vents.

Quick troubleshooting steps for GFE28GSKFSS

1. Confirm the set temperatures and give the unit 24 hours to stabilize after changes.
2. Clean dust from the condenser area (unplug first).
3. Check for strong airflow from vents in the fresh food section.
4. Look for frost buildup on the freezer back panel (a common sign of a defrost issue).
5. Inspect the door gaskets for gaps; close a dollar bill in the door and feel for consistent drag.

Symptom-to-likely-cause guide

What you notice	Most likely cause	What we recommend
Freezer cold, fridge warm	Airflow problem (fan, damper, frost)	Check vents, listen for fan, look for frost
Both sections warm	Condenser airflow, sealed system, controls	Clean coils, verify fans, check error codes
Frost/ice buildup in freezer	Defrost system issue or door leak	Check gasket seal and frost pattern
Alarm beeping with door closed	Door not fully closing or switch issue	Verify door alignment and closure

Why it matters

A GE refrigerator that cannot move air correctly or cannot shed heat efficiently will run longer, waste energy, and still let food temperatures rise. Catching a dirty-coil or door-seal issue early also helps prevent heavier frost buildup and repeat cooling complaints.

Helpful model resources

• Use the GFE28GSKFSS owner's manual for temperature settings, airflow locations, and operating modes.
• If you have alarms or display issues, follow how to reset the door alarm on a GE refrigerator.
• If the refrigerator shows a fault, use GE refrigerator error codes to narrow the problem to a system (fans, defrost, sensors, controls).

Last updated: January 2026

On your GE GFE28GSKFSS bottom-mount refrigerator, the model number is printed on the rating label inside the fresh food (refrigerator) compartment. Look on the left interior wall, near the middle; the label lists both the model and serial number.

Where to look (fast checklist)

• Open the refrigerator (fresh food) door, not the freezer drawer
• Check the left side interior wall
• Look around the middle height of the compartment
• Find the label that shows Model # and Serial #
• Write the numbers down exactly as shown (letters and digits)

What the label typically includes

Label item	What it’s used for
Model number (example: GFE28GSKFSS)	Matching the correct parts and diagrams
Serial number	Identifying production details for service and warranty paperwork

Why it matters

Using the exact model number helps us match the right GE refrigerator parts (like shelves, door bins, water filter components, or ice maker parts) and ensures the diagrams and troubleshooting steps apply to your specific configuration.

If the label is hard to read

• Wipe the label gently with a damp microfiber cloth and dry it
• Use your phone camera and zoom in for clarity
• Copy the model number exactly; even one character changes the parts match

For a visual reference and more details, use the [GFE28GSKFSS owner’s manual].

Last updated: March 2026
