Whirlpool DU1055XTVS2 undercounter dishwasher Parts

Drainage problems are the most common issue we see with Whirlpool dishwashers like model DU1055XTVS2; the dishwasher may leave standing water because the drain path is restricted (filter area, drain hose, or drain pump). Cleaning the drain path and confirming proper installation usually fixes it.

What to check first (fast, no-parts steps)

• Make sure the door is fully closed and latched; the dishwasher can stop mid-cycle if it is not.
• Confirm the cycle is selected correctly and the dishwasher has power (breaker not tripped).
• Check the sink drain and garbage disposal connection; a blocked sink drain can prevent proper dishwasher draining.
• Inspect the drain hose routing under the sink for kinks, crushing, or a low loop that is missing.
• Look for debris in the sump area that can restrict water flow.

Parts that commonly solve “not draining” on DU1055XTVS2

If the hose is clear and the dishwasher still will not drain, these are the most common repair parts for this model:

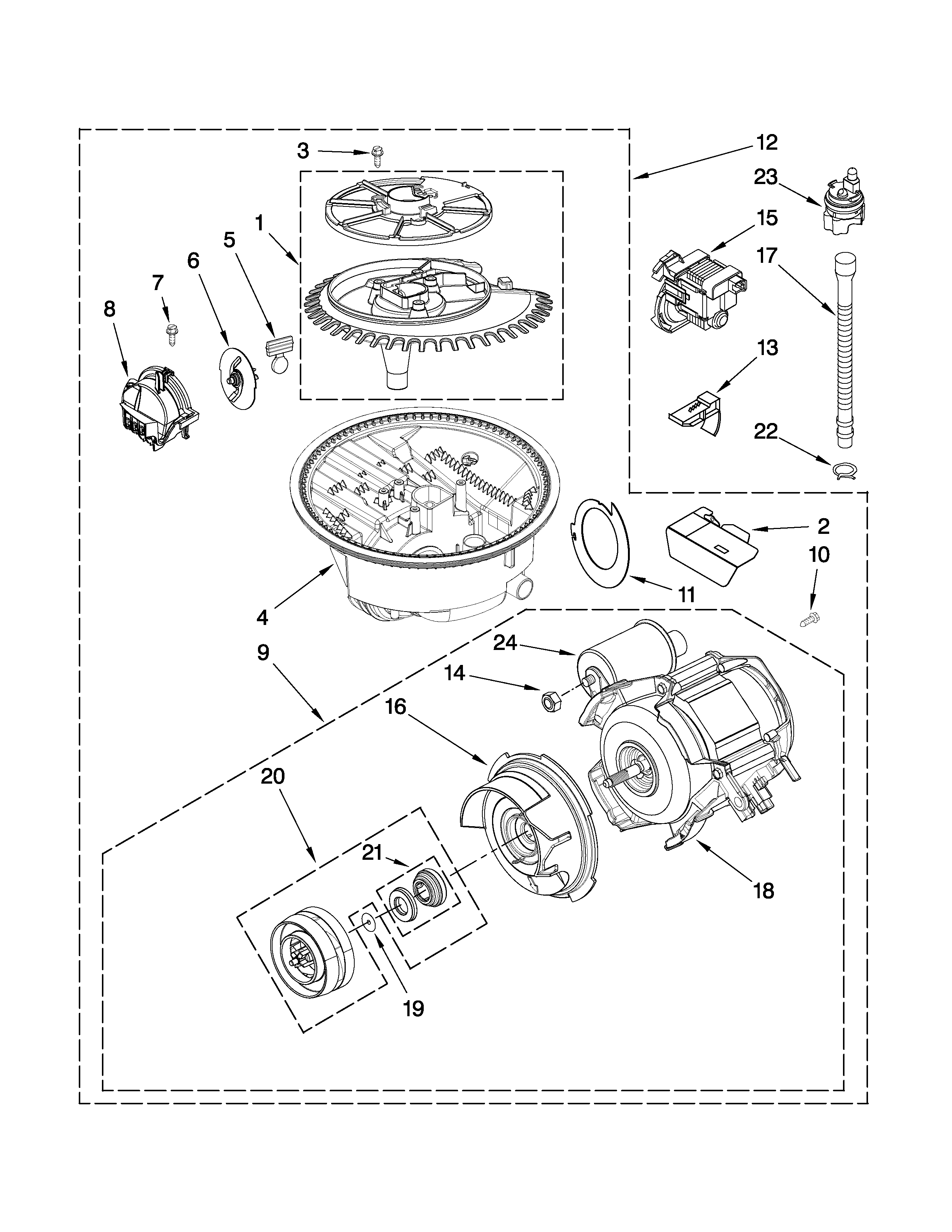

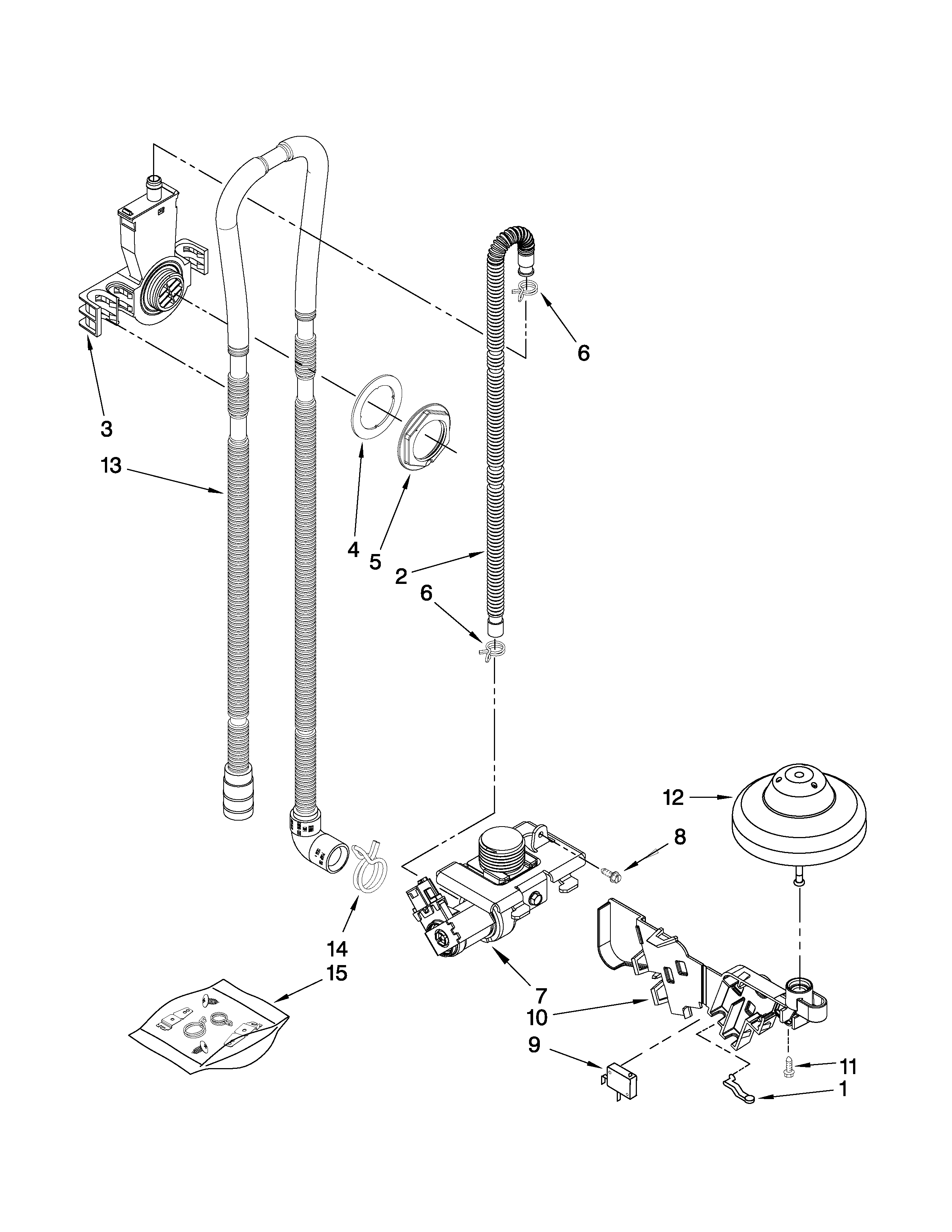

• Dishwasher drain pump WPW10348269
• Dishwasher drain hose 8269144A
• Dishwasher drain hose WPW10545278

Quick comparison

Symptom	Most likely cause	Common fix
Standing water after cycle	Clog or weak drain pump	Clear blockage; replace drain pump
Drains sometimes, not always	Kinked hose or intermittent pump	Correct hose routing; replace pump if noisy
Water on floor near door	Worn door seal	Replace door seal

Other frequent Whirlpool dishwasher problems (and what they point to)

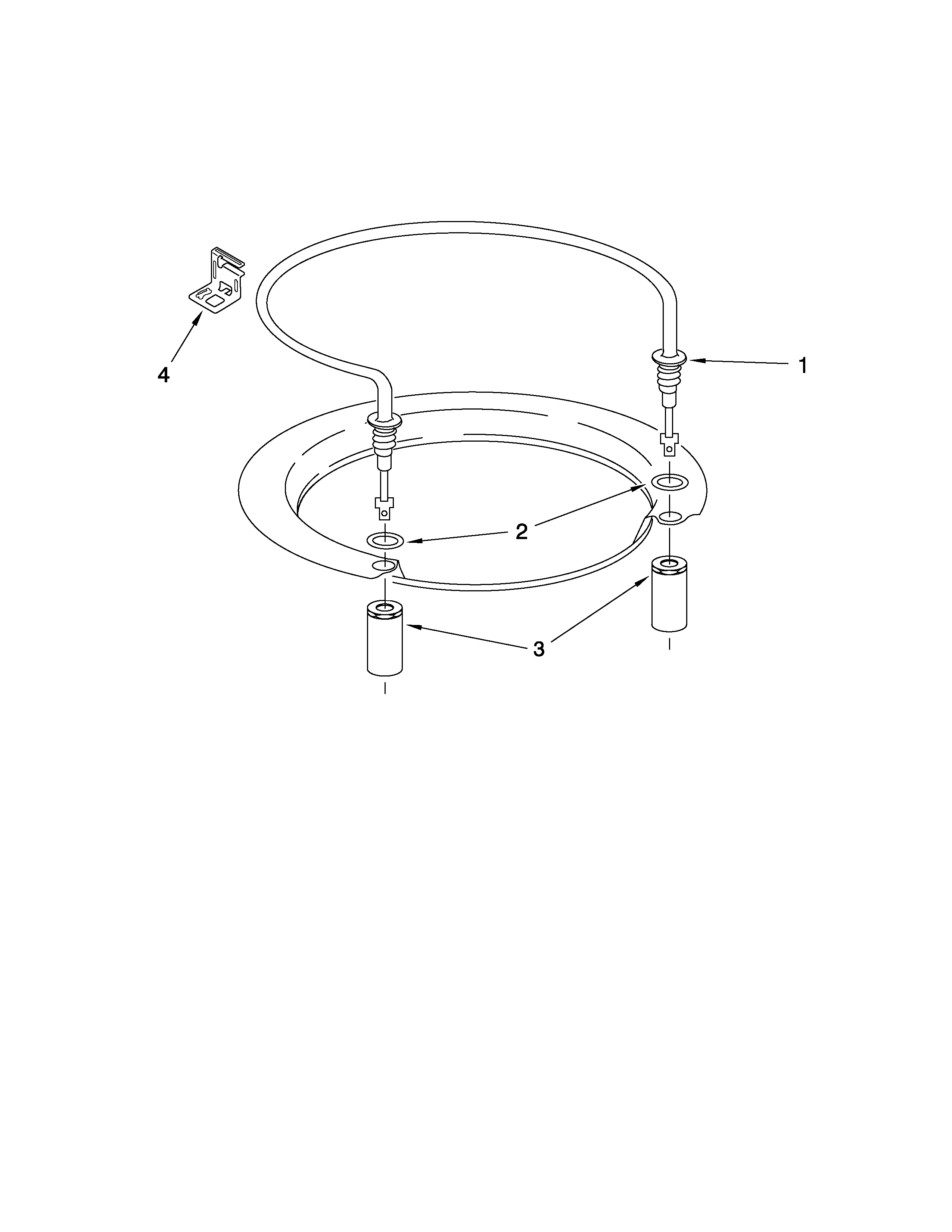

• Not heating or poor drying: heating circuit issue; check the dishwasher heating element W10518394 and thermostat.

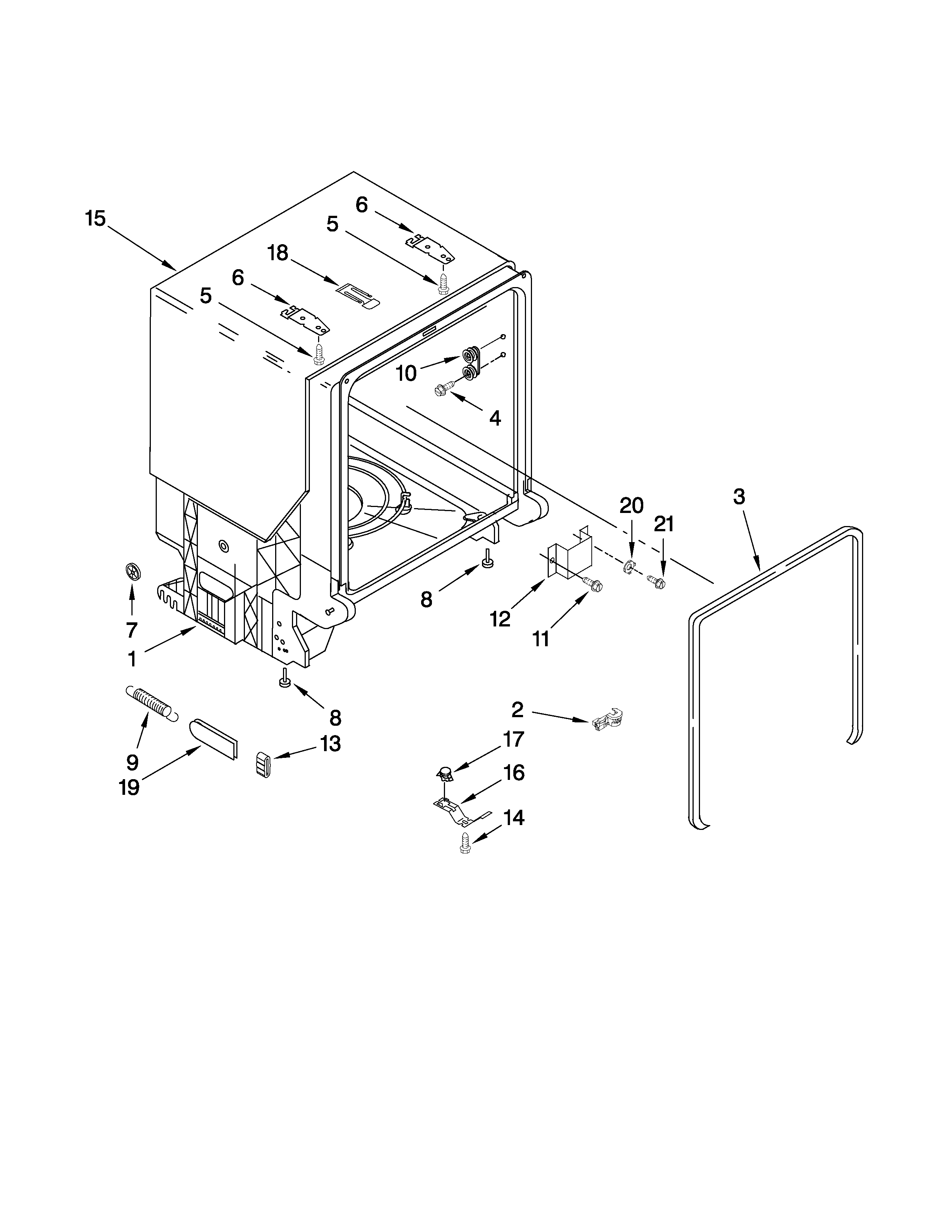

• Leaks: often a worn door seal or a sealing surface that needs cleaning; the dishwasher door seal W10542314 is a common fix.
• Won’t start or stops during a cycle: door not latched, power issue, or an electrical fault; the manual troubleshooting steps help narrow it down.

Why it matters

A dishwasher that does not drain can leave dirty water in the tub, cause odors, and strain the pump and motor. Fixing the drain path early prevents repeat clogs and reduces the chance of a mid-cycle shutdown.

Helpful references for this model

• Use the troubleshooting section in the owner's manual for DU1055XTVS2 to confirm symptoms and checks.
• For ordering, we list model-matched parts on this page; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

A 3-hour cycle is normal for the Whirlpool DU1055XTVS2 because energy-efficient dishwashers use a low-wattage motor and may pause to heat water to the correct temperature. Some cycles and options can push total time to about 3.5 hours; the first cycle after installation can also run longer.

What makes cycles run longer on this model

• Water heating delays: If incoming water is cool, the dishwasher extends the wash to heat it.
• Soil sensing adjustments: Models with an optical sensor adjust time based on soil level, water temperature, and detergent.
• First cycle calibration: The first wash after installation can add extra rinses.
• Selected options: Certain options can increase total time past 3.5 hours.
• Normal pauses: Some cycles pause briefly during the main wash.

Quick checks to keep cycle time reasonable

1. Run the kitchen hot water until it is hot before starting the dishwasher.
2. Confirm the cycle you chose matches the load (heavy cycles take longer than normal cycles).
3. Use rinse aid for better drying performance and fewer re-washes.
4. Avoid overloading; blocked spray patterns can lead to longer, less effective cleaning.
5. If the dishwasher is not heating or drying well, test the heating circuit components.

Parts that commonly affect heating and cycle time

If you also notice poor drying, cool water inside mid-cycle, or the unit seems to “stall” during heating, these parts are the most common suspects:

Symptom you notice	What it often points to	Part to check for DU1055XTVS2
Long cycle plus poor drying	Water not heating properly	Dishwasher heating element W10518394
Long cycle, inconsistent temps	Temperature control issue	Dishwasher thermostat WP661566
No power or stops unexpectedly	Electrical protection opened	Fuse W10258275

Why it matters

Longer cycles are how this dishwasher saves water and energy while still cleaning well. When the unit has to heat water longer than expected, cycle time increases and drying performance usually drops too.

For cycle descriptions, option impacts, and troubleshooting steps specific to DU1055XTVS2, use the DU1055XTVS2 owner's manual. You can also order replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For a Whirlpool DU1055XTVS2 dishwasher showing F2 E2, the most effective reset is a power reset: turn off power at the breaker (or unplug) for 5 minutes, then restore power and start a short cycle. If the code returns, focus on the user interface and control connections.

What F2 E2 usually means

F2 E2 is commonly tied to a keypad or user interface communication problem (stuck key, moisture in the console, loose connection between the control panel and the electronic control).

Reset steps we recommend (in order)

• Turn the dishwasher off and shut off power at the circuit breaker for 5 minutes.
• Restore power and run a short cycle to confirm the code cleared.
• If the code returns, open the door and press each key once to check for a stuck button.
• Power off again; then inspect for moisture or detergent residue around the console area.
• If the dishwasher is dead or keeps stopping, check the home breaker and any inline fuse used in the dishwasher circuit.

Quick checks that prevent repeat errors

• Make sure the door is closing tightly and latching.
• Confirm the cycle selection is valid and the Start/Resume key responds normally.
• If the dishwasher stops mid-cycle, check for a tripped breaker; the motor can also reset itself after an overload.
• If the unit will not run at all, test the dishwasher’s fuse and replace it if blown.

Parts that commonly relate to this symptom

Symptom	Most likely area	Example part for DU1055XTVS2

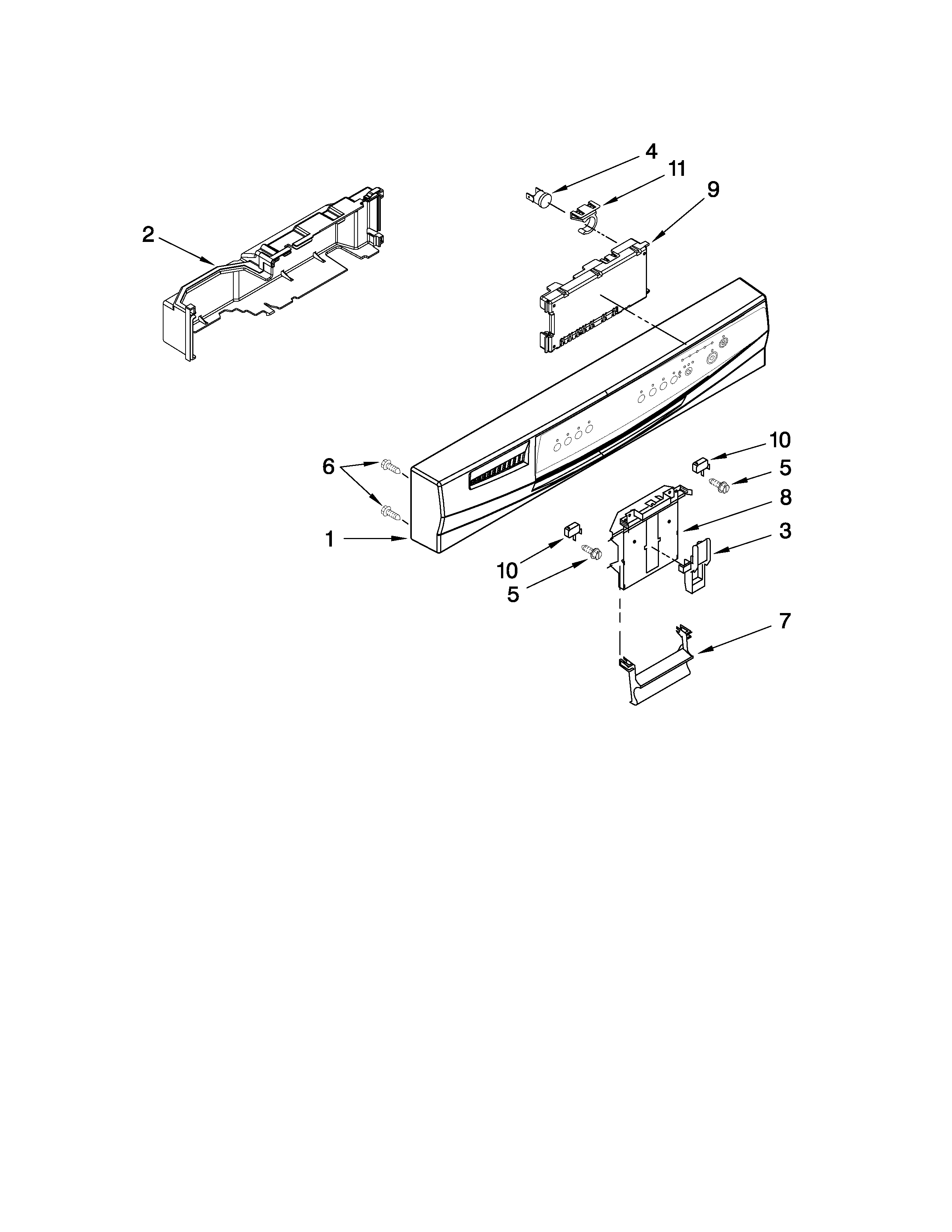

Keys do not respond or act “stuck”	Control panel/keypad	Control panel (black) WPW10459139
Random beeping, erratic operation	Main control	Dishwasher electronic control board WPW10285180
No power to dishwasher	Electrical protection	Fuse W10258275

Why it matters

A simple power reset clears temporary logic faults, but a repeating F2 E2 typically points to a control-panel input issue. Addressing it early helps prevent mid-cycle stops and protects the electronic control from repeated fault conditions.

For model-specific operating steps and cycle behavior, use the owner's manual. For installation-related wiring and connection guidance, use the installation guide. To order replacement parts for DU1055XTVS2, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A Whirlpool dishwasher typically lasts 10 to 12 years with normal household use. For your Whirlpool DU1055XTVS2 undercounter dishwasher, consistent cleaning, correct detergent use, and protecting key components like the heater and pumps are what most directly determine whether you reach (or exceed) that range.

What affects dishwasher lifespan the most

• How often you run it (1 load/day vs. 2 to 3 loads/day adds wear)
• Water quality (hard water speeds up mineral buildup and can reduce cleaning and drying performance)
• Drying system health (heater, thermostat, venting)
• Drain performance (standing water strains the drain pump and can cause odors)
• Door sealing and leaks (leaks can damage wiring and the control)
• Loading habits (overloading increases pump and motor load)

Maintenance that helps you get the full 10 to 12 years

Use these habits to reduce stress on the wash system and electronics:

• Use a rinse aid for better drying and to reduce hard-water deposits (this is especially important on energy-efficient cycles).
• Keep the door seal clean and wipe it regularly; replace it if it’s torn or flattened.
• Make sure the dishwasher drains fully after each cycle.
• Run hot water at the sink briefly before starting a cycle (helps wash performance and reduces long heat-up periods).
• Avoid forcing the door closed on tall items; it can deform the seal and cause leaks.

Parts that commonly impact longevity on DU1055XTVS2

If performance drops, these are high-impact parts to check or replace:

Symptom	Common cause	Example part for this model
Poor drying, cool water	Heater or temperature control issue	Dishwasher heating element W10518394, dishwasher thermostat WP661566
Won’t drain, water left in tub	Drain restriction or weak pump	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Leaks at the door	Worn or damaged gasket	Dishwasher door seal W10542314
Dead or intermittent power	Blown safety fuse or wiring issue	Fuse W10258275

Why it matters

Once a dishwasher reaches the 10 to 12 year mark, small issues (slow draining, weak heating, minor leaks) can cascade into bigger failures like control damage or motor overload. Fixing the early symptoms often extends the useful life and keeps cycles closer to normal run times.

Ordering the right parts

We recommend matching parts to the full model number DU1055XTVS2 and using the parts list for this model first; you can also search by model number on Sears PartsDirect. For operating and care guidance that supports long life, use the owner's manual.
