To move your Jenn-Air JFC2290VEM7 refrigerator safely, unplug it, protect the floor, then raise the front leveling screws so the front rollers touch the floor and you can pull the unit straight out. Use two or more people because the refrigerator is heavy.

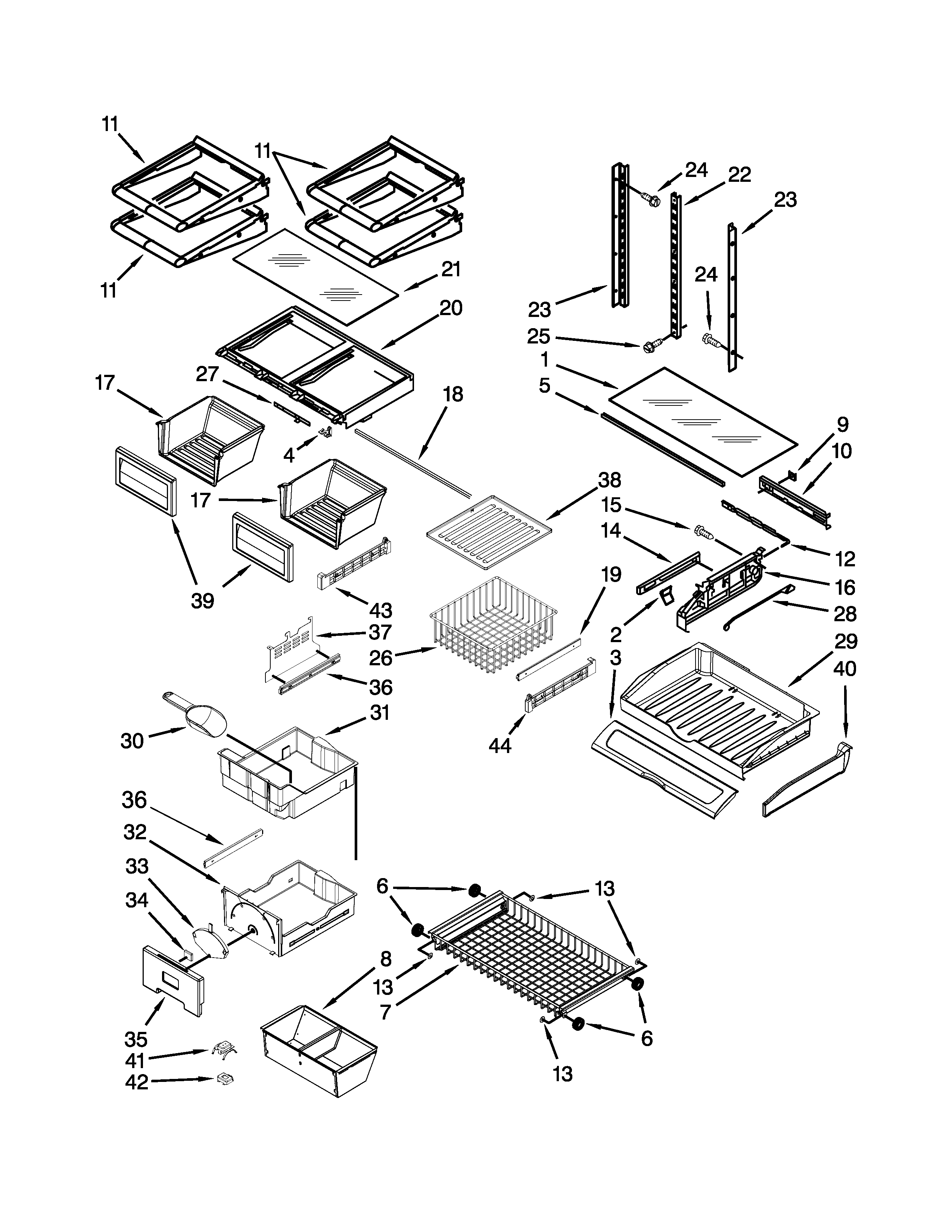

• Remove food and secure loose bins and glass shelves so they do not shift.
• Unplug the power cord.
• Protect the floor with cardboard or hardboard.
• Remove the base grille (it is typically held by screws) to access the leveling screws.
• Turn the front leveling screws to raise the front until the rollers touch the floor.
• Pull the refrigerator straight out; do not wiggle or “walk” it.

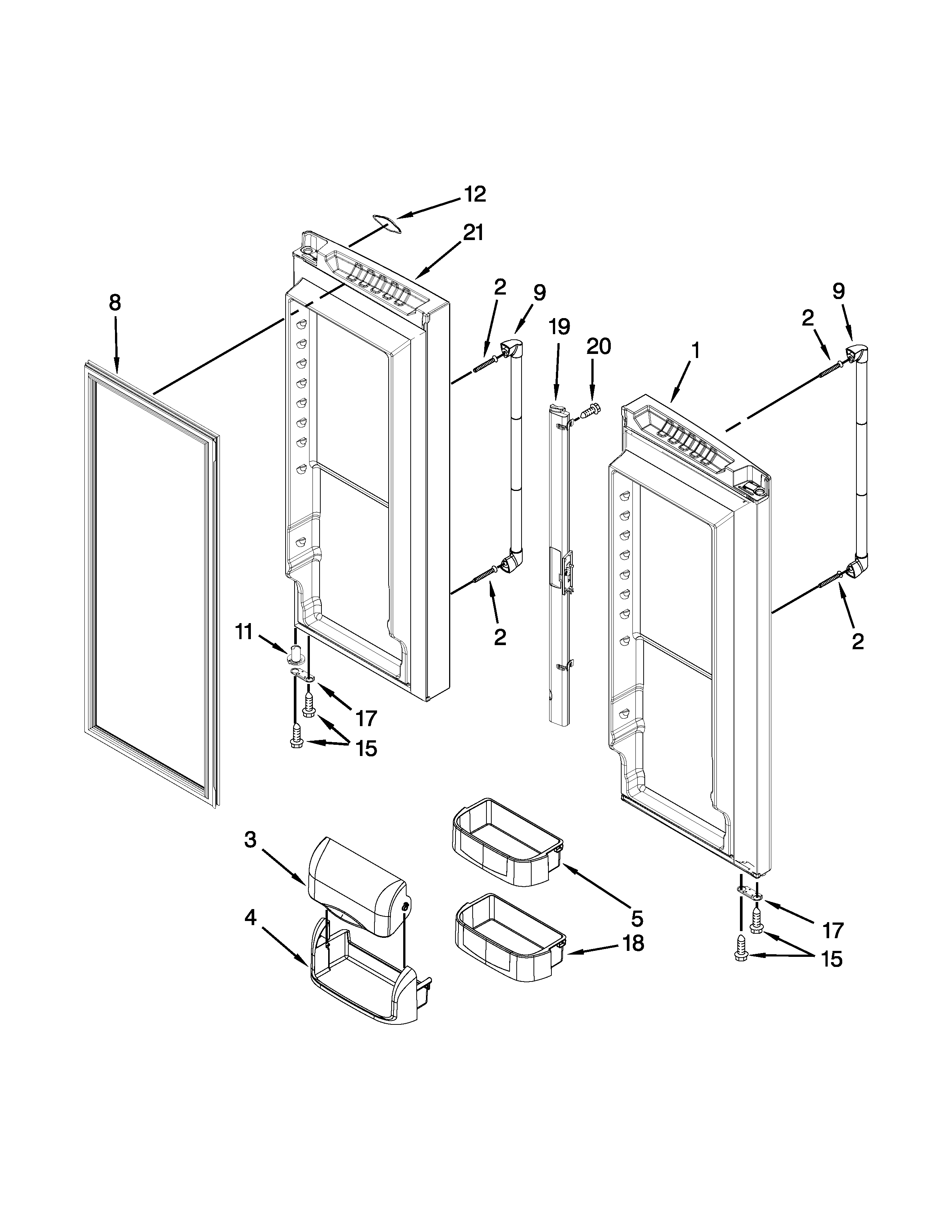

If the refrigerator must pass through a tight doorway, door removal is a common next step. Follow the door removal and replacement procedure in the JFC2290VEM7 owner's manual so wiring plugs, hinge covers, and hinge screws are handled correctly.

Moving a bottom-mount refrigerator the right way prevents floor damage, protects the door alignment and hinges, and reduces the risk of back injury. Raising the leveling screws to put weight on the rollers makes the unit easier to move without twisting the cabinet.

Last updated: January 2026

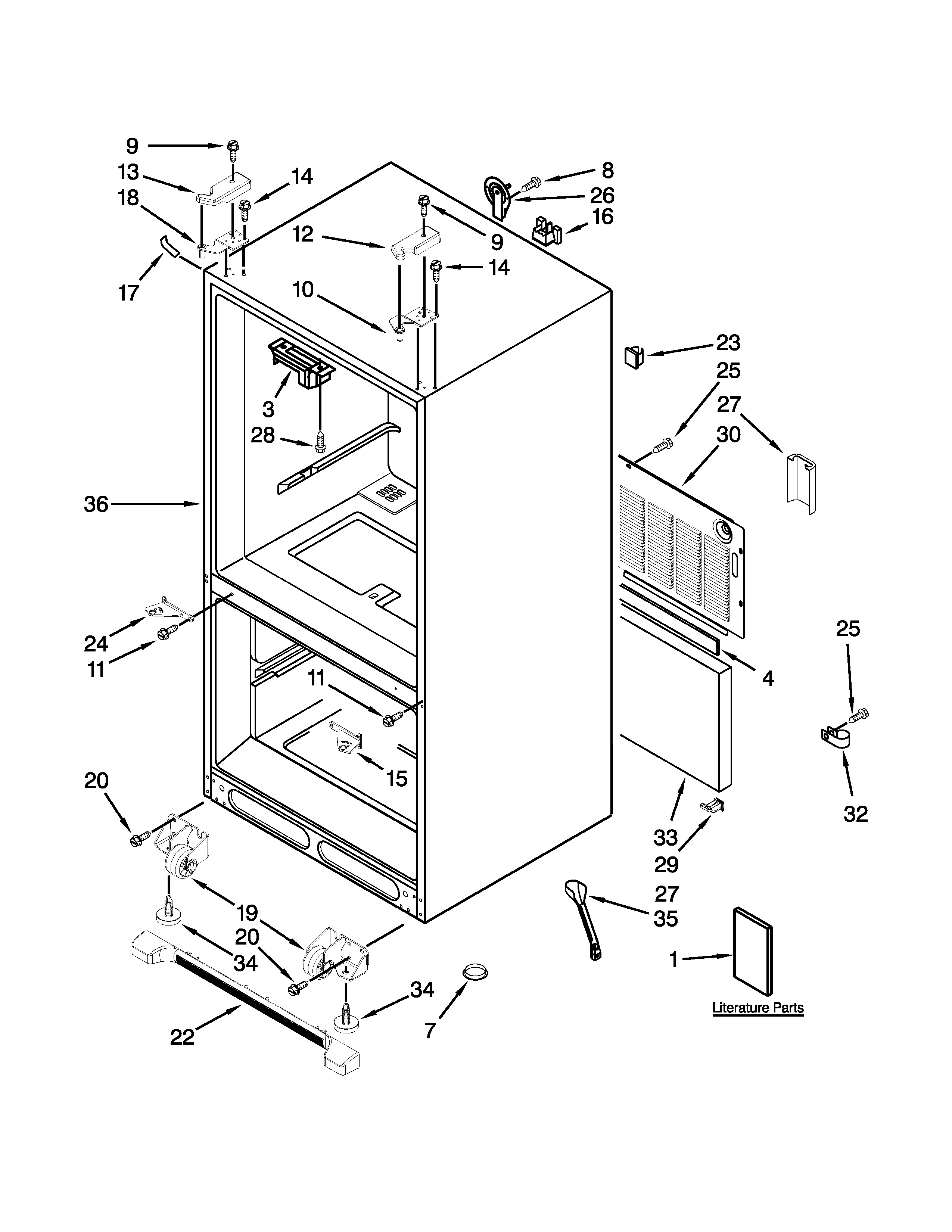

No. Many refrigerators have bottom rollers or wheels to help you move them, but not all models do. On the Jenn-Air JFC2290VEM7, the cabinet is supported by front rollers plus two adjustable front leveling screws that stabilize the refrigerator once it’s in position (details are in the JFC2290VEM7 owner's manual).

Most bottom-mount refrigerators use a mix of rollers and leveling feet so the unit can be moved, then locked in place.

• Front rollers or wheels help you pull the refrigerator out for cleaning and service
• Front leveling screws (or feet) raise the front to reduce rocking and improve door closing
• Rear supports may be rollers, fixed feet, or a track-style base depending on design
• A base grille often covers the leveling points and lower components

We recommend checking the base area and confirming the adjustment method.

• Remove the base grille (if equipped) to access the leveling screws
• Look for roller contact points at the front base
• If the refrigerator rocks, the leveling screws likely need adjustment
• Before moving the refrigerator, raise the leveling screws so the front rollers touch the floor

Rollers make moving easier, but leveling is what keeps the refrigerator steady and helps the doors seal correctly. A refrigerator that is not level can feel unstable and may have door-closing or sealing issues.

Last updated: January 2026

Water leaking from the bottom of your Jenn-Air JFC2290VEM7 refrigerator is usually caused by defrost water not draining into the drain pan, a loose or leaking water supply connection, or warm air leaks that create excess condensation. Start by checking the defrost drain path and the water line connections.

• Clogged defrost drain: Meltwater from defrost can back up and spill, then run down to the bottom.
• Cracked, shifted, or overflowing drain pan: Normal defrost water should collect and evaporate; if the pan is out of place, water can end up on the floor.
• Water supply line leak: A slow drip at the rear connection or valve area can track forward and look like a bottom leak.
• Ice maker fill or supply issue: A small leak can freeze, then melt and drip later.
• Door not sealing well: Warm air intrusion increases frost and defrost water volume.

1. Confirm where the water appears
   • Front center under doors often points to a defrost drain issue.
   • Back near the wall often points to a water line or valve leak.
2. Check the freezer floor and rear panel for ice buildup
   • A sheet of ice on the freezer bottom is a strong sign of a restricted defrost drain.
3. Inspect the water supply connection and valve area
   • Turn off the household water supply before tightening or reseating fittings.
   • Follow the water line connection and safety steps in the JFC2290VEM7 owner's manual.
4. Look at the door gaskets for gaps or tears
   • Close a dollar bill in several spots; if it slips out easily, the seal is weak.

A bottom leak can lead to floor damage and can also signal airflow or defrost drainage problems that reduce cooling performance. Fixing the root cause helps prevent repeat leaks and ice buildup.

Last updated: January 2026

Common problems we see on the Jenn-Air JFC2290VEM7 bottom-mount refrigerator include warm temperatures (fridge warm or freezer warm), ice maker not making ice, water leaks, and unusual noises. Many issues trace back to airflow restrictions, dirty condenser coils, door seal gaps, or a failed fan, valve, or control.

• Fridge warm, freezer cold: blocked air vents, evaporator frost buildup, or an evaporator fan issue
• Both sections warm: dirty condenser coils, condenser airflow problem, or sealed system/compressor problem

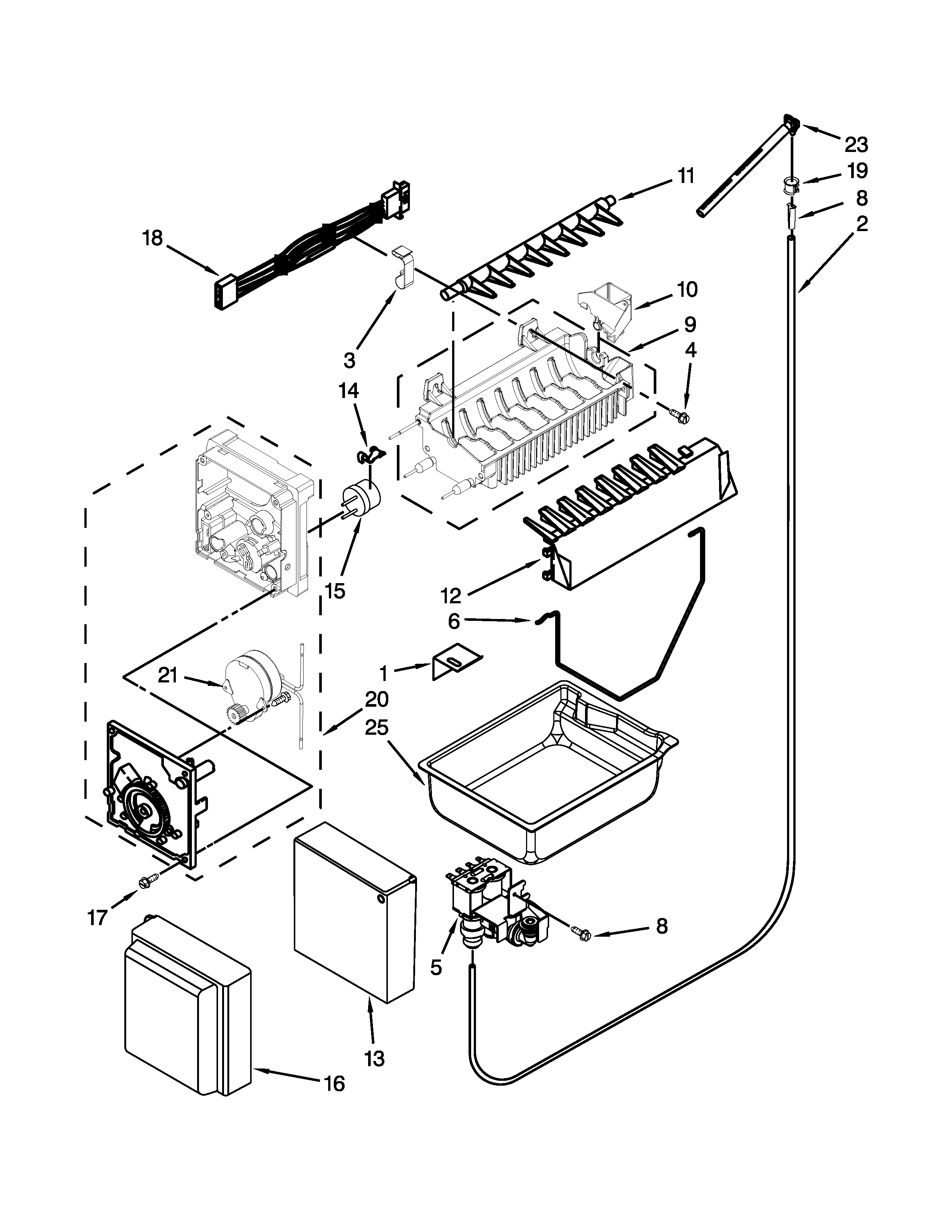

• Ice maker not working: water supply issue, inlet valve problem, or ice maker assembly failure
• Water leaking: clogged/iced drain, loose water line connection, or valve seepage
• Noisy operation: evaporator fan blade rubbing ice, worn fan motor, or compressor start components

Use the JFC2290VEM7 owner's manual troubleshooting section as you go.

• Confirm the refrigerator is plugged into a grounded outlet and controls are turned on
• Allow 24 hours after installation or major temperature changes for cooling to stabilize
• Make sure air vents inside the compartments are not blocked by food packages
• Check door closing and gasket contact all the way around
• If the unit has a water dispenser, discard the first glass if water is not cold yet

If troubleshooting points to a specific component, these are common matches for the symptoms above:

A refrigerator that runs warm or leaks water often forces longer run times, which can increase wear on the compressor and can lead to food spoilage. Catching airflow, sealing, and water-supply problems early usually prevents bigger repairs.
