Model # MDB8600AWB Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag MDB8600AWB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

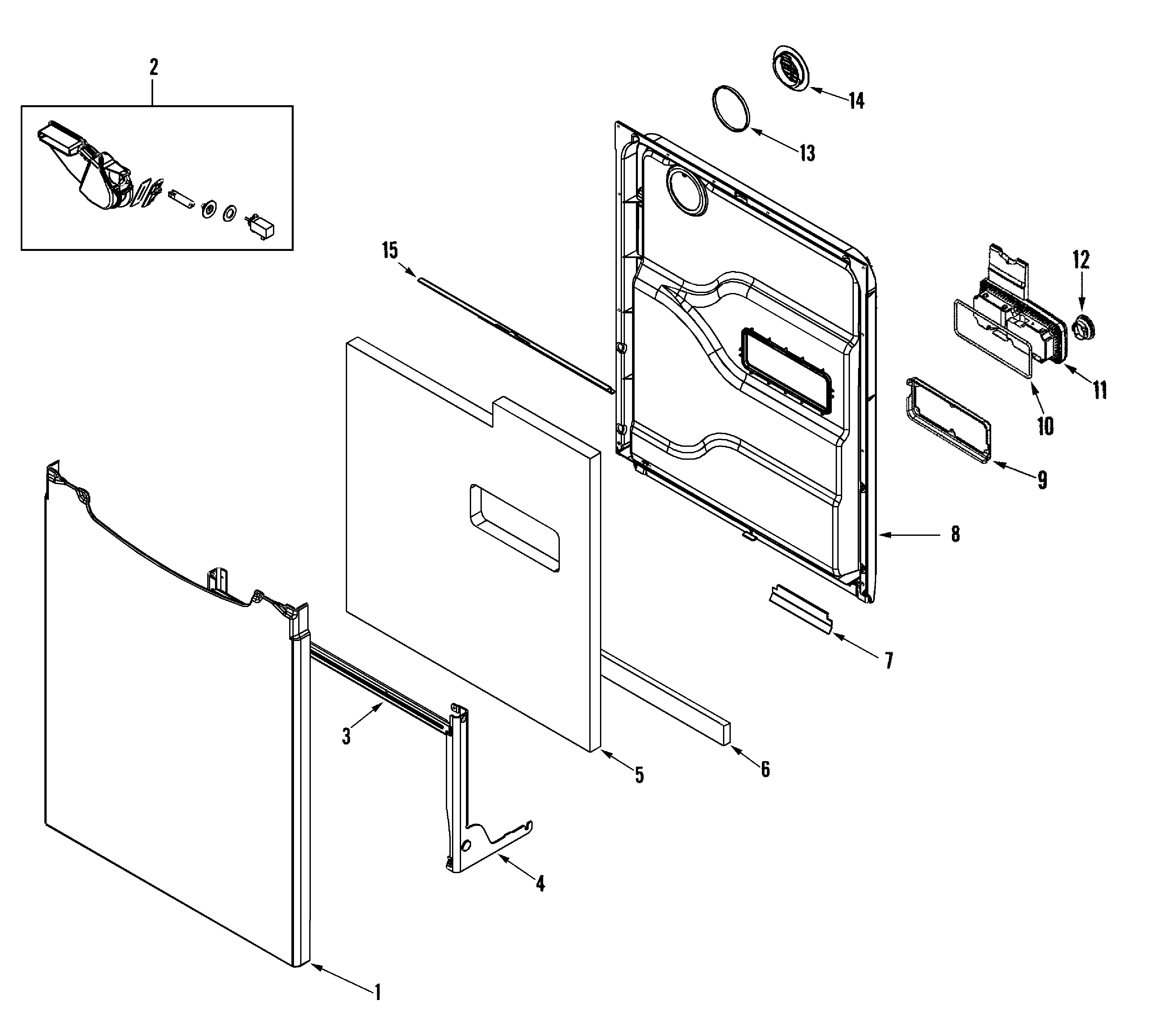

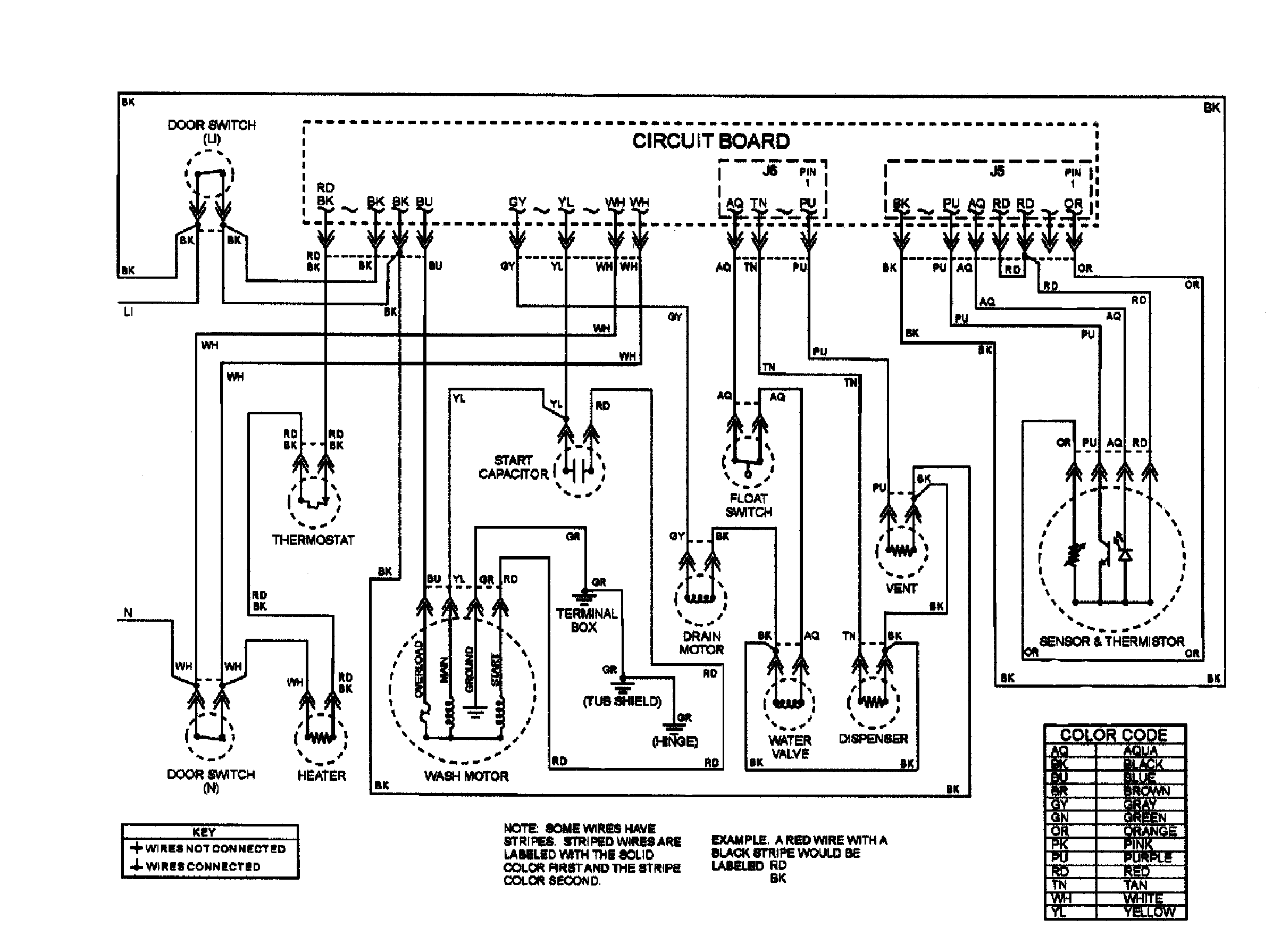

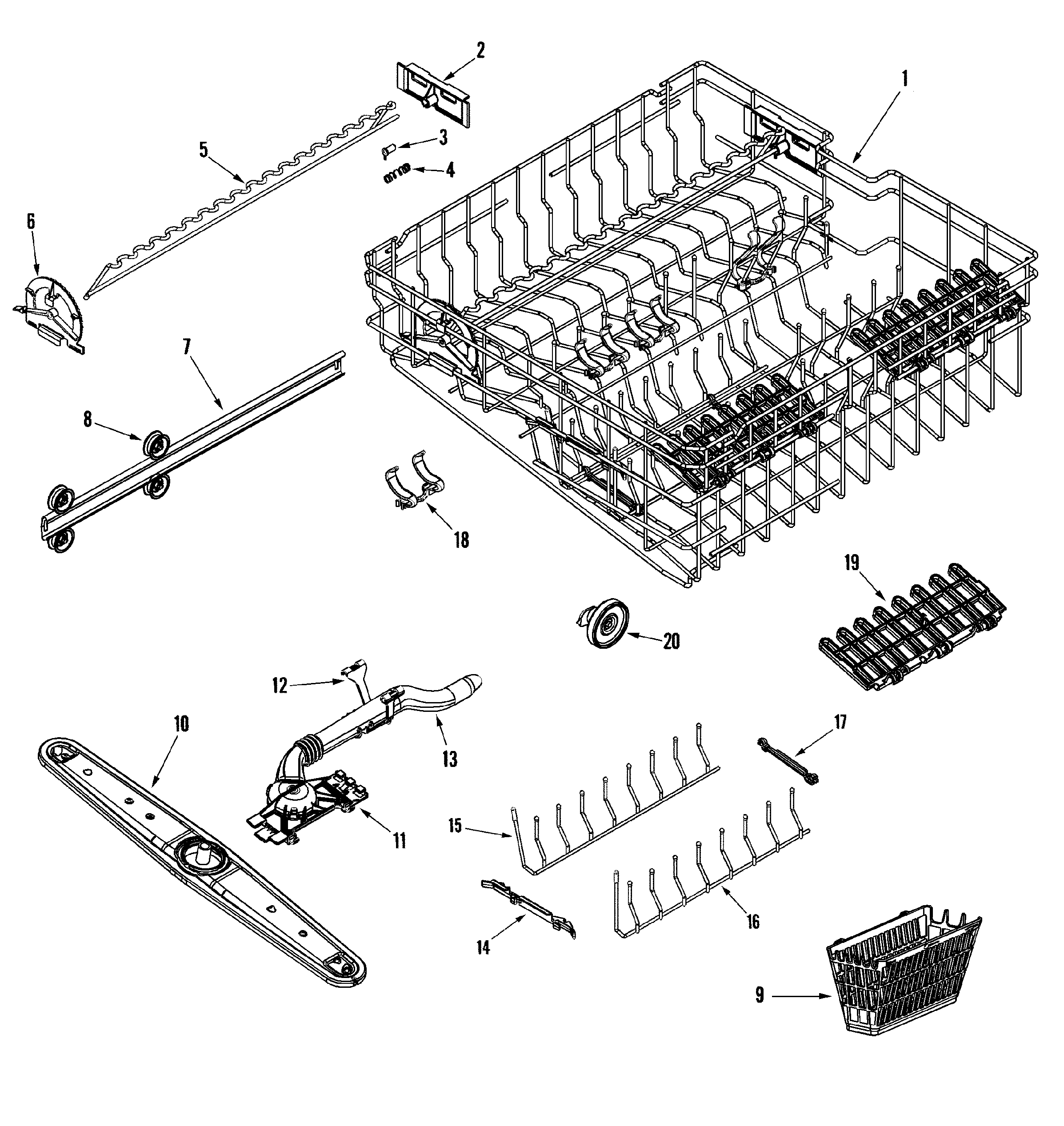

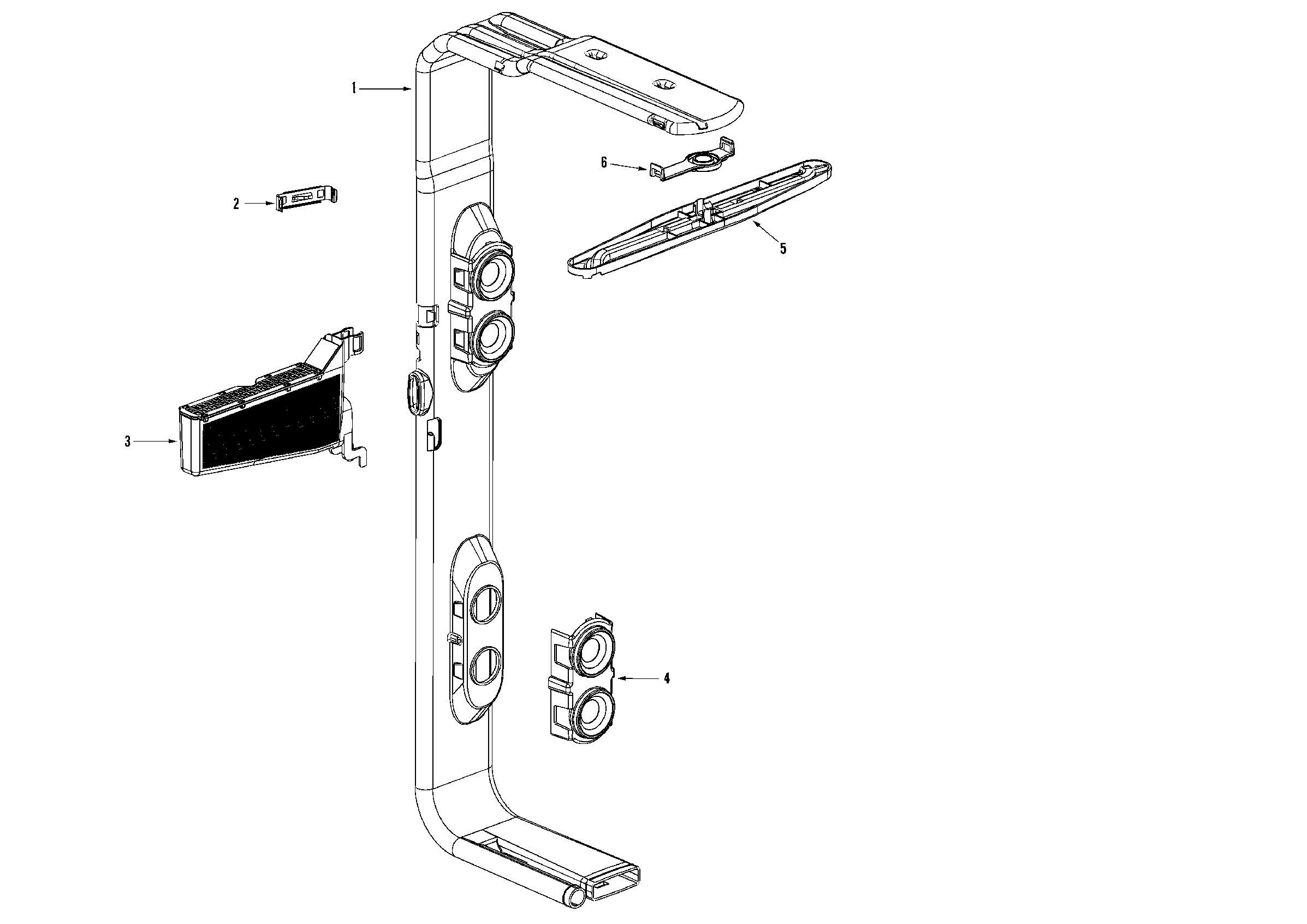

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 212 parts  |

Dishwasher Door Handle 99002579
#3B

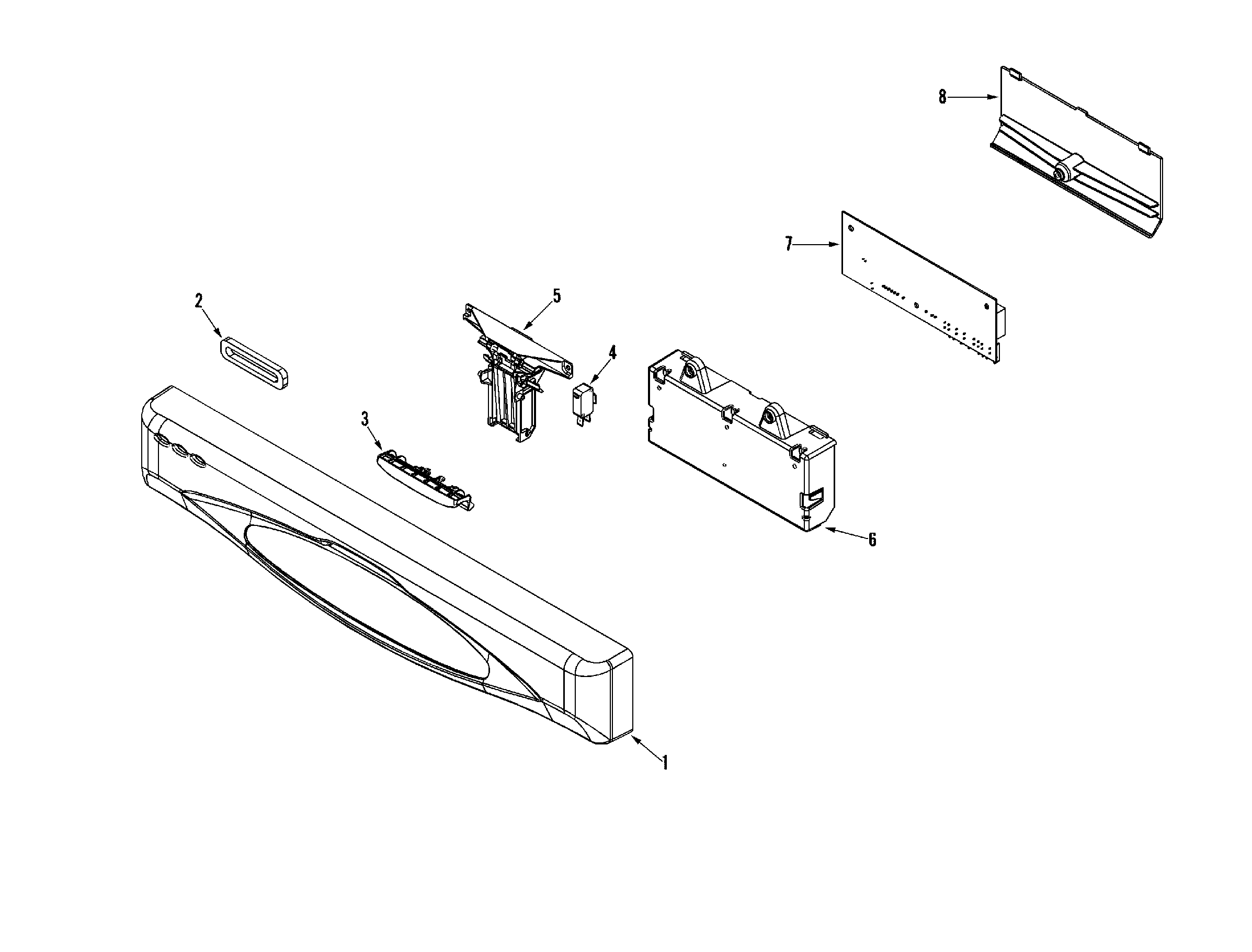

Control panel diagram

Dishwasher door handle

Part #99002579

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002579. Substitute parts can look different from the original.
BEST SELLER
$34.66
23% OFF MSRP : $45.00
In Stock
Latch Handle (black) 99002577
#3

Control panel diagram

Latch handle (black)

Part #99002577

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002577. Substitute parts can look different from the original.
BEST SELLER
$34.66
23% OFF MSRP : $45.00
In Stock
Latch Handle (off-white) 99002578
#3A

Control panel diagram

Latch handle (off-white)

Part #99002578

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002578. Substitute parts can look different from the original.
BEST SELLER
$34.66
23% OFF MSRP : $45.00
In Stock
Dishwasher Dishrack Roller, Lower 99002780
#20

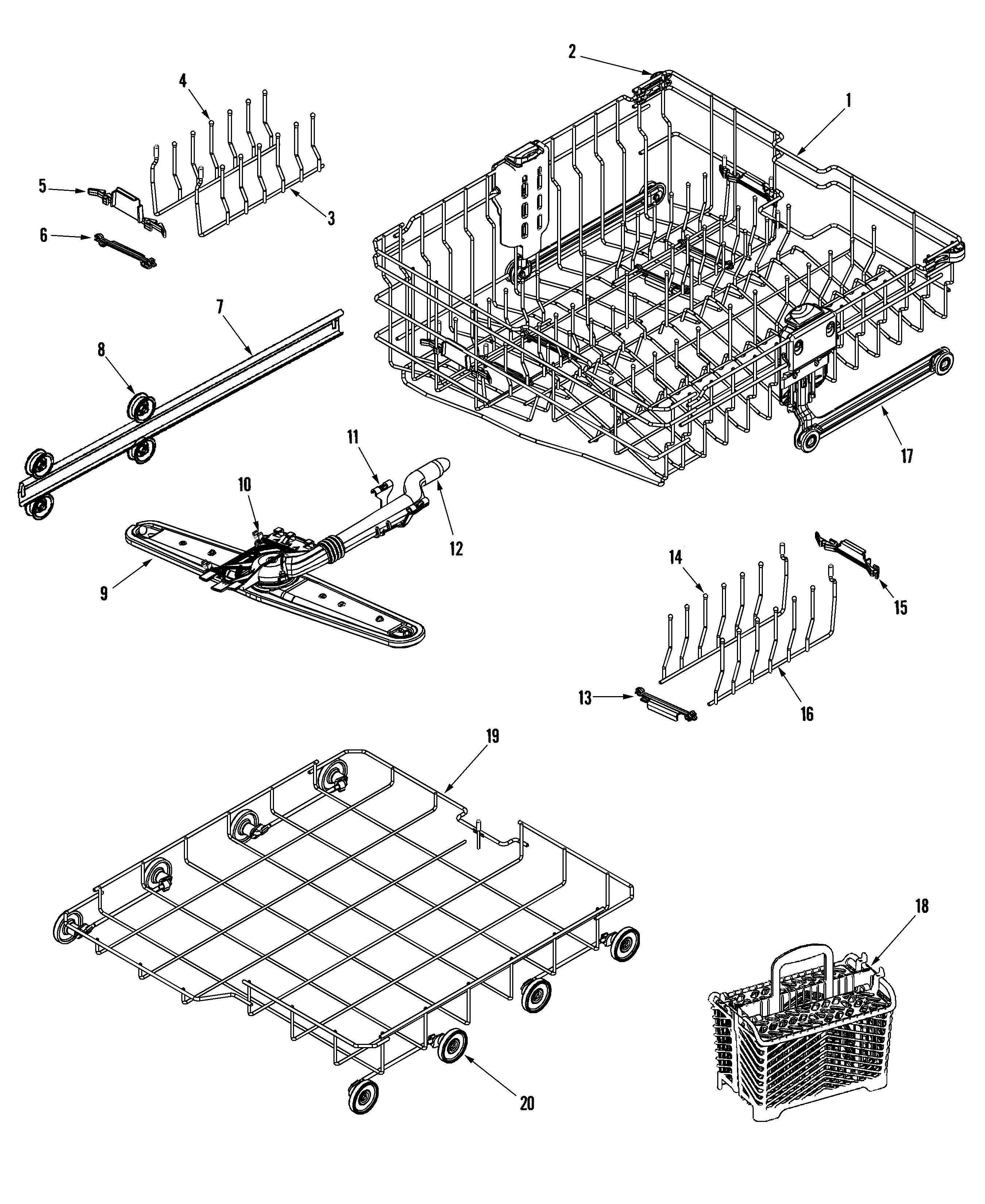

Rack assembly (middle/lwr) diagram

Dishwasher dishrack roller, lower

Part #99002780

Replaced by #WP99002780

?
Manufacturer substitution
This part replaces 99002780. Substitute parts can look different from the original.
This item is not returnable
$7.39
12% OFF Phone Price : $8.39
In Stock
Door Cable 99002605
#11

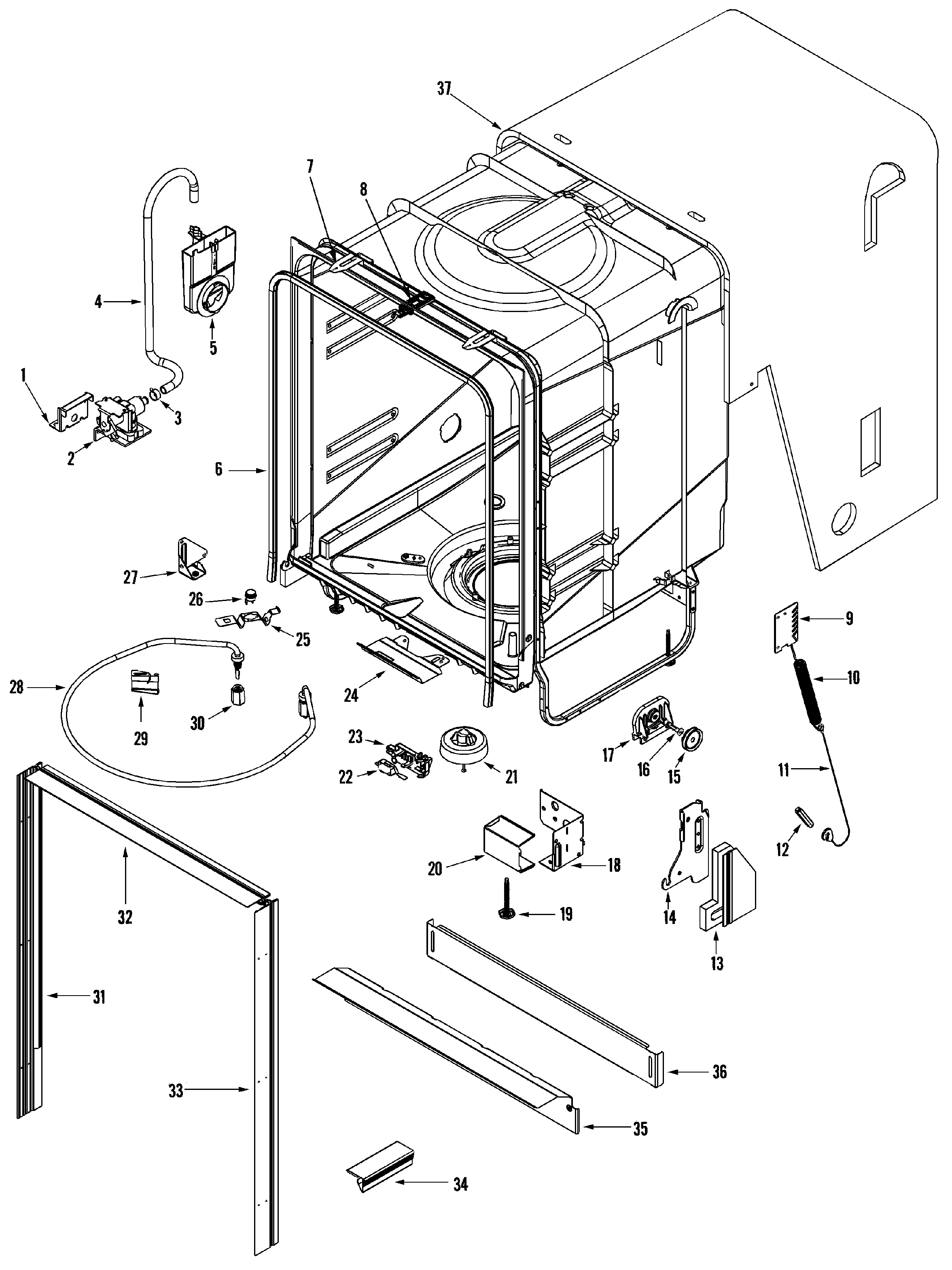

Tub diagram

Door cable

Part #99002605

Replaced by #WP99003446

?
Manufacturer substitution
This part replaces 99002605. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Door Complete Link 99002606
#12

Tub diagram

Door complete link

Part #99002606

Replaced by #WP99003446

?
Manufacturer substitution
This part replaces 99002606. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Impeller 99002741
#6

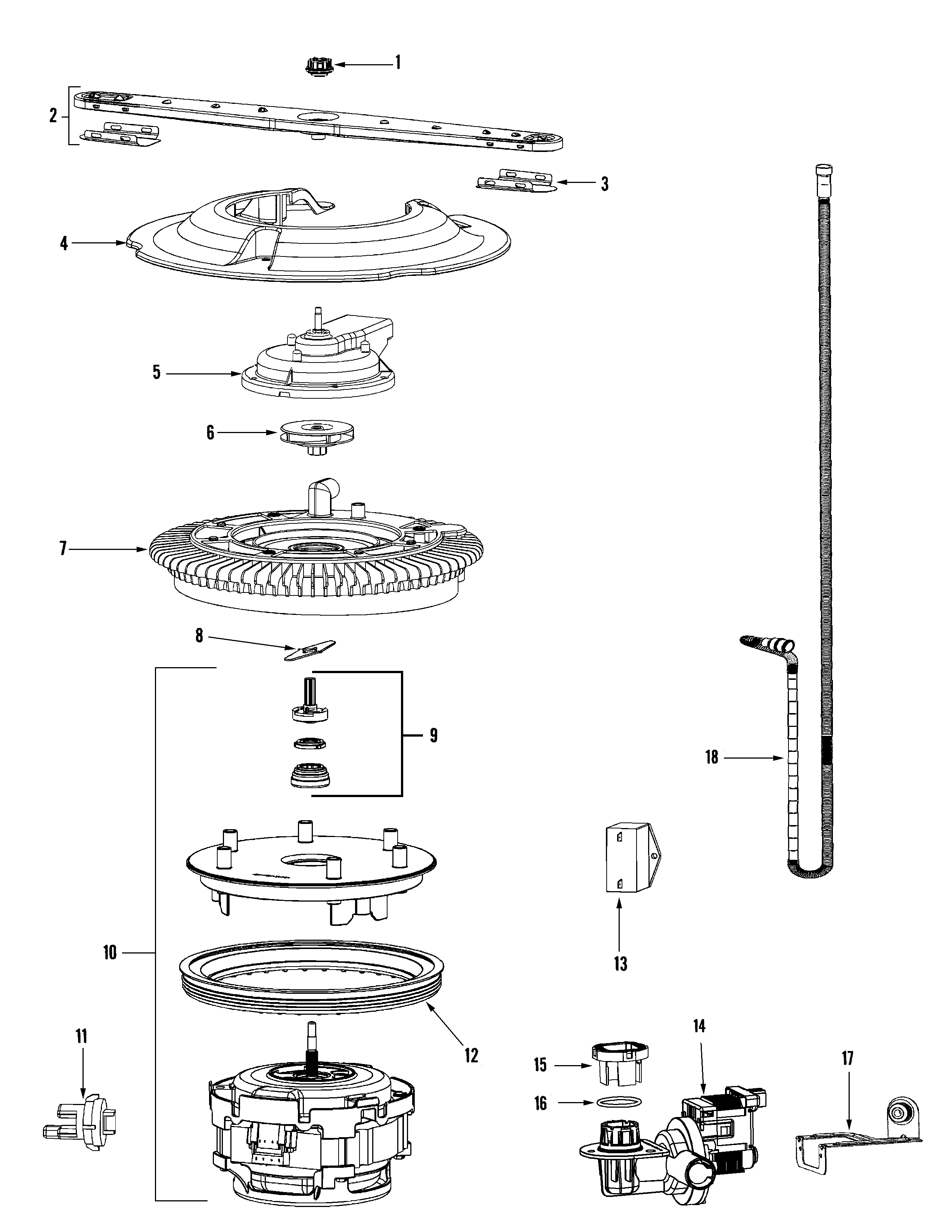

Pump & motor diagram

Impeller

Part #99002741

Replaced by #WP99002659

?
Manufacturer substitution
This part replaces 99002741. Substitute parts can look different from the original.
$34.08
13% OFF Phone Price : $39.08
In Stock
Door Screw 912620
Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95
20% OFF Phone Price : $4.95
In Stock
Filter Flow Plate 99002661
#7

Pump & motor diagram

Filter flow plate

Part #99002661

Replaced by #WPW10192799

?
Manufacturer substitution
This part replaces 99002661. Substitute parts can look different from the original.
$101.20
28% OFF MSRP : $140.00
In Stock
Dishwasher Door Spring 99002598
#10

Tub diagram

Dishwasher door spring

Part #99002598

Replaced by #WP99002598

?
Manufacturer substitution
This part replaces 99002598. Substitute parts can look different from the original.
This item is not returnable
$7.49
23% OFF MSRP : $9.70
In Stock
