Whirlpool GU2275XTVY2 undercounter dishwasher Parts

No. Whirlpool dishwashers are not all the same size. Your Whirlpool GU2275XTVY2 is a built-in (undercounter) dishwasher designed to fit a standard cabinet opening, but Whirlpool also makes compact, portable, and other configurations with different overall dimensions.

Common Whirlpool dishwasher size categories

Most Whirlpool dishwashers fall into these groups:

• Standard built-in (undercounter): the most common; fits a standard 24-inch cabinet opening
• Compact built-in: narrower for tight kitchens (often around 18 inches wide)
• Portable: rolls on casters; typically deeper and taller than built-ins
• Oversized or tall-tub built-in: still fits a 24-inch opening, but interior capacity and height adjustments can differ

What matters for GU2275XTVY2 fit

For a built-in model like GU2275XTVY2, the cabinet opening height and leveling range are the key “size” variables during installation.

• Many installations target about 34 inches from floor to underside of countertop
• The leveling legs and wheel position are used to fine-tune height
• Built-up floors (tile that stops at the opening) may require shims so the dishwasher sits correctly

For the exact installation clearances and adjustment steps, use the GU2275XTVY2 installation guide.

Quick size comparison (typical ranges)

Dishwasher type	Typical width	Typical height	Typical depth
Built-in (standard)	~24 in	~34 to 35 in	~24 in
Built-in (compact)	~18 in	~34 to 35 in	~22 to 24 in
Portable	~24 in	~36 to 37 in	~26 to 28 in

Why it matters

Choosing the right size prevents installation problems like a door that rubs, a unit that will not slide under the counter, or gaps that can affect noise and stability. It also helps you buy the correct installation parts (drain hose, clamps, and fittings) for your layout.

Last updated: January 2026

On Whirlpool dishwasher model GU2275XTVY2, an F2 E2 error is typically cleared by doing a power reset: turn the dishwasher off at the breaker (or unplug it) for 5 minutes, restore power, then start a short cycle to confirm the keypad responds normally. See the GU2275XTVY2 user manual for control and cycle details.

What to do first (quick reset checklist)

• Turn OFF power at the circuit breaker (preferred) or unplug the dishwasher.
• Wait 5 minutes to let the control fully reset.
• Restore power.
• Close the door firmly and try a Cancel/Drain or a short wash cycle.
• If the display returns to F2 E2, stop the cycle and move to the checks below.

If the error comes back: common causes to check

F2 E2 is commonly linked to a keypad or control communication issue. These steps often resolve it without replacing parts.

• Stuck key: Press each key once; make sure none feel jammed.
• Moisture on the console: Dry the control area; avoid spraying cleaner directly on the panel.
• Power supply issues: A tripped breaker or loose connection can cause odd control behavior.
• Door not fully latched: If the door is not closing tightly, the control can act erratically.

Parts that are often involved (when troubleshooting points there)

Symptom	Most likely area	What it suggests
Buttons do not respond at all	Console/control interface	Keypad or console issue
Random beeping or changing selections	Keypad	Stuck or shorted key
Dishwasher stops mid-cycle and won’t restart	Power/door latch/control	Intermittent connection or latch issue

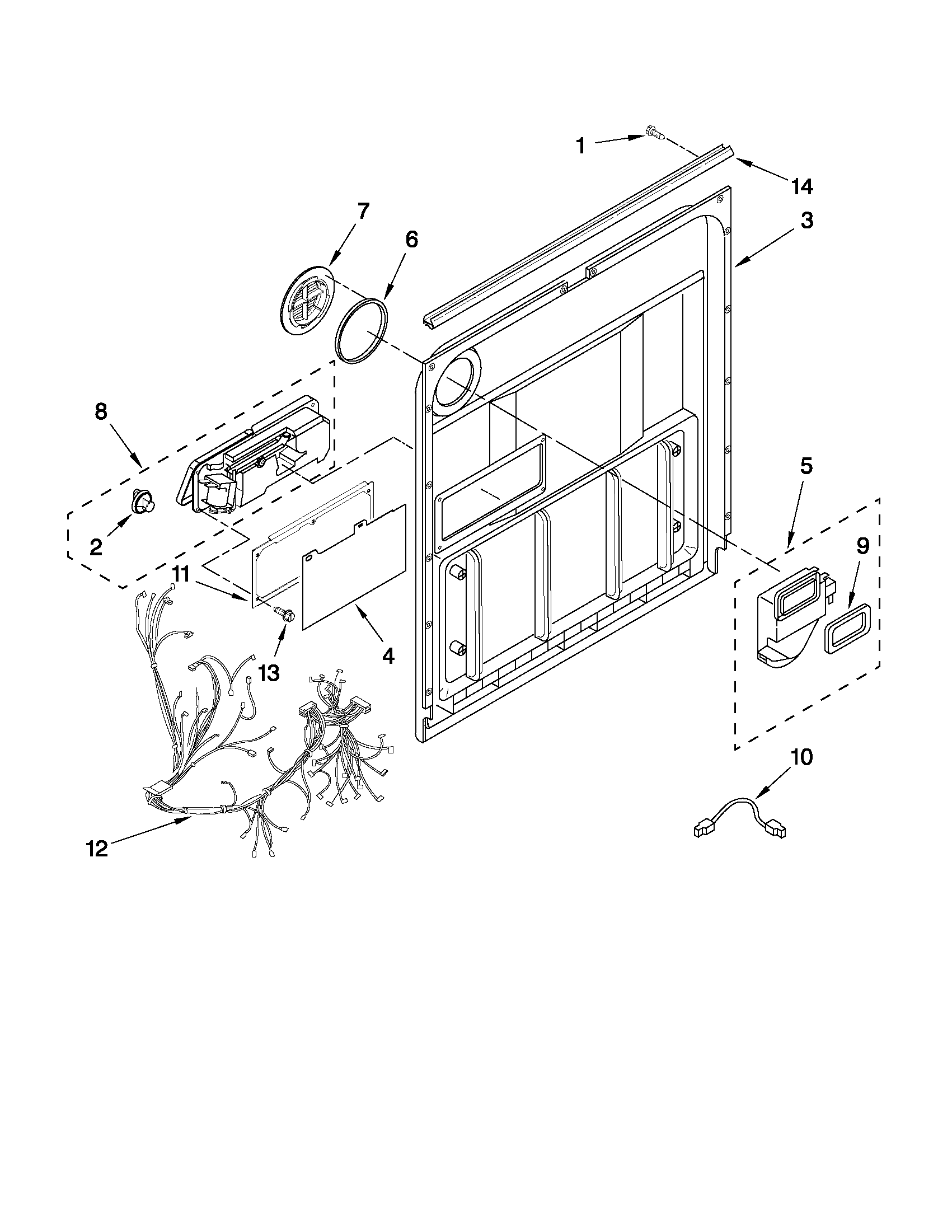

If the door is not latching consistently, inspect the latch mechanism and consider replacing the dishwasher door latch WPW10404409 when wear or damage is visible.

Why it matters

When the control senses a keypad communication problem, it can prevent normal operation to avoid unintended cycle starts or incorrect selections. Resetting power clears temporary glitches; checking the door latch and console helps prevent repeat errors.

Last updated: January 2026

The most common Whirlpool dishwasher problem is poor cleaning, usually caused by restricted water flow or wash action (clogged filter area, blocked spray arms, or low water temperature). On the Whirlpool GU2275XTVY2, drainage complaints and “won’t start” issues are also common and often trace back to simple checks in the GU2275XTVY2 owner’s manual.

Most common symptoms and what they usually mean

• Dishes still dirty or gritty: spray arms blocked, filter/sump area dirty, or weak circulation.
• Water left in the bottom: drain path restricted (air gap, hose, disposer inlet) or drain pump issue.
• Not drying well: heater not heating, rinse aid empty, or cycle options not set for drying.
• Won’t start or stops mid-cycle: door not fully latched, power issue, or motor overload reset.
• Leaks: door seal wear, door not closing squarely, or loose hose connections.

Quick checks we recommend first (fast, no parts)

1. Confirm the door is fully closed and latched (a loose latch can stop the cycle).
2. Verify power: check the breaker or fuse (the manual calls this out as a primary no-run check).
3. Make sure the water shutoff valve is turned on.
4. If it is not draining well, clean the sink drain air gap (if your setup has one).
5. Load correctly so items do not block spray arms; avoid nesting that prevents water contact.

Parts that commonly solve the “big four” complaints

Problem	Common fix area	Example part for GU2275XTVY2

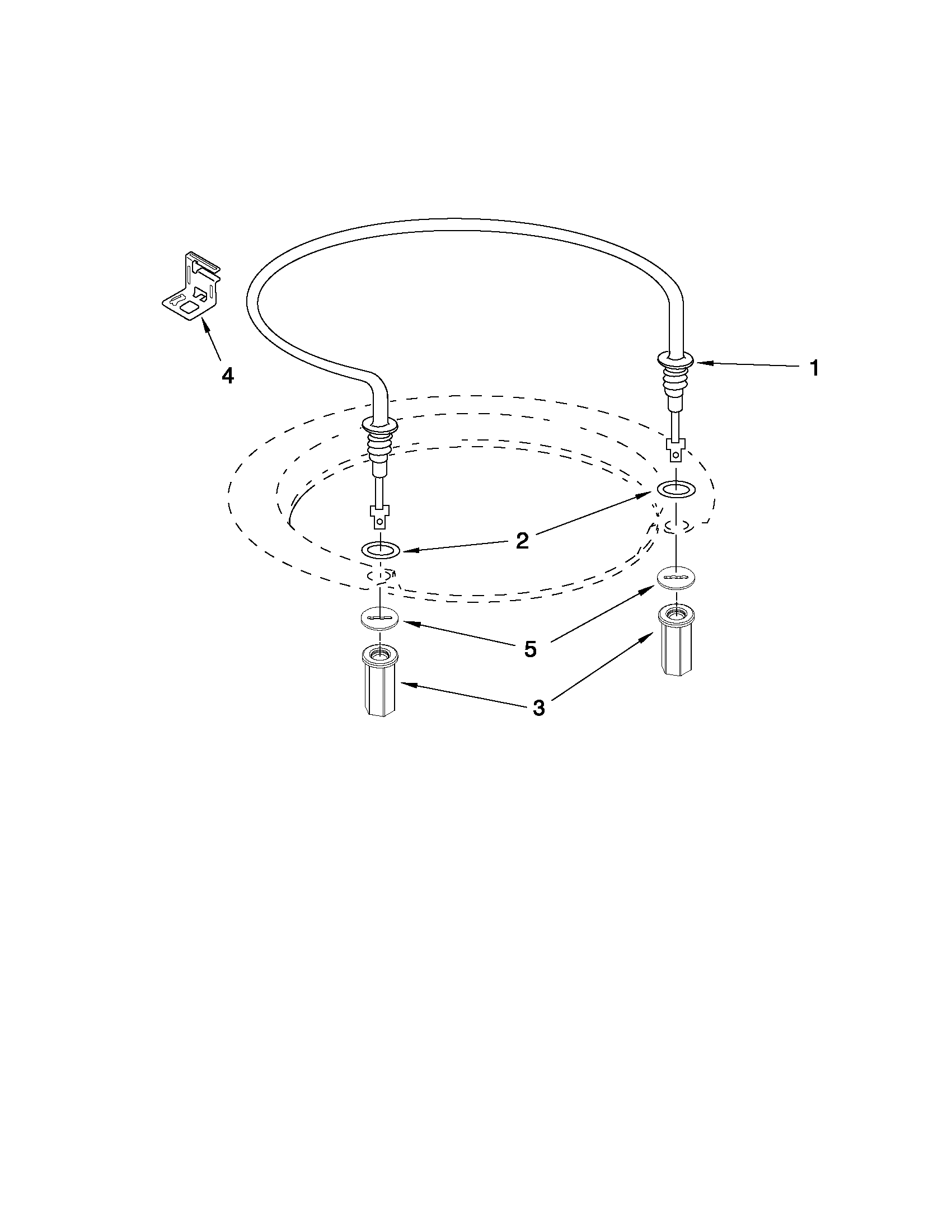

Poor drying	Heating circuit	Dishwasher heating element W10518394
Not draining	Drain system	Dishwasher drain pump WPW10348269

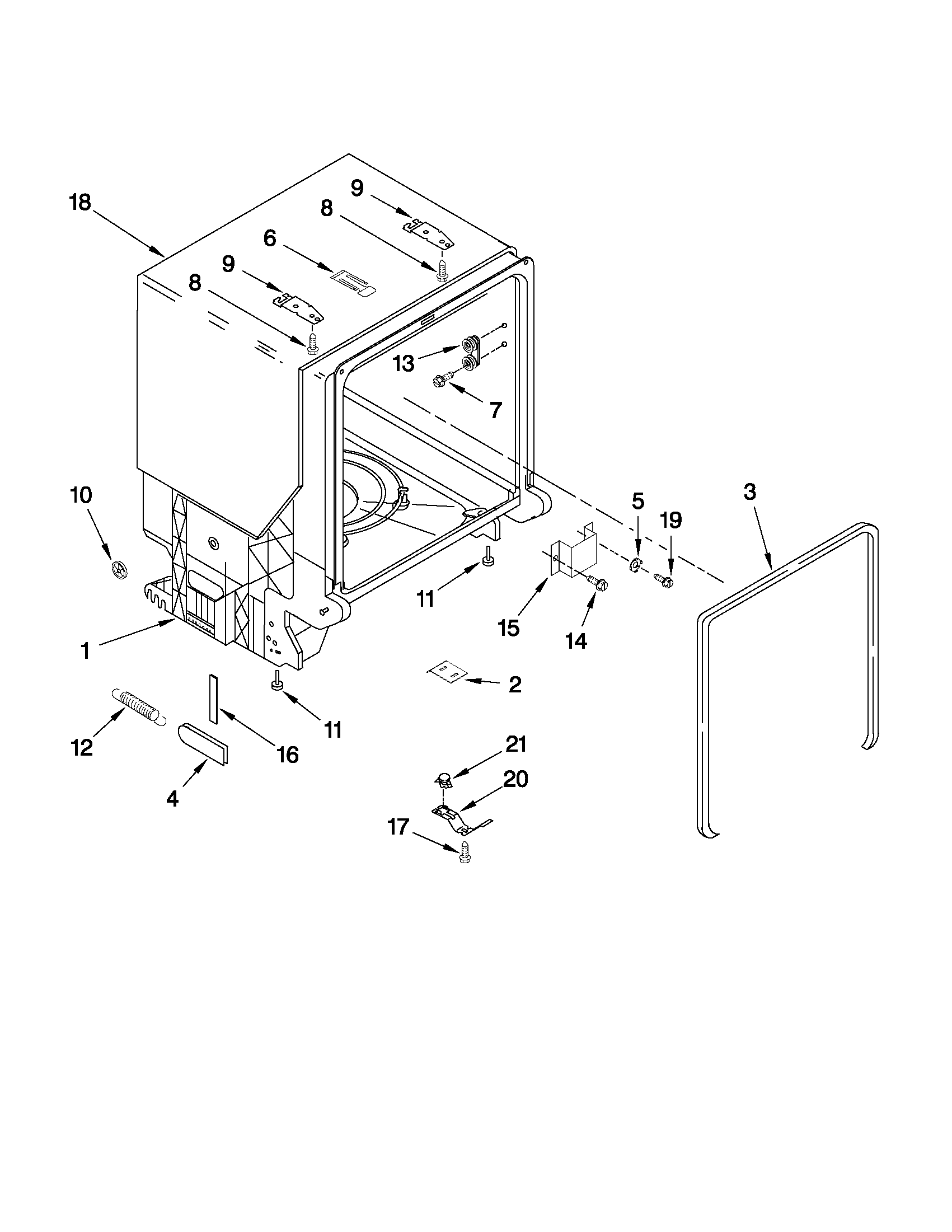

Leaking at door	Door sealing	Dishwasher door seal and strike kit W10542314

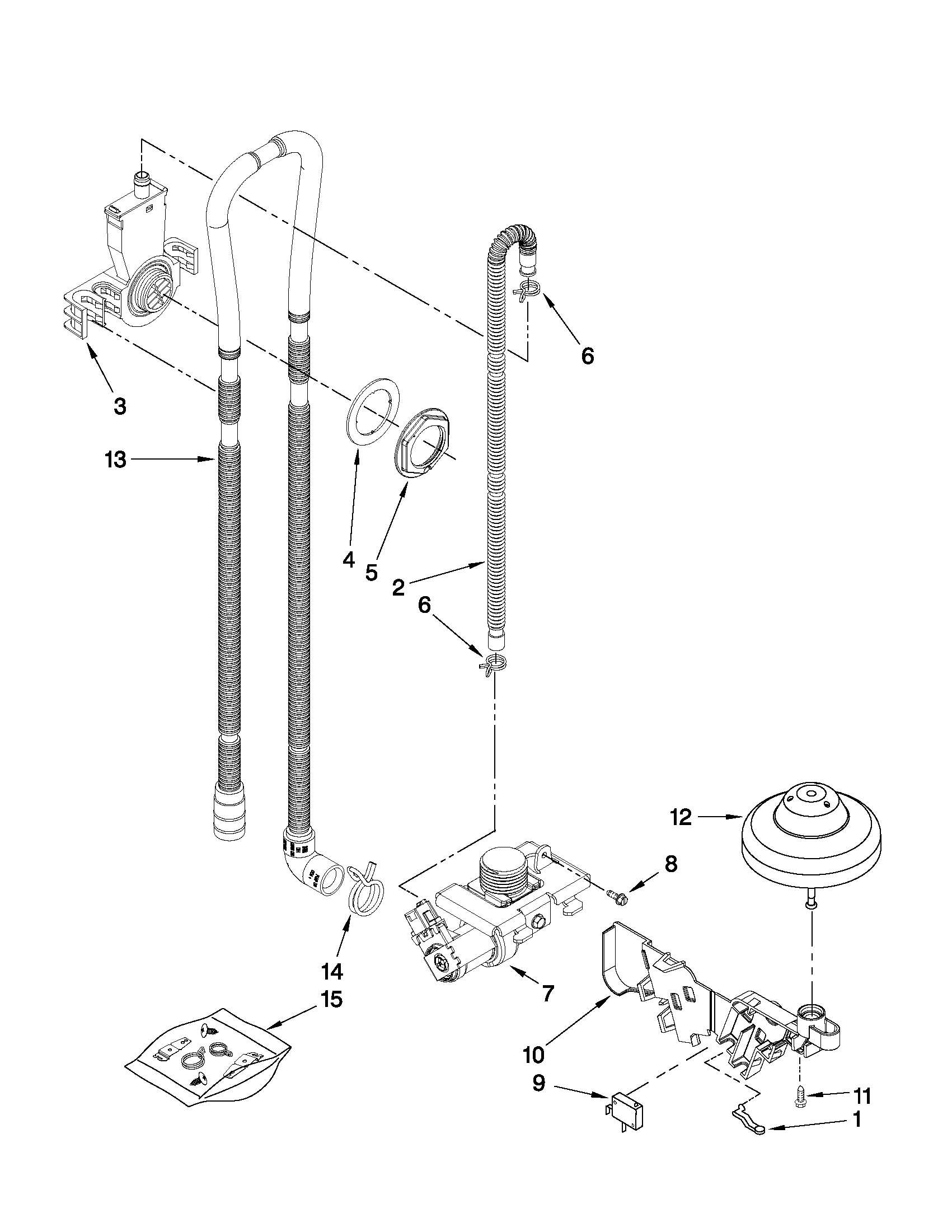

Not filling	Water supply into tub	Dishwasher water inlet valve W10648041

Why it matters

Most “common problems” are maintenance or flow related; fixing restrictions early improves cleaning, prevents standing water odors, and reduces strain on the pump and heater.

Last updated: January 2026

The Whirlpool Quiet Partner II line typically runs at about 60 dBA during normal washing, which is similar to a nearby conversation. For your specific Whirlpool GU2275XTVY2 dishwasher, the most reliable place to confirm the published sound rating is the GU2275XTVY2 owner's manual.

What “60 dBA” sounds like in a kitchen

Dishwasher noise ratings are measured in decibels (dBA). Lower numbers are quieter.

• Around 60 dBA: normal conversation at close range
• You may notice it most during drain and wash portions of the cycle
• Hard surfaces (tile, bare walls) can make any dishwasher seem louder
• A loose toe-kick panel or cabinet contact can add vibration noise

Quick checks if your Quiet Partner II seems louder than normal

If your GU2275XTVY2 suddenly sounds much louder than it used to, we recommend these practical checks first:

• Make sure the dishwasher is level and firmly secured to the cabinet

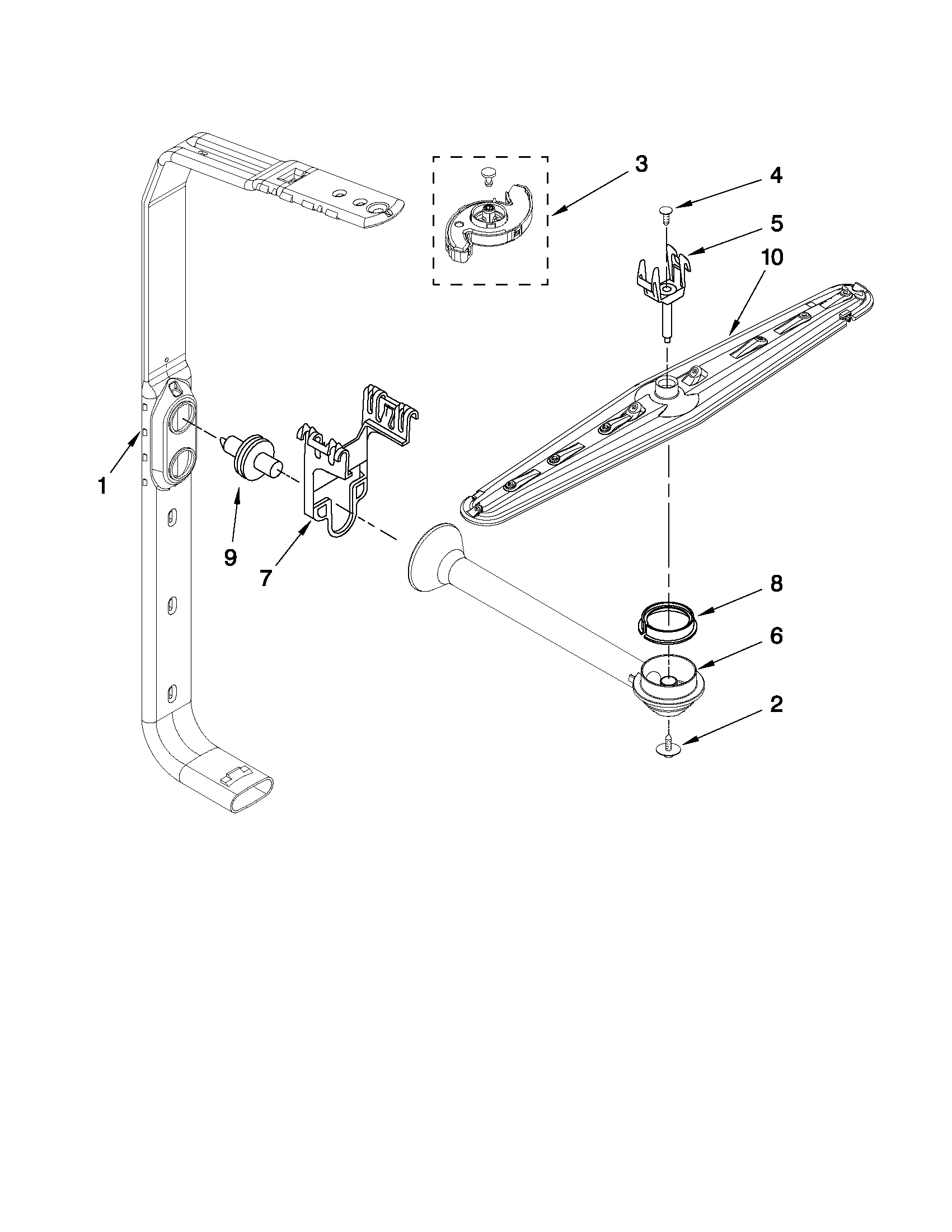

• Confirm the spray arms spin freely and are not hitting tall items
• Clean out any debris in the sump area; food pieces can cause grinding sounds

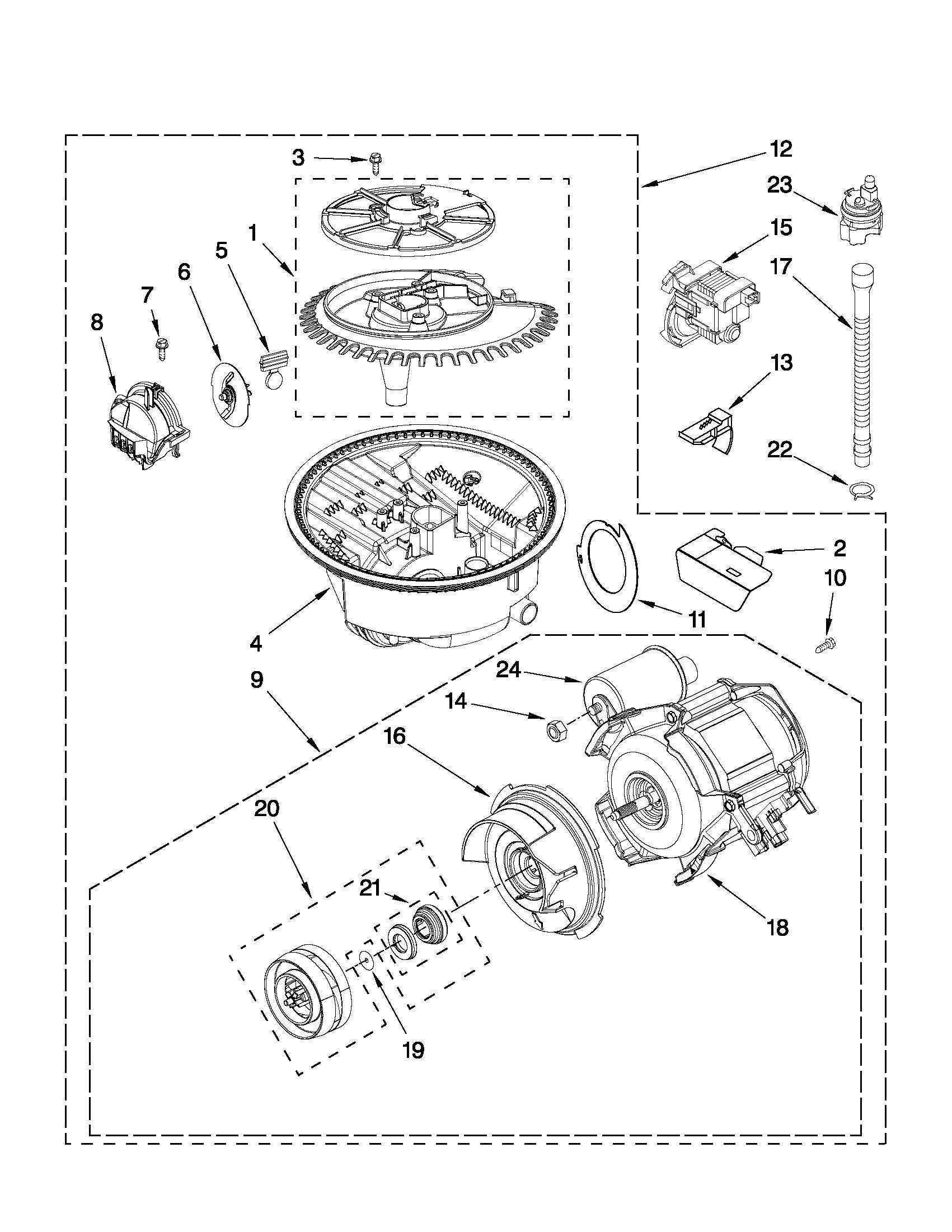

• Listen for loud noise mainly during draining; a worn drain pump can be the cause
• Check for leaks at the door that can create a “hissing” or rushing sound; inspect the door seal

Common noise sources and the part that usually relates

Noise you hear	When it happens	Common cause
Grinding or rattling	Wash	Debris in sump, worn pump motor assembly
Loud buzzing or humming	Drain	Drain pump struggling or partially blocked
Clicking	Any time	Normal relay/valve switching, or a loose rack part
Squealing	Wash	Pump bearings wearing

If the noise is clearly tied to draining, the dishwasher drain pump WPW10348269 is a common repair part for this model family.

Why it matters

A dishwasher that is noticeably louder than its normal baseline often points to a developing issue (debris, vibration, or a pump problem). Catching it early helps prevent poor cleaning, incomplete draining, and water left in the tub.

Last updated: January 2026
