Washer

Model # WF520ABP/XAA-03 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF520ABP/XAA-03 washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

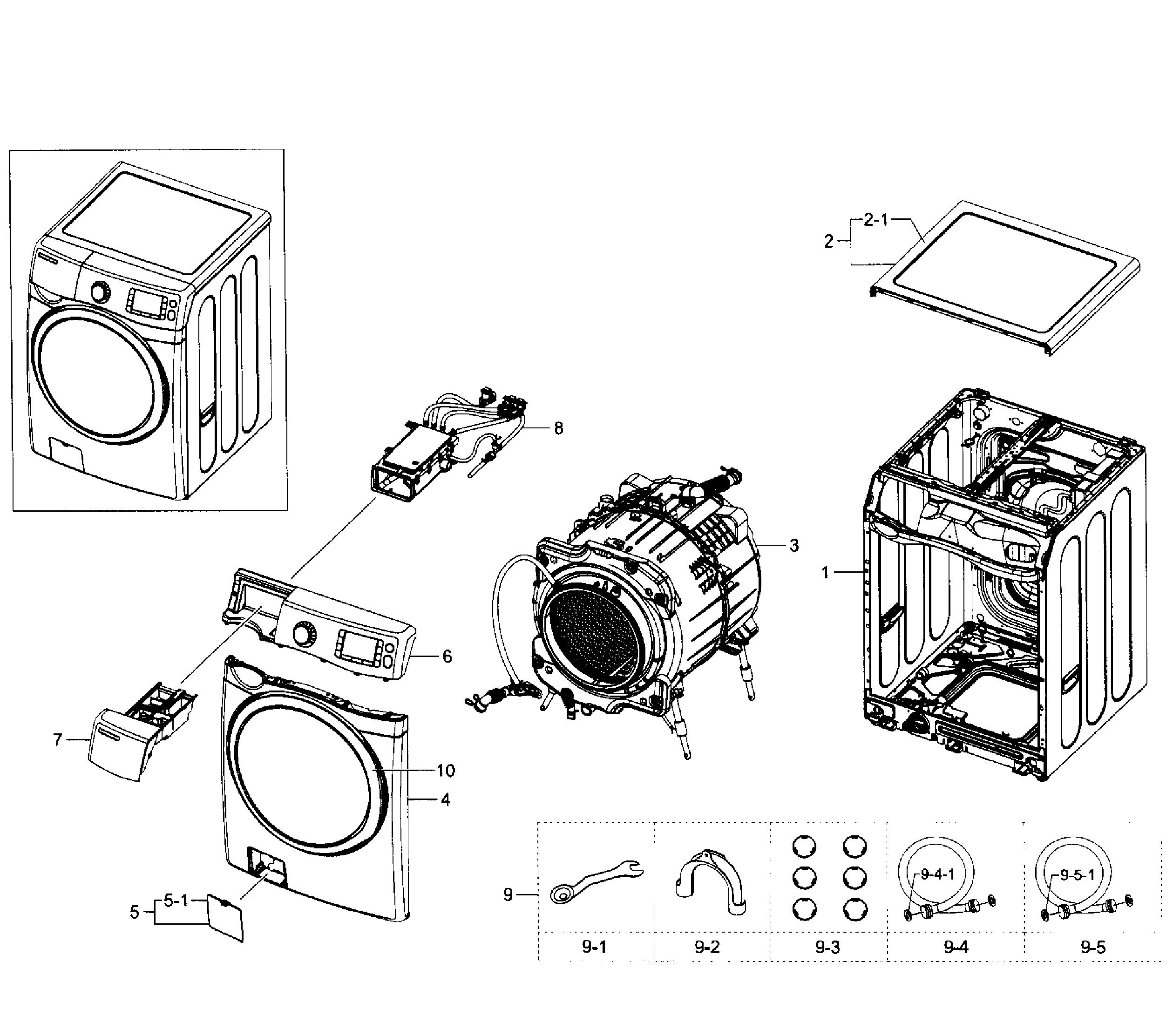

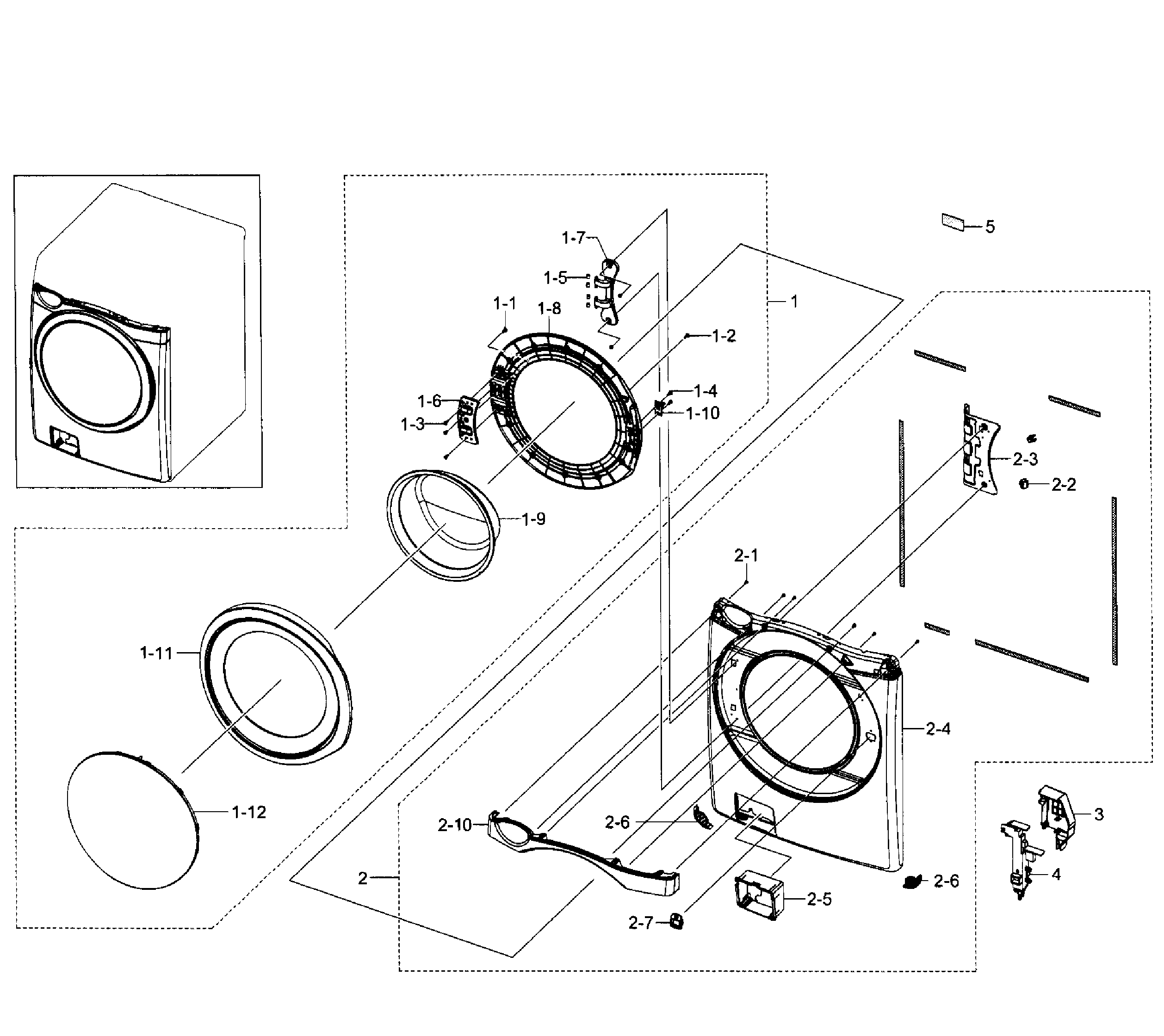

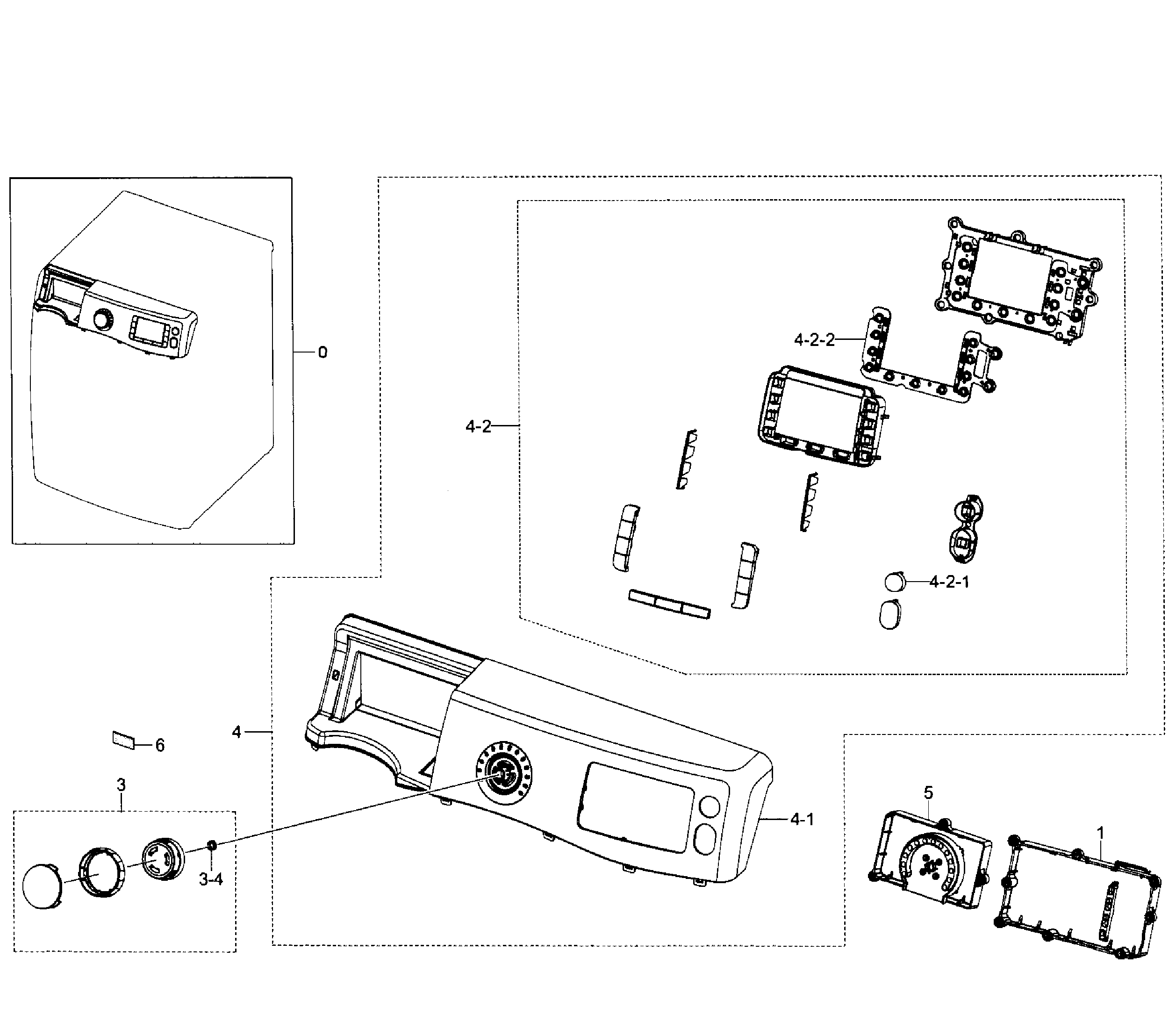

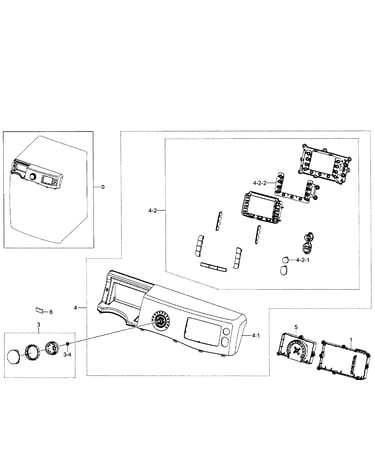

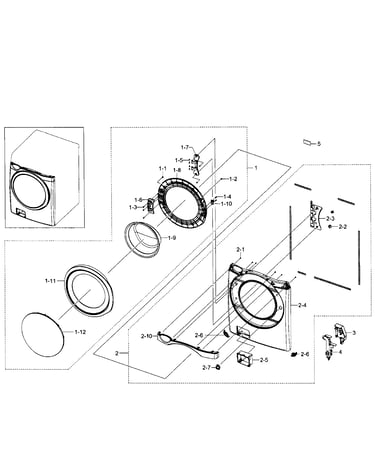

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forWF520ABP/XAA-03 Washer

  • Samsung Washer Shock Absorber DC66-00470A
    Samsung washer shock absorber

    Part #DC66-00470A

    BEST SELLER
    $57.75 |
    9% OFF Phone Price : $63.75
    In Stock
  • Samsung Washer Drain Pump DC31-00054A
    #11-2

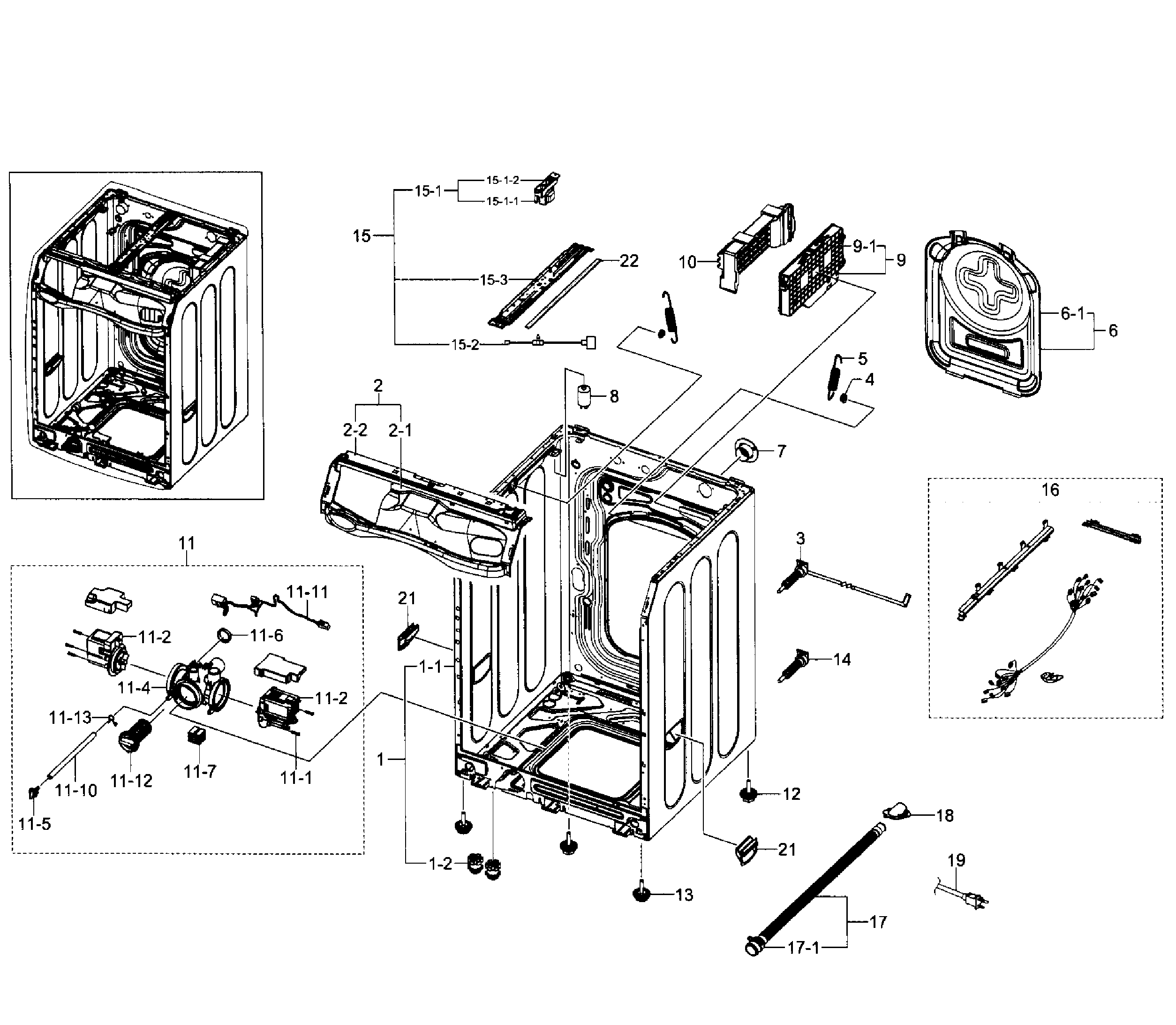

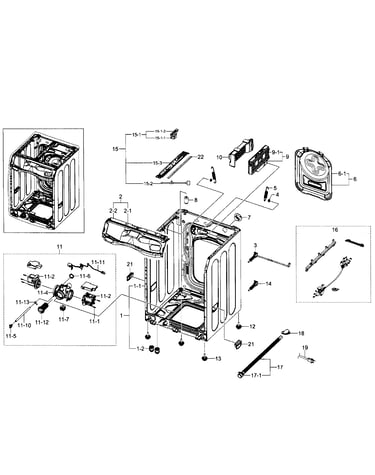

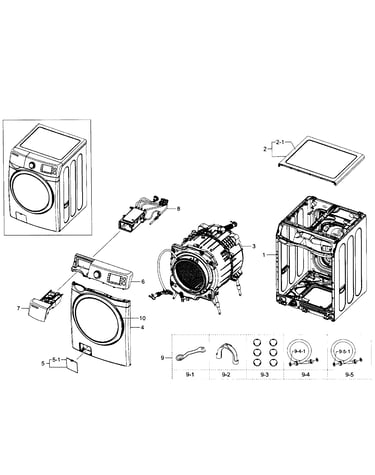

    Frame diagram

    Samsung washer drain pump

    Part #DC31-00054A

    BEST SELLER
    $150.10 |
    7% OFF Phone Price : $162.10
    In Stock
  • Washer Water Inlet Valve DC62-30314K
    #5

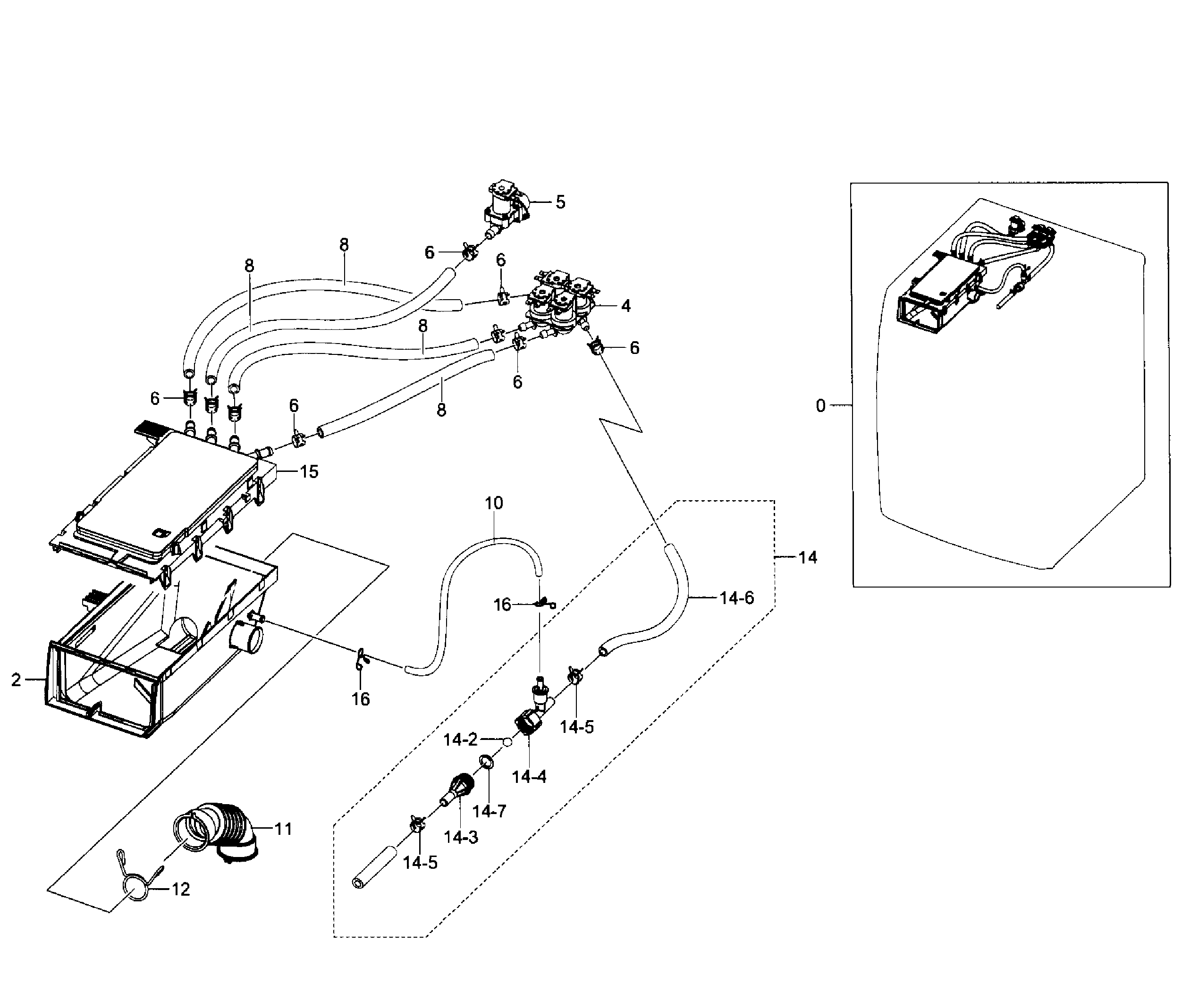

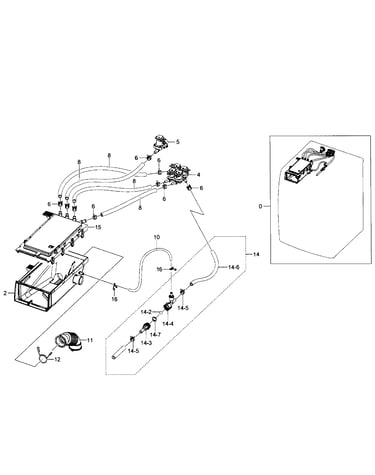

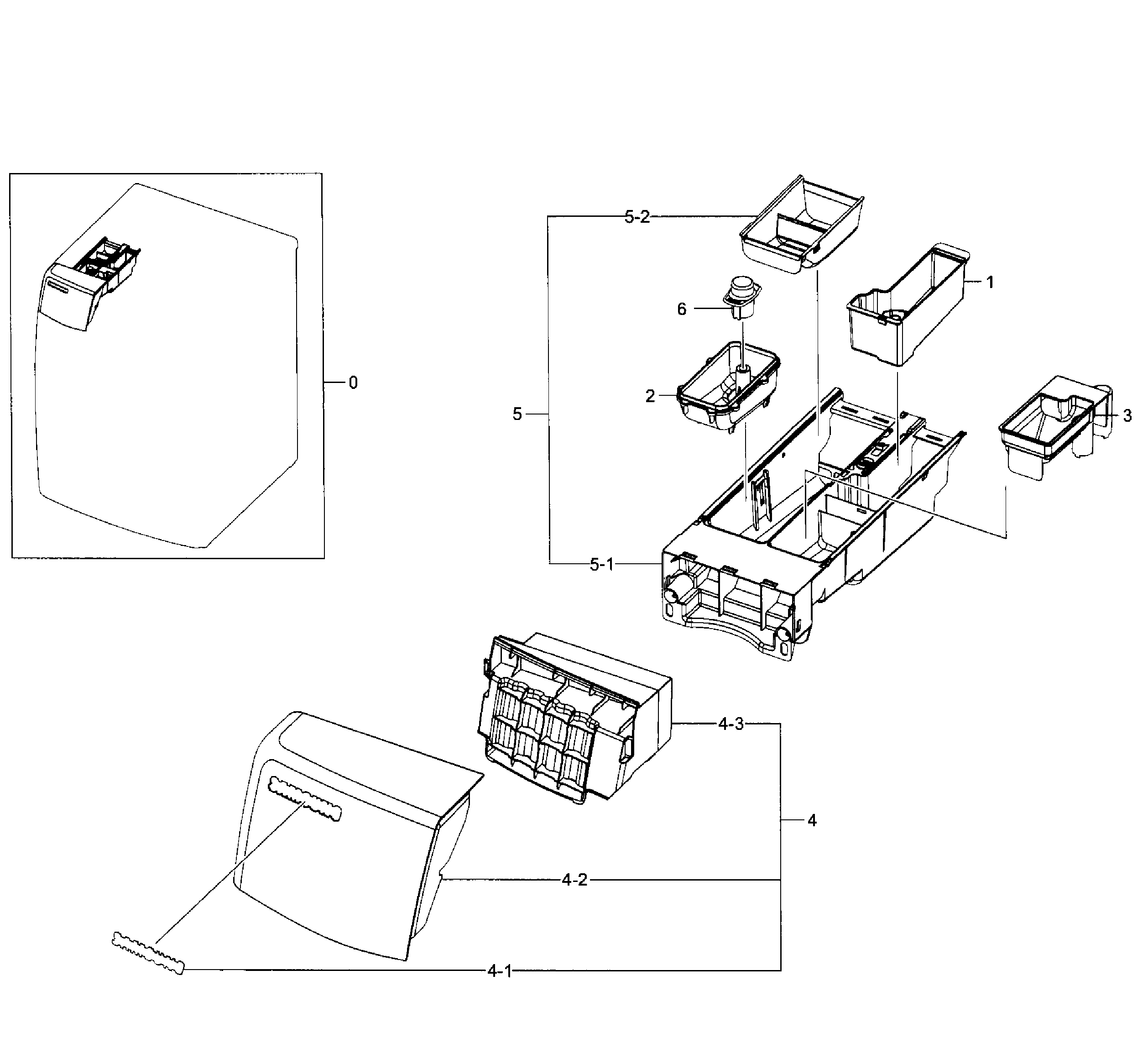

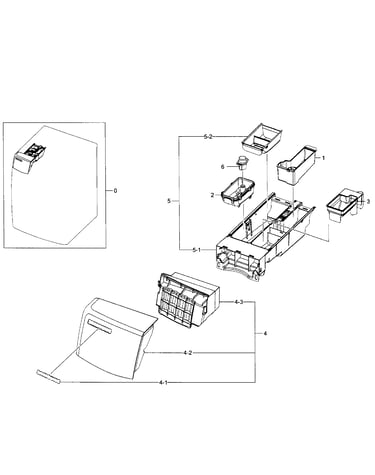

    Housing drawer diagram

    Washer water inlet valve

    Part #DC62-30314K

    BEST SELLER
    $79.17 |
    7% OFF Phone Price : $85.17
    Back Order
  • Washer Bolt DC97-02412A
    #5

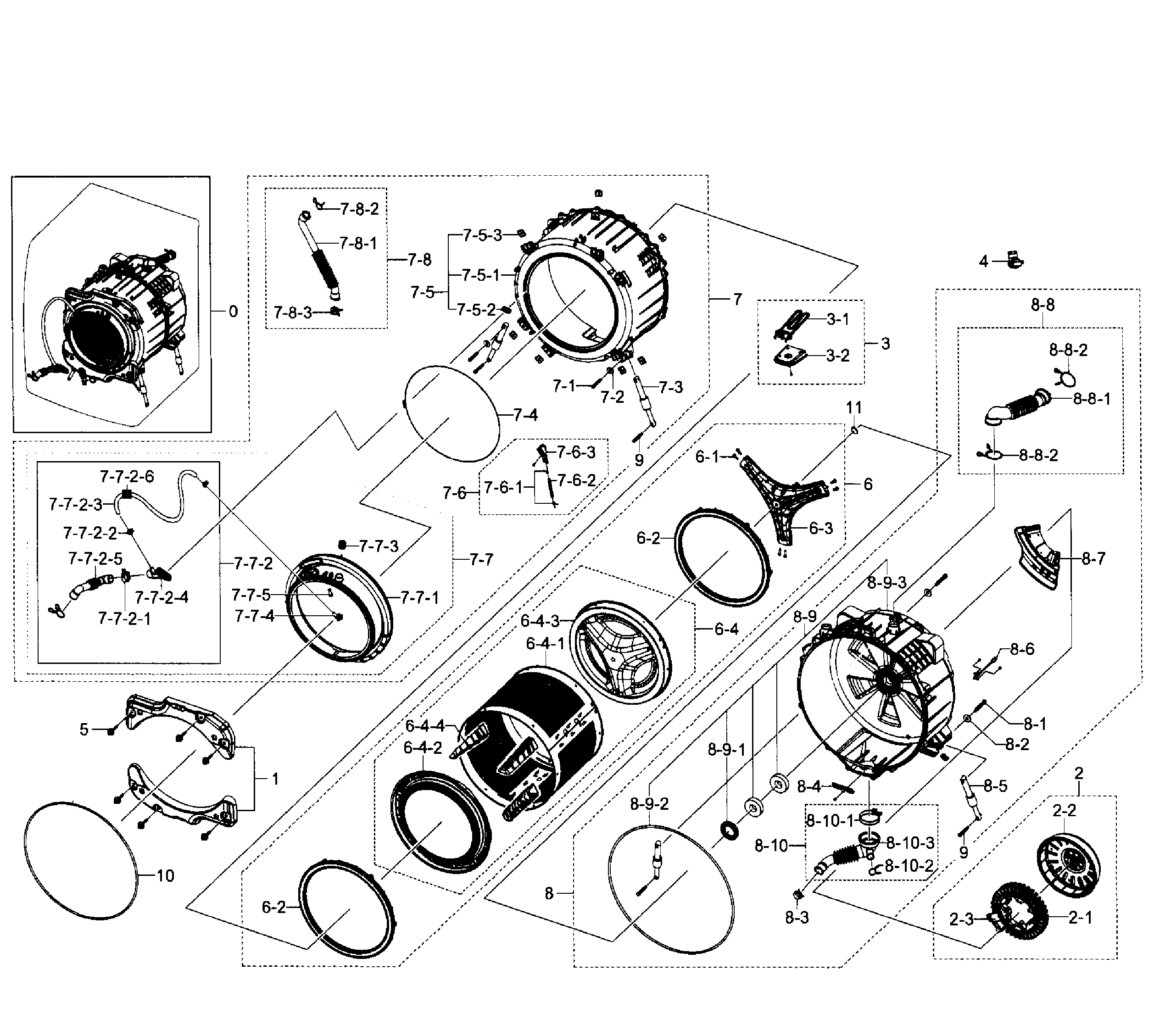

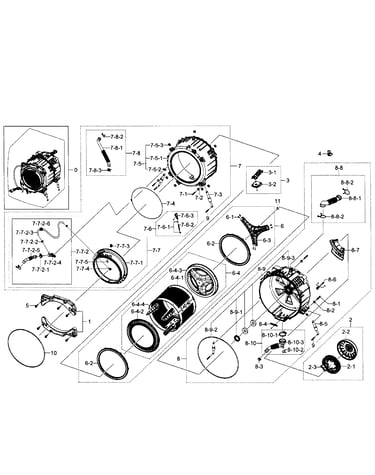

    Tub-drum diagram

    Washer bolt

    Part #DC97-02412A

    BEST SELLER
    $16.42 |
    11% OFF Phone Price : $18.42
    In Stock
  • Washer Motor Rotor Position Sensor DC31-00098A
    #2-3

    Tub-drum diagram

    Washer motor rotor position sensor

    Part #DC31-00098A

    BEST SELLER
    $67.42 |
    8% OFF Phone Price : $73.42
    In Stock
  • Washer Door Boot Spring Clamp DC97-04981F
    #7-4

    Tub-drum diagram

    Washer door boot spring clamp

    Part #DC97-04981F

    BEST SELLER
    $23.98 |
    20% OFF Phone Price : $29.98
    In Stock
  • Washer Bolt DC60-40137A
    #6-1

    Tub-drum diagram

    Washer bolt

    Part #DC60-40137A

    BEST SELLER
    $8.42 |
    11% OFF Phone Price : $9.42
    In Stock
  • Washer Nut DC61-00201A
    #7-53

    Tub-drum diagram

    Washer nut

    Part #DC61-00201A

    BEST SELLER
    This item is not returnable
    $4.26 |
    19% OFF Phone Price : $5.26
    In Stock
  • Washer Tub-to-pump Hose DC97-16105A
    #8-10

    Tub-drum diagram

    Washer tub-to-pump hose

    Part #DC97-16105A

    Replaced by #DC97-16105B

    ?
    Manufacturer substitution
    This part replaces DC97-16105A. Substitute parts can look different from the original.
    BEST SELLER
    $88.72 |
    6% OFF Phone Price : $94.72
    In Stock
  • Thermostat Assembly DC90-10128H
    #8-6

    Tub-drum diagram

    Thermostat assembly

    Part #DC90-10128H

    Replaced by #DC90-10128N

    ?
    Manufacturer substitution
    This part replaces DC90-10128H. Substitute parts can look different from the original.
    BEST SELLER
    $47.18 |
    11% OFF Phone Price : $53.18
    In Stock
