Craftsman
Drill/Driver

Model # 315115370 Official Craftsman 18-v drill/driver

Here are the diagrams and repair parts for Official Craftsman 315115370 18-v drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

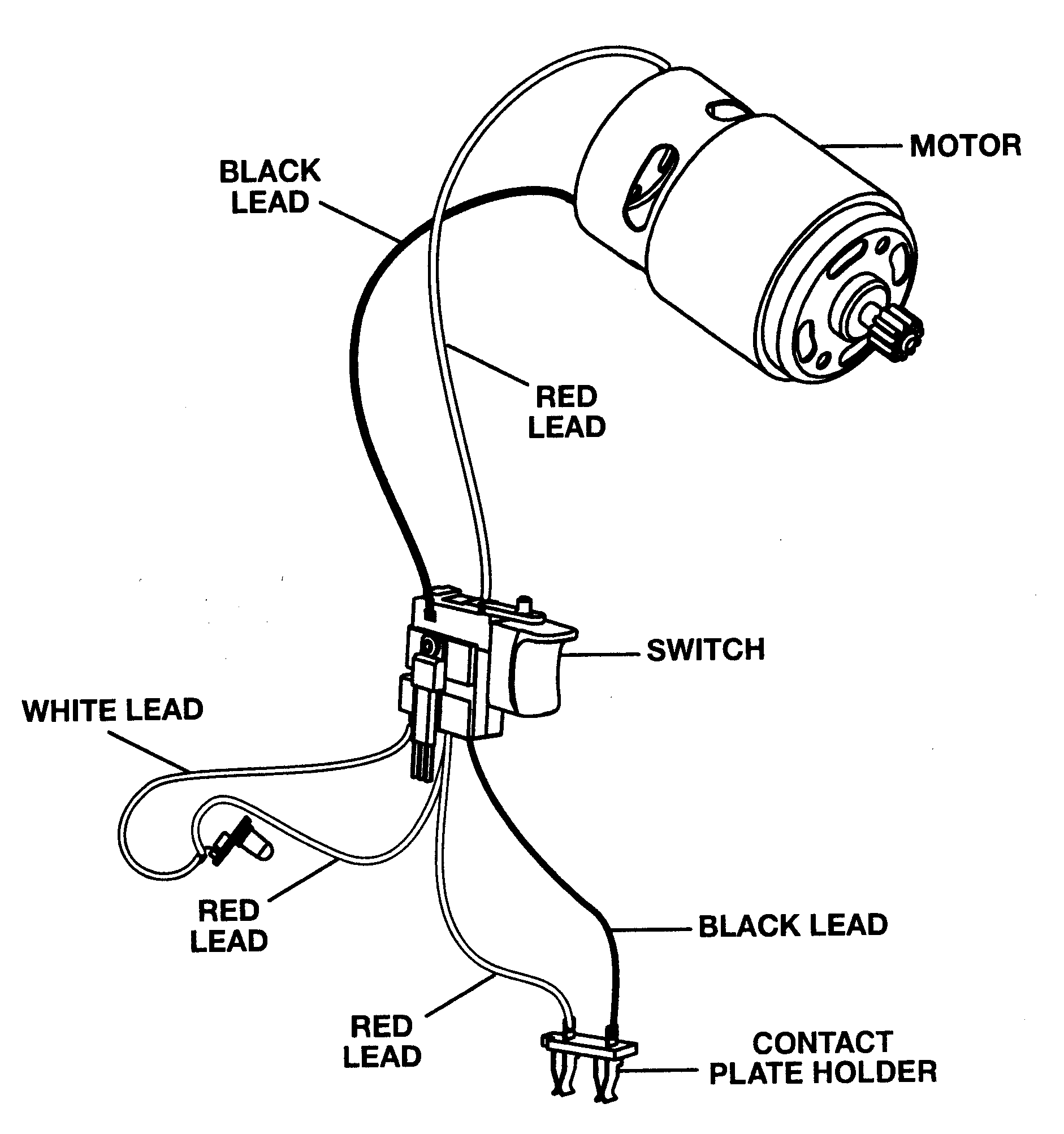

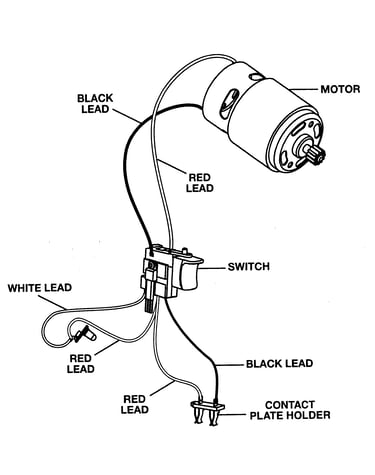

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Screw 660206023
#19

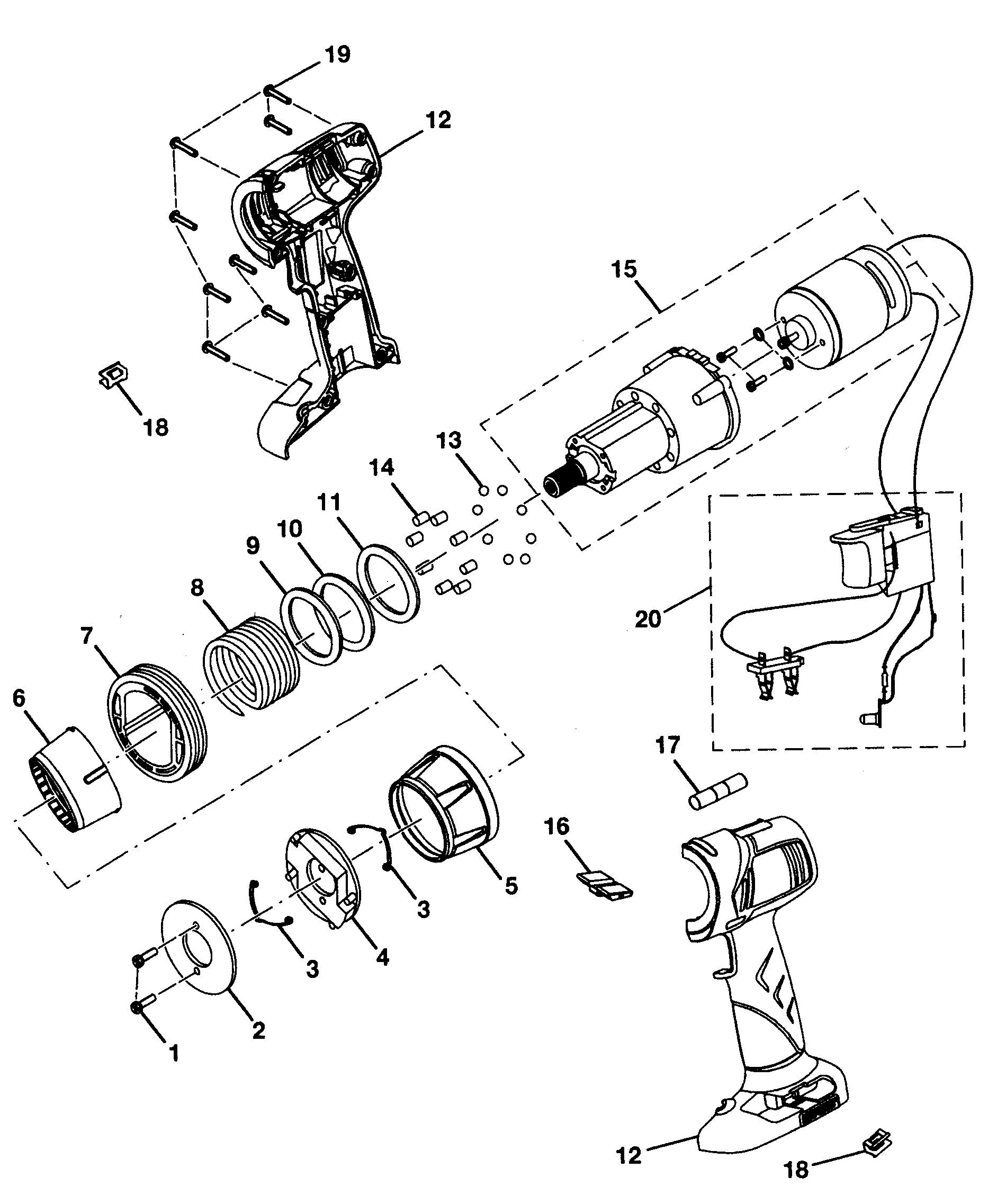

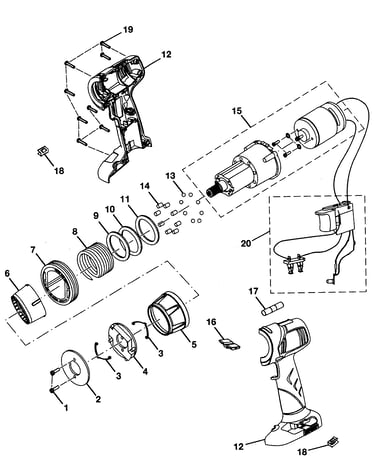

Housing assy diagram

Screw

Part #660206023

The manufacturer no longer makes this part, and there's no substitute part

Bit 6782108
#6

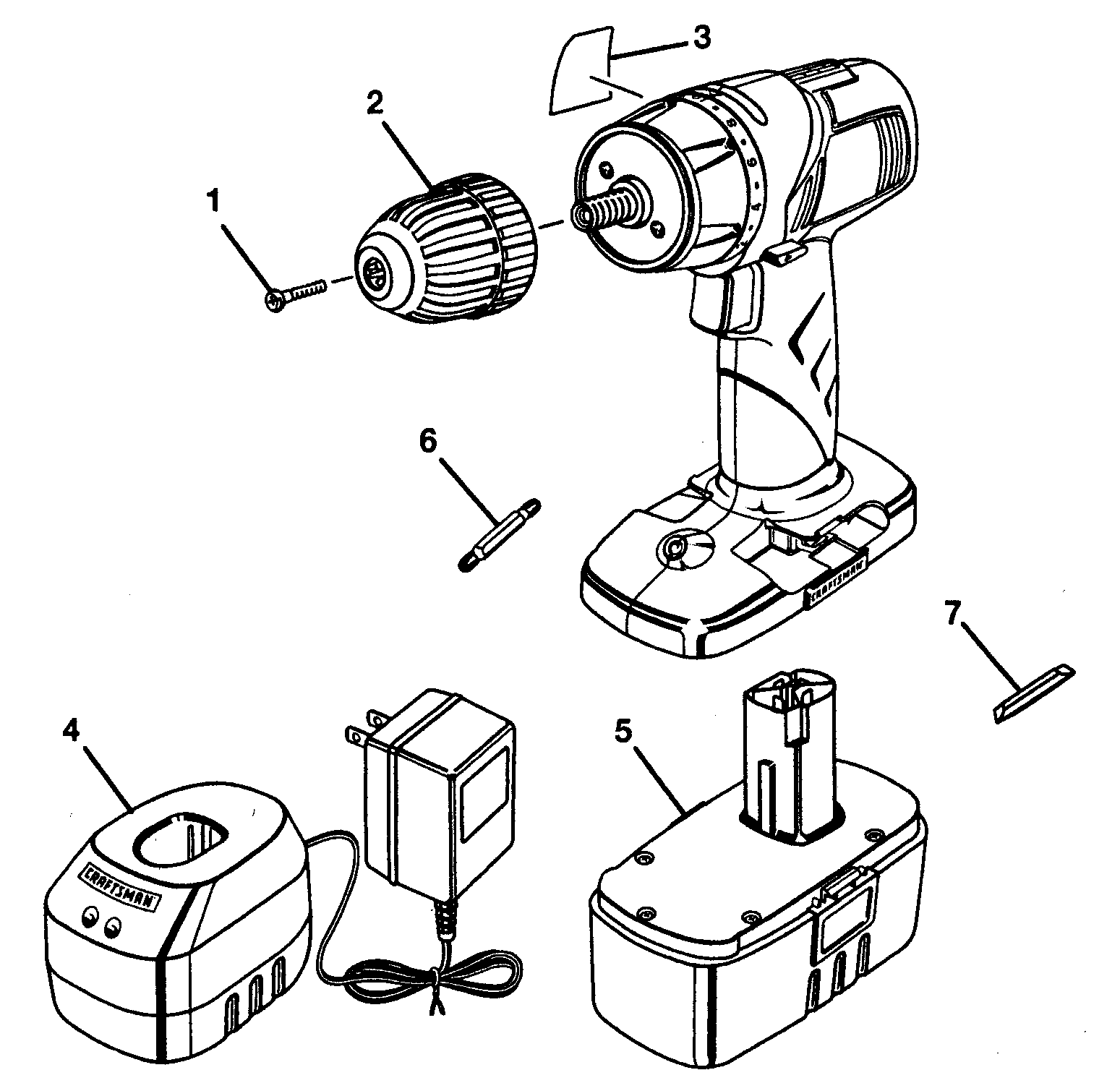

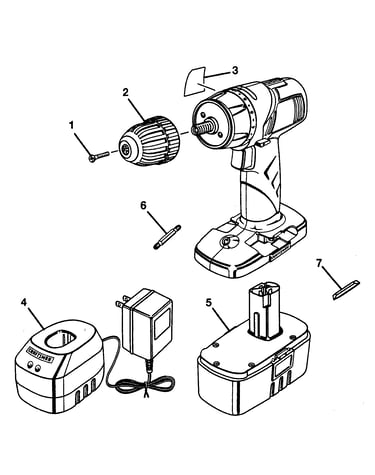

Drill diagram

Bit

Part #6782108

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000638R
#NI

Drill diagram

Repair sheet

Part #983000638R

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 3000909
#17

Housing assy diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Motor And Gearbox Assembly 210108118
#15

Housing assy diagram

Motor and gearbox assembly

Part #210108118

The manufacturer no longer makes this part, and there's no substitute part

Washer 690011005
#10

Housing assy diagram

Washer

Part #690011005

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 630871003
#2

Housing assy diagram

Mounting plate

Part #630871003

The manufacturer no longer makes this part, and there's no substitute part

Carry Case 300912194
#NI

Drill diagram

Carry case

Part #300912194

The manufacturer no longer makes this part, and there's no substitute part

Forward And Reverse Button 343309001
#16

Housing assy diagram

Forward and reverse button

Part #343309001

The manufacturer no longer makes this part, and there's no substitute part

Holder Spring 550532002
#3

Housing assy diagram

Holder spring

Part #550532002

The manufacturer no longer makes this part, and there's no substitute part
