KitchenAid KSRV22FVBL02 side-by-side refrigerator Parts

The KitchenAid KSRV22FVBL02 is a full-size side-by-side refrigerator; “how big” usually means overall dimensions (width, height, depth) and total capacity (cubic feet). For the exact measurements for your unit, we use the specs listed in the KSRV22FVBL02 owner's manual.

What “big” can mean (and what to check)

When customers ask this, we typically confirm these specs:

• Width (to ensure it fits between cabinets)
• Height (to clear overhead cabinets and hinges)
• Depth (especially with handles and with the door open)
• Capacity (fresh food plus freezer volume)
• Clearance needs (airflow space behind and above)

Typical size range for this style (helpful for planning)

Most KitchenAid side-by-side refrigerators of this design fall into these planning ranges:

• Width: about 33 to 36 inches
• Height: about 65 to 71 inches
• Depth: about 30 to 35 inches (often deeper when you include handles)
• Capacity: commonly 20 to 26 cubic feet

Quick fit checklist before you move or order parts

Use this checklist so the refrigerator fits and operates correctly:

• Measure the opening at the front and at the back (walls are not always square).
• Include door handles in your depth measurement.
• Confirm you have room to fully open both doors and slide out bins.
• Leave airflow clearance so the condenser can shed heat.
• If the unit has a water dispenser or ice maker, confirm the water line can reach without kinking.

Dimensions vs. capacity: what’s the difference?

Spec	What it tells you	Why you care
Width/height/depth	Physical size	Fit through doorways and into the cabinet opening
Capacity (cu ft)	Storage volume	How much food the refrigerator can hold

Why it matters

Accurate dimensions prevent delivery and installation problems, and they also help avoid airflow restrictions that can cause warm temperatures, long run times, and ice maker or water dispenser issues.

If you are also shopping for maintenance items while you check specs, you can order common replacements for KSRV22FVBL02 (like the refrigerator water filter EDR3RXD1) from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

KitchenAid model numbers identify the appliance type, series, and specific configuration; for your KitchenAid side-by-side refrigerator model KSRV22FVBL02, the full model number on the ID label is the key to getting the correct parts, manual, and service information. We recommend matching the complete model number exactly as shown inside the fresh food compartment.

Where to find the model number on KSRV22FVBL02

On this refrigerator, the model and serial number label is located on the inside wall of the refrigerator compartment. Use the complete model number from that label when ordering parts or looking up specifications in the KSRV22FVBL02 owner's manual.

• Open the fresh food (refrigerator) door
• Look along the inside right wall for the rating label
• Write down the full model number and serial number
• Use the exact characters (letters and numbers) in the same order

How KitchenAid model numbers are typically structured

KitchenAid model numbers are usually a short “family” prefix plus a longer string that narrows down features and revisions. For parts lookup, the important rule is simple: the last characters matter because they can indicate a design revision.

What you see	What it usually means	Why you should care
Prefix letters (example: “KS…”)	Product line / platform	Helps group similar designs
Middle characters	Size, features, dispenser style, etc.	Affects which parts fit
Ending digits (example: “02”)	Revision/version	Prevents ordering the wrong part

Tips to avoid ordering the wrong part

Using the complete model number is the fastest way to match parts like a water filter, ice maker, or inlet valve.

• Match KSRV22FVBL02 exactly (do not drop the last two digits)
• If a part is tied to the water system, confirm the filter style and housing
• Use the manual diagrams and maintenance sections for confirmation
• Order from the parts list for this model first; for broader searching by model number, use Sears PartsDirect

Example: model number accuracy matters for water filters

This model uses a compatible water filter style shown in the manual; a common replacement is the refrigerator water filter EDR3RXD1.

Why it matters

KitchenAid made running changes across production. Reading and using the full model number helps us match the correct refrigerator parts (like the evaporator fan motor, temperature control, or door gasket) and avoid returns due to fit issues.

Last updated: February 2026

KitchenAid refrigerators typically last 14 to 17 years. For your KitchenAid KSRV22FVBL02 side-by-side refrigerator, regular maintenance (cleaning condenser coils, keeping door gaskets sealing, and using the correct water filter) helps you reach that expected service life; see the KSRV22FVBL02 owner's manual for care guidance.

Typical lifespan and what affects it

Most refrigerators fall into a 10 to 15 year range, but KitchenAid units commonly run longer when the sealed system and airflow stay healthy.

Key factors that extend lifespan:

• Keep condenser coils clean so the compressor runs cooler and shorter
• Maintain tight door seals to prevent warm air leaks and frost buildup
• Avoid overpacking so air can circulate through shelves and vents
• Replace clogged water filters on schedule to protect the water system
• Keep temperatures steady (avoid frequent warm-ups from long door openings)

Maintenance checklist we recommend

Use this simple routine to reduce wear on the compressor, evaporator fan, and defrost system:

• Vacuum or brush condenser coils every 6 to 12 months
• Inspect door gaskets for gaps, tears, or sticky spots; clean with mild soap and water
• Confirm the refrigerator is level so doors close fully
• Replace the water filter regularly; the correct replacement for many setups is the refrigerator water filter EDR3RXD1
• Listen for unusual fan noise; a failing evaporator fan motor can shorten cooling performance

Lifespan vs. warranty coverage (quick reference)

The manual for this model family describes multiple warranty periods for specific components.

Item	Typical role in longevity	Coverage mentioned in manual (varies by component)
Sealed refrigeration system (compressor, evaporator, condenser, dryer, tubing)	Core cooling system	Multi-year limited coverage is described
Water filter	Water quality and flow	Short limited coverage is described
Door bins and can racks	Storage components	Lifetime limited coverage is described

Why it matters

A refrigerator that is running hot (dirty coils), leaking air (worn gaskets), or restricted (clogged filter) cycles longer and stresses the sealed system. That is the fastest path to early failure, even on a premium KitchenAid.

If you are planning a repair to keep your KSRV22FVBL02 running longer, we list model-matched parts on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

The most common KitchenAid refrigerator problems are ice maker and water dispenser issues, inconsistent cooling, water leaks, and unusual noises. On your KitchenAid KSRV22FVBL02 side-by-side refrigerator, these symptoms most often trace back to airflow (evaporator fan), defrost drainage, condenser cleanliness, or the water supply system; use the owner's manual to match symptoms to checks.

Most common issues we see (and what they usually point to)

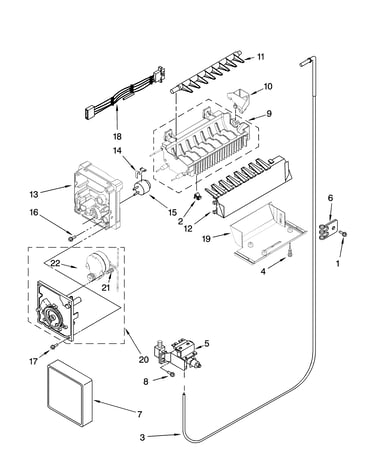

• Ice maker not making ice or slow production: water supply restriction, inlet valve problem, or ice maker failure
• Warm refrigerator section or temperature swings: evaporator fan motor issue, blocked vents, or control/thermostat problem
• Water leaking under or inside the unit: clogged/iced defrost drain, loose water tube connection, or valve seepage
• Buzzing, clicking, or rattling noises: evaporator fan blade hitting ice, condenser fan area debris, or compressor start components
• Bad taste or low water flow at dispenser: clogged water filter or air in the water line

Quick checks before replacing parts

1. Confirm power and basic operation: make sure the unit is plugged into a grounded 3-prong outlet and the outlet works (the troubleshooting section in the manual walks through these basics).

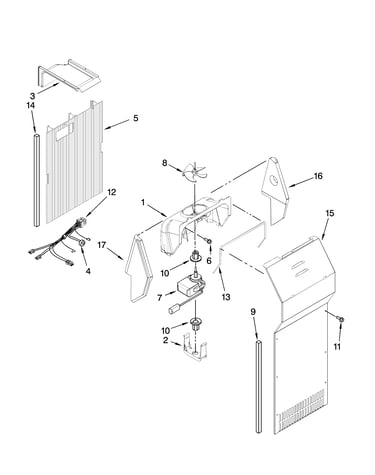

2. Check airflow: verify food packages are not blocking return vents; listen for the evaporator fan running when the door switch is pressed.
3. Clean condenser area: dirty coils commonly cause poor cooling and longer run times.
4. Inspect for ice buildup: frost around the evaporator cover often signals a defrost or airflow problem.
5. Verify water supply: confirm the shutoff valve is fully open and the supply line is not kinked.

Parts that commonly solve these symptoms on KSRV22FVBL02

Symptom	Common part to check	Example part on this model
No ice or no water	Water inlet valve	Refrigerator inlet valve W10822681
Warm temps, noisy freezer	Evaporator fan motor or blade	Refrigerator evaporator fan motor WP2315549, refrigerator evaporator fan blade WP2169142
Bad taste, low flow	Water filter	Refrigerator water filter EDR3RXD1

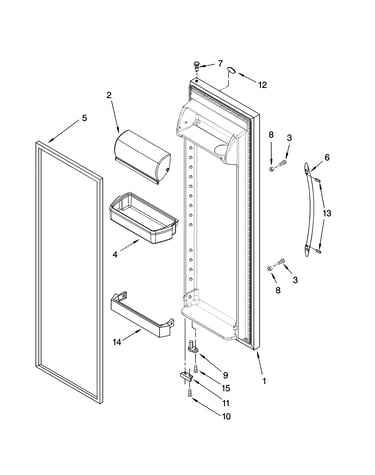

Door not closing smoothly	Door cam	Refrigerator door cam (black) WP2182179

Why it matters

These “common problems” often share the same root causes: restricted airflow, heat not being rejected at the condenser, or weak water flow. Fixing the underlying cause protects food temperatures, reduces noise, and helps prevent repeat failures.

For step-by-step filter guidance, we recommend how to replace the water filter in a KitchenAid refrigerator. For ordering additional parts by model number beyond the list for KSRV22FVBL02, use Sears PartsDirect.

Last updated: February 2026
