To hard reset your Kenmore Elite dishwasher model 66513113K701, we recommend using the built-in control reset: press CANCEL/DRAIN twice to reset the control, then reselect your cycle and press START/RESUME. Steps and button behavior are shown in the 66513113K701 owner's manual.

Quick reset steps (most reliable)

• Open the door slightly to stop the cycle.
• Wait until spraying stops, then open the door fully.
• Check the detergent dispenser; refill if it opened.
• Press CANCEL/DRAIN twice to reset the control.
• Select a new cycle and options.
• Close the door firmly and press START/RESUME.

If the controls seem “frozen”: check Control Lock first

On this Kenmore Elite dishwasher, the Control Lock disables all buttons when LOCK ON is lit.

• Press and hold HEATED DRY for 3 seconds.
• Confirm LOCK ON turns off.
• Try the reset steps above again.

What each method does

Situation	What to do	What to expect
You want to cancel and restart a cycle	CANCEL/DRAIN twice	Control resets; you can pick a new cycle
Dishwasher won’t respond to buttons	Hold HEATED DRY 3 seconds	Unlocks controls (LOCK ON turns off)
Unit has water standing in the tub	CANCEL/DRAIN (door closed)	Up to a 2-minute drain if needed

Why it matters

A proper reset clears a stuck cycle and restores normal keypad response without guessing button combinations. It also helps you avoid restarting with an empty detergent cup or leaving water in the sump.

Last updated: January 2026

On Kenmore Elite dishwasher model 66513113K701, the F4E1 error code points to a wash (circulation) pump or wash motor problem, meaning the dishwasher is not moving water through the spray arms correctly. After correcting the cause, clear the code using the reset steps in the 66513113K701 owner's manual.

What to check first (before replacing parts)

• Turn off power at the breaker for 1 minute, then restore power and try a cycle.
• Cancel and drain the cycle; listen for the drain pump running and water evacuating.
• Check that the sump area is clear of debris that can jam the impeller.
• Confirm the dishwasher is filling; low or no fill can mimic a wash pump fault.

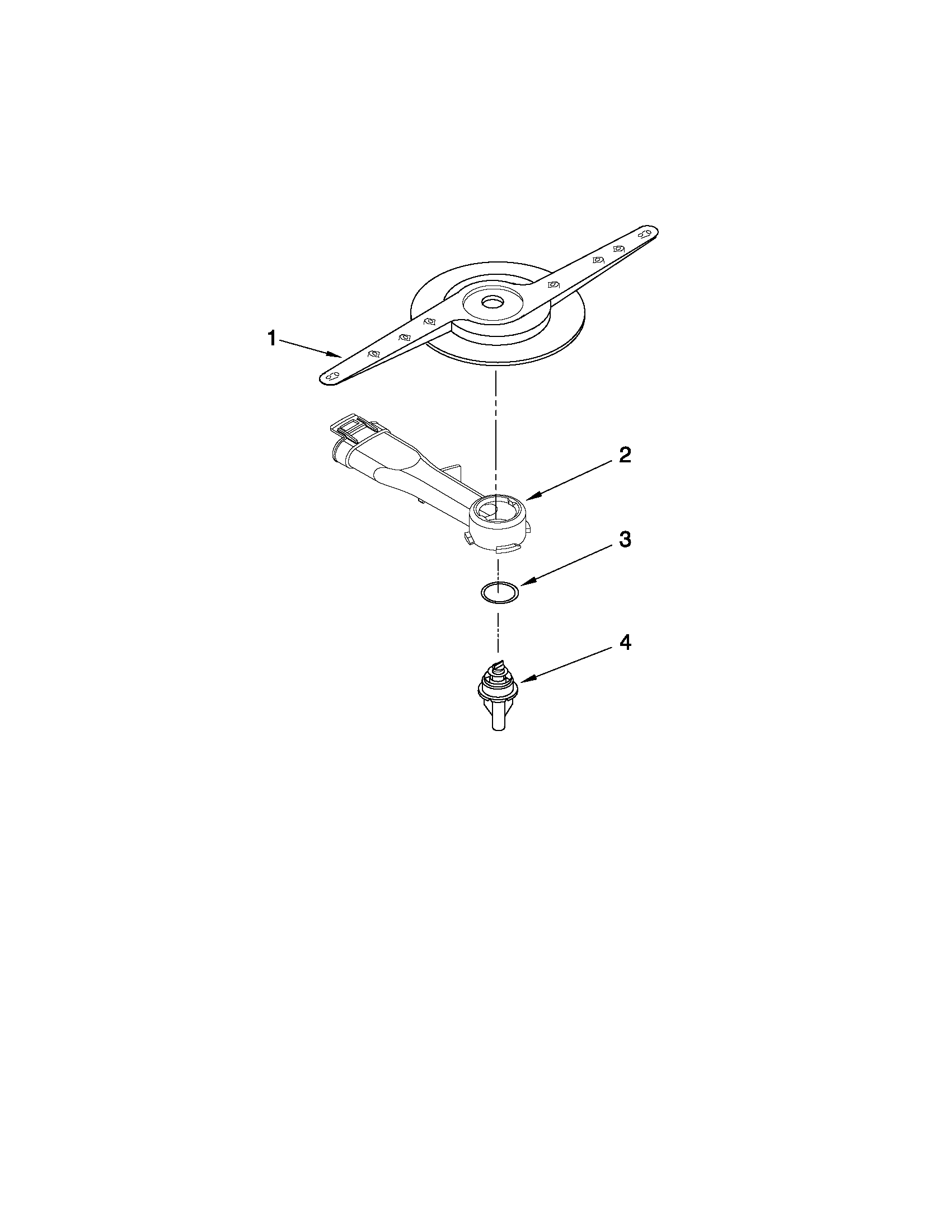

• Verify the spray arms spin freely and are not blocked by tall items.

Clearing the F4E1 code (common reset method)

Many Kenmore 665-series electronic-control dishwashers clear stored faults by using a 3-key sequence:

• Press any 3 keys in a 1-2-3 pattern
• Repeat the same pattern 3 times: 1-2-3, 1-2-3, 1-2-3
• Close the door and allow the unit to run the brief reset/diagnostic routine

For the exact key sequence and what the lights should do on 66513113K701, follow the steps in the 66513113K701 owner's manual.

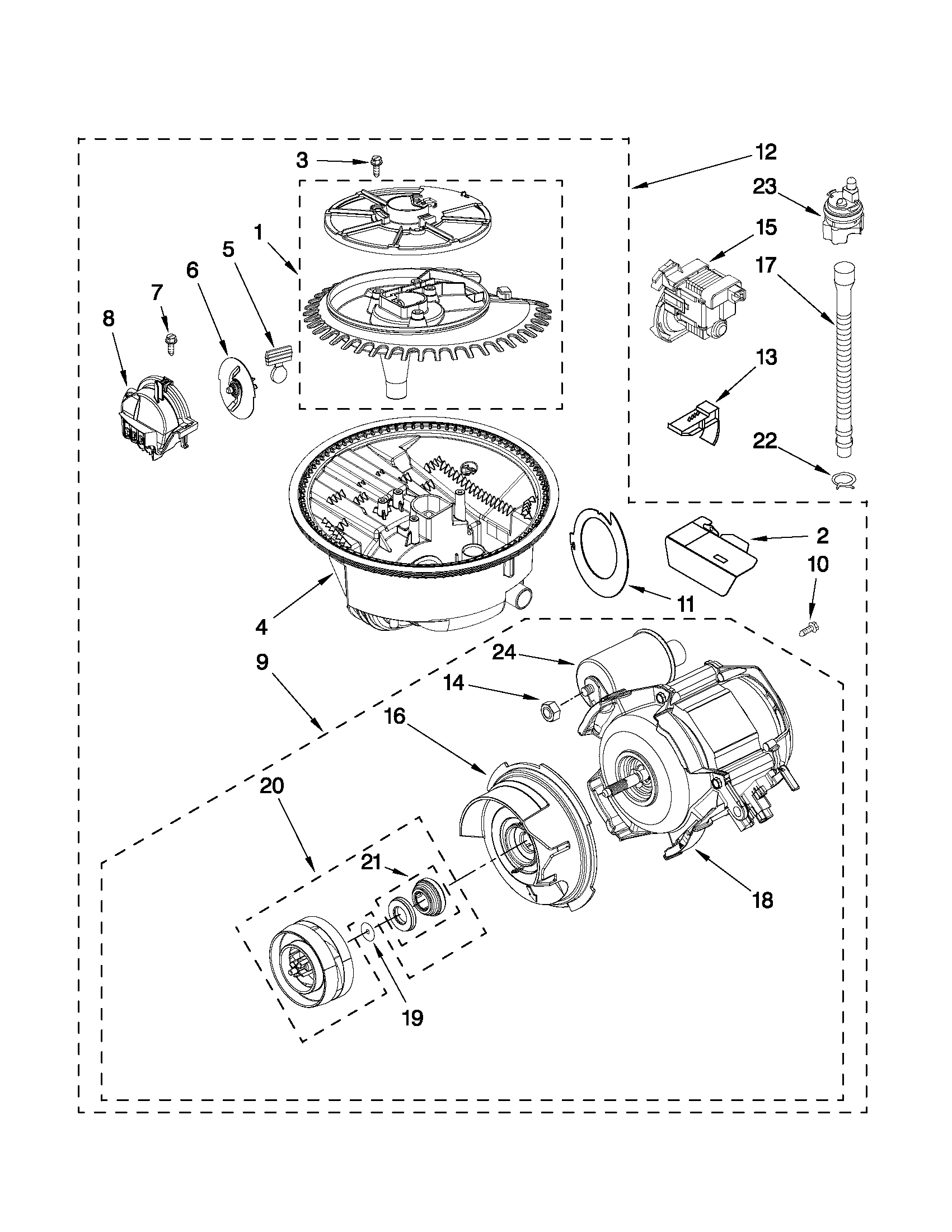

Parts that commonly relate to an F4E1 wash-pump fault

If the dishwasher fills but does not wash (no strong spray sound, poor cleaning), these parts are common suspects:

• Pump motor WPW10780877 (main wash motor assembly)
• Dishwasher pump motor WPW10239401 (circulation pump motor)
• Wiring connections at the motor and control
• Control output issues (less common)

Quick symptom guide

What you notice	Most likely direction	What we do next
Fills, then quiet, no spraying	Wash motor not running	Check motor, wiring, then pump/motor assembly
Hums, then stops	Impeller jam or weak motor	Inspect sump for debris; consider motor replacement
Drains fine but won’t wash	Circulation side issue	Focus on wash pump/motor, not the drain system

Why it matters

The wash pump is what creates pressure to spin the spray arms. When it fails or is blocked, dishes stay dirty and the dishwasher may stop mid-cycle or store repeating fault codes.

Last updated: January 2026

Dishwasher capacity for the Kenmore Elite 66513113K701 is measured in place settings (not cubic feet). Standard built-in Kenmore 665-series dishwashers typically hold 12 to 14 place settings; confirm the exact rating and rack loading diagram in the 66513113K701 owner's manual.

What “capacity” means for this dishwasher

Capacity is based on how many standard dish sets fit while still allowing proper spray-arm rotation and water flow.

• Place settings are the standard measure for dishwashers
• Rack design and adjustability affect usable capacity
• Overloading reduces wash performance even if items physically fit

How to confirm your exact place-setting rating

Use these quick checks alongside the rack diagrams in the manual:

• Look for the place-setting specification in the “features” or “loading” section
• Compare your rack layout to the manual’s loading illustrations

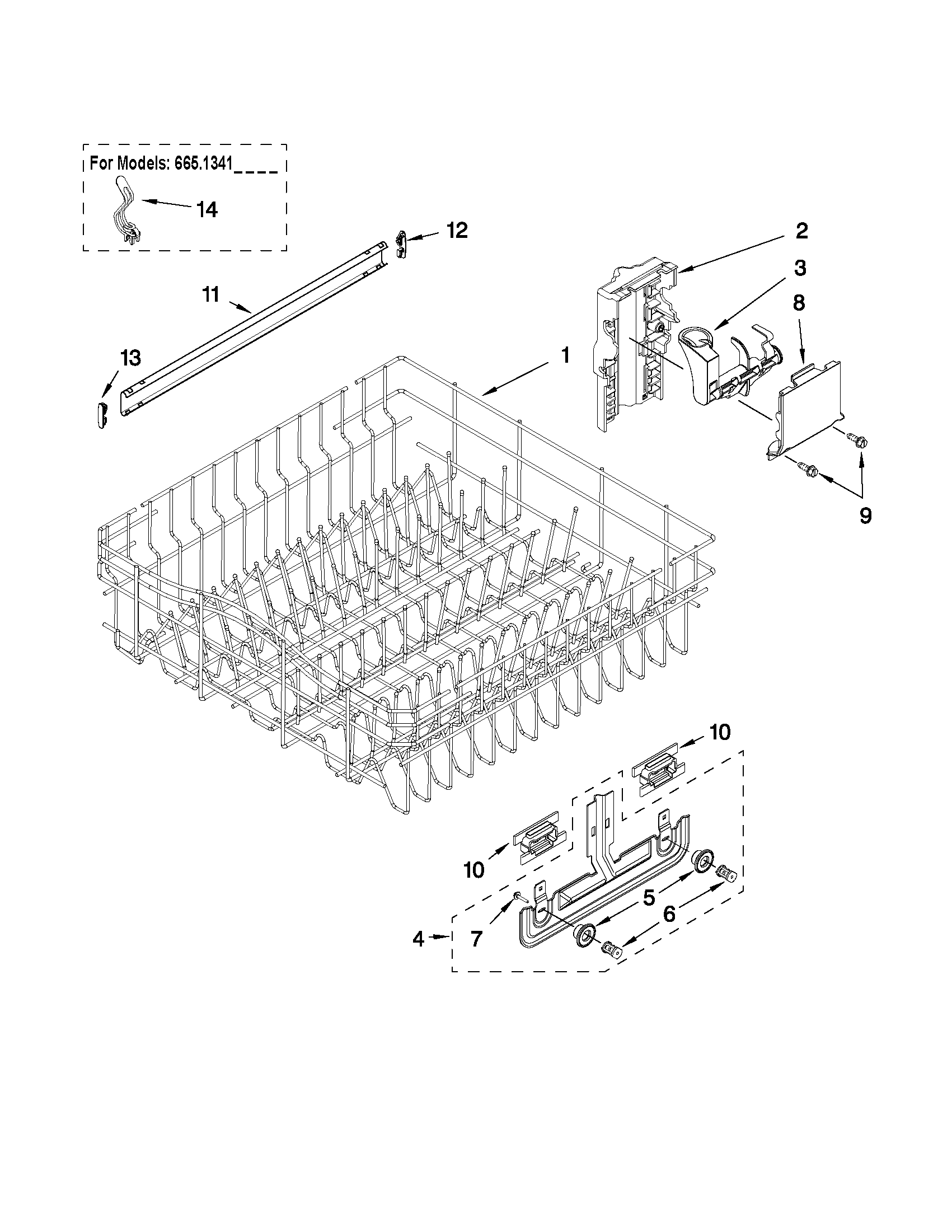

• Verify whether the upper rack is adjustable and how that changes tall-item loading

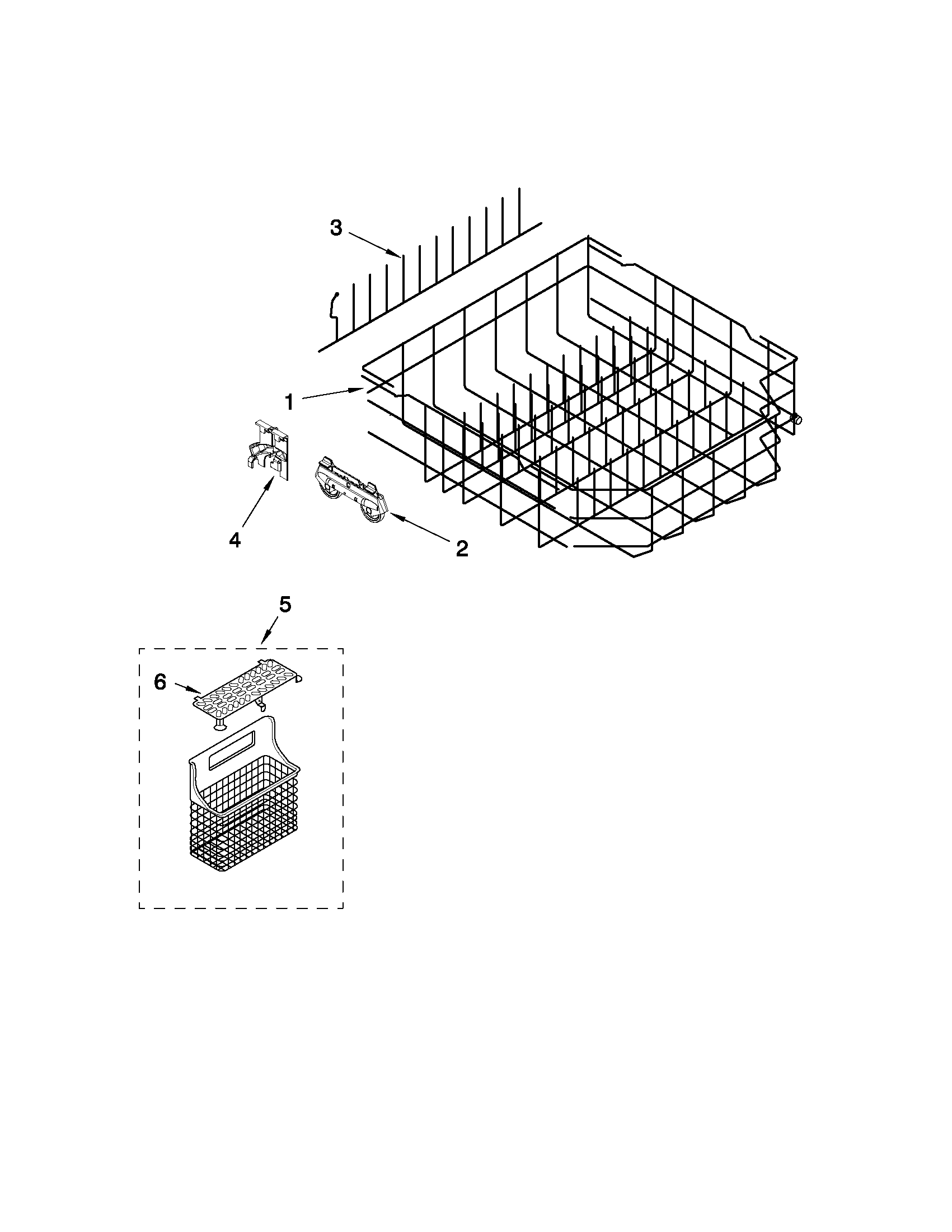

• Check the silverware basket size and placement options

Practical loading guide (what fits best)

Load type	Best rack	Tip
Dinner plates, pots	Lower rack	Keep items from blocking the lower spray arm
Glasses, bowls, mugs	Upper rack	Angle openings downward for drainage
Utensils	Basket	Mix directions to prevent nesting

Why it matters

Knowing the place-setting capacity helps you choose the right cycle, avoid poor cleaning from blocked spray paths, and reduce issues that look like “low capacity” performance (spotting, food bits, or poor draining).

For efficiency tips that also improve real-world capacity, use how to use your dishwasher efficiently.
