Craftsman 917259531 tractor Parts

Yes; replacing the engine on your Craftsman 917259531 front-engine lawn tractor is worth it when the deck, frame, steering, and drive system are still in good shape and the total swap cost stays under about half the price of a comparable new tractor. If several major systems are worn, replacement is the better value.

Quick decision checklist

• Deck shell is solid (no rust-through, cracks, or bent hangers)
• Tractor drives normally (no slipping, weak pull, or loud transaxle noise)
• Steering and brakes feel safe and predictable
• You can handle an engine swap (or have a shop do it)
• Engine cost plus labor stays under about 50% of a new comparable tractor

What to inspect before you buy an engine

Use the 917259531 owner's manual for safety steps and maintenance guidance, then check these high-cost areas:

• Deck condition: clean buildup; heavy debris can cause poor cut and extra strain
• Blade and mandrels: vibration or uneven cut can point to worn mandrels
• Belts and pulleys: cracking, glazing, squeal, or belt dust indicates wear
• Starting system: battery, wiring, fuse, solenoid, or starter problems can mimic a “bad engine”

Typical “while you’re in there” items

Area	What it affects	Example part for this model
Ground drive	Tractor movement	Lawn tractor ground drive belt 532140294
Deck drive	Blade engagement	Lawn tractor drive belt 532144200
Spindles/mandrels	Cut quality and vibration	Husqvarna lawn tractor mandrel assembly 532130794

Why it matters

An engine swap only pays off when the rest of the tractor is a solid platform. If the deck and drivetrain are healthy, a new engine can restore reliability without buying a whole new machine.

If it “won’t start,” confirm these first

• Recharge/replace battery; clean terminals
• Check fuse and wiring connections
• Depress clutch/brake fully; disengage attachment clutch
• Check spark plug, air filter, fuel quality, and oil level

For step-by-step tune-up basics, use how to tune up a riding lawn mower video.

Last updated: February 2026

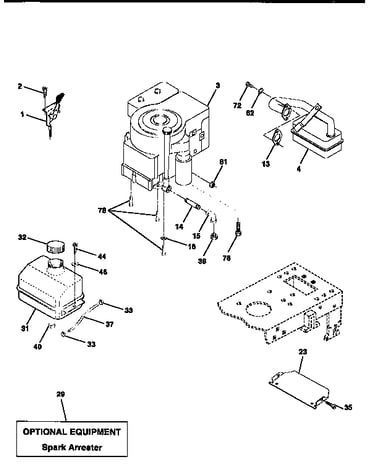

For the Craftsman riding lawn mower model 917259531, the engine type and exact horsepower are listed in the product specifications section of the 917259531 owner's manual. In general, Craftsman front-engine lawn tractors commonly use a gas, single-cylinder vertical-shaft engine designed to run at full throttle for best cutting and charging performance.

How to identify the exact engine on model 917259531

We recommend confirming the engine details directly on the tractor and in the manual because the same tractor platform can be sold with different engine variants.

• Check the engine shroud label for the engine brand (often Briggs & Stratton) and model code
• Look for the horsepower/cc rating on the engine decal
• Record the engine model, type, and code (useful for tune-up parts)
• Match those numbers to the specifications and maintenance sections in the manual
• Use the tractor model number 917259531 when ordering chassis and deck parts

What “kind of engine” means for operation

The manual’s operating guidance applies to the engine used on this tractor: it is intended to be run at full throttle during mowing for best performance and battery charging.

Item	What to expect on most Craftsman tractors like 917259531	Why it matters
Fuel type	Gasoline engine	Impacts storage and seasonal maintenance
Cylinder count	Single-cylinder is common	Affects vibration and tune-up parts
Shaft orientation	Vertical shaft is typical	Required for belt and deck drive layouts
Operating speed	Full throttle for mowing	Better cut quality and charging rate

Related parts that connect to engine-driven mowing

If your question is really about cutting performance (not just engine type), these deck-drive components are common wear items that affect how the tractor cuts.

• Lawn tractor drive belt 532144200 (blade drive belt)
• Husqvarna lawn tractor mandrel assembly 532130794 (spindle/mandrel assembly)
• Husqvarna lawn tractor mulching blade, 21-in 532134149 (blade option used on compatible decks)

Why it matters

Knowing the exact engine model helps you buy the right maintenance items (spark plug, air filter, fuel filter) and troubleshoot issues like hard starting, poor power, or uneven cutting without guessing.

Last updated: February 2026

For the Craftsman lawn tractor model 917259531, we use 4-cycle engine oil; the factory fill is a summer-weight oil, and you should select the viscosity based on temperature using the chart in the 917259531 owner's manual.

What oil weight should I choose?

Your tractor’s manual calls out an oil viscosity chart for cold-weather operation; in warm weather, the factory fill is a heavier summer-weight oil. Use these common guidelines, then match the exact recommendation to your climate in the manual.

• Warm weather mowing: SAE 30 is commonly used
• Cool to cold starts: 5W-30 is commonly used for easier starting
• Mixed temperatures: 10W-30 is commonly used
• Always use 4-cycle oil (not 2-cycle)
• Check level on level ground before each use

Outdoor temperature	Common viscosity choice	Why it’s used
Hot (summer mowing)	SAE 30	Holds viscosity well in heat
Cool to cold	5W-30	Cranks easier in cold
Variable seasons	10W-30	Balanced all-around option

Oil level checks and change interval (model 917259531)

The manual’s maintenance guidance for this tractor includes frequent oil checks and regular oil changes.

• Check oil before starting and about every 8 hours of operation
• Change oil every 25 hours of operation or at least once a year
• Add oil only to the FULL mark; do not overfill
• Tighten the oil fill cap/dipstick securely after checking

Why it matters

Correct oil viscosity protects the engine from heat and wear, and the right cold-weather oil prevents hard starting. Following the 25-hour oil change interval also helps extend engine life and reduce sludge buildup.

Last updated: February 2026

The model number for this Craftsman front-engine lawn tractor is 917.259531 (often written without the dot as 917259531). You can confirm it on the model plate under the seat and in the 917259531 owner's manual.

Where to find the model number on the tractor

You will find the model number on the identification plate under the seat. We recommend recording it along with the serial number for parts lookup and service.

• Lift the seat and look for the ID plate underneath
• Write down the model number and serial number exactly as shown
• Use the full model number when ordering belts, blades, and steering parts
• Keep the information with your maintenance records

Common formatting you may see

The same model can appear in a few different formats depending on where you’re looking.

Where you see it	Typical format	What it means
Owner’s manual cover	917.259531	Official model number with a dot
Parts listings / search	917259531	Same model number without punctuation
ID plate under seat	917.259531	Matches the manual

Why it matters

Using the exact model number 917259531 helps ensure you get the correct Craftsman tractor parts (for example, the correct deck components, belts, and mandrel parts) and avoids ordering parts that fit a similar looking tractor.

Last updated: February 2026

Craftsman model 917259531 was made across multiple production runs, so the exact year depends on the serial number and date of purchase for your specific tractor. We recommend using the ID plate under the seat and confirming the details in the 917259531 owner's manual.

How to find the exact year for your tractor

Use the tractor’s identification plate and your paperwork to pin down the build timeframe.

• Lift the seat and locate the model/serial plate (the manual notes it’s under the seat).
• Write down the serial number exactly as shown.
• Check your receipt for the date of purchase.
• Compare the serial number format to the identification section in the manual.
• If the plate is missing or unreadable, check the frame under the seat area for a secondary label.

What the manual tells us (and why it matters)

The documentation for this model is an owner’s manual that instructs you to record the serial number and date of purchase for future reference. That is the most reliable way to identify the production year for a specific 917259531.

Quick reference

Item to check	Where to find it	What it tells you
Model number	Under-seat plate	Confirms it is 917259531
Serial number	Under-seat plate	Identifies the specific production run
Date of purchase	Receipt or records	Confirms when it was sold

Why it matters

The year (and serial range) affects parts lookups and fit, especially for wear items like deck components, belts, and spindle parts. When ordering, matching by model and serial helps ensure you get the correct replacement.
