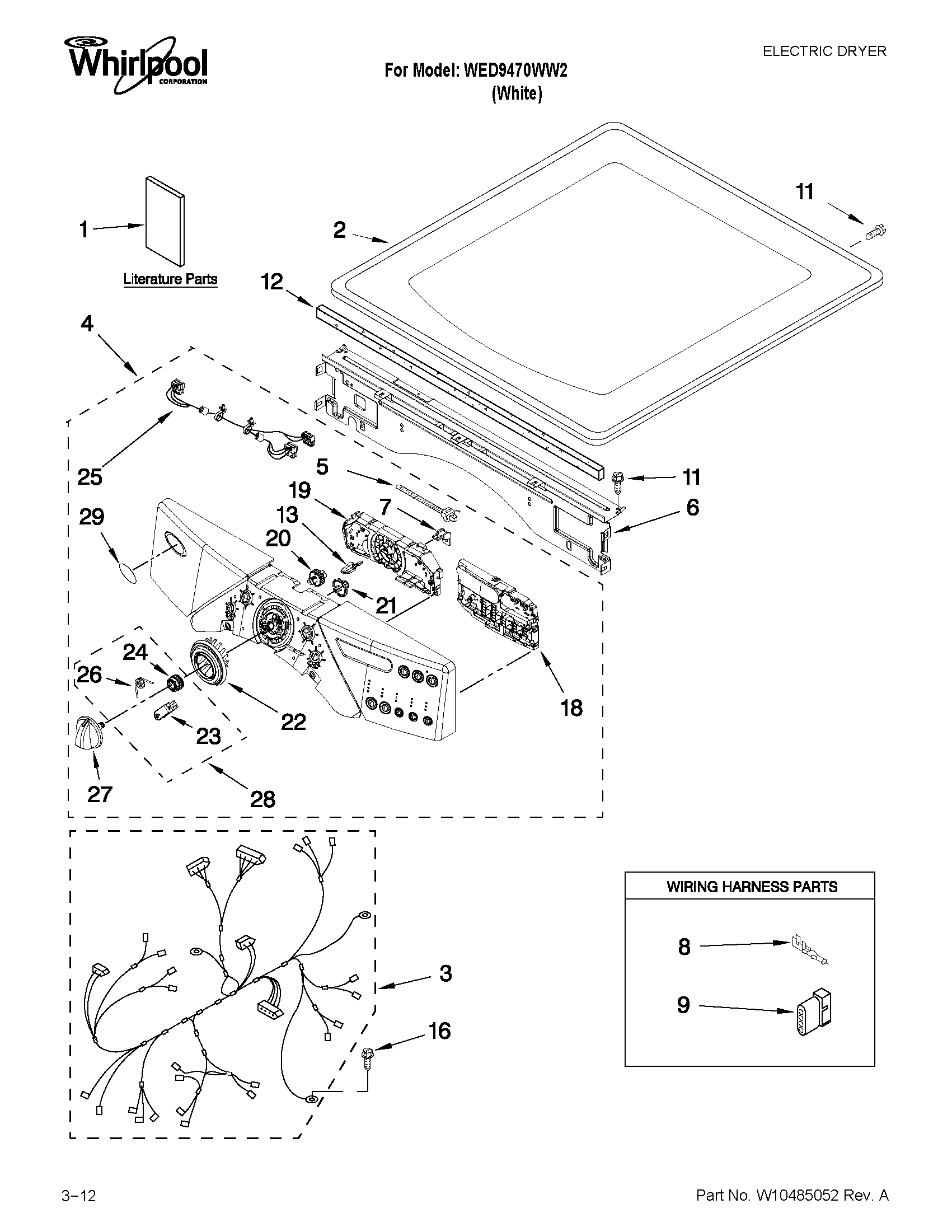

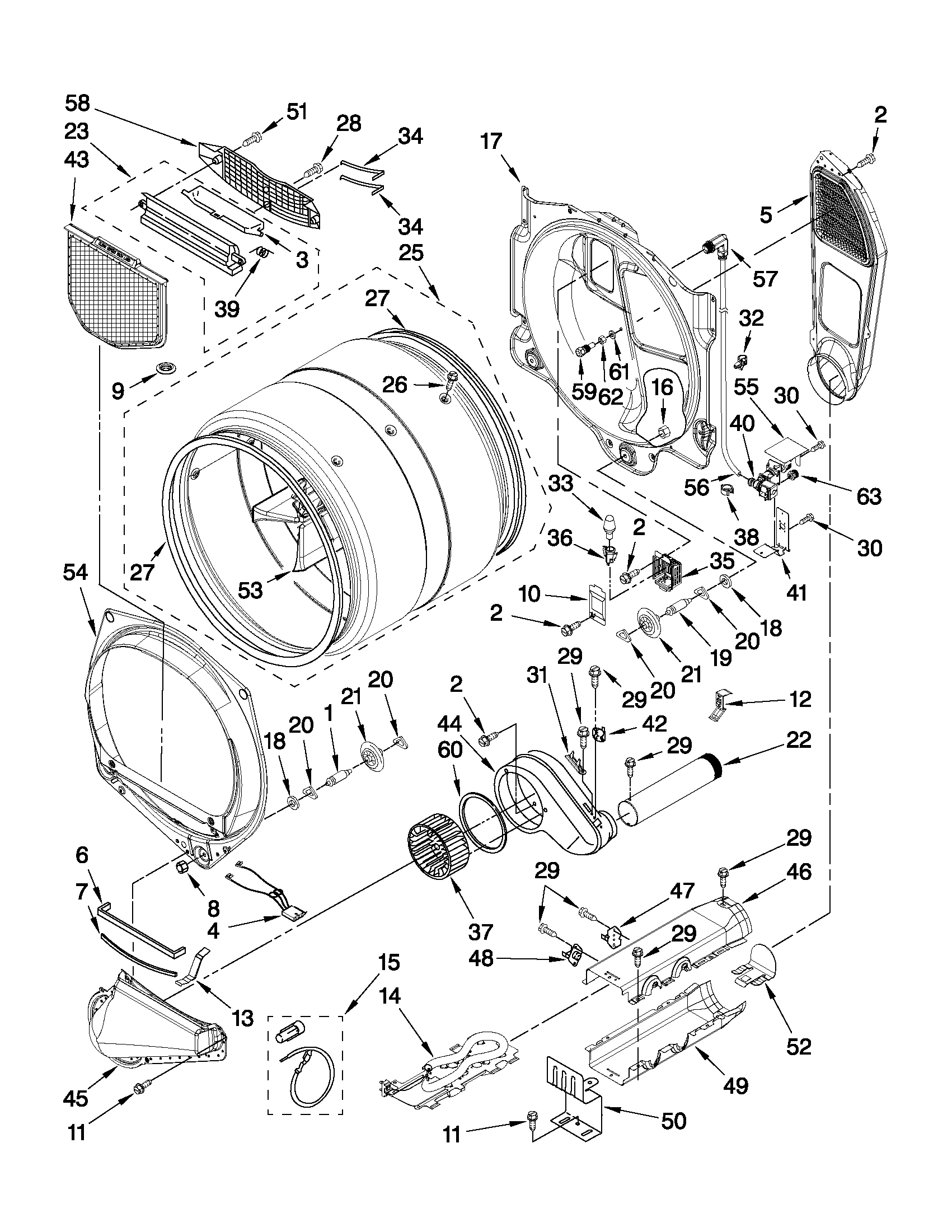

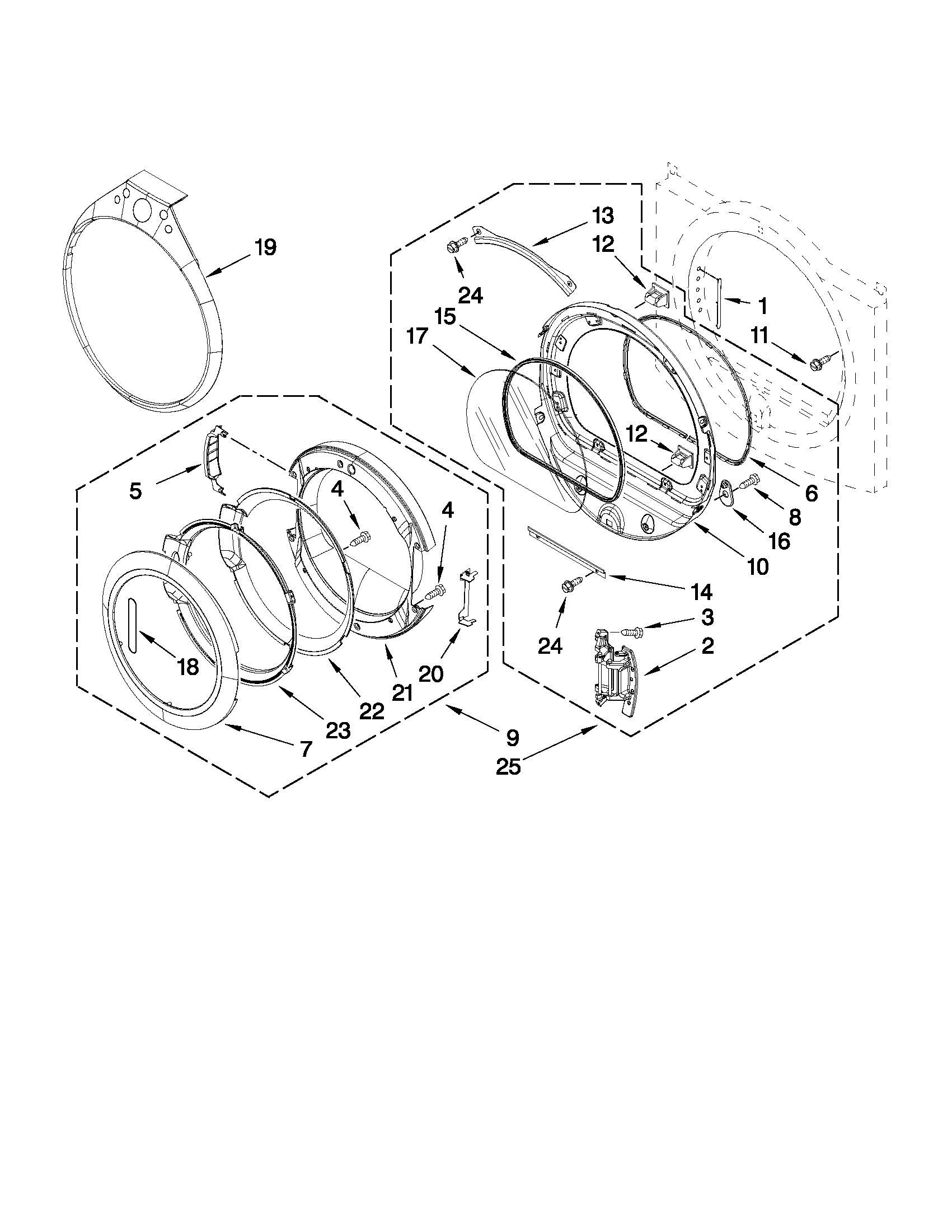

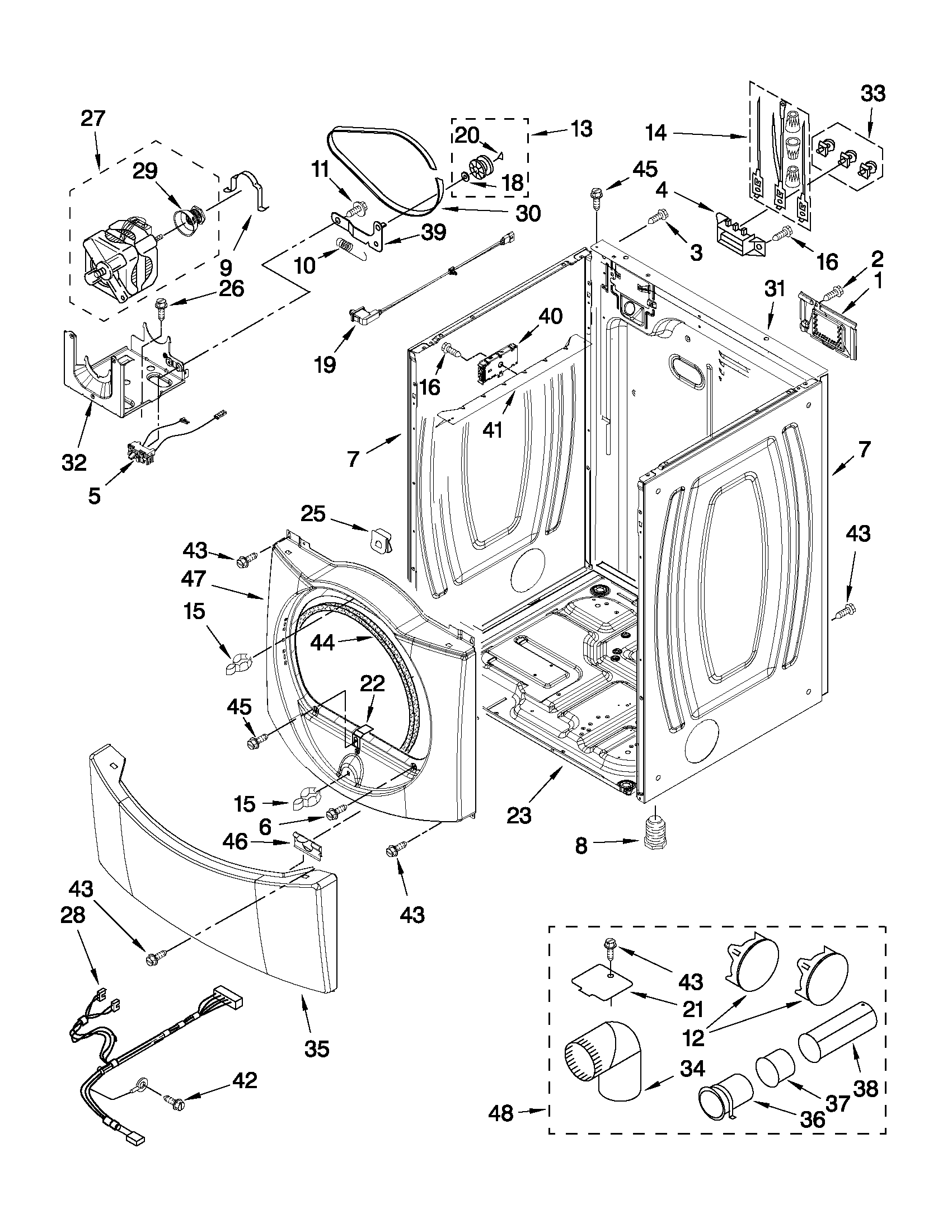

Whirlpool WED9470WW2 electric dryer Parts

To hard reset your Whirlpool WED9470WW2 dryer, we recommend a simple power reset first: unplug the dryer (or switch the breaker off) for about 1 minute, then restore power and try starting a cycle. This clears many control glitches and “PF” power-failure issues.

Recommended reset steps (in order)

• Unplug the dryer or turn both dryer breakers off (electric dryers typically use two breakers).
• Wait 1 minute.
• Restore power.
• Press Power.
• Select a cycle.
• Press and hold START to run the cycle.

If the display shows a code after power is restored

Some messages are cleared by restarting the cycle.

Display message	What it usually means	What to do next
PF	Power failure interrupted the cycle	Press and hold START to restart
L2	Low or no line voltage (heater may not heat)	Check both breakers, cord connection, and home power

For control and display behavior specific to this model, follow the steps in the WED9470WW2 owner’s manual.

Check Control Lock before assuming the dryer needs a reset

If Control Lock is on, the dryer can stop but may not restart until unlocked.

• Press and hold CONTROL LOCK/UNLOCK for 3 seconds to toggle the lock.
• Confirm the Control Lock indicator light changes.
• Then press and hold START to resume or begin a cycle.

Why it matters

A “hard reset” fixes many no-start and frozen-control symptoms without replacing parts. If you keep seeing “L2,” the issue is usually power supply related (not the heating element), and the dryer can tumble without heating.

Last updated: January 2026

Common problems on Whirlpool Duet-style steam dryers (including Whirlpool model WED9470WW2) are poor drying performance from restricted airflow, steam-cycle issues tied to the water supply and inlet hose/valve, and no-start symptoms caused by door-latch or control-related faults. Use the WED9470WW2 owner's manual to match symptoms to cycles, options, and care steps.

Most common symptoms and what they usually mean

• Clothes take too long to dry: lint screen clogged, vent restricted, or blower airflow problem.
• Clothes not fully dry on Auto cycles: moisture sensor bars dirty or not contacting fabrics well.
• Steam cycle not working well: water supply turned off, kinked inlet hose, or inlet valve issue.
• Steam function runs at odd times: control/valve sticking or a cycle/option selection issue.
• Dryer will not start: door not fully closed, door strike/latch problem, or control lock enabled.

Steam-cycle specifics to know (Duet steam models)

Your steam cycles spray a small amount of water into the drum after several minutes of heated tumbling; the dryer then continues tumbling with heat for the rest of the cycle. Results vary by fabric, and fabric softener sheets are not recommended during steam cycles because they can cause temporary staining.

Quick checks for steam complaints

Symptom	What to check first	What often fixes it
No steam or weak steam	Water faucet fully open, hose not kinked	Restore water supply, straighten/replace hose
Water leak	Hose connection tight, hose condition	Tighten fittings, replace worn hose
Steam cycle results poor	Load size, fabric type, cycle selection	Use correct cycle, avoid overloading

Parts that commonly relate to these problems

• If the dryer is not heating or heats inconsistently, the dryer heating element WP8544771 is a common suspect after airflow is confirmed.
• If the dryer overheats or shuts off heat, a safety device may have opened; the dryer thermal cut-off fuse kit 279973 is commonly used in heat-loss repairs.
• If drying is uneven or airflow seems weak, a damaged blower can contribute; check the dryer blower wheel WP697772.

Why it matters

Steam and drying performance depend on two basics: steady airflow through the lint screen and venting, and reliable heat and water delivery during steam cycles. Fixing airflow first prevents repeat heat-fuse failures and improves cycle times.

Last updated: January 2026

The Whirlpool WED9470WW2 electric dryer has a 7.2 cu. ft. capacity, which is a full-size drum designed to handle typical family loads, including bulky items like towels and bedding. For cycle and feature details, use the WED9470WW2 owner's manual.

How to confirm you are checking the right spec

Capacity is the drum volume (cu. ft.), not the exterior size. For WED9470WW2, we recommend verifying these items in the documentation:

• Model number on the dryer label matches WED9470WW2
• Capacity listed in the specifications section
• Cycle type (timed vs. automatic sensor cycles)
• Steam vs. non-steam configuration (can affect features, not capacity)

Related dimensions (helpful for fit and installation)

If you are planning a laundry room install, the installation instructions list typical exterior dimensions for this platform:

Measurement	Steam version	Non-steam version
Height (A)	38 in	38 in
Depth (B)	32 5/16 in	31 1/2 in
Width (C)	27 in	27 in

Most installations also need about 5 in of clearance behind the dryer for the exhaust vent elbow.

Why it matters

A 7.2 cu. ft. drum helps you dry larger loads more efficiently, but performance still depends heavily on airflow (lint screen condition, venting length, and exhaust restrictions) and using the right cycle settings.

Last updated: January 2026
