How to look up Craftsman model number?
To look up your Craftsman model number, we recommend finding the model and serial tag on the tractor first, then matching that number to parts and documentation for your exact unit (for this page, the model is 917254320). The quickest place to check is typically the frame area under the seat; confirm the format in the 917254320 operator’s manual.
Where to find the model and serial number tag
On most Craftsman front-engine lawn tractors like model 917254320, the identification label is commonly located in one of these spots:
- On the frame under the seat
- On the underside of the seat pan
- Near the rear fender or seat mounting area
- On the frame rail near the engine compartment (less common)
- On a sticker or metal plate with both model and serial information
What the model number looks like (and what to write down)
For Craftsman tractors, the model number is usually a 9-digit number.
| Item to record | Example for this tractor | Why you need it |
|---|---|---|
| Model number | 917254320 | Ensures diagrams and parts match your exact tractor |
| Serial number | (varies by unit) | Helps identify production run and correct variations |
How to use the model number to get the right parts
Once you have the model number, use it to select parts by system (mower deck, drive, steering, electrical). When you are replacing wear items, match by model first, then confirm the part description.
- Use the model number to open the correct parts diagrams
- Compare the part name and part ID before ordering

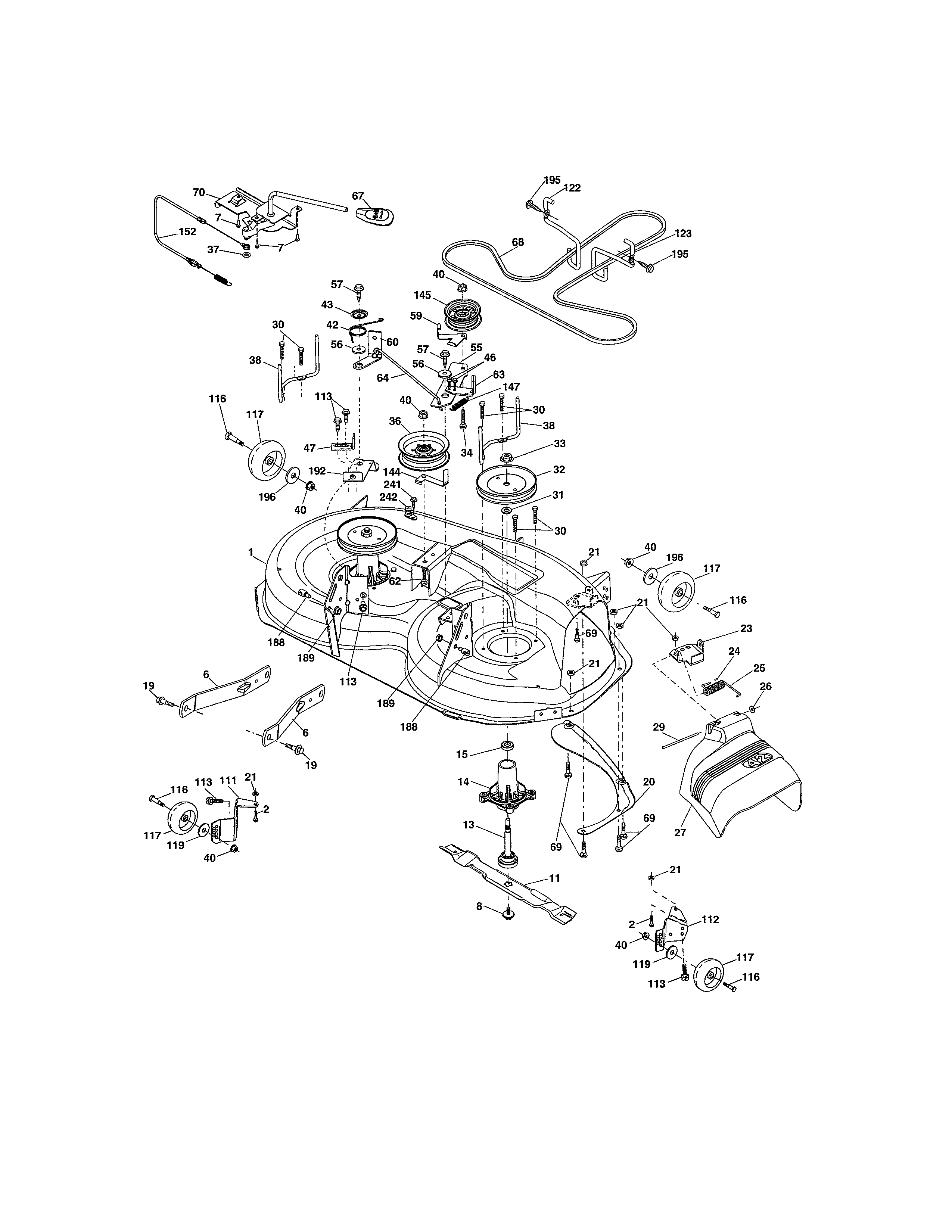

- For deck-related repairs, confirm deck size and blade style
- If you are servicing the deck spindle area, a common related part is the lawn tractor mandrel shaft assembly 587819701
Why it matters
Craftsman tractors can look similar across multiple model numbers, but belt routing, deck hardware, and electrical parts (like the starter solenoid and ignition harness) can differ. Using the exact model number prevents wrong-part returns and saves repair time.
Last updated: February 2026
How to tell the year of a Craftsman lawn mower?
For Craftsman model 917254320, we use the serial number on the tractor’s ID tag to determine the build date; on many Craftsman riding mowers, the first six digits of the serial number are a date code (MMDDYY), which tells you the month, day, and year it was manufactured.
Where to find the serial number on a riding mower
On most Craftsman front-engine lawn tractors, the ID tag is easy to spot once you know where to look.
- Check under the seat (lift the seat and look on the fender pan area)
- Look on the frame rail near the engine compartment
- Check near the rear hitch/drawbar area
- Wipe the tag clean; grass dust and oil can hide digits
- Write down the full serial number exactly as shown
For model-specific locations and ID tag illustrations, use the 917254320 owner's manual.
How to decode the date (common Craftsman format)
A very common Craftsman riding mower serial format starts with a 6-digit date code:
- Digits 1-2: month (01 to 12)
- Digits 3-4: day (01 to 31)
- Digits 5-6: year (last two digits)
Example
| Serial starts with | Decodes to | Build year |
|---|---|---|
| 071294 | July 12, 1994 | 1994 |
| 032105 | March 21, 2005 | 2005 |
If your serial number does not match MMDDYY
Some Craftsman walk-behind mowers and a few tractor variations use different coding. When the first six digits do not form a valid date, we use the manual’s ID section and the full model and serial together to identify the production range.
- Confirm you are reading the serial, not an engine model number
- Recheck for missing leading zeros (example: 030405)
- Compare the tag format to the examples in the 917254320 owner's manual
Why it matters
Knowing the exact year helps us match the correct mower deck parts, blades, belts, and electrical items (such as a starter solenoid) so you get parts that fit your Craftsman tractor the first time.
Last updated: February 2026
What kind of oil do you use in a Craftsman lawn tractor?
For the Craftsman lawn tractor model 917254320, we use 4-cycle engine oil; the factory ships the engine filled with summer-weight oil, and for cold-weather operation you switch to a lighter viscosity using the chart in the 917254320 operator's manual.
Recommended oil type and when to use it
Most Craftsman riding lawn tractors use SAE 30 (summer) and 5W-30 (cooler temperatures) 4-cycle engine oil. Use the viscosity that matches your starting temperatures.
- Use 4-cycle engine oil (never 2-cycle mix)
- Use summer-weight oil for warm-weather mowing
- Use 5W-30 when temperatures drop and starting gets harder
- Check oil on level ground before every mow
- Fill only to the FULL mark on the dipstick; do not overfill
How to check and top off oil (quick steps)
The manual’s process is straightforward; we follow these basics:
- Park on level ground and let the engine cool briefly
- Remove the oil fill cap/dipstick, wipe clean
- Reinsert and tighten, wait a few seconds, then recheck
- Add oil slowly until it reaches the FULL mark
- Reinstall the cap/dipstick securely
Oil selection guide (typical)
| Outdoor temperature | Typical oil viscosity | Best for |
|---|---|---|
| Above ~40°F | SAE 30 (summer weight) | Normal mowing season |
| Around 0°F to 40°F | 5W-30 | Easier cold starts |
Why it matters
Correct oil viscosity protects the engine from wear, helps it start reliably, and keeps internal parts properly lubricated under load. Using the wrong viscosity can cause hard starting (too thick) or reduced protection (too thin).
Last updated: February 2026
What would cause a Craftsman lawn mower not to start?
On the Craftsman lawn tractor model 917254320, a no-start is usually caused by a weak battery or bad connections, a fuel delivery problem (stale gas or a clogged fuel filter), or an ignition issue such as a worn spark plug. We use the troubleshooting steps in the 917254320 owner's manual to narrow it down fast.
Quick checks we recommend first
- Make sure the PTO or attachment clutch is disengaged and you are fully seated; the operator presence system can shut the engine off if conditions are unsafe.
- Confirm the battery cables are tight and clean; corrosion at the terminals can prevent cranking.
- Try fresh gasoline; stale fuel is a common cause after storage.
- Check the spark plug wire is firmly connected.
- Inspect the air intake area and engine screen for heavy debris buildup.
Most common causes and what to do
| Symptom | Likely cause | What to do next |
|---|---|---|
| No crank or only a click | Battery low, dirty terminals, wiring issue, solenoid/starter problem | Recharge/replace battery; clean terminals; check wiring; test/replace solenoid |
| Cranks but will not start | Stale fuel, clogged fuel filter, spark plug issue | Drain and refill with fresh fuel; replace fuel filter; replace spark plug |
| Starts then dies or runs rough | Dirty air filter, carburetor needs adjustment, fuel contamination | Clean/replace air filter; refresh fuel; follow carburetor adjustment steps in the manual |
Parts that commonly fix a no-start on this tractor
These are model-relevant parts we often see involved when cranking is weak or intermittent:
- Lawn tractor starter solenoid 582042802 (if you hear clicking but the starter will not engage)
- Battery cables and terminals (cleaning and tightening often restores starting)
- Spark plug(s) (the manual calls for replacement at the start of each mowing season or every 100 hours)
- In-line fuel filter (replace once each season)
Why it matters
A no-start is often a simple maintenance issue, but repeated cranking with poor fuel flow or a dirty cooling system can lead to overheating and engine damage. Keeping up with seasonal spark plug and fuel filter service prevents most starting complaints.
Last updated: February 2026
