Model # MAV6548AWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MAV6548AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

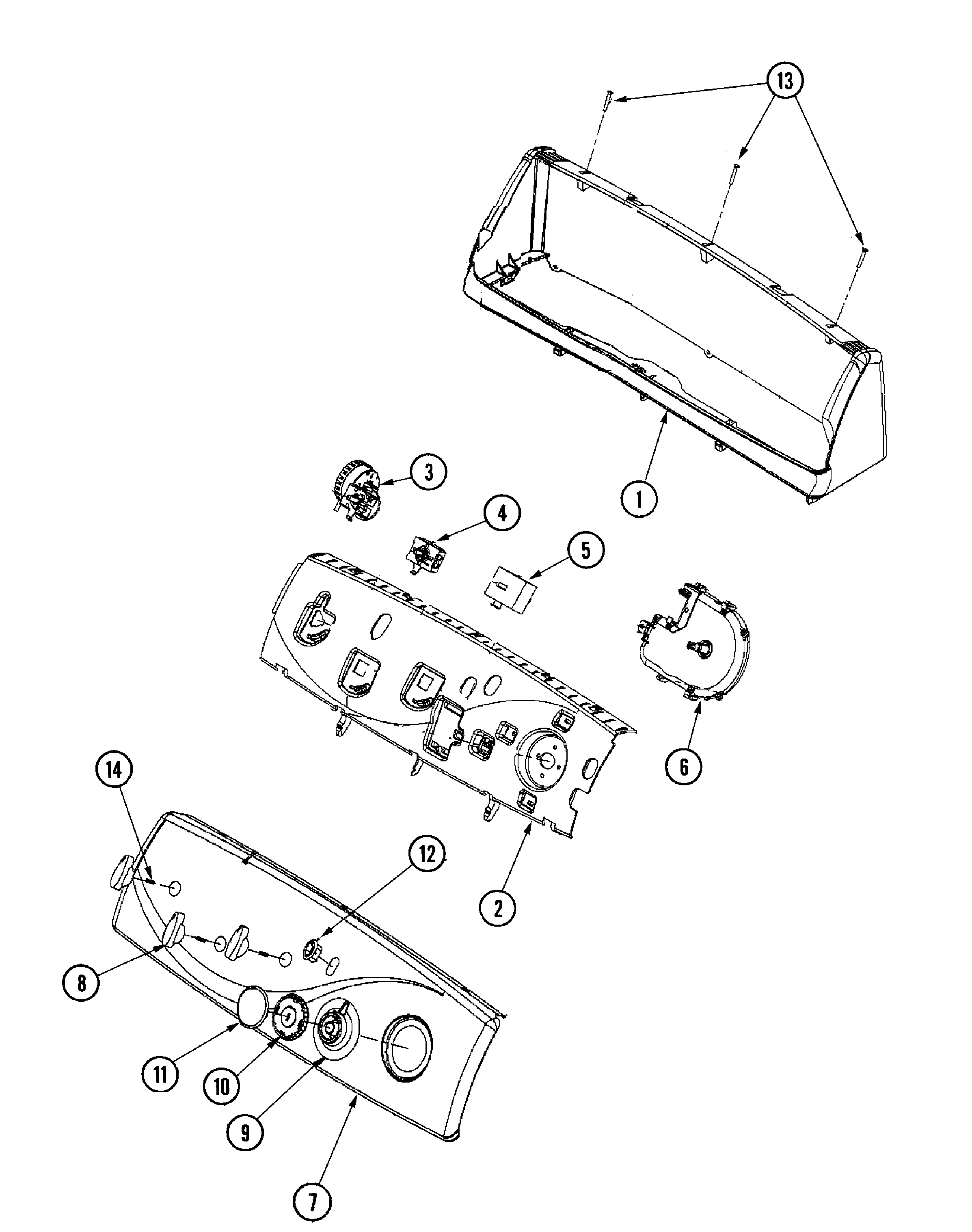

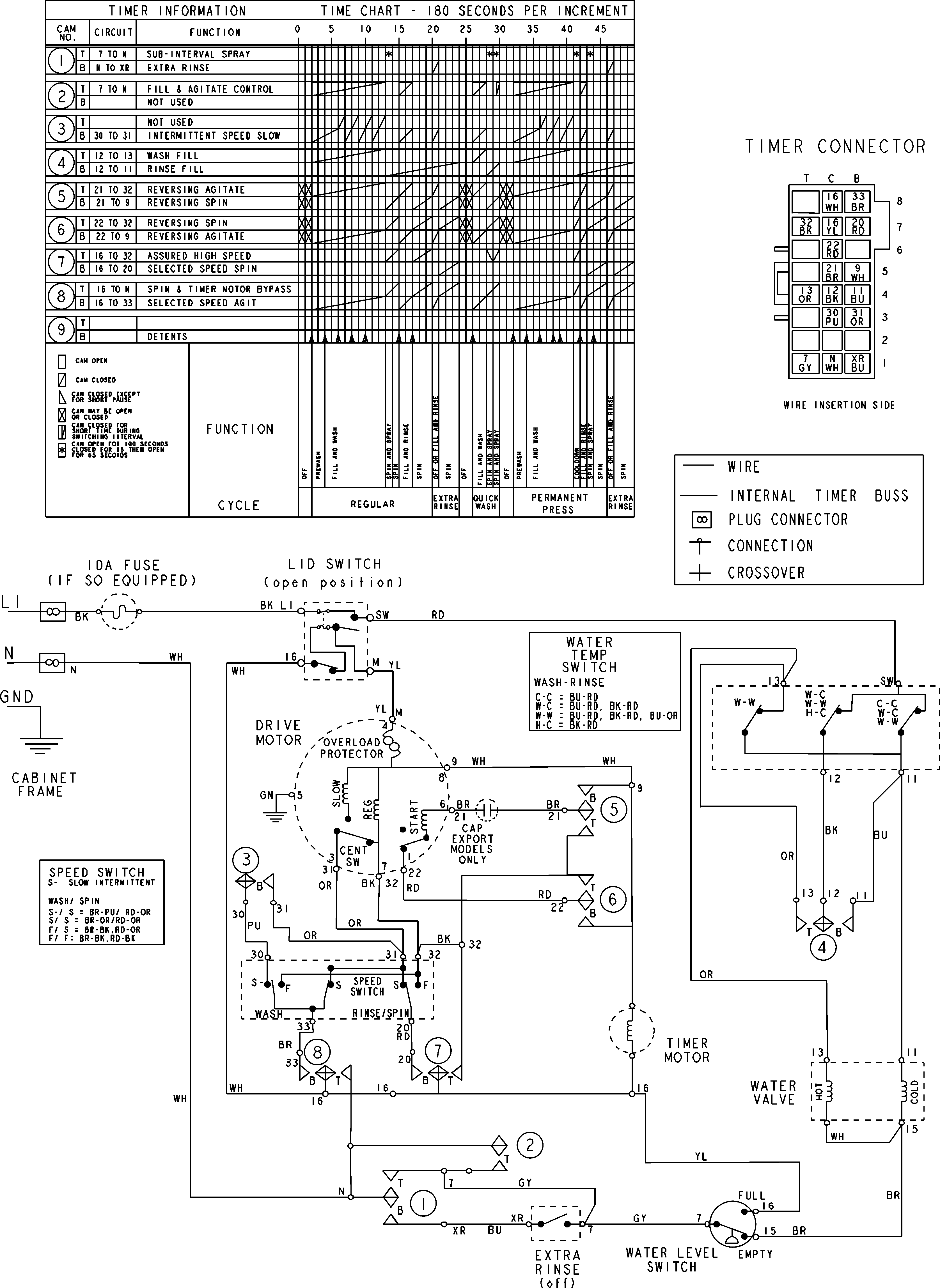

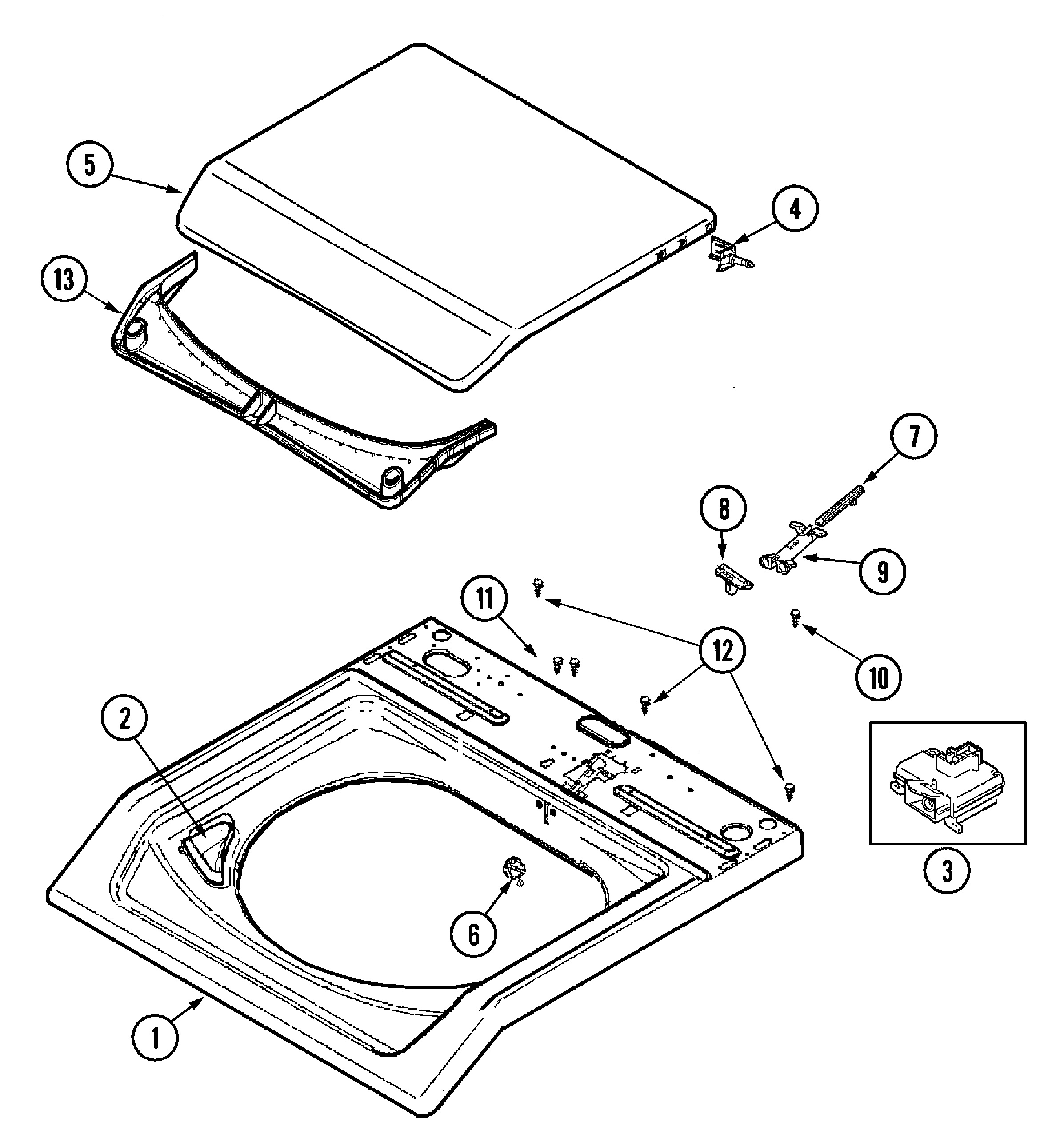

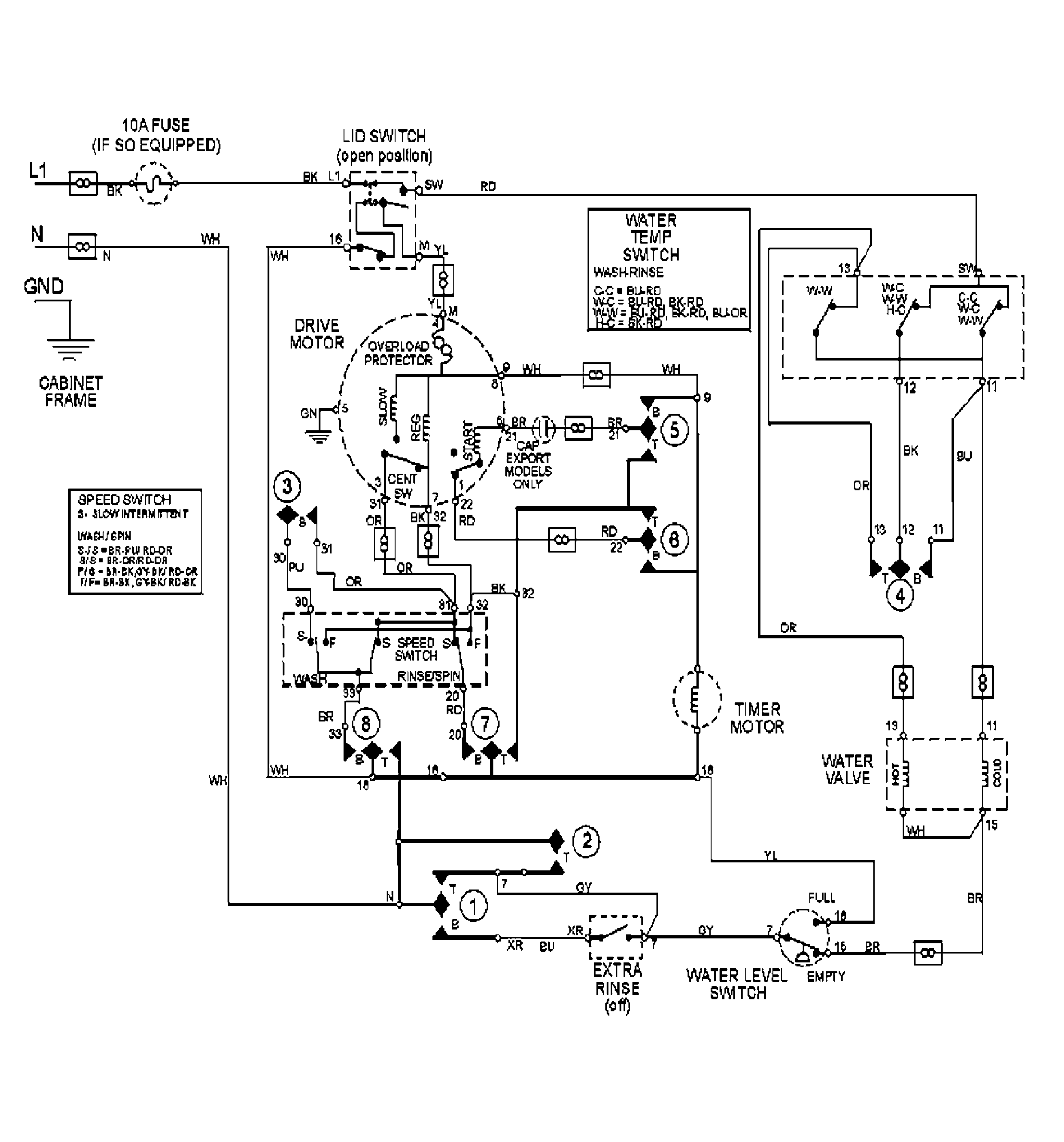

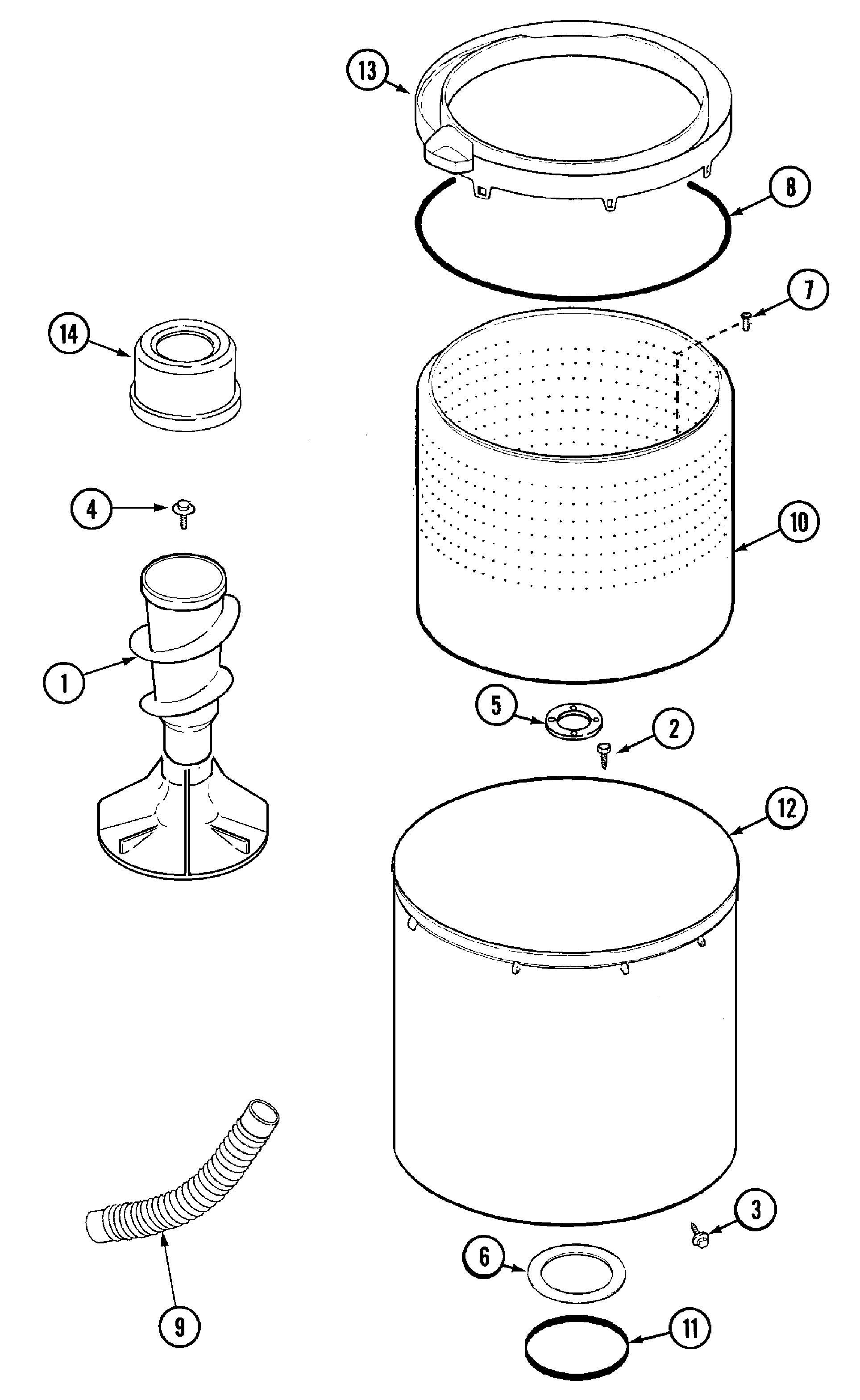

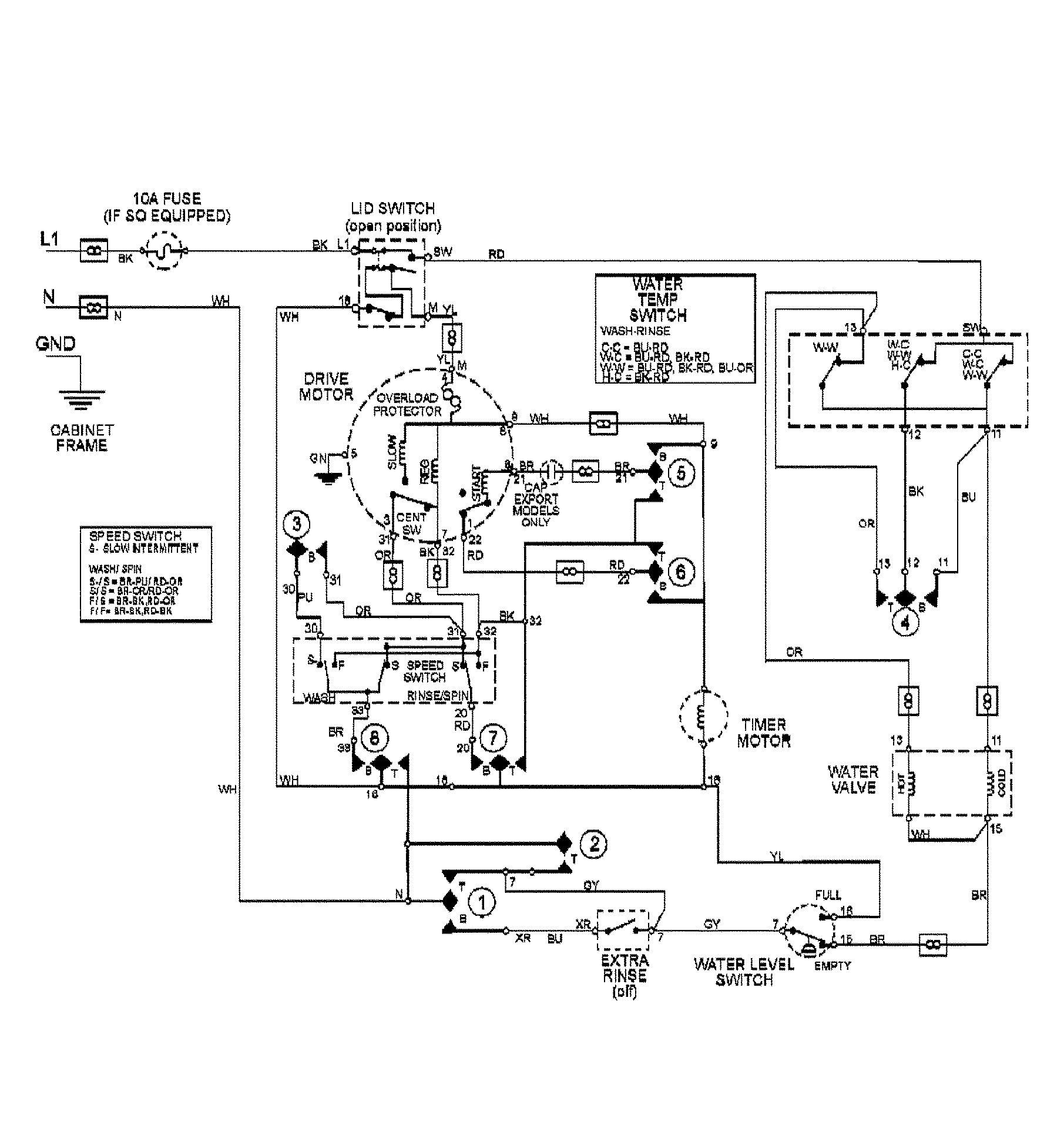

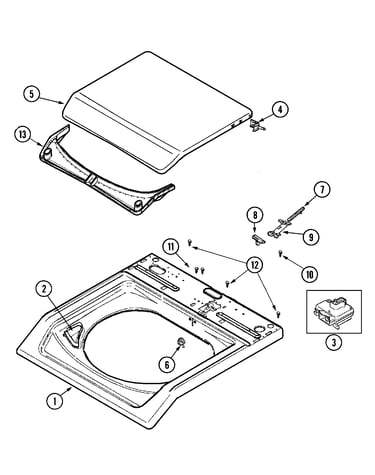

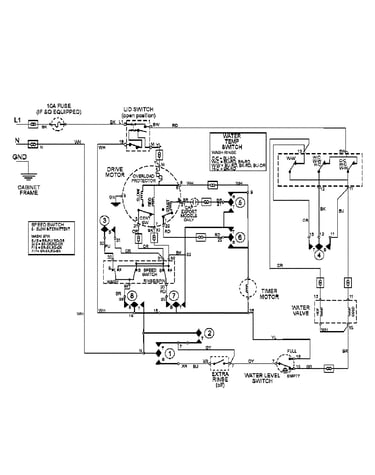

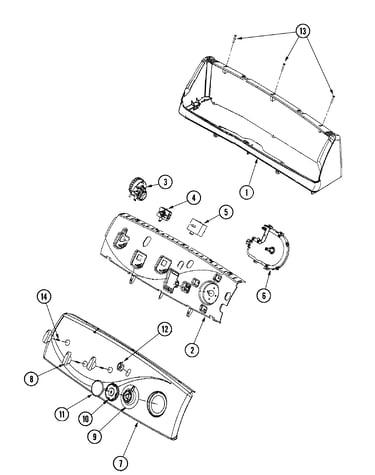

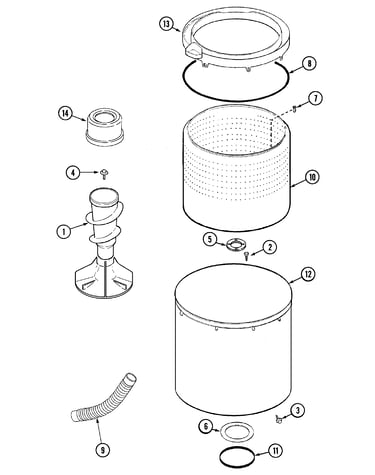

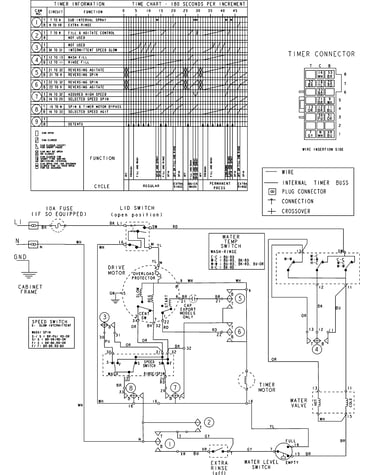

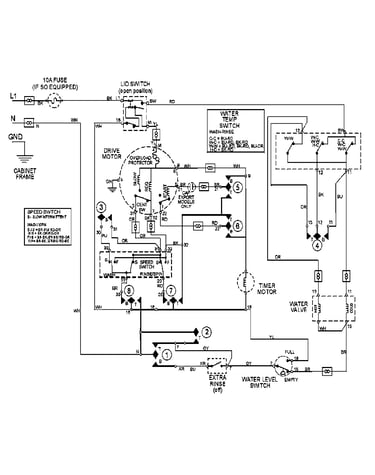

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |

Inlet Hose 33-7891
#16

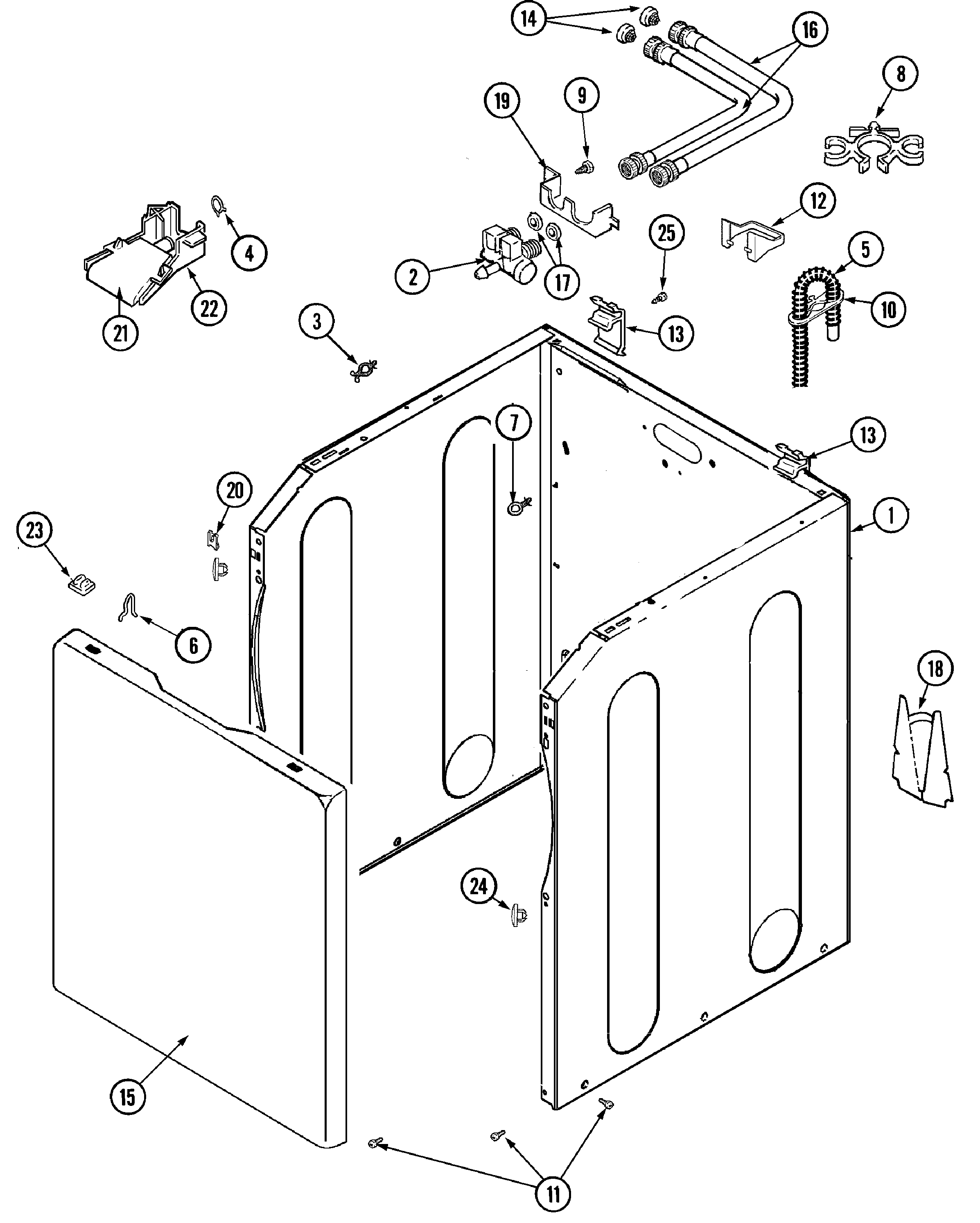

Cabinet diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49
12% OFF Phone Price : $16.49
In Stock
Snubber 21001161
#22

Transmission diagram

Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49
12% OFF Phone Price : $8.49
In Stock
Pulley 22004297
#2B

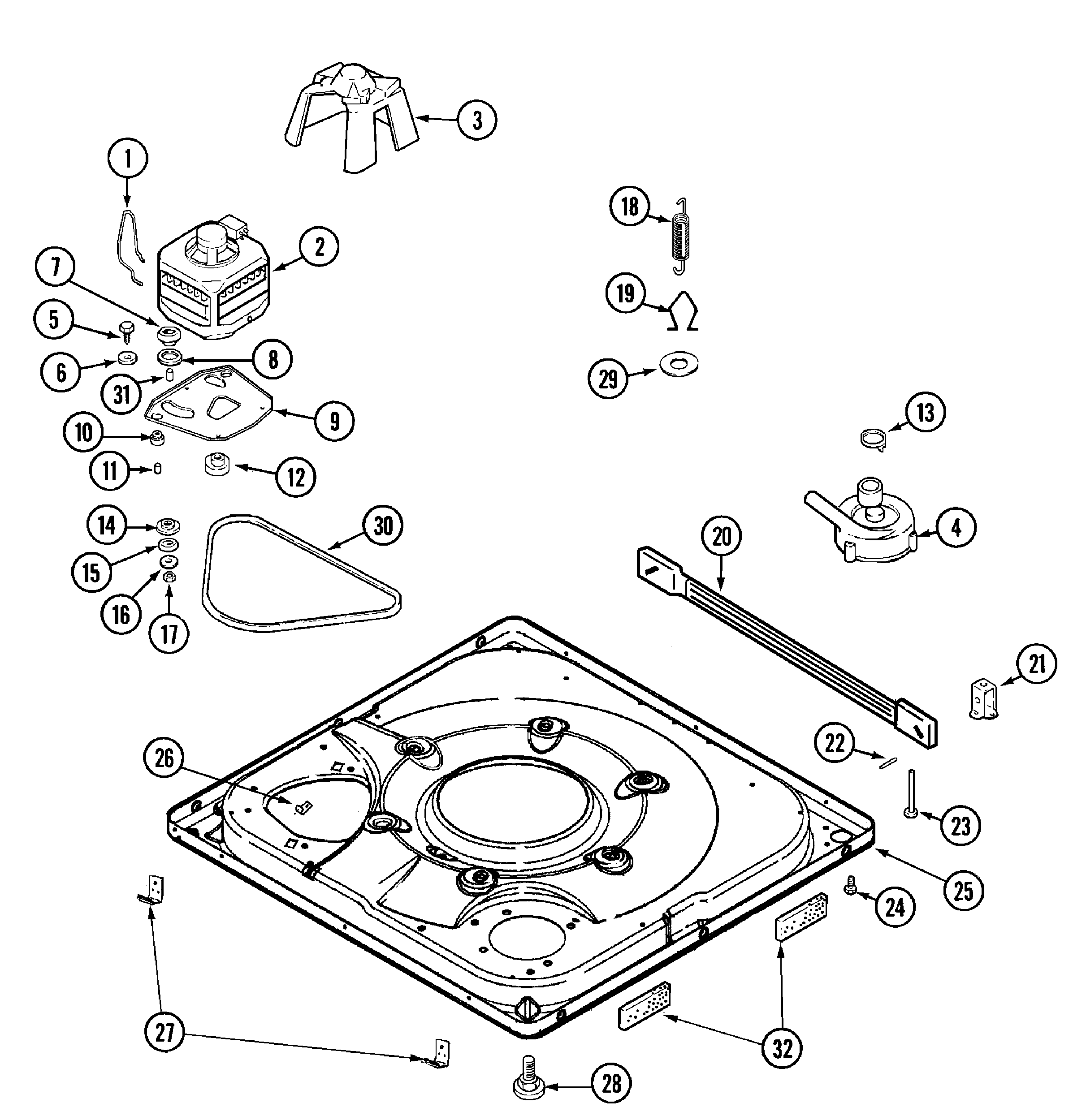

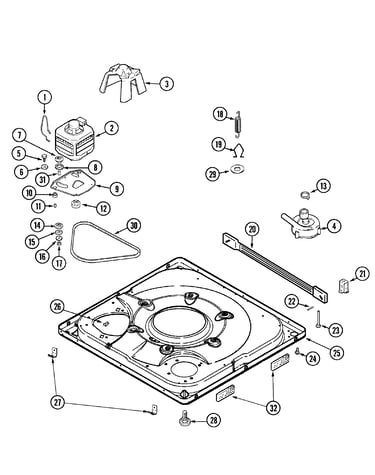

Base diagram

Pulley

Part #22004297

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
$141.69
21% OFF MSRP : $180.00
In Stock
Washer Drive Motor 21001506
#2A

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
$141.69
21% OFF MSRP : $180.00
In Stock
Washer Drive Belt 22003483
#30

Base diagram

Washer drive belt

Part #22003483

Replaced by #WP22003483

?
Manufacturer substitution
This part replaces 22003483. Substitute parts can look different from the original.
$37.00
12% OFF Phone Price : $42.00
In Stock
Motor (110v 21001750
#2

Base diagram

Motor (110v

Part #21001750

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001750. Substitute parts can look different from the original.
$141.69
21% OFF MSRP : $180.00
In Stock
Pulley 12001797
#3

Transmission diagram

Pulley

Part #12001797

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12001797. Substitute parts can look different from the original.
$41.09
19% OFF MSRP : $51.00
In Stock
Thrust Brg K 12500036
#24

Transmission diagram

Thrust brg k

Part #12500036

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12500036. Substitute parts can look different from the original.
$41.09
19% OFF MSRP : $51.00
In Stock
Cam Replacem LA-2007
#4

Transmission diagram

Cam replacem

Part #LA-2007

Replaced by #12002213

?
Manufacturer substitution
This part replaces LA-2007. Substitute parts can look different from the original.
$41.09
19% OFF MSRP : $51.00
In Stock
Pump 21001873
#4

Base diagram

Pump

Part #21001873

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
$105.65
9% OFF Phone Price : $115.65
In Stock
