GE GSHL5KGXGCLS refrigerator - x series Parts

A large side-by-side refrigerator is typically about 33 to 36 inches wide. For your GE GSHL5KGXGCLS, the installation instructions indicate that if an entrance is less than 38 inches wide, the doors must be removed to move the refrigerator through, which is a practical clearance benchmark for “large” side-by-side units (including handles and maneuvering space). See the owner's manual for model-specific moving and clearance guidance, and use Sears PartsDirect if you need replacement parts while you’re measuring and planning.

Typical widths you’ll see (and what they mean)

Most “large” side-by-side refrigerators fall into these common width bands:

• 33 inches: common “standard” side-by-side footprint
• 35 to 36 inches: common “large” side-by-side footprint
• Over 36 inches: specialty, built-in, or custom-panel styles
• 38 inches: a common doorway threshold where door removal may be needed for moving

Quick sizing table

What you’re measuring	Typical number	Why it matters
Cabinet width (box only)	33 to 36 in.	Determines fit between cabinets
Door/handle projection	Adds 1 to 3 in.	Affects aisle clearance and door swing
Minimum path/doorway to move in	38 in. or more	Avoids removing doors during install

How we recommend measuring (so you don’t get surprised)

Measure in three places, then plan for clearance:

• Space between cabinets (left to right)
• Doorway and hallway widths on the path to the kitchen
• Depth clearance for doors to open and drawers to slide out
• Extra room behind the unit for the water line and airflow
• Floor protection and tilt space for moving on a hand truck

Why it matters

Width is only part of “will it fit.” Side-by-side refrigerators need enough room for door swing, handle clearance, and a clear moving path. The GSHL5KGXGCLS guidance about 38-inch entrances is especially useful when planning delivery or a DIY move.

Last updated: February 2026

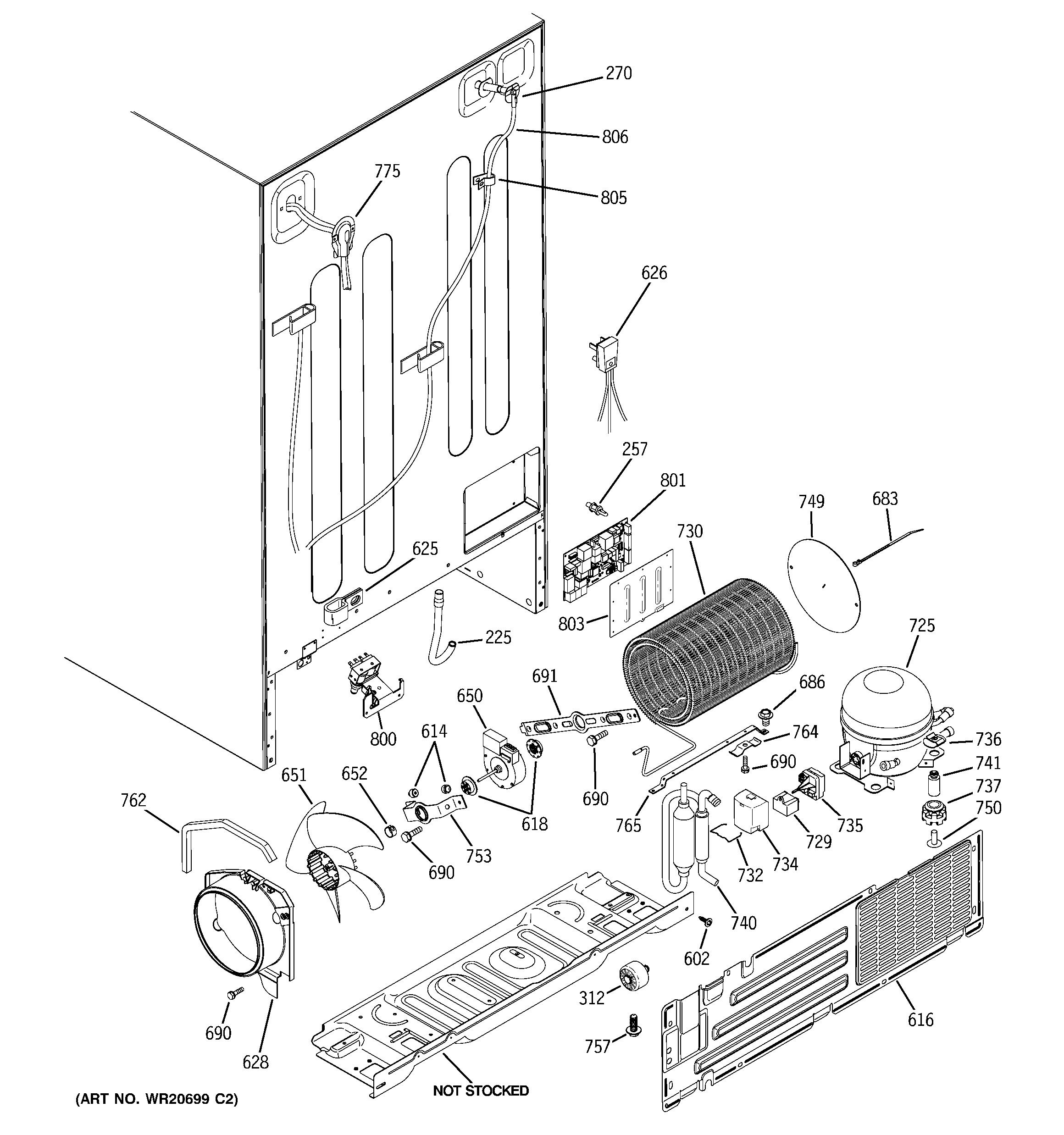

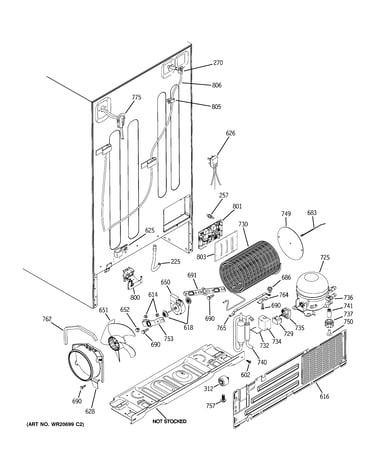

On the GE GSHL5KGXGCLS side-by-side refrigerator, the condenser coils are typically located underneath the cabinet (accessible from the front toe grille or the rear lower area). Pull the refrigerator straight out to reach them safely and avoid floor damage; see the owner's manual.

How to access the coils safely

• Unplug the refrigerator (turning it off at the controls does not shut off electrical power).
• If needed, shut off the water supply to the refrigerator before moving it.
• Pull the refrigerator straight out, not sideways, to protect flooring.
• Watch the power cord and icemaker supply line so you do not roll over them.
• Use a flashlight to locate the coil area near the compressor.

Cleaning steps (what works best)

• Vacuum loose dust first using a crevice tool.
• Use a coil-cleaning brush to loosen packed lint between coil fins.
• Vacuum again to remove what the brush dislodges.
• Clean around the compressor and the base area while you are there.

Quick troubleshooting: is it a coil problem?

Symptom	Often points to dirty coils	Often points elsewhere
Refrigerator runs a lot	Yes	Also check door gaskets, airflow blockage
Cabinet feels hot on sides	Sometimes	Can be normal during heavy cooling
Poor cooling in both sections	Sometimes	Also check evaporator fan, defrost issues
Noisy fan sound	No	Check evaporator fan motor

Why it matters

Dirty condenser coils make it harder for your GE refrigerator to shed heat. That can increase run time, reduce cooling performance, and add strain to the sealed system.

Parts that can be related (if symptoms continue)

If cleaning does not help and you still have warm temperatures, these model-matched parts are commonly involved in cooling and airflow:

• GE profile refrigerator temperature sensor WR55X10025
• Refrigerator evaporator fan motor WR60X10307
• Refrigerator defrost heater WR51X10055

For ordering, use the parts list for model GSHL5KGXGCLS, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. GE side-by-side refrigerators like model GSHL5KGXGCLS are a solid choice for everyday use because they typically deliver consistent cooling, easy food organization with shelves and bins, and convenient ice and water dispensing when maintained per the owner's manual.

What “good” usually means for a side-by-side

A good side-by-side refrigerator keeps both compartments at stable temperatures, circulates air evenly, and has reliable door sealing and defrost performance.

Common strengths many owners value:

• Easy access to fresh food and freezer items at eye level
• Adjustable shelving and door bins for flexible storage
• Built-in dispenser convenience (water and ice)
• Straightforward maintenance (filter changes, cleaning)

What to watch for (and how to prevent issues)

Most complaints we see across side-by-sides come down to airflow, ice maker/dispenser performance, and water system maintenance.

To keep performance strong:

• Replace the water filter on schedule; a restricted filter slows water flow and can affect ice quality (see GE refrigerator water filter MWFP)
• Keep vents inside both compartments clear so cold air can circulate
• Clean spills promptly and avoid harsh cleaners that can damage interior surfaces
• If you have an RO system, use the refrigerator’s bypass plug as directed in the manual to prevent slow flow and hollow ice

Quick maintenance checklist

Item	Typical interval	Why it matters
Water filter	About every 6 months	Protects taste, flow rate, and ice production
Condenser area cleaning	6 to 12 months	Helps efficiency and cooling stability
Door gasket inspection	3 to 6 months	Prevents warm air leaks and frost
Temperature check	Monthly	Confirms safe food storage temps

Why it matters

A side-by-side can be “good” for many years when airflow stays unobstructed, the defrost system works properly, and the water system is maintained. Small upkeep steps reduce temperature swings, frost buildup, and dispenser problems.

Ordering parts for your refrigerator

For GSHL5KGXGCLS, you can order common maintenance and repair parts like the GE refrigerator water filter MWFP directly from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

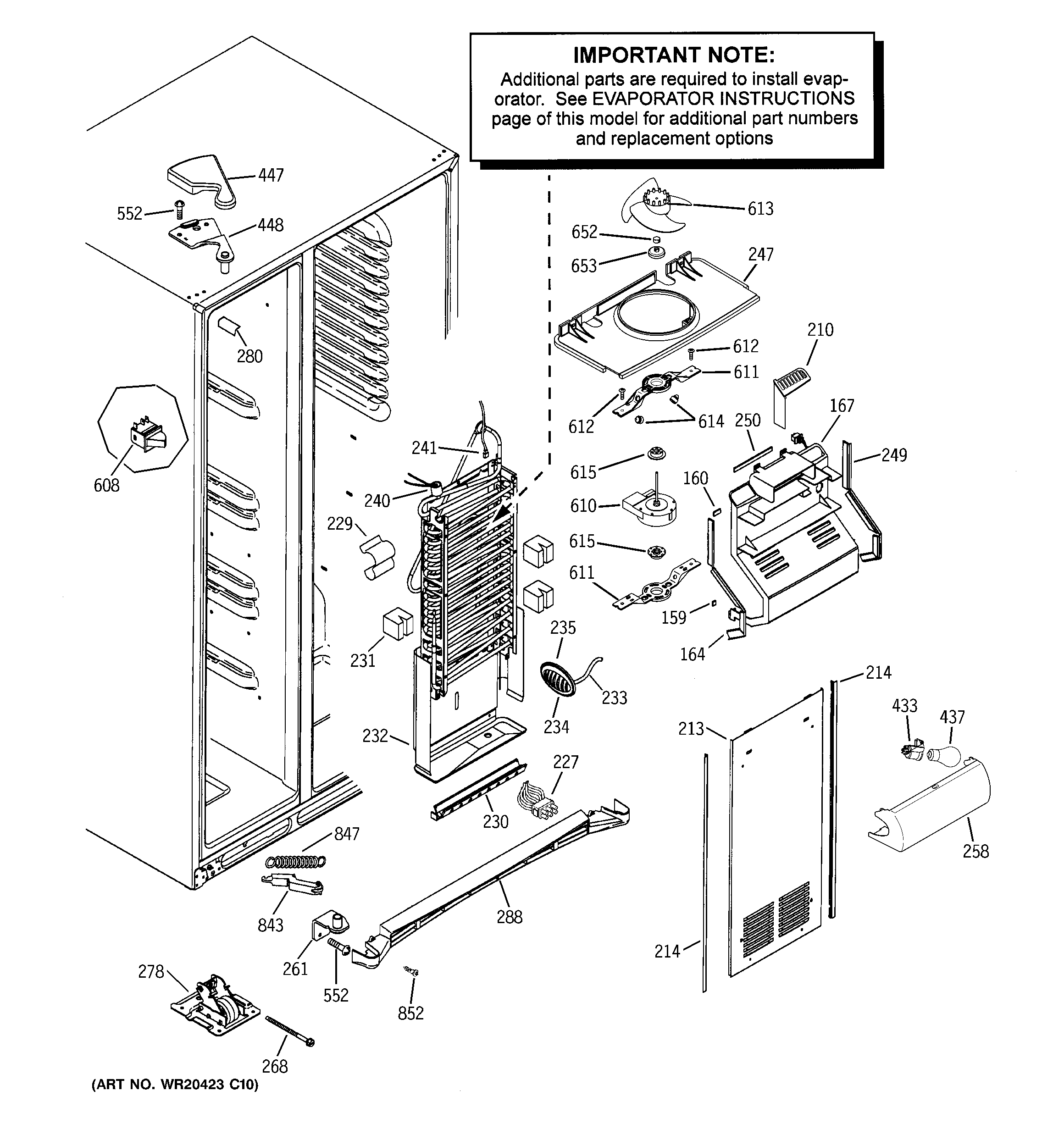

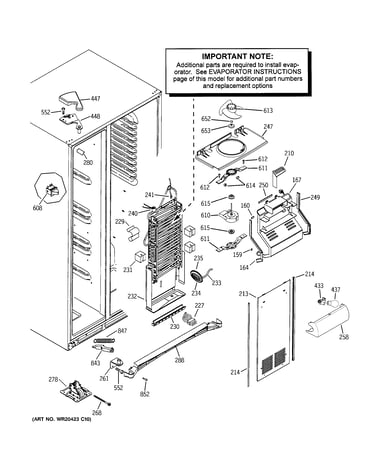

On the GE GSHL5KGXGCLS side-by-side refrigerator, a freezer that “freezes up” (heavy frost or ice buildup) is caused by warm, moist air leaking past the door seal, blocked airflow inside the freezer, or a defrost system failure that lets frost build on the evaporator.

Quick checks we recommend

• Make sure the freezer door closes fully and nothing is holding it open.
• Inspect the door gasket for gaps, tears, or areas pulling away from the cabinet.

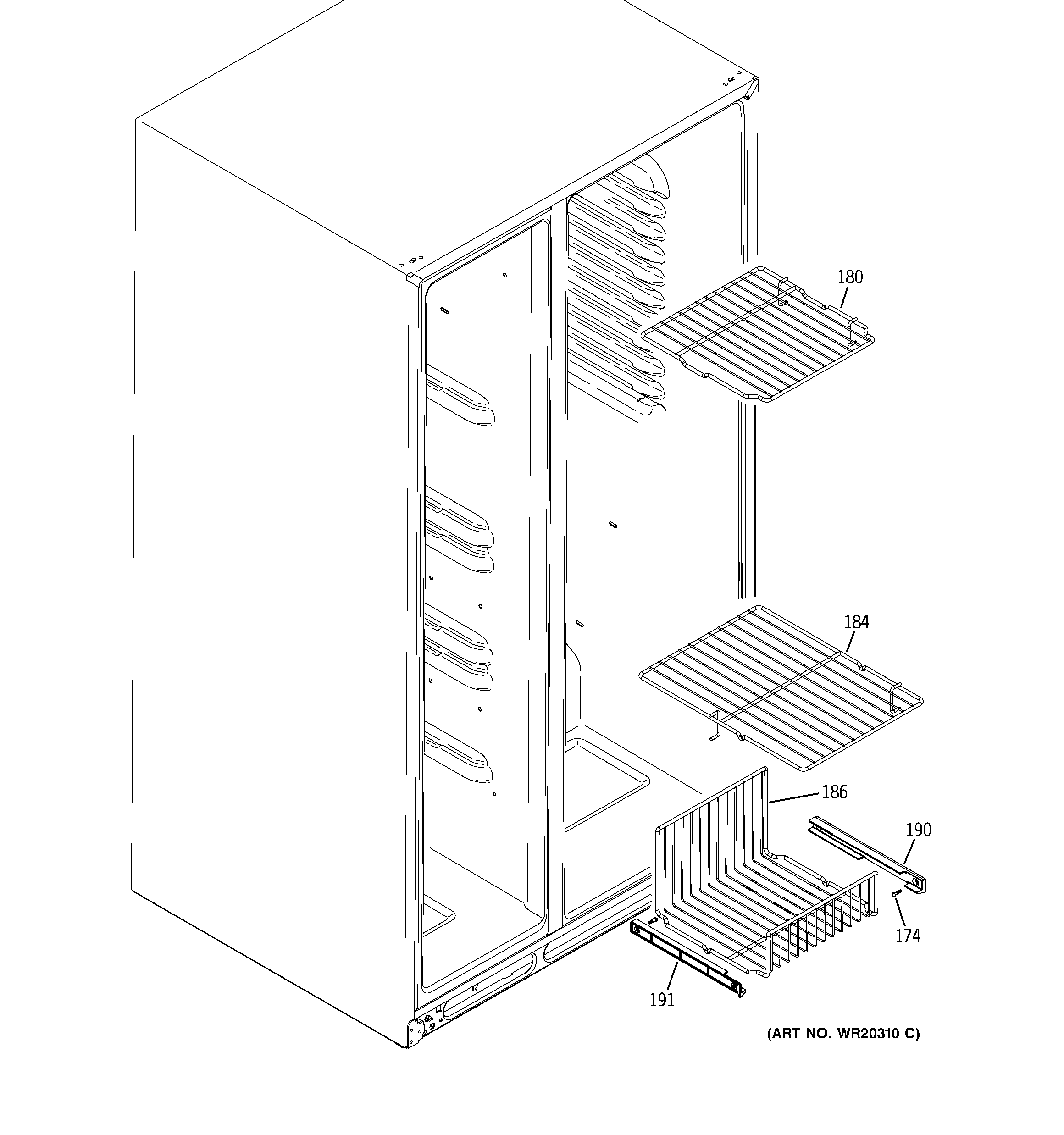

• Push shelves and baskets all the way back before closing the door (this is called out in the GSHL5KGXGCLS owner's manual).
• Keep food from blocking rear air louvers and the air tunnel; blocked vents reduce circulation.
• Limit long door openings; humid room air turns into frost quickly.

What to check next (by symptom)

What you see	Most likely cause	What to do
Frost mainly near the door/front	Door not sealing	Clean gasket and sealing surface; replace gasket if torn or deformed
Solid frost behind rear freezer panel	Defrost system issue	Check defrost heater and defrost thermostat
Frost plus weak airflow or odd fan noise	Airflow problem	Check evaporator fan operation and clear obstructions

Parts that commonly solve “freezing up”

• Refrigerator defrost heater WR51X10055 (restores defrost heat)
• Refrigerator defrost bi-metal thermostat WR50X10065 (controls defrost heating based on temperature)
• Refrigerator evaporator fan motor WR60X10307 (restores airflow across the evaporator)

Why it matters

Frost buildup blocks airflow, so temperatures become uneven and the compressor runs longer. Fixing the air leak or defrost problem restores normal cooling and helps prevent repeat icing.

For ordering, use the parts list for model GSHL5KGXGCLS on this page, or search by model number on Sears PartsDirect.

Last updated: February 2026
