Kenmore 59672003014 refrigerator Parts

A bottom-mount refrigerator like Kenmore model 59672003014 is better for many kitchens because the fresh-food section sits at eye and waist level, so you reach milk, produce, and leftovers more easily while the freezer stays in a lower pull-out drawer.

When a bottom-mount is the better choice

• You use fresh foods more often than frozen foods
• You want fewer bends and less lifting to access everyday items
• You like wide refrigerator shelves and door bins for organization
• You prefer a freezer drawer that can hold bulky frozen items
• You want easier access to crisper drawers and humidity controls

Trade-offs to consider

Bottom-mount designs are not “better” for every home. Here are the most common pros and cons.

Feature	Bottom-mount refrigerator	Top-freezer refrigerator
Fresh-food access	Easier (at eye level)	Requires bending
Freezer access	Requires bending	Easier (at chest level)
Organization	Strong for fresh-food storage	Strong for quick freezer access
Typical cost/complexity	Often higher	Often lower

Setup details that affect performance (and satisfaction)

Even the best layout will feel “worse” if the refrigerator is not installed and adjusted correctly. For this Kenmore model, we recommend:

• Leave ventilation clearance around the cabinet (sides/top and behind) so it cools efficiently
• Level the refrigerator so doors close smoothly and seal consistently
• If your unit has an ice maker or water dispenser, allow extra space behind for the water line connection
• Use the temperature controls as outlined in the 59672003014 owner's manual

Why it matters

Most households open the refrigerator section far more than the freezer. With a bottom-mount, the items you use most are easier to reach, which improves day-to-day convenience and can reduce how long the door stays open.

Last updated: February 2026

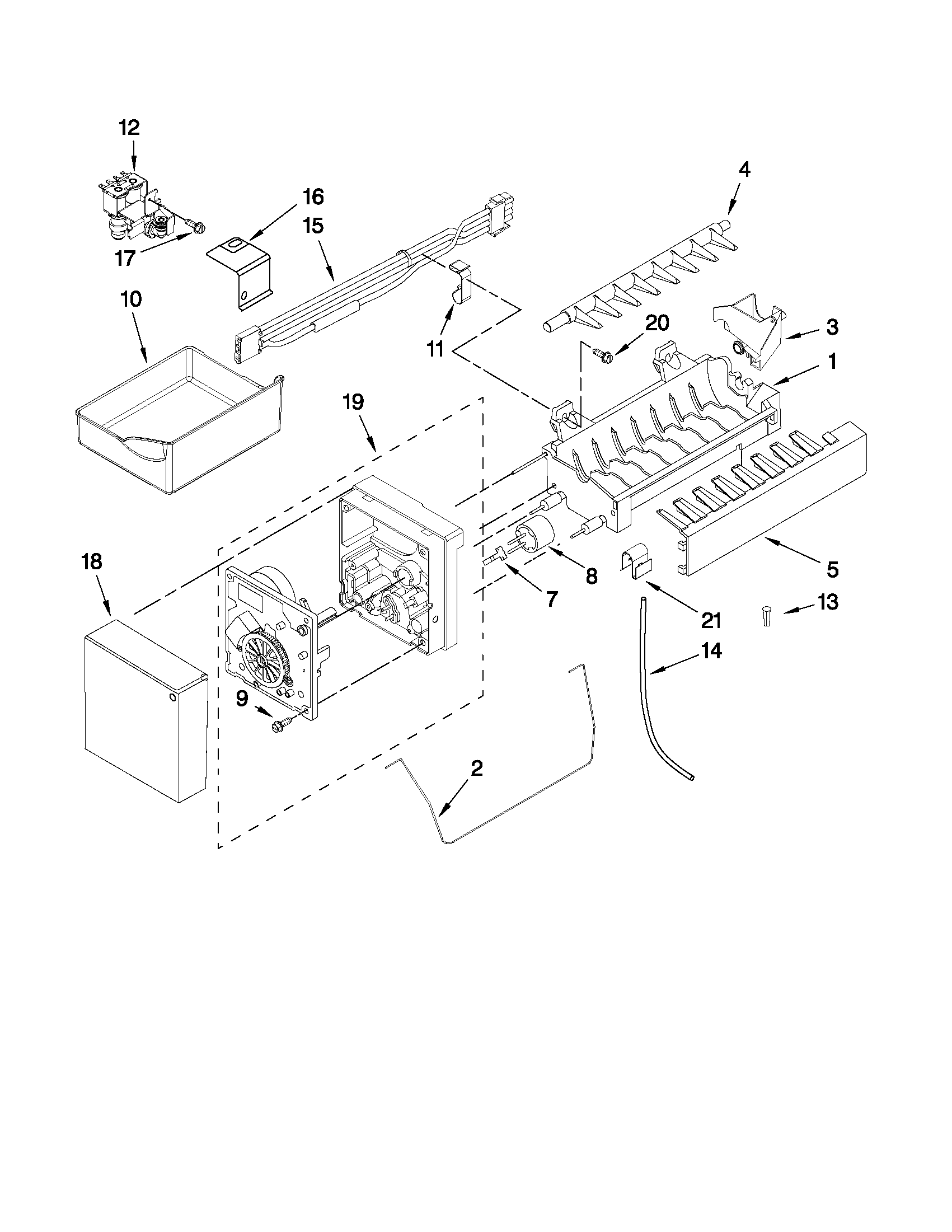

On Kenmore refrigerator model 59672003014, the ice maker does not use a keypad “reset” sequence; we reset it by cycling power to the ice maker using the wire shutoff arm (OFF then ON), then allowing time for a new harvest cycle to start. See the 59672003014 owner's manual.

Quick reset steps (wire shutoff arm method)

• Open the freezer door and locate the ice maker wire shutoff arm.
• Lift the wire shutoff arm to the OFF (arm up) position; listen for a click.
• Wait 30 seconds to 2 minutes.
• Lower the wire shutoff arm to the ON (arm down) position.
• Close the freezer door and wait for ice production to resume.
• Allow 24 hours for the first batch if the ice maker was recently off.

After a reset: what to expect

The ice maker on this style typically cycles about every few hours once temperatures are stable.

What you see	What it means	What we do
No ice for several hours	Normal after being turned off or after warm door openings	Keep freezer cold and avoid frequent door openings
Small or hollow cubes	Water supply or fill issue	Check household water supply and inlet valve operation
Ice tastes odd at first	Normal after water system work	Discard the first three batches of ice

If it still will not make ice

• Confirm the wire shutoff arm is fully down and not blocked by the bin.
• Make sure the freezer is set cold enough (ice makers struggle above typical freezer temps).
• If you recently replaced or reinstalled the water filter, flush the water system first (air can cause sputtering and delayed fills).
• Check for a frozen or clogged drain or ice buildup that can affect airflow.
• If you suspect a failed ice maker module, the correct replacement for this model is the refrigerator ice maker assembly W10884390.

Why it matters

Cycling the wire shutoff arm clears simple “stuck off” conditions and restarts normal automatic shutoff behavior without forcing parts. It also helps you separate a control issue from a water supply or temperature problem.

Last updated: February 2026

To tell what model Kenmore refrigerator you have, look for the model and serial tag on the cabinet liner (inside the fresh food section) or inside the freezer compartment. For Kenmore model 59672003014, the exact tag locations and examples are shown in the 59672003014 owner's manual.

Where to look for the model number tag

Check these common spots first (use a flashlight and look for a sticker or metal plate):

• Inside the refrigerator compartment on a side wall near the crisper drawers
• On the ceiling area inside the fresh food section (near the temperature controls)
• Inside the freezer compartment on a side wall
• Behind the lower toe grille (kick plate) area
• Along the door frame edge (visible when the door is open)

What the model number looks like (and why it matters)

Kenmore model numbers are usually a long number with no spaces (example: 59672003014). We use that exact model number to match the correct refrigerator parts, diagrams, and troubleshooting steps.

Quick ID checklist

• Model number: identifies the exact refrigerator design
• Serial number: identifies the production unit and date range
• Prefix (first 3 digits): helps indicate the manufacturing source for parts lookup

If the tag is hard to read

Try these steps to make the label readable without damaging it:

• Wipe gently with a damp microfiber cloth, then dry
• Take a close-up photo and zoom in
• Use your phone flashlight from the side to reduce glare
• Copy the full number exactly as printed (include all digits)

Model number vs. similar numbers

You might see	What it is	Use it for
59672003014	Model number	Finding correct parts and manuals
Serial number	Production identifier	Service history and manufacturing date
P/N (manual part number)	Manual document number	Identifying the correct guide

Why it matters

Using the exact model number prevents ordering the wrong Kenmore refrigerator door gasket, ice maker assembly, or control board, since small design changes can affect fit and wiring.

Last updated: February 2026

On Kenmore bottom-mount refrigerator model 59672003014, the water filter is inside the fresh food (refrigerator) compartment, in the upper right-hand corner. On this model, the filter mounts to an interior bracket and is accessed from inside the refrigerator, not from the freezer.

How to find it on model 59672003014

• Open the refrigerator (top) door.
• Look at the upper right-hand corner inside the compartment.
• Find the filter head and cover on the interior wall.
• Open the filter cover.
• The filter twists into the filter head.

For the exact location illustration and the model-specific steps, use the 59672003014 owner's manual.

Basic replacement steps (what to expect)

• Turn off the ice maker before changing the filter (this helps prevent air and odd ice during the first cycle).
• Remove the bypass cap (if installed) and save it.
• Insert the new filter into the filter head.
• Rotate the filter clockwise until it stops.
• Snap the filter cover closed.
• Flush the system after replacement by dispensing water; air can spurt at first.

After you replace the filter

Task	What we recommend	Why
Flush water	Dispense water until flow is steady	Clears air and carbon fines
Ice quality	Discard the first batch of ice	Removes trapped air and stale water
Reset light (if equipped)	Hold Filter Reset for 3 seconds	Restores filter status tracking

Why it matters

A correctly installed, flushed water filter helps maintain normal water dispenser flow and ice maker performance. If flow drops noticeably, the filter can be clogged or not fully seated.

Last updated: February 2026

Your Kenmore refrigerator model 59672003014 capacity (cubic feet) is best confirmed from the model’s specification information; the most reliable place to match capacity to your exact unit is the model and serial tag inside the fresh food compartment, then cross-check the specs in the 59672003014 owner's manual.

Fast ways to find your exact cubic feet

• Check the rating plate inside the refrigerator section (usually on a side wall or near the crisper area); it lists the model/serial and often ties directly to published specs.
• Use the model number exactly as shown (59672003014) when looking up specifications.
• Compare to the manual’s model family; some Kenmore manuals cover multiple close models, so matching the full model number matters.
• If you are measuring for a replacement, focus on cabinet width, height, and depth in addition to cubic feet.

What to expect for a bottom-mount refrigerator

Most Kenmore bottom-mount refrigerators are commonly in the 18 to 25 cu. ft. range. Capacity is a useful shopping spec, but it does not guarantee shelf layout, door bin space, or freezer drawer volume.

Method	What you get	Best for
Rating plate + manual/spec lookup	Exact published capacity	Confirming true cubic feet
Measuring interior space	Approximate usable volume	Comparing storage changes
Comparing to similar Kenmore bottom-mount models	Typical range	Planning and expectations

Why it matters

Cubic feet helps when comparing refrigerators, but for real-world fit and storage, we also recommend confirming door swing clearance, shelf configuration, and freezer drawer space. This is especially important when ordering parts like a refrigerator glass shelf W11402521 or a refrigerator freezer basket WPW10503183.

Last updated: February 2026

For Kenmore refrigerator model 59672003014, the model number is the full identifier we use to match the correct parts and documentation. Read it exactly as shown on the model and serial label; the prefix (often the first 3 digits) points to the manufacturing source, and the remaining digits identify the specific design and variation.

Where to find the model number on your refrigerator

We recommend checking these common locations first:

• Inside the fresh food compartment on a side wall
• On the ceiling of the refrigerator compartment near the light
• On the frame behind the crisper drawers
• Along the door jamb area (hinge side)
• On a label that also lists the serial number

For label location and recording details, use the 59672003014 owner's manual.

How to interpret a Kenmore model number (quick guide)

Kenmore model numbers are typically structured so you can identify the source and the exact unit configuration.

• Prefix (often 3 digits): manufacturing source code (example: 596 is commonly associated with Whirlpool-built Kenmore refrigeration)
• Middle digits: base platform or series
• Ending digits: feature set, color, revision, or production variation

Example breakdown

What you see	What it usually means	Why it matters
596	Manufacturer source code	Helps narrow the correct parts family
72003	Base model/platform	Points to the core design
014	Variation/revision	Ensures exact fit and compatibility

Why it matters when ordering parts

Using the complete model number prevents mismatches, especially for parts that vary by revision.

• Door gaskets can differ left vs. right and by color
• Ice maker and water system parts can change by production run
• Control boards and sensors must match the correct platform
• Drawer rails and baskets are model- and revision-specific

If you are troubleshooting an ice maker issue, the refrigerator ice maker assembly W10884390 is a common replacement part for this model family.

Helpful tip for faster service

When you contact support or look up parts, have these ready:

• Full model number (example: 59672003014)
• Serial number
• Purchase date (if available)

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life. For a Kenmore bottom-mount refrigerator like model 59672003014, regular care (cleaning, good door sealing, and prompt repairs) is what most directly determines whether it reaches the high end of that range.

Typical lifespan and what to expect

Kenmore refrigerator lifespan is usually consistent with other major household refrigerators.

• Average: 10 to 15 years
• Often achievable with good maintenance: 15 years
• Common reasons life is shortened: dirty condenser area, worn door gaskets, poor airflow, and ignored cooling or defrost symptoms

Condition	What you typically see	Likely outcome
Well maintained	Stable temps, fewer run-time issues	Longer life
Poor maintenance	Warm temps, moisture, heavy run time	Shorter life
Repaired early	Small issues corrected quickly	Extends life

Maintenance that extends life the most

These are the highest-impact habits for a bottom-mount refrigerator.

• Clean dust and pet hair from the condenser area on a regular schedule
• Keep door gaskets clean and sealing evenly; fix gaps before they cause sweating or frost
• Keep vents inside the fresh food and freezer sections unblocked for proper airflow
• Replace water filtration parts on schedule if your unit has ice and water features (see 59672003014 owner's manual)
• Address unusual noises quickly (often tied to the evaporator fan area)

Why it matters

A refrigerator that runs with restricted airflow or air leaks has to run longer to hold temperature. That extra run time increases wear on key components like the compressor, evaporator fan motor, and defrost system.

Parts that commonly affect longevity

If you are troubleshooting cooling, frost, or ice and water issues, these model-compatible parts are often involved:

• Refrigerator door gasket W10830283 (air leaks and moisture)
• Refrigerator evaporator fan motor W11024089 (air circulation)
• Refrigerator defrost heater WP12729128 (frost control)

Last updated: February 2026

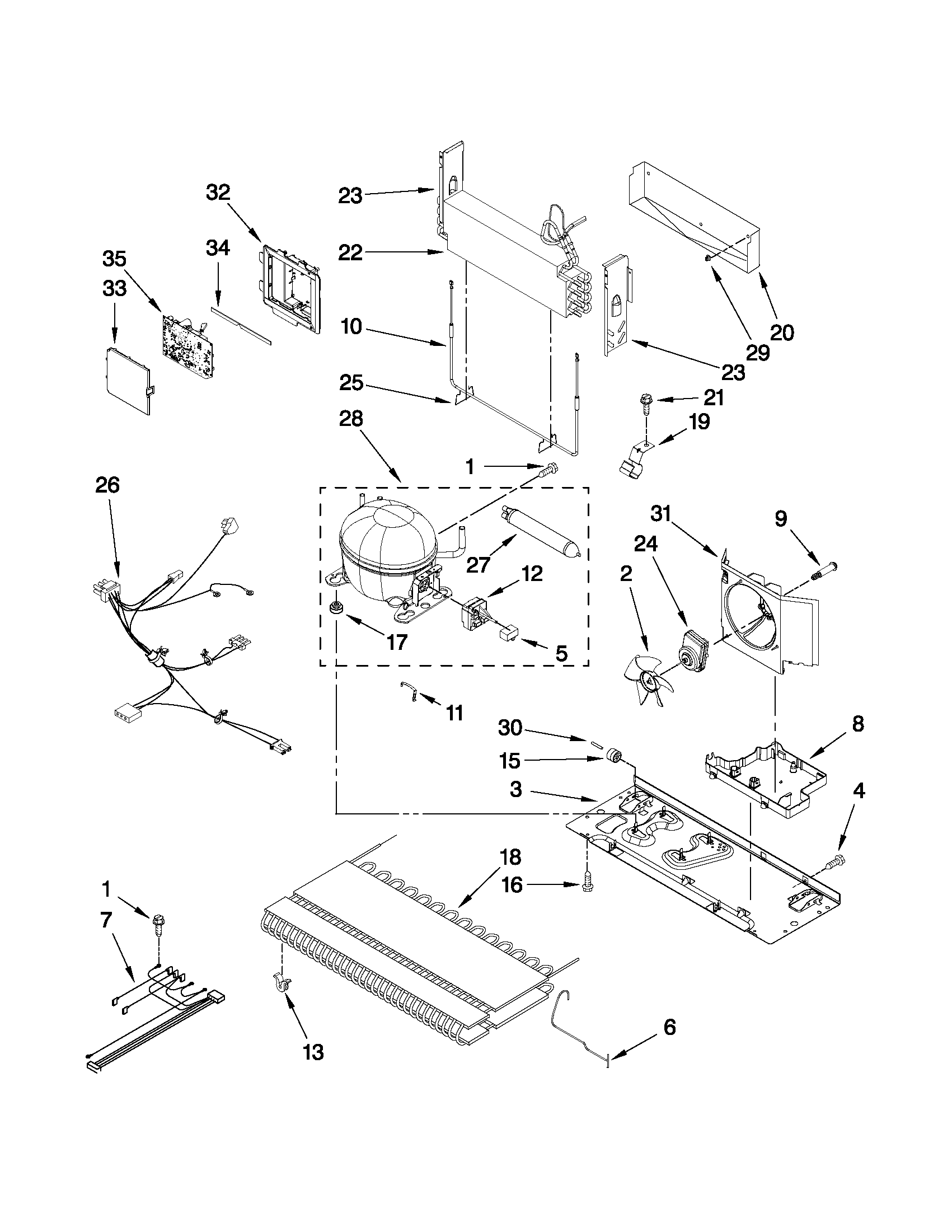

A bad compressor on Kenmore refrigerator model 59672003014 usually shows up as poor cooling with the unit running a lot, unusual clicking or repeated start attempts, or the compressor getting very hot while the refrigerator still will not maintain temperature. Confirm basics first, then test the start components and sealed system.

Quick checks before blaming the compressor

These steps rule out common issues that mimic compressor failure.

• Verify the outlet has power and the cord is fully seated
• Make sure the temperature controls are turned on and set correctly
• Allow 24 hours after a new install or major temperature change for full cool-down
• Check for doors left ajar or frequent door openings (this can make the unit run longer)
• Listen for normal operating sounds (fans, refrigerant flow, defrost noises) listed in the 59672003014 owner's manual

Symptoms that point to a compressor problem

A compressor is more likely at fault when multiple symptoms happen together.

• Refrigerator and freezer both warm, even though the unit runs often
• Repeated clicking every few minutes (start device tries, then trips)
• Compressor shell is very hot to the touch after running attempts
• Little to no vibration or sound from the compressor when it should be running
• Frost pattern issues at the evaporator (often tied to sealed system problems)

What to test (safe DIY vs. technician)

We recommend doing only the safe checks; sealed system work requires a qualified technician.

Check	What you can do	What it tells you
Power and controls	Confirm power, settings, and 24-hour cool-down	Rules out setup and electrical supply issues
Airflow	Make sure vents are not blocked by food packages	Poor airflow can look like weak cooling
Start components	A technician can test capacitor/relay and compressor amperage	Separates a bad start circuit from a locked compressor

If your technician suspects a start circuit issue, the run capacitor is a common related part on this model: refrigerator run capacitor WPW10662129.

Why it matters

A compressor diagnosis affects cost and repair approach. Many “not cooling” complaints are caused by airflow, door sealing, or control issues; confirming the basics first prevents replacing major parts unnecessarily.

Last updated: February 2026

Kenmore refrigerator model 59672003014 is a full-size bottom-mount refrigerator; the exact height, width, depth, and capacity are listed in the product specifications section of the 59672003014 owner's manual. For planning a cutout, use the manual specs and confirm with your own tape-measure readings.

What “size” usually means (and what to measure)

Measure the refrigerator itself and the space where it will go:

• Width: cabinet side-to-side at the widest point
• Height: floor to the top hinge/cover area
• Depth: cabinet depth and depth with doors (and handles, if installed)
• Door swing: clearance needed to open doors and drawers fully
• Ventilation clearance: air space around the cabinet for proper cooling

Installation clearances for model 59672003014

Our manual guidance for this Kenmore model calls for these minimum clearances:

• 1/2 inch (1.25 cm) on each side and at the top
• 1 inch (2.54 cm) behind the refrigerator
• 3 3/4 inches (9.5 cm) minimum next to a fixed wall to allow the door to swing open
• If the unit has an ice maker, allow extra room at the back for the water line connection

Quick clearance summary

Location	Minimum clearance
Each side	1/2 in
Top	1/2 in
Back	1 in
Next to fixed wall (door swing)	3 3/4 in

Why it matters

Correct sizing and clearances prevent restricted airflow (warm temperatures and longer run times) and reduce the chance of door swing interference that can stress hinges and wear door gaskets.

Last updated: February 2026

Water pooling inside the bottom of your Kenmore refrigerator model 59672003014 is most often caused by a clogged or frozen defrost drain, which makes defrost meltwater overflow into the fresh food section. A slow leak at the water system or a poor door seal can also contribute.

Quick checks (fastest way to narrow it down)

• Unplug the refrigerator before removing panels or working near wiring.
• Look for ice or water under the crisper drawers (classic defrost drain backup).
• Check the water filter area and tubing for drips.
• Inspect door gaskets for gaps, tears, or sticky residue.
• Confirm the refrigerator is level so water routes to the drain pan.

Most common cause: clogged defrost drain

During defrost, water should flow through the drain to the drain pan. If the drain is blocked by ice or debris, water backs up and pools inside.

What to do

• Remove drawers to access the drain trough area.
• Melt visible ice with warm water (not boiling) and towels.
• Flush the drain with warm water until it runs freely.
• If it refreezes, clear debris and confirm the drain tube is seated correctly.

For model-specific access and care steps, use the 59672003014 owner's manual.

Other causes to rule out

Water system leak

If you see dripping near the rear or under the filter area, check the valve and connections.

• Look for mineral tracks at fittings
• Inspect for seepage when the ice maker fills
• Replace a seeping valve if needed

Helpful model parts include the refrigerator water inlet valve assembly WPW10420083 and the refrigerator drain tube W10619951.

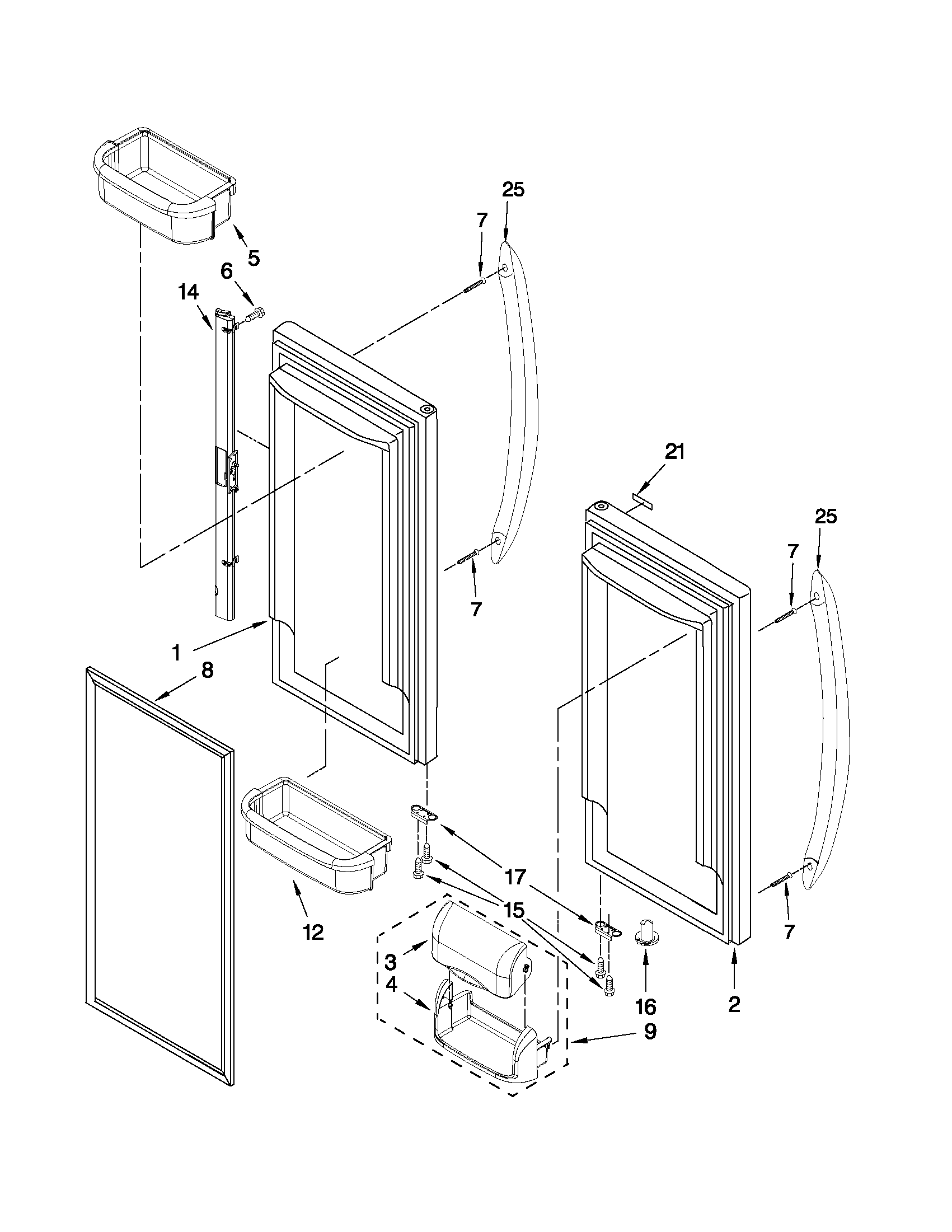

Door gasket not sealing

A leaking gasket lets humid air in, increasing frost and drain icing.

Symptom-to-cause guide

What you notice	Most likely cause	Best next step
Water under crispers after frost	Defrost drain clogged/frozen	Thaw and flush drain
Drips near filter or rear line	Water connection/valve leak	Inspect fittings and valve
Condensation or frost near door	Door gasket leak	Clean, reseat, replace if torn

Why it matters

Standing water leads to ice buildup, odors, and temperature swings. Fixing a drain restriction or small leak early also helps protect wiring and controls from moisture.

Last updated: February 2026
