No. If your Maytag LAT9416AAE washer is showing an F7E1 error, stop using it until you reset the washer and confirm the tub is able to agitate and spin normally; continuing to run cycles can lead to repeated no-spin/no-agitate stops and added strain on the drive system.

• Unplug the washer for 5 minutes, then plug it back in and try a Spin cycle.
• Open the lid and redistribute the load if the washer stopped during spin (uneven loads can stop spin).
• Confirm the lid fully closes; this washer will not agitate or spin with the lid open.
• Reduce suds if you used too much detergent; excess suds can cause a suds lock and interrupt operation.
• Check that the washer is level; an out-of-level cabinet increases vibration and can trigger spin interruptions.

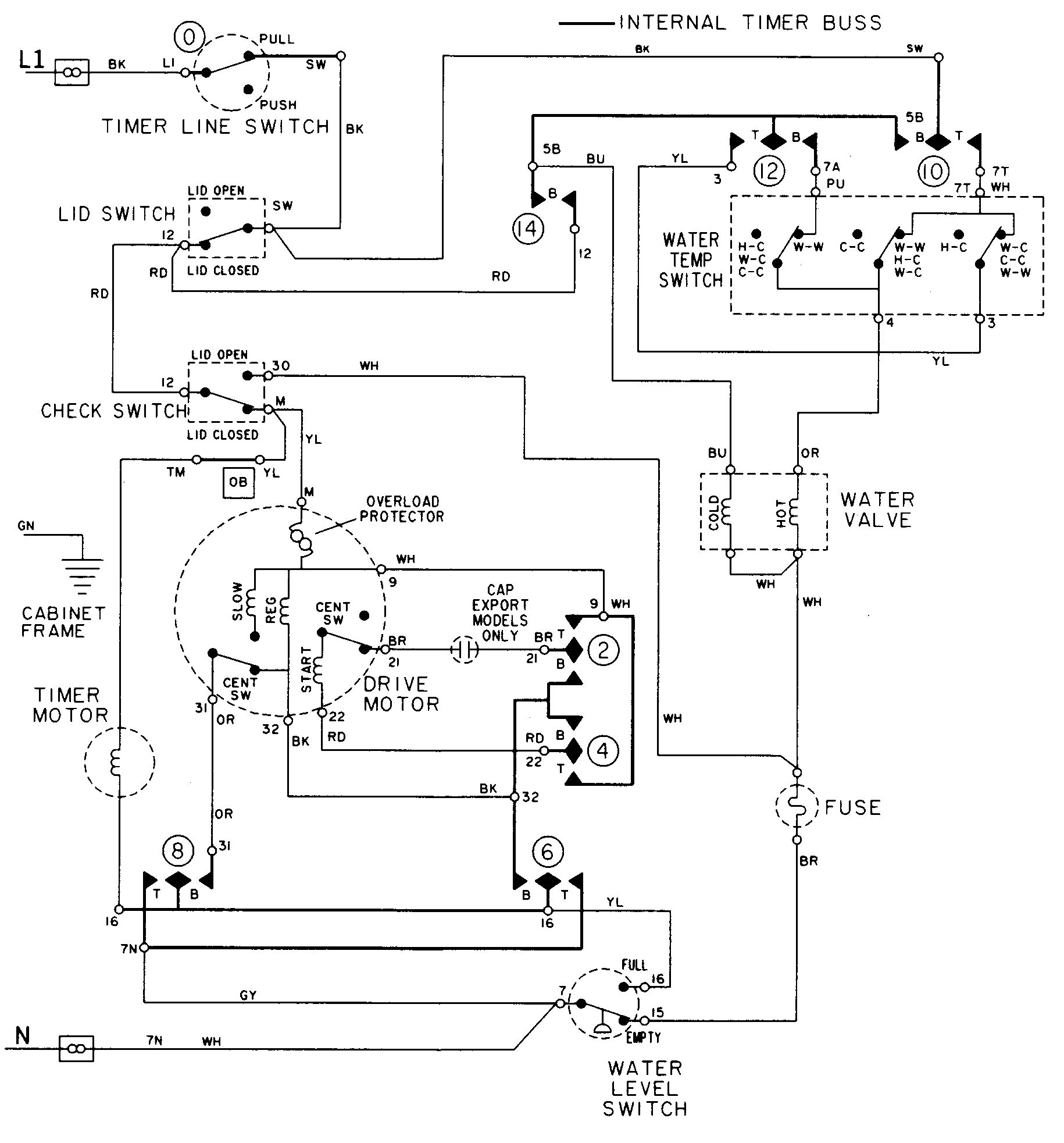

Your LAT9416AAE is designed to stop agitating and spinning when the lid is open. The manual also describes a lid switch failure detector that stops operation for safety if the lid switch malfunctions. If the washer fills but will not agitate or spin, the lid switch circuit is a top item to check.

If you suspect the lid switch is failing, the correct replacement for this model is the lid switch W10820036.

A washer that cannot reliably sense a closed lid or maintain stable spin can stop mid-cycle, leave clothes soaking wet, and put extra wear on components like the belt and motor mount.

For model-specific operating and safety details, follow the steps in the LAT9416AAE owner's manual. You can also order replacement parts for your washer from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A Maytag washer typically lasts 10 to 13 years in normal home use. For your Maytag LAT9416AAE, lifespan depends most on load size, how often you run it, and basic maintenance like keeping the washer level and using the right amount of detergent; see the LAT9416AAE owner's manual for model-specific care guidance.

Most washers reach their full life when they avoid chronic strain and moisture-related wear.

• Usage frequency: multiple loads per day shortens life faster than a few loads per week
• Overloading: stresses the drive system, tub bearings, and belt
• Out-of-level installation: increases vibration and wear on moving parts
• Water quality and inlet screens: sediment can restrict filling and strain valves
• Small leaks: can damage bearings, seals, and electrical connections over time

These steps are simple and make a measurable difference on older top-load designs like the LAT9416AAE.

• Keep the washer level and stable on the floor
• Avoid packing the tub; use balanced loads
• Use HE-compatible amounts if you are using concentrated detergent (too much causes residue)
• Periodically clean inlet hose screens if filling slows
• Address new noises early; a worn belt or bearing rarely improves on its own

Some parts are normal replacements and do not mean the washer is finished.

Knowing the typical 10 to 13 year lifespan helps you decide whether to repair or replace. If your LAT9416AAE is near that range, replacing a high-wear part (like a belt or lid switch) can still be a cost-effective way to keep it running.

If you decide to repair, you can order model-matched replacement parts from the parts list for LAT9416AAE, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Maytag washer problems are “won’t drain or spin,” leaking, and loud or unusual noises. On the Maytag LAT9416AAE, a frequent no-spin symptom is a failed lid safety switch, because the washer will not spin if it does not sense the lid is closed.

• Won’t spin or stops mid-cycle: lid switch, drive belt, unbalanced load
• Won’t drain or drains slowly: drain hose restriction, standpipe issue, internal hose clamp leak or blockage
• Leaking: loose hose connections, worn seal, cracked drain hose
• No fill or wrong water temperature: inlet valve screens clogged, inlet valve issue, water heater set too low
• Noise or burning rubber smell: slipping belt, motor mount roller/spring wear

For operating checks and “Before You Call” style troubleshooting for this washer family, use the owner's manual.

1. Redistribute the load and re-run spin; heavy items can throw the tub off balance.
2. Confirm both faucets are fully on and hoses are connected correctly.
3. Check inlet screens at the hose connections; clogged screens can cause slow fill.
4. Verify hot water is at least 120°F (49°C) at the tap for proper hot wash performance.
5. Inspect the drain hose routing for kinks, crushing, or an overly deep insertion into the standpipe.

Drain/spin problems and leaks can quickly turn into bigger repairs (belt damage, water damage, or repeated cycle failures). Catching the simple causes first saves time and helps you order only the parts you actually need.

If you need to order parts for the Maytag LAT9416AAE, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The Maytag LAT9416AAE owner’s manual does not list a single tub capacity in cubic feet; this washer uses load size and water level selections (Mini through Super) to define how much it holds. For model-specific operating details, use the LAT9416AAE owner's manual.

Instead of a cubic-foot number, capacity is best understood as the load size setting and the matching water use shown in the manual.

• Choose Mini, Small, Medium, Large, or Super based on how full the basket is
• Leave space for clothes to circulate around the agitator for proper cleaning
• Avoid packing items down; that reduces agitation and rinsing
• For bulky items, balance the load to prevent off-balance spin

These values help you match load size to the correct fill level.

Use these practical guidelines for a Maytag top-load washer like the LAT9416AAE:

• Mini: a few lightweight items
• Small: a small mixed load
• Medium: a typical mixed load
• Large: a full mixed load without packing
• Super: the largest loads the basket can handle while still allowing movement

Using the correct load size improves cleaning and rinsing, reduces vibration during spin, and helps prevent wear on key components such as the lid switch W10820036 and drive system.

If you need replacement parts for this washer, order from the parts list for LAT9416AAE or search by model number on Sears PartsDirect.
