Kenmore 11026842694 washer Parts

Kenmore model numbers tell us the appliance type and the original manufacturer, which is critical for getting the right parts. For Kenmore washers like model 11026842694, the 3-digit prefix (110) identifies the manufacturer family, and the remaining digits narrow down the exact design and production variation; confirm the full number on the model and serial plate under the lid and in the owner's manual.

Where to find the model number on Kenmore 11026842694

On this Kenmore top-load washer, the manual shows the model and serial number plate under the lid. Use the complete model number exactly as printed.

• Lift the washer lid and look around the top rim of the cabinet opening
• Check near the hinge area and underside of the lid
• Write down the full model number (all digits, no spaces)
• Record the serial number too (helps match production changes)
• Use the full model number when selecting parts like a drain pump, timer, or inlet valve

How to interpret the number (what each part means)

Kenmore numbers are typically read in sections.

Example section	What it usually indicates	Why it matters
First 3 digits (prefix)	Manufacturer family code (for many Kenmore washers, 110 is common)	Determines the correct parts system and diagrams
Remaining digits	Specific model design and feature set	Narrows down exact fit and revisions
Suffix (if present)	Version or engineering change	Prevents ordering a look-alike part that will not fit

Why it matters for ordering the right washer parts

Many Kenmore washers look similar across years, but internal components can differ. Using the exact model number helps us match the correct parts list for items commonly replaced on this design, such as:

• Washer drain pump WP3363394 (drain and spin issues)
• Coupling 285753A (no agitation or no spin on direct-drive styles)

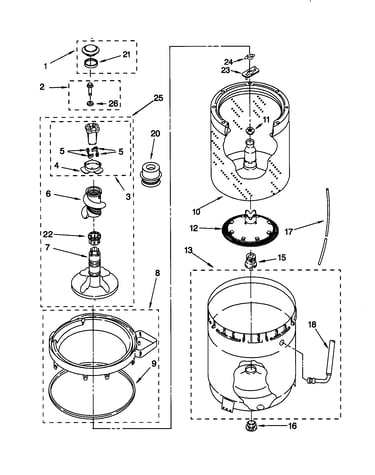

• Agitator dog 80040 (agitator not grabbing or slipping)

If you are shopping beyond the parts shown for this model, search by the full model number on Sears PartsDirect.

Last updated: February 2026

For Kenmore washer model 11026842694, a “hard reset” is typically a simple power reset: disconnect power for 1 minute, then restore power and start a cycle. For timer-style top-load models like this, a power reset clears minor glitches but does not “reprogram” the washer.

Quick hard reset (power reset)

• Turn the cycle selector (timer) to OFF.
• Unplug the washer (or switch the breaker off).
• Wait 60 seconds.
• Plug back in (or turn breaker on).
• Set a normal cycle and pull the timer knob to start.

If you want the model-specific control layout and cycle-start method, use the 11026842694 owner's manual.

If the washer still will not run after a reset

On this Kenmore top-load platform, most “no start” complaints are caused by a simple interruption (power, lid switch, timer, or drive system), not a control-board memory issue.

• Confirm the outlet has power (test with a lamp).
• Make sure the timer knob is pushed in to set and pulled out to start.
• Verify the lid is fully closed and the load is not jammed.

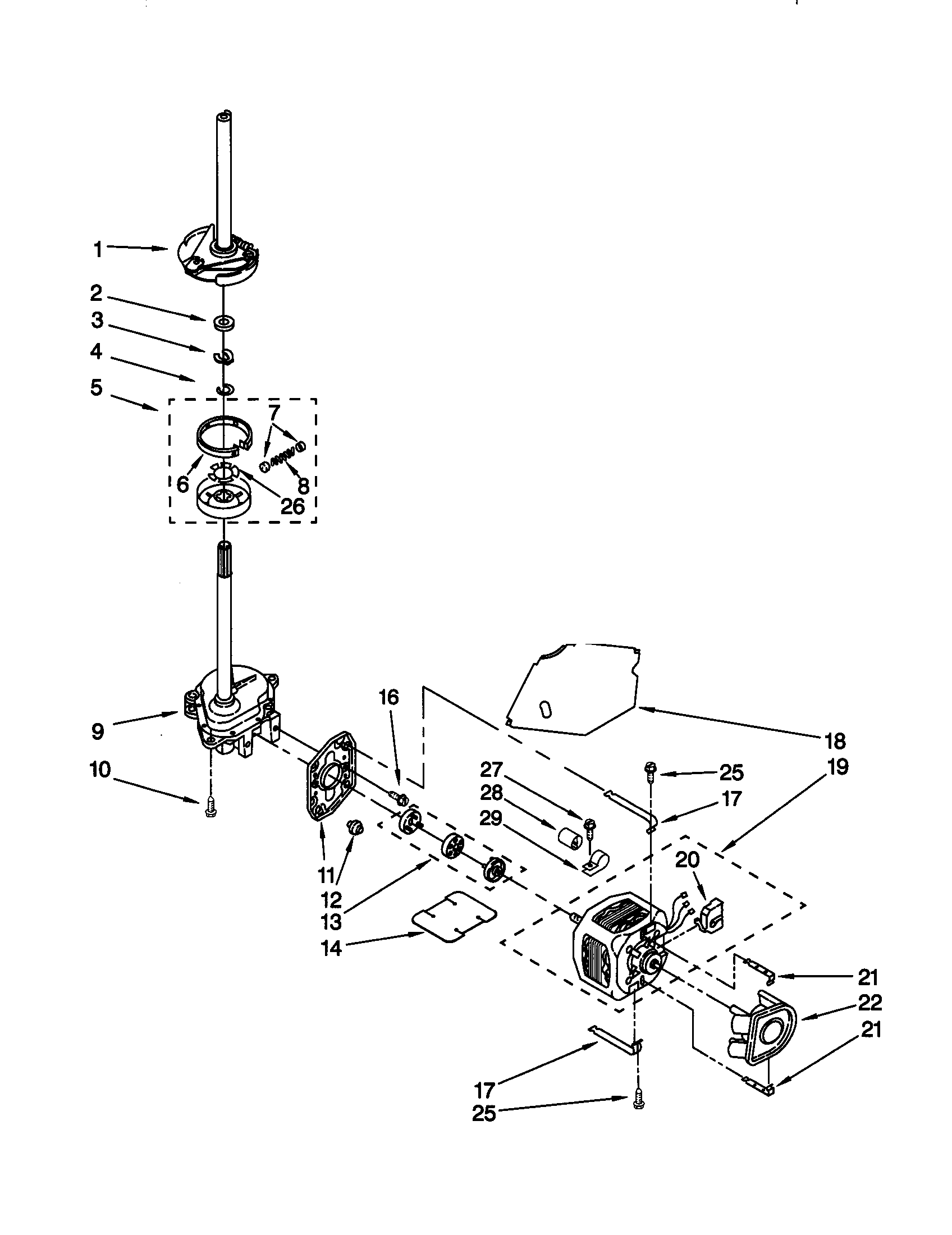

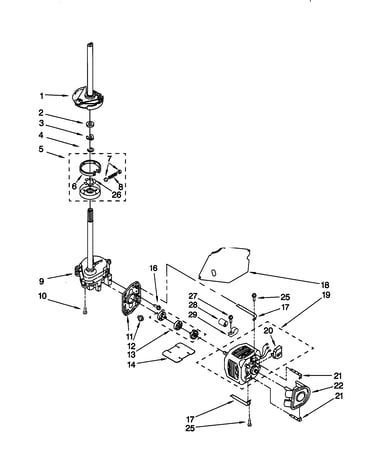

• If it fills but will not agitate or spin, inspect common drive components like the coupling 285753A and clutch 285785.
• If it will not drain, check for a clog or a failing washer drain pump WP3363394.

What a reset can and cannot fix

Symptom	Reset helps?	What usually fixes it
Washer seems “stuck” between cycles	Sometimes	Power reset; reselect cycle and restart
No drain	Rarely	Drain hose/pump check; pump replacement
No spin or weak spin	Rarely	Clutch, coupling, drive block, basket issues
Agitator not moving properly	Rarely	Agitator dogs/cam wear

Why it matters

Resetting is a fast first step that can save time on false “failures.” If the same symptom returns immediately, it points to a mechanical or electrical part issue (pump, timer, coupling, clutch) rather than something a reset can clear.

You can order replacement parts for Kenmore 11026842694 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Kenmore washers average 10 to 15 years of service life with normal household use and basic maintenance. For your Kenmore washer model 11026842694, good habits like correct loading, proper water level selection, and keeping the machine level help you reach the high end of that range; see the 11026842694 owner's manual.

Typical lifespan and what changes it

A washer’s lifespan is mainly driven by load size, cycle frequency, and how well the drive and drain systems are protected from overloads and clogs.

• Normal family use: 10 to 15 years
• Heavy use (multiple loads daily): closer to 8 to 12 years
• Light use (few loads weekly): often 12 to 15 years
• Overloading and chronic off-balance loads: shortens life by stressing the clutch, gearcase, and suspension
• Poor draining or frequent clogs: overworks the drain pump

Maintenance that extends life (high impact)

These steps prevent the most common wear issues we see on top-load washers like the 11026842694.

• Keep the washer level so the tub stays balanced during spin
• Avoid overfilling; leave space for clothes to circulate
• Use the right water level for the load size (small, medium, large)
• Check pockets and wash small items in a mesh bag to reduce pump clogs

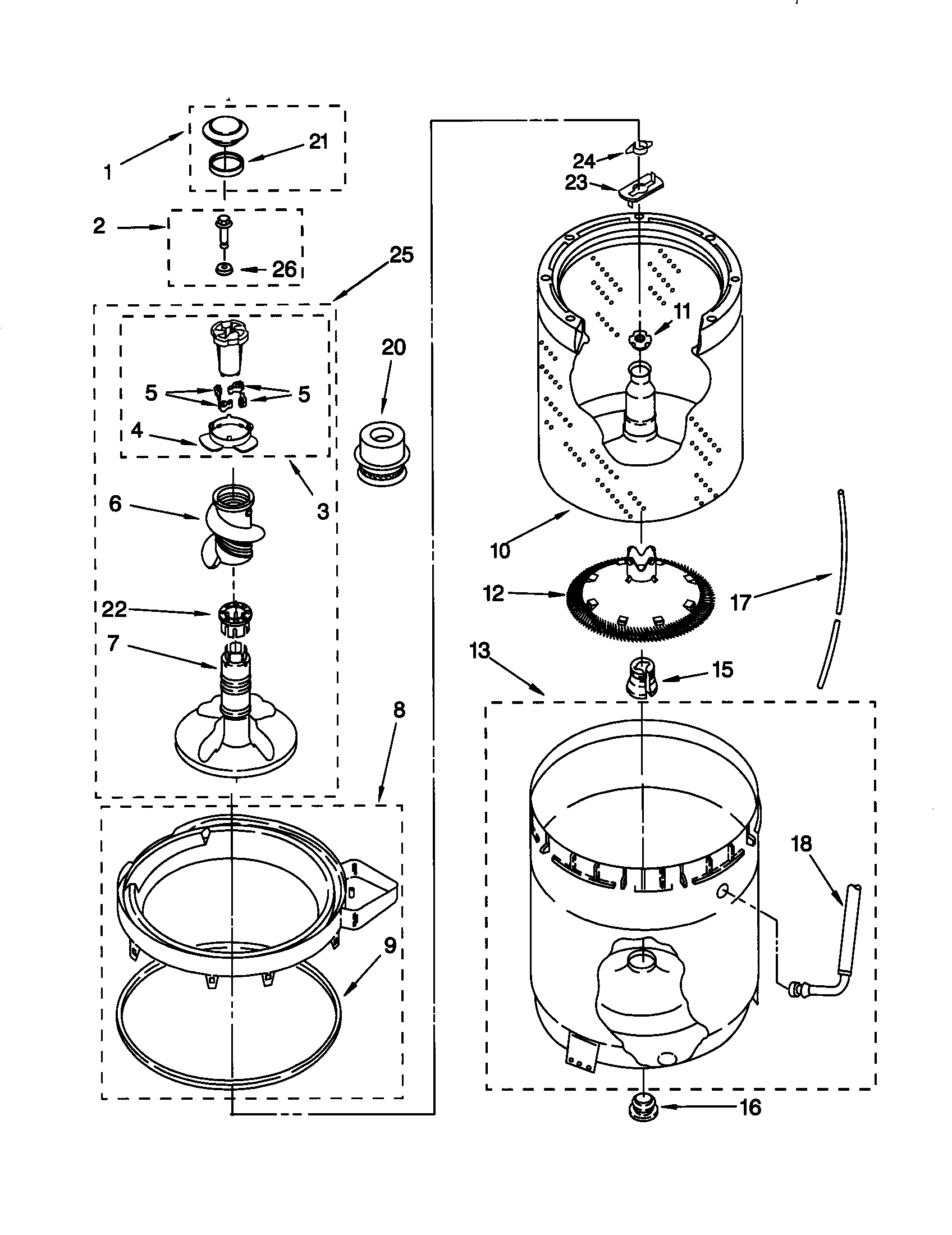

• If agitation gets weak, inspect common wear items like the agitator dog 80040

Quick “repair vs. replace” guide

If your washer is within the typical lifespan, repairing a single failed part is often worthwhile. If multiple major drive components are failing, costs can add up.

Situation	What it usually points to	Common next step
Won’t drain or drains slowly	Drain restriction or pump wear	Inspect hoses; consider washer drain pump WP3363394
Agitates poorly but motor runs	Agitator wear	Check agitator dog 80040 and agitator components
Spins weakly or slips	Drive system wear	Inspect clutch and coupling
Loud grinding/leaking from drive area	Gearcase wear	Evaluate repair cost vs. remaining life

Why it matters

Knowing the 10 to 15 year average helps you plan: you can decide whether to invest in a repair (like a drain pump or coupling) or focus on maintenance to prevent repeat failures. For parts shopping beyond the list for model 11026842694, search by model number on Sears PartsDirect.

Last updated: February 2026

On Kenmore washer model 11026842694, the HF error code means the washer is not sensing the correct water fill flow during the fill portion of the cycle. The most common causes are restricted water supply, clogged inlet screens, or a fill system issue; start with the basic water checks in the 11026842694 owner's manual.

What to check first (no parts needed)

• Make sure both hot and cold water faucets are fully open.
• Confirm the fill hoses are not kinked, crushed, or frozen.
• Check household water pressure; low pressure can trigger fill errors.
• Clean the small inlet screens inside the hose connections at the washer.
• Try a reset: unplug the washer for 1 minute, then restart a normal cycle.

If the washer still shows HF

HF usually points to a fill problem the control cannot correct. On this model, the most common repair path is to inspect the water inlet valve and the fill system for restrictions or failure.

Parts that commonly relate to HF

Symptom you notice	Likely area to inspect	Part on this page

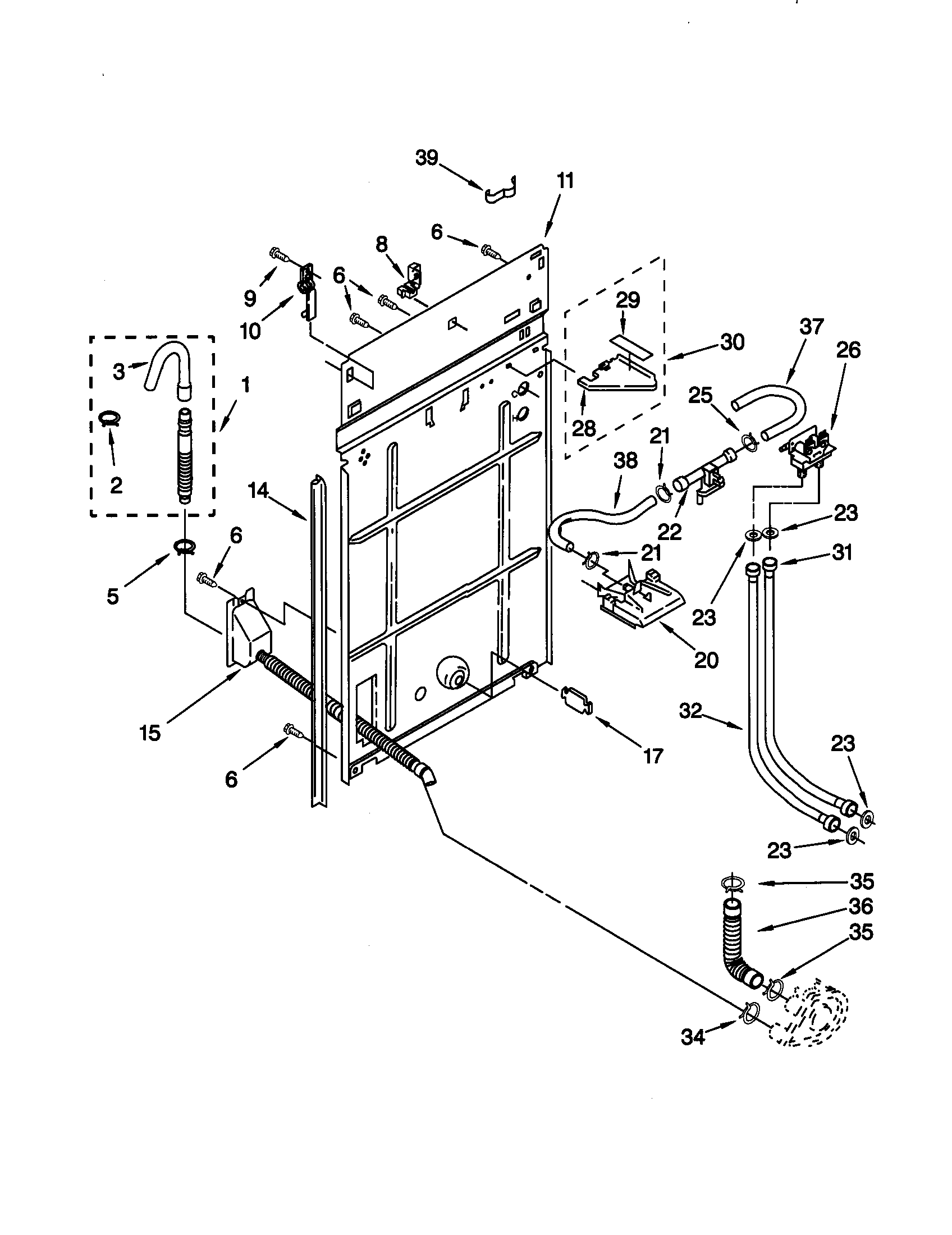

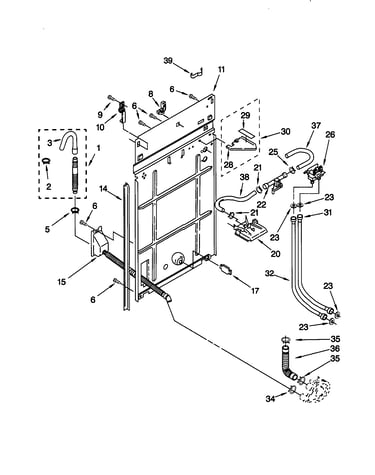

Slow fill, no fill, or wrong temperature mix	Water inlet valve and inlet screens	Washer inlet valve 285805
Fills normally but then stops and errors	Valve operation, wiring, timer contacts	Washer timer WP3951708

Why it matters

When the washer cannot fill correctly, it can leave clothes poorly cleaned, stop mid-cycle, or fail to rinse. Fixing the water supply restriction early also helps prevent repeat error codes and unnecessary strain on the fill components.

Ordering the right part

If cleaning the screens and verifying water supply does not clear HF, match parts to model 11026842694 and compare your original part before ordering. You can order replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
