CONFIRM THE PART FITS

  • Range Oven Control Board DE92-03045F
    Hover to Zoom
  • Range Oven Control Board DE92-03045F
    Hover to Zoom

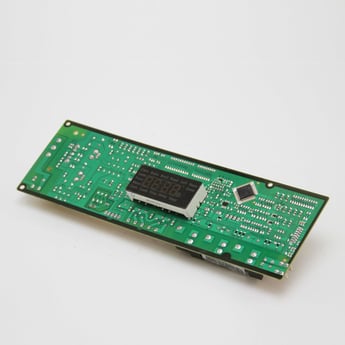

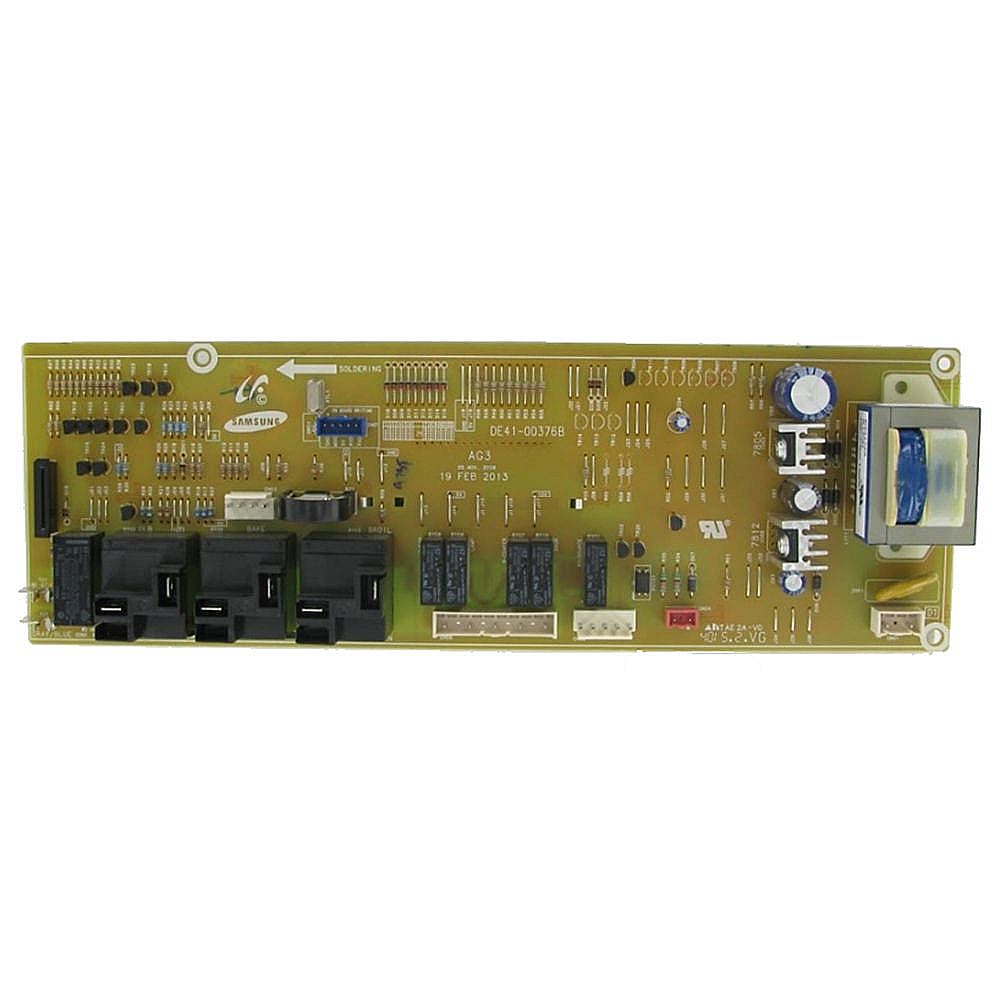

Range Oven Control Board DE92-03045F

Part #DE92-03045F

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

This part fits

Part Information

This oven control board (part number DE92-03045F) is for ranges.

Oven control board DE92-03045F monitors the temperature and controls the oven heat.

Unplug the range or shut off the house circuit breaker for the range before servicing the unit. Wear work gloves to protect your hands.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #NE594R0ABBB/AA-01 Samsung electric rangeNE594R0ABBB/AA-01
-
Shop Parts
Model #NE594R0ABSR/AA-00 Samsung electric rangeNE594R0ABSR/AA-00
Control parts
Shop Parts
Model #NE595R0ABBB/AA-00 Samsung electric rangeNE595R0ABBB/AA-00
Control assy
Shop Parts
Model #NE595R0ABBB/AA-01 Samsung electric rangeNE595R0ABBB/AA-01
Control panel
Shop Parts
Model #NE595R0ABSR/AA-00 Samsung electric rangeNE595R0ABSR/AA-00
Control
Shop Parts
Model #NE594R0ABWW/AA-01 Samsung electric rangeNE594R0ABWW/AA-01
-
Shop Parts
Model #NE595R0ABWW/AA-00 Samsung electric rangeNE595R0ABWW/AA-00
Control assy
Shop Parts
Model #NE595R0ABWW/AA-01 Samsung electric rangeNE595R0ABWW/AA-01
Control panel
Shop Parts
Model #NE595R0ABSR/AA-01 Samsung electric rangeNE595R0ABSR/AA-01
Control
Shop Parts
Model #NE594R0ABSR/AA-01 Samsung electric rangeNE594R0ABSR/AA-01
Control panel
Shop Parts

Reviews

Fit like a glove
May 26, 2021

Simple to install. Take a pic of the wires to plug into new board.

Joe M, Fishers in

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend

Excellent priced part
January 12, 2021

Factory part instead of a knock off... it was literally the cheapest to my surprise. Fast shipping. Got to me in 3 days.

Jake, Columbia mo

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend

Easy to replace!
January 04, 2021

If your LED is going and hard to read this solves the problem. The new LED is blue instead of green and much easier to read. It is a quick simple R&R that takes about 20 minutes to complete. We had a bad LED for quite a while and then our generator caused a power surge during an outage and fried the PCB, so even though the burners still worked the oven did not. This fixes that problem and with the new LED it is like a new oven again.

Dom86, Maine

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Easy to install and arrived in great shape.
February 26, 2018

Replace control board an a Samsung range lost by a power surge.

Herkyj, Marion. NC.

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes
Easy to install new board.
February 12, 2018

It takes less then half hour to install. 1. Shut power off to unit and unplug from wall. 2. Use smart phone take pictures of wiring just plug and play, also be careful with ribbon plug its a bit fragile, the top part of the plastic female plug will raise slightly then ribbon will be released .

John H, Lehigh Acres Florida

1 person thought this review was helpful.

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour
Bait and Switch
March 21, 2022

The sales representative assured me I would be receiving a brand-new circuit board however I received a refurbished one. I called after I received, and they told me they were out of new ones, so they sent a refurbished. Beware of bait and switch and look part over good for initials and dates to not fall victim of this scheme. They only offered to refund shipping cost or send back at my expense.

DSwift, Alabama

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
Less than 30 minutes
Broken Part due to poor packaging by sender
March 22, 2022

The part was poorly packed and I received the part with the corner broken off of it. Being as this is a board of circuitry, the board is now useless. I am sending it back and am hoping it is a painless process.

Lankford, Virginia

Did you find this review helpful?

Ease of Installation
Easy
Duration of Installation
30 minutes - 1 hour
Wrong part shipped
March 17, 2021

I was sent the wrong part. Part number I need is correct, part I got, not even close.

TB3472, Greencastle Pa

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes

Yes, I would recommend this to a friend
