How to look up Craftsman model number?
For a Craftsman riding mower like model 917259543, we look up the model number by finding the model and serial tag on the tractor, then using that exact model number to match parts diagrams and replacement parts. On most Craftsman lawn tractors, the tag is on the frame under the seat or on the underside of the seat.
Where to find the model and serial tag
Check these common locations first:

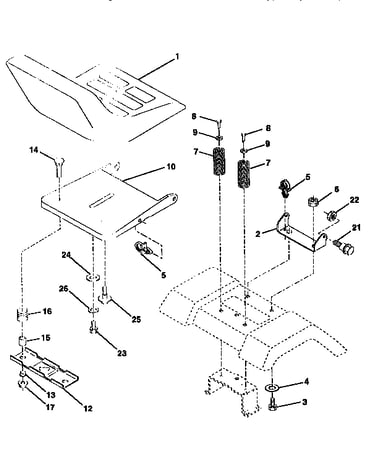

- On the frame under the seat (lift the seat up)
- On the underside of the seat pan
- Near the rear fender area around the seat mounting points
- On the frame rail close to the battery tray (some builds)
If the tag is dirty or faded, wipe it with a damp rag and use a flashlight to read the stamped or printed characters.
How to use the model number once you find it
Use the model number exactly as shown (including all digits) to ensure the correct Craftsman parts list and diagrams.
- Enter the full model number (example: 917259543)
- Match the product type (front-engine lawn tractor)
- Then select the section you need (mower deck, ground drive, steering, wheels)
Quick check: model number vs. part number
| What you found | What it’s used for | Example format |
|---|---|---|
| Model number | Identifies the tractor | 917259543 |
| Serial number | Production identifier | Varies |
| Part number / part ID | Identifies a replacement part | 532134149 |
Why it matters
Craftsman tractors often have multiple versions that look similar but use different belts, blades, and steering parts. Using the exact model number helps prevent ordering the wrong deck belt, ground drive belt, or mandrel components.
Common parts people match after confirming the model
If you are shopping by diagram after confirming the model, these are examples of parts that commonly require an exact match:

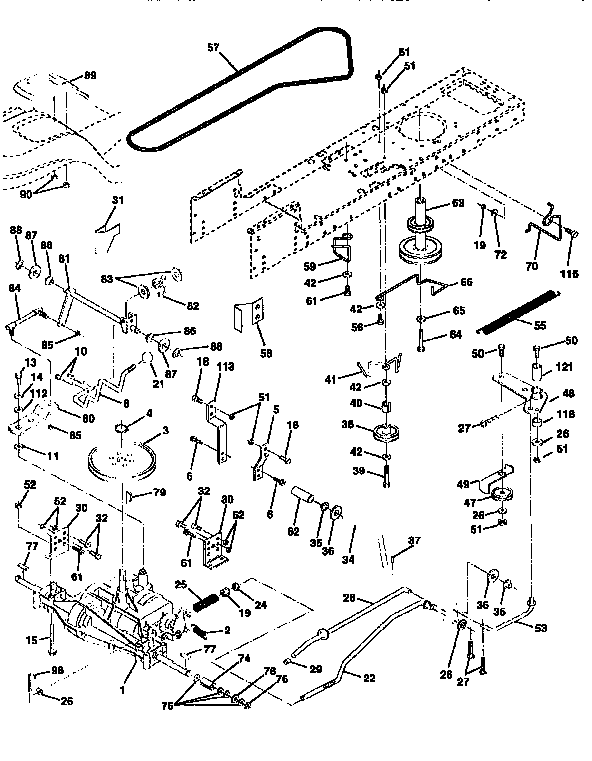

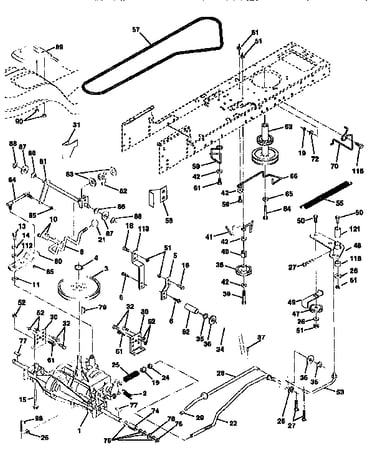

- V-belt 532138255 (ground drive belt)
- Lawn tractor drive belt 532144200 (blade drive belt)
- Husqvarna lawn tractor mandrel assembly 532130794 (spindle/mandrel assembly)
Last updated: February 2026
How to find the year of a Craftsman lawn tractor?
On a Craftsman lawn tractor like model 917259543, the most reliable way to identify the year is to locate the product identification label and use its date code (when present) or the model and serial information to narrow down the build date. We use the ID label first because it ties directly to your exact tractor.
Where to look for the ID label
Common label locations on Craftsman riding mowers and tractors include:
- Under the seat pan or on the seat deck
- On the frame rail near the engine
- Under the hood near the dash tower
- Near the rear fender or hitch plate
- On the mower deck shell (less common for the tractor build date)
How to read the date information
Craftsman tractors can show date information in a few different formats depending on the production run. Use this quick guide:
| What you see on the label | What it usually means | What to do next |
|---|---|---|
| A clear “MFG DATE” or date code | Direct build date | Record it exactly (including letters) |
| A serial number only | Date is encoded by the manufacturer | Use the serial plus model to decode |
| Model number plus product number | Identifies the platform and build family | Use it to match the correct parts diagrams |
If your label uses a 6-digit date code
Some labels use a MMDDYY style code (month, day, year). Example: 072811 = July 28, 2011. If your label matches this pattern, the last two digits are the year.
Why it matters
Knowing the year helps us match the correct parts diagrams and avoid ordering the wrong deck, belt, or spindle components. For example, deck-drive parts can vary by production run, even within the same Craftsman tractor family.
Parts that commonly vary by build date
If you are troubleshooting or ordering maintenance parts, these are often year-sensitive:
- Ground drive belt routing and length
- Blade drive belt routing and idler setup
- Mandrel (spindle) style and pulley type

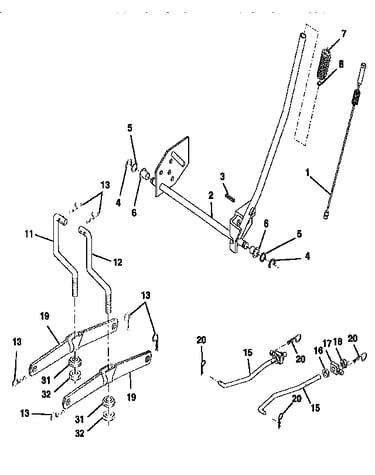

- Deck lift linkage geometry

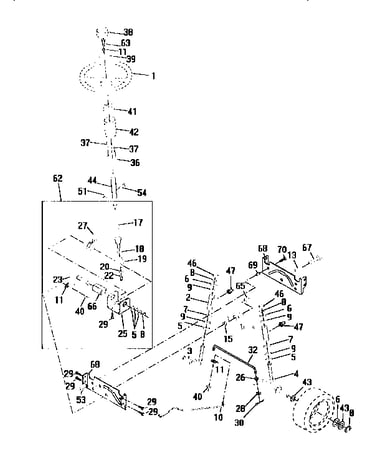

- Steering sector gear and drag link design
If you are already working on the cutting system, matching the blade and spindle parts to your deck setup is key; a common example is the husqvarna lawn tractor mulching blade, 21-in 532134149.
Last updated: February 2026
What are the common problems with Craftsman lawn mowers?
Common problems we see on Craftsman lawn mowers and riding tractors (including model 917259543) are no-start conditions, rough running, poor cutting quality, and drive or deck issues. Most of these trace back to fuel quality, ignition and air flow maintenance, battery and safety interlocks, or worn belts and deck components.
Most common symptoms and likely causes
- Engine cranks but will not start: stale fuel, clogged carburetor, fouled spark plug, plugged air filter
- Clicks but will not turn over: weak battery, corroded battery cables, bad starter solenoid, safety switch not made
- Starts then dies or surges: dirty carburetor, restricted fuel flow, dirty air filter
- Cuts uneven or leaves strips: dull/bent blade, deck out of level, worn mandrel or idler parts
- Blades will not engage: worn deck belt, idler pulley issue, damaged mandrel
- Tractor will not move or slips: worn ground drive belt, idler/tension problems
Quick checks we recommend first (fastest wins)
- Use fresh gasoline (old fuel is the top cause of carburetor varnish and hard starting).
- Check the battery connections for tight, clean terminals (riding tractors are sensitive to voltage drop).
- Inspect the air filter and spark plug; replace if dirty or worn.
- Confirm you are seated, brake is set, PTO is off, and the safety interlock switches are being actuated.
- Look for obvious deck and belt wear under the tractor.

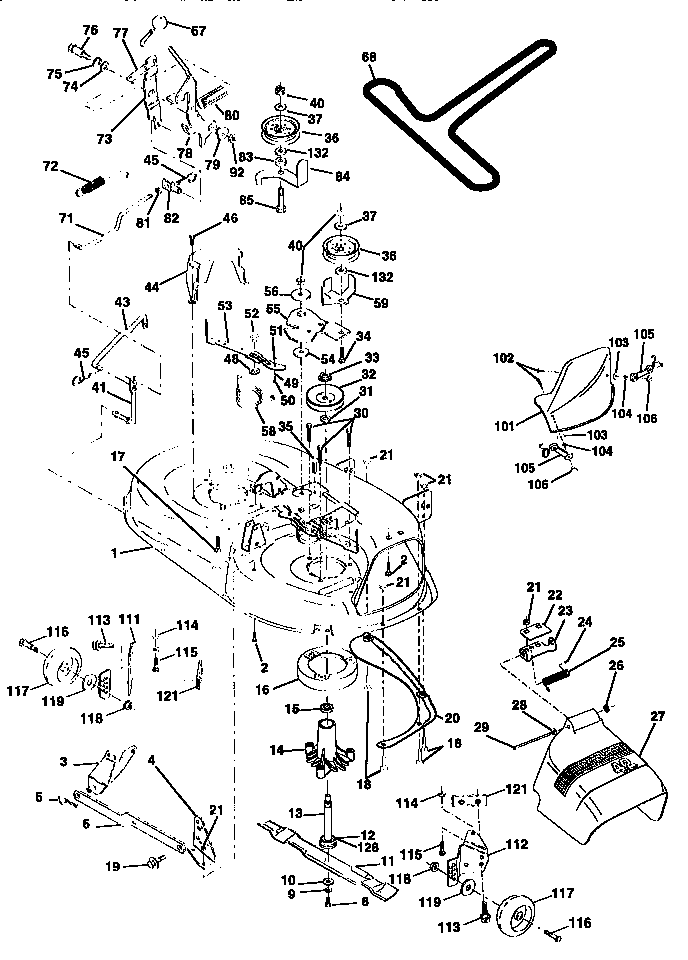

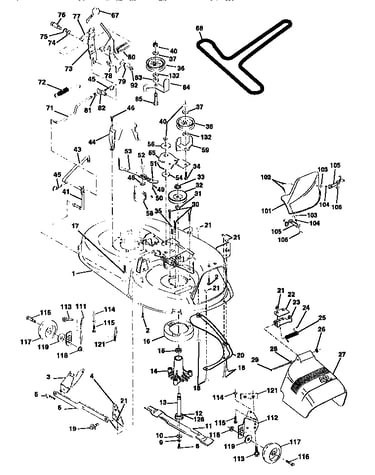

Parts that commonly wear on a 42-inch deck setup
If your cut quality is poor or the blades will not stay engaged, these are frequent wear items:
| Problem you notice | Common wear item | Example part for this model |
|---|---|---|
| Poor cut, tearing grass | Blade | Husqvarna lawn tractor mulching blade, 21-in 532134149 |
| Blades stop or squeal | Blade drive belt | Lawn tractor drive belt 532144200 |
| Deck vibration or rumble | Mandrel assembly | Husqvarna lawn tractor mandrel assembly 532130794 |
| Belt won’t stay tight | Idler pulley | Lawn tractor blade idler pulley 532139245 |
Why it matters
Catching the root cause early prevents repeat failures. For example, a slipping belt can overheat and damage pulleys, and stale fuel can plug the carburetor and make starting problems come back every season.
Helpful DIY guidance
For step-by-step troubleshooting, we recommend starting with riding mower and tractor common questions and then using symptom-specific guides like riding lawn mower engine spins but wont start video.
Last updated: February 2026

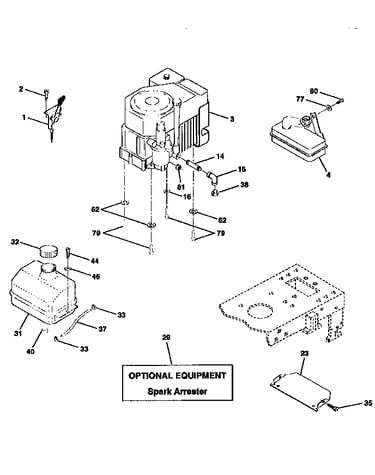

What brand engine does Craftsman use?
Craftsman used engines from several manufacturers across different riding mower and lawn tractor models. For Craftsman model 917259543, confirm the engine brand by reading the engine ID tag on your tractor; that ID is the only reliable way to match the correct maintenance and repair parts.
How to identify the engine brand on model 917259543
Use the engine’s identification label or stamped plate (not the hood decal).
- Look on the blower housing, valve cover, or near the starter for an ID label
- Write down the full engine model and spec/type numbers
- Note the brand name cast into the shroud or printed on the label
- Clean the label area so all digits are readable
- Use the engine model and spec to match filters, plugs, and carburetor parts
Common engine brands found on Craftsman tractors
Craftsman tractors commonly show up with these engine brands; your 917259543 will be one of them based on the engine tag.
| Engine brand | ID format you’ll usually see | Typical label location |
|---|---|---|
| Briggs & Stratton | Model / Type / Code | Blower housing or valve cover |
| Kohler | Model / Spec | Side shroud or valve cover area |
| Kawasaki | Model / Spec | Side shroud near carburetor |
| Onan | Model / Spec/Serial | Shroud or engine block tag |
Why it matters
The engine brand and spec determine the correct tune-up items (air filter, spark plug, oil filter) and troubleshooting steps for no-start, stalling, or poor power.
Related DIY help
If you are chasing a starting problem after you identify the engine brand, use these guides:
- How to tune up a riding lawn mower video
- How to clean the air filter in your lawn tractor
- Riding lawn mower engine spins but wont start video
Last updated: February 2026
