Whirlpool WRS571CIDW00 refrigerator

Whirlpool WRS571CIDW00 refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRS571CIDW00 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRS571CIDW00 Refrigerators

  • Whirlpool Everydrop 1 Refrigerator Water Filter for Whirlpool WRS571CIDW00 - Part EDR1RXD1

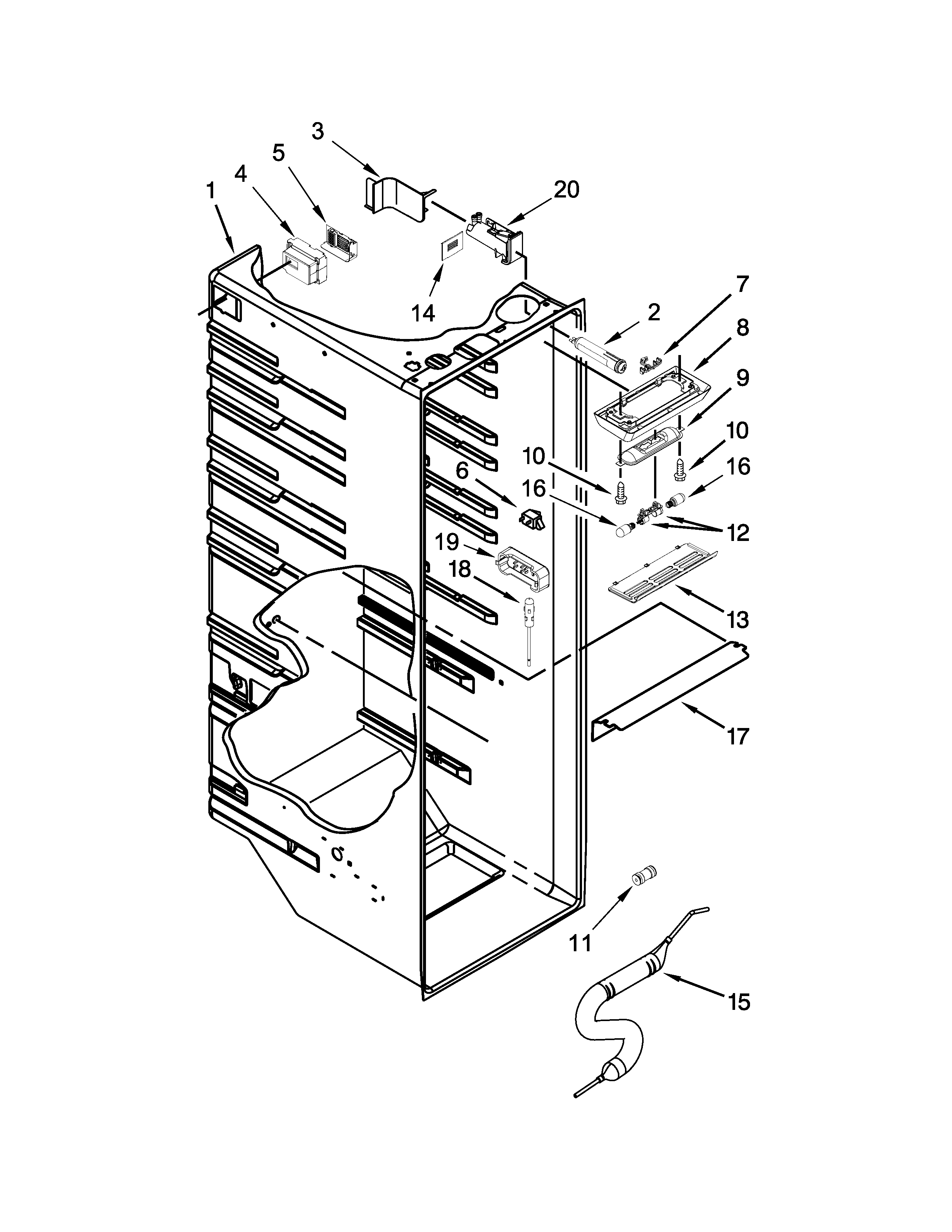

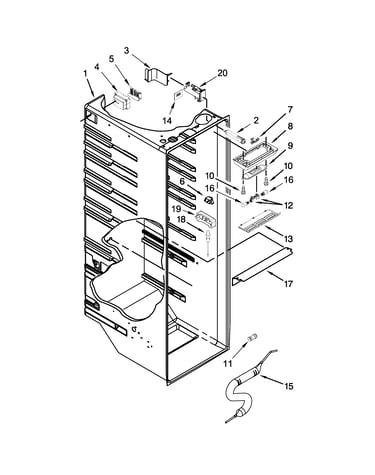

    Refrigerator liner parts diagram

    Refrigerator Filter

    Part #W10569758

    Replaced by #EDR1RXD1

    Info Icon
    Manufacturer substitution
    This part replaces W10569758. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $77.46
    7% OFF Phone Price : $83.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Uv Filter Dryer for Whirlpool WRS571CIDW00 - Part WPW10143759

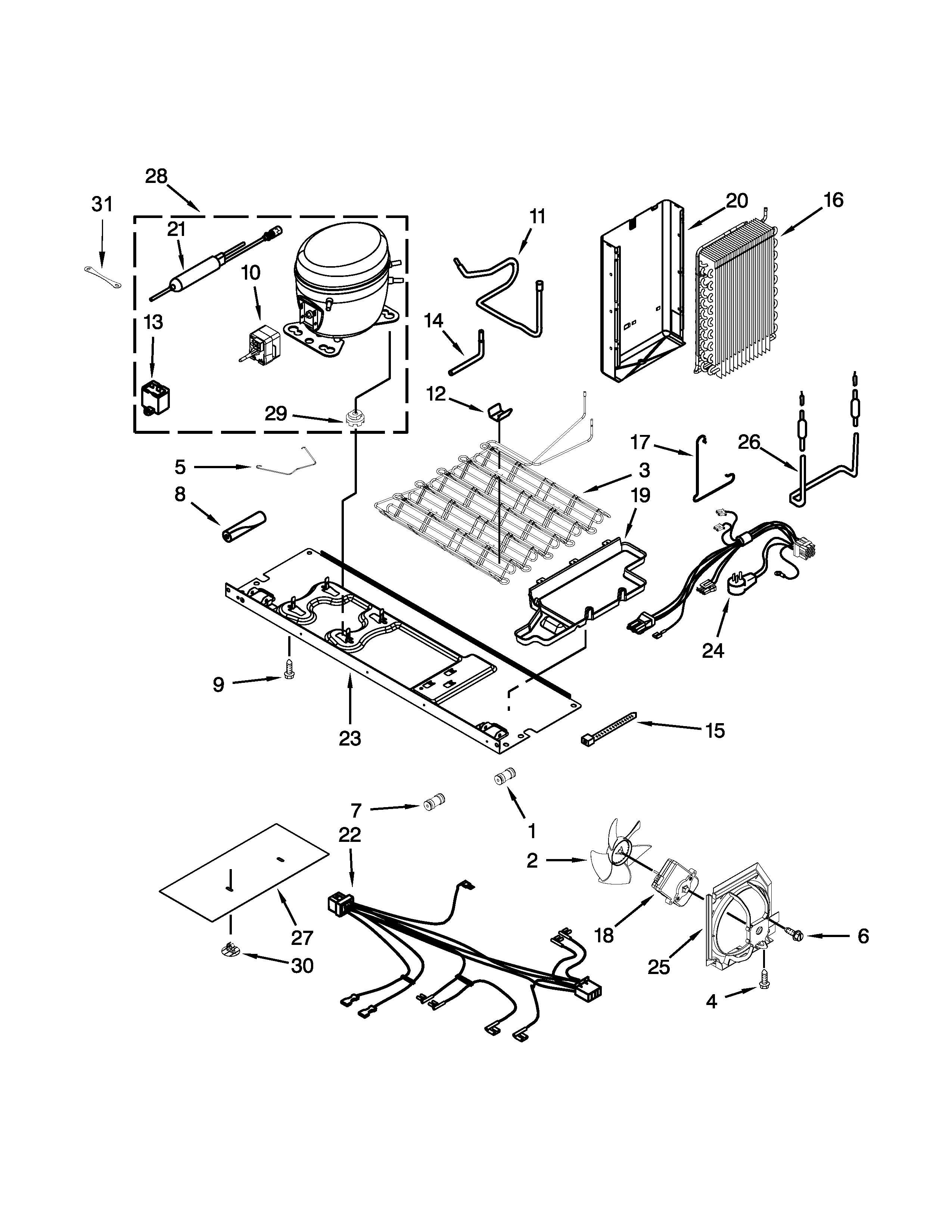

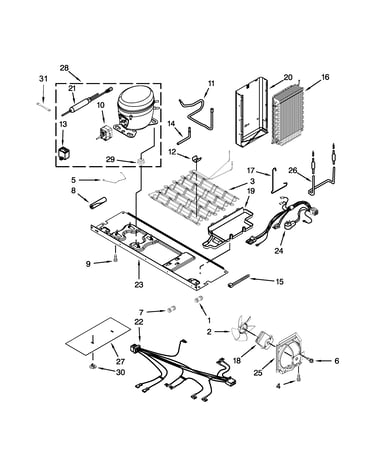

    Unit parts diagram

    Refrigerator Drier Assembly

    Part #W10771114

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces W10771114. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Refrigerator Ice Maker for Whirlpool WRS571CIDW00 - Part W10873791

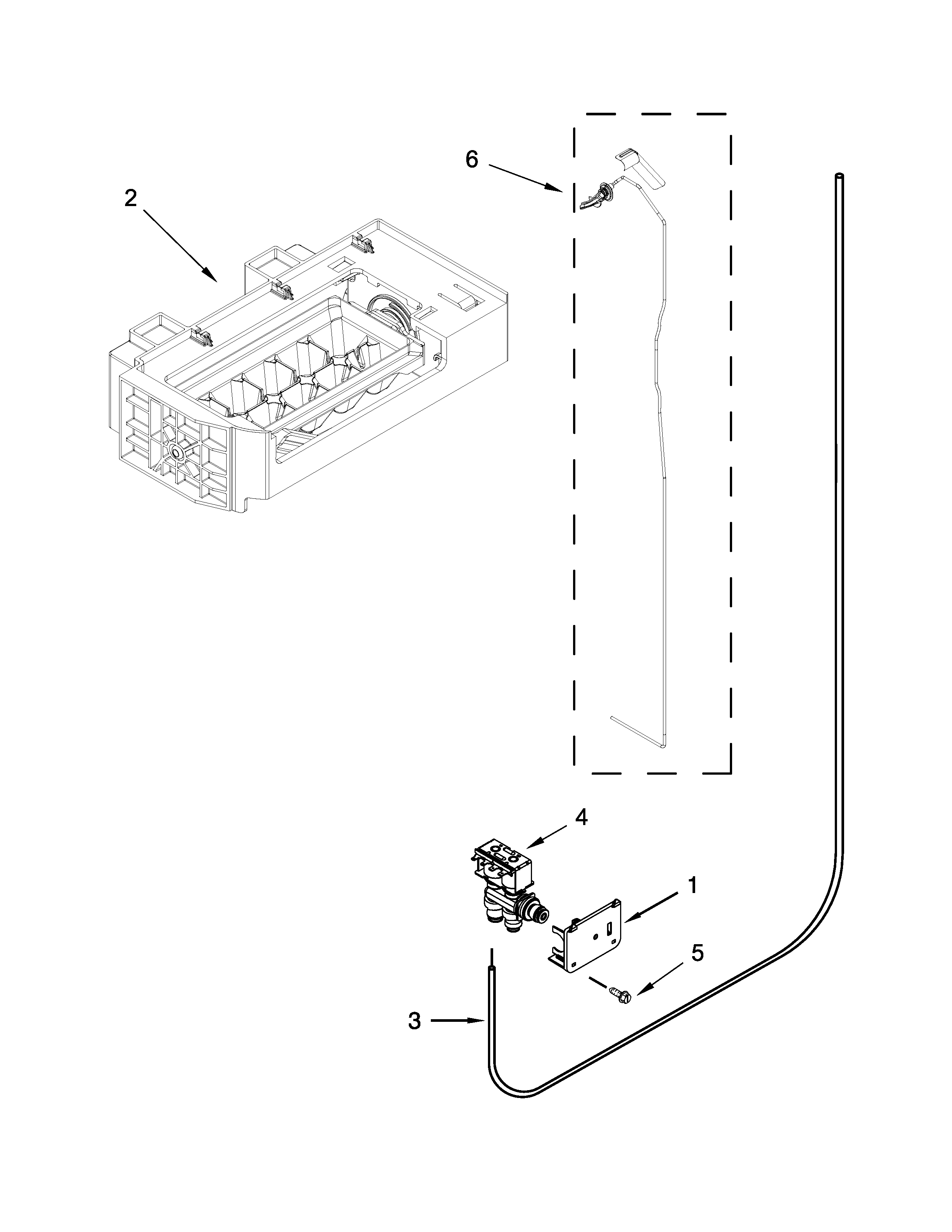

    Ice maker parts diagram

    Refrigerator Ice Maker

    Part #W10798411

    Replaced by #W10873791

    Info Icon
    Manufacturer substitution
    This part replaces W10798411. Substitute parts can look different from the original.
    In Stock
    $77.66
    7% OFF Phone Price : $83.66Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Defrost Bi-metal Thermostat for Whirlpool WRS571CIDW00 - Part WPW10225581

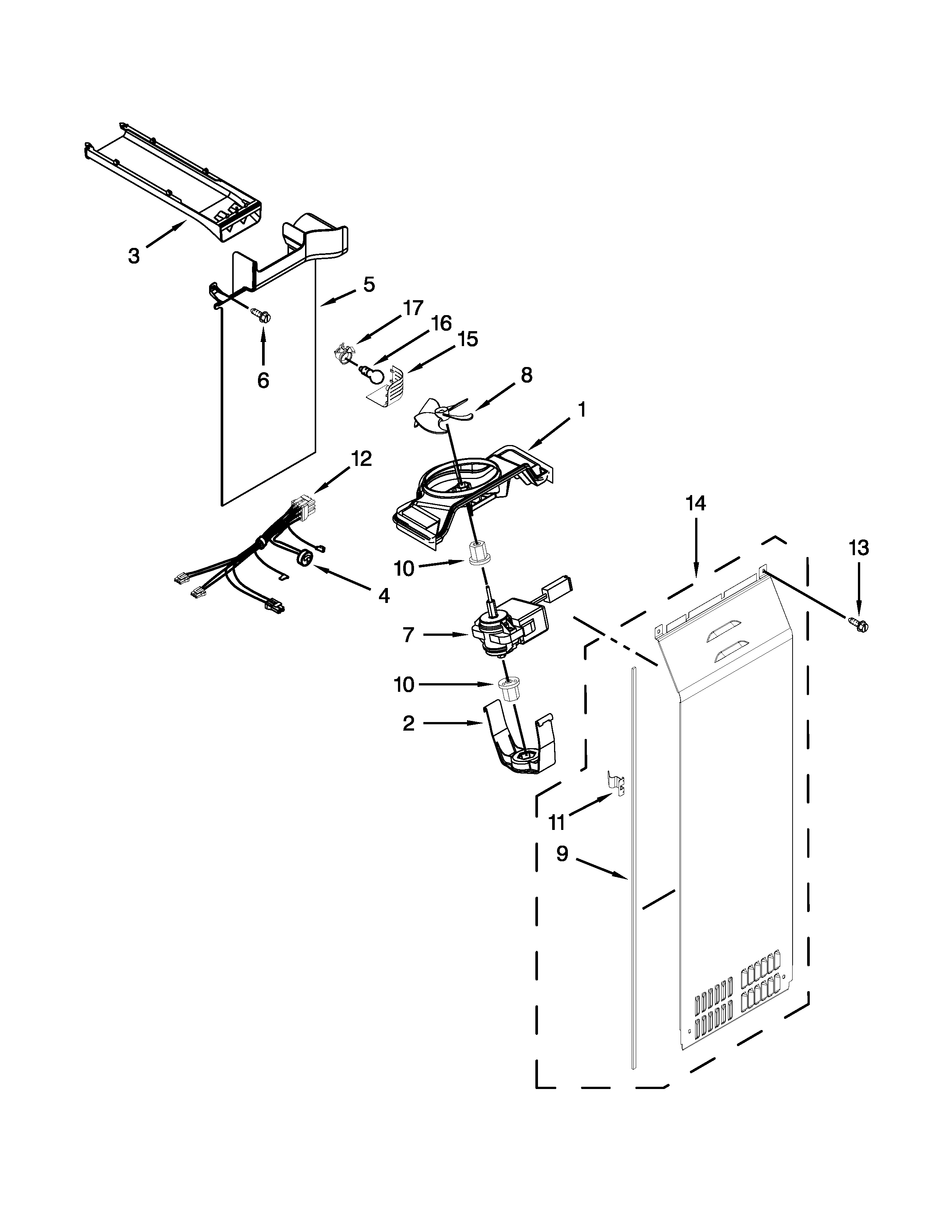

    Air flow parts diagram

    Refrigerator Defrost Bi-metal

    Part #W10260437

    Replaced by #WPW10225581

    Info Icon
    Manufacturer substitution
    This part replaces W10260437. Substitute parts can look different from the original.
    In Stock
    $33.38
    15% OFF Phone Price : $39.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Whirlpool WRS571CIDW00 - Part W11396033

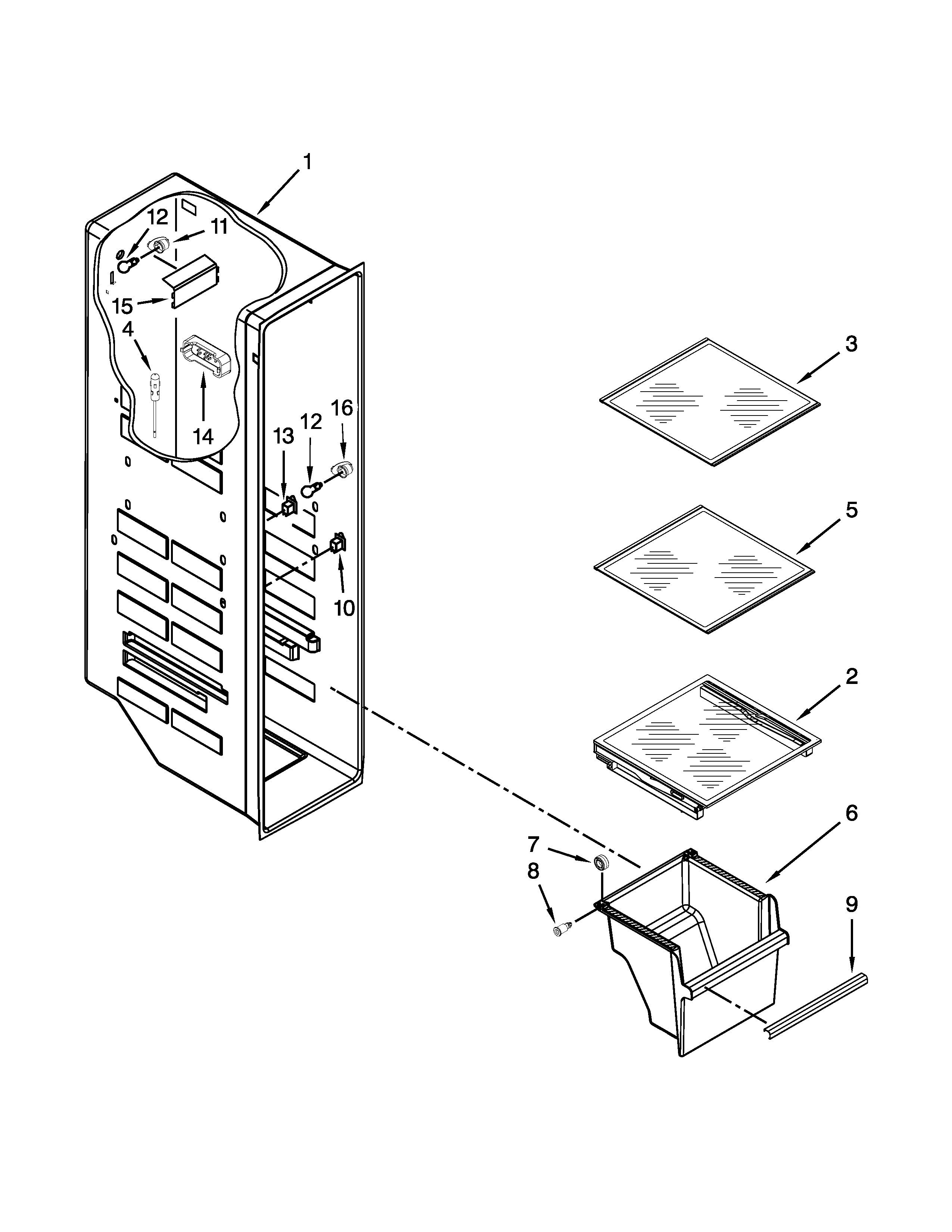

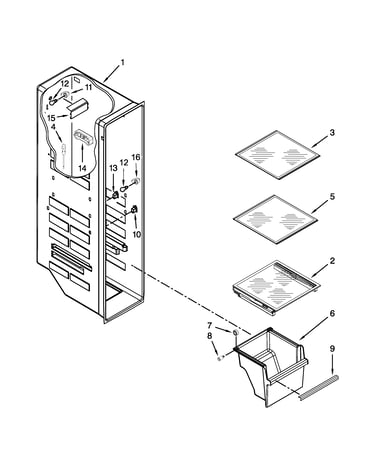

    Freezer liner parts diagram

    Refrigerator Light Switch

    Part #W10656771

    Replaced by #W11396033

    Info Icon
    Manufacturer substitution
    This part replaces W10656771. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Auger Motor for Whirlpool WRS571CIDW00 - Part W11202789

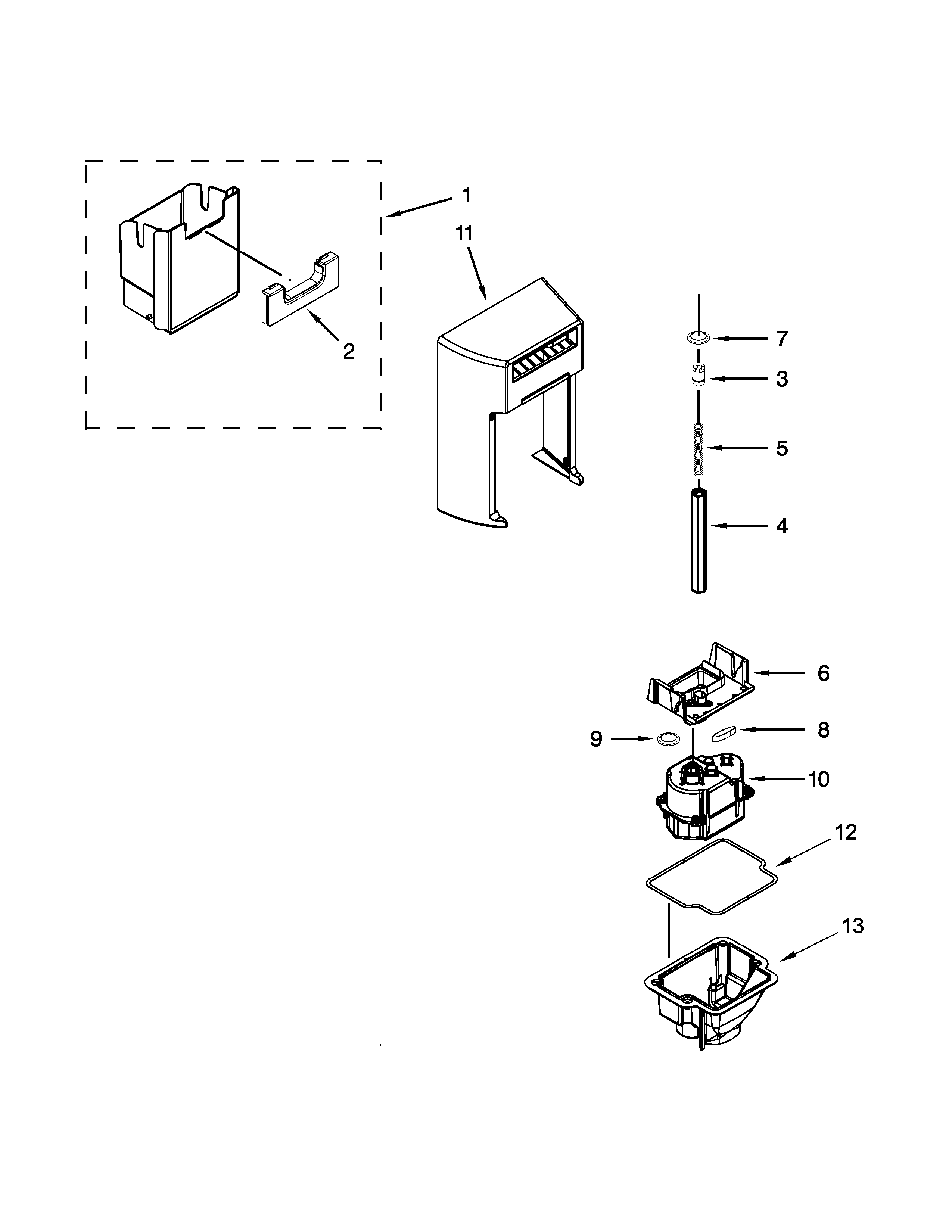

    Motor and ice container parts diagram

    Refrigerator Dispenser Motor

    Part #W10225313

    Replaced by #W11202789

    Info Icon
    Manufacturer substitution
    This part replaces W10225313. Substitute parts can look different from the original.
    In Stock
    $128.37
    9% OFF Phone Price : $140.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Whirlpool WRS571CIDW00 - Part WP2315549

    Air flow parts diagram

    Refrigerator Evaporator Fan Motor

    Part #2315549

    Replaced by #WP2315549

    Info Icon
    Manufacturer substitution
    This part replaces 2315549. Substitute parts can look different from the original.
    In Stock
    $178.31
    6% OFF Phone Price : $190.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Start Relay for Whirlpool WRS571CIDW00 - Part WPW10197428

    Unit parts diagram

    Refrigerator Start Relay

    Part #W10197428

    Replaced by #WPW10197428

    Info Icon
    Manufacturer substitution
    This part replaces W10197428. Substitute parts can look different from the original.
    In Stock
    $47.51
    11% OFF Phone Price : $53.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Water Inlet Valve for Whirlpool WRS571CIDW00 - Part WPW10238100

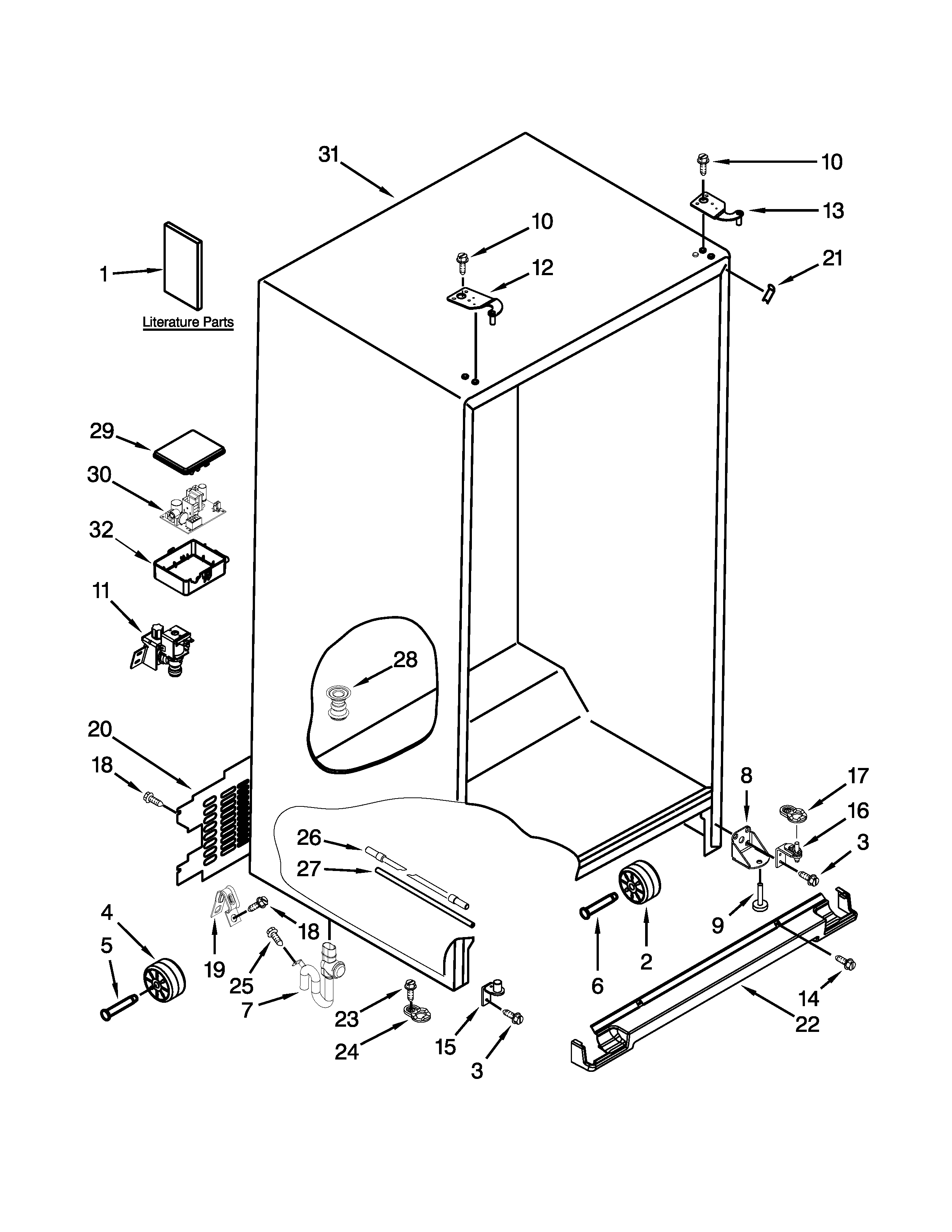

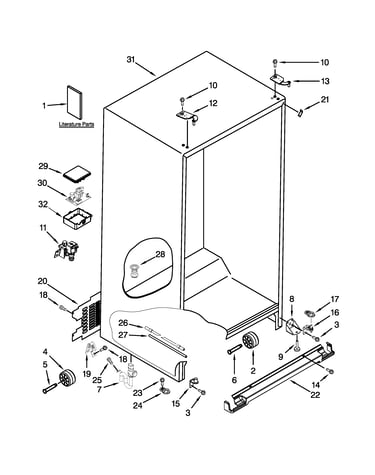

    Cabinet parts diagram

    Refrigerator Inlet Valve

    Part #W10498992

    Replaced by #WPW10238100

    Info Icon
    Manufacturer substitution
    This part replaces W10498992. Substitute parts can look different from the original.
    In Stock
    $102.82
    10% OFF Phone Price : $114.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Water Inlet Valve for Whirlpool WRS571CIDW00 - Part WPW10341320

    Ice maker parts diagram

    Refrigerator Water Inlet Valve

    Part #W10341320

    Replaced by #WPW10341320

    Info Icon
    Manufacturer substitution
    This part replaces W10341320. Substitute parts can look different from the original.
    In Stock
    $148.46
    7% OFF Phone Price : $160.46Info Icon
    Minus Item
    Qty
    Plus Item

Whirlpool Refrigerator WRS571CIDW00 FAQs

Most Whirlpool refrigerators last 12 to 15 years. For your Whirlpool WRS571CIDW00 side-by-side refrigerator, consistent temperatures, clean airflow, and quick fixes for small issues (like weak cooling or water leaks) are what most often determine whether it reaches the high end of that range.

Typical lifespan and what to expect

Here’s a practical way to think about service life for a Whirlpool side-by-side like the WRS571CIDW00:

Condition Typical lifespan What usually limits it
Normal household use 12 to 15 years Wear on sealed system and fans
Well maintained 15 to 18 years Aging electronics, gaskets, ice maker
Poor airflow or neglected cleaning 8 to 12 years Overheating, frost issues, compressor strain
What helps your WRS571CIDW00 last longer

We see these habits make the biggest difference in real-world refrigerator lifespan:

  • Keep condenser area clean so heat can escape efficiently.
  • Leave space for ventilation around the cabinet (especially at the back and sides).
  • Replace the water filter on schedule to protect water flow to the dispenser and ice maker.
  • Fix door sealing problems quickly so the unit does not run constantly.
  • Address unusual noises early (often tied to the evaporator fan area).
Parts that commonly affect longevity

When performance drops, these are common wear items that can restore normal operation and reduce strain on major components:

Why it matters

A refrigerator that runs longer than it should (from dirty coils, air leaks, or frost buildup) puts extra load on the compressor and cooling system. Keeping airflow and sealing in good shape is the simplest way to protect the most expensive components.

Last updated: February 2026

To reset the ice maker on your Whirlpool WRS571CIDW00 side-by-side refrigerator, we recommend power-cycling the refrigerator first (unplug for 1 minute, then restore power) and then allowing up to 24 hours for normal ice production to resume after the reset.

Quick reset steps (most reliable)
  • Confirm the freezer is set to 0°F to 5°F (ice makers slow down above this range).
  • Make sure the ice maker is turned ON (bail arm down or switch in the ON position, depending on the style).
  • Unplug the refrigerator (or turn off the breaker) for 60 seconds.
  • Restore power and wait 5 minutes.
  • Dispense water for 2 to 3 minutes total (in short bursts) to help clear air from the water line.
What to check if it still will not make ice

These checks solve most “no ice” complaints after a reset:

  • Household shutoff valve is fully open.
  • Water supply line is not kinked behind the refrigerator.
  • Ice bin is seated correctly and not jammed with clumped ice.
  • Water filter is not overdue or restricted; replace if needed using refrigerator filter EDR1RXD1.
  • Freezer door is closing tightly; a warm freezer causes slow or no ice.
Common symptoms and the most likely next step
Symptom What it usually means What we do next
No ice, no sound from ice maker Ice maker off or not cycling Recheck ON/OFF, then power-cycle again
Ice is small or hollow Low water flow Replace filter, check inlet valve flow
Water dispenses slowly too Restriction in filter or valve Replace filter; test/replace inlet valve
Ice maker cycles but no water fills Water valve or frozen fill tube Check for frozen tube; test valve
Why it matters

A reset only restarts the ice maker’s cycle. If water flow is restricted (often by a clogged filter) or the freezer is too warm, the ice maker can “run” but still produce little or no ice.

Helpful DIY guidance

For step-by-step prevention and troubleshooting tips, use our how to prevent water dispenser and ice maker problems guide.

Last updated: February 2026

The most common Whirlpool refrigerator problems are cooling issues (warm fridge or freezer), ice maker or dispenser trouble, and water leaks. On the Whirlpool WRS571CIDW00, these symptoms often trace back to airflow problems, a restricted water supply, or a failing component such as a fan motor, inlet valve, or defrost part.

Most common symptoms we see
  • Refrigerator section too warm while freezer seems OK
  • Freezer too warm or temperature swings
  • Ice maker not making ice or making small/hollow cubes
  • Water dispenser slow or not dispensing
  • Puddles under the refrigerator or water in the fresh food section
  • Frost buildup on the freezer back wall
Quick checks that solve many “common problems”
  1. Clean condenser area: Dust buildup reduces cooling efficiency and can mimic a major failure.
  2. Confirm airflow: Make sure vents are not blocked by food packages.
  3. Check door sealing: A poor seal causes warm temps, frost, and long run times.
  4. Replace the water filter on schedule: A clogged filter can reduce water flow to the dispenser and ice maker.
  5. Look for defrost/drain clues: Frost on the freezer back panel often points to a defrost system issue.
Parts that commonly fix these issues on WRS571CIDW00
Symptom Common cause Part to consider (if failed)
Warm temps, noisy freezer Evaporator fan not moving air Refrigerator evaporator fan motor WP2315549
Slow water, poor ice Restricted filter Refrigerator filter EDR1RXD1
No ice, no water, or weak fill Water inlet valve not opening fully Refrigerator water inlet valve WPW10341320
Frost buildup, warming Defrost system not clearing ice Refrigerator defrost heater WPW10495967 and refrigerator defrost bi-metal WPW10225581
Why it matters

Cooling, ice production, and leak complaints usually share the same root causes: airflow (fans, vents, frost) and water flow (filter, inlet valve). Fixing the underlying cause protects food temperatures, prevents repeat icing, and reduces strain on the compressor.

For model-specific fault patterns, we use the troubleshooting steps in our DIY guide: Whirlpool refrigerator error codes.

Last updated: February 2026

When your Whirlpool WRS571CIDW00 dispenses water but won’t make ice, the most common causes are the ice maker being turned off, the freezer not staying near 0°F, or restricted water flow to the ice maker from a clogged filter or a failing inlet valve.

Quick checks (fastest fixes first)
  • Confirm the ice maker is switched ON (bail arm down or the ice maker power set to on).
  • Set the freezer to about 0°F and wait 24 hours to see if ice production returns.
  • Make sure the ice bin is seated correctly and not jammed with clumped ice.
  • Replace the water filter if it is older than 6 months or water flow seems slower than normal; use the refrigerator filter EDR1RXD1.
  • After any filter change or water shutoff, purge air by dispensing several glasses of water.
If water dispenses but the ice maker still won’t fill

These issues can affect the ice maker circuit even when the door dispenser still works:

  • Frozen fill tube: The small tube feeding the ice maker can freeze, blocking water to the ice mold.
  • Weak or sticking valve: One side of the dual valve can fail and still allow the dispenser side to work; consider the refrigerator water inlet valve WPW10341320 if the ice side is not opening.
  • Ice maker module failure: If the mold never cycles (no harvest, no refill), the ice maker assembly can be the fix; see the refrigerator ice maker W10873791.
What to listen and look for (symptom guide)
What you notice What it usually means What we check next
No sound, no cycling Ice maker off or failed module Ice maker on/off, then ice maker assembly
Cycles but no water enters mold Frozen fill tube or valve not opening Thaw fill tube, then inlet valve
Small/hollow cubes Low water flow Filter, supply line, inlet valve
Ice clumps or freezes together Temperature swings or door not sealing Door seal, freezer temp, airflow
Why it matters

Ice makers need the freezer cold enough to harvest cubes and a steady, unrestricted water supply to refill the mold. A partially restricted filter or a weak inlet valve often shows up as “no ice” before the water dispenser stops working.

Helpful DIY guides

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Bottom-Mount Refrigerator
Chipper/Shredder
Dishwasher
Dryer
Electric Range
Electric Wall Oven
Gas Walk-Behind Mower
Generator
Lawn Sprinkler
Microwave
Microwave/Hood Combo
Parts
Pressure Cooker
Range Hood
Riding Mowers & Tractors
Side-By-Side Refrigerator
Washer
Weight Machine
