Kenmore Elite 66514752N512 dishwasher Parts

On our Kenmore Elite dishwasher model 66514752N512, the model number is printed on the rating label located just inside the dishwasher door, typically along the left-hand side of the door opening. The same label also lists the serial number.

• Open the dishwasher door fully.
• Look along the inner frame of the tub opening (not the outer cabinet).
• Check the left-hand side first.
• Find the rating label with a barcode and printed text.
• Record both the model number and serial number for parts lookup and service.

Having the exact model number lets us match the correct Kenmore parts and diagrams for your dishwasher, including common wear items like rack hardware, pumps, and door latches.

• Use the full model number exactly as printed (letters, numbers, and suffix).
• If the label is worn, take a clear photo with the door open and good lighting.
• For installation-related identification and requirements, use the 66514752N512 installation guide.

Dishwashers in the Kenmore 665 family can look similar, but small design changes affect which replacement parts fit and how repairs are performed. Using the rating label prevents ordering the wrong part the first time.

Last updated: January 2026

On the Kenmore Elite dishwasher model 66514752N512, the ULTRACLEAN filter is located at the bottom center of the tub, underneath the lower rack. Pull the lower rack out to access the removable filter assembly; it twists to lock and unlock. See the 66514752N512 owner's manual for the exact removal and reinstallation steps.

1. Turn the dishwasher off; let it cool if it just finished a cycle.
2. Slide the lower rack out to expose the sump area.
3. Locate the round filter assembly at the bottom center.
4. Rotate the upper filter assembly to unlock, then lift it out.
5. Lift out the lower filter from under the locating tabs.

• Rinse the filter under running water until most soil is removed.
• Use a soft brush only if needed for stuck-on soil or hard-water deposits.
• Avoid wire brushes or scouring pads; they can damage the filter mesh.
• Reinstall both filters before running a cycle.
• If the upper filter turns freely after reinstalling, keep turning clockwise until it drops and locks.

The filter system uses a lower filter plus an upper filter assembly that twists into place.

A properly installed, clean filter helps prevent food soils from redepositing on dishes, supports strong wash performance, and can reduce unusual noises caused by poor water flow through the sump.

Last updated: January 2026

For Kenmore Elite dishwasher model 66514752N512, the installation opening is built around a standard built-in dishwasher footprint: about 24 inches deep (not including any custom door panel) and an adjustable height range that fits roughly 33 1/2 to 34 1/2 inches under the countertop. See the 66514752N512 installation guide for the exact cabinet-opening measurements and adjustment chart.

These are the dimensions that matter most when you are measuring your cabinet opening and clearances:

• Depth: 24 inches (60 cm) for the dishwasher body; door handles can protrude farther (varies by model)
• Cabinet opening height range: approximately 33 1/2 inches to 34 1/2 inches (85.1 to 87.6 cm) depending on wheel position, front leg adjustment, and insulation blanket setup
• Toe-kick reference: the guide references a 4-inch toe kick and a 34 1/2-inch cabinet opening height as a common preset
• Built-up floors: shims may be needed so the dishwasher sits correctly under the countertop

We recommend measuring before you order parts or schedule installation:

• Measure from the lowest point on the underside of the countertop to the floor
• Measure at the highest point on the floor where the dishwasher will sit (floors can slope)
• Check for wall protrusions that could block the tub or insulation
• Confirm utilities (water line, drain hose, wiring) will not contact the motor or legs

The installation guide includes a height adjustment chart; here is the practical takeaway.

Dishwashers that are even slightly too tall or too deep can bind against the countertop, leak at the door, or sit unlevel, which affects wash performance and draining. Getting the opening height and depth right also helps prevent hose kinks and vibration noise.

Last updated: January 2026

Common problems on the Kenmore Elite dishwasher model 66514752N512 include not starting (often a door latch or Start/Resume issue), poor draining, cloudy or spotted dishes from hard water, and drying complaints tied to rinse aid and water temperature. Our 66514752N512 owner's manual troubleshooting section covers these symptoms and the fastest checks.

• Won’t start or seems dead: confirm the door is fully closed and latched; if the Start/Resume light is blinking, close the door and press Start/Resume.
• Detergent left in the dispenser: check for large dishes blocking the wash system or dispenser area; reload so the door closes freely.
• Cycle runs too long: verify you selected the intended cycle and options; some pauses during a cycle are normal.
• Not drying well: use rinse aid and confirm incoming water is about 120°F (49°C).

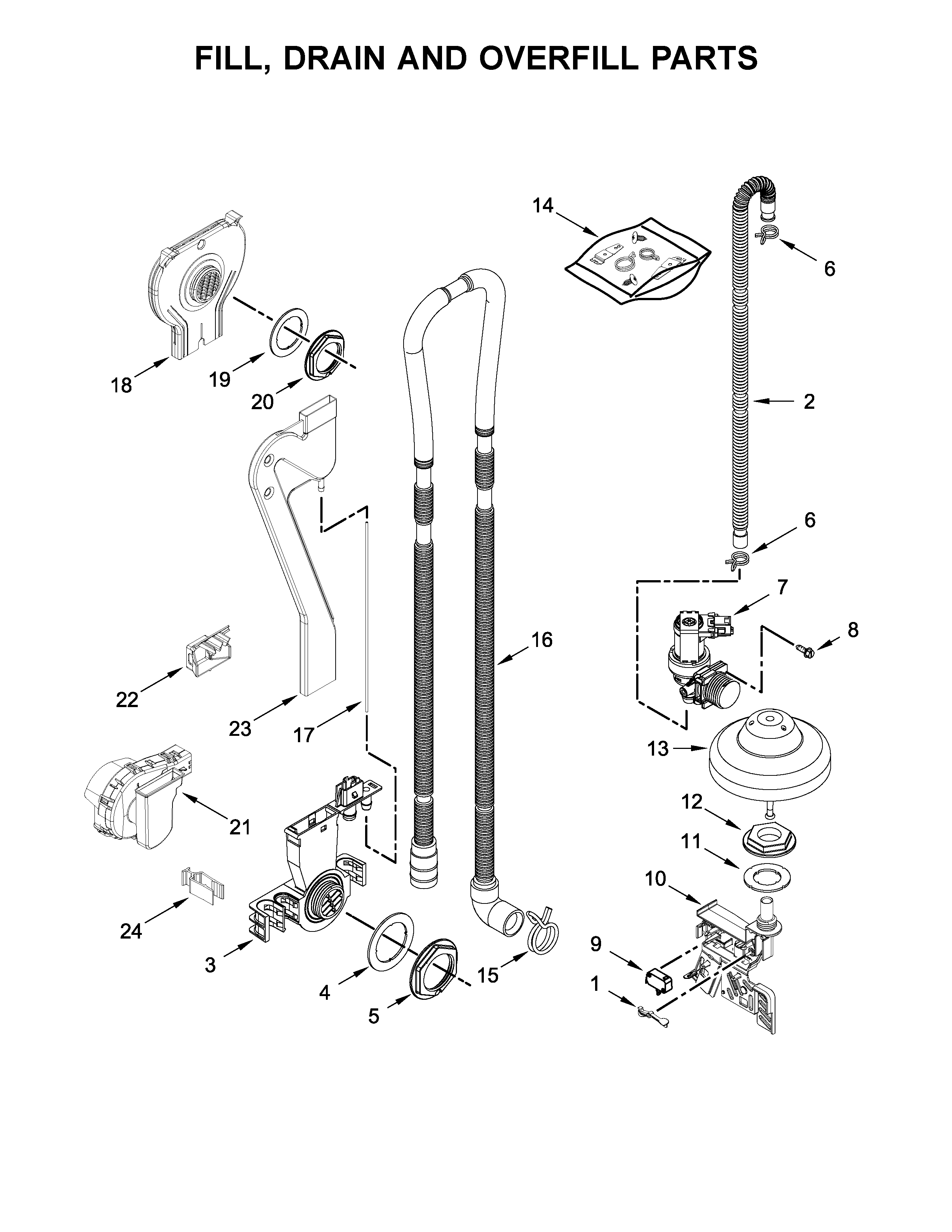

• Water remains in tub or won’t drain: check for a kinked drain hose, disposer knockout plug not removed, or food blockage in the drain/disposer.
• White residue, cloudy glassware, spotting: hard water mineral deposits; monthly dishwasher cleaner and regular filter cleaning help.

If the quick checks do not resolve the issue, these model-matched parts are frequent fixes:

Most dishwasher complaints come from a small set of causes: door not fully latched, drain restrictions, hard water buildup, or low water temperature. Fixing those first prevents repeat cycles, poor cleaning, and unnecessary part replacement.

• Use Kenmore 665 model dishwasher error codes if your display or status lights indicate a fault.
• For rack issues, follow replacing dishrack track rollers on Kenmore 665 series and whirlpool dishwashers videos.
