Electric Range

Model #FFES3025LBB Frigidaire electric range

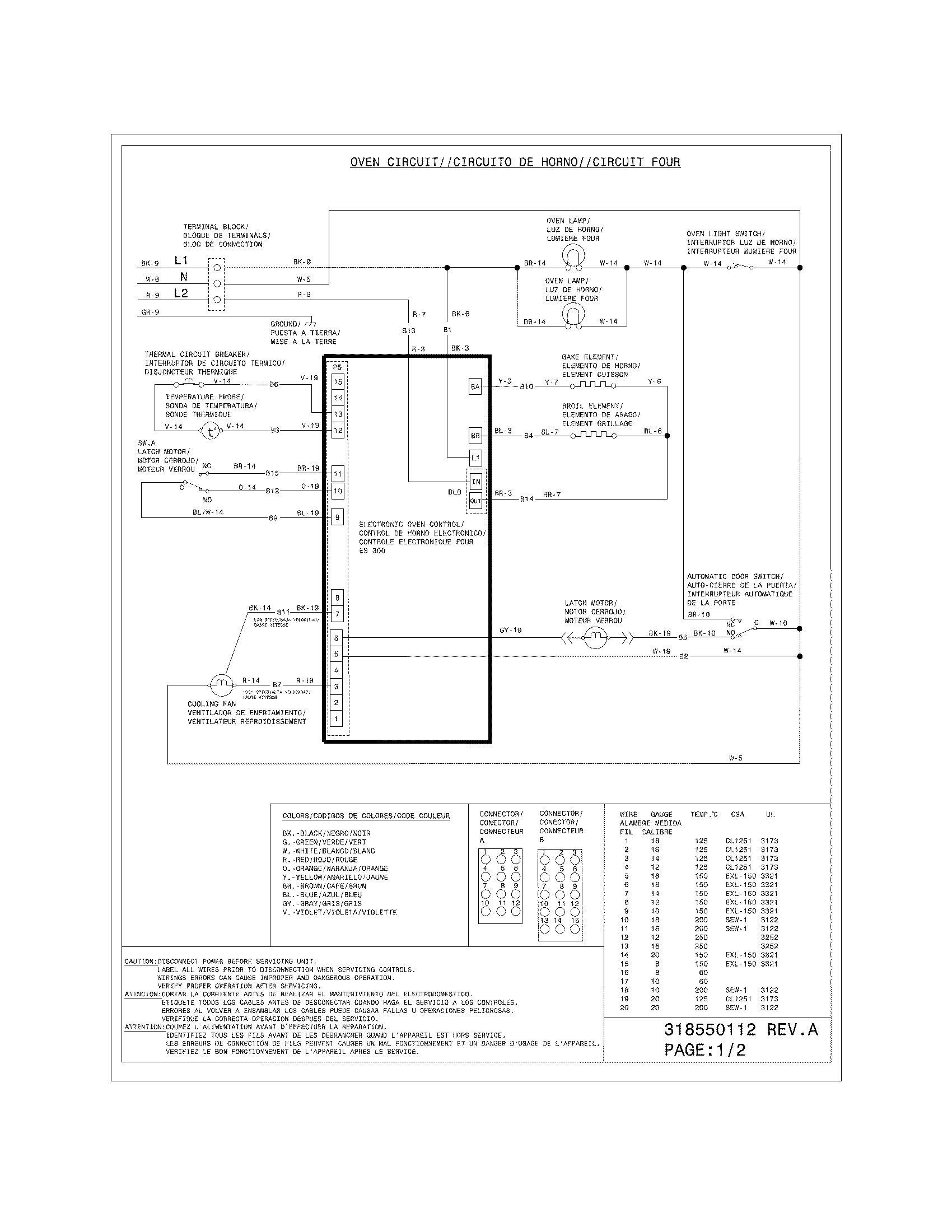

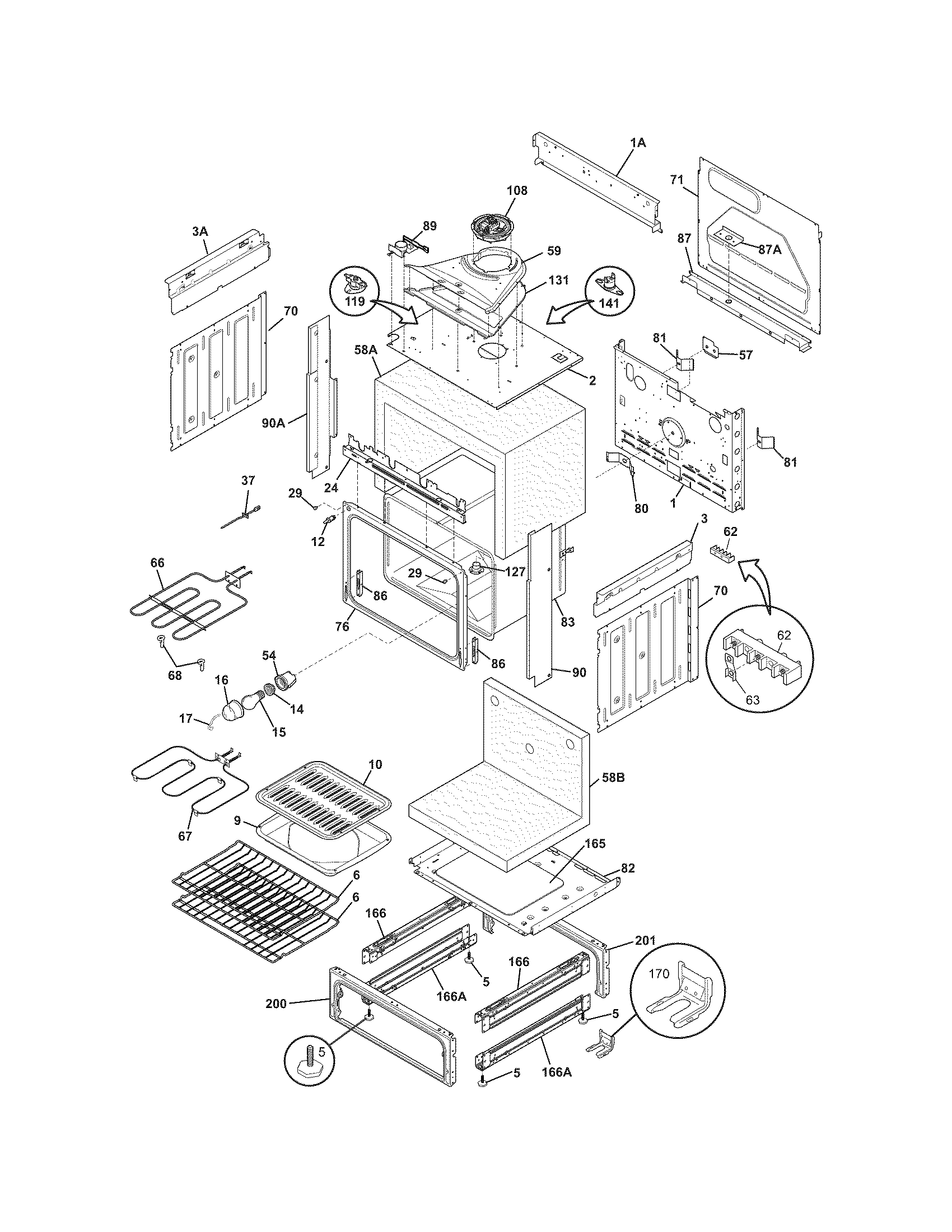

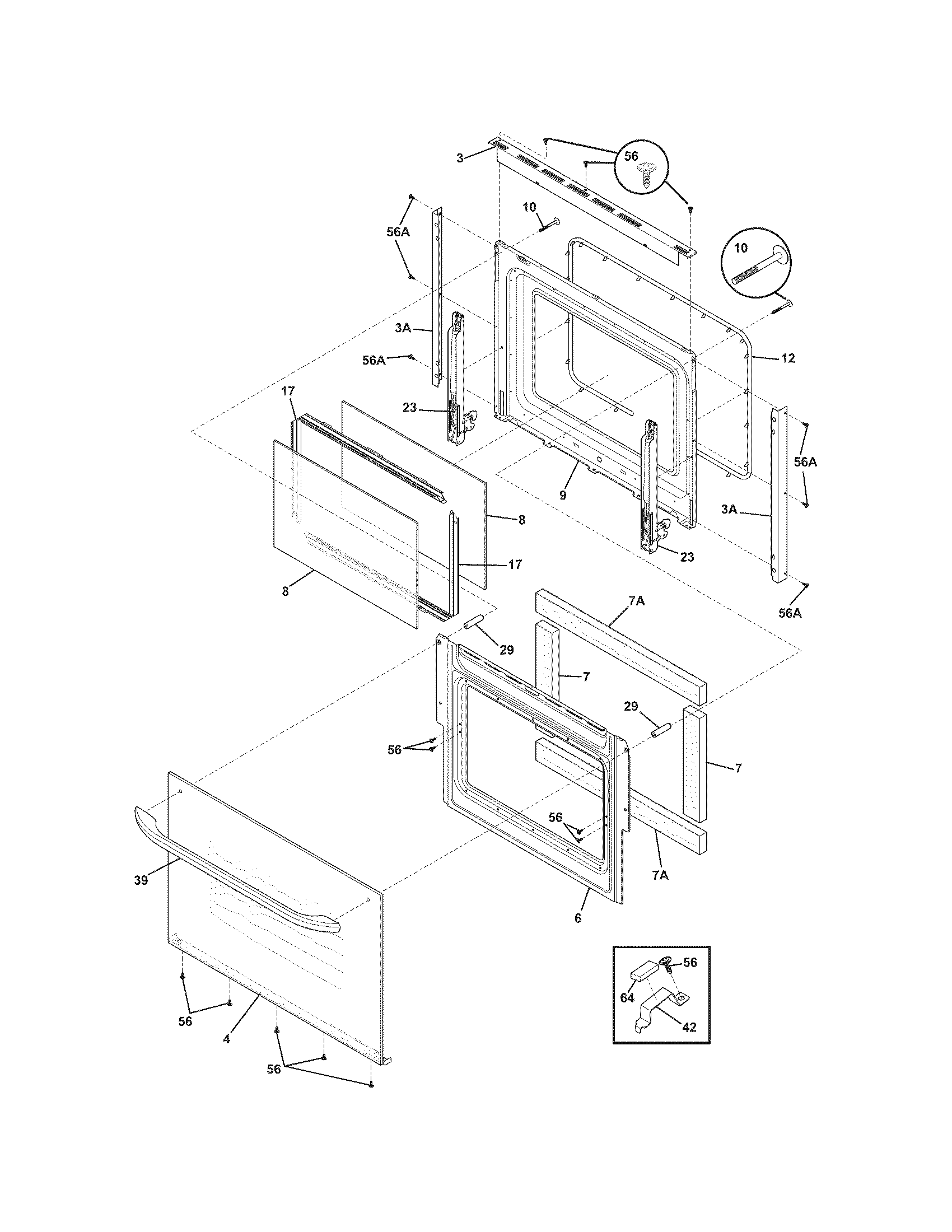

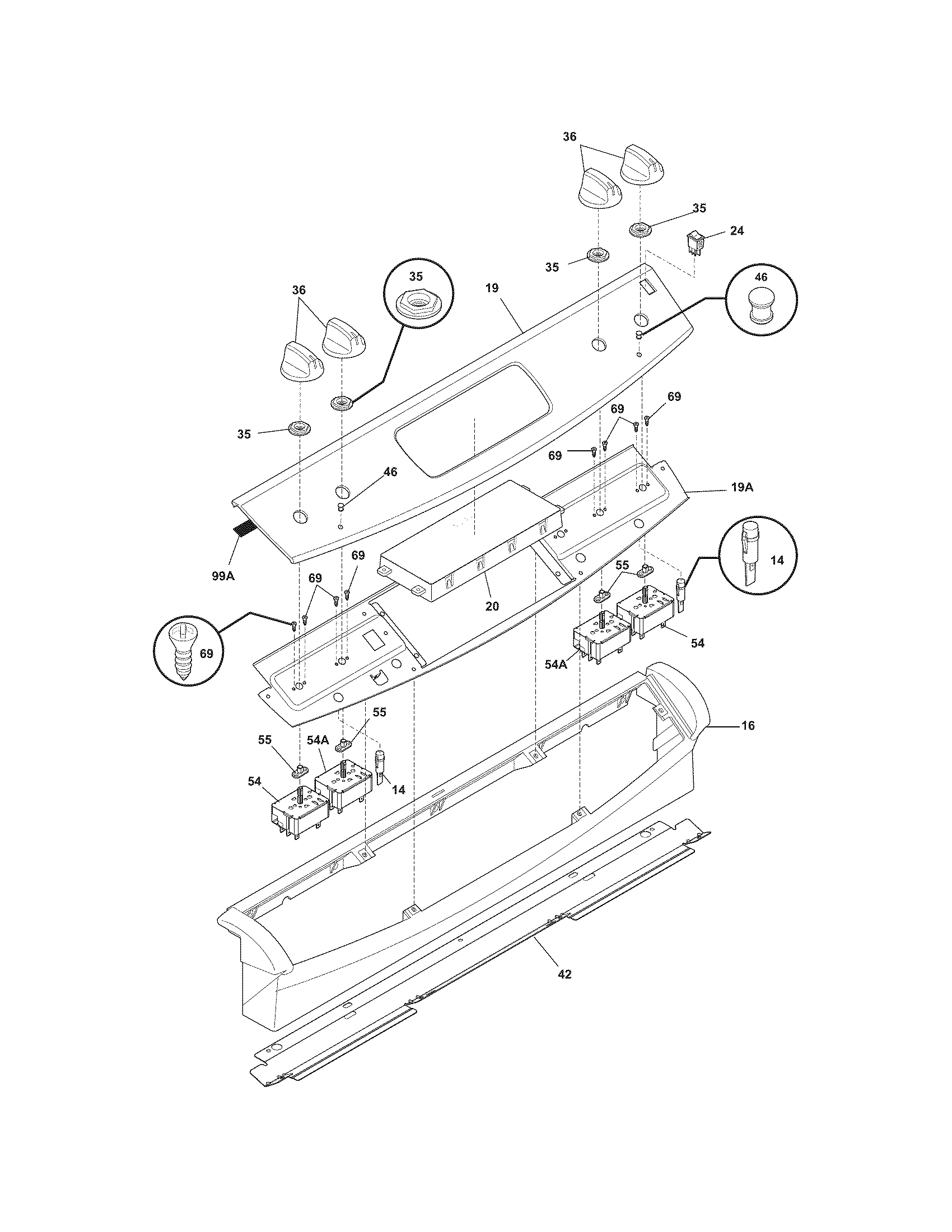

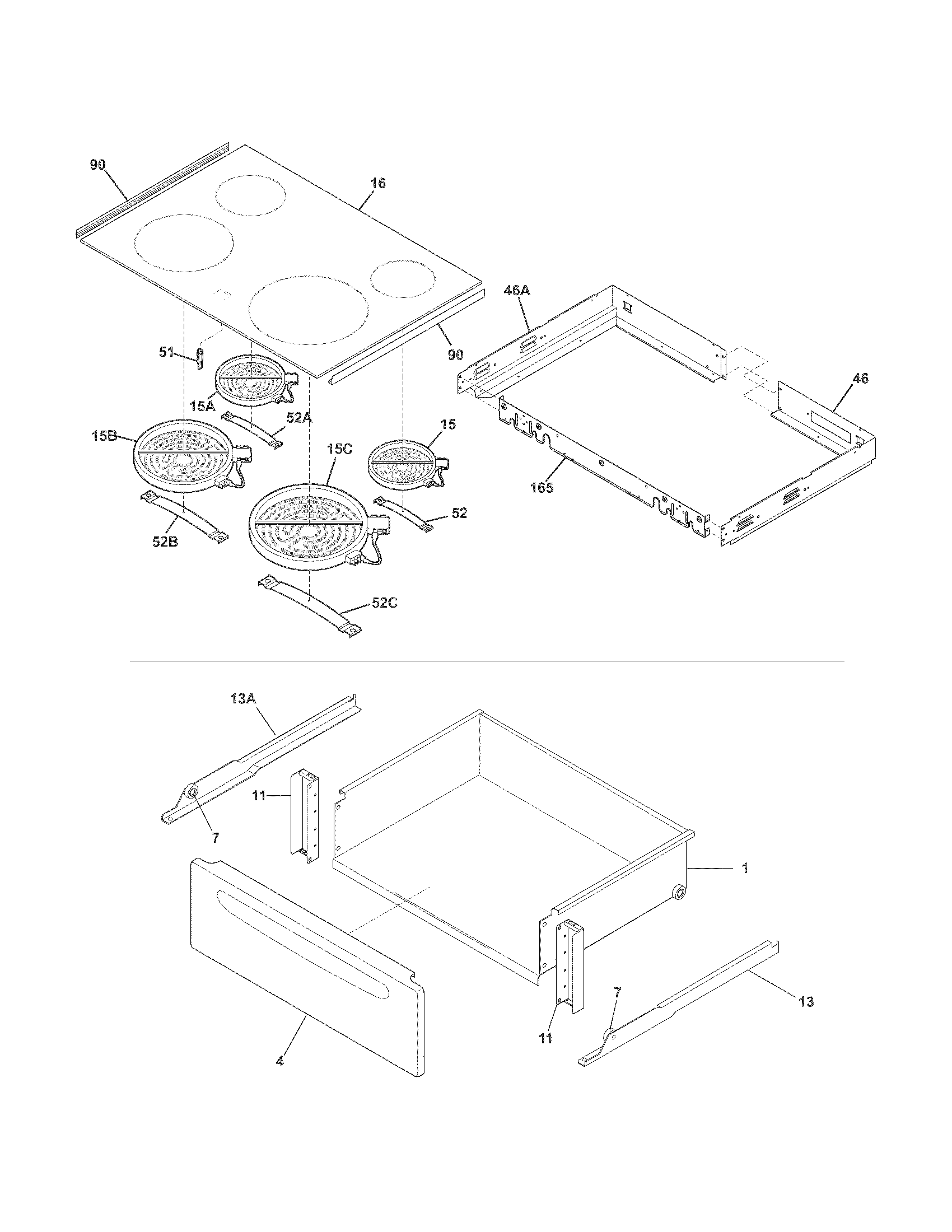

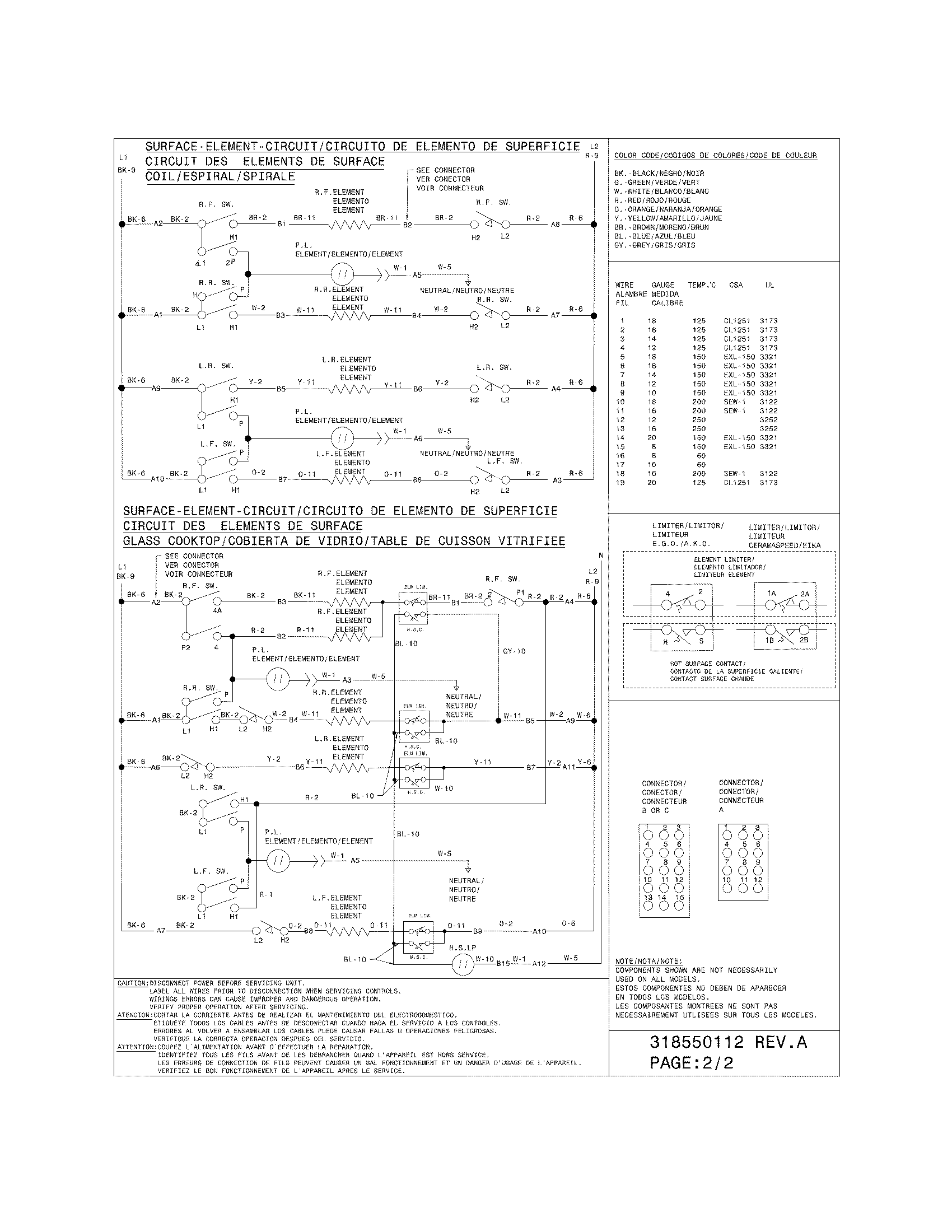

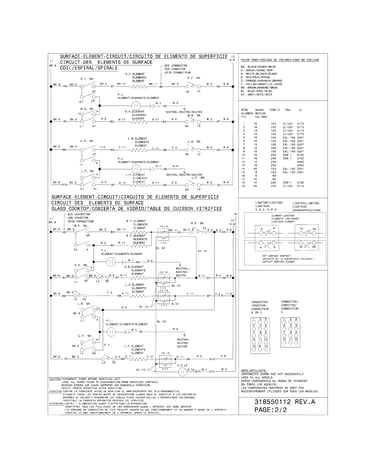

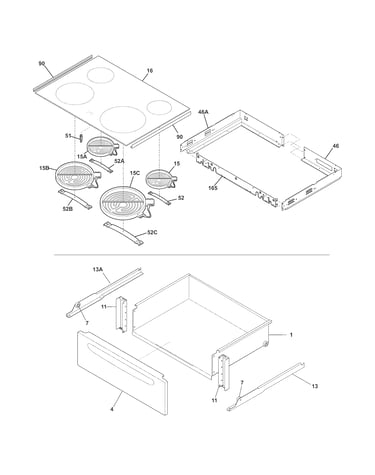

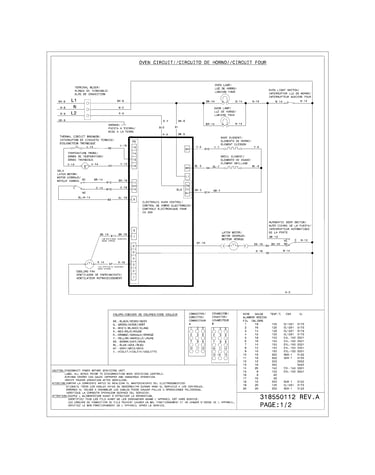

Here are the diagrams and repair parts for Frigidaire FFES3025LBB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 147 parts

    Range Surface Element Control Switch

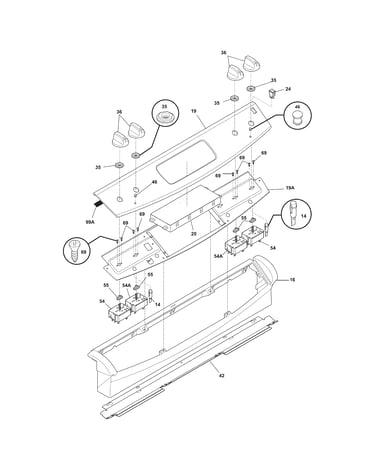

    Backguard Diagram

    $49.99 |
    19% OFF
    MSRP: $62.00

    In Stock

    Range Oven Cooling Fan Assembly


    Body Diagram

    $82.99 |
    54% OFF
    MSRP: $180.00

    In Stock

    Range Oven Light Socket


    Body Diagram

    Range oven light socket

    Part #318224000
    $17.99 |
    22% OFF
    MSRP: $22.99

    In Stock

    Range Glass Edge Protector


    Top/drawer Diagram

    $13.99 |
    13% OFF
    MSRP: $16.00

    In Stock

    Range Bake Element


    Body Diagram

    Range bake element

    Part #318254918
    $90.99 |
    30% OFF
    MSRP: $130.00

    In Stock

    Wall Oven Door Outer Panel

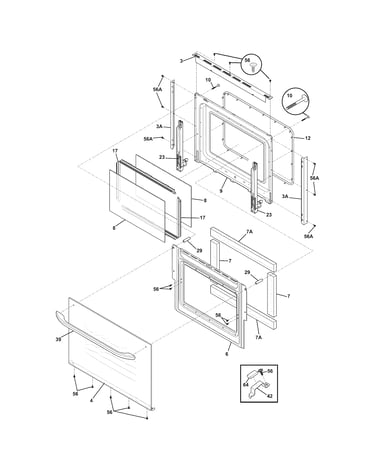

    Door Diagram

    $139.99 |
    46% OFF
    MSRP: $260.00

    In Stock

    Range Screw


    Door Diagram

    Range screw

    Part #5304436875

    In Stock

    Range Screw, 8 x 18 x 0.406-in


    Body Diagram


    In Stock

    Range Screw


    Backguard Diagram

    Range screw

    Part #5303323134
    $7.74 |
    23% OFF
    MSRP: $10.00

    In Stock

    Range Door Bumper


    Body Diagram

    Range door bumper

    Part #316517600
    This item is not returnable
    $7.49 |
    9% OFF
    MSRP: $8.20

    In Stock

    Symptoms common to all ranges

    Choose a symptom to see related range repairs.

    Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
    Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
    Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
    Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
    Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure
    Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
    Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
