For the Craftsman riding mower model 917250240, we use 4-cycle engine oil, most commonly SAE 10W-30 for typical mowing temperatures. This is the standard viscosity used on many Craftsman lawn tractors and is the best starting point unless your temperature range calls for a different grade in the 917250240 operator’s manual.

Recommended oil type and when to use it

• SAE 10W-30: Best all-around choice for most spring through fall mowing
• SAE 30: Common for consistently warm weather operation
• 5W-30 (synthetic or conventional): Common for easier cold-weather starting
• Use 4-cycle oil only (never 2-cycle oil)

Quick checklist before you add or change oil

• Park on a level surface and let the engine cool
• Check oil with the dipstick; do not overfill
• Wipe dirt away from the fill area so debris does not enter the crankcase
• Change oil on schedule and replace the oil filter if your engine uses one
• Dispose of used oil properly

Oil selection guide (simple)

Your typical mowing temps	Common choice	Why it helps
Mostly above 40°F	SAE 10W-30	Good protection across changing temps
Mostly hot summer temps	SAE 30	Stable viscosity in heat
Near-freezing starts	5W-30	Faster oil flow for cold starts

Why it matters

Using the right viscosity helps the engine lubricate quickly at startup and maintain protection when the tractor is under load (mowing, hills, towing). The wrong oil weight can increase wear, hard starting, or smoking.

Last updated: February 2026

Yes, replacing the engine on your Craftsman lawn tractor model 917250240 is worth it when the tractor’s deck, steering, and drive components are in solid shape and the engine cost stays well below the cost of replacing the entire tractor. Use the 917250240 owner's manual to compare repair steps and maintenance needs before you commit.

Quick decision checklist

• The mower deck is not rusted through and still cuts evenly after leveling
• The tractor still drives normally (no belt slip, no axle issues)
• You are not chasing multiple problems at once (engine plus major deck or transmission repairs)
• You can do basic service safely (key out, blades stopped, spark plug wire disconnected)
• The replacement engine or short block costs less than about half the price of a comparable replacement tractor

What to inspect first on model 917250240

Before spending money on an engine, we recommend checking the common “big ticket” wear areas that affect cut quality and vibration:

Area to check	What you’re looking for	What it can mean
Mower deck and mandrels	Excessive vibration, wobble, grass buildup around mandrels	Bent mandrel, worn bearings, deck damage

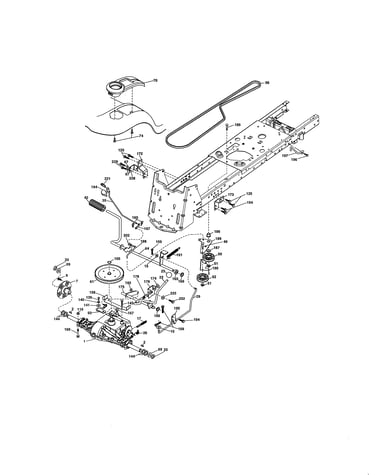

Drive system	Loss of drive, worn or damaged motion belt	Belt or idler issues
Safety system	Engine behavior tied to seat/brake/PTO operation	Interlock switch or wiring problems

If you already have deck vibration or a bent mandrel, pricing out a deck repair alongside the engine helps you decide. For example, a worn mandrel assembly can contribute to vibration and poor cut; the lawn tractor mandrel housing 587819701 is one of the deck-related parts used on this model.

Why it matters

A new engine can restore reliability, starting, and power, but it does not fix underlying deck, belt, or safety-interlock problems. The manual also emphasizes routine service that prevents engine damage, such as keeping cooling fins and screens clean to avoid overheating and replacing the fuel filter seasonally.

Safety and cost tips

• Always remove the key and disconnect the spark plug wire before service
• Avoid running with clogged cooling fins or missing shrouds (overheating damage)
• If the tractor needs an engine plus major deck and drive repairs, replacement is the better value

Last updated: February 2026

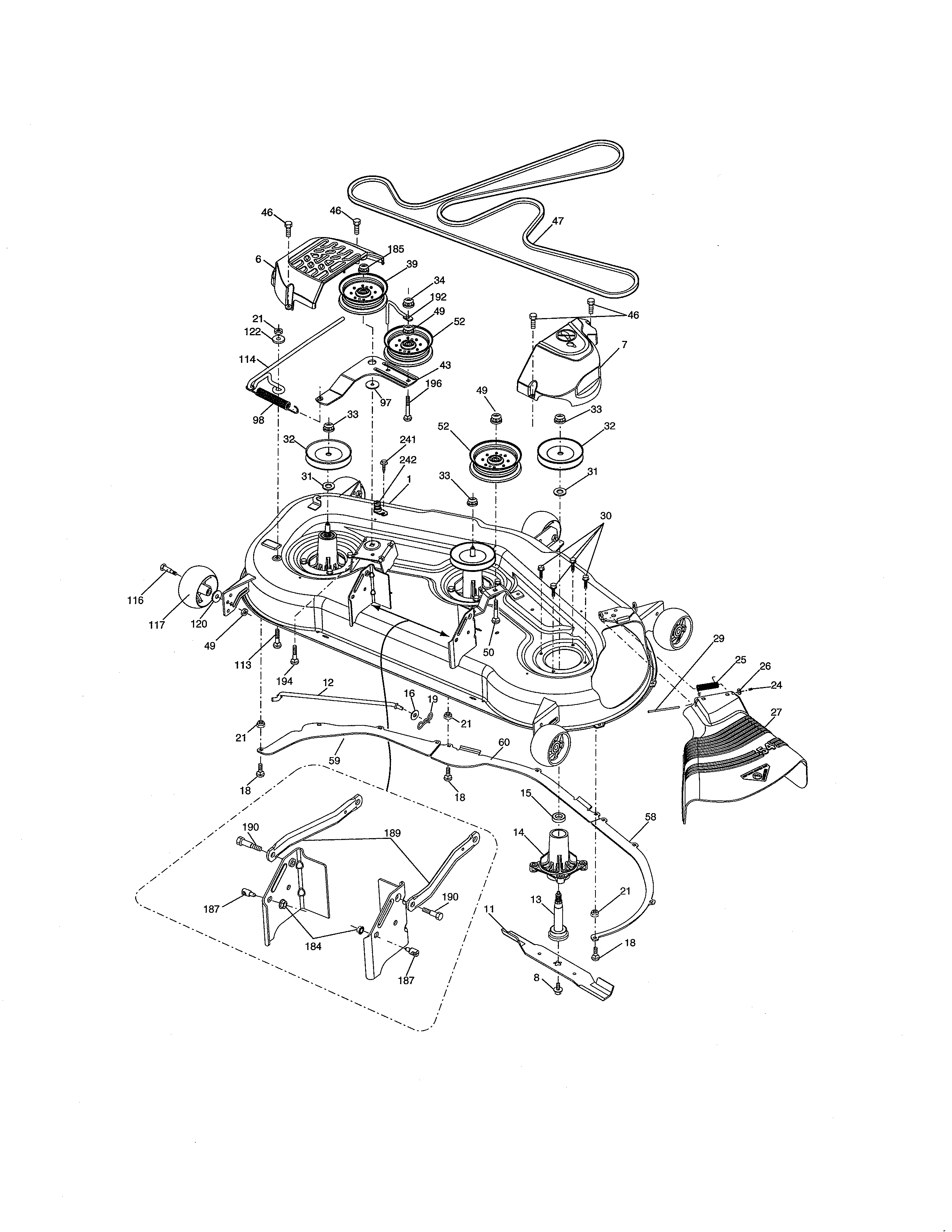

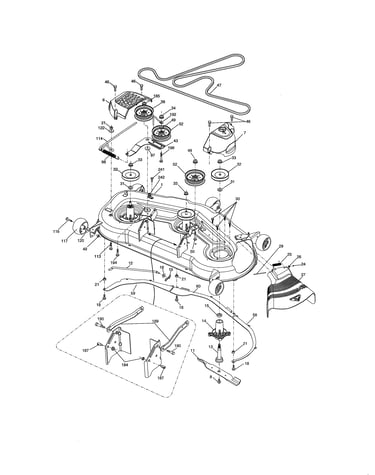

The Craftsman model 917250240 uses a 54-inch mower deck. You can confirm the deck size and the correct deck parts (blades, belt routing, and spindle/mandrel details) in the 917250240 operator's manual.

How to confirm deck size on the tractor

We recommend checking at least one of these identifiers so you match the right mower deck parts:

• Look for the deck size decal on the mower deck shell (often shows 54).
• Check the model and product specifications section in the manual.
• Measure blade tip-to-tip coverage (deck size is the cutting width, not the shell width).
• Verify the deck configuration before ordering spindles, pulleys, or belts.

Common deck-related parts you may replace

A 54-inch deck typically uses multiple wear parts that affect cut quality and noise:

• Blades (dull or bent blades cause uneven cutting)
• Deck belt (slipping or cracking causes poor blade speed)
• Spindle/mandrel assemblies (bearing noise, wobble, or vibration)
• Idler pulleys (squeal, belt tracking issues)

If you are servicing a noisy or vibrating deck, the lawn tractor mandrel housing 587819701 is one of the deck components commonly involved in blade support and smooth rotation.

Quick reference

Item	What to expect on 917250240	Why it matters
Deck size	54-inch cutting width	Ensures correct blades and belt routing
Where to verify	Manual and deck decal	Prevents ordering mismatched parts

Why it matters

Deck size drives the correct blade length, belt path, and spindle hardware. Matching parts to the 54-inch deck helps prevent poor cut quality, belt throw-off, and premature bearing wear.

Last updated: February 2026

The Craftsman 917250240 front-engine lawn tractor takes 64 oz (1.96 L) of engine oil when filled to the proper level. We recommend checking the dipstick as you fill, then topping off to the full mark per the 917250240 operator's manual.

Oil type to use

Use the viscosity that matches your outdoor temperature:

• SAE 10W-30 for temperatures above 32°F (0°C)
• SAE 5W-30 for temperatures below 32°F (0°C)
• Use an oil meeting API service SG-SL (or equivalent)

How to fill it correctly (quick steps)

To avoid overfilling (which can cause smoking and hard starting), we follow this approach:

• Park on a level surface and set the parking brake
• Let the engine cool for a few minutes
• Add oil in stages (do not dump in the full amount at once)
• Check the dipstick after each small addition
• Stop when the oil reaches the FULL mark
• Wipe up spills before starting the engine

Capacity vs. what you actually pour in

Oil capacity is the target amount, but the dipstick is the final authority.

Situation	Typical amount added	What to trust
Routine oil change (drained)	Up to 64 oz	Dipstick FULL mark
Low oil top-off	Varies	Dipstick FULL mark
After filter change (if equipped)	Slightly more than without filter	Dipstick FULL mark

Why it matters

Running low oil accelerates engine wear; overfilling can aerate the oil and push oil into the breather. Filling to the correct level helps your Craftsman tractor start easier, run cooler, and last longer.

Last updated: February 2026

To tell how old your Craftsman lawn tractor model 917250240 is, we use the manufacturing date information on the product identification label (often shown as a date code or serial number), then confirm it against your purchase paperwork. The quickest reference for label location is the 917250240 owner's manual.

Find the identification label first

On Craftsman front-engine lawn tractors, the model and serial information is typically on a decal or tag attached to the tractor frame or body. Check these common, easy-to-access areas:

• Under the seat area (seat pan or seat support)
• On the frame rail near the engine compartment
• Inside the hood area near the dash tower
• Near the rear fender or frame crossmember

How to interpret the date information

Craftsman tractors can show age in different ways depending on the production run, so we use the label details you actually have:

• If the label shows an explicit date (month/day/year or similar), that is the build date.
• If the label shows only a serial number or code, the build date is derived from that code format.
• If you have a purchase date, use it as the practical “in-service” date for maintenance intervals.

What you might see on the label

What you find	What it tells you	What to do next
Printed build date	Exact age	Record it for parts and service
Serial number only	Age is encoded	Match the code format using the 917250240 owner's manual and your records
Missing/illegible label	Age not readable	Use purchase receipt, service history, and component date stickers

Quick ways to confirm you are in the right range

Use these checks to support what the label indicates:

• Compare to your sales receipt or first service record
• Look for date stickers on the battery or replacement parts
• Check maintenance intervals in the manual and align them to your in-service date

Why it matters

Knowing the tractor’s build or in-service date helps us choose compatible replacement parts and follow the correct maintenance schedule so the engine, deck, and drive system stay reliable.

Last updated: February 2026

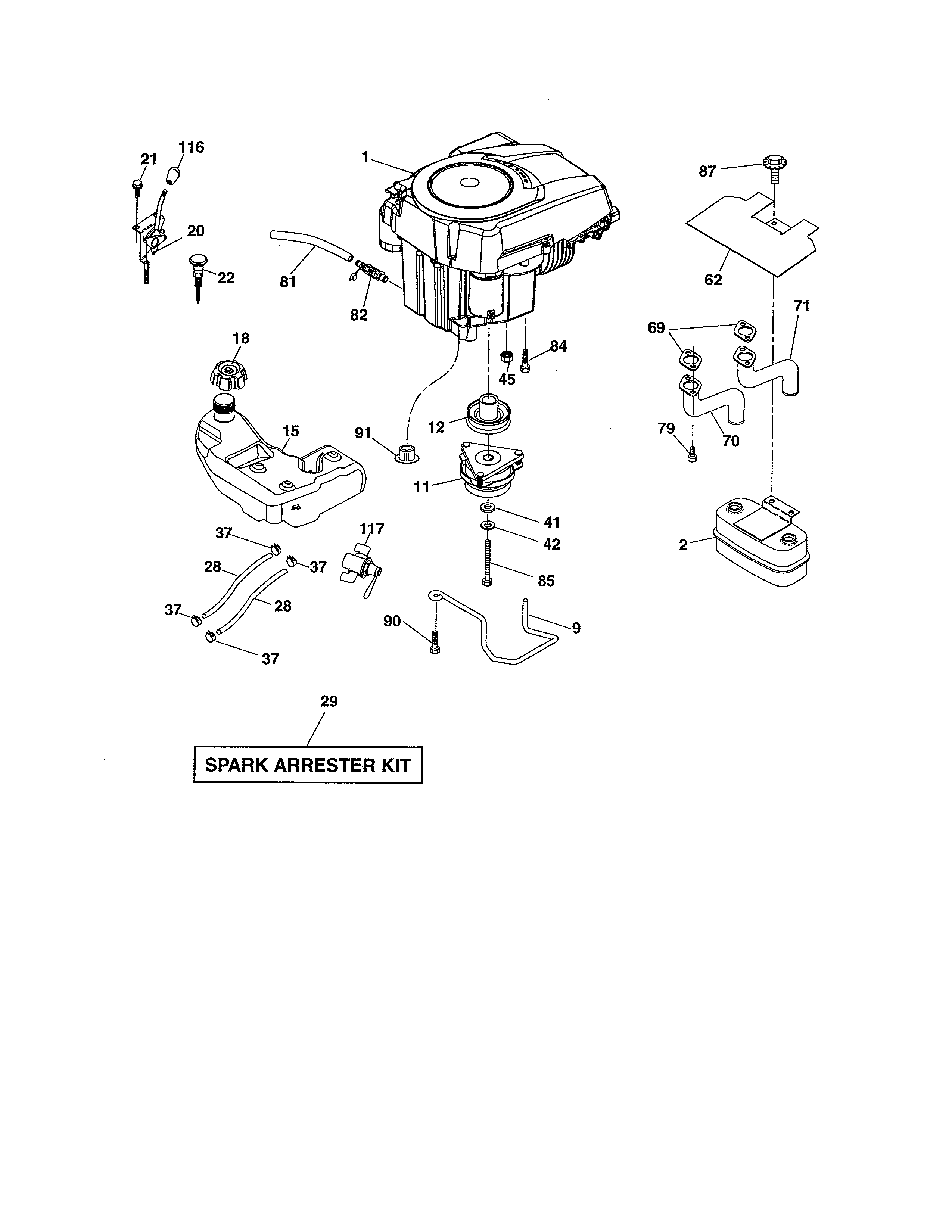

Craftsman lawn tractor model 917250240 is a 26.0 HP gas garden tractor (per the operator documentation). To identify the exact engine manufacturer and engine model on your unit, match the engine ID tag on the engine to the engine information listed in the 917250240 operator's manual.

What we can confirm for model 917250240

The operator documentation for this model identifies the tractor configuration and horsepower rating.

• 26.0 HP rating (engine manufacturer rated)
• Gasoline engine (E10 or less fuel is acceptable)
• Electric start
• 6-speed transaxle
• 54-inch mower deck

How to find the exact engine make and model on your tractor

Use the engine’s ID label, then verify it against the manual’s specifications.

• Open the hood and locate the engine ID label (commonly on the blower housing, valve cover, or near the starter)
• Record the engine model, type, and code (or spec number)
• Compare those numbers to the engine listing in the manual’s specifications section
• Use the engine model/type/code when ordering engine tune-up parts (air filter, spark plug, fuel filter)

Quick reference: tractor model vs. engine model

Item	Where you’ll see it	What it’s used for
Tractor model 917250240	Tractor frame tag (often under seat or on frame rail)	Chassis, deck, steering, electrical parts lookup
Engine model/type/code	Engine ID label	Engine parts and correct service specs

Why it matters

Craftsman tractors can use different engine families across production runs; the engine ID tag is what prevents ordering the wrong maintenance parts and speeds up troubleshooting for no-start or poor-running symptoms.
