The operator’s manual for our Husqvarna LGT48DXL-96043026000 lawn tractor lists key specs like fuel capacity, oil capacity, charging output, and battery rating, but it does not state an engine horsepower number. For the most accurate engine rating for your exact tractor configuration, use the engine identification information and the specifications section in the LGT48DXL-96043026000 operator’s manual.

Where to find the horsepower for this exact tractor

Horsepower is typically tied to the specific engine installed on the tractor (engine model and type), so the most reliable way to confirm it is by matching the engine ID to the correct spec listing.

• Locate the engine identification label (usually on the engine shroud, valve cover area, or near the starter)
• Write down the engine model and type code exactly as shown
• Check the specifications pages in the LGT48DXL-96043026000 operator’s manual
• If you are ordering parts, match parts to the tractor model and the correct engine section
• Keep the engine ID with your maintenance records for tune-ups and future repairs

Specs we can confirm from the manual (model-specific)

These specifications are listed for the LGT48DXL platform in the manual and help you verify you are using the correct documentation.

Specification	Value (from manual)
Fuel capacity	4 gallons (regular unleaded; up to E10)
Oil type	SAE 10W30 (above 32°F), SAE 5W30 (below 32°F)
Oil capacity	64 oz
Charging system	15 amps @ 3600 RPM
Battery	28 Ah, 230 CCA, case size U1R

Why it matters

Using the correct horsepower and engine model helps you choose compatible maintenance parts (spark plug, filters, belts) and prevents mismatches when troubleshooting starting, charging, or drive issues.

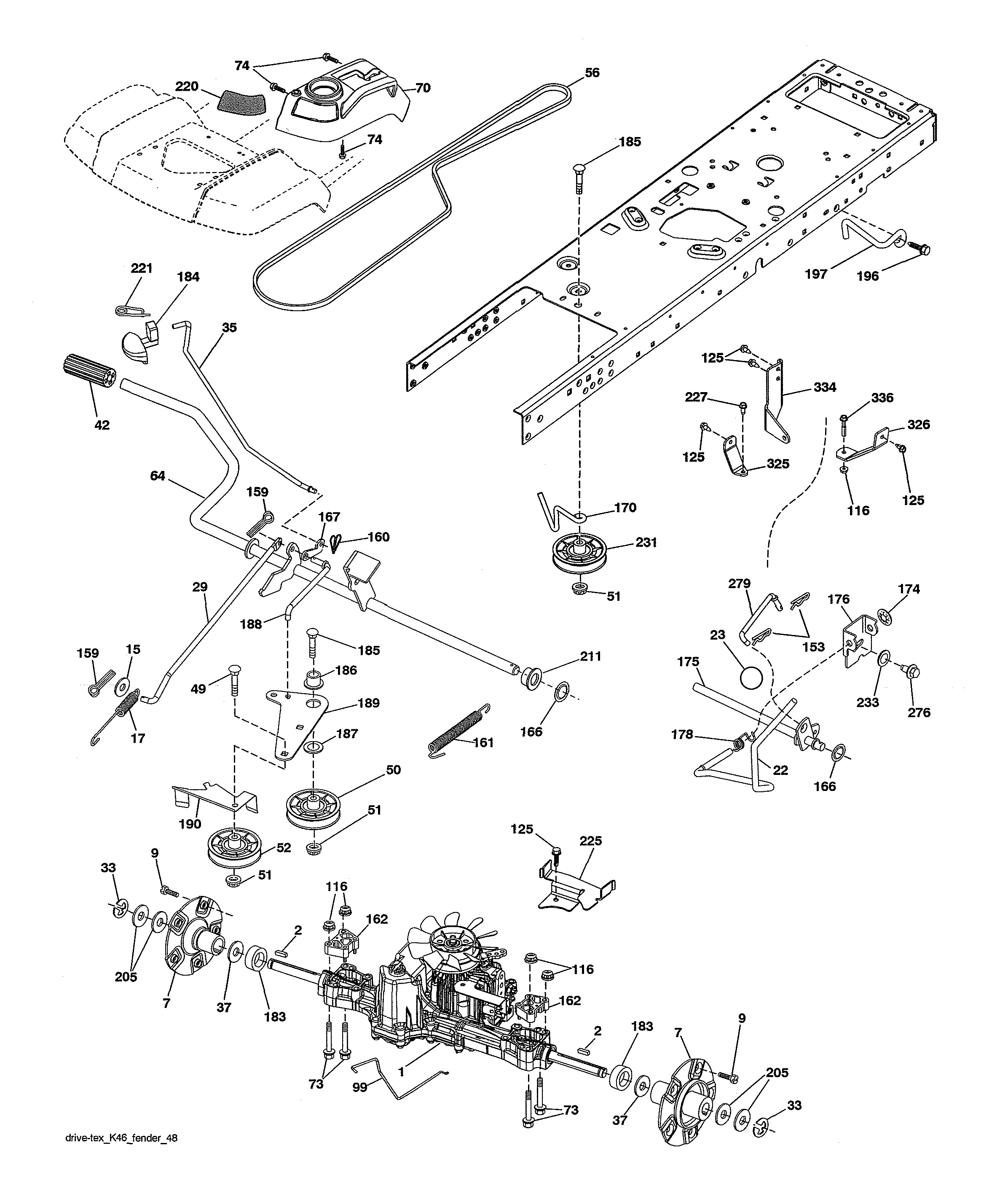

Parts that are commonly involved when performance feels “weak”

If the tractor seems to struggle (slow ground speed, slipping under load), it is often a drive or deck load issue rather than horsepower.

• Worn or stretched ground drive belt
• Idler pulley not maintaining belt tension

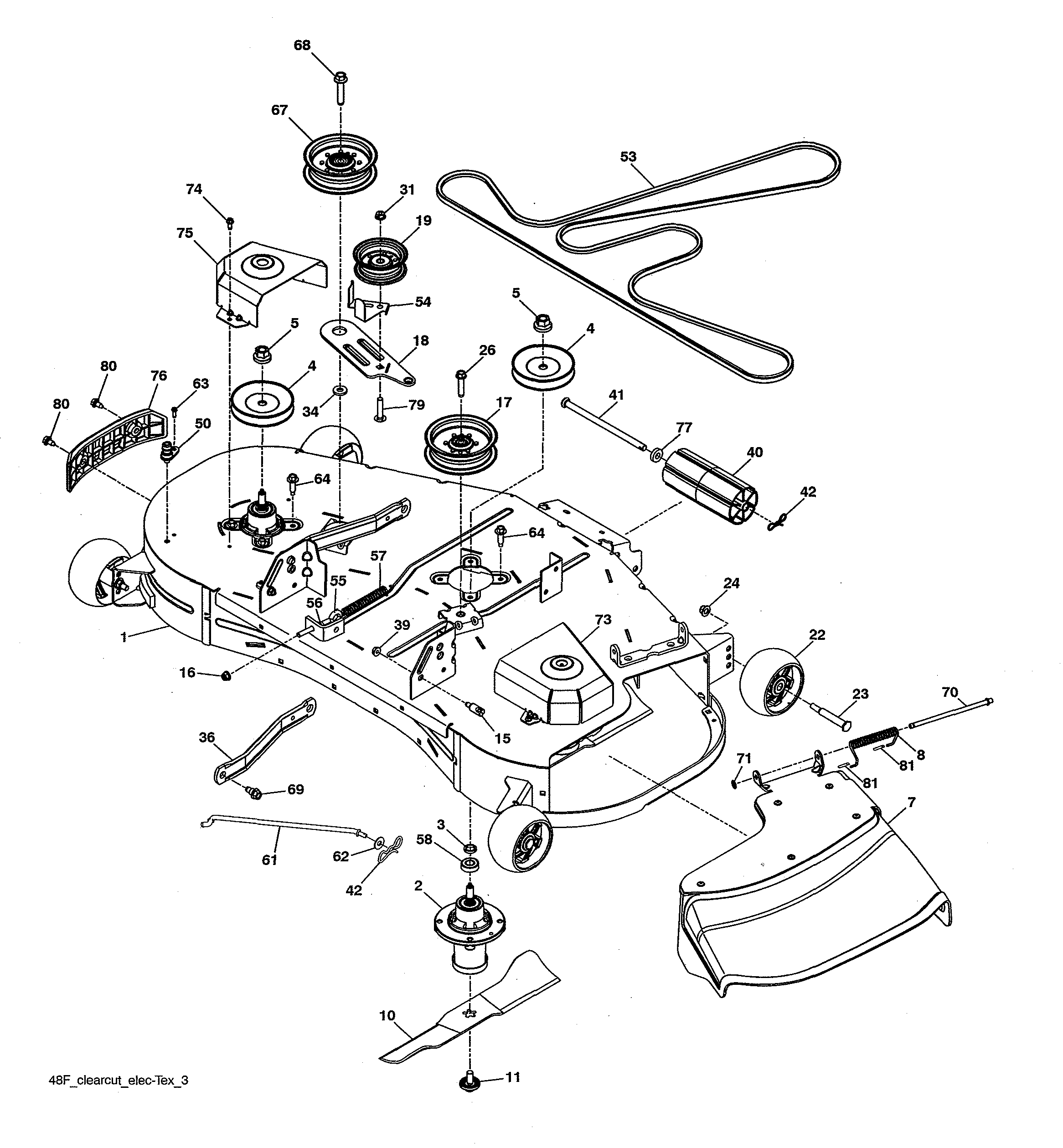

• Deck drag from damaged mandrel bearings
• Low battery output affecting charging and ignition performance

If you need replacement parts for this model, you can order them from the parts list for LGT48DXL-96043026000 or search by model on Sears PartsDirect.

Last updated: February 2026

On your Husqvarna lawn tractor model LGT48DXL-96043026000, the model and serial number are typically found on an identification label under the seat area. We use that exact model and serial information to match the correct parts list and the right documentation in the LGT48DXL-96043026000 owner's manual.

Where to look on the tractor

Check these common ID-label locations first:

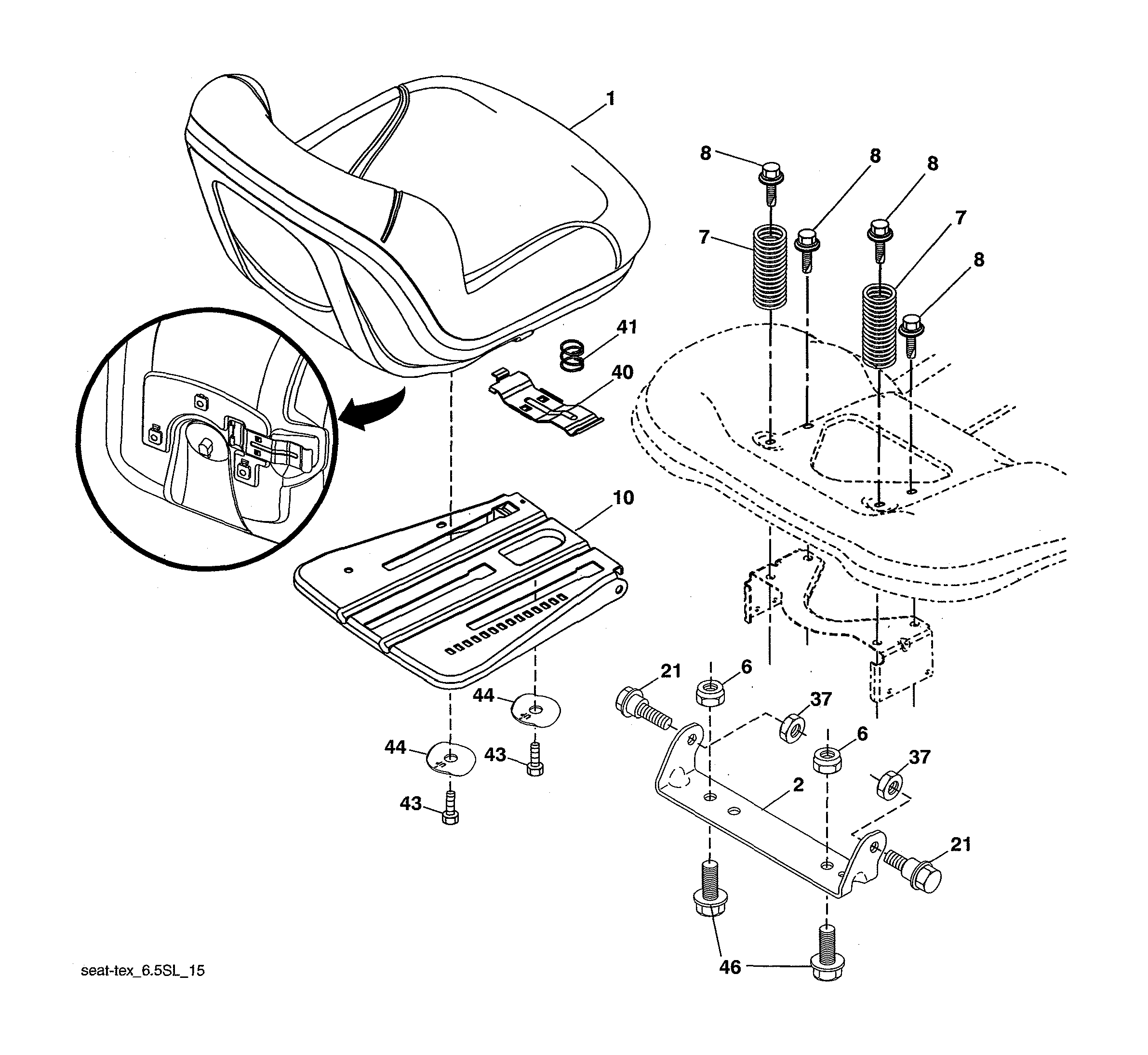

• Under the seat: lift the seat and look on the frame or fender pan beneath it
• Rear fender pan area: near the seat mounting points
• Frame rail: along the left or right side of the chassis near the seat platform
• Engine area: sometimes a separate engine label is present (engine model differs from tractor model)

What you should write down

For accurate parts and service information, record:

• Product model number (example format: LGT48DXL-96043026000)
• Serial number (unique to your tractor)
• Engine model/type/code (if you are ordering engine-specific parts)

Why it matters

Husqvarna tractors can look similar across multiple model series, but belts, pulleys, electrical parts, and deck components can vary by serial range. Using the ID label helps ensure you get the correct replacement part the first time.

Quick reference: model vs. serial vs. engine ID

ID type	What it identifies	When you need it
Model number	The tractor’s design and parts breakdown	Always, for parts diagrams and manuals
Serial number	Your exact production unit	When parts vary by serial range
Engine ID	The engine manufacturer and spec	For tune-up and engine-specific parts

Ordering the right parts

Once you have the model number, you can order parts from the parts list for this tractor, such as the lawn tractor starter solenoid 582042802 or the Husqvarna lawn tractor ignition switch 532193350. For broader model searches, use Sears PartsDirect.

Last updated: February 2026

The Husqvarna LGT48DXL-96043026000 lawn tractor uses a gasoline engine, but the operator’s manual for LGT48DXL focuses on operating specs (fuel, oil, charging system) rather than listing a specific engine make and model. For the most accurate engine identification, we use the engine ID label on the engine and confirm it against the LGT48DXL-96043026000 operator's manual.

How to identify the exact engine on your tractor

We match the engine by the ID tag on the engine itself (not the tractor model number). On most riding mowers, the label is on the:

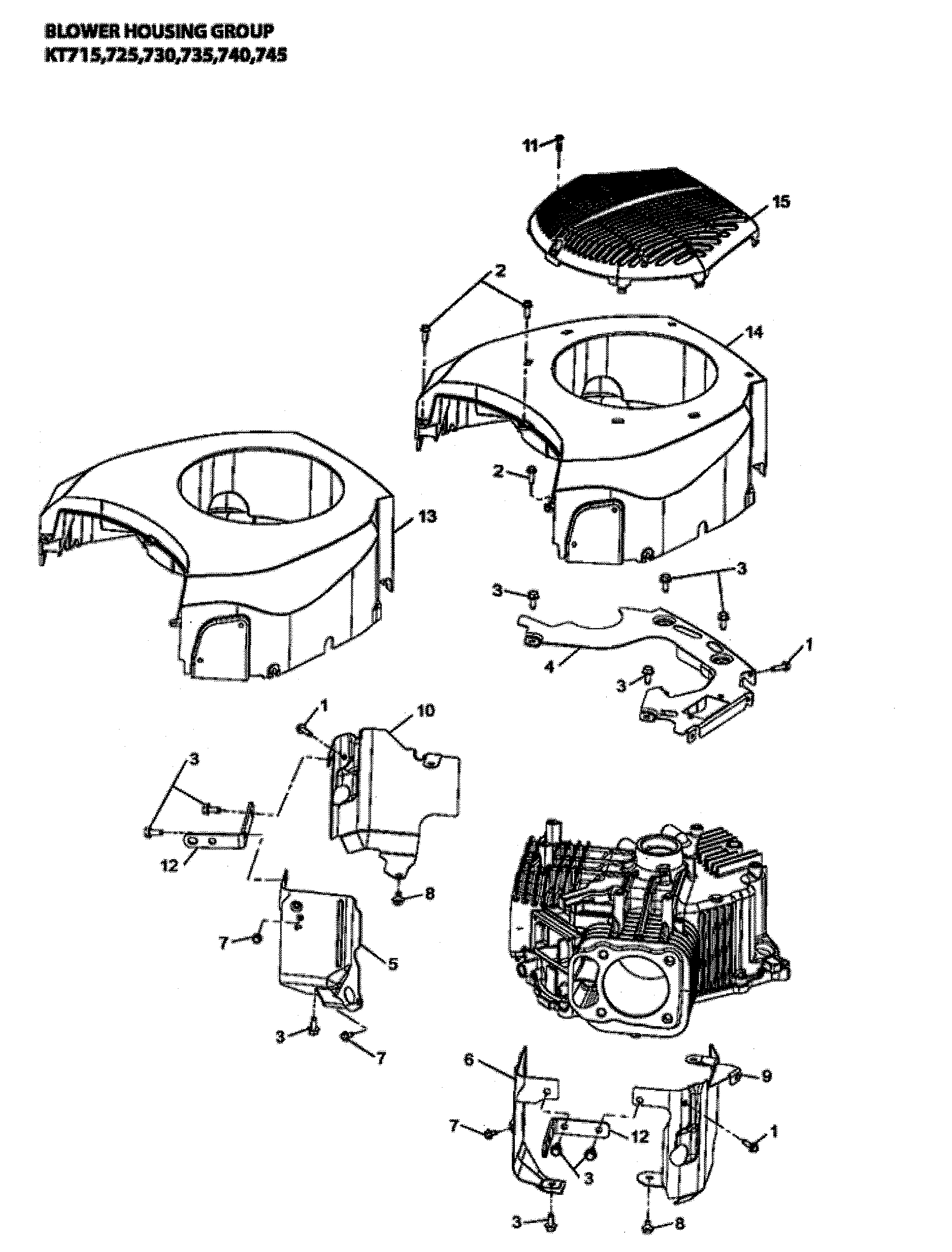

• Blower housing (top of the engine) or valve cover area
• Engine shroud near the starter
• Side of the engine block near the muffler
• Frame rail near the engine (sometimes a secondary emissions label)

Write down these items exactly as shown:

• Engine model
• Type (or trim/spec)
• Code (or date/serial)

What the manual confirms about the engine system (model-specific)

Even without the engine brand/model printed in the excerpt, the manual gives key specs that help us match the correct engine parts and maintenance items:

Spec (LGT48DXL)	What to use	Why it matters
Fuel capacity	4 gallons (15.14 L) regular unleaded	Helps confirm tank size and run-time expectations
Fuel blend	Up to E10 gasoline	Higher ethanol can cause fuel-system issues
Oil type	SAE 10W30 (above 32°F), SAE 5W30 (below 32°F)	Correct viscosity protects the engine
Oil capacity	64 oz (1.89 L)	Prevents overfill or low-oil damage
Charging system	15 amps @ 3600 RPM	Helps diagnose battery charging problems
Spark plug	Champion XC12YC, gap 0.030 in	Correct plug and gap improves starting

Why it matters

The tractor model LGT48DXL-96043026000 identifies the chassis and deck family, but engine parts (starter, carburetor, ignition, filters) are selected by the engine’s model/type/code. Using the engine ID prevents ordering the wrong tune-up or starting components.

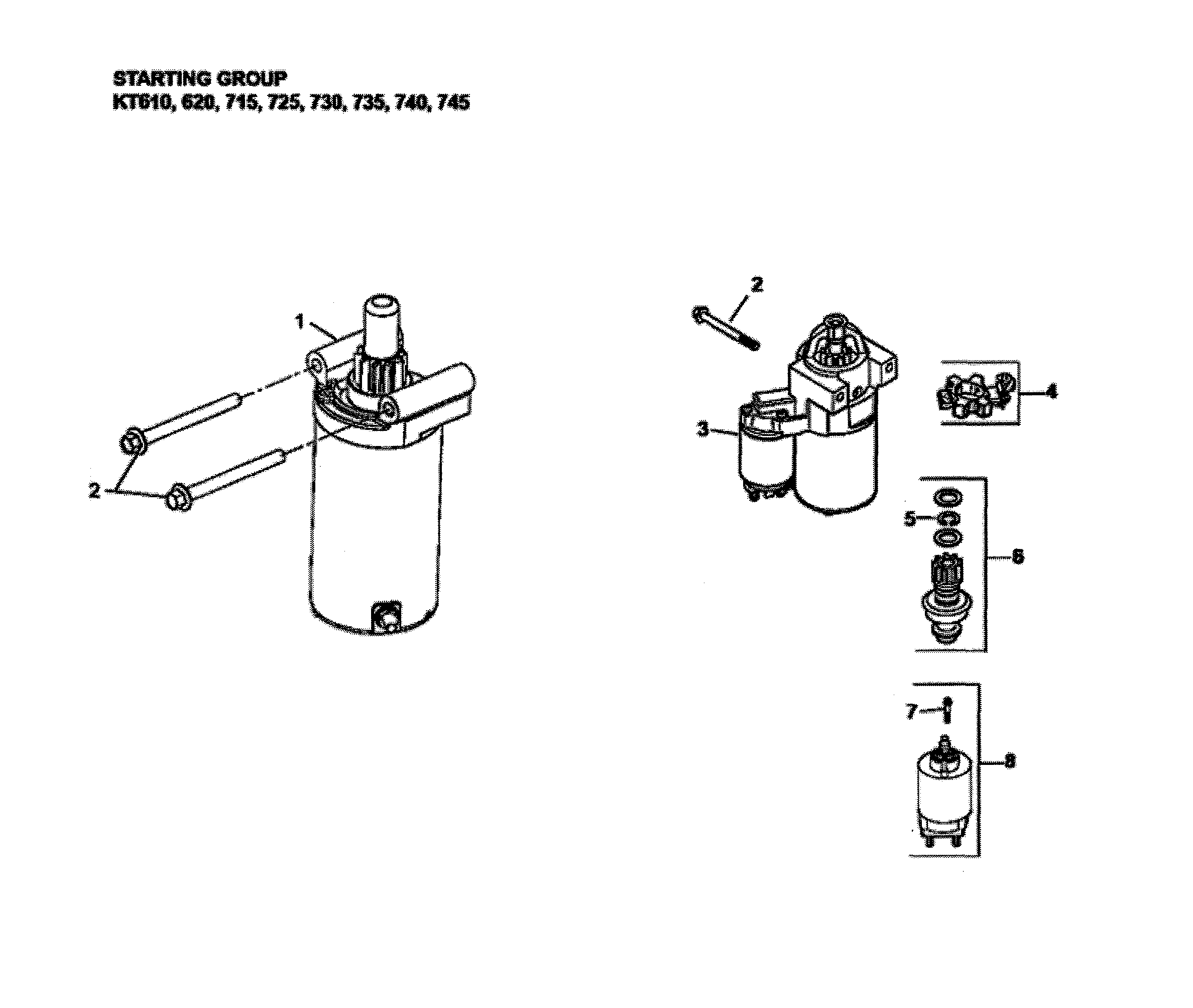

Parts that are commonly involved when diagnosing engine starting issues

If the engine clicks, cranks slowly, or will not crank, these model-listed parts are common checks:

• Lawn tractor starter solenoid 582042802 (no-crank or clicking)
• Husqvarna lawn tractor ignition switch 532193350 (no power to starter circuit)
• Battery and cable condition (voltage drop, corrosion)

For step-by-step troubleshooting, we also use riding lawn mower engine clicks but doesnt turn over video.

You can order replacement parts for your Husqvarna LGT48DXL-96043026000 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Husqvarna riding mowers use engines from several manufacturers; the engine brand depends on the exact model. For your Husqvarna LGT48DXL-96043026000 lawn tractor, confirm the engine brand by checking the engine data label and the specifications section in the LGT48DXL-96043026000 owner's manual.

How to identify the engine brand on your mower

On LGT48DXL-96043026000, we use these quick checks:

• Find the engine data tag (commonly on the blower housing, valve cover area, or near the starter)
• Record the engine brand, model, and spec/type code from the tag
• Compare those numbers to the engine and maintenance specifications listed in the manual
• Clean the tag gently; oil film and grass debris can hide the printed or stamped information
• If the tag is missing, use the tractor product identification information in the manual to narrow the correct engine family

Engine-related specs you can use right away

Even when you are still confirming the engine brand, the manual provides maintenance specs that apply to this tractor.

Item	Specification
Gasoline capacity	4 gallons (15.14 L), regular unleaded
Oil type	SAE 10W30 (above 32°F/0°C); SAE 5W30 (below 32°F/0°C)
Oil capacity	64 oz (1.89 L)
Spark plug	Champion XC12YC, gap 0.030 in (0.76 mm)

Parts that commonly come up during engine or starting diagnosis

If you are tracking down a no-crank or intermittent start while identifying the engine, these model-matched parts are often involved:

• Lawn tractor starter solenoid 582042802 (clicking but no crank)
• Husqvarna lawn tractor ignition switch 532193350 (key switch issues)
• Battery connections and ground cable condition (clean and tight)

Why it matters

The engine brand and spec code determine the correct tune-up parts (air filter, fuel filter, spark plug), oil recommendations, and some electrical components. Verifying the engine label prevents wrong-part orders and speeds up troubleshooting.
