How often should I change the oil in my tiller?
For the Craftsman rear-tine tiller model 917293490, we change the engine oil every 50 hours of operation or at least once a year (even if you do not reach 50 hours). We also check the oil level before starting and after every 5 hours of continuous use; details are in the 917293490 owner's manual.
- Before each use: check engine oil level.
- During long jobs: recheck oil after 5 hours of continuous use.
- Oil change interval: every 50 hours of operation.
- Annual minimum: change oil once per year if you do not use the tiller 60 hours in a year.
- After storage/season end: service the tiller before putting it away for 30+ days.
- Run the engine briefly so the oil is warm (warm oil drains faster).
- Park the tiller on a level surface.
- Drain oil into a suitable container, reinstall the drain plug securely.
- Refill with the correct oil type and recheck the level.
The manual specifies a high-quality detergent oil meeting API service classification SF-SJ, and notes that multi-viscosity oils can increase oil consumption above 40°F.
| What you are choosing | What to use | Why |
|---|---|---|
| Oil quality rating | API SF-SJ detergent oil | Protects the engine under load |
| Viscosity | SAE 30 or 5W-30 (per manual guidance) | Matches typical operating temperatures |
| Check frequency | Before start; every 5 hours continuous use | Prevents low-oil engine damage |
Rear-tine tillers run hot and work under heavy load. Fresh oil and frequent level checks reduce wear, help prevent overheating, and extend engine life, especially when tilling hard or dusty soil.
Last updated: February 2026
Can a tiller break new ground?
Yes. The Craftsman rear-tine tiller model 917293490 is built to dig into and break up packed soil; for best control, we recommend starting shallow (about 4 to 6 inches) and making multiple passes instead of trying to cut full depth in one run. See the 917293490 owner's manual.
- Start with the throttle in a slower position until you get comfortable with handling.
- Set a shallow depth first; increase depth gradually on later passes.
- If the soil is very hard, moisten it first; avoid tilling when it is extremely wet (it will clump).
- Leave a row untilled between passes, then come back through the middle; turns are easier and tracking is straighter.
- Do not lean on the handle; use the depth stake and light upward pressure on the handle to help the tines bite.
- If the tines catch and the tiller lunges forward in hard ground, let go of the handlebars and do not restrain the machine.
| Task | Typical depth | What to watch for |
|---|---|---|
| Breaking new ground / first pass | 2 to 3 in. | Bouncing, poor penetration in dry hard soil |
| General tilling before planting | 4 to 6 in. | Clumping if soil is too wet |
| Cultivating between rows | 1 to 3 in. | Shield position to protect small plants |
Breaking new ground too deep and too fast overloads the tiller and makes it harder to control. Working in stages improves traction, reduces bounce, and helps you get an even seedbed with less strain on the drive system.
Last updated: February 2026
What tiller is made in the USA?
Some tillers are made in the USA, but it varies by brand, model, and even specific production runs. For your Craftsman rear-tine tiller model 917293490, we focus on keeping it running safely and reliably with the correct maintenance and replacement parts listed in the 917293490 owner's manual.
These manufacturers are commonly associated with USA assembly or USA manufacturing for certain tiller lines (always confirm on the exact model’s data plate and current product listing):
- Mantis (often associated with manufacturing in Pennsylvania)
- Northwest Tillers (heavy-duty, farm-oriented tillers)
- MacKissic (Merry Tiller)
- Power Dog (often associated with Indiana)
- Land Pride (some models associated with U.S. manufacturing)
Use these quick checks before you buy, especially if “made in” is your top requirement:
- Look for the country-of-origin label on the frame or engine shroud
- Check the model and serial tag; take a photo before purchase
- Ask whether the unit is made, assembled, or built with domestic and imported parts
- Verify the engine origin separately (Honda, Briggs & Stratton, etc. can differ from the tiller frame)
- Confirm replacement parts availability for wear items (belts, cables, tines)
Country of origin is important to many owners, but day-to-day results usually come down to design and upkeep.
| What to compare | Why it matters | Example on model 917293490 |
|---|---|---|
| Tine drive system | Impacts digging power and durability | Belt and drive components are routine wear items |
| Serviceability | Faster repairs, lower downtime | Clear maintenance guidance in the manual |
| Parts support | Keeps the tiller usable long-term | Common wear parts are replaceable |

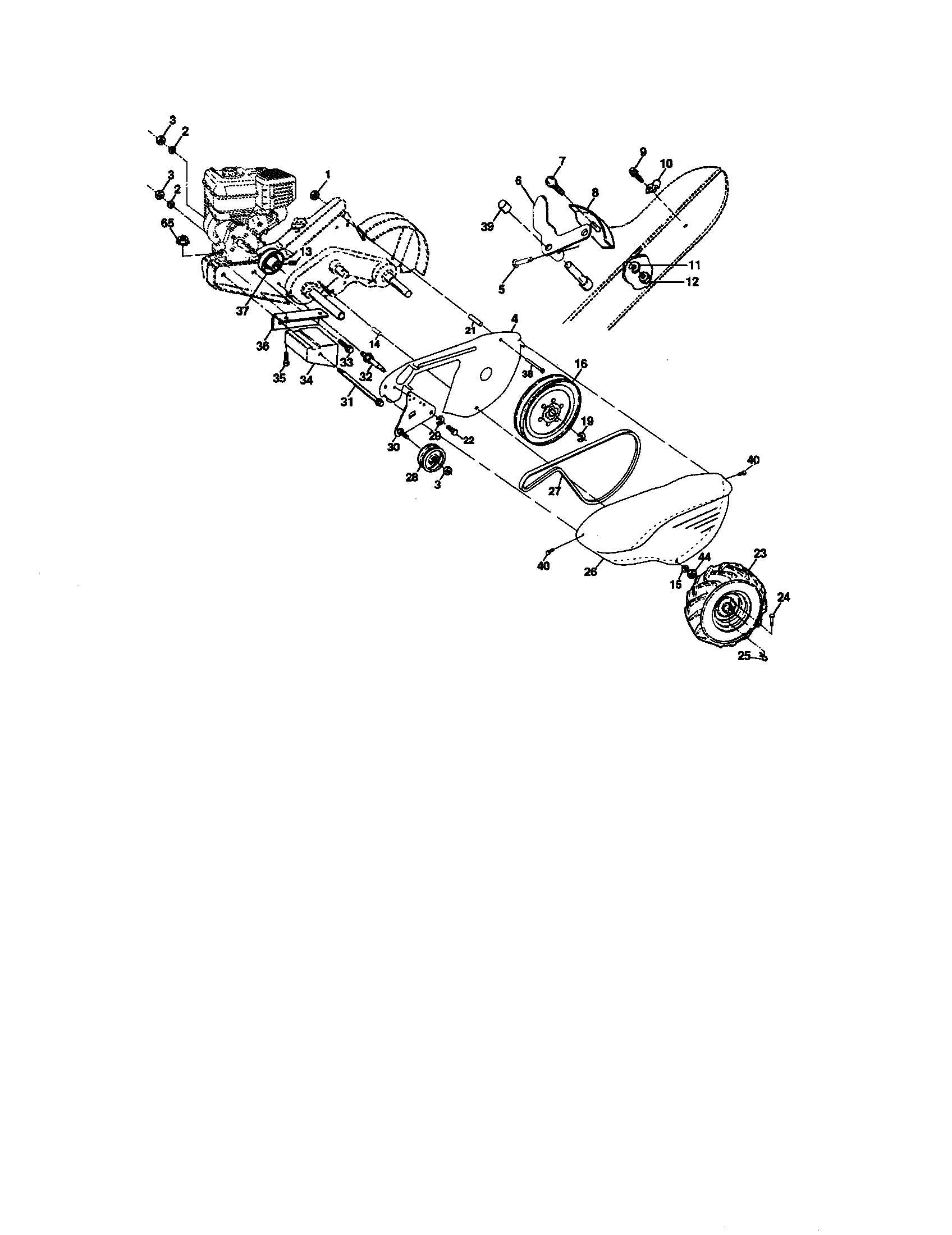

If your Craftsman 917293490 starts but will not dig or move well, the drive system is a common place to inspect first; the rear-tine tiller drive belt 591372401 is one of the key wear parts for this model.
A “Made in USA” label can reflect sourcing and manufacturing preferences, but for a rear-tine tiller, reliability and parts support are what keep you working season after season. Following the safety and maintenance guidance in the manual (including disconnecting the spark plug wire before service) helps prevent downtime and injuries.
Last updated: February 2026
Where is the model number on a Craftsman rear-tine tiller?
On the Craftsman rear-tine tiller model 917293490, the model number is printed on the product identification label. On many Craftsman tillers, that label is commonly placed on the tine shield/tine guard area, and some versions place it near the fuel tank or toward the front of the frame; confirm the exact location using the 917293490 owner's manual.

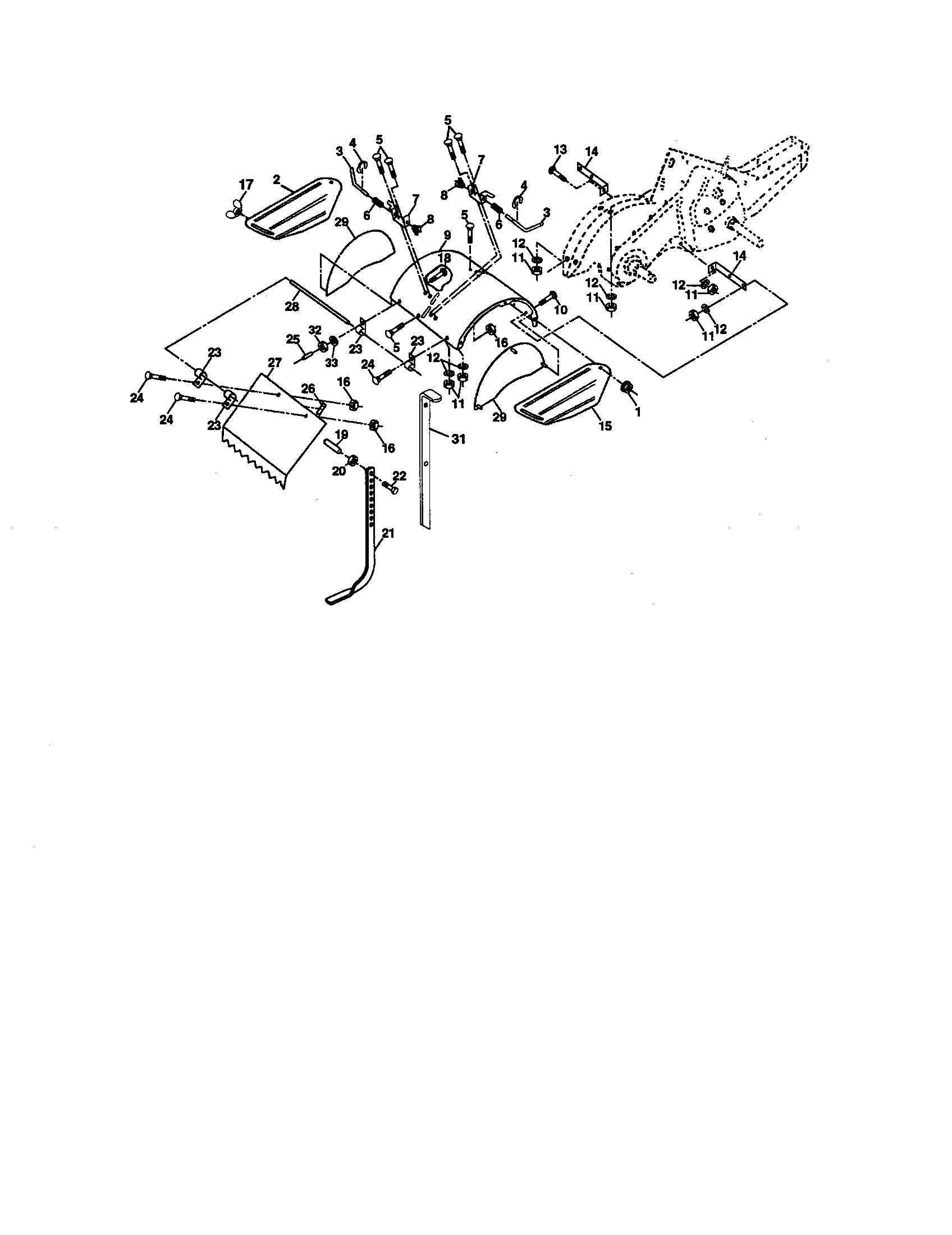

- Tine shield or tine guard (near the tines and depth stake)
- Main frame side rail (left or right side of the tiller)
- Near the engine mounting area (on the frame, not on the engine)
- Around the fuel tank area (on the frame or a nearby shield)
- Front of the tiller frame (especially on larger rear-tine designs)
The label typically includes the model number and may also include a serial number. For this unit, the model is shown in the manual as 917.293490 (you can record it as 917293490 when searching parts).
| What you see on the label | What it means | Use it for |
|---|---|---|
| Model No. 917.293490 | Tiller model identifier | Finding correct Craftsman parts diagrams and parts |
| Serial (varies) | Unique unit identifier | Warranty and production details |
| Engine model/type (varies) | Engine identifier | Engine-specific tune-up parts |
Craftsman tillers often share similar frames and controls across multiple model numbers. Using the exact model number helps us match the correct parts list for items like the drive belt, clutch cable, tine components, and shields.
Last updated: February 2026
Are Craftsman rear-tine tillers any good?
Yes. Craftsman rear-tine tillers like model 917293490 are a solid choice for homeowners who want strong digging power and good soil mixing; performance stays “good” when the tiller is assembled correctly and kept on its maintenance schedule in the 917293490 owner's manual.
A rear-tine tiller is considered good when it can maintain tine speed under load, track straight, and avoid excessive belt slip. For the Craftsman 917293490, you will get the best results when you:
- Till in passes (shallow first, then deeper) instead of trying to cut full depth at once
- Keep guards and shields installed for safe, consistent operation
- Check fasteners and wear items regularly (especially after rocky soil)
- Replace worn tines so the machine keeps chopping and burying organic matter effectively
Many “not good” experiences come from wear, adjustment, or technique issues rather than the basic design.
| Symptom | Most common cause | What to check first |
|---|---|---|
| Poor forward drive or slipping | Belt wear or low belt tension | Drive belt condition and cable tension |
| Hard to control in hard ground | Tines catching and pushing forward | Reduce depth, slow down, let go if it lunges |
| Shallow tilling, poor soil mixing | Worn or bent tines | Inspect tine wear and tine gap |
| Noisy drivetrain | Chain/bearing wear | Check chain condition and lubrication points |

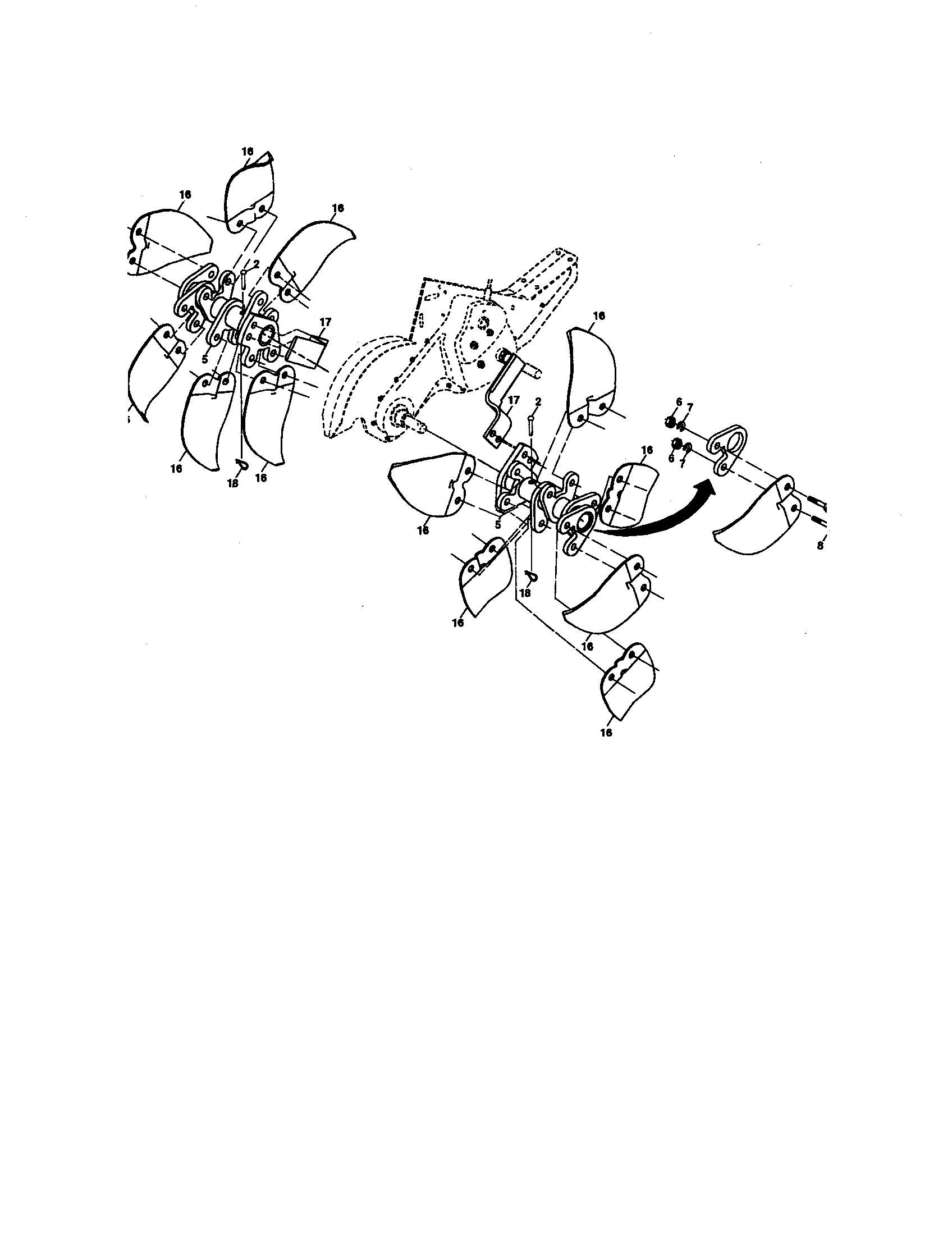

- Tines: If the tine gap exceeds about 3-1/2 inches, replace or straighten tines; worn tines make the tiller work harder and dig shallower.
- Drive belt: Inspect for glazing, cracking, or stretching; replace if worn (see husqvarna rear-tine tiller drive belt 591372401 if it matches your configuration).
- Clutch/drive cable adjustment: Proper tension helps prevent slipping and improves engagement.
- Safety and control: Operate with good visibility; avoid high speed on slippery surfaces; keep bystanders away.
A rear-tine tiller’s “goodness” is mostly about consistent torque transfer from engine to tines. Fresh wear parts (tines, belts, cables) and correct adjustment make the Craftsman 917293490 feel powerful and predictable, especially in heavy soil.
Last updated: February 2026
