Kenmore 66517742K010 dishwasher Parts

Yes. We still carry replacement parts for many Kenmore dishwashers, including Kenmore model 66517742K010. The key is matching parts to your exact model number so the replacement fits and works correctly (for example, a drain pump, water inlet valve, or door seal kit).

How to make sure you order the right part

Use your model number 66517742K010, then confirm the part by name and ID before ordering.

• Find the model number on the dishwasher’s rating label (commonly on the tub frame near the door).
• Match the symptom to the system involved (drain, fill, heat, door latch).
• Compare the part name and part ID, not just a look-alike photo.
• Check installation notes and wiring/plumbing requirements in the installation guide.
• Use the owner's manual for operating and care steps that can prevent repeat failures.

Common Kenmore 66517742K010 parts we see customers replace

These are examples from the parts available for this model.

Problem you notice	Part that often fixes it	Example part ID (for this model)

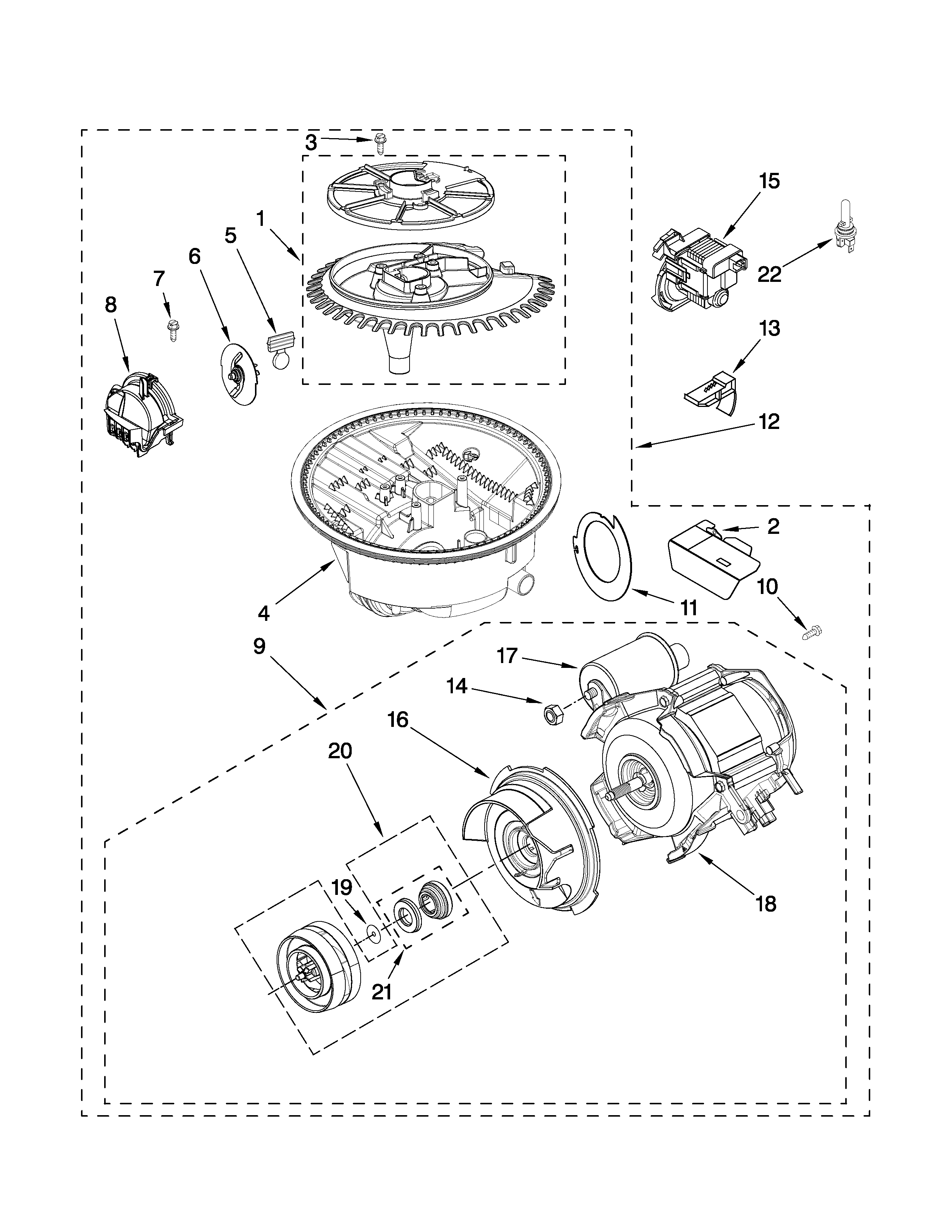

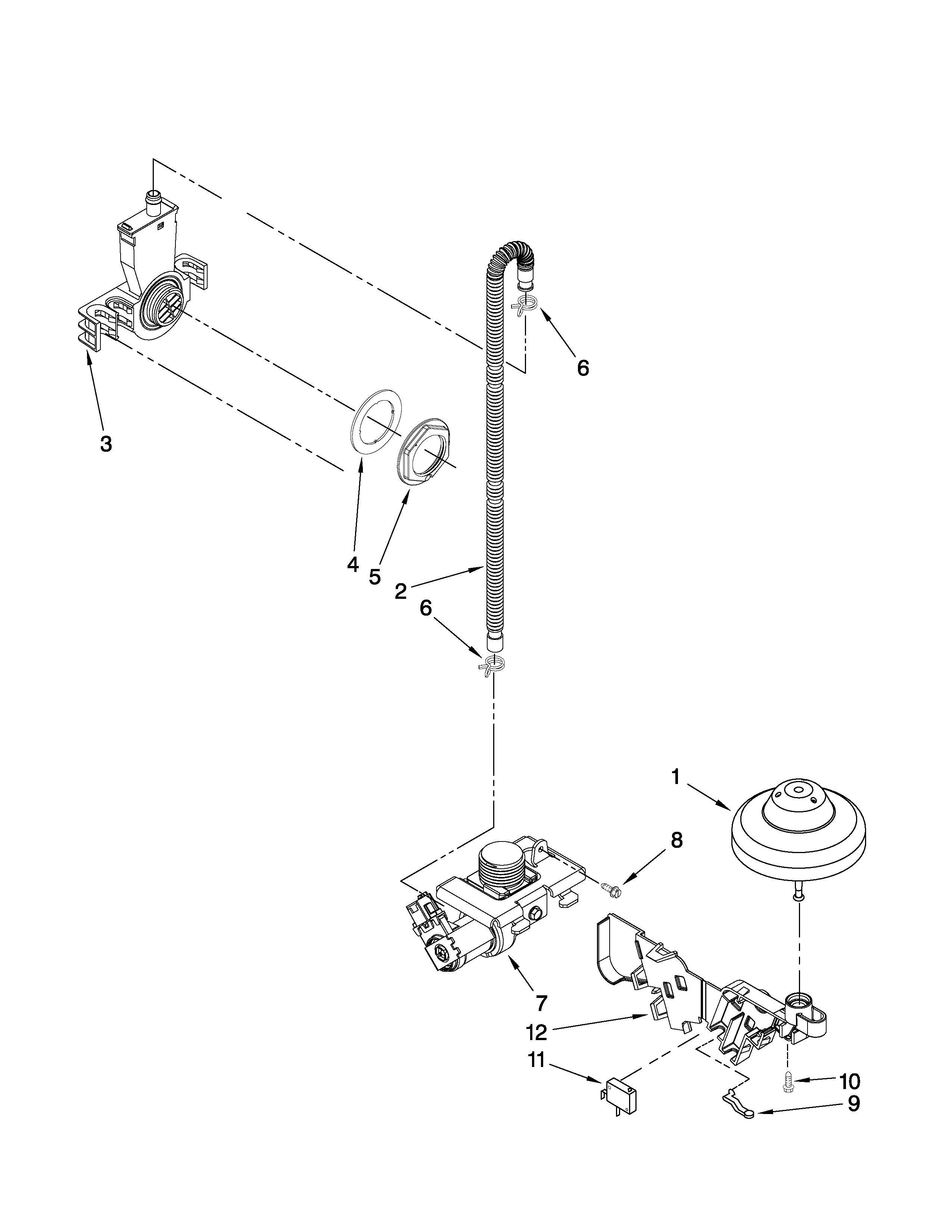

Water not draining	Drain pump	WPW10348269
Not filling or fills slowly	Water inlet valve	W10648041

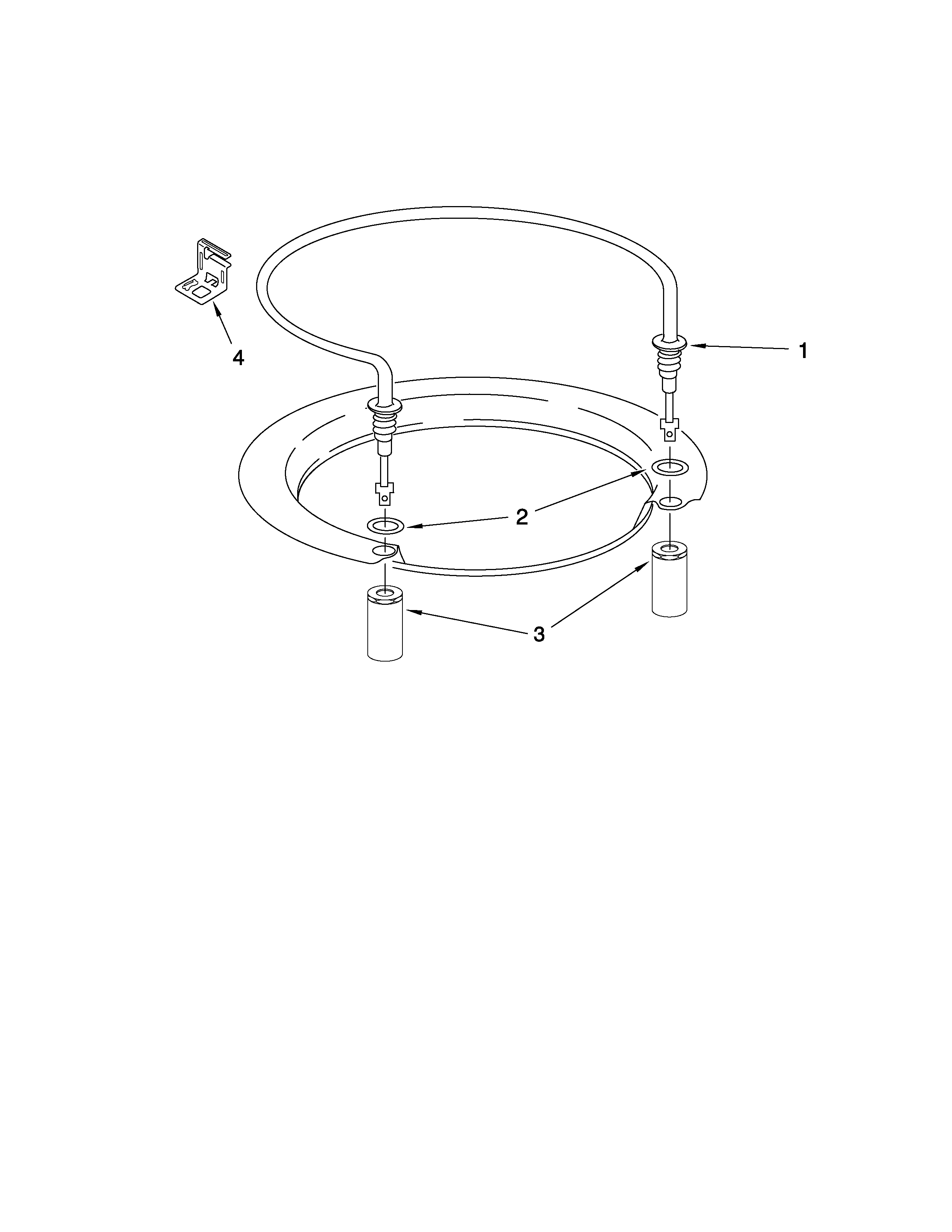

Poor drying or water not heating	Heating element	W10518394

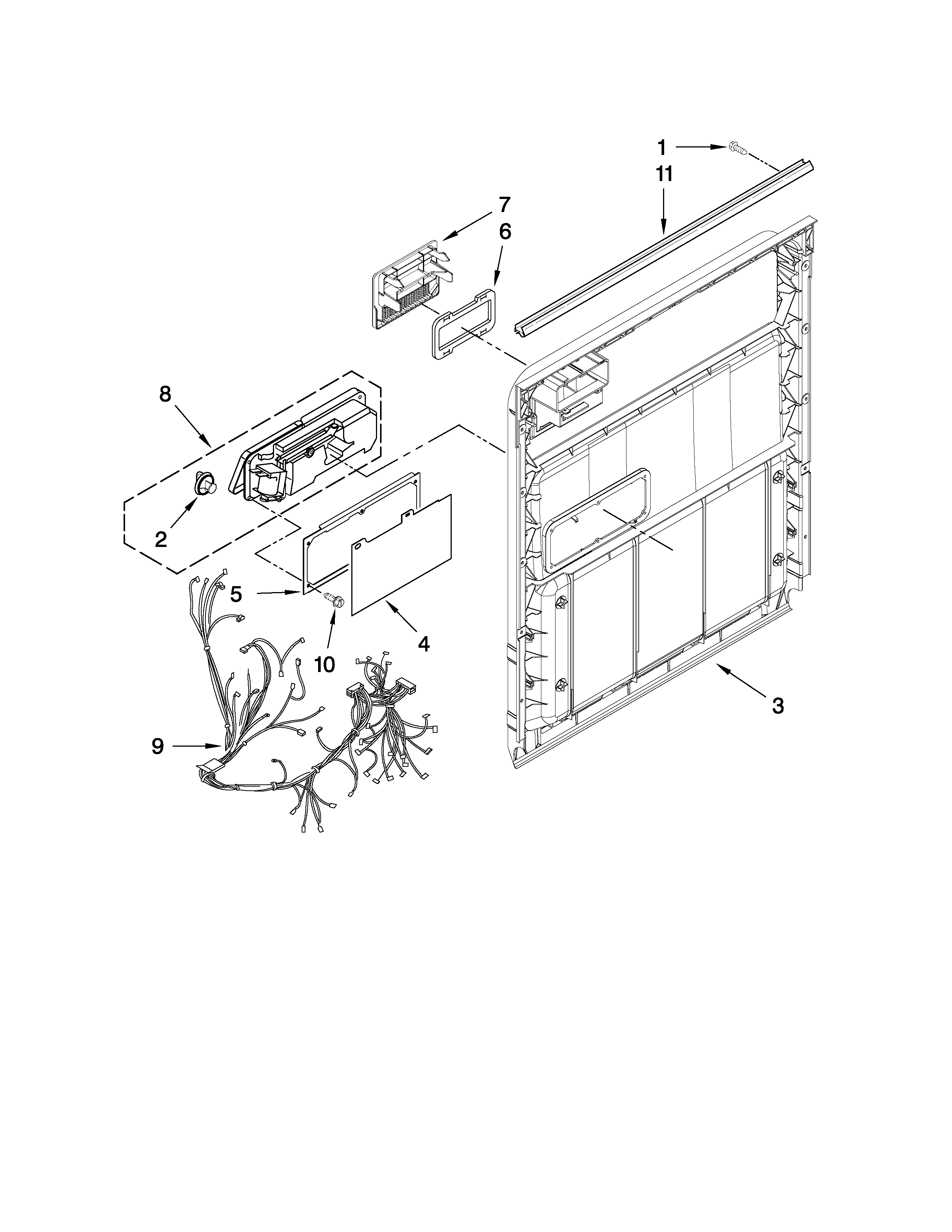

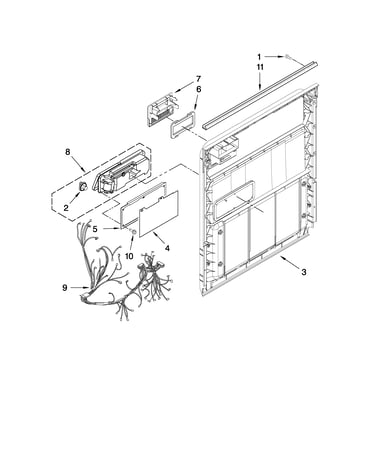

Leaks at the door	Door seal and strike kit	W10542314

Why it matters

Kenmore dishwashers are built to specific electrical and plumbing requirements, and the installation instructions call out code-compliant connections and proper setup. Using the correct model-matched part helps avoid leaks, no-drain issues, and repeat service calls.

Last updated: February 2026

Your Kenmore dishwasher’s model number is usually printed on a label right inside the door opening. Open the door and check the inner door frame, the top edge of the door, or the tub wall; once you find it, match it exactly when ordering parts or using the 66517742K010 owner's manual.

Where to look first (fastest checks)

• Open the door and inspect the inner door frame (left or right side)
• Check the top edge of the door (near the latch area)
• Look along the tub opening or tub wall just inside the door
• Wipe the area with a damp cloth; labels can be hard to read under residue

If you still do not see the label

• Check the kickplate/toe panel area for a tech sheet pocket (on some models)
• Look on the side of the cabinet (visible when the unit is pulled out)
• Review the model number location diagram in the 66517742K010 installation guide

What the model number looks like (and why it matters)

Kenmore dishwashers commonly use a long model format that may start with 665. For example, this page is for Kenmore 66517742K010. Using the exact model number helps us match the correct door seal, control panel, racks, and wash system parts.

What you find	What to do with it
Model number (example: 66517742K010)	Use it to select the correct parts list and diagrams
Serial number	Use it to identify production details for service and support
Partial number or worn label	Recheck other label locations and compare characters carefully

Why it matters

Kenmore model numbers can look similar across 665-series dishwashers, but small differences change which parts fit. Confirming the exact model number prevents ordering the wrong heating element, drain pump, or door latch components.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66517742K010 is usually worth it when the problem is a common wear item (leak, no-heat, won’t drain) and the repair cost is clearly less than replacing the dishwasher. It becomes less worthwhile when multiple major components fail at once.

Quick decision checklist

• If the dishwasher is under 10 years old, repairs are typically the better value.
• If the issue is one clear failure (drain pump, inlet valve, door seal), repair usually makes sense.
• If you have standing water, leaks, or no heat, start with the most likely single part.
• If you’re seeing repeated breakdowns in a short period, replacement is often the smarter path.
• If you’re paying for labor, compare the total repair bill to the cost of a new unit.

Common repairs on 66517742K010 that are often worth it

These are frequent, targeted fixes that can restore normal washing and drying:

• Not drying well: check the dishwasher heating element W10518394

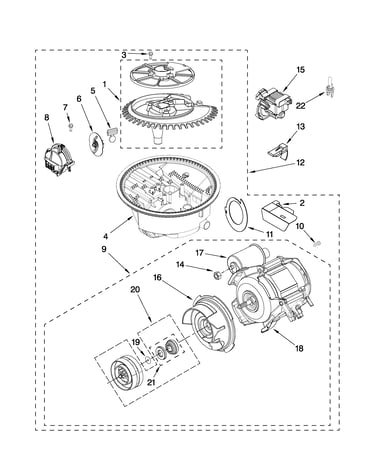

• Not draining: check the dishwasher drain pump WPW10348269 and the drain path
• Leaking at the door: consider the dishwasher door seal and strike kit W10542314
• No fill or slow fill: consider the dishwasher water inlet valve W10648041

Cost-to-value guide (rule of thumb)

Situation	Usually worth repairing?	Typical reason
One failed pump, valve, seal, or heater	Yes	Single-part fix restores full function
Multiple major parts needed (pump motor + control panel, etc.)	Often no	Costs add up quickly
Chronic poor cleaning plus noise plus leaks	Often no	Indicates broader wear in sump, motor, racks

Why it matters

A dishwasher repair is most cost-effective when it solves the root cause in one visit. For example, a drain issue can be as simple as a failed pump or a blocked drain air gap; the manual notes the drain air gap should be checked anytime the dishwasher isn’t draining well (see the 66517742K010 owner’s manual).

Before you decide, do these 5 checks

• Confirm the symptom (won’t start, won’t drain, no heat, leaking)
• Check for a clogged drain air gap (if your plumbing uses one)
• Inspect the door seal area for gaps, tears, or debris
• Run a cycle and listen: drain pump hum, circulation sound, or silence
• Look up any displayed fault codes using Kenmore 665 model dishwasher error codes

Last updated: February 2026

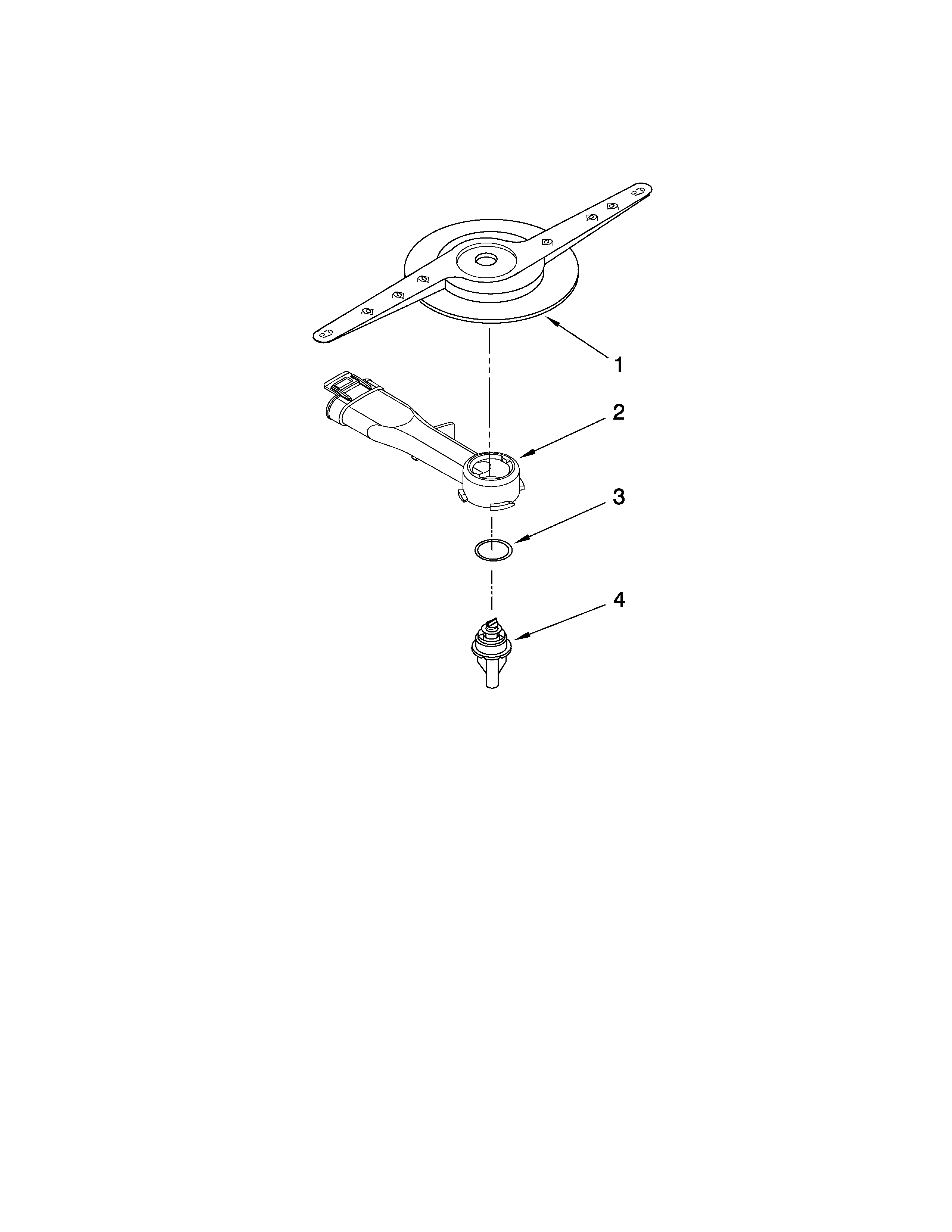

On Kenmore dishwasher model 66517742K010, the lower spray arm installs by seating it on the lower spray arm hub at the bottom of the tub and securing it so it spins freely without rubbing the rack or heating element. Use the steps and diagrams in the 66517742K010 owner’s manual.

Safety first (before you touch anything)

• Turn off power at the breaker; dishwashers can start unexpectedly.
• Turn off the water supply under the sink.
• Let the heating element cool completely.
• Do not push down on the open door; support the unit if it is not fully installed.
• Pull out the lower rack for clear access to the spray arm area.

Lower spray arm installation steps

1. Remove the lower rack.
2. If the old spray arm is still installed, lift it off or release its retainer (style varies by version).
3. Clean the mounting area: wipe away grit and check for broken glass or debris.
4. Set the spray arm onto the center mount so it sits flat.
5. Reinstall the retainer, cap, or nut (whichever your version uses) and tighten snugly by hand.
6. Spin the spray arm by hand; it must rotate smoothly and not hit the heating element or rack.
7. Reinstall the lower rack and run a quick rinse to confirm strong spray and quiet operation.

Quick checks if it will not spin or it pops off

• Rack interference: Tall items or a misloaded rack can block rotation.
• Debris in the hub: Food particles can keep the arm from seating fully.
• Water pressure/fill issue: Low fill can reduce spray force.
• Wash system restriction: A clogged chopper or sump can reduce flow.

Common related parts (if you’re troubleshooting poor wash after install)

Symptom	Most likely area	Example part for this model
Dishes still dirty, weak spray	Wash system restriction	Dishwasher chopper assembly W10083957V
Poor drying, cool water	Heating circuit	Dishwasher heating element W10518394
Not filling well	Water supply into tub	Dishwasher water inlet valve W10648041

Why it matters

The lower spray arm is the main source of wash action for the bottom rack. If it is not seated correctly or cannot spin freely, water will not reach dishes evenly, and you can get noise, poor cleaning, and detergent left behind.

Last updated: February 2026
