For Kenmore Elite refrigerator model 10651142112, the model number alone usually does not state the exact cubic-foot capacity in a way you can reliably decode; the most accurate way is to look up the listed capacity in the 10651142112 owner's manual or estimate it by measuring the usable interior space and converting to cubic feet.

• Check the product specifications section in the 10651142112 owner's manual.
• Look for a rating label inside the fresh food compartment (often on a side wall or near the crisper area); some units list capacity there.
• Estimate capacity by measuring the interior (usable) space and converting.
• If you are comparing similar Kenmore 106 side-by-side units, use the same measurement method for a fair comparison.

Measure the usable interior space (not the exterior cabinet):

1. Measure width, depth, and height of the main fresh food compartment in inches.
2. Multiply: W x D x H = cubic inches.
3. Divide by 1728 to convert to cubic feet.
4. Repeat for the freezer compartment and add the two results.

Kenmore model numbers (including many 106 prefix models) are best for identifying the correct parts and design series, but capacity can vary across similar-looking units due to insulation thickness, dispenser features, and interior layout changes.

If you are checking capacity because the refrigerator feels “too full” or airflow seems weak, a clogged air filter can contribute to odors and reduced air circulation. For this model, the refrigerator air filter W10311524 is a common maintenance item.

Last updated: January 2026

Your Kenmore Elite refrigerator’s model number is printed on the appliance’s model and serial tag. On Kenmore Elite side-by-side units like model 10651142112, the tag is usually inside the fresh food compartment or freezer compartment on an interior wall, or behind the lower kickplate. Use the 10651142112 owner's manual to confirm the exact tag location and how to read it.

Check these common locations first (in order):

• Inside the refrigerator compartment on a side wall near the crisper drawers
• Inside the freezer compartment on an interior side wall
• On the door frame area (visible when the door is open)
• Behind the lower front kickplate or toe grille
• Near the bottom hinge area (less common)

The tag typically lists both a model number and a serial number.

• Model number identifies the exact design and parts fit
• Serial number identifies the production run and date code
• Write the model number exactly as shown (letters, numbers, and punctuation)
• Take a clear photo before ordering parts or scheduling service

We use the model number to match the correct Kenmore parts for your exact refrigerator configuration (ice maker, dispenser style, door bins, control boards). Even small model differences can change which parts fit.

If you are working on dispenser or filter-related issues after identifying your model, these guides help:

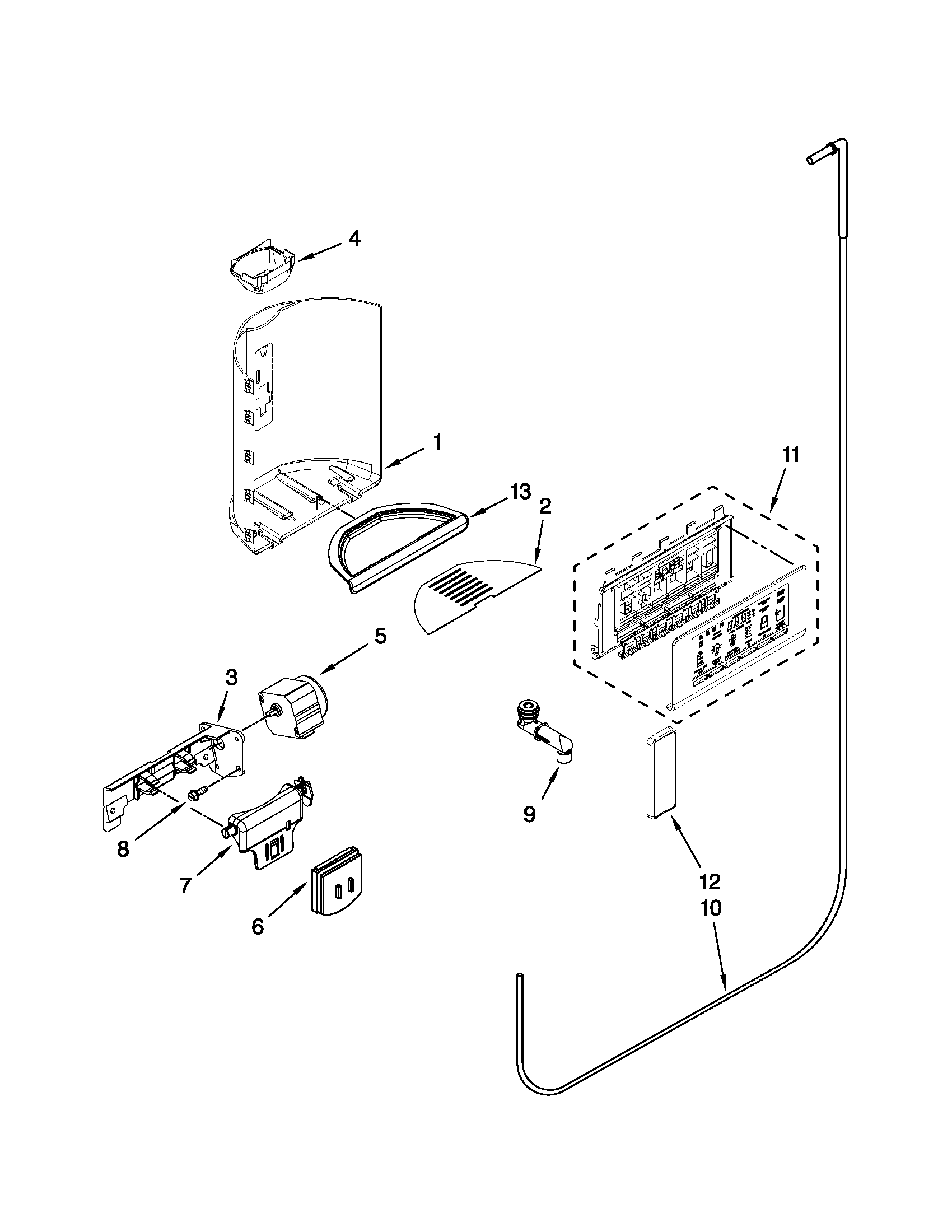

• How to disassemble a Kenmore refrigerator dispenser
• How to replace the water filter in a Kenmore refrigerator

Last updated: January 2026

Yes. For Kenmore Elite model 10651142112, the most reliable reset is a hard reset: unplug the refrigerator (or switch off the breaker) for 5 to 10 minutes, then restore power and allow the controls to reboot. Use the 10651142112 owner's manual for any model-specific button resets.

• Hard reset (recommended): Power off for 5 to 10 minutes, then power back on.
• Control panel reset: If the display is frozen, press and hold Lock or Control Lock (if equipped) for about 3 seconds.
• Filter light reset: Many Kenmore 106 side-by-side models reset the filter indicator by pressing and holding the Filter Reset or Reset key for 3 to 5 seconds (exact key name varies by panel).
• Ice maker reset (symptom-based): If ice production is erratic after a power event, cycle power first; then check the ice maker shutoff arm or switch and water supply.

1. Move temperature controls to their normal settings (do not change multiple settings repeatedly).
2. Unplug the refrigerator or turn off the circuit breaker.
3. Wait 5 to 10 minutes.
4. Restore power.
5. Wait 24 hours for temperatures to fully stabilize.

• Confirm the doors seal and close fully; warm air leaks can mimic “not cooling” symptoms.
• Make sure air vents inside the fresh food and freezer sections are not blocked by food packages.
• If the unit is warm, listen for the evaporator fan; a failed fan can prevent proper cooling.
• If the ice maker or dispenser is acting up, verify the household water supply valve is fully open.
• If you recently changed filters or had low water flow, inspect the refrigerator water inlet valve WPW10341320 for clogging or a weak fill.

A reset clears temporary control board glitches, but it does not fix underlying problems like restricted airflow, a weak water supply, or a failing component. Checking airflow and water fill right after resetting prevents repeat issues.

Last updated: January 2026

Common problems we see on the Kenmore Elite 10651142112 side-by-side refrigerator include weak or warm cooling, frost buildup in the freezer, water leaking or dispenser issues, and unusual fan or compressor noises. Many fixes are basic maintenance or a single failed part; use the 10651142112 owner's manual to match symptoms to the correct checks.

• Not cooling or warm temperatures: dirty condenser coils, failed evaporator fan motor, airflow blockage, or a control issue
• Frost or ice buildup: door not sealing, defrost system failure, or restricted airflow
• Water dispenser slow or not working: supply shutoff partially closed, clogged filter, frozen line, or a bad inlet valve
• Ice maker not making ice: water supply problem, inlet valve issue, ice maker failure, or freezer temperature too warm
• Noises (buzzing, clicking, rattling): fan blade hitting ice, failing fan motor, or compressor start components

1. Set temperatures to typical targets: 0°F freezer and 37°F fresh food.
2. Make sure vents are not blocked by food packages.
3. Clean condenser coils and confirm the condenser fan area is clear.
4. Check door gaskets for gaps, tears, or areas not sealing.
5. If water or ice is affected, confirm household water pressure is strong and the shutoff valve is fully open.

Catching airflow, defrost, and water-supply problems early helps prevent food spoilage, repeated icing, and compressor overwork. Simple steps like coil cleaning and gasket checks often restore normal cooling without major repairs.
