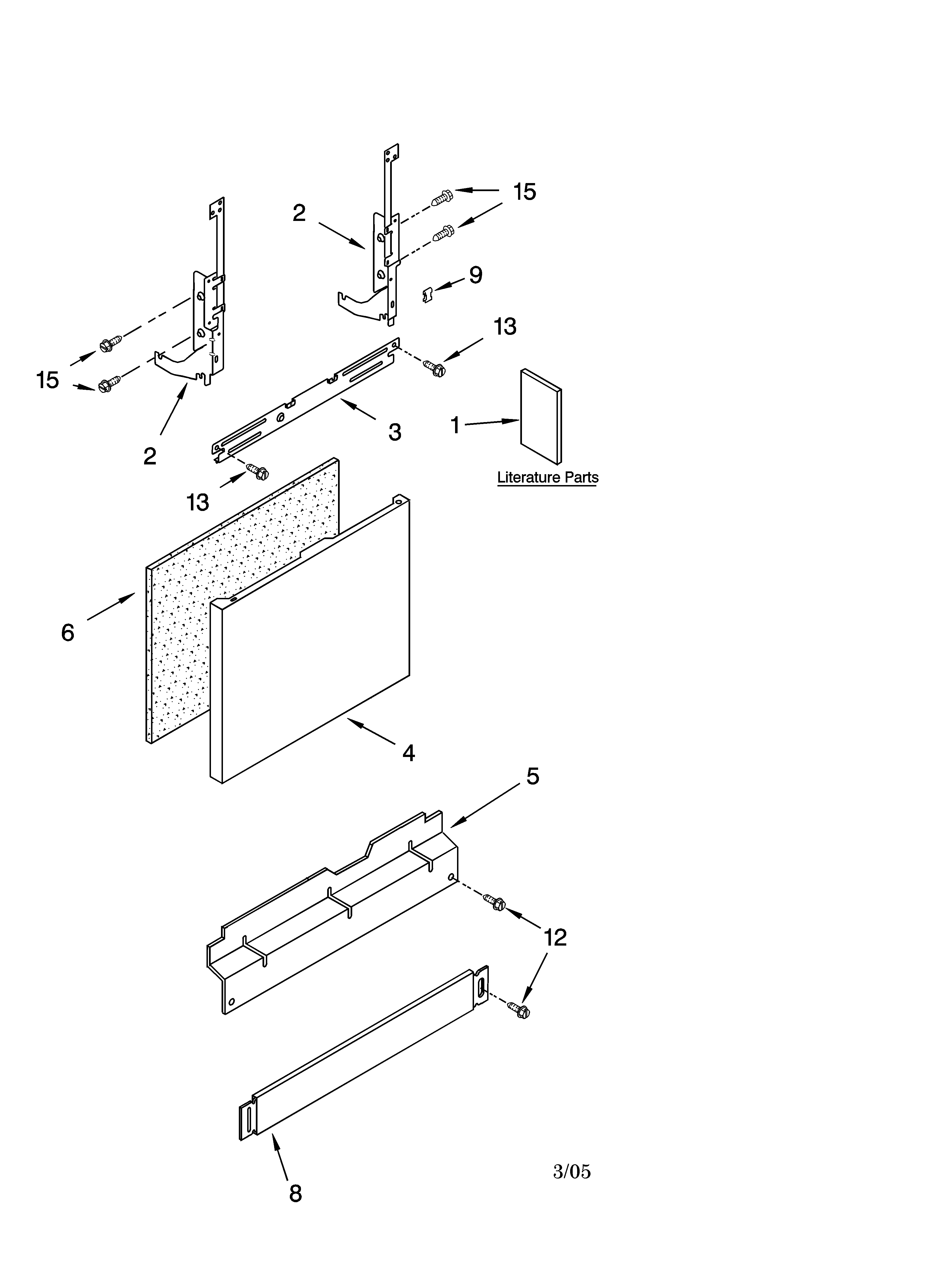

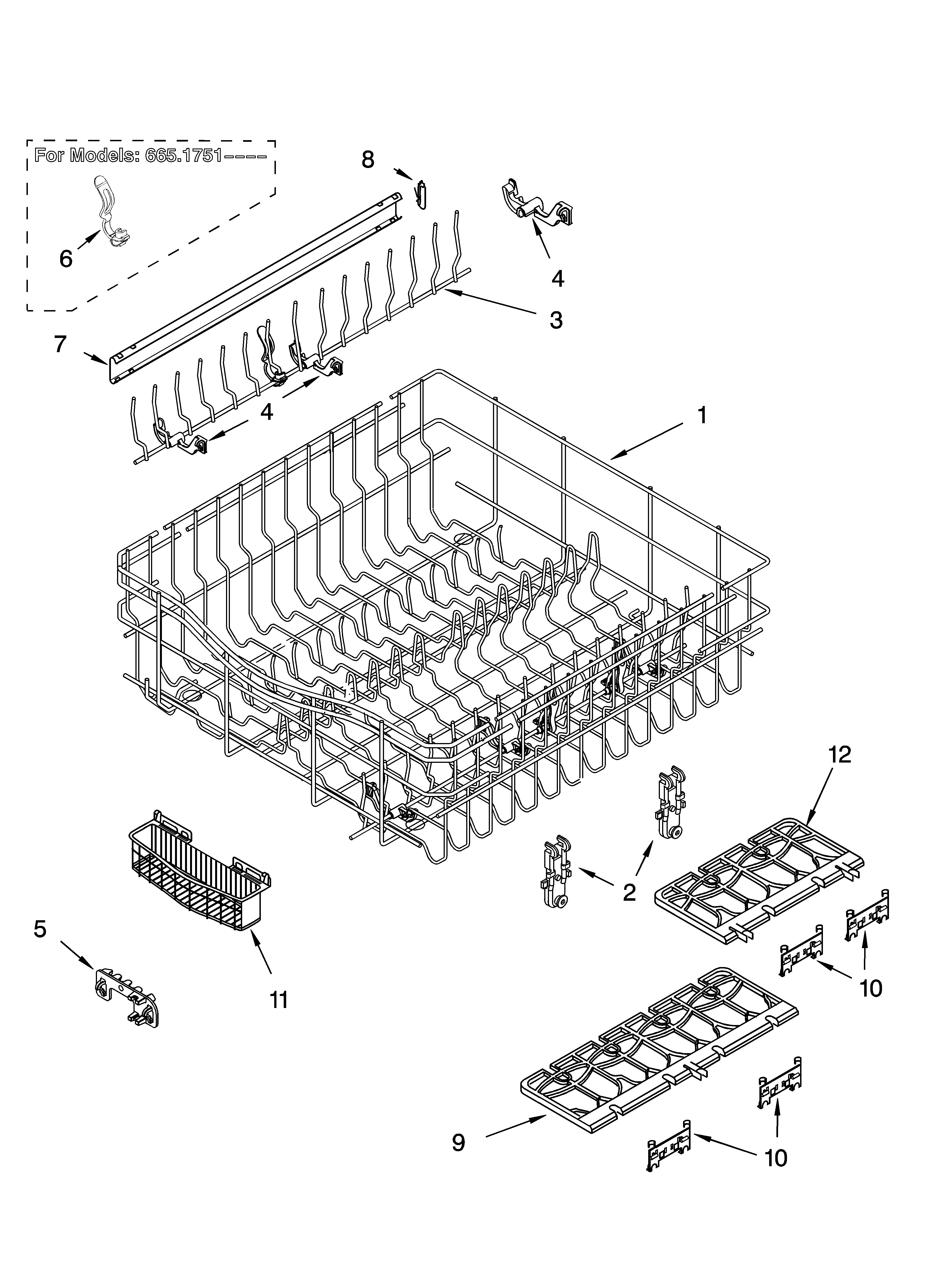

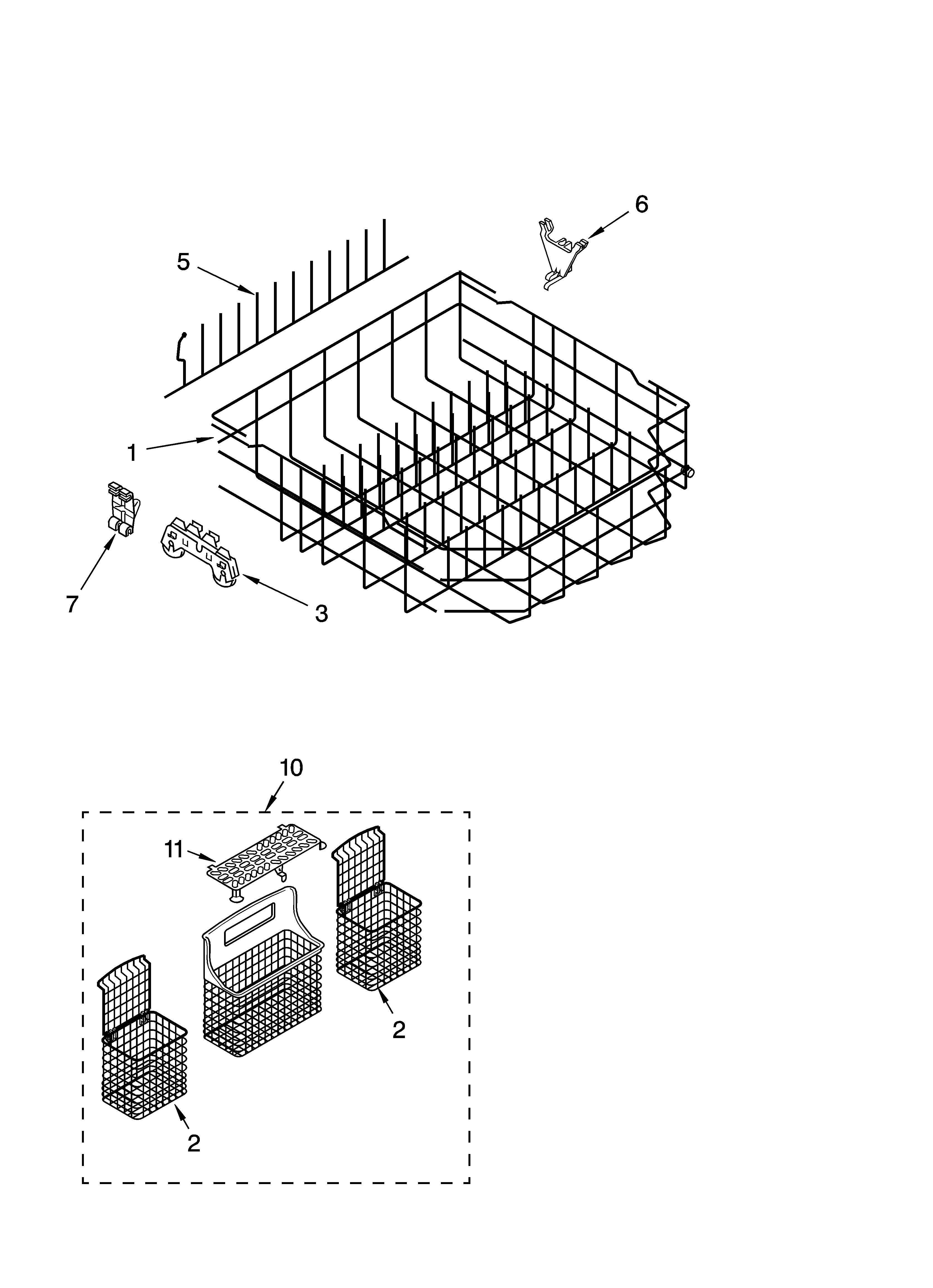

Most Kenmore built-in dishwashers like model 66516514200 typically draw about 10 to 12 amps while heating and about 2 to 6 amps while washing/draining. For the exact electrical rating for your unit, confirm the specs in the 66516514200 owner's manual.

What affects amp draw on a dishwasher?

A dishwasher’s current draw changes during the cycle. The highest draw is usually when the water heater is on.

• Water heating (highest amps)
• Wash motor running (moderate amps)
• Drain pump running (moderate to low amps)
• Drying system/venting (varies by option and cycle)
• Incoming water temperature (colder water usually means longer heating time)

Typical amp ranges by function

These ranges help you estimate what you might see on a clamp meter during operation.

Dishwasher function	Typical amps (approx.)	Notes
Circulation wash	2 to 6 A	Varies by load and motor design
Drain	1 to 3 A	Short bursts during drain-outs
Heater on	10 to 12 A	Often the peak draw

Quick checks if you suspect an electrical problem

If the dishwasher trips a breaker, won’t heat, or seems to run unusually long, these checks help narrow it down.

• Verify the dishwasher is on a dedicated circuit (common setup is 15 A or 20 A)

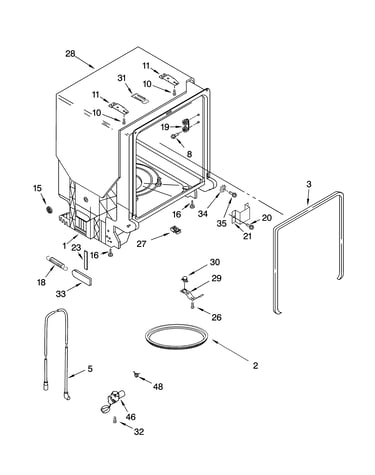

• Check for loose wire connections at the junction box under the unit (power off first)

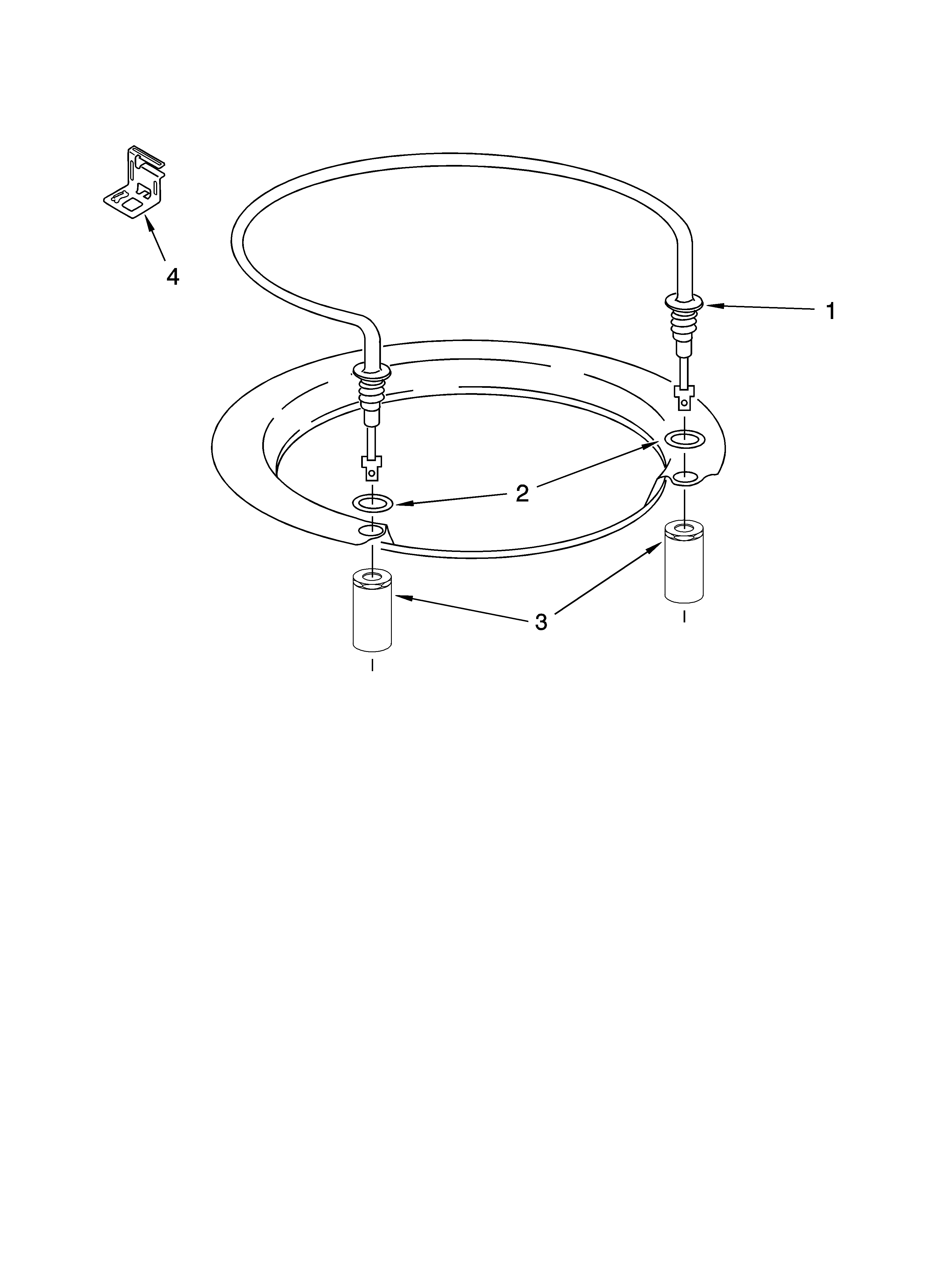

• If water is not heating, inspect the dishwasher heater W10518394 and related wiring
• If the unit is dead or intermittent, inspect the fuse 8193762 (if used in your configuration)
• Review cycle behavior and indicators in the 66516514200 owner's manual

Why it matters

Knowing the amp draw helps you match the dishwasher to the correct breaker size, diagnose heating issues, and spot failing components (heater, motor, wiring) before they cause nuisance trips or poor cleaning.

Last updated: January 2026

A “hard reset” on a Kenmore dishwasher like model 66516514200 is usually done by cutting power to clear a stuck control. Turn the dishwasher off at the breaker (or unplug it) for about 1 minute, then restore power and start a new cycle using the normal Start sequence in the 66516514200 owner's manual.

Quick hard reset steps (power reset)

• Turn the dishwasher OFF.
• Switch the dishwasher circuit breaker OFF (or unplug the power cord if accessible).
• Wait 60 seconds.
• Restore power (breaker ON or plug back in).
• Close the door firmly so it latches.
• Select a cycle and press START.

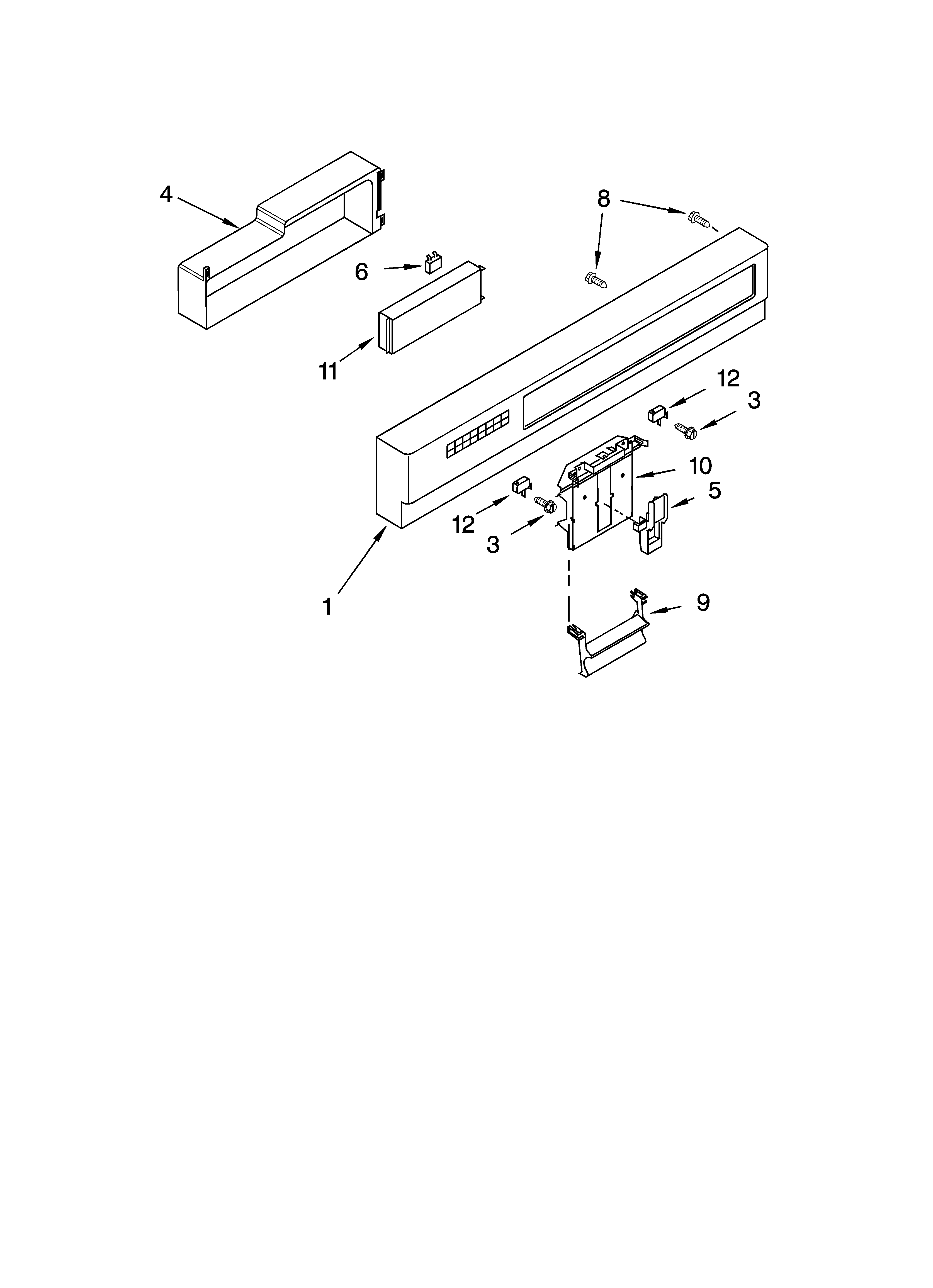

If the controls seem “frozen”: check Control Lock

This model uses a Lock On feature that disables the buttons when enabled.

• If LOCK ON is lit, press and hold AIR DRY for 4 seconds to turn Lock off.
• Try selecting a cycle and pressing START again.

What you should see

Symptom	Likely cause	What to do
Buttons do nothing, LOCK ON light is on	Control lock enabled	Hold AIR DRY 4 seconds
Dishwasher won’t respond after a power outage	Control needs reset	Do the 60-second power reset
Cycle won’t stop or seems stuck	Control state glitch	Power reset, then start a fresh cycle

Why it matters

A power reset clears many temporary electronic control issues (stuck keys, interrupted cycles, odd indicator lights) without replacing parts. If the dishwasher repeatedly loses power or won’t power up at all, troubleshooting the electrical supply and control components becomes the next step.

When a reset is not enough

If the dishwasher is still dead after a reset and Lock is off, these are common next checks:

• Confirm the breaker is not tripped and the dishwasher has power.
• Check for a blown thermal fuse such as the fuse 8193762 (if equipped in your control housing).
• Look for signs of overheating or burning at wiring connections.

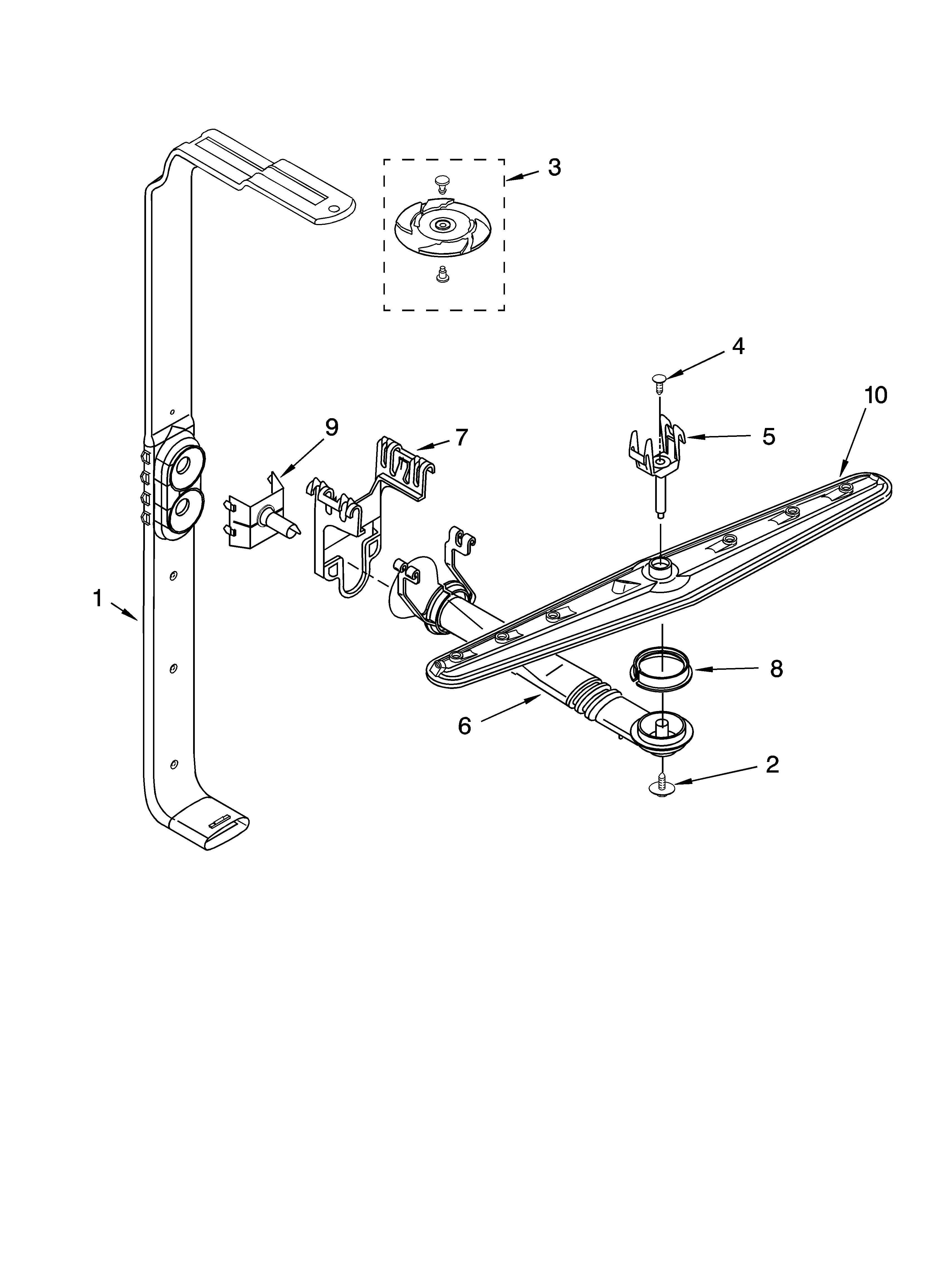

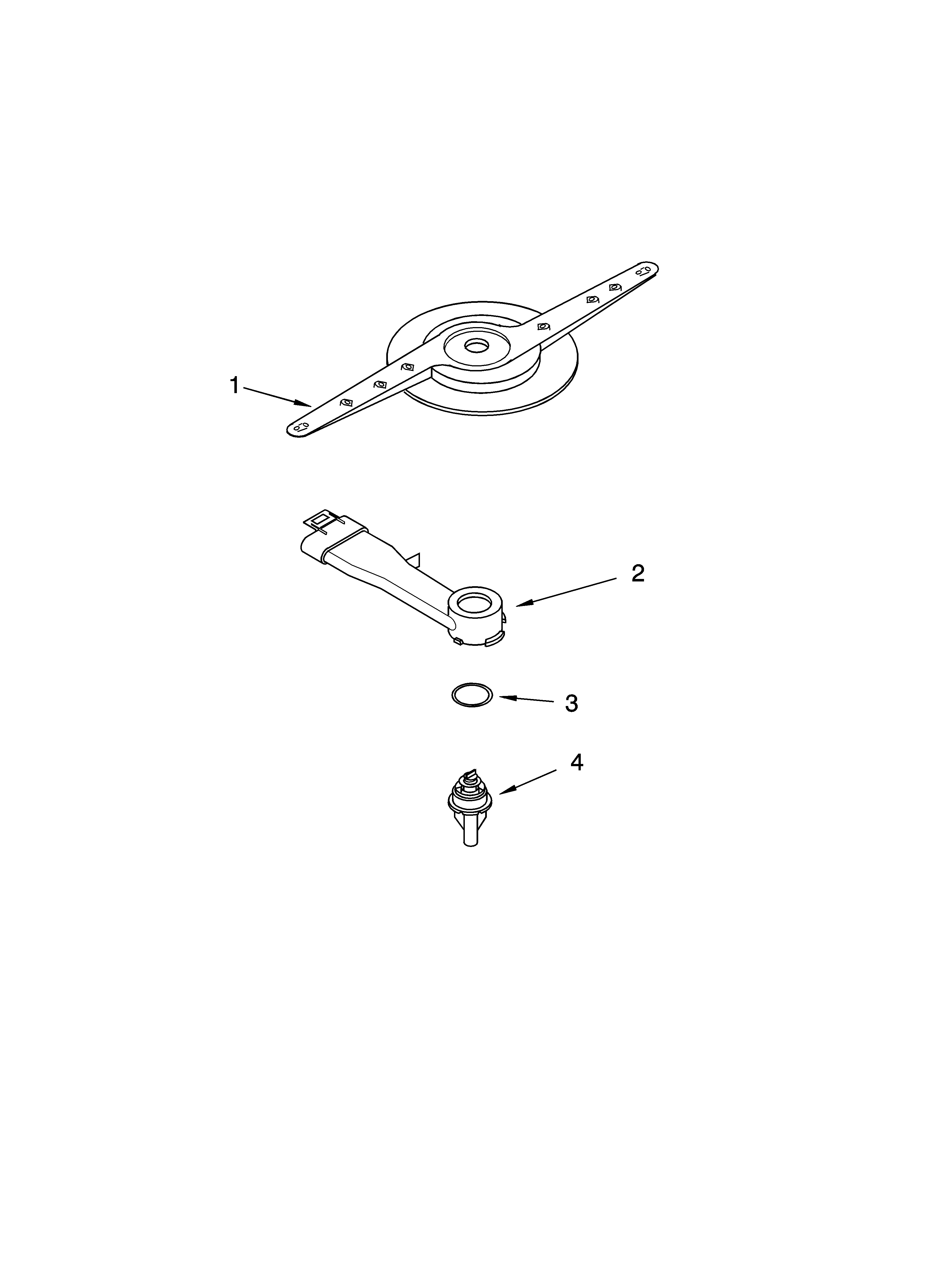

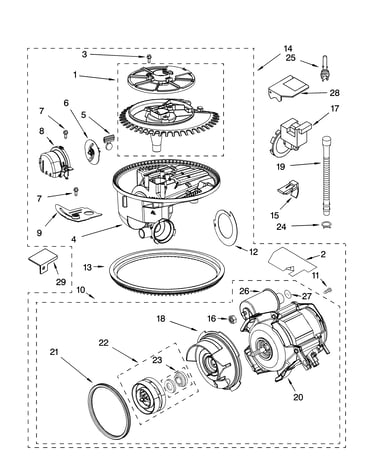

• If the unit fills but won’t wash, the circulation system (motor/pump) may be involved.

Last updated: January 2026

Common problems we see with Kenmore dishwashers (including model 66516514200) are no-start or stopping mid-cycle, not filling, long cycle times, poor drying, and spotting or filming on dishes. Many of these trace back to power, water supply, loading, or routine cleaning and maintenance; see the 66516514200 owner's manual for model-specific checks.

Most common symptoms and what they usually mean

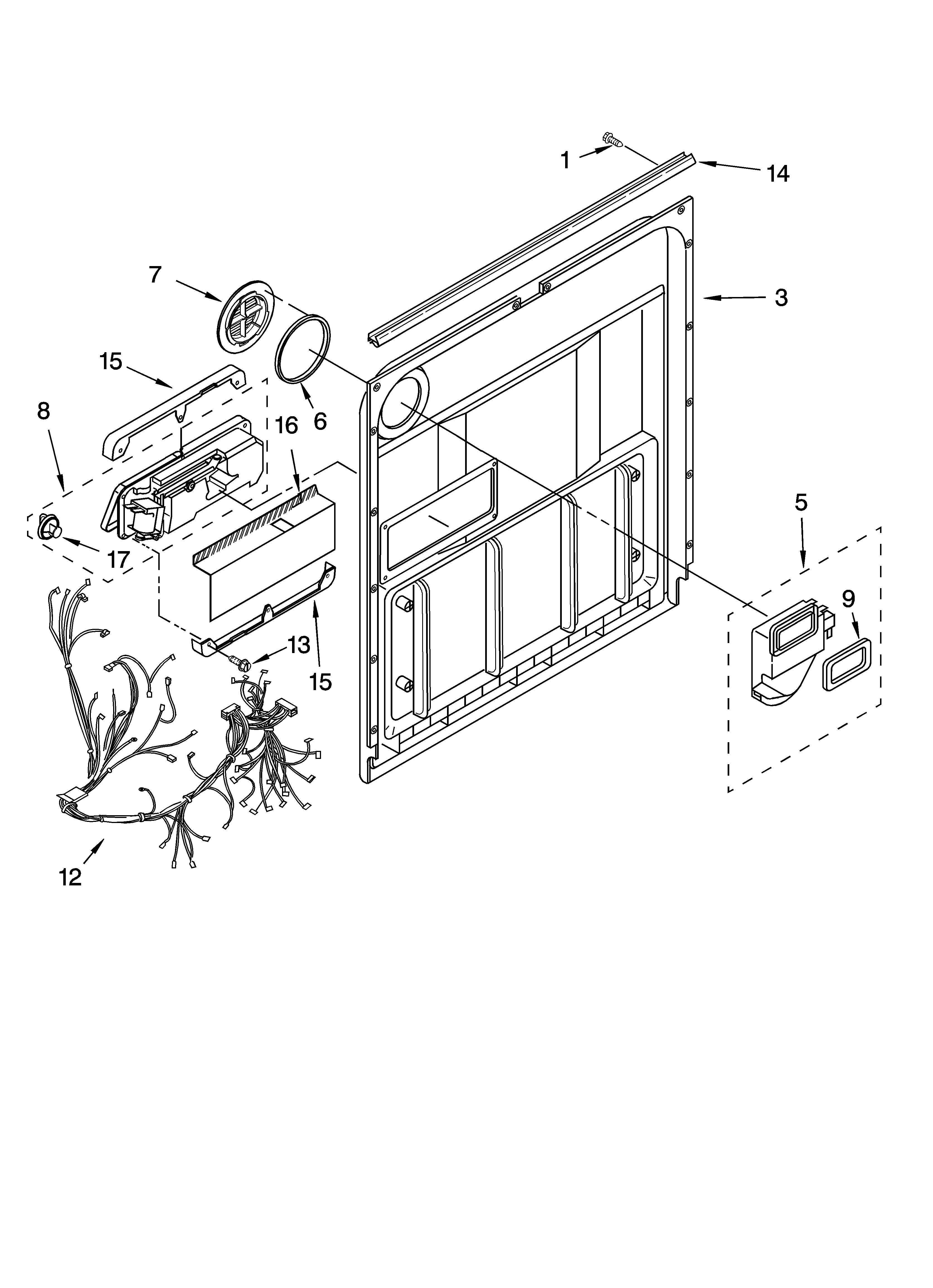

• Won’t start or stops during a cycle: door not fully latched, wrong cycle selection, power issue, or motor overload that needs time to reset.

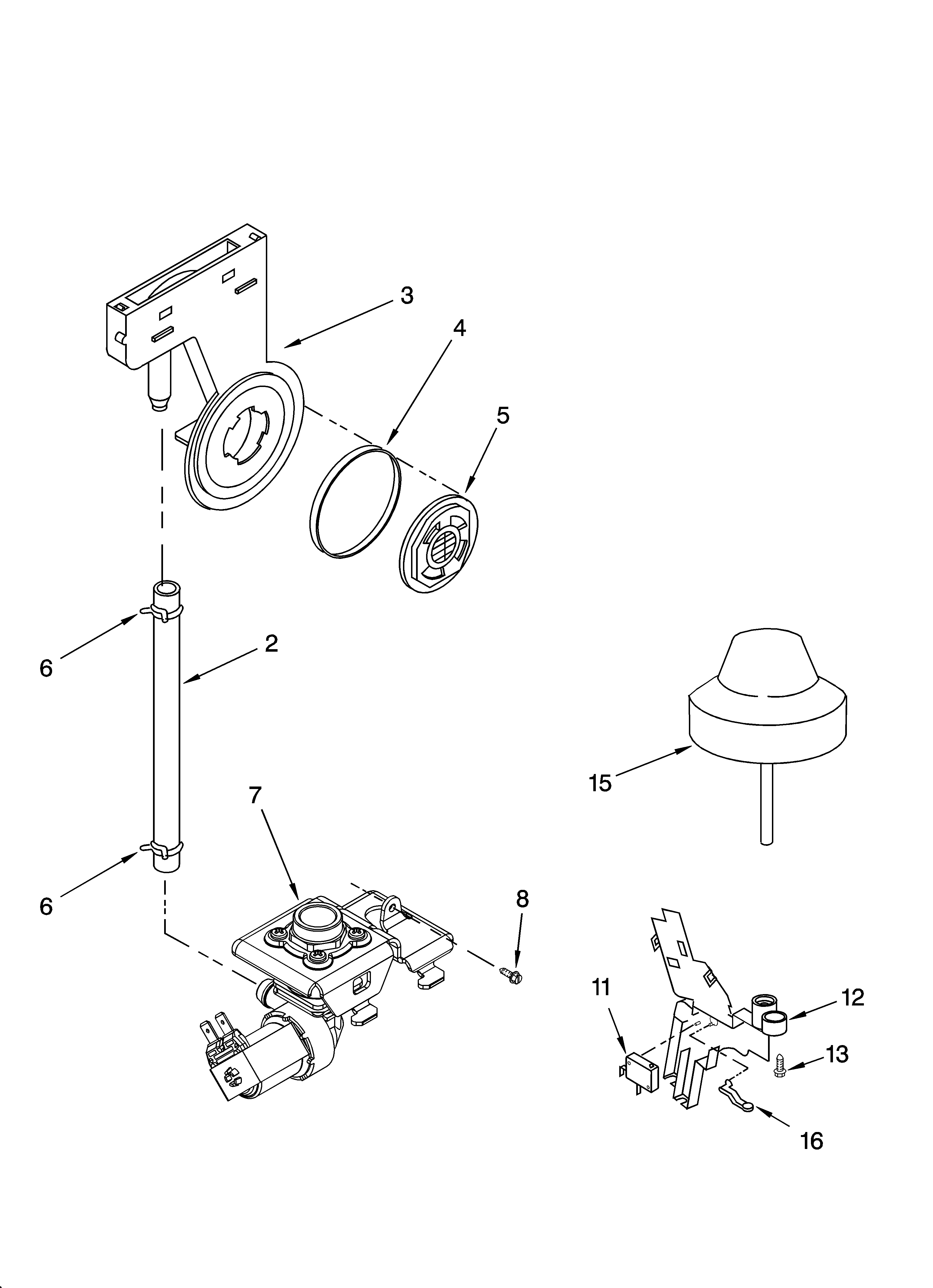

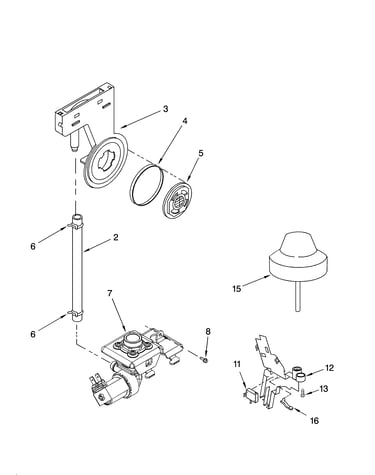

• Won’t fill with water: water shut-off valve closed, or the overfill protection float is stuck.
• Runs too long: incoming water is not hot enough, so the dishwasher extends the cycle while heating.

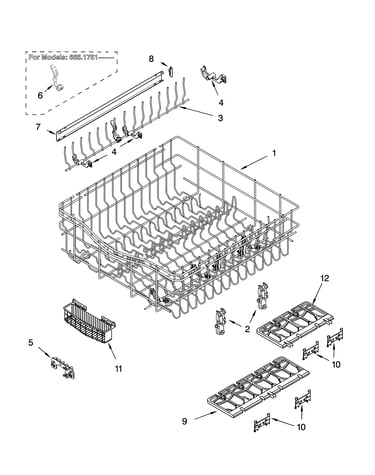

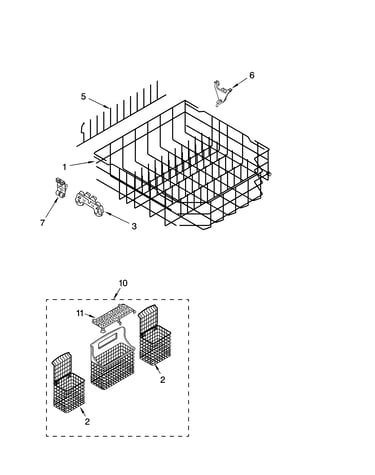

• Poor drying: drying system or venting issue, rinse aid not used, or plastics loaded in a way that traps water.
• Spots, film, or stains: water chemistry (hard/softened water), too much detergent, not enough rinsing, or iron in the water.

Quick checks we recommend first (safe, no tools)

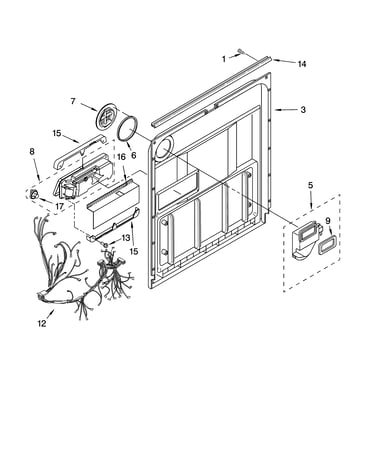

• Confirm the door closes tightly and latches.
• Verify the cycle and options are selected correctly.
• Check the home breaker/fuse, then restore power and retry.
• Make sure the water shut-off valve is fully open.
• Lift and release the overfill protection float so it moves freely.
• Clean the interior using detergent on a damp sponge, then run a normal cycle with detergent.

Troubleshooting guide by symptom

Symptom	Most likely cause	Best first step
No start / stops	Door latch or power interruption	Re-latch door; check breaker/fuse
No fill	Float stuck or water valve off	Free the float; open shut-off valve
Long cycle	Water not hot enough	Run hot water at sink before starting
Spots/film	Detergent and water chemistry	Reduce detergent; use rinse aid

Parts that commonly relate to these issues

If troubleshooting points to a failed component, these are common replacements for this model:

• Heating and long-cycle complaints: dishwasher heater W10518394

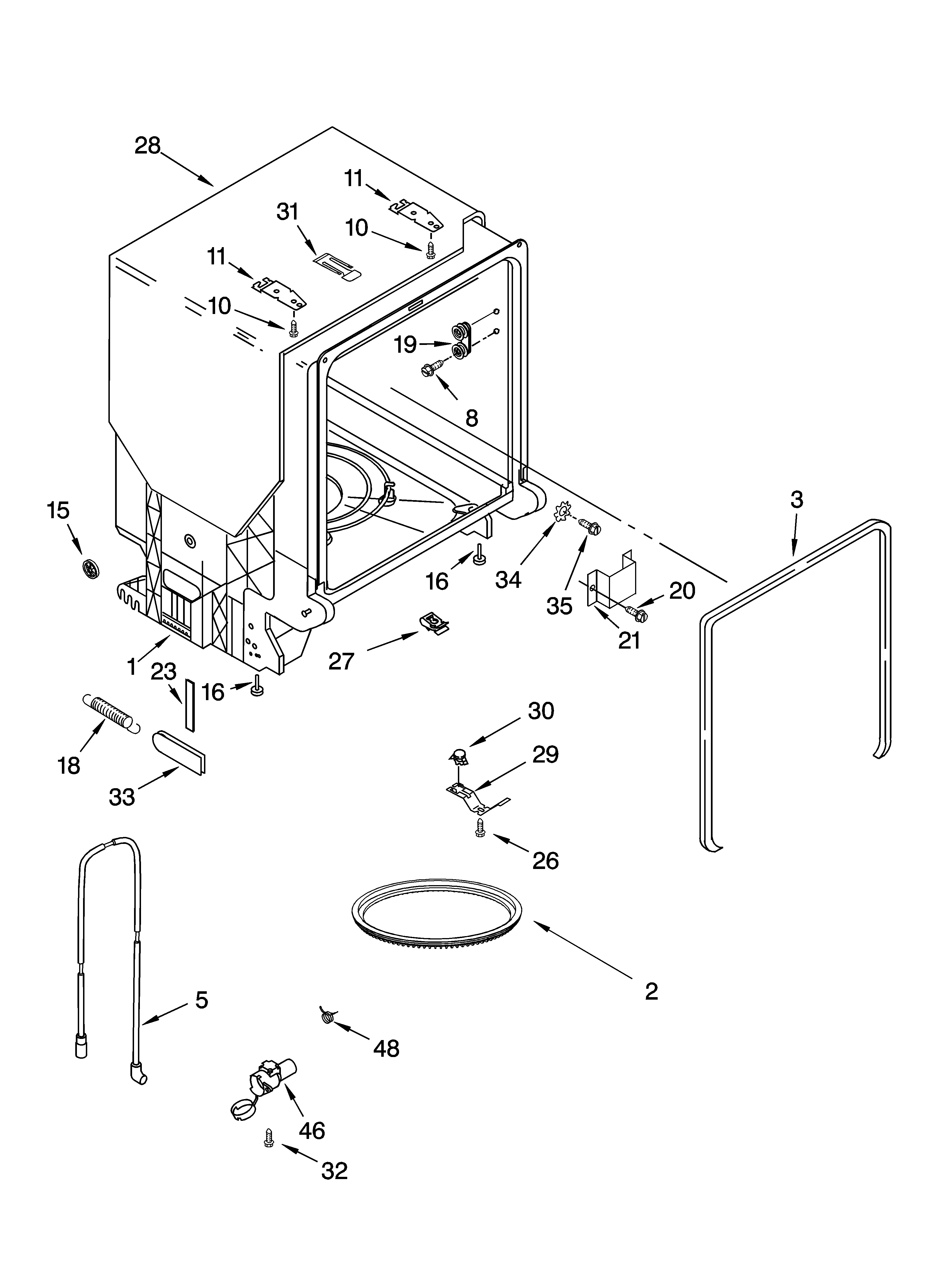

• Drain and standing water issues: dishwasher drain hose 8269144A

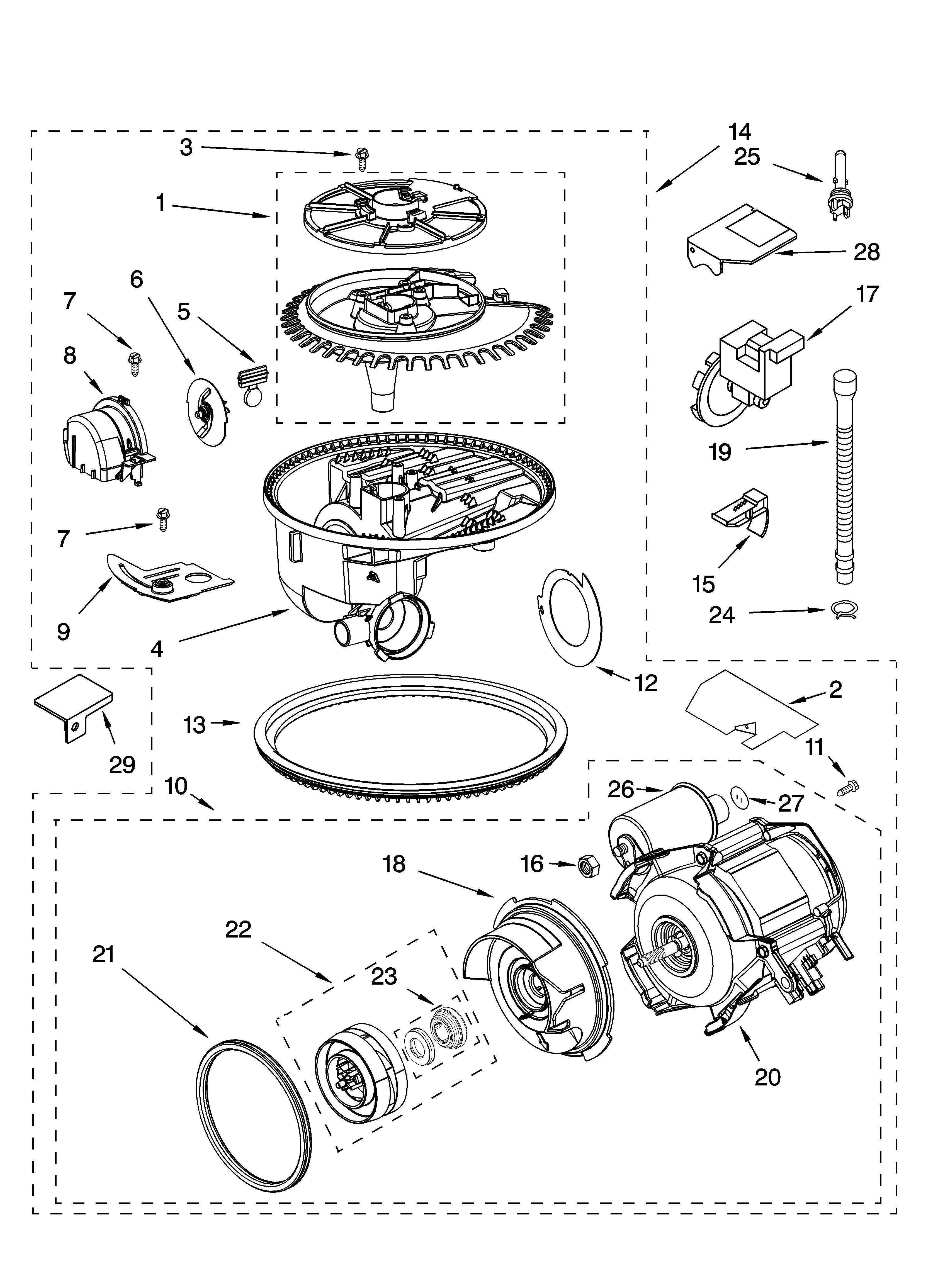

• Poor wash performance from food debris: dishwasher chopper assembly W10083957V

Why it matters

Catching the simple causes first (door latch, float movement, water temperature, and cleaning) prevents repeat cycle failures, improves drying and wash results, and helps you avoid replacing parts that are still good.

Last updated: January 2026

On a Kenmore dishwasher model 66516514200, the PF code means power failure. It shows up when the dishwasher loses power during a cycle or right before it starts; restoring steady power and clearing the code typically gets the dishwasher running normally again.

How to clear the PF code

• Press Cancel/Drain (or Cancel) to stop the cycle and clear the display.
• Wait 1 minute, then select a new cycle and press Start/Resume.
• If the control is unresponsive, turn the dishwasher’s breaker OFF for 1 minute, then turn it back ON.
• Confirm the dishwasher is plugged into a properly grounded outlet (or correctly hardwired) as described in the 66516514200 owner's manual.

What usually causes PF

Common causes are outside the dishwasher itself:

• Brief outage or utility “blink”
• Tripped breaker or loose breaker connection
• Loose wall outlet, worn receptacle, or loose power cord connection
• Power strip or extension cord use (not recommended for dishwashers)
• Loose wiring at the junction box (hardwired installations)

Quick checks (safe, no disassembly)

• Make sure the dishwasher door is fully latched, then try Start/Resume.
• Check the kitchen GFCI outlet (if used) and reset it.
• Verify the breaker is fully seated by switching it OFF, then ON.
• Run a short cycle and listen for normal fill and wash sounds.

When PF points to a dishwasher part issue

If PF returns repeatedly with no house power issues, the problem can be in the control power path.

Symptom	Most likely direction	What to do next
Display resets randomly	Power supply interruption	Check outlet, breaker, junction box connections
No lights after power is restored	Loss of control power	Test house power first; then consider control-related diagnosis
PF appears with other error codes	Control detected multiple faults	Use the error code guide below

A failed thermal fuse can also prevent the control from powering correctly; for this model, see the fuse 8193762 if you’re troubleshooting a dead control.

Why it matters

A PF code is usually a harmless record of a power interruption, but repeated PF events can interrupt heating and washing performance and may point to an electrical connection problem that should be corrected for reliable operation.

Related help

• Kenmore 665 model dishwasher error codes
