Frigidaire FGIP2468UD2A dishwasher Parts

A Frigidaire dishwasher typically lasts 7 to 10 years. With consistent care (clean filters, correct detergent, and good loading habits), many units reach the upper end of that range and sometimes longer. For your FGIP2468UD2A, following the maintenance steps in the FGIP2468UD2A owner’s manual helps maximize service life.

• Water quality and hardness (scale buildup shortens heater and pump life)
• How often you run it (daily use wears moving parts faster)
• Filter and drain care (clogs strain the wash motor and drain pump)
• Detergent and rinse aid use (too much soap can cause residue and leaks)
• Drying heat exposure (high-heat drying increases thermal cycling on components)

• Clean the filter regularly; a clogged filter is a top cause of poor cleaning and pump strain (see dishwasher filter 5304532206).
• Run hot water at the sink before starting a cycle so the dishwasher fills with hotter water.
• Load so spray arms can spin freely; avoid blocking the orbital sprayer.
• Use the right cycle for the soil level; long cycles are normal on energy-efficient models.
• Inspect for slow draining and address it early to protect the drain system.

Most “early failures” come from buildup, restricted water flow, or drainage problems that force the pump and heater to work harder than designed. Keeping the filter and drain path clear is one of the simplest ways to extend the life of your Frigidaire dishwasher.

Last updated: February 2026

Yes. On your Frigidaire dishwasher model FGIP2468UD2A, the practical “reset” is canceling the current cycle so the control clears the selection and drains; then you can choose a new cycle and restart.

Follow the control steps in the FGIP2468UD2A owner’s manual:

• Press and hold START/CANCEL for 3 seconds.
• The cycle lights should go out.
• The dishwasher runs a 90-second drain.
• When draining ends, select the next cycle you want.
• Press START/CANCEL to begin the new cycle.

A dishwasher that seems stuck often has a lockout or a drain issue, not a bad control.

• Control lock is on: press and hold DELAY START for 3 seconds to unlock.
• Water not draining: a clog or failed drain component can keep the unit from finishing the cancel-drain.
• Door not fully latched: the control may pause and ignore inputs.
• Power interruption: restore power, then cancel the cycle again.
• Console light setting confusion: some models allow toggling console lights; the dishwasher can still be running even if lights are off.

Canceling correctly protects your kitchen from standing water and helps the dishwasher return to a known state. If the unit cannot complete the 90-second drain, focus on the drain path first.

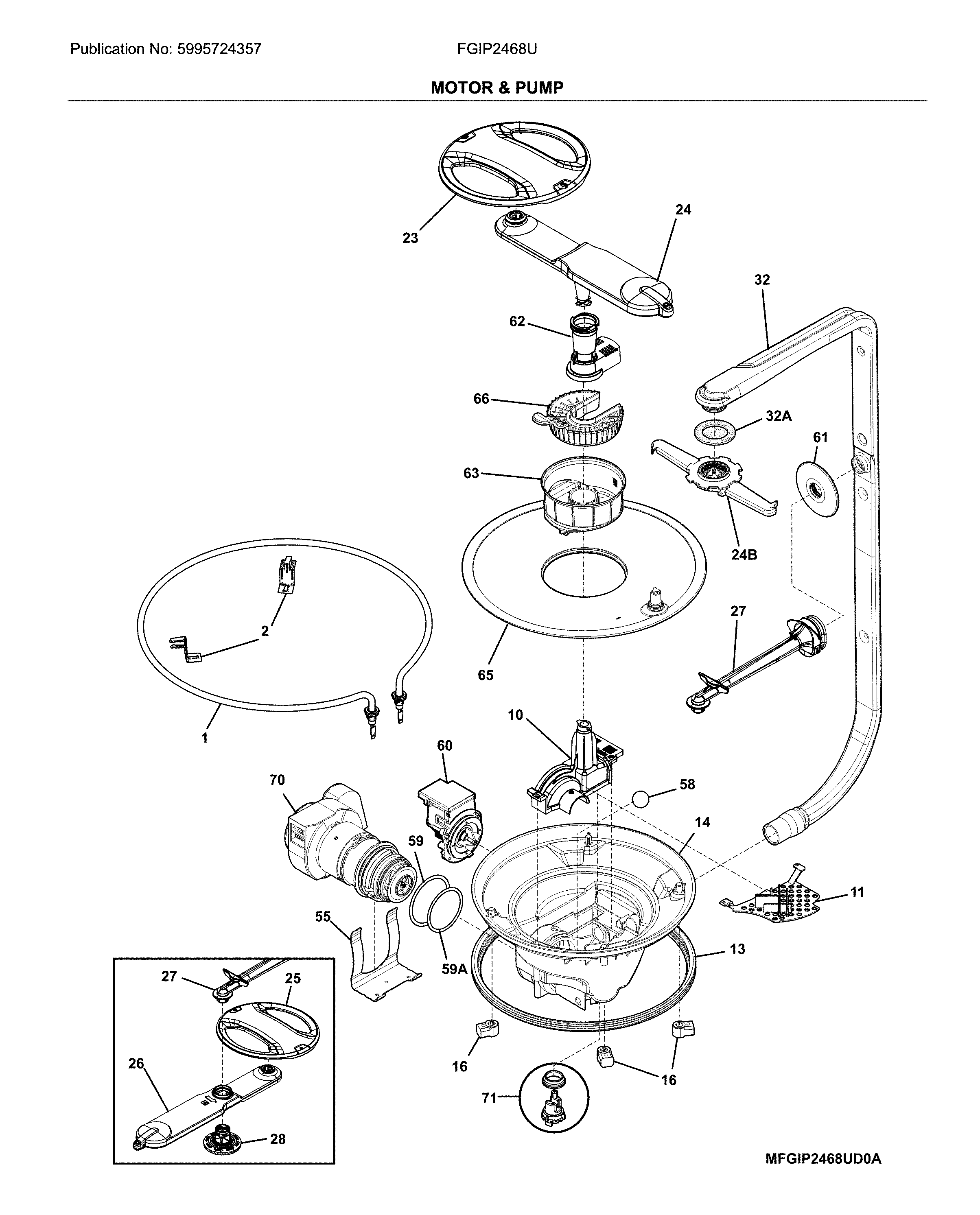

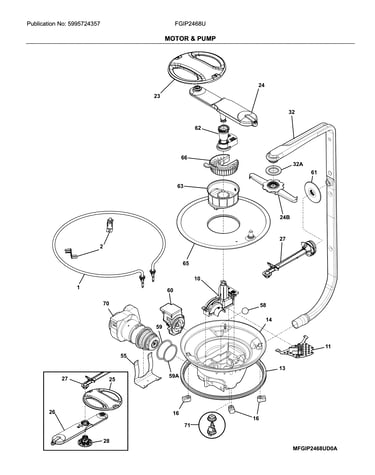

If you suspect a drain failure, the most common repair parts are the drain pump a A00126401 and the dishwasher drain hose 807117001.

Last updated: February 2026

On the Frigidaire dishwasher model FGIP2468UD2A, code i20 means the dishwasher did not drain completely. In most cases, the fix is to correct a drain restriction (clog, kink, or improper hose routing) so water can pump out normally; see the FGIP2468UD2A owner's manual.

• Cancel the cycle and let the unit try to drain again.
• Inspect the drain hose for kinks, crushing, or a pinched section behind the kickplate.
• Confirm the drain hose routing is correct; the drain loop should be at least 32 inches above the floor.
• Check the sink/disposer inlet where the dishwasher drain connects; clear any blockage.
• Clean the dishwasher filter area so debris is not restricting water flow.

If the hose routing and plumbing are good, the issue is usually in the drain path inside the dishwasher.

If you suspect a failed pump or a split hose, match the replacement to your model:

• Drain pump a A00126401
• Dishwasher drain hose 807117001

A dishwasher that cannot drain fully can leave dirty water in the tub, cause poor cleaning, and stop the cycle with an error. Restoring proper drain flow prevents repeat i20 errors and protects the pump and motor from extra strain.

During installation, connection locations and routing matter. We recommend confirming the drain and other connections are positioned correctly using the FGIP2468UD2A installation guide.

Last updated: February 2026

For the Frigidaire FGIP2468UD2A dishwasher, the most common day-to-day complaint is poor cleaning performance (food soils left on dishes), usually caused by loading issues, low water temperature or pressure, blocked spray action, or a dirty filter area. We also frequently see drain problems and leaks tied to leveling or door sealing.

• Use fresh automatic dishwasher detergent; old detergent cleans poorly.
• Confirm incoming water temperature is about 120°F (49°C).
• Confirm home water pressure is 20 to 120 psi.
• Load to avoid nesting; keep items from blocking spray arms.
• Make sure the rinse aid dispenser is filled.
• Check that the dishwasher is level (leveling affects leaks and door sealing).

If basic checks do not help, these model-matched parts are commonly involved in the same “most common” complaints:

• Not draining: Drain pump a A00126401 or dishwasher drain hose 807117001
• Not filling or weak wash due to low incoming water: Crosley dishwasher water inlet valve 5304525044
• Not drying well: Frigidaire dishwasher heating element 154825001
• Detergent door issues: Dishwasher detergent dispenser assembly 5304506521

Poor cleaning, standing water, and leaks are usually not “mystery failures”; they are performance problems tied to water conditions, loading, and a few high-wear components (pump, inlet valve, heater, dispenser). Fixing the root cause prevents repeat cycles, odors, and water damage.

Last updated: February 2026

To force your Frigidaire FGIP2468UD2A dishwasher to drain, press and hold START/CANCEL for 3 seconds; the dishwasher runs a 90-second drain. If it still will not drain, focus on the drain hose routing, the glass trap/filter area, and the drain pump path for clogs.

• Press and hold START/CANCEL for 3 seconds.
• Wait for the 90-second drain to finish.
• If the controls are locked, press and hold DELAY START for 3 seconds to unlock, then retry.
• Confirm the cycle is not paused and the door is fully latched.
• Check the bottom of the tub for standing water and debris after the drain completes.

A drain problem is usually a restriction, an installation routing issue, or a failed drain component.

• Glass trap/filter area: Remove and clean it; reinstall it correctly so it seals and does not bypass debris.
• Drain hose: Make sure it is not kinked or crushed behind the unit.
• Sink connection: If connected to a sink drain, the drain hose entry needs to be above the trap.
• Disposer connection: If connected to a garbage disposer, make sure the knockout plug inside the disposer inlet was removed.
• Pump path: If the hose and filter are clear, inspect the drain pump area for broken glass, labels, or food.

When the dishwasher cannot pump water out, soil and dirty water stay in the sump, which leads to odor, poor cleaning, and can trigger repeated drain attempts. Correct hose routing and a clean glass trap/filter keep the drain system working the way it was designed.

For model-specific control and care details, follow the steps in the FGIP2468UD2A owner’s manual. For drain routing requirements (trap height, air gap situations, disposer hookup), use the FGIP2468UD2A installation guide.

Last updated: February 2026

For your Frigidaire FGIP2468UD2A dishwasher, the fastest way to get the correct part number is to start with the model number and then match the part by name in the parts diagram and list; this prevents ordering a look-alike part that will not fit.

• Locate the model number on the dishwasher (typically on the tub frame near the door opening).
• Open the FGIP2468UD2A owner's manual and confirm you are working with the correct model.
• Identify the part you need by function and location (for example: drain, fill, heat, or door hardware).
• Match the part name to the parts list for FGIP2468UD2A, then record the manufacturer part number.
• If multiple similar parts appear, compare where it installs (left/right, front/rear, upper/lower) before ordering.

If you already know what system is acting up, these are common part names you may see for FGIP2468UD2A:

Dishwashers often use multiple versions of the same style of pump, valve, or rack hardware across different Frigidaire models. Using the exact FGIP2468UD2A model number to cross-check the part name and part number helps ensure proper fit, correct electrical connectors, and leak-free operation.

• Confirm the symptom first (not draining vs. not filling can look similar).
• Check for simple causes: clogged filter, kinked hose, or a tripped breaker.
• Use the part name plus the manufacturer part number when searching.
• If you are troubleshooting a no-start condition, follow the steps in dishwasher wont start video.

Last updated: February 2026

Yes, for the Frigidaire FGIP2468UD2A dishwasher, we see many customers successfully replace common wear parts themselves as long as power is disconnected and the unit is secured and level. For electrical wiring, leak-related repairs, or motor-area work, follow the FGIP2468UD2A installation guide closely and use the right safety steps.

Here is a practical way to decide:

• Good DIY: cleaning or replacing the filter, replacing a drain hose, replacing a float switch
• Often DIY with care: replacing a water inlet valve, replacing a heating element
• Better for a pro: diagnosing control board issues, correcting house wiring in the junction box, persistent leaks you cannot pinpoint

Dishwashers combine electricity and water, so start here:

• Shut off power at the breaker (not just the control panel)
• Turn off the water supply valve
• Pull the dishwasher out only as far as needed; avoid stressing the water line and drain hose
• Keep wiring, water, and drain lines routed away from the motor area (per install guidance)
• Confirm the dishwasher is level and securely fastened before running a test cycle

If your symptoms match, these are common replacement items for FGIP2468UD2A:

A correct DIY repair saves time and prevents repeat failures. For example, a kinked drain hose or misrouted wiring can cause poor draining or create a safety hazard; the installation instructions also emphasize keeping the dishwasher supported by the floor and secured so it does not tip when the door opens.

Last updated: February 2026

On the Frigidaire FGIP2468UD2A dishwasher, we use the console status window and indicator lights to help identify stored error codes and operating problems; the correct diagnostic key sequence depends on the control panel, so we follow the model’s FGIP2468UD2A owner’s manual for the exact button combination and code meanings.

• Confirm the water supply valve is fully open (a closed valve commonly triggers fill errors).
• Make sure the door is fully latched; a latch issue can prevent any test from starting.
• Verify power at the breaker and that the console responds to button presses.
• Run the hot water at the nearest faucet until it is hot (about 120°F), then start the test.
• If the console looks “dark” during operation, check whether the console lights setting was toggled.

Most Frigidaire dishwashers enter a service or diagnostic mode using a timed button sequence. Once active, the dishwasher displays the last stored error code in the status window or communicates it through flashing indicator lights. We use that code to narrow the problem to filling, draining, heating, or door/control inputs.

Diagnostics prevents guesswork. The stored code tells us which system is failing so you can focus on the right checks first and avoid replacing good parts.

We verify water, drain, and electrical setup using the FGIP2468UD2A installation guide. A closed shutoff valve, incorrect drain hose routing, or a loose connection can mimic a failed component.

Last updated: February 2026
