Craftsman 917289071 tractor Parts

Craftsman model 917289071 is identified by its model number, not a built-in “year.” The most accurate way to date it is to use the product ID/serial information on the tractor’s ID tag and confirm it against the details in the 917289071 owner's manual.

On Craftsman riding mowers and tractors, the build date is typically tied to the product ID/serial tag, not the model number printed in the manual.

• Look for an ID tag under the seat, on the frame rail, or near the engine compartment
• Write down the serial number and any date code shown
• Compare the tag information to the identification section in the manual
• If the tag is missing or unreadable, use the tractor’s major components (engine model, transaxle model) to narrow the production era

Knowing the correct production date helps when you are matching replacement parts (like blades, belts, pulleys, or electrical parts) to the exact revision of your Craftsman tractor. Small mid-year changes can affect fit, especially on the mower deck and drive system.

If you saw a video claiming the “first digits” of a number equal month/day/year, that usually applies to a date code on a label, not the 917289071 model number itself. Use the ID tag date code for the most reliable result.

Last updated: February 2026

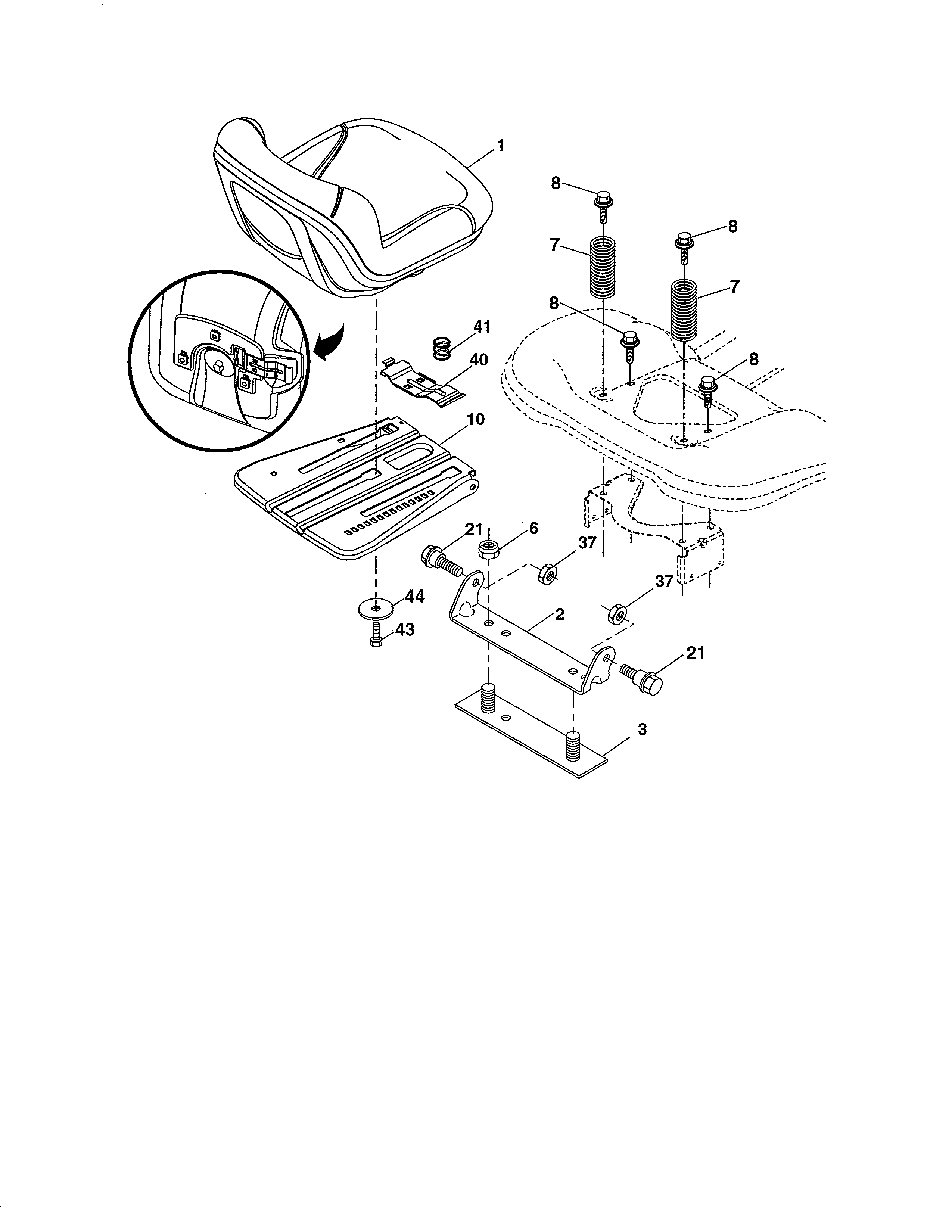

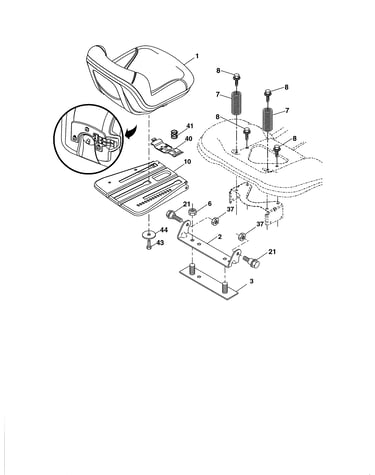

On Craftsman riding mower model 917289071, the model and serial number label is typically on the frame under the seat or on the underside of the seat itself. Use that serial number to match the correct parts and the right operator information in the 917289071 owner's manual.

• Park on a flat surface, set the parking brake, and remove the key
• Lift the seat and check the frame rail directly under the seat
• Check the underside of the seat pan for a sticker or metal tag
• Wipe off grass and dirt; the label is often hidden by debris
• Write down the full model number and serial number exactly as shown

We use the serial number to avoid parts mismatches when there are mid-year changes. This is especially important for common wear items like deck components, blades, and drive parts.

• Look for a faint “shadow” of the print and use a flashlight at an angle
• Check for a second label nearby on the seat frame area
• If you’re replacing deck hardware, match by assembly style and measurements; for example, compare your mandrel housing to the lawn tractor mandrel housing 587819701

Last updated: February 2026

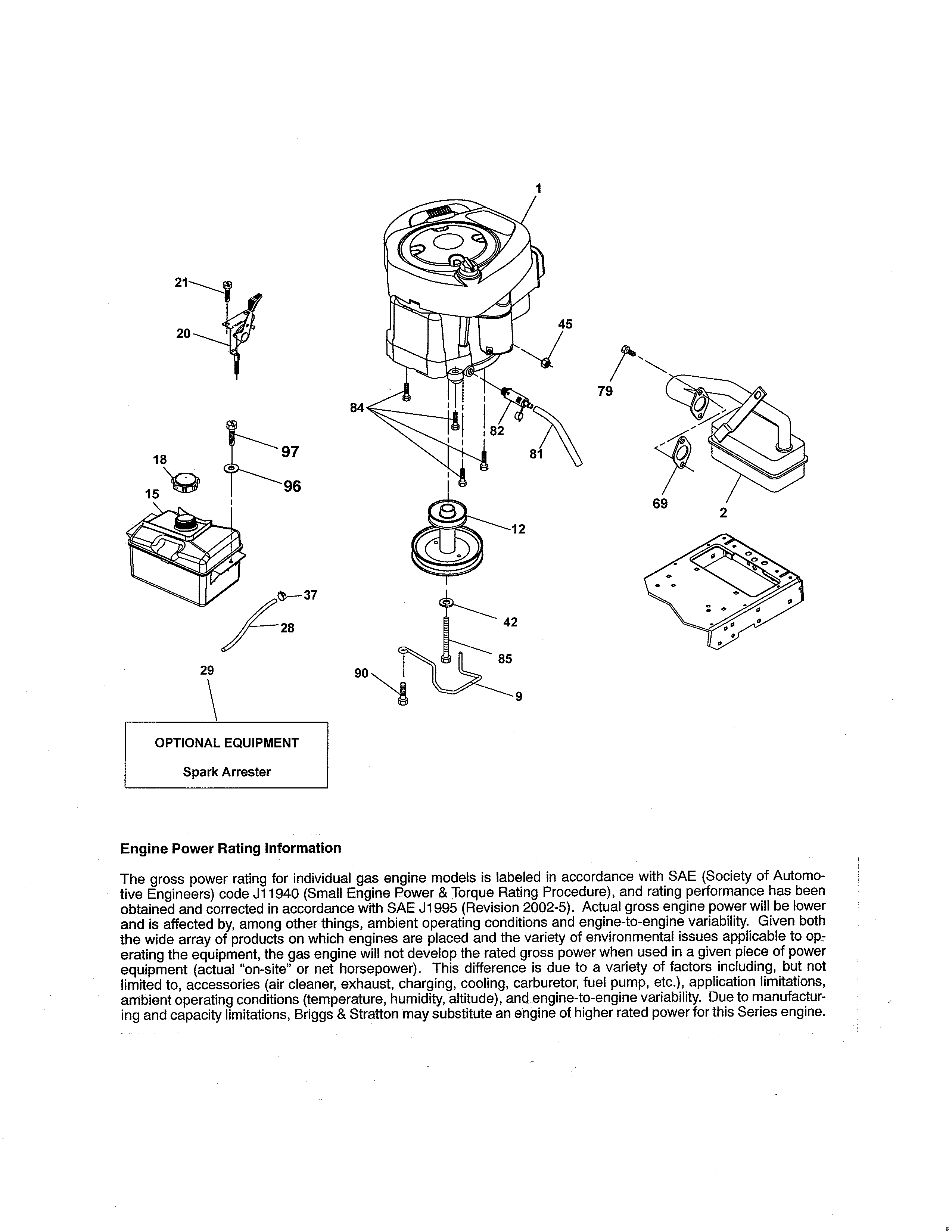

The Craftsman riding lawn mower model 917289071 is equipped with a low-emission gasoline engine; the operator’s manual for this tractor series lists it as a 19.5 HP rated engine on a 42-inch mower setup. For the exact engine make and model, use the ID plate details referenced in the 917289071 owner’s manual.

From the documentation for this Craftsman lawn tractor series, you can count on these engine-related basics:

• Gas-powered, low-emission engine design
• Electric start system
• Engine horsepower is listed as 19.5 HP (rated by the engine manufacturer)
• Designed to operate differently than older engine designs (per low-emission guidance)
• Uses unleaded gasoline

On riding mowers and tractors, the engine manufacturer (often Briggs & Stratton, Kohler, etc.) is identified on the engine shroud or an engine ID label. We use those numbers to match the correct tune-up and fuel system parts.

Check these locations:

• Engine blower housing/shroud label (usually top or side of engine)
• Valve cover area label (varies by engine family)
• Frame tag under the seat or near the rear fender (tractor model tag)
• Owner’s manual “Product Specifications” section for the tractor series

The exact engine make and model determines the correct maintenance parts (spark plug, air filter, fuel filter) and the right troubleshooting steps if the engine clicks, cranks, or will not start. It also helps ensure you use the correct fuel and tune-up procedure for a low-emission engine.

Last updated: February 2026

The Craftsman 917289071 is the tractor model number, not the engine model number. For this tractor, the engine is described in the documentation as a low-emission engine, and the exact engine model number is typically found on the engine’s ID label and in the 917289071 owner's manual.

Look for the engine identification label (usually a sticker or metal tag) on the engine itself. Common locations include:

• On the blower housing (top or side of the engine shroud)
• Near the starter motor or flywheel cover
• On the valve cover area
• Near the muffler heat shield (check when the engine is cool)
• Stamped into a metal plate or printed on a barcode label

Write down all fields you see (model, type, code, spec, serial), because parts lookups often require more than one line.

Different engine families can be installed across similar tractors, so the engine tag is the reliable match point.

Using the tractor model (917289071) helps us match chassis and deck parts like blades, belts, and mandrel components. Using the engine model number helps match engine-specific parts like the starter system, fuel system, and ignition components.

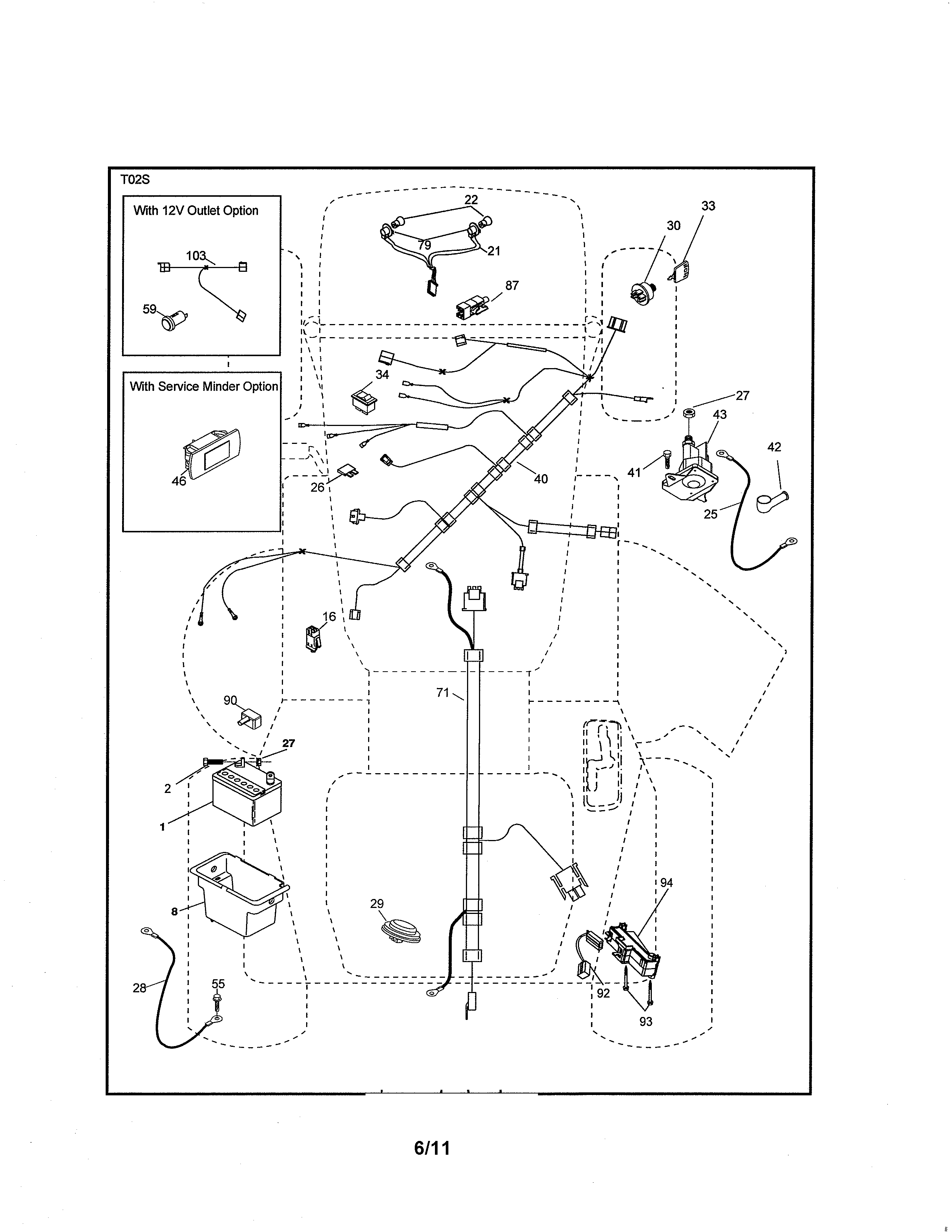

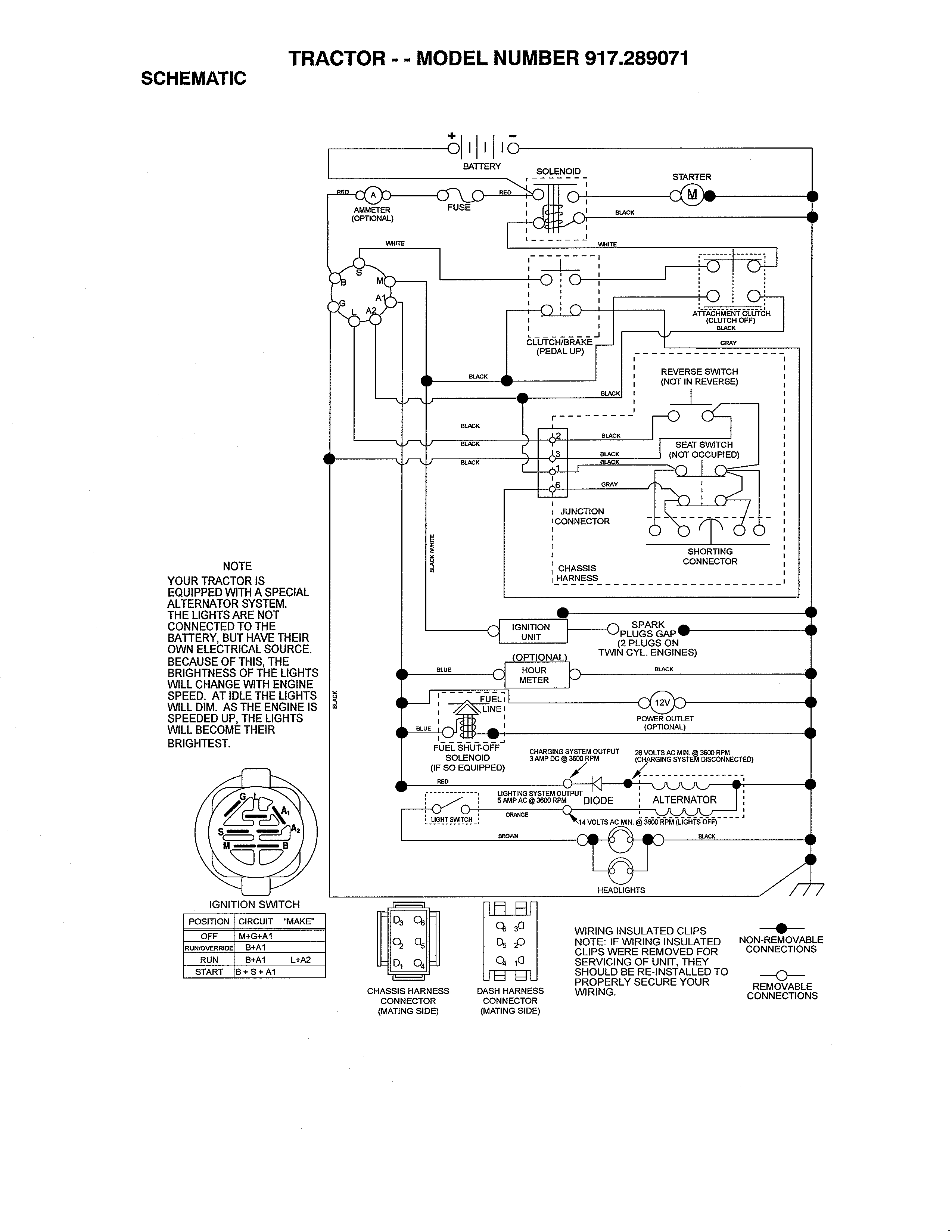

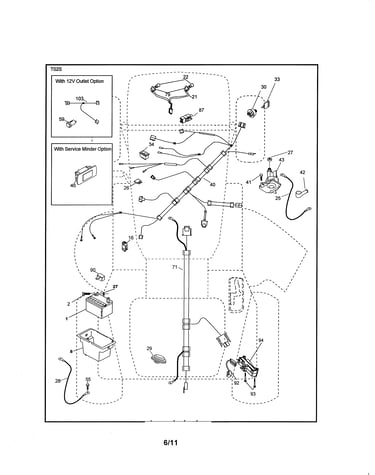

If the engine clicks but will not crank, a common electrical suspect is the starter solenoid. For this model, see the lawn tractor starter solenoid 582042802 if your troubleshooting points to a weak or failed solenoid.

Last updated: February 2026

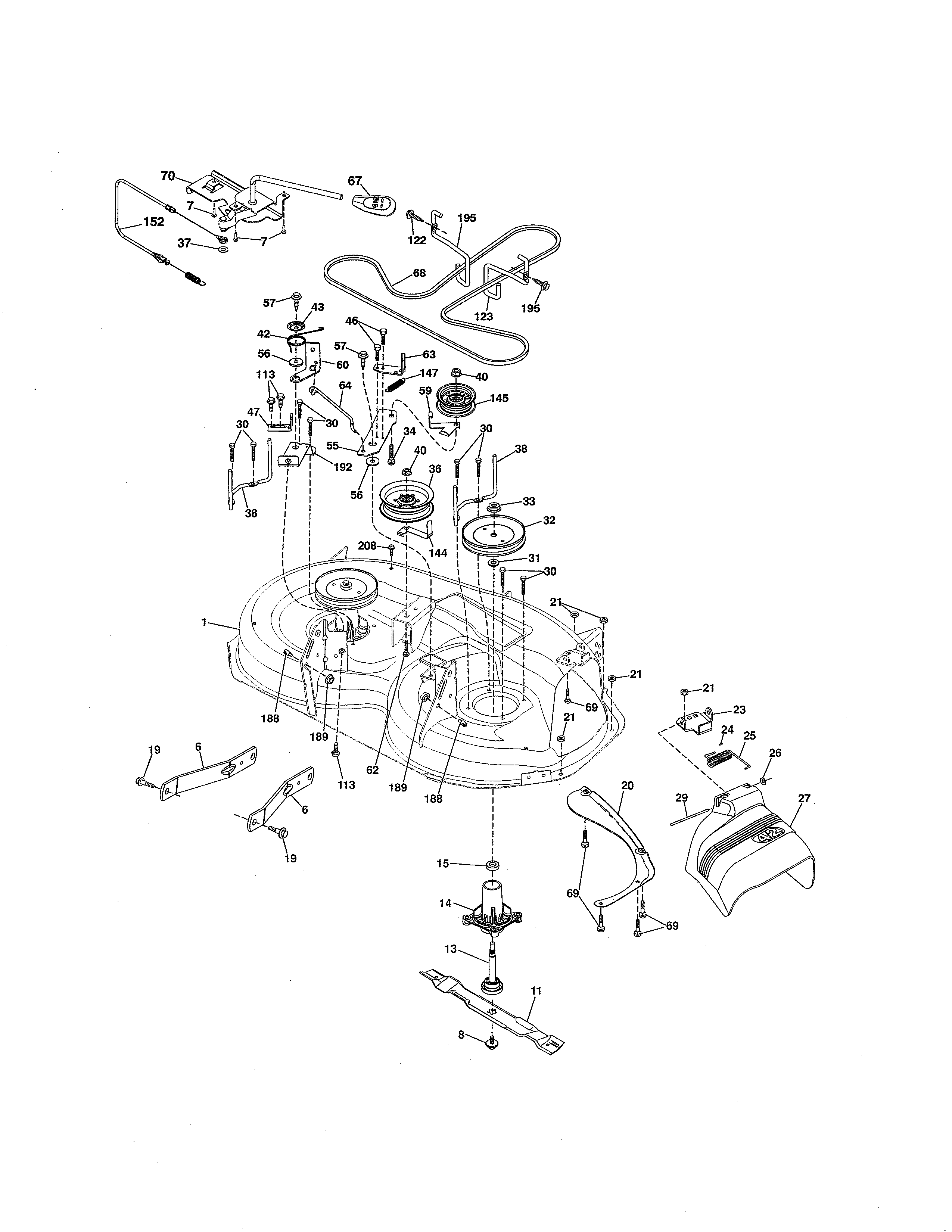

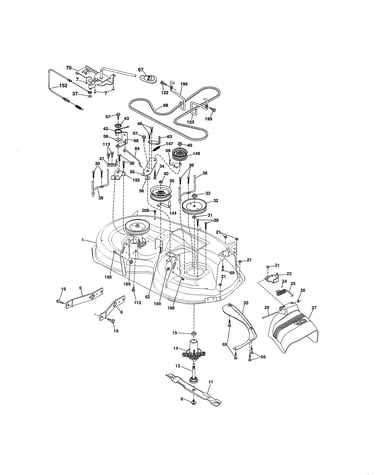

For Craftsman lawn tractor model 917289071, the correct belt size depends on which belt you mean (mower deck belt vs ground drive belt). Your manual confirms a 42-inch mower deck, and the ground drive belt for this model is commonly listed as 1/2 x 97-1/2 inches; use the 917289071 owner's manual to match the belt to the exact routing and application.

Most owners are asking about one of these:

• Mower deck belt: drives the 42-inch cutting deck blades

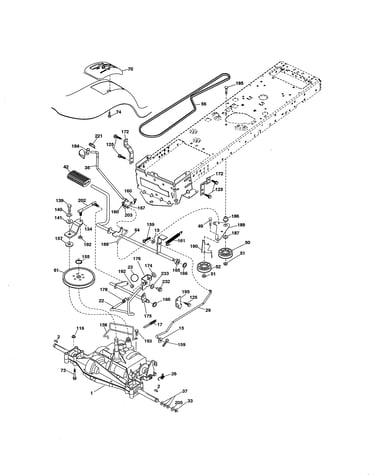

• Ground drive belt: drives the tractor forward and reverse

• If the blades will not spin or the deck squeals: you likely need the deck belt.
• If the tractor will not move (but the engine runs): you likely need the ground drive belt.

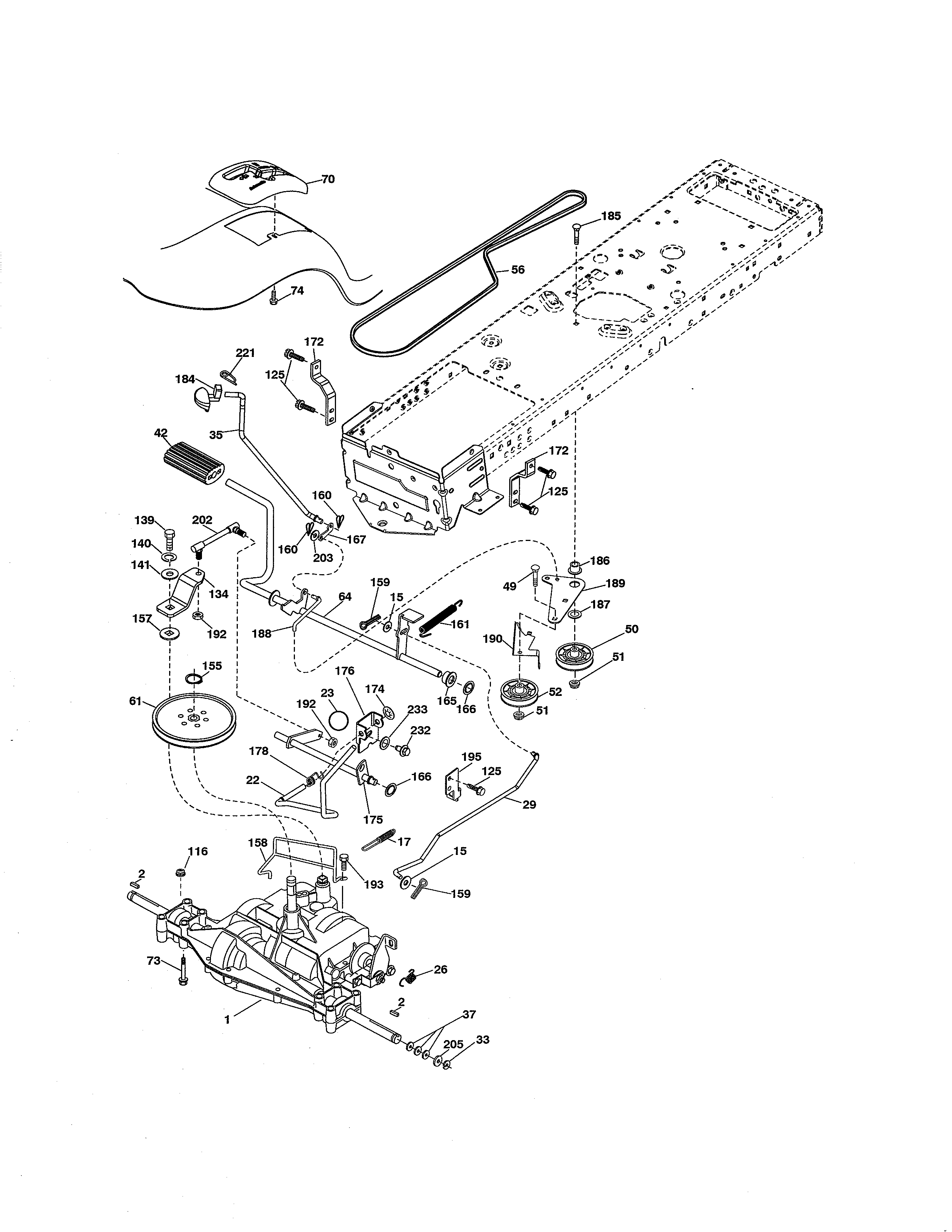

The documentation excerpt confirms this tractor uses a 42-inch mower deck, but it does not list the deck belt length in the provided pages. For the drive system, this model’s parts list includes a ground drive belt specified as 1/2 x 97-1/2 inches.

• Use the 917289071 owner's manual to confirm belt routing and which belt you are replacing.
• Compare your old belt markings (often printed on the belt) to the replacement listing.
• Inspect idler pulleys and keepers while the belt is off; a bent keeper can throw a new belt.
• If the tractor will not move, inspect the drive belt path and idler action; replace worn pulleys if needed.
• If you are servicing the deck, check blade hardware torque specs after reassembly.

If you are chasing belt slip, vibration, or uneven cutting, deck hardware can be part of the problem:

• A worn mandrel can cause wobble and repeated belt problems; see lawn tractor mandrel housing 587819701.

Using the wrong belt length or profile can cause repeated belt throw-off, poor blade speed, and premature wear on idler pulleys and mandrel bearings. Matching the belt to the 917289071 routing and deck configuration prevents most repeat failures.

Last updated: February 2026

Craftsman push mower engines are commonly supplied by Briggs & Stratton, Kohler, or Honda, depending on the specific mower. For Craftsman riding tractor model 917289071, the operator documentation covers the engine operation and maintenance requirements; confirm the exact engine maker by checking the engine ID label and the 917289071 owner's manual.

Use the engine itself as the source of truth; the engine brand and model code determine the correct tune-up parts.

• Check the recoil starter housing or valve cover for a Briggs & Stratton, Kohler, Honda, or Kawasaki logo.
• Locate the engine ID label (often on the blower housing, valve cover, or near the spark plug).
• Write down the engine model and type code; use those numbers when ordering engine parts.
• Compare the equipment model tag (Craftsman model number) to ensure you are matching the correct mower or tractor.
• If the label is dirty or faded, clean it and use a flashlight; stamped numbers are usually easiest to read.

Craftsman uses different engine suppliers across product lines and model years.

Engine parts (air filter, spark plug, carburetor parts, starter components) are matched to the engine model, not just the Craftsman name. Identifying the engine maker first prevents ordering the wrong maintenance parts.

Last updated: February 2026
