On Whirlpool model WRF535SWHZ04, you adjust the front leveling legs by removing the base grille and turning the two leveling screws with a 1/4-inch hex driver. Turn the screws clockwise to raise the front and help the doors close more easily; adjust both sides evenly, then fine-tune for door alignment.

Steps to level the refrigerator (WRF535SWHZ04)

Use the procedure in the WRF535SWHZ04 refrigerator user manual.

• Unplug the refrigerator if you’ll be working near wiring or moving it.

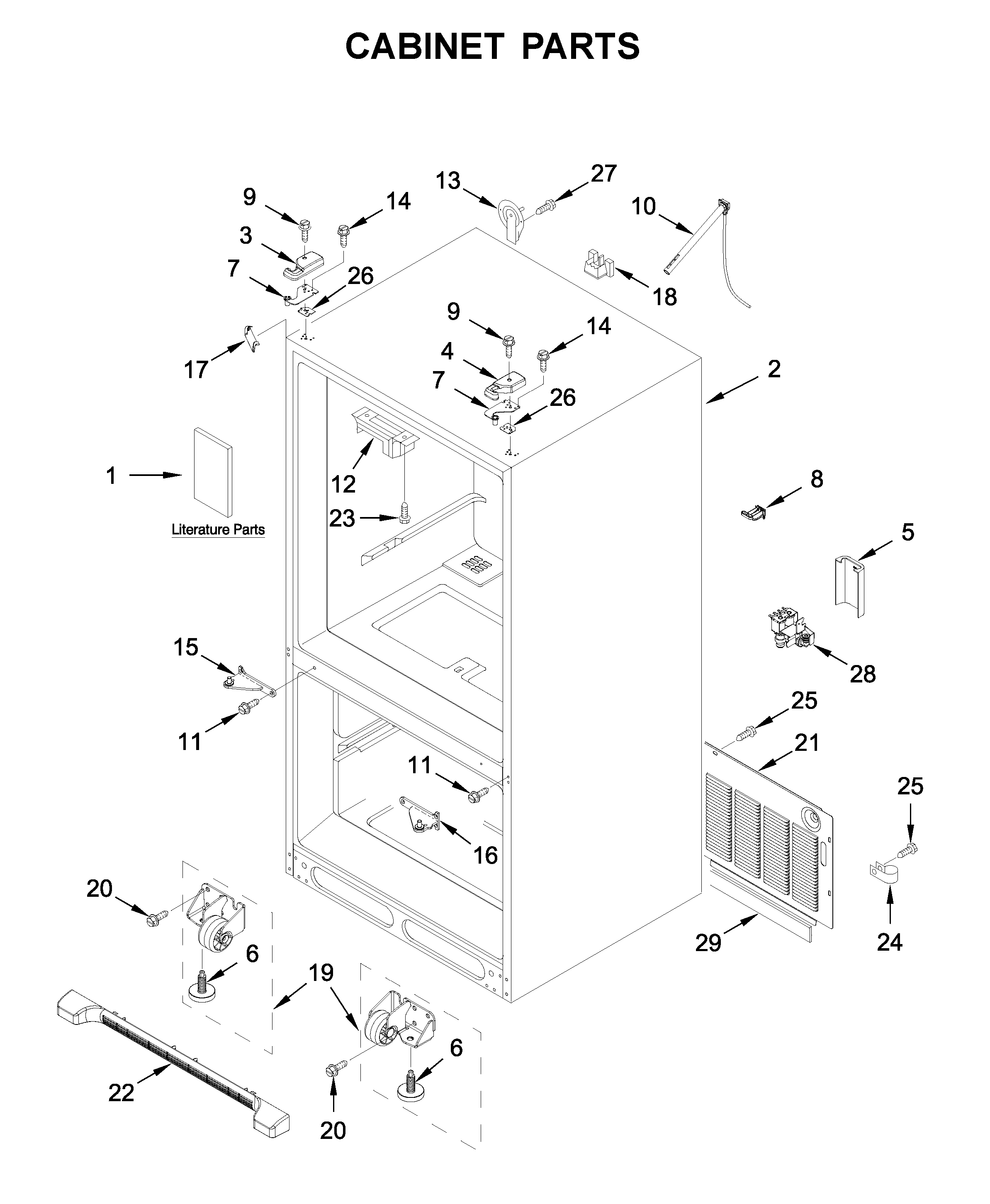

• Remove the base grille (it’s held by two screws on this model).
• Roll the refrigerator into position; if needed, turn leveling screws counterclockwise to lift the feet off the floor so it rolls easier.
• Turn both leveling screws clockwise to raise the front and create a slight rearward tilt.
• Check door closing; add a bit more tilt if doors do not self-close smoothly.
• If one door sits lower, raise the leveling screw on the lower side until doors align.
• Finish by turning each leveling screw clockwise until the leveling feet are firmly on the floor and the unit feels steady.

Quick reference: which way to turn?

Goal	What to turn	Direction
Raise front / improve door closing	Leveling screws	Clockwise
Lower front / make it roll easier	Leveling screws	Counterclockwise
Raise one side to align doors	Leveling screw on low side	Clockwise

If the refrigerator still wobbles or rolls forward

• Confirm both leveling feet are firmly contacting the floor.
• Make sure the refrigerator is not sitting on a soft mat or uneven tile edge.
• Recheck that both leveling screws were turned the same amount before fine-tuning one side.
• Inspect the base grille area for anything preventing the feet from reaching the floor.

Why it matters

Proper leveling helps the doors seal consistently, reduces vibration and noise, and prevents the refrigerator from rolling when you open the doors or freezer drawer.

Last updated: January 2026

On the Whirlpool WRF535SWHZ04, we typically fix a misaligned door by removing the base grille and adjusting the front leveling screws with a 1/4-inch hex driver until both doors line up and close smoothly. The model’s procedure is outlined in the WRF535SWHZ04 user manual.

Quick steps (WRF535SWHZ04)

• Remove the base grille (it covers the leveling screws and front rollers).
• Use a 1/4-inch hex driver to turn both leveling screws clockwise to raise the front slightly (helps doors close).
• If one door sits lower, turn the leveling screw on the lower side clockwise to raise that side until the doors align.
• Re-check door closing and alignment after a few turns; small adjustments matter.
• When steady and aligned, reinstall the base grille.

What to check before you adjust

• Make sure the refrigerator is in its final position (leveling changes after you move it).
• Confirm shelves and door bins are fully seated and not holding the door open.
• Look for a dirty or sticky gasket that makes the door “bounce” or sit uneven.

When a part may be involved

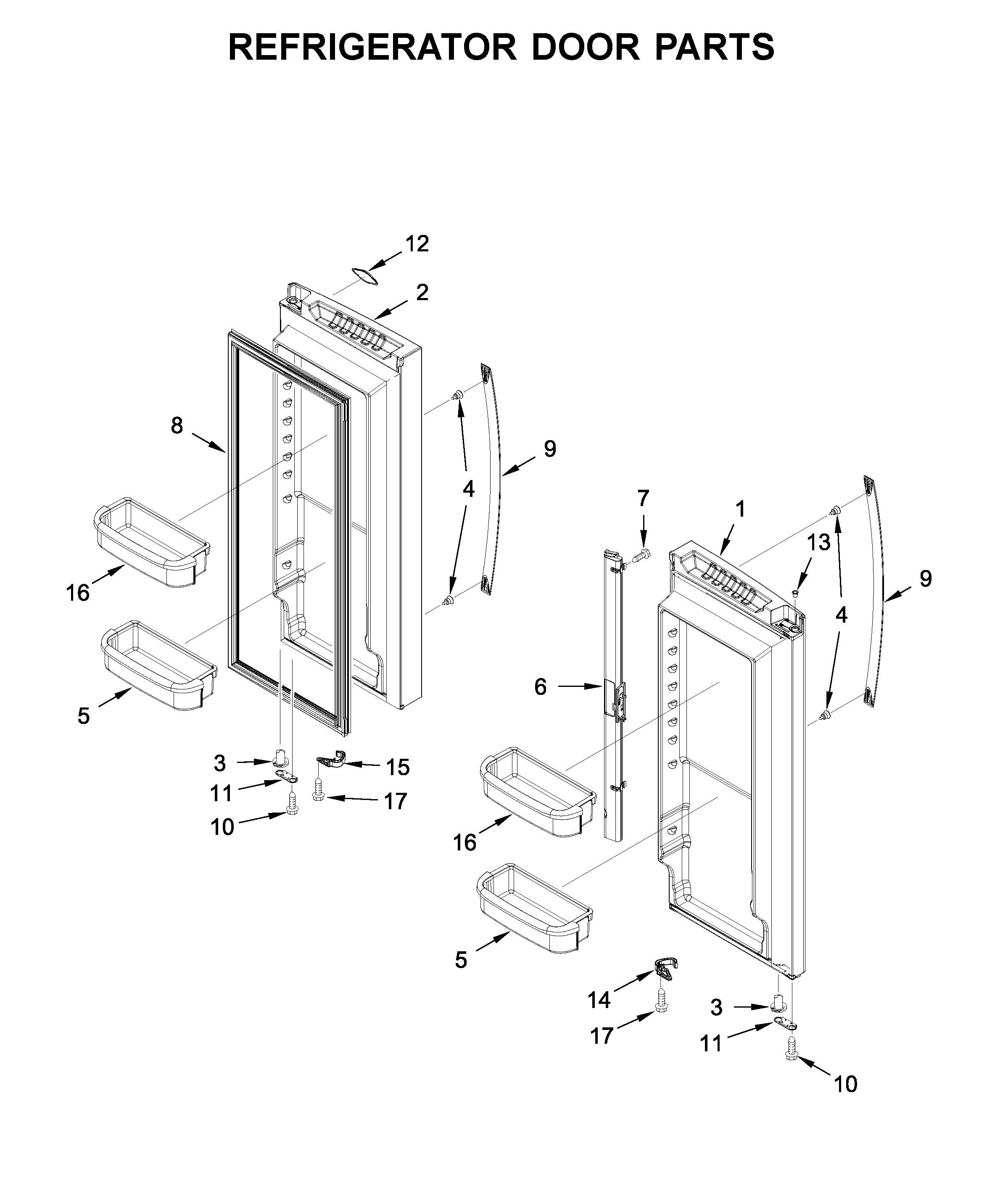

If the door still won’t align or close consistently after leveling, the door closing cam can be worn or cracked. On this model, a common related part is the refrigerator door closer cam WP12028505AP.

Symptom	Most likely fix	Typical next step
Doors uneven at the top	Leveling screws need adjustment	Raise the low side, then re-check
Door won’t stay closed	Not enough forward tilt or worn closer cam	Increase tilt; inspect closer cam
Door feels “sticky”	Gasket needs cleaning or replacement	Clean gasket; inspect for gaps

Why it matters

Proper door alignment helps the gasket seal evenly, which reduces warm air leaks, frost buildup, and compressor run time. It also prevents the door from popping open after you close it.

Last updated: January 2026

For the Whirlpool WRF535SWHZ04, the most common issue we see is a cooling complaint (temperatures too warm, uneven temps, or the unit running a lot). In many cases, the root cause is airflow or heat-transfer related, such as dirty condenser coils, a door not sealing, or a sensor/control problem. See the WRF535SWHZ04 refrigerator user manual for model-specific troubleshooting steps.

Most common symptoms customers report

• Refrigerator section too warm but freezer seems OK
• Freezer not cold enough or ice production is slow
• Unit runs “all the time” or seems louder than expected
• Moisture or frost buildup (often tied to door sealing or airflow)
• Ice maker or water dispenser performance issues

Quick checks we recommend first (no parts swapping)

1. Confirm doors seal and close fully; check for packages blocking the door.
2. Clean the condenser area (dust and pet hair can raise temps and run time).
3. Verify controls are set correctly and allow 24 hours after changes.
4. Check vents inside the refrigerator and freezer; do not block airflow.
5. If you have a water filter, replace it on schedule (reduced flow can affect ice and water).

Parts that commonly relate to “not cooling” complaints

If basic checks do not help, these model-compatible parts are often involved in temperature problems:

Symptom	Common suspect	Example model-compatible part
Temps fluctuate or read incorrectly	Temperature sensor (thermistor)	Refrigerator thermistor W10316760
Random warm periods, odd behavior	Main control	Refrigerator electronic control board WPW10503278
Warm air leaks, moisture, frost	Door seal	Whirlpool refrigerator door gasket (gray) W10443320

Why it matters

Cooling problems can lead to food spoilage, excess frost, and higher energy use. Starting with cleaning, door sealing, and control settings helps you avoid unnecessary parts replacement and gets the WRF535SWHZ04 back to stable temperatures faster.

Last updated: January 2026

If your Whirlpool WRF535SWHZ04 refrigerator is leaking from the bottom, the most common causes are a clogged or frozen defrost drain, a small leak in the water supply system (ice maker or dispenser), or the cabinet not being leveled so water spills forward. Use the WRF535SWHZ04 refrigerator user manual to confirm leveling and door alignment steps.

Quick checks we recommend first

• Note when it leaks: after dispensing water, after the ice maker runs, or randomly.
• Look for a sheet of ice on the freezer floor (often points to a defrost drain issue).
• Check for water tracks at the back lower area near the water line connection.
• Make sure doors close fully; poor sealing can increase frost and defrost water.
• Verify the cabinet is slightly tilted back so doors self-close.

Most likely causes and what to do

1) Defrost drain is clogged or frozen

During defrost, meltwater should flow through a drain to a pan. If the drain backs up, water can overflow and show up as a bottom leak.

• Unplug the refrigerator.
• Remove the freezer drawer/bins and inspect for ice or standing water.
• Melt ice with warm air (hair dryer on low) and flush the drain with warm water.
• If you suspect the external drain tube is restricted or not routing water correctly, inspect and replace the extension-dr W10619951 if needed.

2) Water supply leak (ice maker or dispenser)

A slow drip at the rear can run forward and look like a “bottom leak.”

• Inspect the household supply line and fittings for seepage.
• Check the inlet valve area for moisture or mineral deposits.
• If the valve is leaking or not closing fully, replace the refrigerator water inlet valve assembly WPW10420083.

3) Refrigerator not level

If the cabinet leans forward, water can spill toward the front and doors may not seal consistently.

What you see	Most likely cause	First place to check
Ice on freezer floor, leak after defrost	Defrost drain issue	Freezer bottom and drain opening
Leak after using dispenser/ice	Water line or inlet valve	Rear lower cabinet
Small puddle at front	Leveling/tilt issue	Front leveling screws

Why it matters

Bottom leaks can damage flooring and often return until the drain path is clear, the water inlet valve stops seeping, and the refrigerator is leveled correctly.
