On the Maytag MDB8959SAS0 dishwasher, the F9 E1 error points to a drain problem. We fix it by restoring proper water flow out of the tub: clear the drain path (filter area, hose, and disposer/air gap connection), then confirm the drain hose is routed and clamped correctly per the MDB8959SAS0 installation guide.

What to do first (fast checks)

• Cancel the cycle and let the unit attempt to drain.
• Turn off power at the breaker before accessing wiring or pumps.
• Remove standing water (cup or wet vac) so you can see the sump area.
• Check the sink/disposer inlet where the dishwasher drain connects; clear any blockage.
• If you have an air gap, remove the cap and clean it out.

Clear the drain hose and verify routing

A kinked hose, a clog, or a loose connection can trigger F9 E1.

• Place a towel under the hose connection to catch water.
• Detach the hose and flush it with hot water; clear debris with a small snake if needed.
• Reconnect and tighten clamps; do not overtighten.
• Confirm the drain hose sits near the center of the cabinet opening and is not pinched.

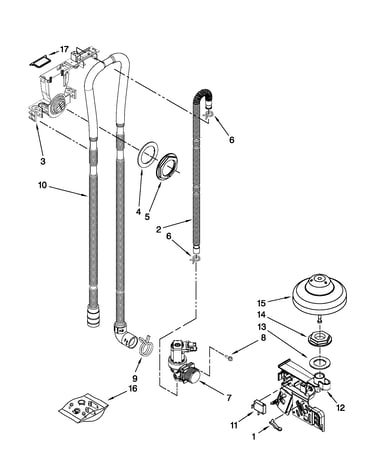

Common drain-hose related parts for this model

Symptom	What to check	Part that often fixes it
Slow drain or no drain	Split, kinked, or restricted hose	Dishwasher drain hose 8269144A or dishwasher drain hose WPW10545278
Hums but won’t pump out	Drain pump jammed or failed	Dishwasher drain pump WPW10348269

If the hose is clear: check the drain pump

If the hose and sink connection are clear but the dishwasher still will not drain, the drain pump can be blocked by glass, labels, or food debris, or it can fail electrically.

• Inspect the sump area for debris that could jam the impeller.
• Listen during drain: a loud grind or repeated humming often points to a pump issue.
• If you test electrically, follow safe practices from the MDB8959SAS0 owner’s manual.

Why it matters

A restricted drain can leave dirty water in the tub, cause poor wash results, and can lead to repeated error codes. Fixing the drain path first prevents unnecessary replacement of higher-cost parts like the sump and motor assembly.

Last updated: February 2026

Yes. Your Maytag MDB8959SAS0 dishwasher uses a filter system in the bottom of the tub that should be checked and cleaned regularly to prevent poor cleaning, odors, and drain problems. We recommend inspecting it about once a month, or sooner if you see food debris left behind.

Where the filter is and what it looks like

On most Maytag undercounter dishwashers like the MDB8959SAS0, the filter is located in the tub floor area under the lower spray arm, typically as a twist-lock cylindrical filter with a flat mesh screen.

Use the MDB8959SAS0 owner’s manual for the exact filter location and removal method for your configuration.

How to clean the dishwasher filter

• Turn off the dishwasher and let it cool if it just ran.
• Pull out the lower rack.
• Remove the lower spray arm if your design requires it.
• Twist the filter to unlock, then lift it out.
• Rinse under hot running water; use a soft brush for stuck-on debris.
• Reinstall the filter fully seated and locked before running a cycle.

If you still have debris or draining issues

A dirty filter is common, but these checks help when symptoms continue:

• Make sure the drain hose is not kinked or crushed.
• Confirm the sink/disposer connection is clear.
• Check for standing water after a cycle.
• Listen for the drain pump running during drain.
• If draining is weak, inspect the dishwasher drain pump WPW10348269 and drain path for clogs.

Quick guide: symptoms and likely causes

What you notice	Most common cause	What to do first
Grit on dishes	Filter/screen loaded with debris	Clean filter and screen
Odor in tub	Food trapped in filter area	Clean filter; run hot cycle
Standing water	Drain restriction or pump issue	Check hose, then drain pump
Cloudy glass	Low rinse aid or hard water	Fill rinse aid; use hot water

Why it matters

A clean filter keeps wash water circulating properly, reduces redepositing food particles, and helps the drain system work efficiently. It also supports better drying performance when you use rinse aid, which this dishwasher is designed to use.

Last updated: February 2026

For Maytag dishwashers like model MDB8959SAS0, the most common issues we see are poor cleaning, not draining, and leaks. Many cases come from loading and maintenance (blocked spray, dirty filter area), but failures in the water fill or drain system can also cause the same symptoms; see the MDB8959SAS0 installation guide for operational checks.

Most common symptoms and what usually causes them

• Dishes still dirty: spray arms blocked by tall items, heavy soil, low water temperature, or restricted circulation.
• Water left in the tub: drain path restriction, kinked hose, or a weak drain pump.
• Leaks: loose hose connections, door sealing issues, or an inlet valve that does not close cleanly.
• Won’t start or stops early: door not fully latched, power issue, or cycle not set correctly.

Quick checks we recommend first (fast, no parts)

• Confirm the door closes tightly and latches.
• Verify the water supply is turned on.
• Start a cycle and after about 2 minutes, open the door and confirm there is water in the bottom of the tub.
• Check for a kinked or poorly routed drain hose and make sure connections are snug (do not overtighten).
• Re-load so spray arms can rotate freely; avoid blocking the detergent dispenser.

Parts that commonly fix draining or filling problems

If the quick checks point to a fill or drain failure, these model-compatible parts are common fixes:

Problem you notice	Part to suspect	What it does
Standing water after cycle	Dishwasher drain pump WPW10348269	Pushes water out to the drain line
Slow fill, no fill, or intermittent fill	Dishwasher water inlet valve W11175771	Opens to let water into the dishwasher
Leaks at the drain connection or routing issues	Dishwasher drain hose 8269144A	Carries drain water to the sink/disposer

Why it matters

Poor cleaning, draining, and leaking often share the same root cause: water flow. When the dishwasher cannot fill, circulate, or drain correctly, performance drops quickly and small issues (like a kinked hose or blocked spray) turn into repeat problems.

Last updated: February 2026

A Maytag dishwasher like model MDB8959SAS0 is built around a water-fill system, wash and drain pumping system, heating and sensing components, and door and rack hardware. These parts work together to bring in water, spray it through the racks, heat it as needed, then drain it out.

Main dishwasher systems and common parts

• Water fill: water inlet valve, supply line connection
• Washing: sump, circulation pump and motor, spray arms, filtration area
• Heating and drying: heating element
• Draining: drain pump, drain hose
• Sensing and control: turbidity sensor, electronic control, control panel
• Door and racks: door latch, door balance link, racks, rack wheels, rail stops, seals and gaskets

Parts you will commonly replace on MDB8959SAS0

These are some model-matched parts we see customers replace most often:

• Dishwasher water inlet valve W11175771
• Dishwasher drain pump WPW10348269
• Dishwasher heater W10703867
• Dishwasher turbidity sensor WPW10705575
• Dishwasher door latch W10619006

Quick “what it does” guide

Part	What it does	Common symptom when it fails
Water inlet valve	Lets water into the tub at the start of a cycle	No fill, weak fill, humming during fill
Sump and motor assembly	Moves wash water through the spray system	Poor cleaning, loud grinding, no wash action
Drain pump / drain hose	Pushes dirty water out to the sink drain	Standing water, slow drain
Heater	Warms water and supports drying	Poor drying, cool water, long cycles
Door latch / balance link	Keeps door closed and properly tensioned	Won’t start, door won’t stay shut

Why it matters

Knowing which system a symptom belongs to helps you choose the right repair. For example, a “won’t drain” complaint usually points to the drain path (pump, hose, or installation routing), while “won’t fill” points to the inlet valve and water supply.

Where to confirm part locations and access

For diagrams, safety steps, and component access points specific to MDB8959SAS0, use the MDB8959SAS0 installation guide.

Last updated: February 2026
