Model #DE482 Maytag washer/dryer

Here are the diagrams and repair parts for Maytag DE482 washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

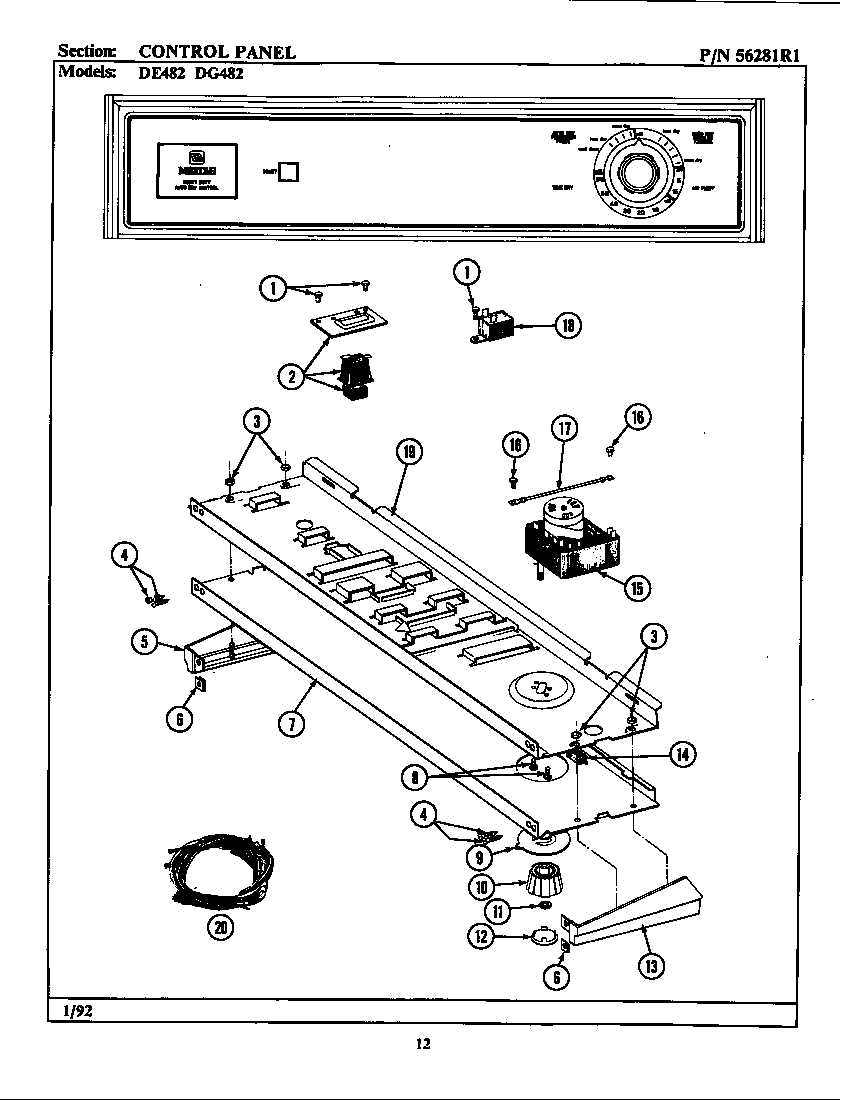

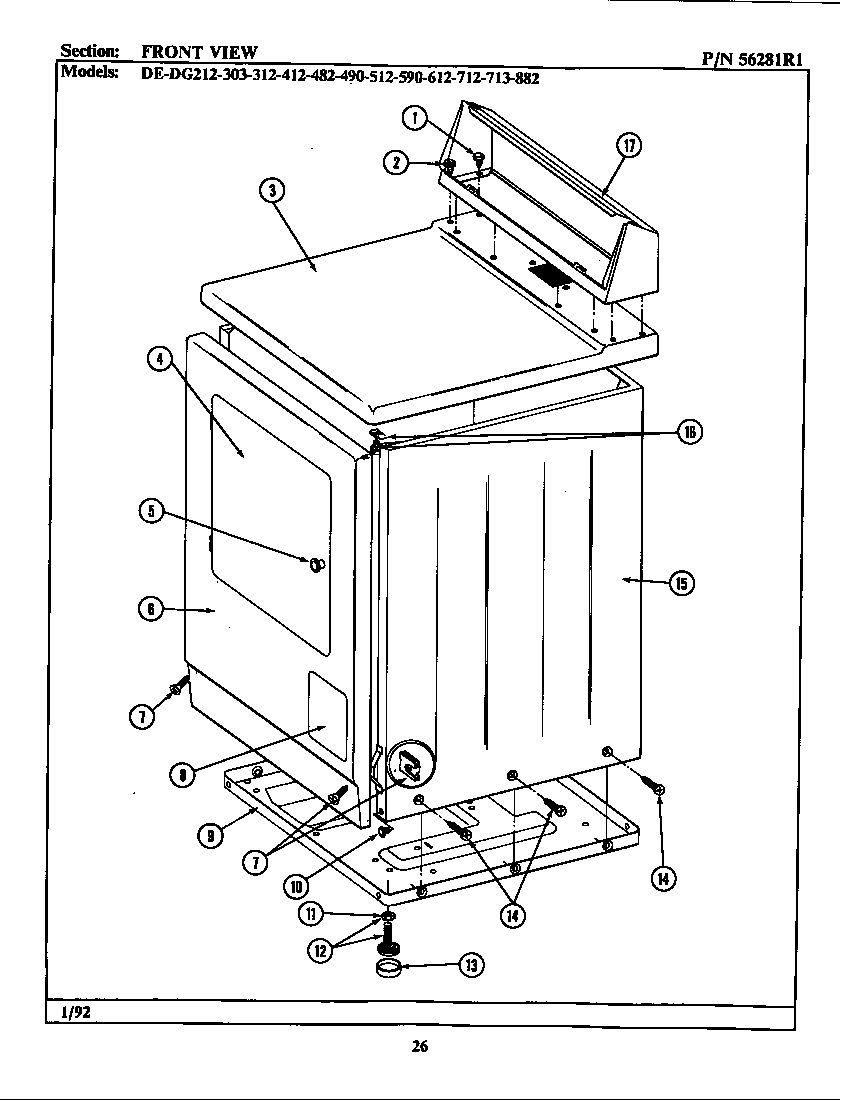

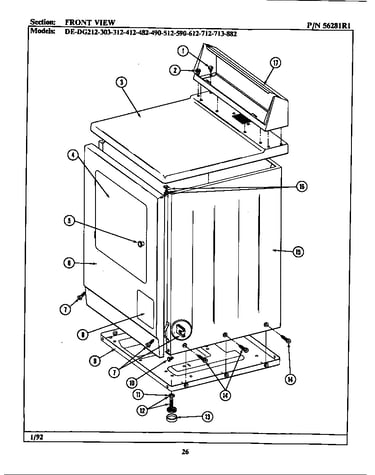

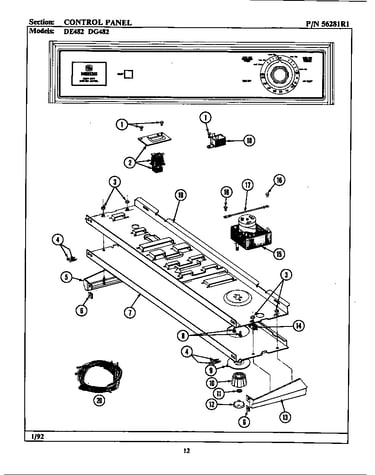

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 163 parts

    Dryer Drum Support Roller

    See All Related Diagrams

    Roller w/bea

    Part #303373
    Replaced by #12001541
    ?
    Manufacturer substitution
    This part replaces 303373. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $23.39 |
    19% OFF
    MSRP: $29.00
    Refrigerator Screw#6

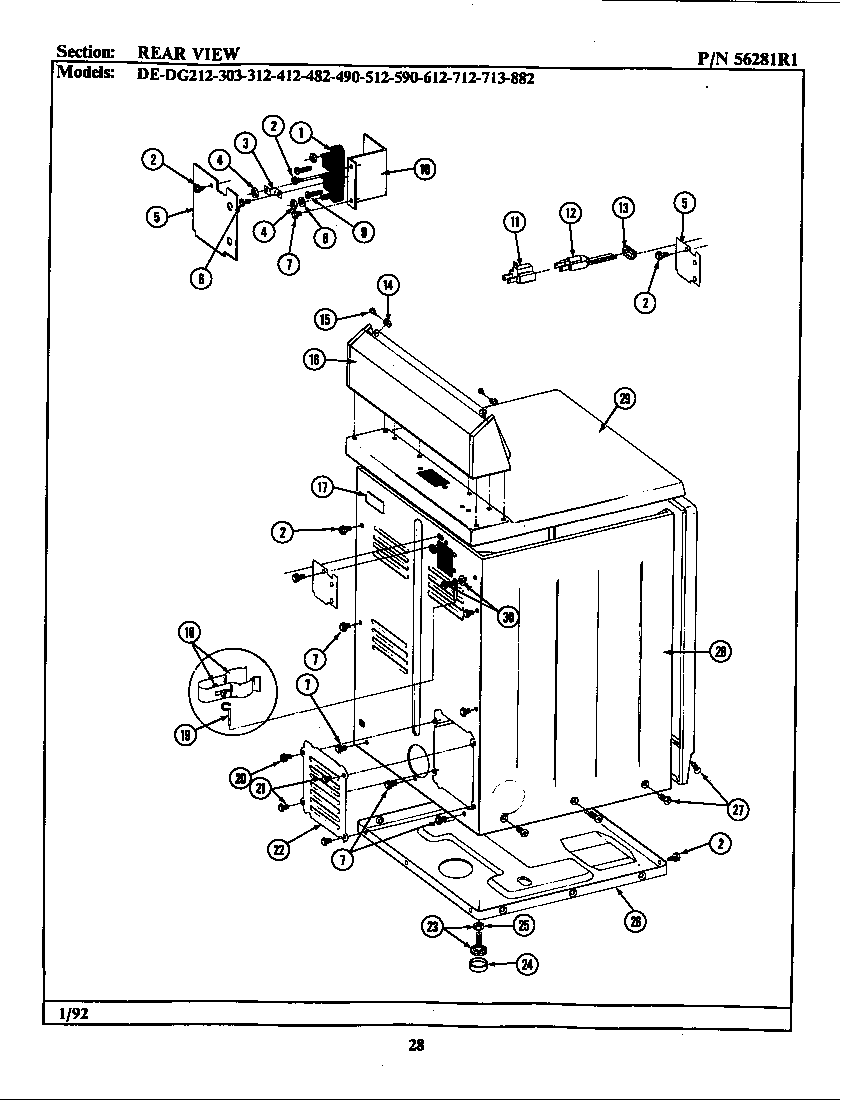

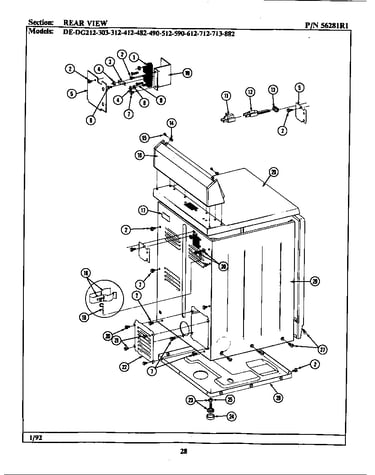

    Rear view Diagram

    Screw, #10-3

    Part #311423
    Replaced by #WP489483
    ?
    Manufacturer substitution
    This part replaces 311423. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Dryer Blower Wheel#4

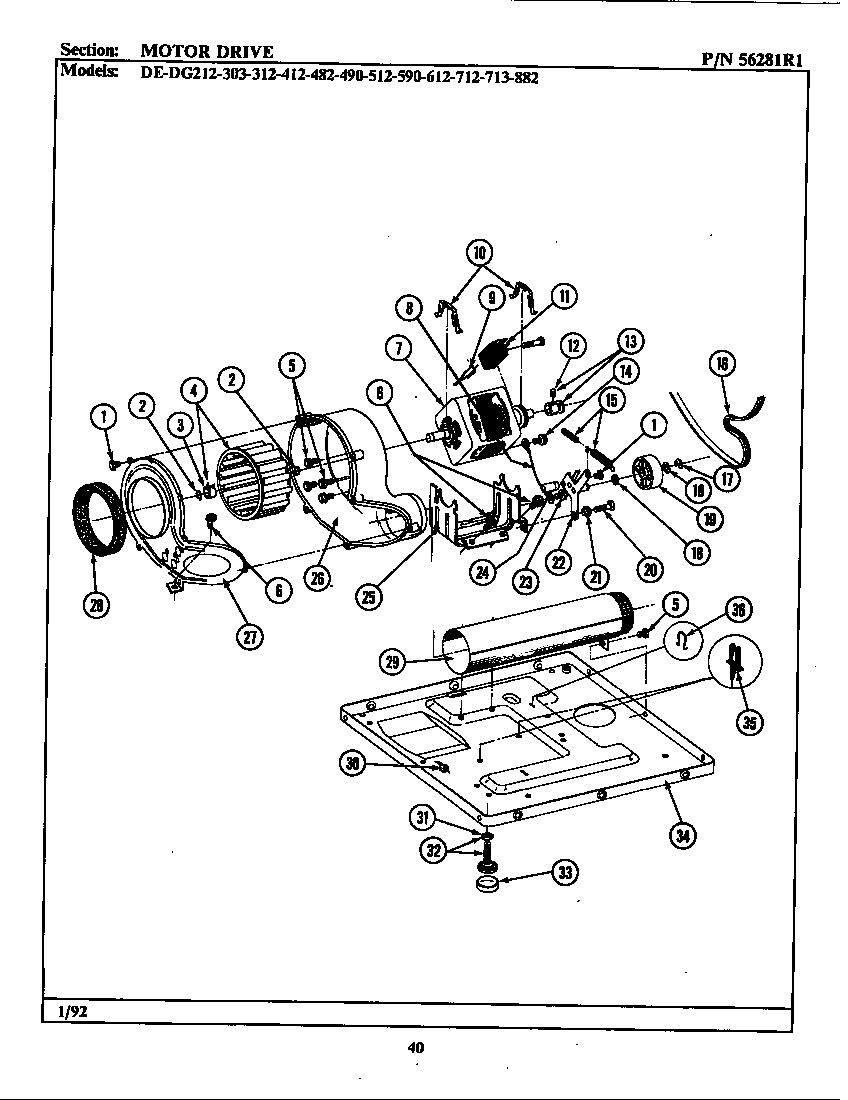

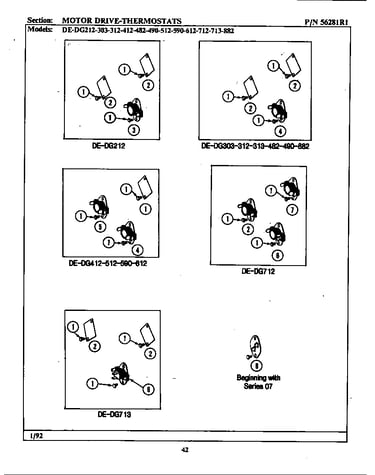

    Motor drive Diagram

    Impeller

    Part #303836
    Replaced by #Y303836
    ?
    Manufacturer substitution
    This part replaces 303836. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $22.39 |
    18% OFF
    Phone Price: $27.39
    Dryer Drum Bearing Kit

    See All Related Diagrams

    Dryer drum bearing kit

    Part #306508
    BEST SELLER
    This item is not returnable
    In Stock
    $14.89 |
    29% OFF
    MSRP: $21.00
    Dryer Drum Support Roller Shaft

    See All Related Diagrams

    Tumbler shaft

    Part #312948
    Replaced by #WP6-3129480
    ?
    Manufacturer substitution
    This part replaces 312948. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $6.39 |
    20% OFF
    Was: $7.99
    Laundry Center Dryer Lint Screen#14

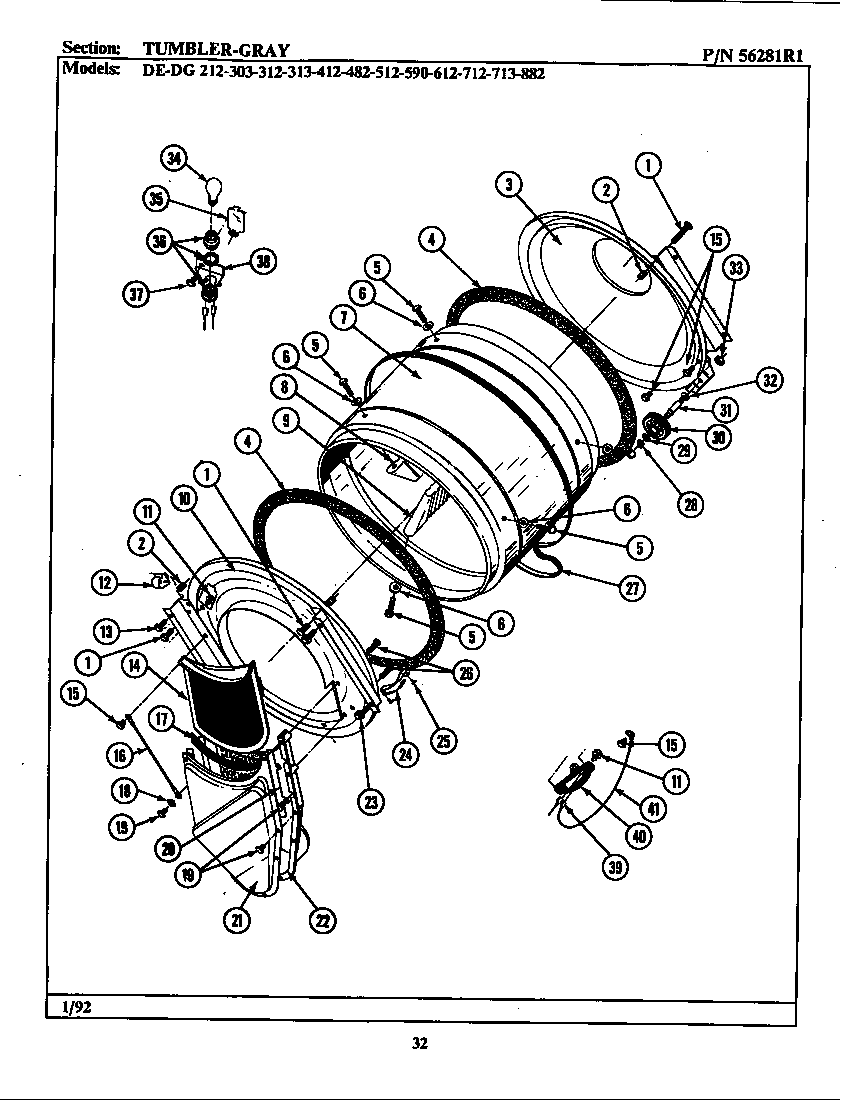

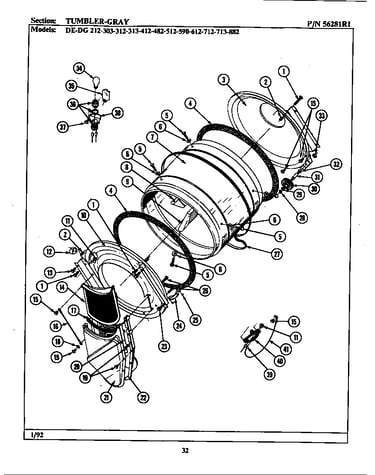

    Tumbler-gray Diagram

    Lint screen

    Part #304388
    Replaced by #WP33001003
    ?
    Manufacturer substitution
    This part replaces 304388. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $12.79 |
    42% OFF
    MSRP: $22.00
    Laundry Center Dryer Lint Screen#14

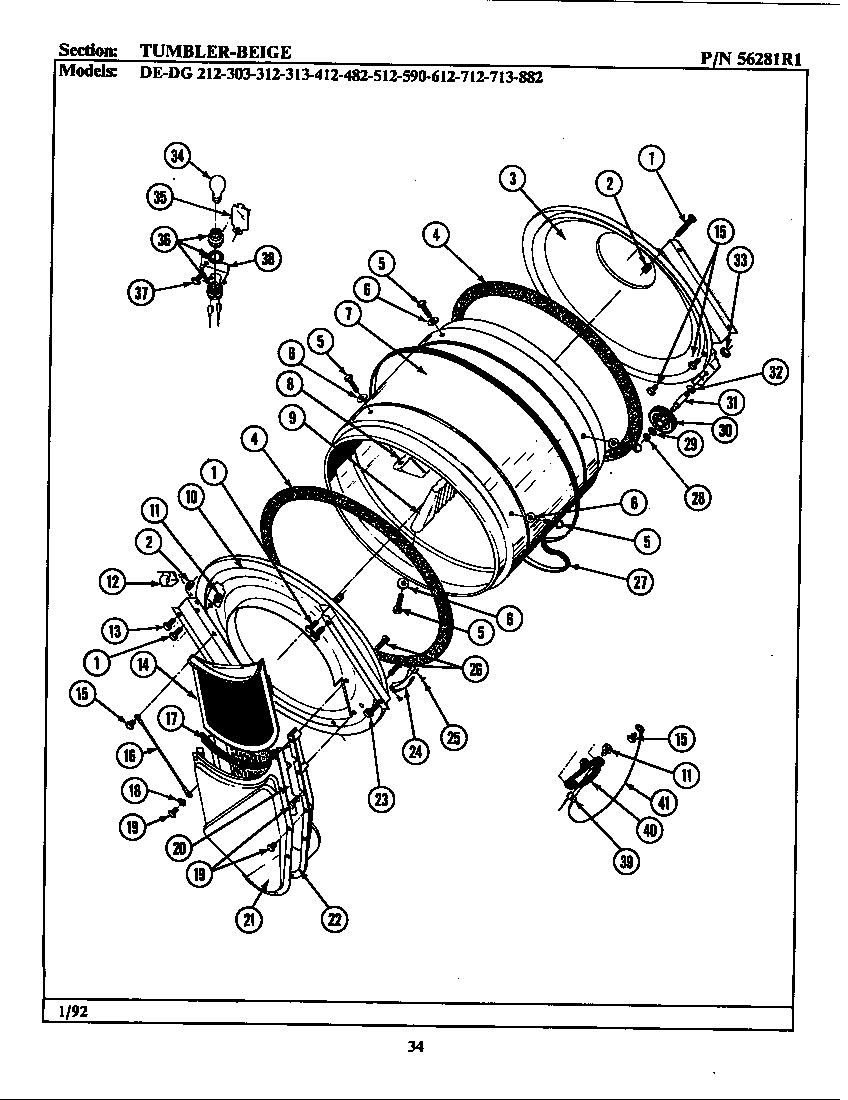

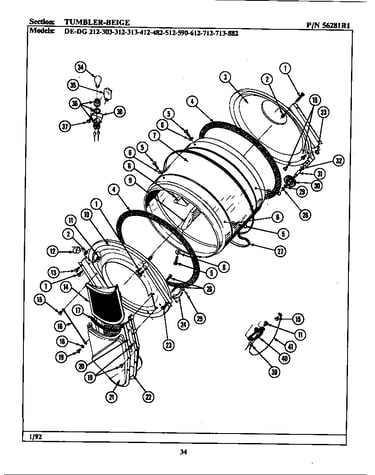

    Tumbler-beige Diagram

    Lint screen

    Part #306666
    Replaced by #WP33001003
    ?
    Manufacturer substitution
    This part replaces 306666. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $12.79 |
    42% OFF
    MSRP: $22.00
    Dryer Drum Support Roller Retainer

    See All Related Diagrams

    Dryer drum support roller retainer

    Part #410233
    Replaced by #WP9703438
    ?
    Manufacturer substitution
    This part replaces 410233. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $3.79 |
    21% OFF
    Phone Price: $4.79
    Dryer High-Limit Thermostat#3

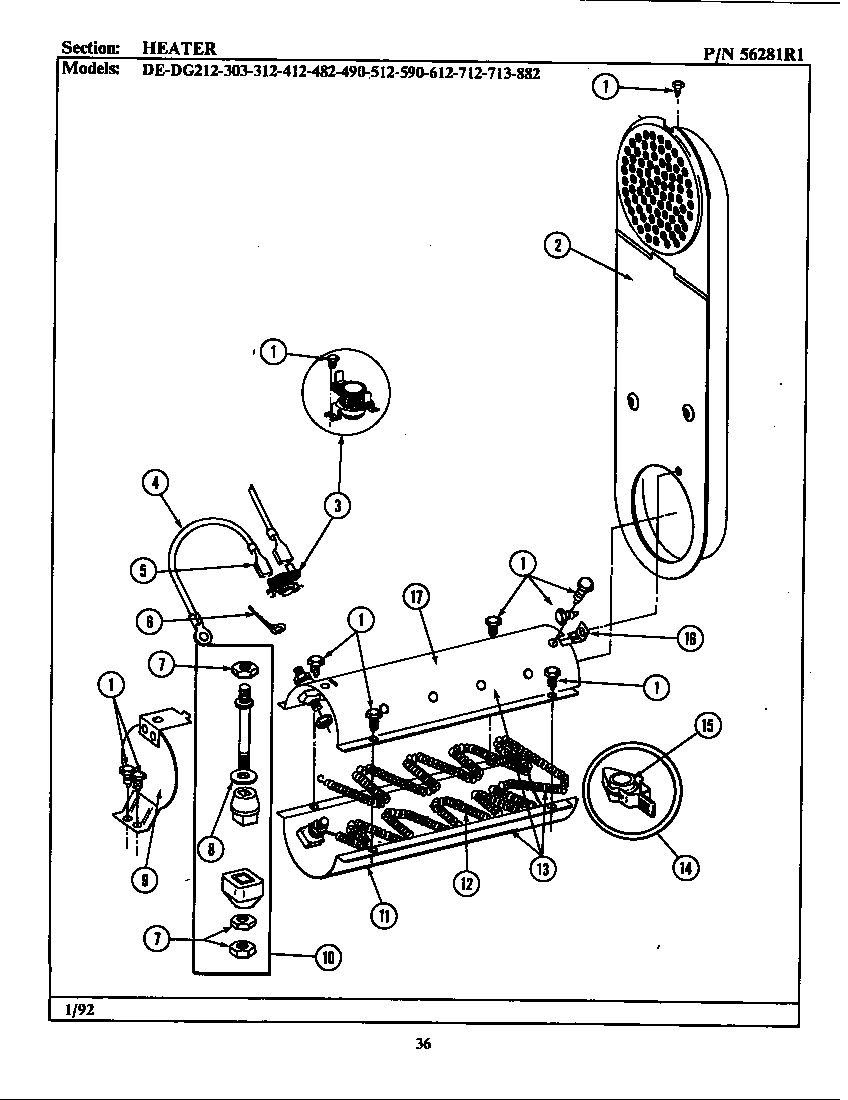

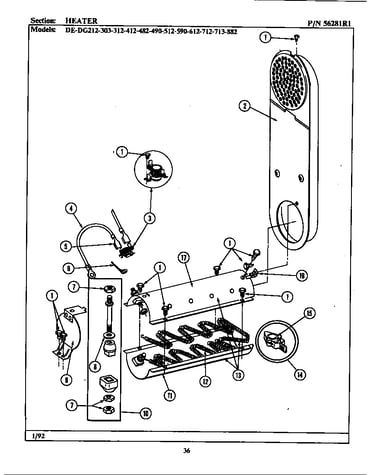

    Heater Diagram

    Dryer high-limit thermostat

    Part #303396
    Replaced by #WP303396
    ?
    Manufacturer substitution
    This part replaces 303396. Substitute parts can look different from the original.
    In Stock
    $27.99 |
    30% OFF
    MSRP: $40.00
    Dryer Door Switch#9

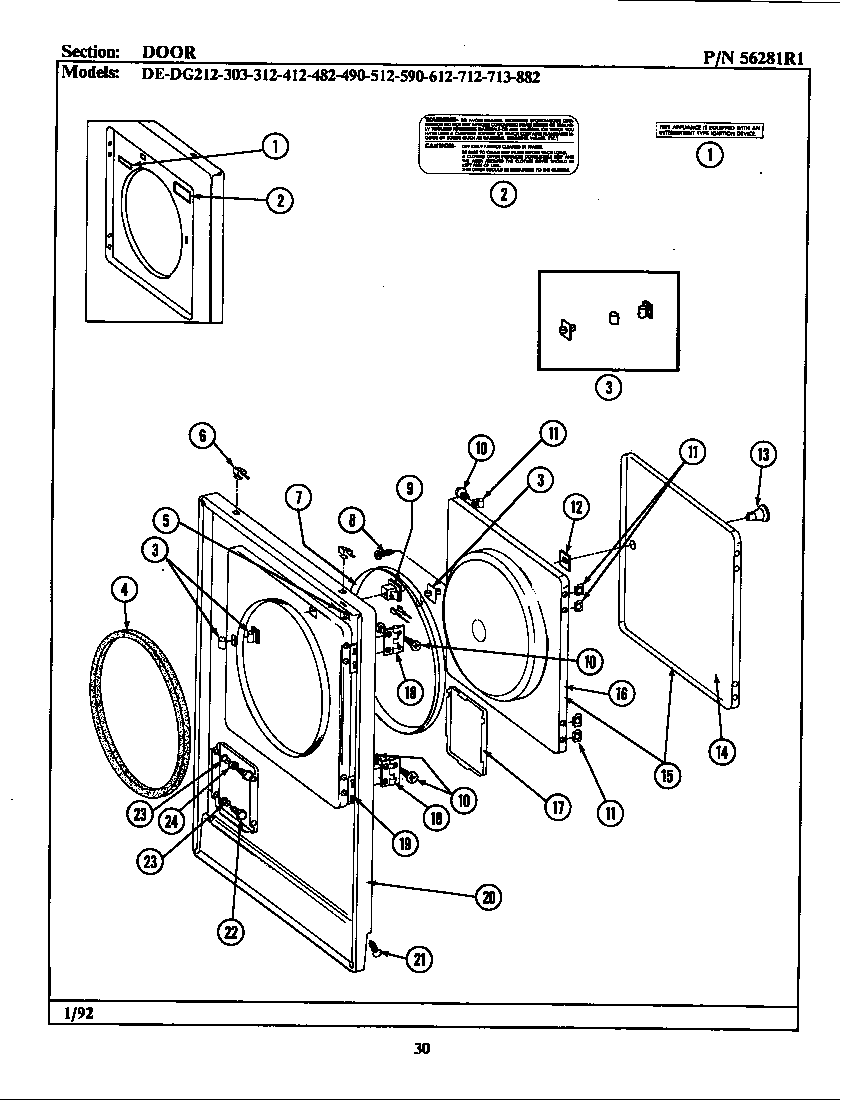

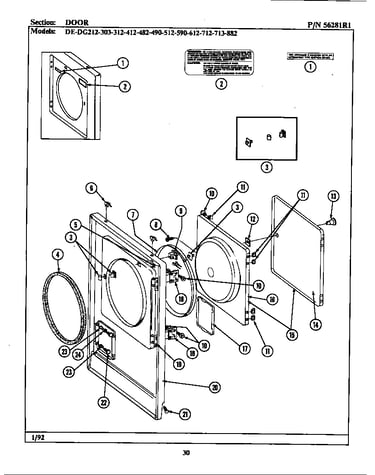

    Door Diagram

    Door switch

    Part #305753
    Replaced by #W10169313
    ?
    Manufacturer substitution
    This part replaces 305753. Substitute parts can look different from the original.
    In Stock
    $18.09 |
    10% OFF
    Phone Price: $20.09
