Craftsman 917270771 lawn tractor Parts

Yes, many Craftsman mowers and lawn tractors use Briggs & Stratton engines, and Craftsman model 917270771 specifically lists a Briggs & Stratton engine model 42E707 (type 2631-E1) in the parts and repair sections of the 917270771 owner's manual.

When your Craftsman 917270771 has a Briggs & Stratton engine, engine-related maintenance and repair parts are typically identified by the Briggs engine model and type number (not just the tractor model number).

Common engine service items you will match by engine model/type include:

• Air filter and pre-cleaner
• Spark plug and ignition parts
• Fuel filter and fuel line fittings
• Carburetor kits and gaskets
• Starter and charging system components

Use these identifiers together to avoid ordering the wrong engine part:

• Tractor model: 917270771
• Engine brand: Briggs & Stratton
• Engine model: 42E707
• Engine type: 2631-E1

If you are working on the cutting system, a common deck-related replacement is the husqvarna lawn tractor mandrel assembly 532130794.

Briggs & Stratton built multiple versions of similar engines; the model and type number determine the exact carburetor, gasket set, and ignition parts that fit. Using the correct identifiers saves time and prevents repeat repairs.

Last updated: January 2026

The Craftsman lawn tractor model 917270771 typically takes about 2 quarts (64 oz) of engine oil when you do an oil change and then top off to the full mark on the dipstick. For the exact fill amount for your Briggs and Stratton engine (42E707, type 2631-E1), use the specs in the 917270771 owner’s manual.

• Park on level ground and set the parking brake.
• Warm the engine 2 to 3 minutes, then shut it off and let it sit 1 minute.
• Drain oil completely; replace the drain plug/valve securely.
• Add about 1.5 quarts, wait 30 seconds, then check the dipstick.
• Add oil in small amounts until it reaches the FULL mark.
• Do not overfill; stop exactly at the full line.

Correct oil level protects the crankshaft, piston rings, and valve train. Low oil causes rapid wear; overfilling can make the engine smoke, leak, or run poorly.

• Use the viscosity listed in the manual for your temperature range.
• Check oil before each mow during heavy use.
• If the tractor starts smoking after an oil change, recheck for overfill.

Last updated: January 2026

For Craftsman lawn tractor model 917270771, the owner’s manual lists a 19.0 horsepower gas engine (electric start) and a 6-speed transaxle drive system. For the exact engine manufacturer and model family, match the engine shroud label to the specs in the 917270771 owner's manual.

From the product specifications section, this tractor is set up as a gasoline-powered riding mower with these key engine-related specs:

• Horsepower: 19.0 HP
• Fuel type: Unleaded regular gasoline
• Fuel capacity: 3.5 gallons
• Oil type: SAE 30 (above 32°F) or SAE 5W-30 (below 32°F)
• Spark plug: Champion RJ19LM (or equivalent), 0.030 in gap

Craftsman tractors can be equipped with engines from different manufacturers across production runs. The fastest way to identify yours is to read the engine ID label.

• Lift the hood and look for a sticker or metal tag on the engine shroud
• Record the engine model, type, and code (or spec number)
• Compare those numbers to the engine section in the 917270771 owner's manual
• Use the engine ID when ordering tune-up parts (spark plug, air filter, oil filter)

Knowing the exact engine identification prevents wrong-part orders and speeds up troubleshooting for common issues like hard starting, backfiring, or poor performance during mowing.

Last updated: January 2026

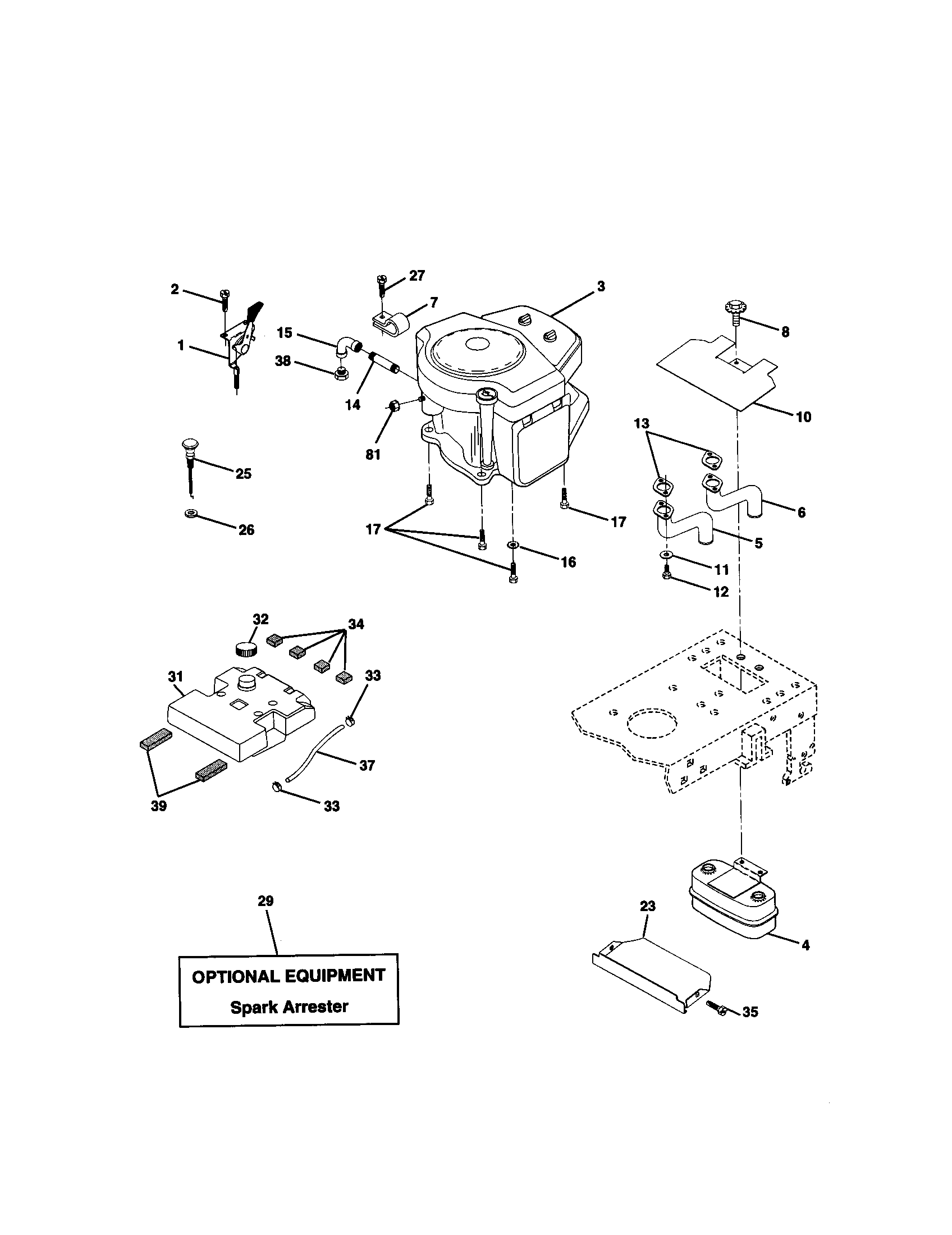

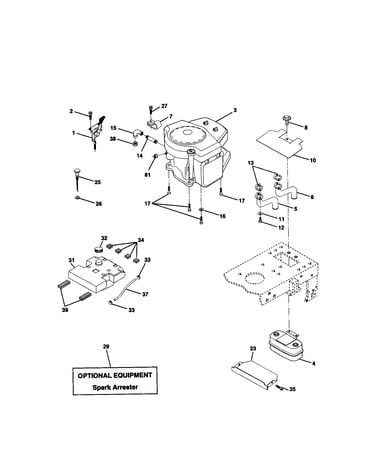

The Craftsman lawn tractor model 917270771 uses a Briggs & Stratton engine model 42E707 with type number 2631-E1. You will see this listed in the engine breakdown for this tractor; use these numbers when ordering engine-specific parts.

We recommend confirming the numbers on the engine ID label so you match the exact engine build.

• Look for a metal tag or sticker on the engine shroud, valve cover area, or blower housing
• Record both the model (42E707) and type (2631-E1)
• Also note the code number (a date code) if it is shown
• Match the engine label to the engine section in the 917270771 owner's manual

Briggs & Stratton uses the type number to identify the exact configuration (carburetor, governor linkages, muffler, charging system). Two engines can share the same model number but use different parts if the type number differs.

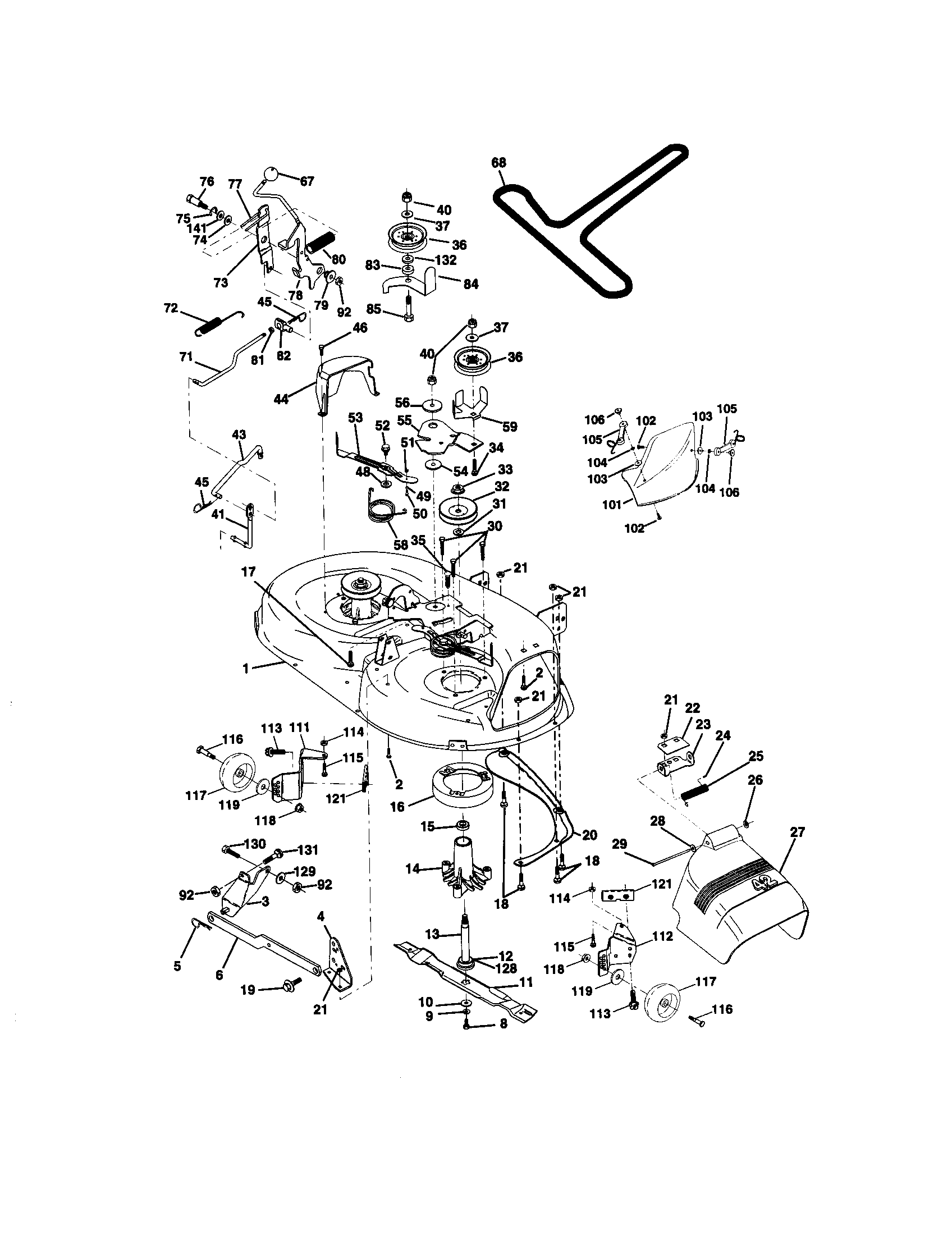

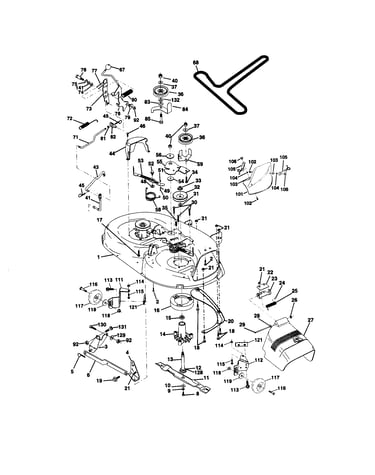

If you are doing a tune-up or chasing vibration and cut quality issues, these common mower-deck parts are often serviced at the same time (separate from the engine model ID):

• Inspect blades for bends, cracks, and dull edges
• Check belt condition for glazing, cracking, or stretching
• Spin mandrels by hand; replace if noisy or loose
• Verify pulleys turn freely and do not wobble

Helpful examples for this model include the husqvarna lawn tractor mulching blade, 21-in 532134149 and the lawn tractor drive belt 532144200.

Using the correct engine model and type prevents wrong-part returns and saves time, especially for ignition, fuel, and exhaust components that vary by engine configuration.

Last updated: January 2026

Craftsman model 917270771 is typically associated with the early 1990s, and it’s commonly referenced as part of the LT 1000 series around 1991. For the most accurate identification, we recommend confirming the model and product labeling details in the 917270771 owner's manual.

Use these quick checks to match your tractor to the correct parts diagrams and service info:

• Verify the model number on the frame tag (usually under the seat or on the fender pan)
• Match the deck size and blade style to your mower deck configuration
• Compare steering and chassis parts lists to what’s installed on your tractor

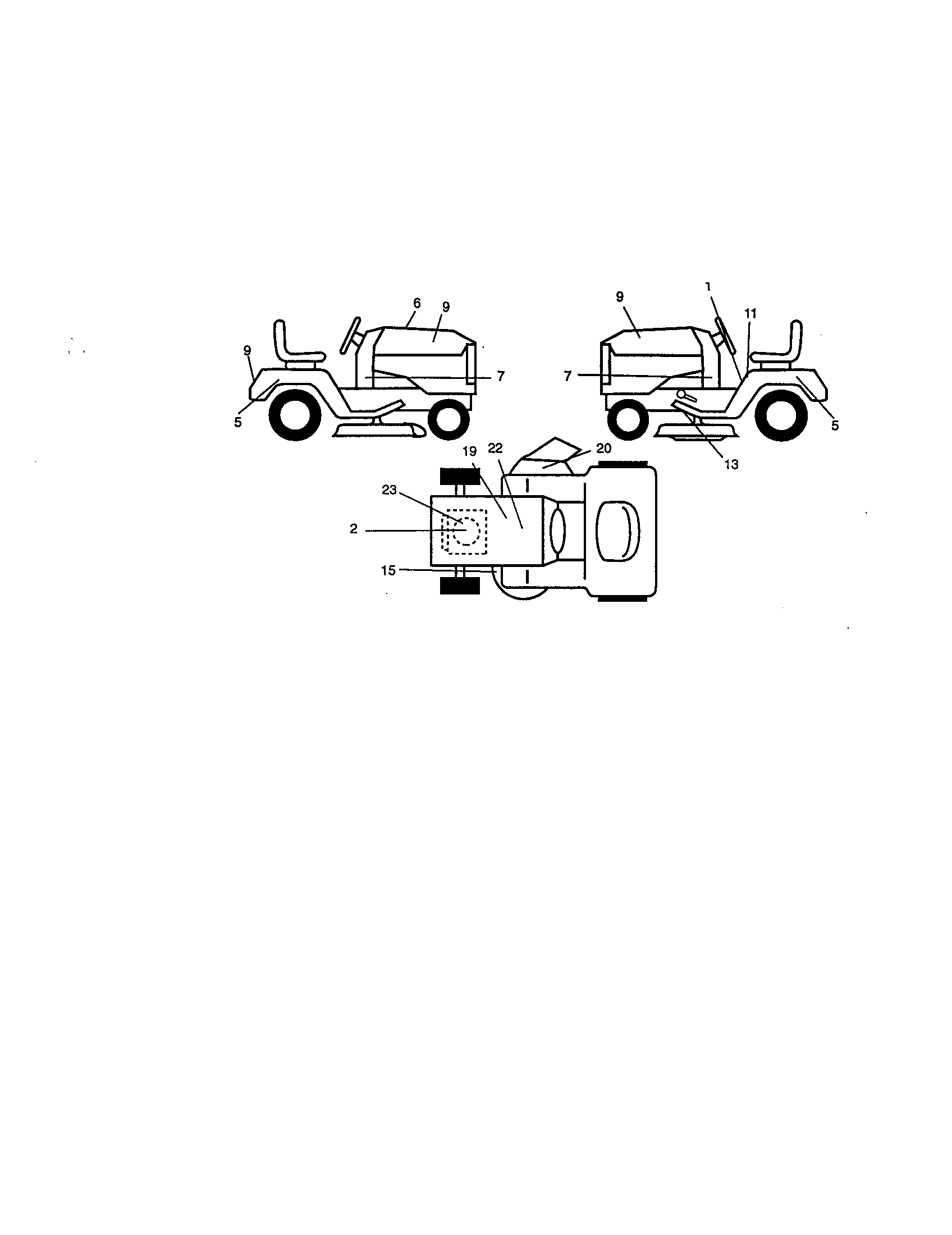

• Check decal sets and belt routing decals for the closest match
• Use the manual’s illustrated parts breakdown to confirm assemblies

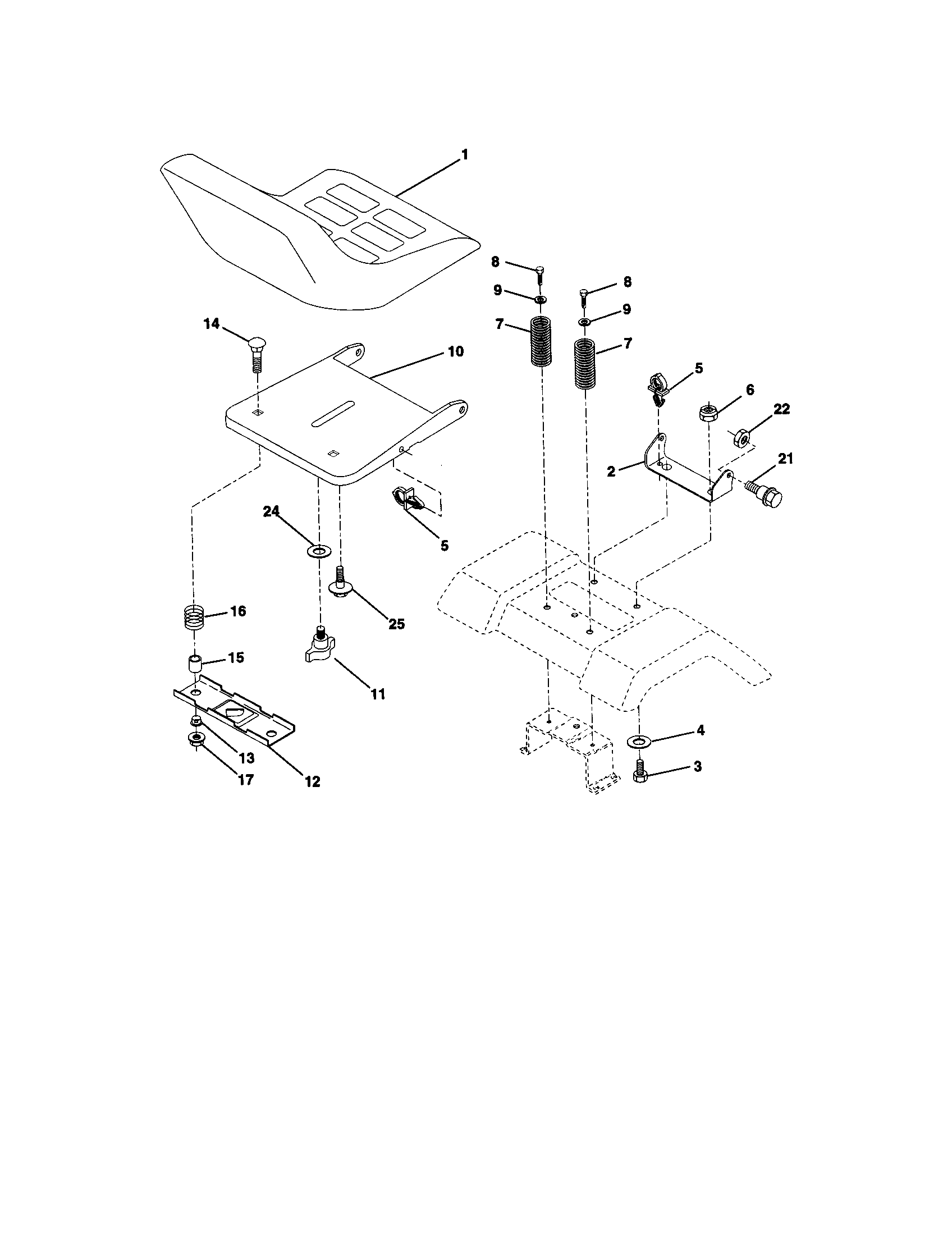

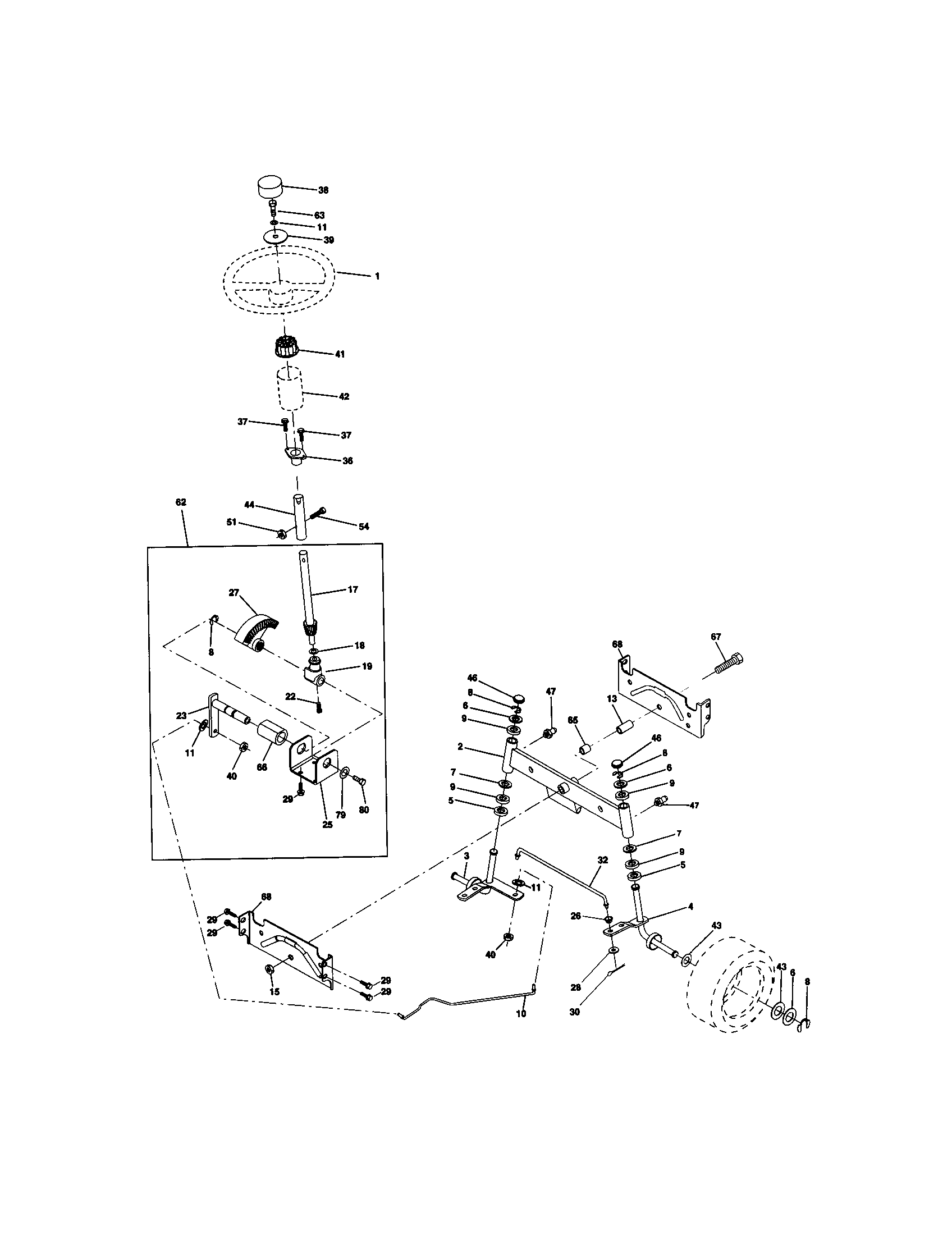

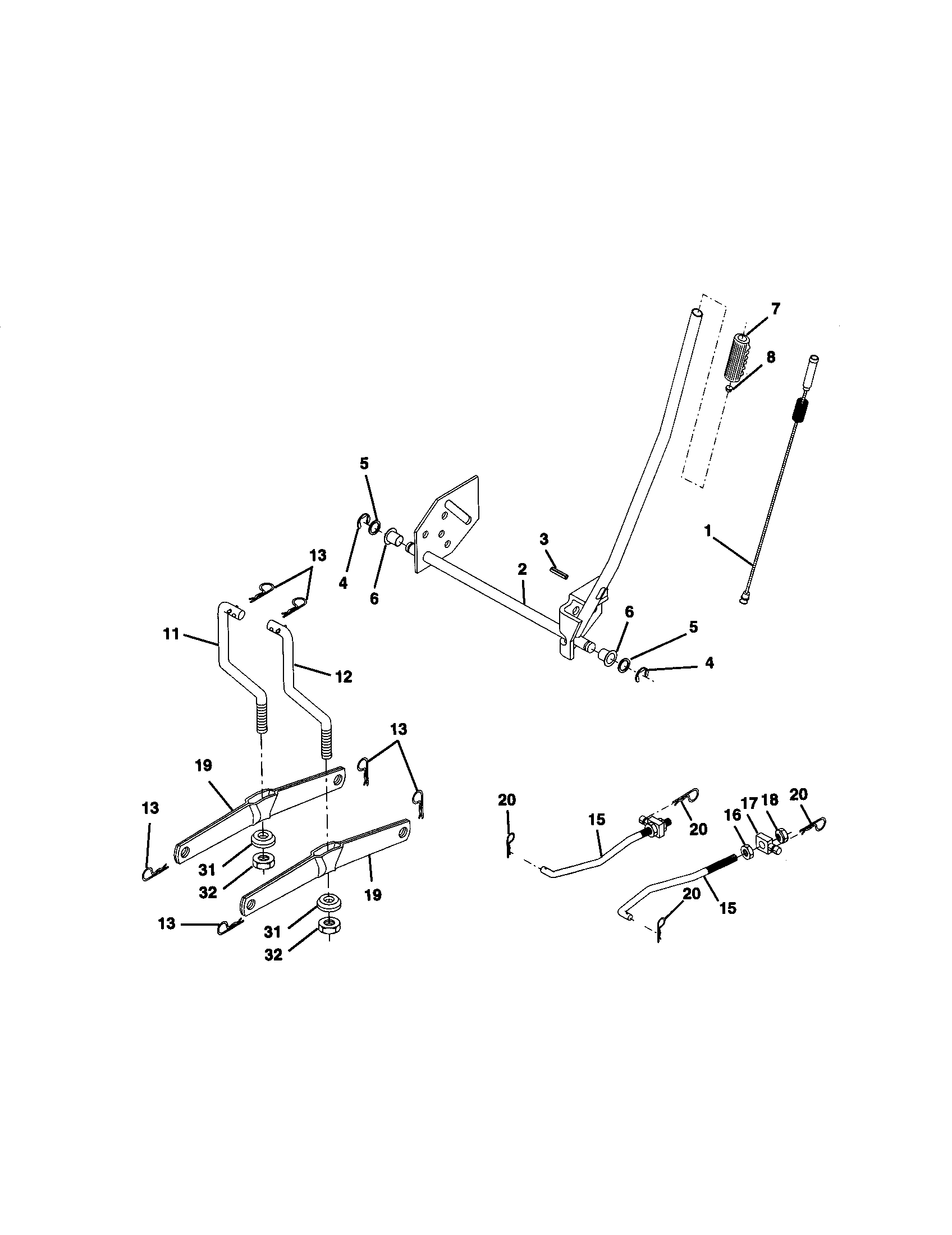

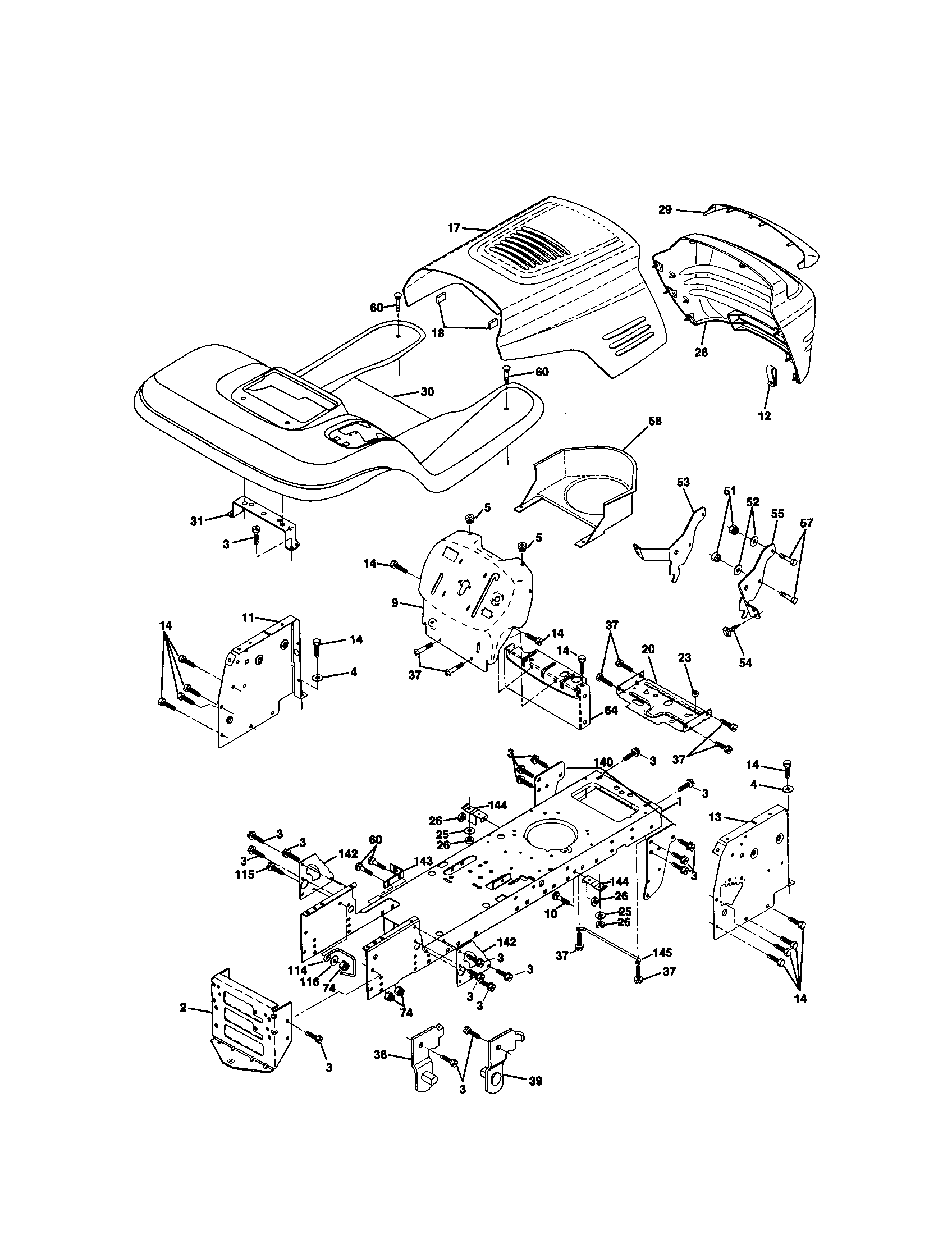

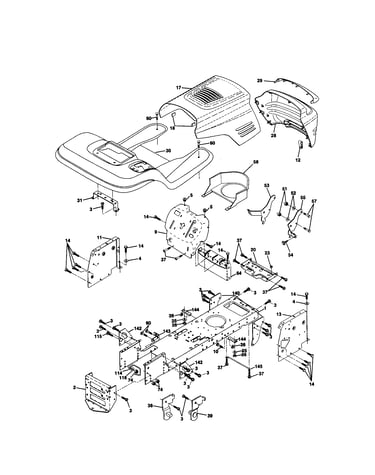

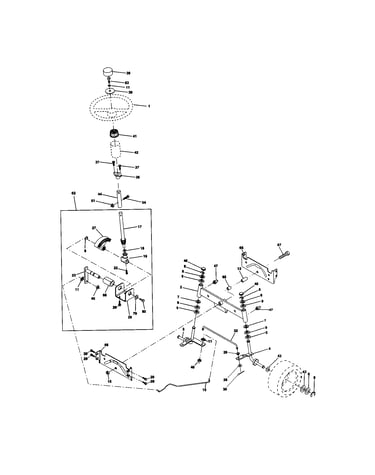

The documentation we have confirms the model identification and parts breakdown for 917270771 (chassis, steering, seat, wheels and tires, lift assembly). That’s the best baseline for matching your tractor to the correct Craftsman parts.

Craftsman tractors in the 917.xxxxxx family can look similar across multiple years. Confirming the exact model (and matching assemblies like steering, lift, and deck drive) prevents ordering the wrong belt, blade, or mandrel parts.

Last updated: January 2026

On the Craftsman lawn tractor model 917270771, the model number is printed on the product identification label, typically on the tractor frame under the seat area or near the engine compartment. Use the exact model number from that label when ordering parts or looking up diagrams in the 917270771 owner's manual.

Look for a sticker or metal tag on the tractor frame in these spots:

• Under the seat (lift the seat and check the frame pan)
• On the rear frame near the hitch plate or rear wheels
• On the left or right side of the frame rail
• Near the engine, usually on the frame close to the hood opening
• Near the footrest area on the frame (less common)

The identification label typically includes more than just the model number.

• Copy the model number exactly as printed (all digits matter).
• If the label is dirty, wipe it with a damp rag and mild cleaner; avoid scraping.
• Take a clear photo before the label fades further.
• Use the model number (not the engine brand) when searching for mower deck, belt, and steering parts.

Craftsman tractors can look similar across years, but parts like the mower deck blade, mandrel assemblies, and drive belts vary by model. Using the correct model number helps us match the right diagrams and the right replacement parts the first time.

Last updated: January 2026
