Craftsman
Gas Walk-Behind Mower

Model #917370602 Craftsman lawn mower

Here are the diagrams and repair parts for Craftsman 917370602 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 85 parts

    Lawn Mower Drive Wheel, 8 x 1-3/4-in#11

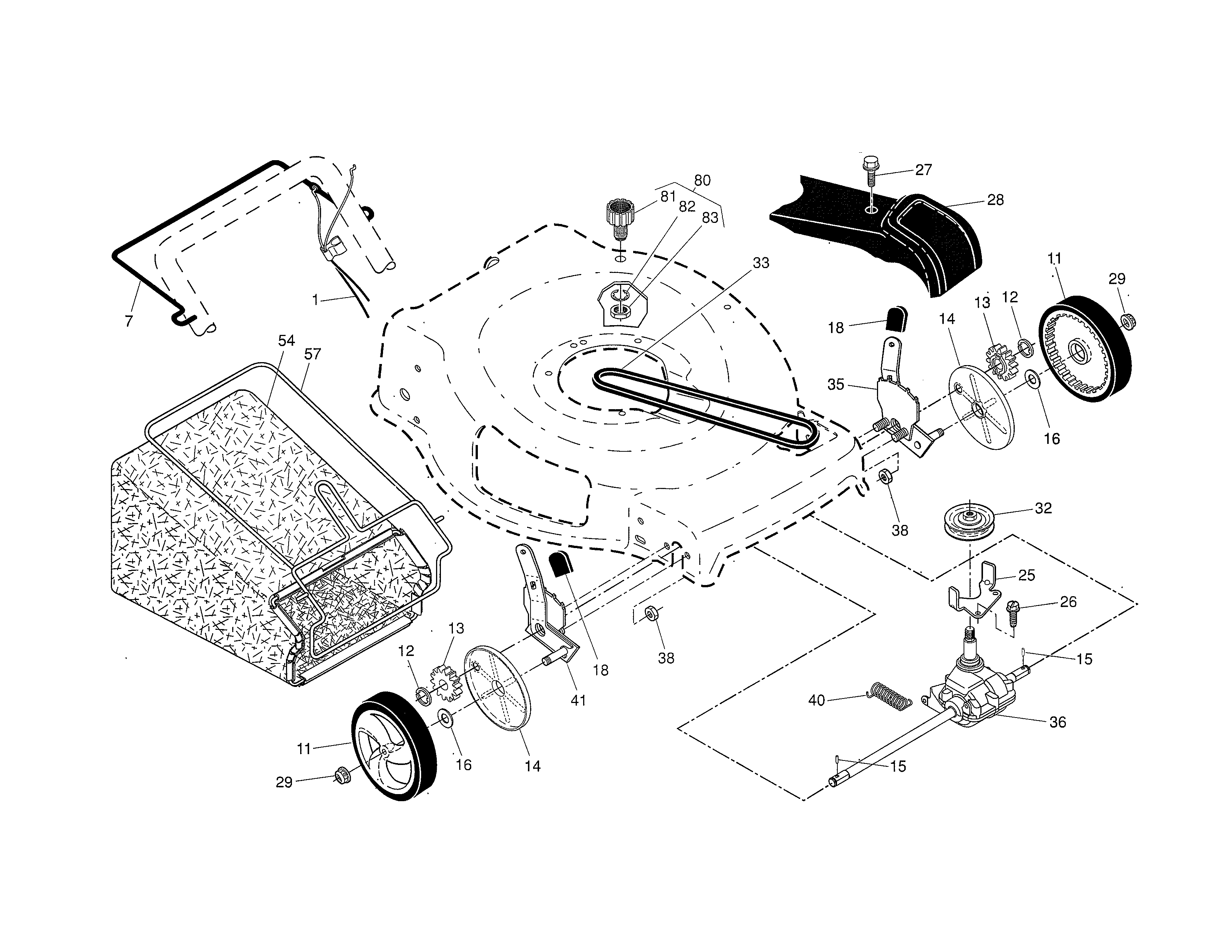

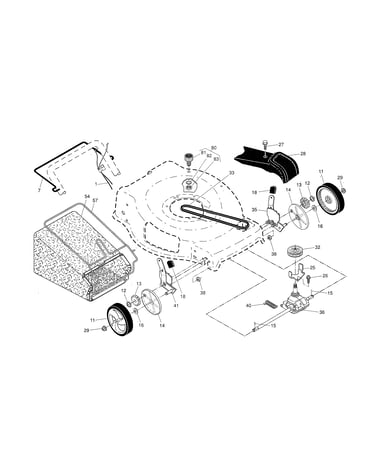

    Drive control/gear case/wheels Diagram

    Lawn mower wheel and tire, 8 x 1.75-in

    Part #194231X460
    Replaced by #583719501
    ?
    Manufacturer substitution
    This part replaces 194231X460. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $13.49 |
    20% OFF
    Was: $16.89
    Lawn Mower 22-in Deck 3-in-1 Blade#47

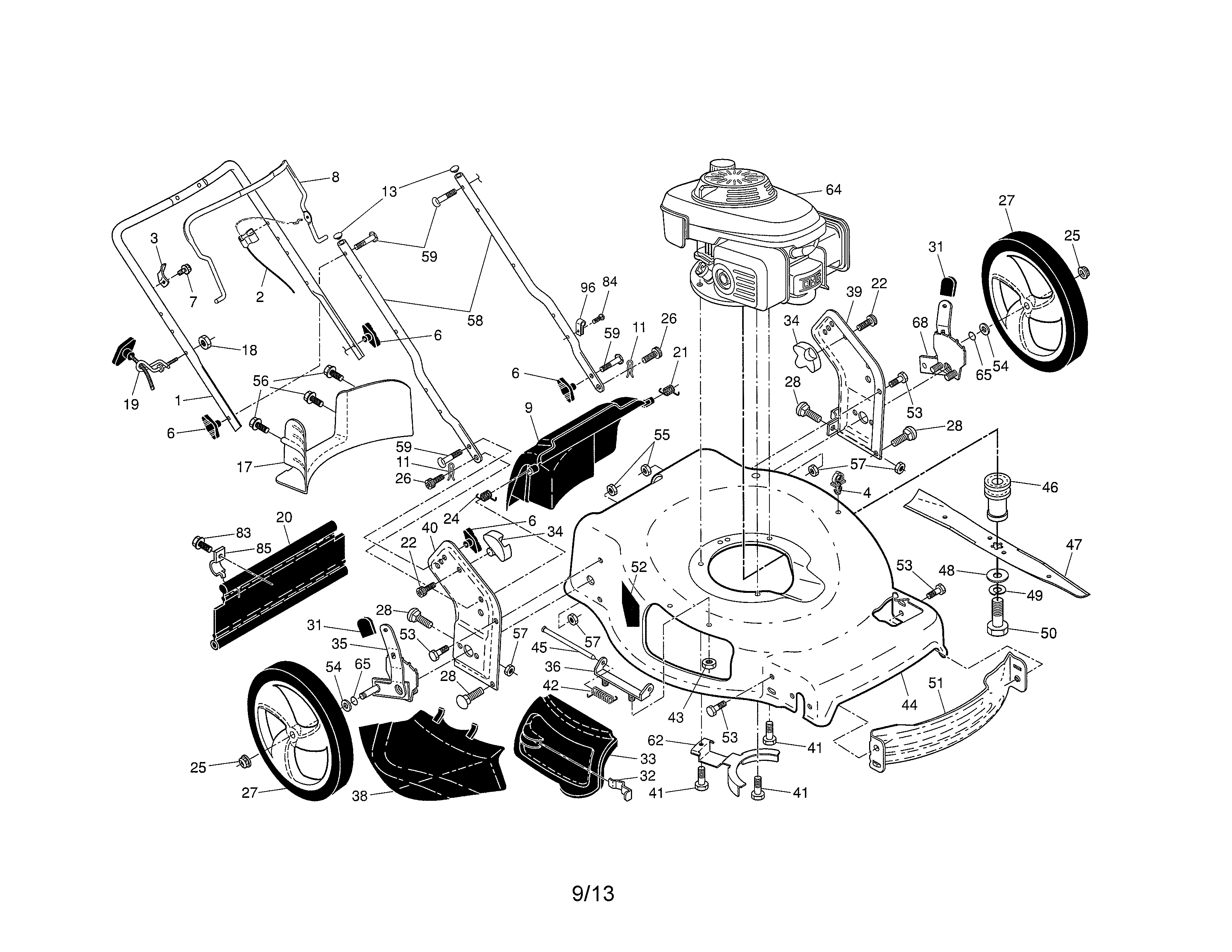

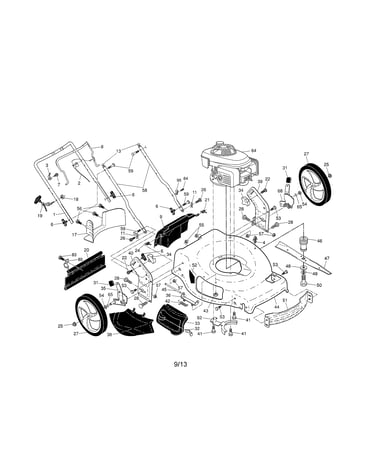

    Engine/deck/handle Diagram

    Lawn mower 22-in deck 3-in-1 blade

    Part #421825
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $13.69 |
    20% OFF
    Was: $17.09
    Lawn Mower Lock Nut, 3/8-in#29

    Drive control/gear case/wheels Diagram

    Lawn & garden equipment nut

    Part #409148
    Replaced by #532409149
    ?
    Manufacturer substitution
    This part replaces 409148. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $2.89 |
    19% OFF
    Was: $3.59
    Lawn Mower Lock Nut, 3/8-in#25

    Engine/deck/handle Diagram

    Lawn mower hex flange nut

    Part #409149
    Replaced by #532409149
    ?
    Manufacturer substitution
    This part replaces 409149. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $2.89 |
    19% OFF
    Was: $3.59
    Lawn Mower Ground Drive Belt, 3/8 x 32-1/2-in#33

    Drive control/gear case/wheels Diagram

    Lawn mower ground drive belt, 3/8 x 32-1/2-in

    Part #196853
    BEST SELLER
    This item is not returnable

    Get free shipping with Automatic Reorder

    In Stock
    $10.59 |
    20% OFF
    Was: $13.29
    Lawn Mower Wheel, 12 x 1-3/4-in#27

    Engine/deck/handle Diagram

    Lawn mower wheel, 12 x 1-3/4-in

    Part #431880X460
    BEST SELLER
    In Stock
    $25.39 |
    20% OFF
    Was: $31.69
    Lawn Mower Blade Adapter#46

    Engine/deck/handle Diagram

    Lawn mower blade adapter

    Part #581473301
    BEST SELLER
    Back Order
    $9.39 |
    20% OFF
    Was: $11.69
