Kenmore 10659429801 refrigerator Parts

For Kenmore model 10659429801, the most reliable way to confirm cubic feet is to look up the capacity listed for your exact model in the 10659429801 owner's manual. If you need a quick estimate, we can calculate it by measuring the usable interior space and converting cubic inches to cubic feet.

Fast ways to find the cubic feet

1) Check the manual (best for an exact number)

The capacity for your specific refrigerator is typically listed in the specifications section of the 10659429801 owner's manual.

2) Calculate an estimate from interior measurements

Use this when you cannot access the spec listing right away.

• Empty the compartment enough to measure accurately
• Measure interior height, width, and depth (in inches)
• Multiply: H x W x D = cubic inches
• Divide by 1728 to convert to cubic feet
• Repeat for freezer and fresh food sections, then add them together

Measurement tips (so the math matches real storage)

• Measure the usable box, not the door bins or curved liner areas.
• Depth should be to the back wall, not including shelves that stick out.
• If shelves or drawers reduce usable space, measure around them for a more realistic estimate.

Quick reference table

What you have	What you get	Best for
Manual spec	Exact cubic feet	Comparing models, resale, fit planning
Interior measurements	Close estimate	Rough sizing, confirming “about how big”
Exterior measurements	Not recommended	Exterior includes insulation and walls

Why it matters

Cubic feet is the standard way to compare refrigerator storage. It helps when you are planning kitchen fit, deciding how much food you can store, or matching replacement parts and accessories to the correct Kenmore platform.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 36 inches wide; for Kenmore model 10659429801, the exact cabinet width and required clearances are listed in the owner's manual.

Typical width and what to expect

Most side-by-side units are built to fit a standard 36-inch opening, but the overall space you need depends on door swing and ventilation.

• Typical cabinet width: 35 1/2 to 36 inches
• Common overall width with doors: about 36 inches
• Plan extra room for handles (if equipped)
• Leave space so doors can open fully without hitting a wall
• Allow room behind the unit for the water line if you have an ice maker

Clearance guidelines (from the manual)

The manual for this refrigerator family calls out these installation clearances for airflow and door swing:

Location	Typical clearance to plan for	Why it matters
Each side and top	1/2 inch	Ventilation and efficient cooling
Next to a fixed wall	2 inches minimum (varies by model)	Door swing clearance
Back (ice maker models)	Extra space	Water line connection room

Why it matters

Width alone is not the whole fit. A refrigerator that is “36 inches wide” can still bind on a wall, scrape cabinets, or run warmer if it is installed too tight for ventilation.

Quick measuring tips before you buy or move it

• Measure the opening width in three places (top, middle, bottom)
• Measure depth to confirm doors can close without hitting counters
• Check the path in (doorways, hallways, turns)
• Confirm you can pull the unit out for cleaning and service

Last updated: February 2026

Kenmore refrigerator model 10659429801 is a side-by-side refrigerator; the exact exterior dimensions and total capacity vary by configuration, so we use the model’s documentation to confirm the correct measurements for your unit. For installation planning, we also follow the required clearance guidelines in the 10659429801 owner's manual.

What “size” usually means (and what to check)

When customers ask for size, it typically refers to one or more of these:

• Overall dimensions (width, depth, height)
• Total capacity (cubic feet)
• Cutout and clearance space needed for doors and airflow
• Door swing clearance next to a wall
• Water line clearance behind the cabinet (if you have an ice maker)

Installation clearances you should plan for

Even before you confirm the exact width and height, we recommend planning around the clearances specified for this Kenmore refrigerator style:

• 1/2 inch of space on each side and at the top for ventilation
• If installed next to a fixed wall, leave at least 2 inches on the hinge side(s) as needed for door swing
• Allow extra space at the back for water line connections if the refrigerator has an ice maker
• Avoid installing near heat sources; do not install where temps fall below 55°F

Quick planning guide (typical vs. confirmed)

Use this as a planning snapshot; then confirm the exact numbers in the manual.

Measurement type	What to use for planning	What to use for final fit
Ventilation clearance	1/2 inch sides and top	10659429801 owner's manual
Door swing clearance near wall	2 inches minimum (as needed)	10659429801 owner's manual
Water line space (ice maker)	Extra rear space	10659429801 owner's manual

Why it matters

Correct sizing prevents door interference, poor airflow (warm temps, frost, longer run times), and pinched water lines that can cause dispenser or ice maker issues.

Last updated: February 2026

For Kenmore model 10659429801, the correct replacement is the base-grille water filter Part #9030; on our parts list this matches the refrigerator water filter EDR3RXD1. Use the model number on the rating label to avoid buying a look-alike filter that will not fit or seal correctly.

Quick ways to confirm the right filter

• Match your refrigerator’s model number exactly: 10659429801.
• Check the filter location: this model uses a base grille cartridge style.
• Look for the replacement filter callout in the 10659429801 owner's manual.
• If your current filter has a cap, keep it; you typically reuse the cap on the new cartridge.
• After installing, flush the dispenser to clear air and carbon fines.

What to do after you install the new filter

The manual procedure for this style is straightforward: move the cap to the new cartridge, push the filter into the base grille until it fully engages, then flush the system.

Flush routine (typical for this model):

• Dispense water 5 seconds on, 5 seconds off until water starts flowing.
• Then continue the 5 on, 5 off pattern for 2 more minutes.
• Expect some spurting at first as air clears.

Compatibility snapshot

What you have	What to buy for 10659429801	Where it fits
Kenmore replacement filter listed as 9030	Refrigerator water filter EDR3RXD1	Base grille
Low flow after filter change	Same filter, plus flushing and pressure check	Dispenser and ice maker

Why it matters

Using the correct filter for 10659429801 prevents leaks at the O-rings, avoids poor water flow, and helps the ice maker and dispenser work consistently. This model also needs 30 to 120 psi water pressure for proper dispenser and ice maker operation; a clogged filter or low supply pressure can mimic a “bad dispenser” problem.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10659429801, the model number is on the model and serial tag inside the fresh food (refrigerator) compartment. We typically find it on the cabinet wall near the door opening; check the label before ordering parts or scheduling service using the 10659429801 owner's manual.

Where to look first (fastest checks)

• Open the fresh food door and look along the cabinet walls near the door opening
• Check the upper side walls near the top hinge area
• Look near the crisper drawer area on the side wall
• Check the ceiling area inside the refrigerator compartment
• If you do not see it, remove items from the door bins and re-check the door opening edges

What the tag looks like

The tag is usually a white or silver sticker that lists:

• Model number (for example, 10659429801)
• Serial number
• Electrical ratings (volts/amps)
• Sometimes a bar code

Why it matters

We use the exact model number to match compatible Kenmore parts (like a refrigerator water filter, ice maker, or inlet valve). Even small model-number differences can change which shelves, gaskets, or control parts fit.

Quick ID checklist

Item to confirm	What to match exactly	Common mistake
Model number	All digits (no missing numbers)	Using only the first 3 digits (106)
Serial number	Letters and numbers as printed	Swapping 0 (zero) and O (letter)
Product type	Side-by-side refrigerator	Using a tag from a different Kenmore appliance

Last updated: February 2026

Kenmore is a brand name, so replacement parts for your Kenmore 10659429801 side-by-side refrigerator are typically manufactured by the original equipment manufacturer (OEM) that built the unit and its components. In practice, that means many Kenmore parts cross to major OEMs (commonly Whirlpool-family suppliers), and the correct match is determined by your model number and the part ID.

How to identify the correct manufacturer for your exact part

We match parts to Kenmore model 10659429801 by using the model-specific parts breakdown and the OEM cross-reference behind each part listing. The most reliable way to confirm you are buying the right OEM-made part is to look up the part by function (water filter, inlet valve, ice maker) and verify the part ID.

• Use the model number 10659429801 when searching parts
• Match by part ID (not just a description)
• Compare the part name to the location/function in the refrigerator
• Use the troubleshooting section to confirm symptoms before ordering
• For water and ice issues, flush and prep the water system after service (per the manual)

Common examples on this model

These are examples of model-matched parts where the OEM supply chain is handled through the Kenmore part system, even if the underlying manufacturer is a major OEM.

What you are replacing	Example part for 10659429801	What it does
Refrigerator water filter	Genuine Kenmore refrigerator water filter EDR3RXD1	Reduces contaminants in dispenser water and ice
Water inlet valve	Refrigerator inlet valve W10408179	Controls water flow to the dispenser and ice maker

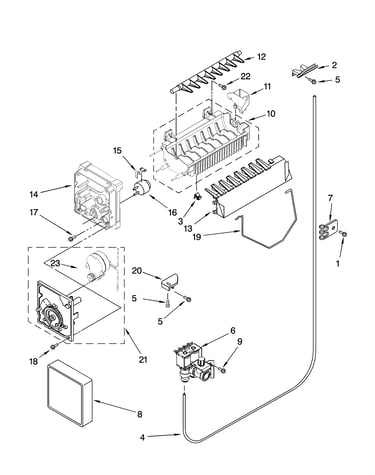

Ice maker assembly	Refrigerator ice maker WPW10190965	Produces ice and cycles harvest/fill

Why it matters

Kenmore part descriptions can look similar across models, but fit and connections can differ. Matching by model number 10659429801 and part ID prevents ordering a part that mounts differently, uses a different wiring connector, or has different water line fittings.

Helpful references for this model

• Use the 10659429801 owner's manual for model-specific operation and troubleshooting, including water system prep and dispenser temperature expectations.

Last updated: February 2026

Yes. We still support Kenmore appliances with replacement parts, and for Kenmore refrigerator model 10659429801 you can order common maintenance and repair items (water filters, ice maker parts, valves, thermostats, shelves, and gaskets) using the model number and the parts diagram in the 10659429801 owner's manual.

How to find the right part fast

Use your model number (10659429801) first, then match the part by name and ID.

• Confirm the full model number from the rating label inside the fresh food section
• Use the parts diagram to identify the exact location and version of the part
• Match the part by part ID (best match) and then by description
• For water and ice issues, start with the filter and water supply checks
• For cooling issues, check airflow, frost buildup, and defrost components

Common parts customers replace on this model

These are frequently ordered items for Kenmore 106 side-by-side refrigerators.

Symptom or need	Part to check first	Example part for this model
Bad taste, slow water flow	Water filter	Genuine Kenmore refrigerator water filter EDR3RXD1
No ice or no water dispense	Water inlet valve	Refrigerator inlet valve W10408179
Ice maker not producing	Ice maker assembly	Refrigerator ice maker WPW10190965
Frost buildup, warm temps	Defrost heater	Refrigerator heater WP2323198

Why the model number matters (especially for Kenmore)

Kenmore appliances were built by multiple manufacturers over the years, so the same-looking refrigerator can use different valves, ice makers, or control boards. Using 10659429801 ensures you get the correct OEM-style fit and connections.

Quick buying checklist (before you order)

• Compare your old part’s label numbers to the listing (when accessible)
• Verify color and orientation (for items like gaskets, bins, and caps)
• If you are replacing a water filter, plan to flush the system afterward (the manual calls this out after a filter change)

Last updated: February 2026
