Kenmore 10659562990 side-by-side refrigerator Parts

For Kenmore model 10659562990 (Coldspot side-by-side), the cabinet is typically about 66 3/4 in. tall (with hinge) and about 32 1/8 in. deep without the handle; plan for roughly 33 7/8 in. depth with the handle and up to about 49 7/8 in. clearance when doors are fully open.

• Measure height from floor to the top hinge.
• Measure depth from the wall to the front of the door (then add the handle depth).
• Allow 1/2 in. of air space on each side and the top for ventilation.
• If you have an ice maker, leave extra space behind for the water line connection.
• If the refrigerator sits next to a fixed wall, allow about 2 in. minimum on the hinge side so the door can swing open.

We recommend checking the installation and space requirements section in the 10659562990 owner's manual, then measuring your unit in place (flooring thickness, leveling feet height, and door swing clearance can change what fits).

Correct measurements help prevent poor airflow (warm temperatures), door swing interference, and pinched water lines for the ice maker and dispenser.

Last updated: January 2026

On Kenmore side-by-side refrigerators, the model number is printed on a rating label inside the cabinet. For model 10659562990, check the fresh food section first; the label is usually on a side wall near the crisper area or along the door frame.

Use the 10659562990 owner's manual to confirm the exact label location and how it is formatted.

• Fresh food compartment: side wall near the crisper drawers
• Fresh food door frame: around the hinge side or along the front frame
• Freezer compartment: side wall or door frame (less common)
• Behind the toe grille: sometimes a secondary tag is present

Record the full information so we can match parts correctly.

• Model number (example: 10659562990)
• Serial number
• Any revision or production code printed with the model

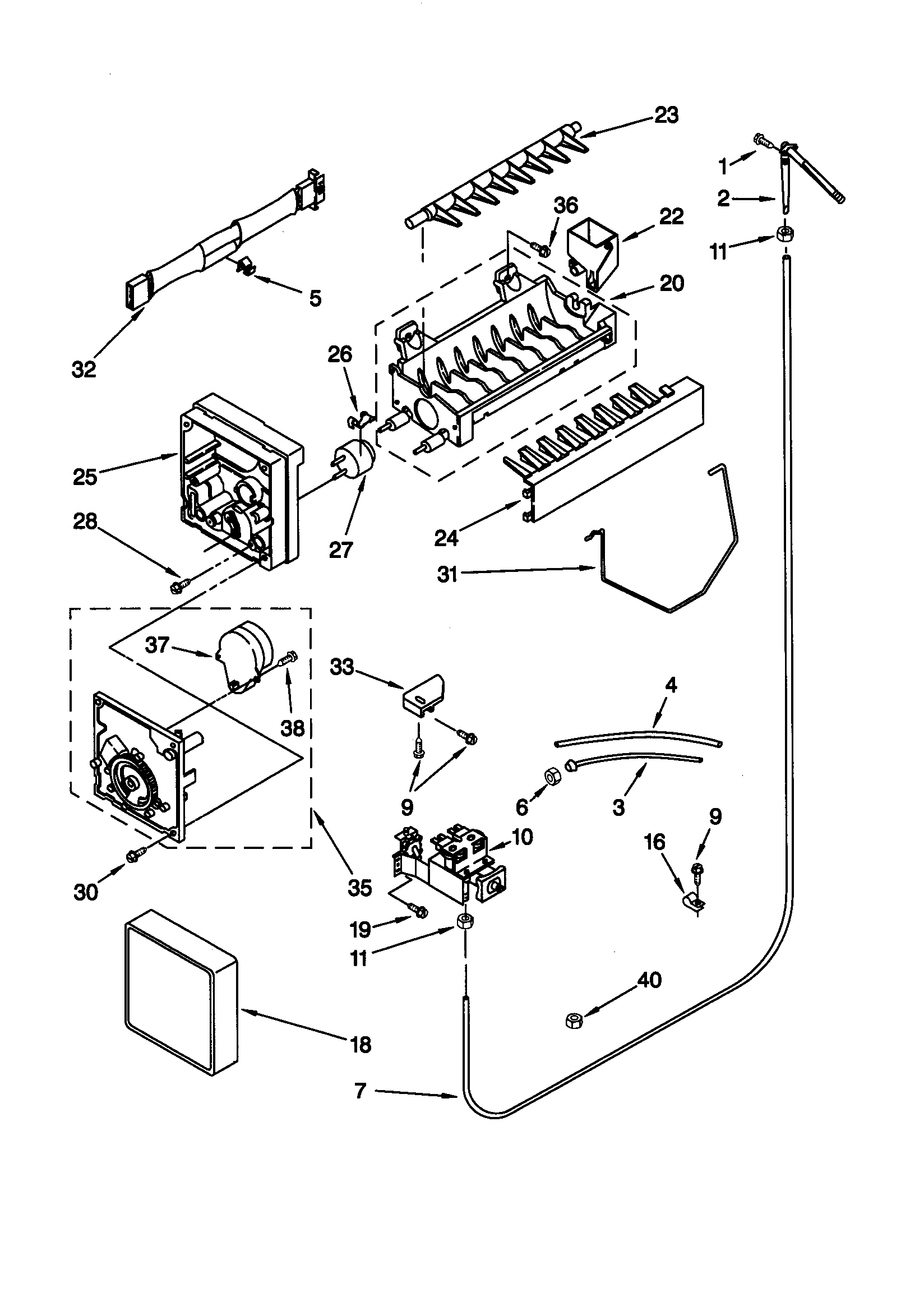

Even one digit off can point to a different door gasket, ice maker, or water valve. Using the exact model number helps ensure parts like the refrigerator inlet valve W10408179 fit and function correctly.

Last updated: March 2026

A Kenmore side-by-side refrigerator like model 10659562990 typically lasts 13 years with normal household use and basic maintenance. Keeping airflow clear, doors sealing tightly, and the defrost system working correctly helps you reach that average.

• Condenser cleanliness: dust buildup makes the compressor run hotter and longer.
• Door gasket condition: air leaks force longer run times and can cause frost.
• Ice maker and water system health: leaks or clogs can create damage and icing.
• Defrost performance: a failing defrost system can lead to heavy frost and poor cooling.
• Temperature settings and loading: overpacking blocks vents and stresses the cooling system.

Use the 10659562990 owner's manual for model-specific care and settings.

• Vacuum condenser area regularly (frequency depends on pets and dust).
• Confirm freezer is near 0°F and fresh food is near 37°F.
• Inspect gaskets for gaps, tears, or stiffness; clean with mild soap and water.
• Keep interior vents unblocked for proper airflow.
• Watch for early warning signs: louder running, warm spots, heavy frost, or water under the unit.

Knowing the typical 13-year lifespan helps you decide whether to maintain, repair, or replace. If your refrigerator is near that age and showing cooling or frost issues, checking the defrost and airflow basics first often prevents bigger failures.

Last updated: March 2026
