Whirlpool GS6NVEXSL00 side-by-side refrigerator Parts

For your Whirlpool GS6NVEXSL00 side-by-side refrigerator, the most reliable way to confirm cubic feet is to look up the capacity by model number in the GS6NVEXSL00 owner's manual. If you need a quick estimate, measure the usable interior space and calculate cubic feet from your measurements.

• Check the model/serial label inside the fresh food compartment; you will need the complete model number and serial number for reference and service.
• Use the manual first; it is the best place to confirm model-specific specs like capacity.
• Estimate by measuring the interior (best for a ballpark number).
• Do not measure the exterior cabinet; insulation and wall thickness make exterior dimensions misleading.
• Measure usable space (ignore fixed ducts, light housings, and non-removable covers).

1. Empty enough shelves to measure safely.
2. Measure the interior width, height, and depth in inches for:
   • Refrigerator compartment
   • Freezer compartment
3. Multiply each compartment: W × H × D to get cubic inches.
4. Add both compartments together.
5. Divide by 1,728 to convert cubic inches to cubic feet.

Knowing cubic feet helps us match the right replacement parts and accessories (like shelves and bins) and set realistic expectations for storage. It also prevents confusion when comparing side-by-side models that look similar but have different usable space.

Last updated: February 2026

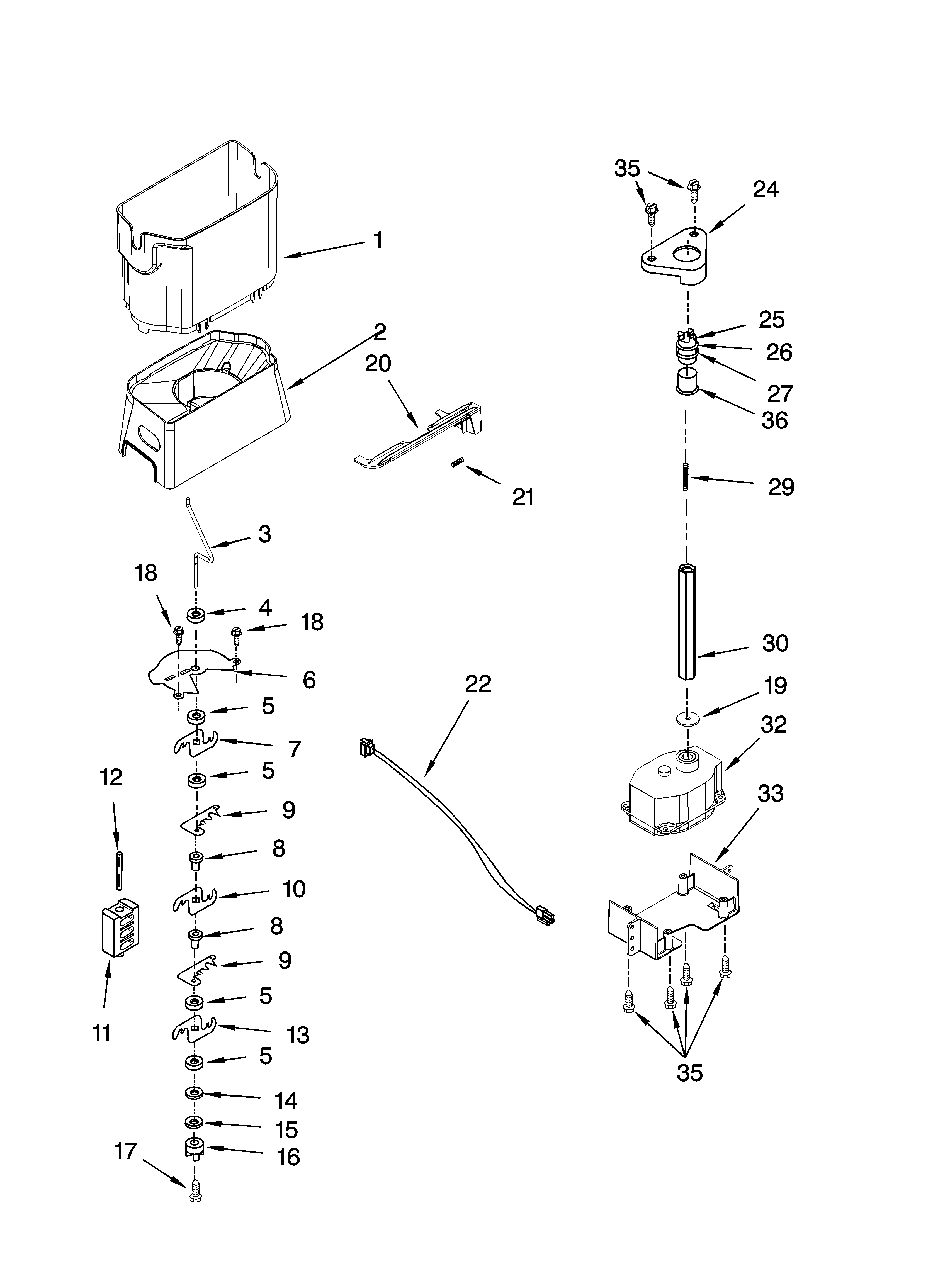

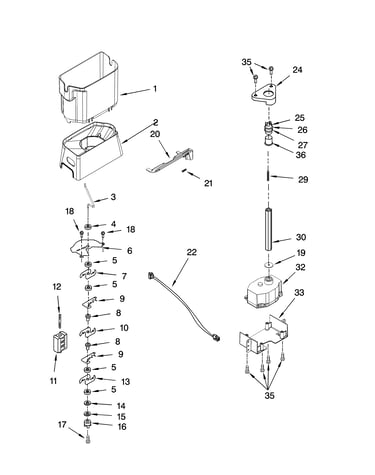

To remove the ice bin on your Whirlpool GS6NVEXSL00 side-by-side refrigerator, hold the base of the bin with both hands, press the release button, then lift the bin up and out. This matches the “Removing and Replacing Ice Storage Bin” steps in the GS6NVEXSL00 owner's manual.

1. Open the freezer door fully.
2. Support the bin from underneath with both hands.
3. Press the bin’s release button.
4. Lift the storage bin up and out.
5. To reinstall, set the bin back in place on the door and push down until it seats securely.

• Make sure the freezer door is fully open; the dispenser system will not operate with the door open, but the bin still needs clearance.
• Look for ice clumps jamming the bin; break up clumps and try again.
• Confirm you are pressing the bin release button (not the dispenser pad).
• If the bin is overfilled, scoop some ice out first.
• If the bin feels “stuck” to the door, gently wiggle while lifting straight up.

No. On GS6NVEXSL00, it is not necessary to switch the ice maker to OFF when removing the storage bin; the freezer’s sensor cover (flipper door) stops ice production when the bin is removed.

Removing the bin the right way prevents cracked plastic, broken door mounts, and dispenser issues. It also makes it easier to clear jams that cause crushed or cubed ice to dispense poorly.

Last updated: February 2026

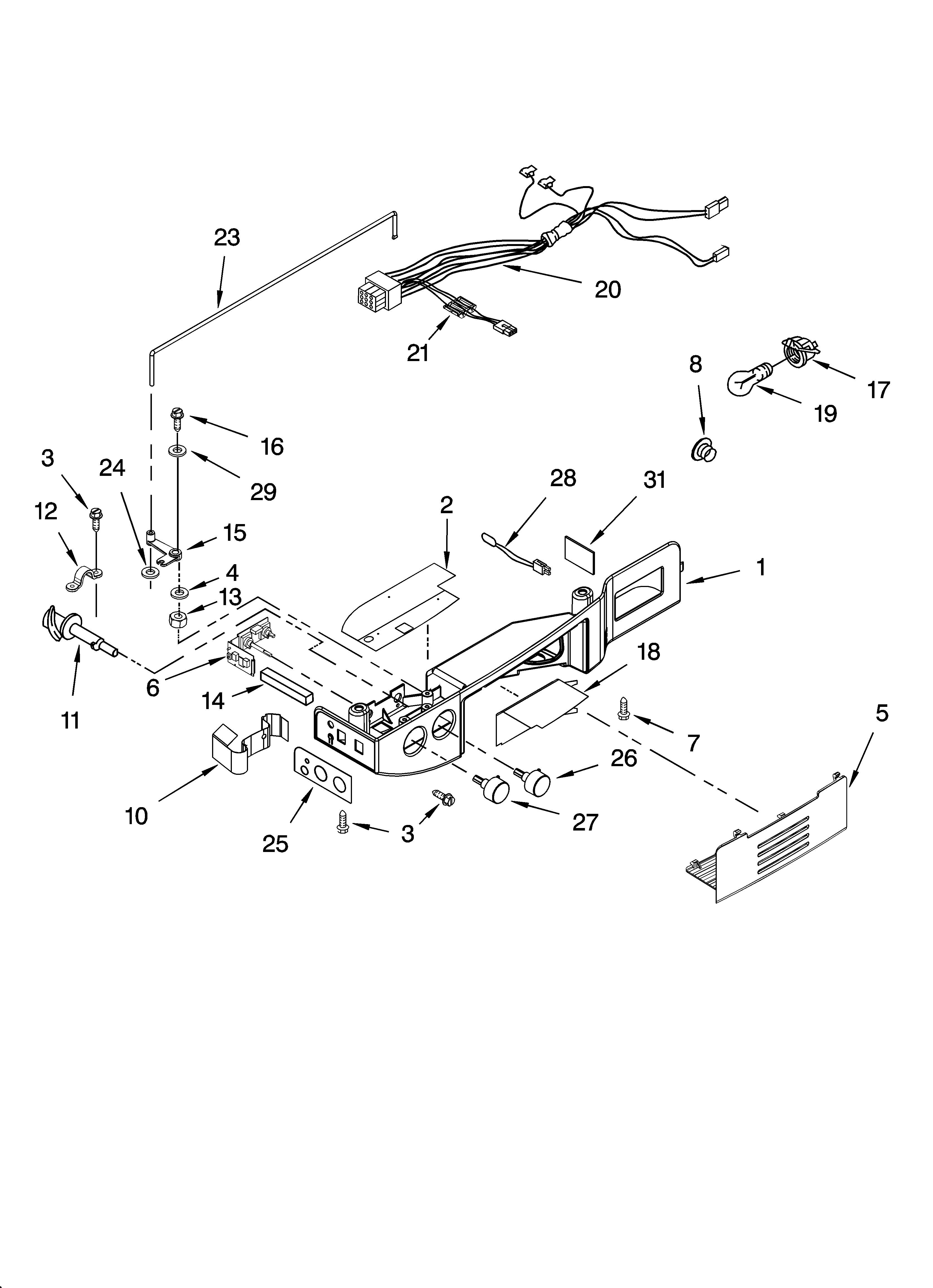

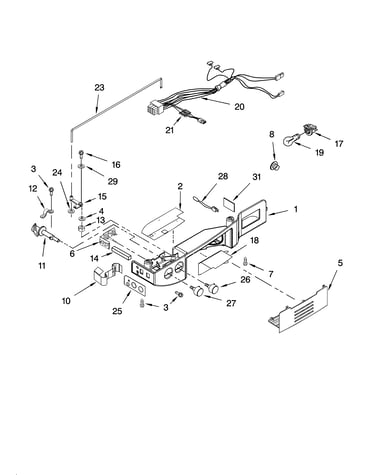

On the Whirlpool GS6NVEXSL00 side-by-side refrigerator, the defrost timer (if your version uses one) is typically mounted in the control area at the top of the fresh food section, behind the temperature control housing, or on a small mounting plate near the controls. Use the GS6NVEXSL00 owner's manual to confirm the exact access steps for your configuration.

We recommend checking these common timer locations in this order:

• Inside the refrigerator compartment, at the ceiling control console (where the temperature controls are)
• Behind the light shield or control housing cover (often held by a few screws)
• Behind the toe grille at the bottom front (less common on many side-by-side designs)
• In the rear machine compartment area (rare for a mechanical timer, but possible depending on design)

Before removing covers or reaching into the control area:

• Unplug the refrigerator or switch off the breaker
• Empty the top shelf area so you can work comfortably
• Use a flashlight to spot a small square or round timer module with a dial/advance slot
• Remove mounting screws, then pull the timer and bracket forward enough to access wiring
• Take a photo of wire positions before disconnecting anything

Some Whirlpool side-by-side refrigerators use a mechanical defrost timer; others use an electronic control board.

If you suspect an electronic defrost issue, the Whirlpool refrigerator error codes guide helps you narrow down symptoms.

Finding the correct defrost control matters because it changes the repair path. A mechanical timer can be tested or replaced directly, while an electronic defrost system points you toward components like the defrost heater, defrost thermostat, or control board.

Last updated: February 2026

On the Whirlpool GS6NVEXSL00 side-by-side refrigerator, the water filter is located in the base grille at the bottom front of the refrigerator. You access it from the front by pressing the eject button, then pulling the filter straight out (see the GS6NVEXSL00 owner's manual).

On this model, you are looking for the filter housing in the toe-kick area (base grille) along the bottom front edge.

• Look at the bottom front of the refrigerator for the base grille.
• Find the eject button on the filter base.
• Press the eject button to release the filter.
• Pull the filter straight out.
• If your filter has a cap, remove it and reuse it on the new filter (the cap is part of the refrigerator).

The manual’s steps for this style are straightforward: eject, pull, move the cap, then reinstall.

If the filter is missing, damaged, or leaking at the cap area, these are the model-matched items customers typically replace.

• Refrigerator water filter EDR3RXD1 (replacement cartridge)
• Refrigerator water filter cap (black) WP2260518B (reused from the old filter, replace if cracked)

Knowing the filter location helps you restore normal water flow and ice production. A clogged or incorrectly installed filter can reduce dispenser flow, affect ice maker fill, and may require flushing after replacement.

Last updated: February 2026

Most side-by-side refrigerators have about 7.5 to 10 cubic feet of freezer space (with total capacity commonly around 22.5 to 31 cubic feet). For the exact capacity and storage layout for Whirlpool model GS6NVEXSL00, check the specifications section in the GS6NVEXSL00 owner's manual.

Side-by-side designs split the cabinet vertically, so the freezer is narrower but tall. In most homes, that translates to these common ranges:

• Freezer capacity: 7.5 to 10 cu. ft.
• Total refrigerator capacity: 22.5 to 31 cu. ft.
• Best for: frozen foods, pizza boxes (vertical), and frequent ice use
• Tradeoff: less wide shelf space than a top-freezer or chest freezer

Freezer capacity affects how well you can organize bulky items and how often you need to restock. If your freezer feels “small,” it is usually a layout issue (bins, shelves, ice bin) rather than total cubic feet.

• Keep the ice bin from overfilling; a full bin can crowd out food storage.
• Use slim bins to stack smaller items vertically.
• Avoid blocking air vents; airflow keeps temperatures even and reduces frost.
• Set the freezer temperature to a steady 0°F for best food storage.
• If ice production is inconsistent and you are losing space to clumps, inspect the ice maker and bin operation; the Whirlpool refrigerator error codes guide helps when controls or sensors act up.

Last updated: February 2026

Whirlpool model numbers (including GS6NVEXSL00) are an ID code that tells us the product series, configuration, and revision level; they are mainly used to match the correct parts and service information to your exact refrigerator. For age and factory build details, we use the serial number on the rating label.

For Whirlpool refrigerators, the model number identifies the design family and engineering changes, while the serial number is what we use to pinpoint when and where the unit was built.

• Model number: helps us match parts like a water filter, ice maker, or control board to the correct design.
• Serial number: contains the manufacturing date and plant code information.
• Suffix digits/letters: often indicate revision/engineering changes within the same model family.
• Exact match matters: even one character difference can change the correct part.
• Use the rating label: it is the fastest way to confirm both numbers.

On Whirlpool GS6NVEXSL00 side-by-side refrigerators, the model and serial number label is typically located on the inside wall of the refrigerator compartment. Confirm the location and recording instructions in the GS6NVEXSL00 owner's manual.

• Write down the full model number (all letters and digits).
• Write down the serial number exactly as shown.
• Match the part to the symptom (water taste, no ice, warm freezer, etc.).
• Use the model number to confirm fit for parts such as the refrigerator water filter EDR3RXD1.

These are common Whirlpool conventions that help with identification, but the most reliable way to date the unit is still the serial number.

Using the correct model and serial information prevents wrong-part orders and speeds up troubleshooting for issues like ice maker problems, water dispenser flow, and cooling complaints.

Last updated: February 2026

Most Whirlpool refrigerators last 10 to 18 years on average. For your Whirlpool GS6NVEXSL00 side-by-side refrigerator, lifespan depends most on airflow, clean condenser coils, stable temperatures, and keeping the ice and water system maintained per the GS6NVEXSL00 owner's manual.

We see these factors make the biggest difference in how long a side-by-side refrigerator runs reliably:

• Condenser coil cleanliness (dust buildup makes the compressor work harder)
• Door seal condition (warm air leaks increase run time and frost)
• Ice maker and water system health (leaks and restrictions strain components)
• Ventilation around the cabinet (tight enclosures trap heat)
• Stable settings and usage (frequent door openings and overpacking reduce efficiency)

Use this routine to help your Whirlpool GS6NVEXSL00 reach the upper end of the typical lifespan range:

• Vacuum and brush the condenser area regularly
• Keep door gaskets clean and check for gaps
• Replace the water filter on schedule; a restricted filter can reduce dispenser flow
• If you use the dispenser often, purge air after filter changes
• Keep freezer vents clear so the evaporator fan can move air properly

These are common service-life ranges we see for major refrigerator systems (actual results vary by use and maintenance):

If you are troubleshooting ice production or water flow on this model, the refrigerator water filter EDR3RXD1 is the correct filter style listed for this unit.

A refrigerator that runs hotter, longer, or with restricted airflow wears out the compressor and fans faster. Basic upkeep (especially coils, gaskets, and filter changes) is the most reliable way to extend the life of a Whirlpool side-by-side.

Last updated: February 2026

The most common Whirlpool refrigerator problem is poor cooling, usually caused by restricted airflow (dirty condenser coils, blocked vents, or a failing evaporator fan). On the Whirlpool GS6NVEXSL00 side-by-side, cooling complaints often show up first as warm fresh food, soft ice, or longer run times; use the GS6NVEXSL00 owner's manual troubleshooting steps to narrow it down.

• Confirm the controls are set correctly and not in a “warm” or “vacation” type setting.
• Make sure air vents inside both compartments are not blocked by food packages.
• Clean the condenser coils and verify the condenser fan area is clear of dust.
• Listen for the evaporator fan; a failed fan can cause warm temps and uneven cooling.
• Check door closing and sealing; a poor seal causes frost, moisture, and temperature swings.

Cooling problems are the root cause behind many other complaints (ice maker failures, excess frost, leaks from defrost drain overflow, and food spoilage). Restoring proper airflow and heat exchange usually fixes the issue faster and prevents repeat breakdowns.

If basic airflow and cleaning checks do not restore normal temperatures, these parts commonly solve Whirlpool side-by-side issues:

• Evaporator fan motor (moves cold air through the freezer and into the refrigerator)
• Defrost heater and defrost thermostat (bi-metal)
• Water filter and water inlet valve (for dispenser and ice maker performance)
• Door gasket or hinge/cam components (for sealing and alignment)

For model-specific diagrams, test points, and troubleshooting flow, follow the GS6NVEXSL00 owner's manual.

Last updated: February 2026
