Craftsman
Wet/Dry Vacuum

Model #113177060 Craftsman 16-gallon wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113177060 16-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 57 parts

    Filter#1

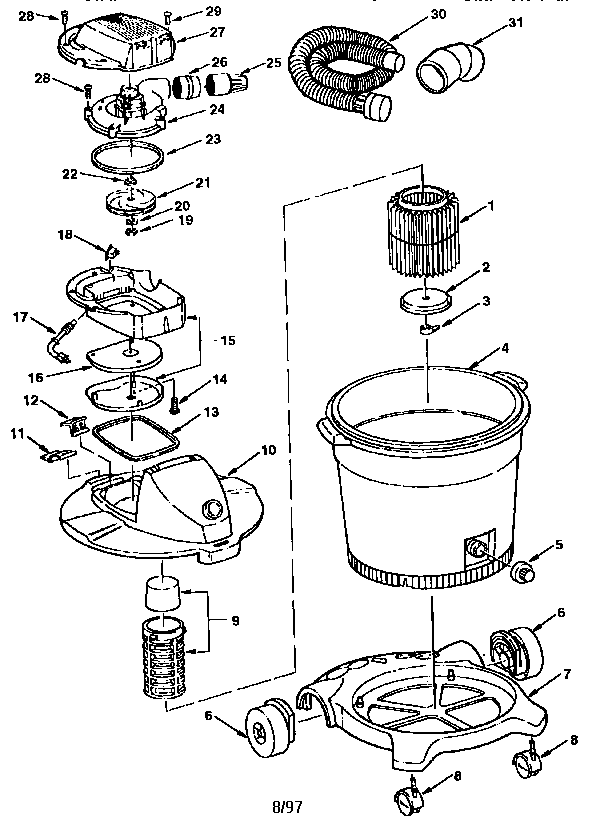

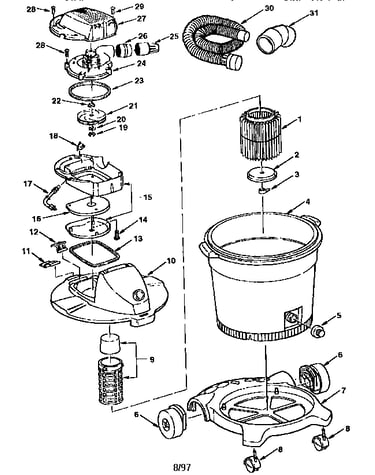

    Unit Diagram

    Filter

    Part #9-17816

    The manufacturer no longer makes this part, and there's no substitute part

    Shop Vacuum Filter (Red Stripe)#14

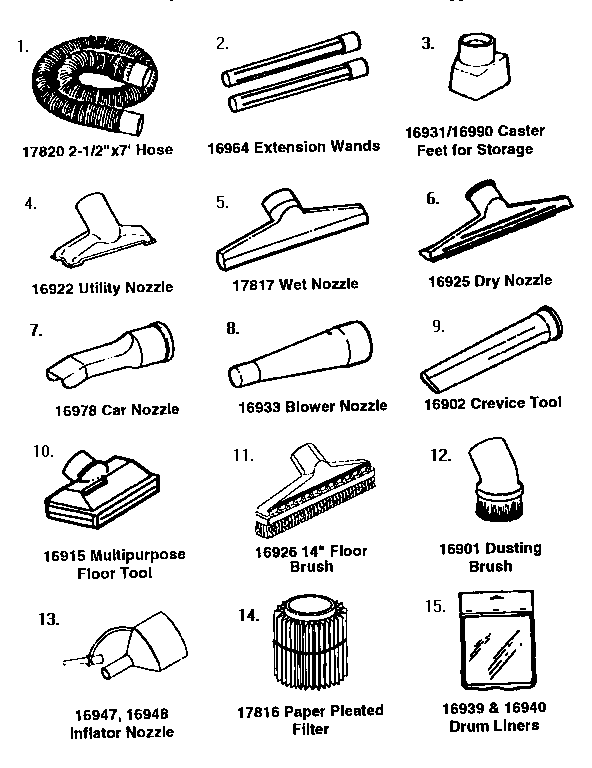

    Accessories and attachments Diagram

    Filter

    Part #17816
    Replaced by #551006114
    ?
    Manufacturer substitution
    This part replaces 17816. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $25.49
    Filter#2

    Unit Diagram

    Filter

    Part #9-16937

    The manufacturer no longer makes this part, and there's no substitute part

    Extension Tube#2

    Accessories and attachments Diagram

    Extension tube

    Part #16964

    The manufacturer no longer makes this part, and there's no substitute part

    Nozzle#5

    Accessories and attachments Diagram

    Nozzle

    Part #17817

    The manufacturer no longer makes this part, and there's no substitute part

    Crevice Tool#9

    Accessories and attachments Diagram

    Crevice tool

    Part #16902

    The manufacturer no longer makes this part, and there's no substitute part

    Nozzle#8

    Accessories and attachments Diagram

    Nozzle

    Part #16933

    The manufacturer no longer makes this part, and there's no substitute part

    Round Brush#12

    Accessories and attachments Diagram

    Round brush

    Part #16901

    The manufacturer no longer makes this part, and there's no substitute part

    Gutter#4

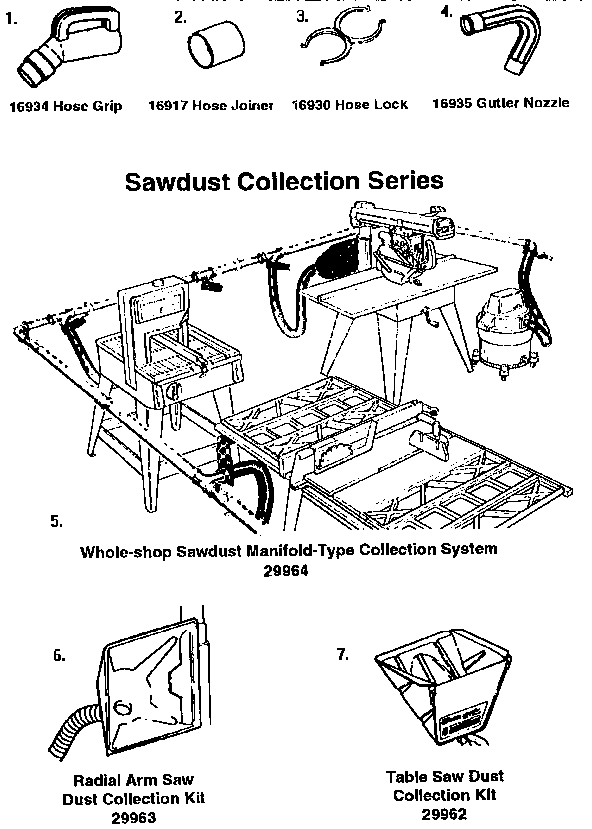

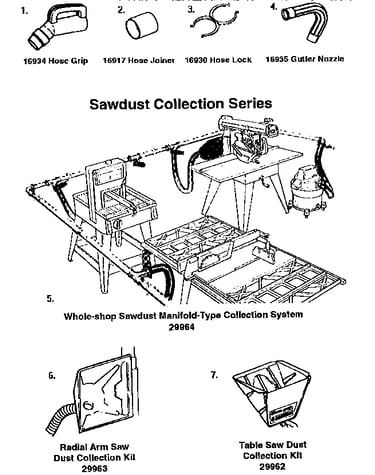

    Accessories and sawdust collection series Diagram

    Gutter

    Part #16935

    The manufacturer no longer makes this part, and there's no substitute part

    Floor Brush#11

    Accessories and attachments Diagram

    Floor brush

    Part #16926

    The manufacturer no longer makes this part, and there's no substitute part
