Kenmore Elite 66514815N610 dishwasher Parts

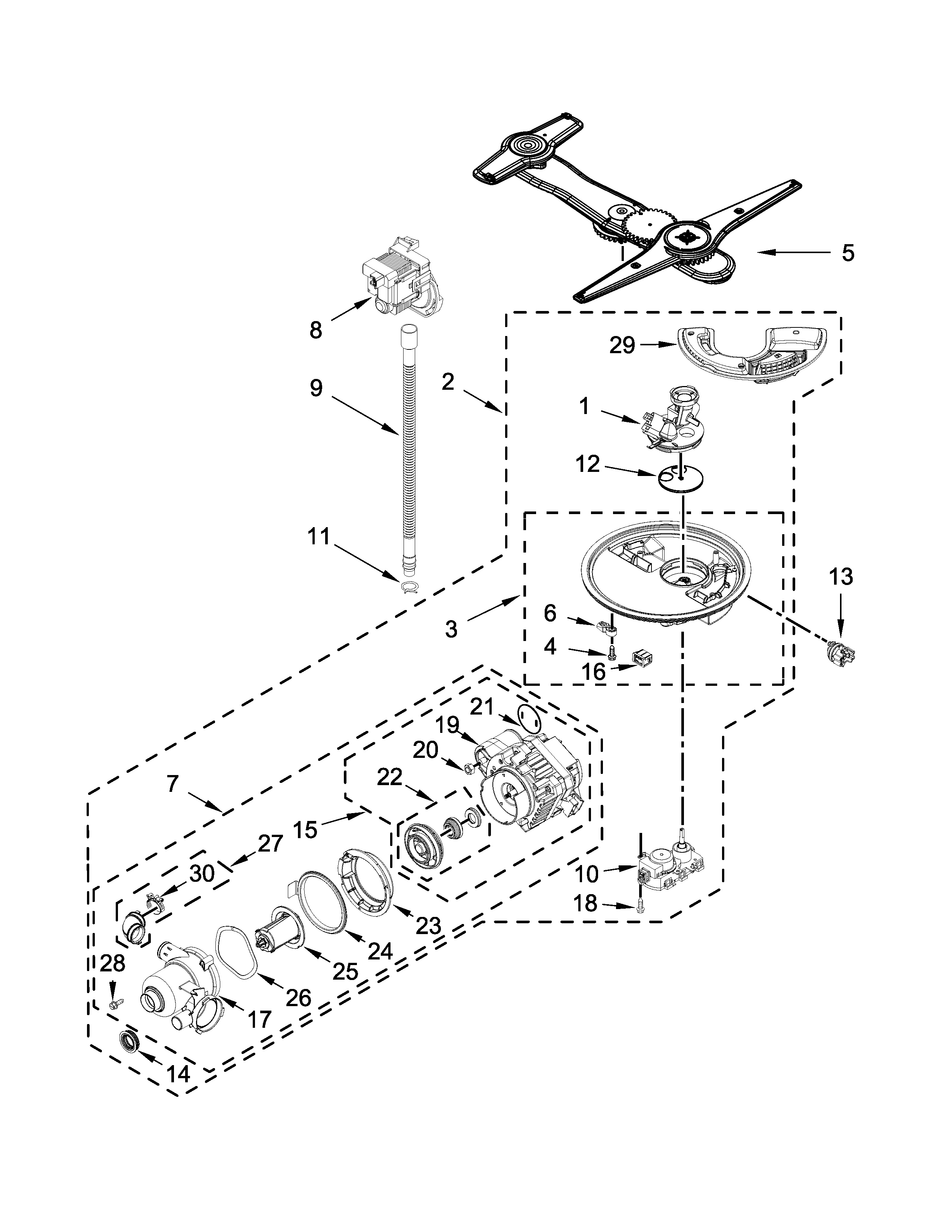

Yes. Your Kenmore Elite dishwasher model 66514815N610 uses a filtration system to help trap food soil and protect the wash pump. On many Kenmore 665 dishwashers, the filter is accessed from inside the tub near the bottom, under or around the lower spray arm; cleaning it helps prevent odors and poor cleaning.

Where the filter is and what it does

Most Kenmore 665-series designs use a filter area in the sump at the bottom of the tub. The filter system’s job is to:

• Catch food particles so they do not redeposit on dishes
• Help protect the pump and diverter from debris
• Reduce drain clogs and standing water
• Cut down on odor buildup over time

For the exact filter style and removal steps for 66514815N610, follow the diagrams and instructions in the 66514815N610 owner’s manual.

How to check and clean the filter (typical steps)

Before you start, turn off power at the breaker for safety.

• Remove the lower rack.
• Look at the bottom center of the tub around the sump and lower spray arm.
• If you see a round or oval filter cover, unlock it (usually a twist) and lift it out.
• Rinse the filter under hot water; use a soft brush for grease or film.
• Reinstall the filter fully seated and locked before running a cycle.

Quick troubleshooting: when a dirty filter is likely

Symptom	Often linked to filter area	Also check
Fishy or sour smell	Yes	Drain hose routing, standing water
Grit on glasses	Yes	Detergent, spray arm holes
Poor wash on lower rack	Sometimes	Water temperature, loading
Slow draining	Sometimes	Drain hose, disposer knockout

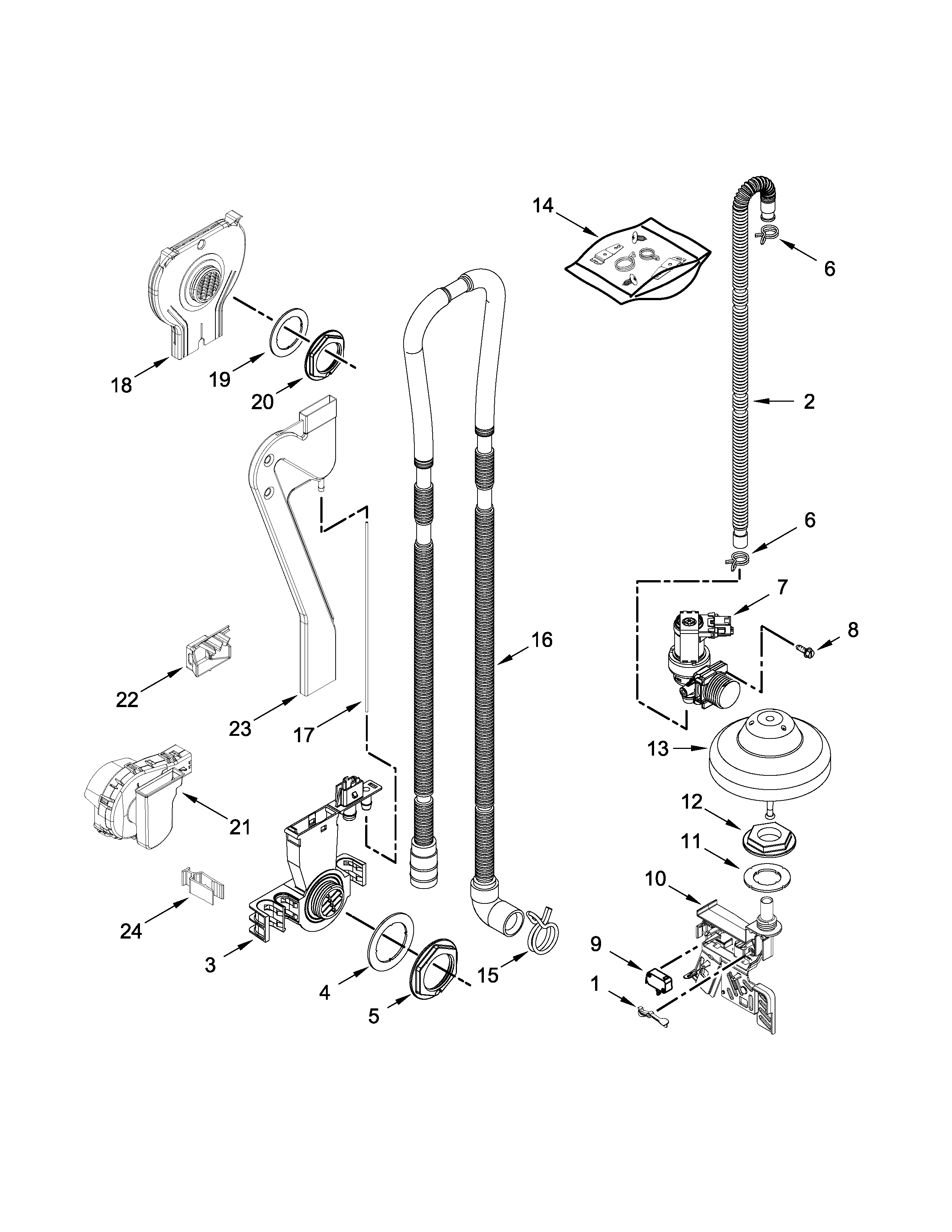

If you’re also seeing a drain problem, inspect the dishwasher drain hose 8269144A for kinks, clogs, or a low loop issue.

Why it matters

A clean filter keeps water moving correctly through the sump and spray arms, which improves cleaning and helps prevent odor and buildup that can shorten the life of components like the wash motor and diverter.

Last updated: January 2026

To reset a Kenmore Elite dishwasher model 66514815N610, we recommend doing a simple power reset: turn the dishwasher off at the breaker (or unplug it) for about 3 to 5 minutes, then restore power and start a new cycle. This clears many temporary control glitches.

Quick reset steps (power reset)

• Turn the dishwasher OFF.
• Switch the dishwasher circuit breaker OFF (or unplug the power cord if accessible).
• Wait 3 to 5 minutes.
• Restore power (breaker ON or plug back in).
• Select a cycle and press Start/Resume.

If it still will not run after the reset

A reset helps when the electronic control is “stuck,” but it will not fix a door-latch, fill, or drain problem. Check these common causes:

• Door not latching fully; the cycle will not start if the latch is not engaged.
• Water supply turned off under the sink; the dishwasher cannot fill.
• Drain hose kinked or clogged; the unit may stop if it cannot drain.
• Control lock enabled (some models); unlock before starting.
• Power issue at the outlet or breaker; confirm the dishwasher has steady power.

Helpful references for this model

Use these resources to match the exact button sequence, indicators, and error behavior for your 66514815N610:

What you need	Best reference	When to use it
Reset and control panel behavior	66514815N610 owner's manual	When lights blink, cycle will not start, or buttons seem unresponsive
Installation and power connection checks	66514815N610 installation guide	When troubleshooting power, wiring, or after moving/reinstalling
Error code meaning and next steps	Kenmore 665 model dishwasher error codes	When an error code is displayed or lights flash in a pattern

Why it matters

Resetting restores the control to a known “ready” state. If the dishwasher immediately returns to the same symptom after a reset, that points to an underlying issue such as a door latch problem, a fill/drain restriction, or a component fault that needs troubleshooting.

Last updated: January 2026

Kenmore is a brand name, and the actual manufacturer can vary by model and production run. For Kenmore Elite dishwasher model 66514815N610, the 665 model prefix identifies it as a Whirlpool-built dishwasher (sold under the Kenmore name).

How we identify the manufacturer for Kenmore 665 models

Kenmore model numbers often reveal the original manufacturer through the 3-digit prefix.

• 665 prefix: Whirlpool-built dishwasher platform
• The remaining digits (like 14815N610) identify the specific configuration and revision
• The installation and service information is still written for Kenmore owners, even when the unit is Whirlpool-built

For installation specs and connection requirements that apply to your exact unit, use the 66514815N610 installation guide.

Why the manufacturer matters when buying parts

Knowing the platform helps you match the right style of parts and troubleshooting steps (especially for racks, rollers, pumps, and controls).

Common examples on Whirlpool-built Kenmore 665 dishwashers include:

• Dishrack wheels and adjusters
• Door latch and door balance hardware
• Water inlet valve and drain hose routing
• Heating element and wash motor components

Examples of model-matched parts on this page

What you are fixing	Example part for this model	What it affects

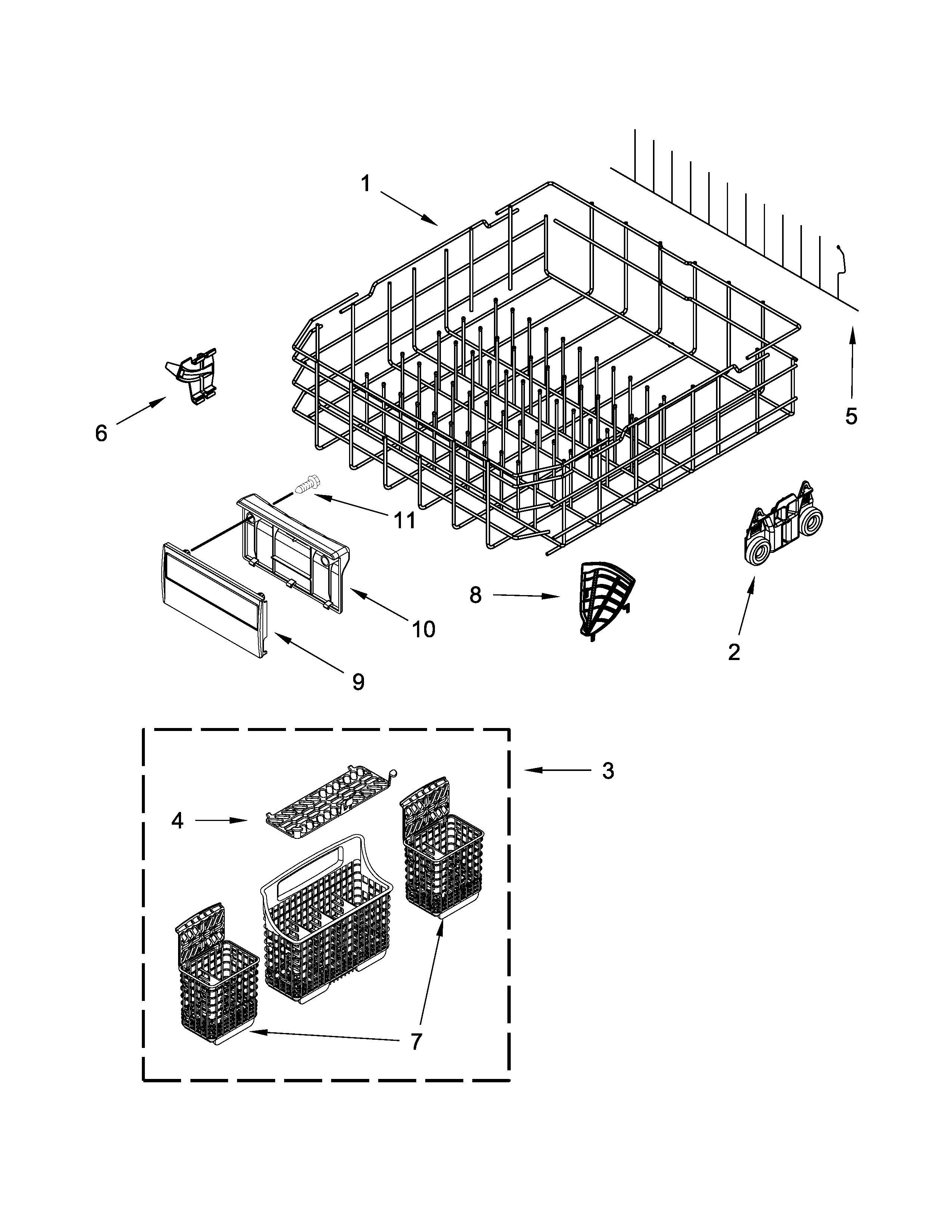

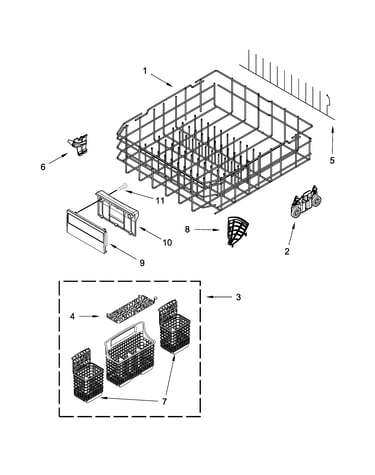

Lower rack not rolling smoothly	Dishwasher dishrack roller assembly, lower WPW10195417	Rack movement and alignment
Door not closing or not latching	Dishwasher door latch (varies by symptom)	Starting and sealing
Not heating or poor drying	Heating element (varies by symptom)	Water temperature and drying

Quick tip for confirming you have the right parts

Use the full model number 66514815N610 from the tag on the tub frame (typically along the door opening), then match parts by description and symptom.

Why it matters

Kenmore-branded dishwashers can look similar across years, but internal designs differ by manufacturer. Using the Whirlpool-built identification for a 665 model helps prevent ordering the wrong rack hardware, pump parts, or electrical components.

Last updated: January 2026

Common problems on Kenmore dishwashers like model 66514815N610 include poor cleaning, not draining, leaking, and control or flashing-light issues. Most complaints trace back to loading and maintenance, water supply and draining setup, or a worn part such as the inlet valve, drain hose, or door latch.

Most common symptoms and what they usually point to

• Not cleaning well: clogged spray paths, low water temperature, overloading, detergent issues, diverter or wash motor problems
• Not draining: kinked/blocked drain hose, clogged filters/sump area, drain path restriction
• Leaking: door seal wear, door not closing squarely, loose hose connections, over-sudsing
• Won’t start or stops mid-cycle: door not latching, control lock, power supply issue
• Lights flashing or error codes: a detected fault (often related to heating, draining, or water fill)

Quick checks we recommend before replacing parts

1. Confirm the door closes and latches firmly; a weak latch can prevent starting.
2. Check the drain path: look for a high loop/air gap setup and make sure the hose is not kinked.
3. Verify water supply: shutoff valve fully open; inlet line not pinched.
4. Load for spray access: keep tall items from blocking the spray arms.
5. Run a cleaning cycle and remove debris from the sump area.

Parts that commonly solve these problems on 66514815N610

Symptom	Common part to inspect	Example part for this model
Won’t start	Door latch	Dishwasher door latch WPW10653840
Not filling or fills slowly	Water inlet valve	Dishwasher water inlet valve WPW10327249
Not draining	Drain hose	Dishwasher drain hose 8269144A

Why it matters

A dishwasher can look like it has a “major” failure when the real issue is a restricted drain, a door that is not fully latched, or a water supply problem. Starting with the basics prevents repeat problems and helps you replace only the part that actually failed.

Helpful references for troubleshooting

• Use the 66514815N610 installation guide to confirm drain, water, and electrical requirements and to avoid routing hoses or wiring where they can contact the motor.
• If you’re seeing blinking lights or a code, match it to the symptom using Kenmore 665 model dishwasher error codes.

Last updated: January 2026
