Whirlpool ED25RFXFW01 side-by-side refrigerator Parts

The biggest problem we see in Whirlpool refrigerators like model ED25RFXFW01 is loss of proper cooling, which can show up as warm fresh food, a freezer that is not staying frozen, or heavy frost buildup. The most common causes are airflow and defrost issues, plus water and ice maker supply problems.

Most common “big” problems (and what they look like)

• Dirty condenser coils: refrigerator runs a lot, weak cooling, higher temps

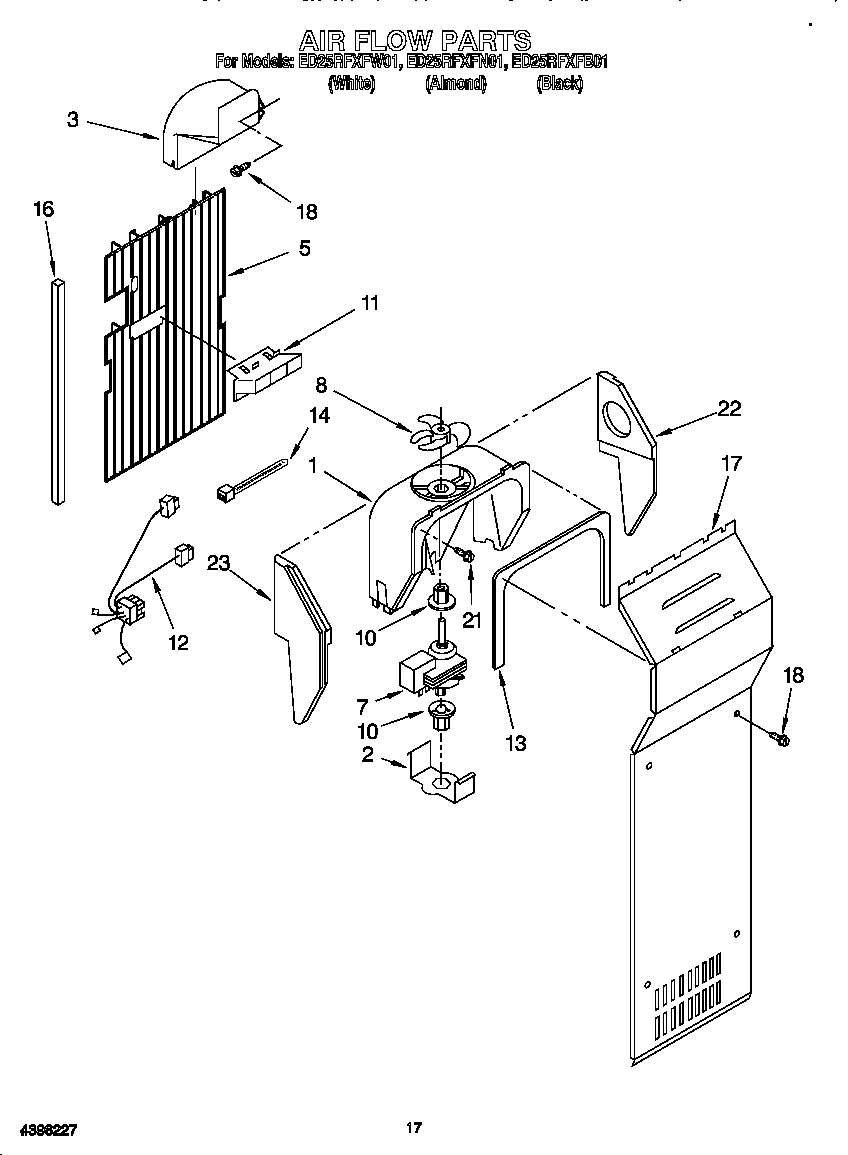

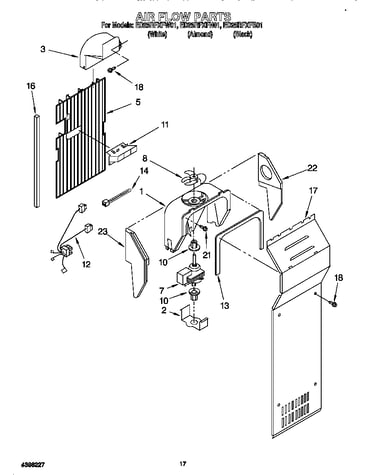

• Evaporator fan or airflow problem: freezer cools unevenly, fresh food warms up
• Defrost system failure: frost on the back wall of the freezer, reduced airflow
• Temperature control issue: temps swing too warm or too cold
• Ice maker or dispenser water supply issue: no ice, small cubes, slow water

Quick checks you can do first

1. Confirm settings and basic operation using the owner's manual.
2. Make sure vents inside both compartments are not blocked by food.
3. Clean condenser coils and verify the condenser fan area is clear.
4. Look for frost buildup in the freezer (a strong clue of a defrost problem).
5. If ice or water is weak, replace the filter and check for kinks in the water line.

Parts that commonly solve these symptoms on ED25RFXFW01

Symptom	Likely system	Example part on this model
Frost buildup, warm fridge	Defrost system	Refrigerator defrost bi-metal WPW10225581 or refrigerator defrost timer W10822278

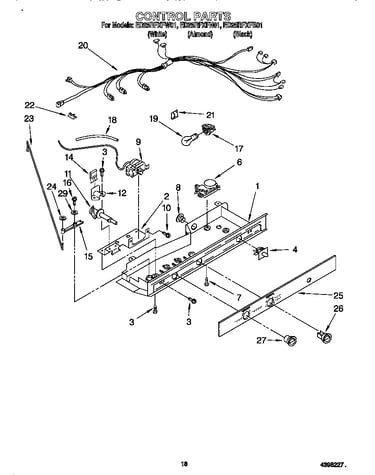

Warm temps, poor control	Temperature control	Refrigerator thermostat WP2198202
No ice or no water	Water supply	Refrigerator inlet valve W10408179 or refrigerator water filter EDR5RXD1

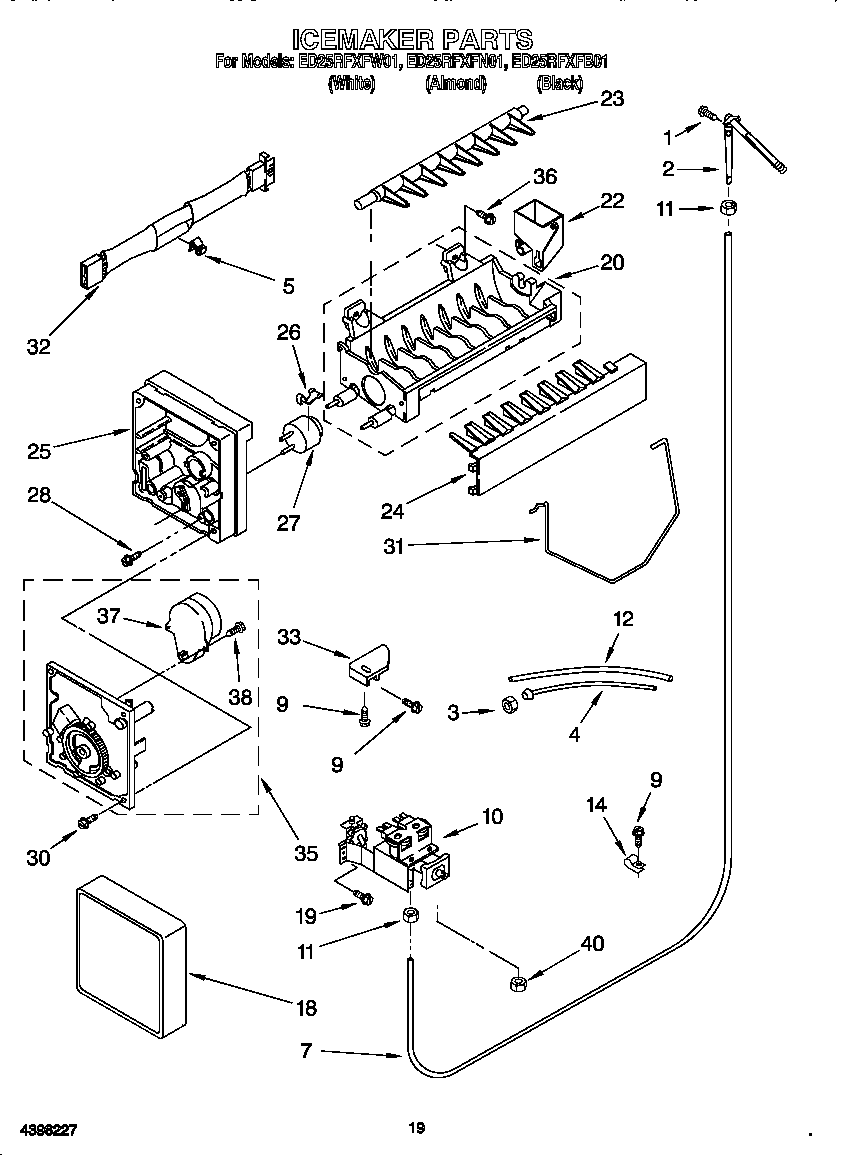

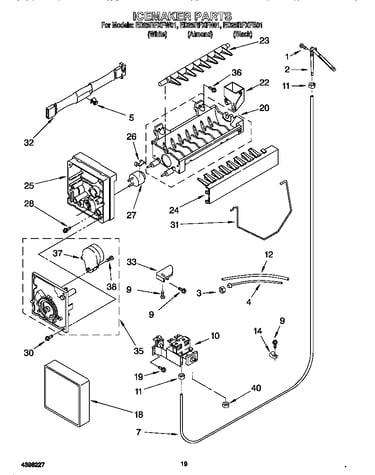

Ice maker not producing	Ice maker	Ice maker assembly - refrigerator ice maker by Whirlpool 4317943

Why it matters

Cooling and defrost problems can quickly lead to food spoilage and compressor overwork. Water and ice issues often trace back to restrictions (filter) or a weak fill (inlet valve), which are usually faster fixes than sealed-system repairs.

Last updated: February 2026

The Whirlpool ED25RFXFW01 is a full-size side-by-side refrigerator in the 25 cubic foot class; most units in this style are about 33 inches wide, 66 to 70 inches tall, and 30 to 34 inches deep. For the exact cabinet and clearance dimensions, use the owner's manual.

Typical size you can plan around

Most Whirlpool side-by-side refrigerators like ED25RFXFW01 fit a standard 33-inch opening and need extra space for airflow and door swing.

• Width: typically ~33 in.
• Height: typically ~66 to 70 in.
• Depth: typically ~30 to 34 in. (cabinet); deeper with handles
• Capacity class: typically ~25 cu. ft.
• Clearances: allow space behind and above for ventilation

Quick planning table

What you’re measuring	What to include	Typical range for this model type
Width	cabinet (not trim)	~33 in.
Height	floor to top of cabinet/hinge area	~66 to 70 in.
Depth	cabinet vs. with handles	~30 to 34 in. (cabinet)
Fit space	opening plus clearance	opening slightly larger than cabinet

How to measure your refrigerator correctly

Use a tape measure and record all three dimensions before ordering shelves, bins, or planning a move.

• Measure width at the widest point of the cabinet
• Measure height from floor to the highest point (often hinge cover)
• Measure depth from the back to the front (note if you include handles)
• Measure your doorway and hallway widths for moving
• Confirm clearance needs (rear, top, and side) in the owner's manual

Why it matters

Correct dimensions prevent installation problems like doors that cannot open fully, poor condenser airflow (warm temperatures), and water line kinks that can affect the ice maker and water dispenser.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool ED25RFXFW01 side-by-side refrigerator, typically last 10 to 20 years. In real-world use, many owners see about 10 to 15 years before major repairs become more common; good airflow, clean coils, and solid door sealing help push lifespan toward the high end.

What affects lifespan the most

• Condenser coil cleanliness (dust and pet hair raise compressor workload)
• Door gasket condition (air leaks cause longer run times and frost)
• Stable temperatures (avoid frequent warm-ups from long door openings)
• Water and ice system health (clogs and leaks strain valves and ice maker)
• Defrost system performance (heavy frost reduces cooling efficiency)

Quick maintenance checklist (high impact)

• Vacuum the condenser area and base grille every 6 to 12 months.
• Confirm doors close fully and stay aligned; fix sagging or drag.
• Replace the water filter on schedule and flush the dispenser after changes.
• Keep freezer vents clear so air can circulate.
• Watch for recurring frost buildup or puddles and address them early.

Common “mid-life” repairs you may see

Symptom	Often related to	Example part for ED25RFXFW01
No ice or slow ice	Ice maker or water supply issue	Ice maker assembly - refrigerator ice maker by Whirlpool 4317943
No water at dispenser	Water inlet valve or filter restriction	Refrigerator inlet valve W10408179
Frost buildup, warm temps	Defrost system issue	Refrigerator defrost timer W10822278

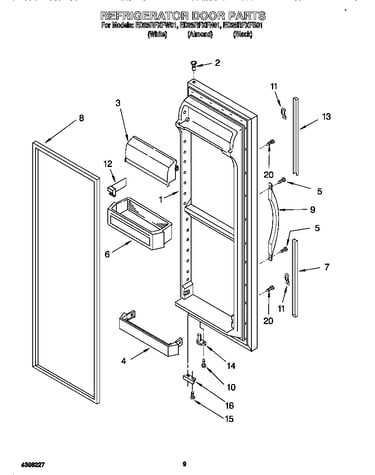

Door not sealing well	Worn gasket or closer parts	Refrigerator door closer cam WPW10329686

Why it matters

A refrigerator that runs longer to hold temperature uses more energy and wears sealed-system components faster. Your ED25RFXFW01 manual also outlines warranty coverage basics, including a one-year full warranty and longer sealed-system coverage; details are in the owner's manual.
