Whirlpool LSL9244EQ0 home direct-drive washer Parts

The most common Whirlpool washer problems are “won’t spin or agitate,” “won’t drain,” and leaking. On the Whirlpool LSL9244EQ0 direct-drive washer, the most frequent root causes are worn drive components (coupling, clutch, agitator dogs) or a failed lid switch that stops spin for safety.

Most common symptoms and what they usually point to

• Won’t agitate (fills but clothes do not move): worn agitator dogs or a drive issue
• Won’t spin (clothes come out wet): lid switch problem, clutch wear, or drive coupling wear
• Won’t drain (water left in tub): drain restriction or a drive system issue preventing pump-out
• Loud grinding or rattling: worn clutch, drive block wear, or basket drive issues
• Leaks: hose, tub gasket, or tub-related sealing problems

Quick checks we recommend first (fast, no parts)

1. Confirm the lid closes firmly and the washer “clicks” into the spin portion of the cycle.
2. Redistribute the load (bulky items can stop spin or cause slipping).
3. Check for drain restrictions (kinked drain hose, lint or small items blocking flow).
4. Listen during agitation/spin: a motor running with little movement often points to a worn drive coupling.

Common LSL9244EQ0 parts that fix the “won’t spin or agitate” complaint

If the washer fills and the motor runs but the basket or agitator does not move correctly, these are the most common repairs for this style of Whirlpool direct-drive washer:

Symptom	Most likely part area	Example part for LSL9244EQ0
Agitator moves weakly or only one direction	Agitator drive	Agitator dog 80040
Motor runs, little or no agitation/spin	Motor-to-gearcase drive	Coupling 285753A
Spins weakly, slips, or smells hot	Spin drive	Clutch 285785
Basket wobbles, won’t lock to spin tube	Basket drive interface	Washer drive block WP389140
Leaks around tub area after service or age	Sealing	Washer tub gasket W10814296

Why it matters

When a washer cannot spin or drain properly, clothes stay wet and the motor and drive system can overheat from repeated attempts. Replacing a common wear part early (like a coupling, clutch, or agitator dogs) often restores normal wash performance and prevents bigger drive damage.

Last updated: February 2026

To look up the Whirlpool model number for your washer, find the model and serial tag on the appliance and match it exactly (letters and numbers). For Whirlpool direct-drive top-load washers like model LSL9244EQ0, the tag is most often under the lid or on the cabinet rim around the opening.

Where to check on a Whirlpool top-load washer

Look in these common spots first:

• Under the washer lid, around the tub opening (cabinet rim)
• On the underside of the lid itself
• On the back of the washer cabinet
• Behind the control panel area (some versions)
• Inside the front panel area near the base (less common)

How to use the model number once you find it

When you have the full model number, use it to pull the correct parts list and diagrams so you get compatible parts for your exact washer.

Here are examples of common LSL9244EQ0 repairs where the model number matters:

• Agitation problems: agitator dog 80040
• Won’t spin or makes a grinding/rattling noise: coupling 285753A
• Slow or weak spin: clutch 285785

Model number vs. serial number (quick guide)

Use the model number for parts lookup; use the serial number for manufacturing details.

What you see on the tag	What it’s used for	Example
Model number	Parts compatibility and diagrams	LSL9244EQ0
Serial number	Production date/sequence	Varies

Why it matters

Whirlpool washer parts can look similar across many models, but mounting points, electrical connectors, and drive components can differ. Using the exact model number helps us match the right Whirlpool washer parts the first time.

Last updated: February 2026

The Whirlpool LSL9244EQ0 is a Whirlpool home direct-drive washer model. In other words, LSL9244EQ0 is the exact model number you use to match the correct washer parts (like the drive system, clutch, and agitator components) for this specific machine.

What “LSL9244EQ0” tells you

We use the full model number LSL9244EQ0 to ensure part compatibility for this Whirlpool washer, especially for common direct-drive wear items.

• It identifies the exact Whirlpool washer design and parts list
• It helps match the correct drive and spin components
• It narrows down the correct lid switch and water inlet parts
• It prevents ordering look-alike parts that do not fit

Where to find the model number on the washer

On most Whirlpool top-load direct-drive washers, the model/serial tag is typically found in one of these spots:

• Under the lid near the tub opening
• On the rim of the washer cabinet opening
• On the back of the control console area
• On the rear panel of the cabinet

Common parts customers look up by model number

If you are searching parts for Whirlpool LSL9244EQ0, these are some of the most common direct-drive washer parts people replace:

Symptom	Commonly involved part	Example part for LSL9244EQ0
Agitator moves poorly or slips	Agitator dogs	Agitator dog 80040
Washer will not spin or agitate	Motor coupling	Coupling 285753A
Spins weakly or slips under load	Clutch	Clutch 285785

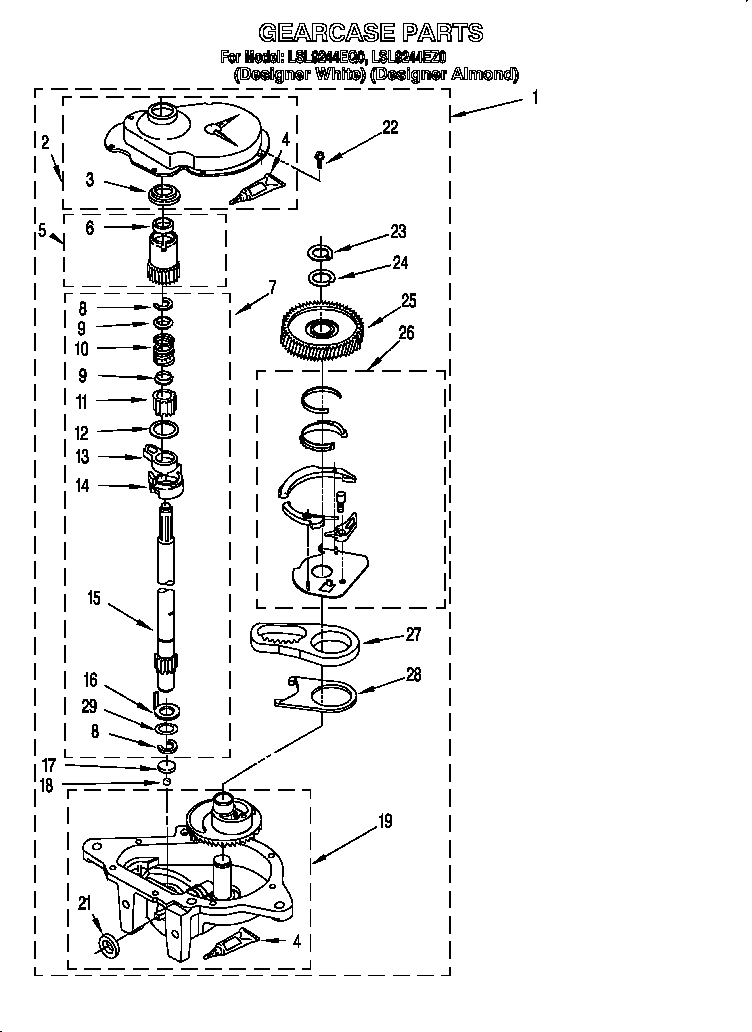

Loud grinding or drive issues	Gear case	Gear case 3360629

Why it matters

Using the exact model number LSL9244EQ0 is the fastest way to get the right Whirlpool washer parts the first time, because direct-drive washers can share similar-looking components that are not interchangeable.

Last updated: February 2026

On the Whirlpool LSL9244EQ0 washer, the most reliable “lid lock reset” is a power reset: unplug the washer (or turn off the breaker) for 5 minutes, restore power, then select a cycle and start it with the lid fully closed. If it still will not unlock or start, the lid switch circuit needs attention.

Reset steps we recommend (in order)

• Unplug the washer for 5 minutes (or switch the breaker off), then restore power.
• Press Pause/Cancel once, wait 30 seconds, then try Spin.
• Open and close the lid firmly (do not slam) so it fully seats.
• If the tub is full of water, run Drain/Spin first; many washers keep the lid locked until water is pumped out.
• Wait 1 to 2 minutes after the motor stops; a short delay before unlocking is normal.

What to check if it still will not unlock

A stuck lid lock or no-start condition is usually caused by the lid switch not closing, a loose/broken actuator area at the lid, or a wiring problem.

• Listen for a distinct click at the lid area when you close the lid.
• Check lid alignment; a shifted lid can miss the switch actuator.
• Inspect the lid switch mounting area for cracks or looseness.
• If the washer will not agitate or spin, inspect the drive system because an incomplete cycle can prevent the normal unlock point.

Parts that commonly relate to lid lock or no-start symptoms

Symptom	What it points to	Part to consider
Washer will not start; no click at lid	Lid switch not closing	Switch 3949247V
Motor runs but no agitate/spin	Drive coupling failure	Coupling 285753A
Weak spin; long time to finish and unlock	Worn clutch	Clutch 285785

Why it matters

The lid switch is a safety device; if it does not confirm “lid closed,” the washer can stop, refuse to spin, or stay locked at the end of a cycle. Restoring proper lid switch operation prevents repeat lockups.

Last updated: February 2026
