Craftsman 917255274 lawn tractor Parts
Here are the diagrams and repair parts for Craftsman 917255274 lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

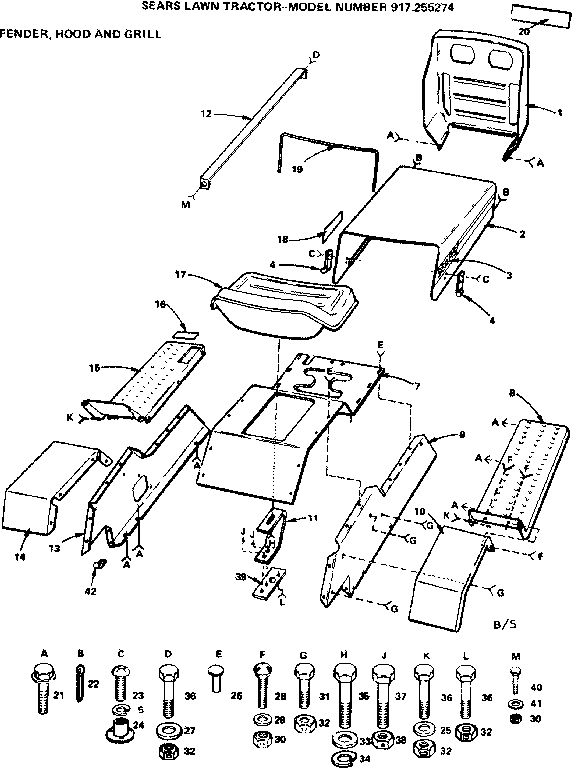

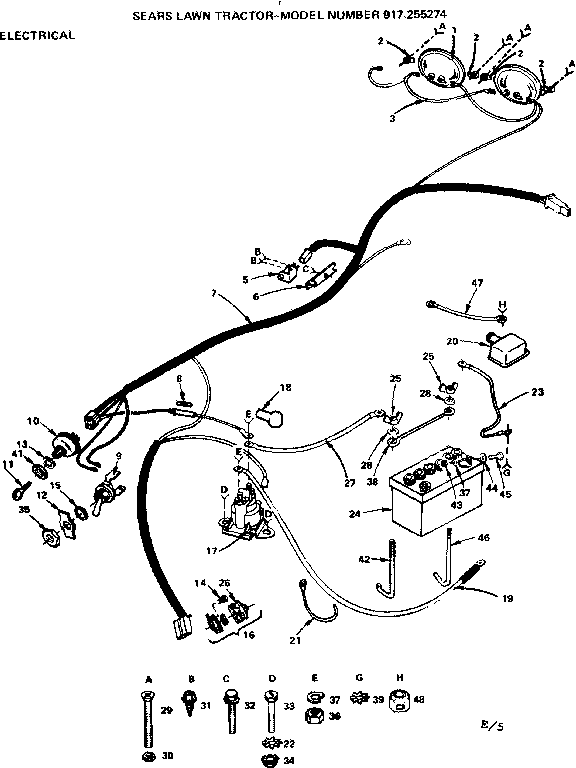

Browse Parts for 917255274 Riding Mowers & Tractors

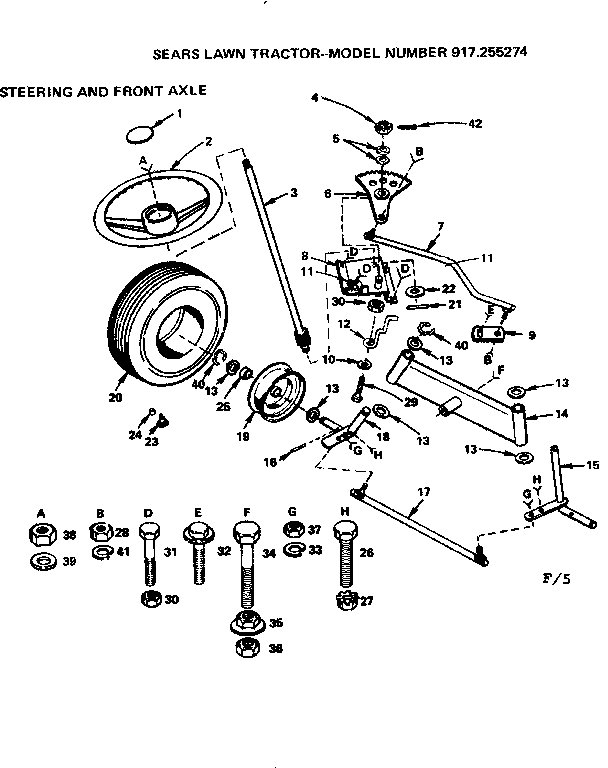

Steering and front axle diagram
Keps Nut
Part #518PReplaced by #873510600
Manufacturer substitutionThis part replaces 518P. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26
Qty
Flat Washer
Part #1507PReplaced by #STD551025
Manufacturer substitutionThis part replaces 1507P. Substitute parts can look different from the original.In Stock$36.61Qty#NI
All parts diagram
Label
Part #3495JReplaced by #539913010

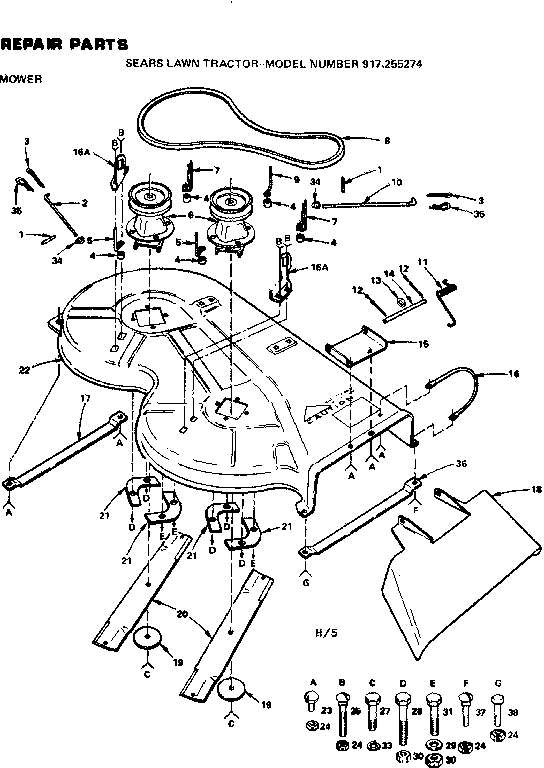

Manufacturer substitutionThis part replaces 3495J. Substitute parts can look different from the original.This item is not returnableIn Stock$7.40QtyMower diagram
Spring Retainer
Part #4921HReplaced by #532004921

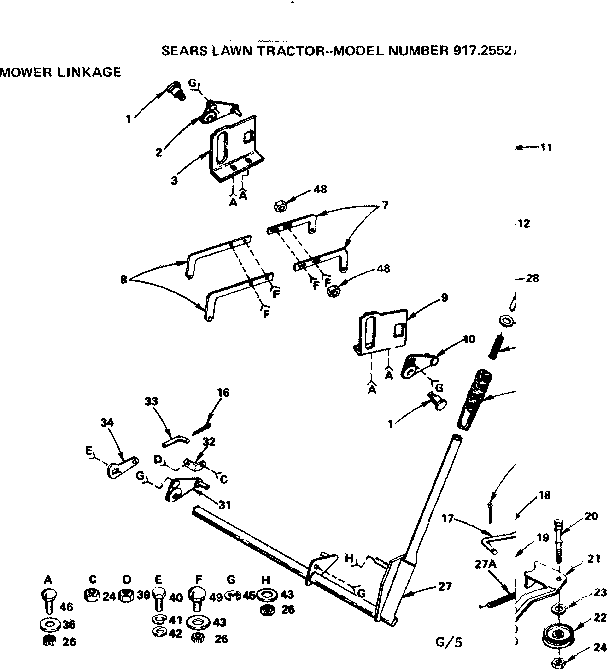

Manufacturer substitutionThis part replaces 4921H. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyMower linkage diagram
Flat Washer
Part #1509PReplaced by #STD551025
Manufacturer substitutionThis part replaces 1509P. Substitute parts can look different from the original.In Stock$36.61QtyScrew
Part #5612PReplaced by #596030701

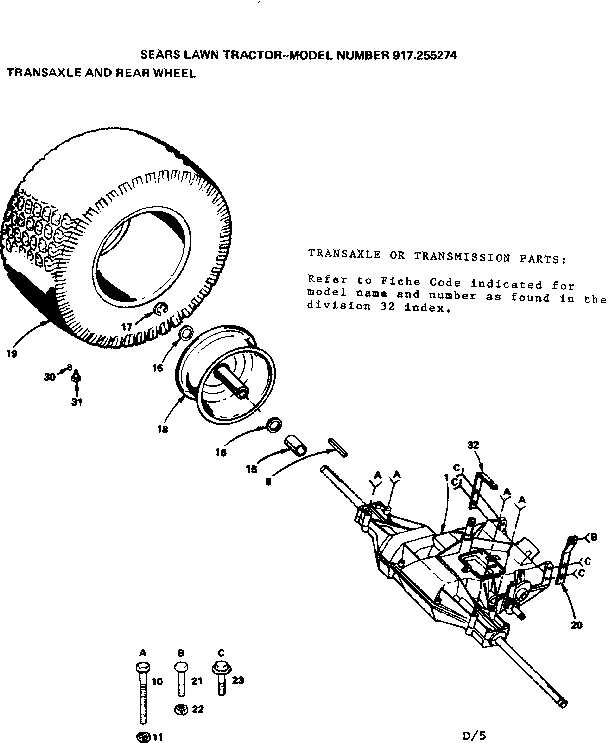

Manufacturer substitutionThis part replaces 5612P. Substitute parts can look different from the original.In Stock$22.77QtyTransaxle and rear wheel diagram
Screw
Part #5620PReplaced by #596030701

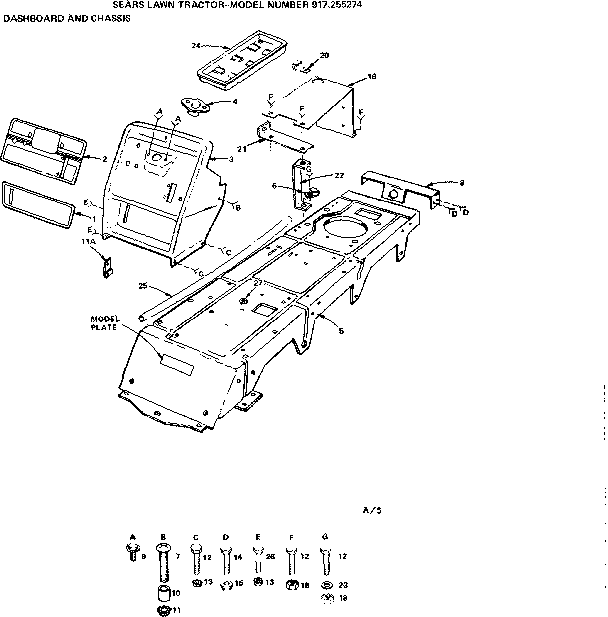

Manufacturer substitutionThis part replaces 5620P. Substitute parts can look different from the original.In Stock$22.77QtyDashboard and chassis diagram
Washer
Part #1654PReplaced by #819111212

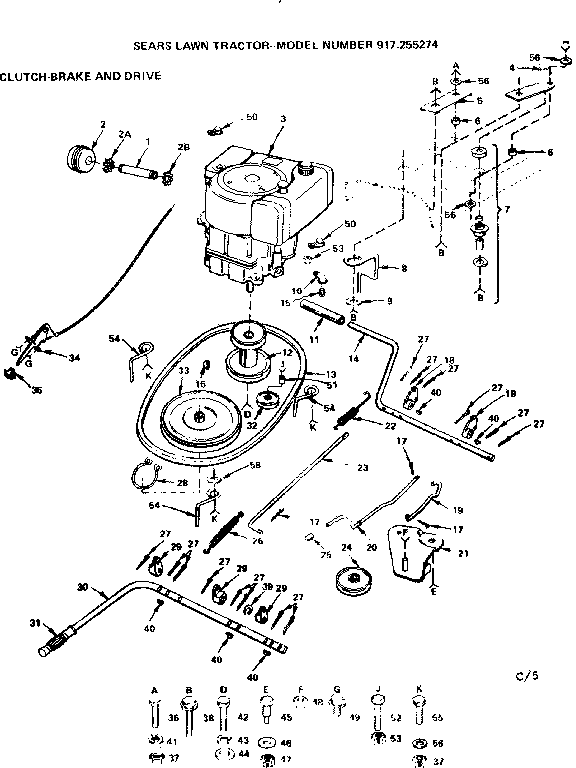

Manufacturer substitutionThis part replaces 1654P. Substitute parts can look different from the original.This item is not returnableIn Stock$5.54QtyClutch-brake and drive diagram
Muffler
Part #420JReplaced by #392989
Manufacturer substitutionThis part replaces 420J. Substitute parts can look different from the original.In Stock$61.67QtyClutch-brake and drive diagram
Idler Pulley
Part #67400Replaced by #532104679
Manufacturer substitutionThis part replaces 67400. Substitute parts can look different from the original.This item is not returnableIn Stock$29.4417% OFF Phone Price : $35.44
Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace the starter solenoid on a riding lawn mower
Replace the starter solenoid if it doesn't click when you turn the ignition key.…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair time and Difficulty
30 minutes or less
How to replace a riding lawn mower fuel filter
Help your mower run better by replacing the fuel filter during your riding mower's annual tune-up.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to connect cables safely to jump-start your mower’s battery.…
