Whirlpool WFW9400SW03 washer Parts

For your Whirlpool washer model WFW9400SW03, we look up the model number by finding the model and serial number label on the washer, then using that complete model number when searching parts and manuals. Your owner's manual also explains where to find and record this information.

Where to find the model number on a Whirlpool washer

On most Whirlpool front-load washers like WFW9400SW03, the model/serial label is typically in one of these spots:

• Along the door opening on the cabinet frame (open the door and check the inner rim)
• Behind the washer door area near the door lock or hinge side
• On the back panel of the washer cabinet
• Inside the lower access area (if your model has a removable lower toe panel)

How to use the model number once you find it

Use the full model number exactly as shown on the label (letters and numbers) to match the correct diagrams and parts for your washer.

• Enter WFW9400SW03 to pull the correct parts list and schematics
• Use the model number to confirm fit before ordering common wear items
• Keep the model and serial number written down for future troubleshooting and service history
• When replacing leak-related parts, match by model to avoid seal and hose mismatches

Common parts that often require model matching

Symptom	Common related part	Example part for this model

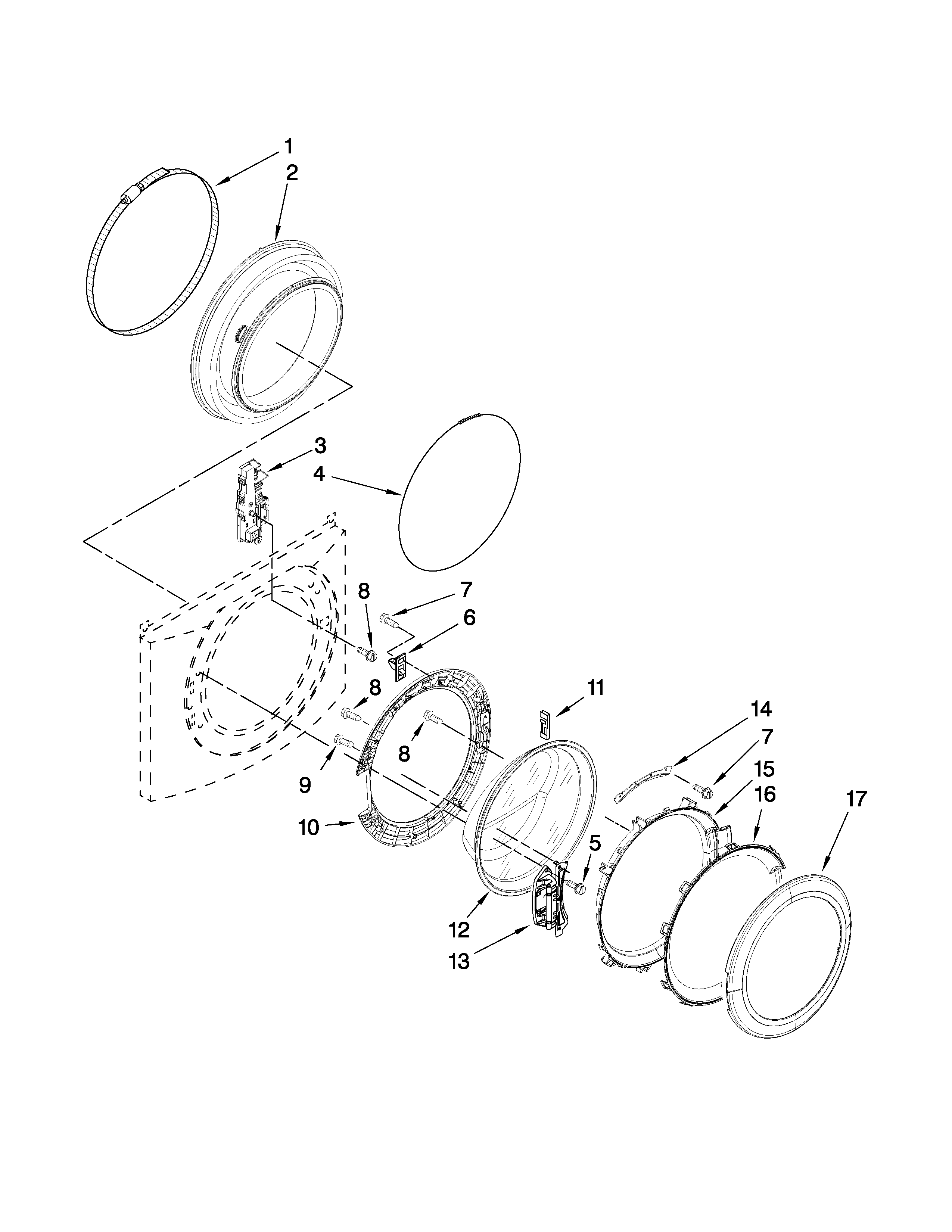

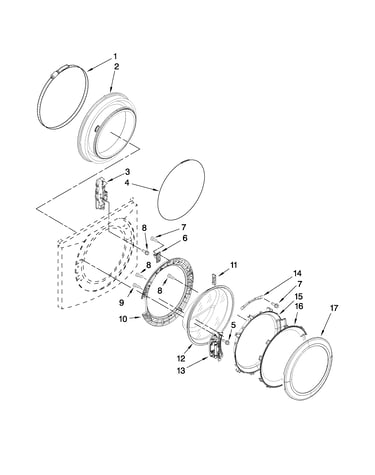

Water leaking at the door	Door boot (bellows)	Washer door boot WP8182119
Door will not latch/lock	Door lock	Washer door lock WP8183270

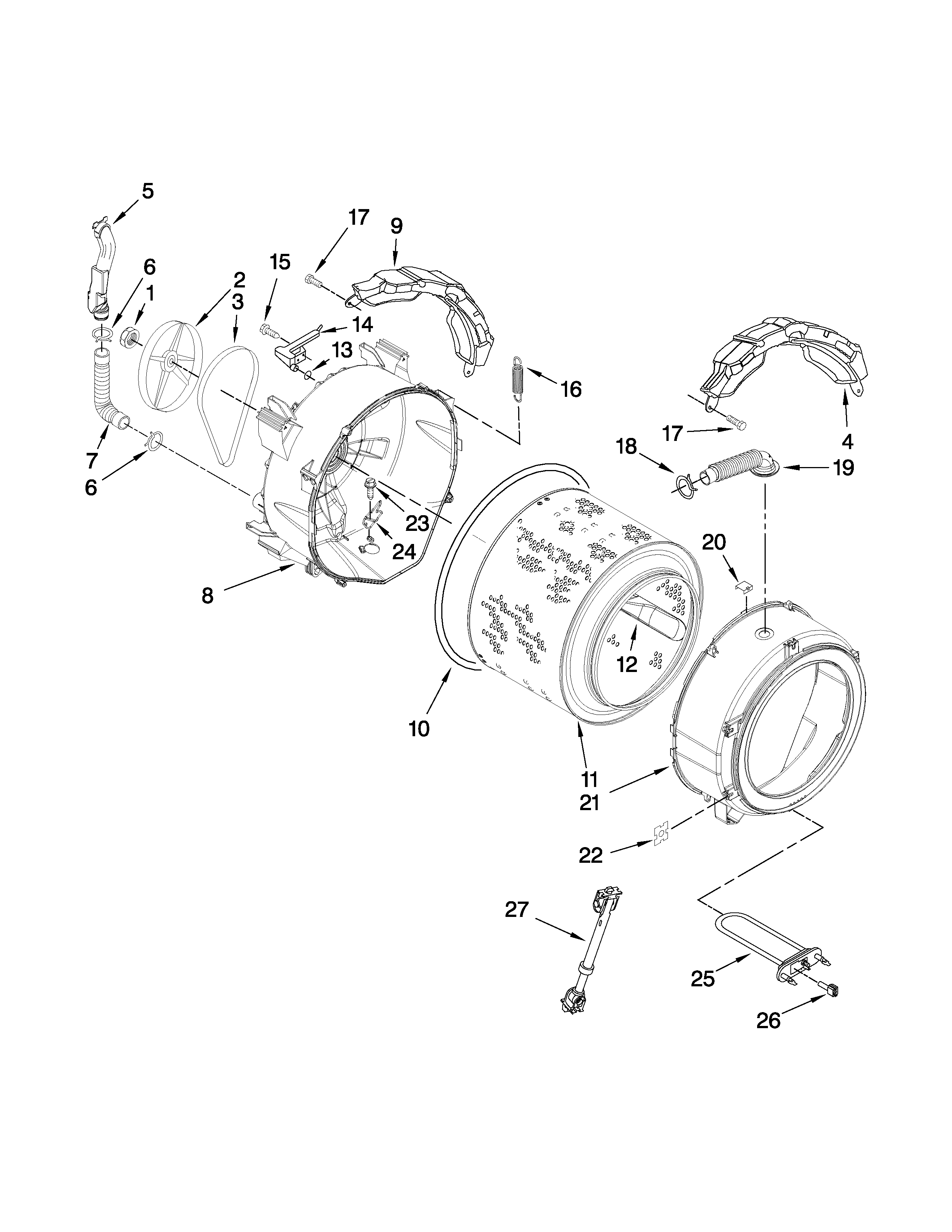

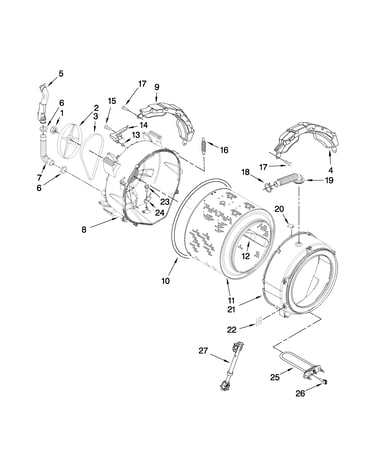

Excess vibration or banging	Shock absorber	Washer shock absorber W10822553

Why it matters

Whirlpool model numbers can look similar across product lines, but small differences can change the correct door boot, door lock, control board, or hoses. Using the complete model number helps ensure the replacement part fits right and works right.

You can also search by model number on the parts list for this washer, or use Sears PartsDirect to search by model if you are looking up additional Whirlpool appliances.

Last updated: February 2026

For Whirlpool washers like model WFW9400SW03, the most common issues we see are drain problems, water-inlet (fill) problems, and excess suds. These often trace back to simple causes such as a kinked drain hose, clogged inlet screens, or too much detergent; the owner's manual troubleshooting section calls these out directly.

Most common symptoms and what usually causes them

• Won't fill or fills slowly (often shows F20): closed faucets, clogged inlet screens, kinked or frozen fill hoses
• Won't drain or won't spin (often shows F21): kinked/frozen/clogged drain hose, drain height too high (over 96 inches)
• Suds routine (SUD): too much detergent or non-HE detergent causing excessive suds
• Door won't lock or washer won't start: door not fully latched, laundry caught in the opening, overloaded basket
• Noise or vibration: washer not level, load imbalance (single bulky item), normal pump gurgle during drain

Quick checks we recommend first (fast, no parts)

1. Reset the cycle: press PAUSE/CANCEL twice, then reselect the cycle and press START.
2. Verify water supply (F20-type issues): confirm both hot and cold faucets are fully on.
3. Inspect hoses:
   • Fill hoses: not kinked; inlet screens not clogged
   • Drain hose: not kinked or clogged; standpipe height 96 inches or less
4. Reduce suds: use HE detergent and measure carefully; the cycle can pause while suds clear.
5. Fix balance and leveling: redistribute the load; make sure all four feet are firmly on the floor.

When a part is the likely fix

If the basics check out and the problem repeats, these model-relevant parts are common suspects:

Symptom	Common part area	Example part for WFW9400SW03
Water leaking at the door	Door seal/boot	Washer door boot WP8182119
Excess shaking or banging	Suspension/damping	Washer shock absorber W10822553

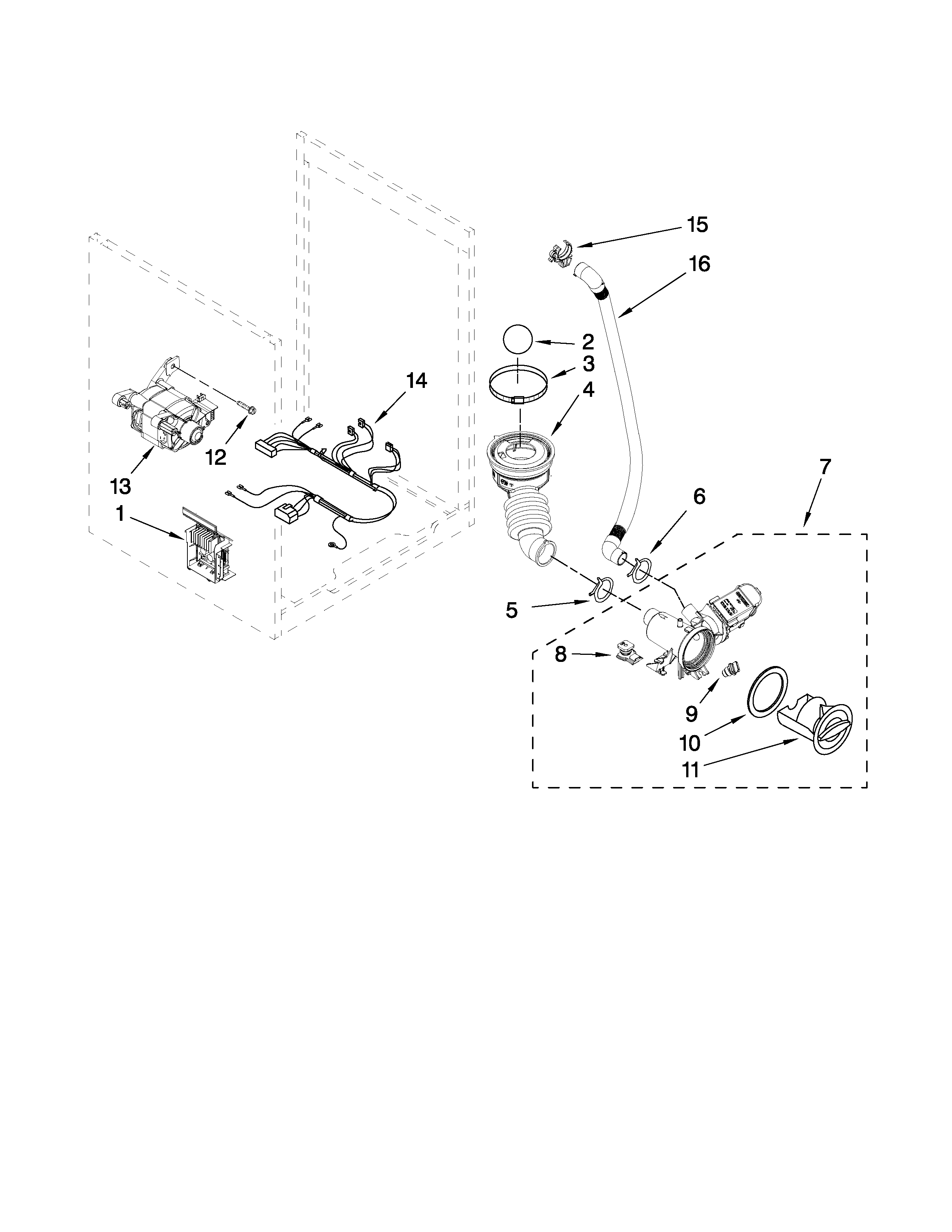

Won't drain or drains poorly	Drain pump/hose	Washer tub-to-pump hose WPW10467168
Intermittent operation or drive issues	Electronics	Washer motor control board WP8183196

Why it matters

Fill and drain problems can stop the cycle, leave clothes soaking wet, and trigger error codes. Catching a kinked hose, clogged screen, or excess suds early prevents repeat shutdowns and reduces wear on the pump, door lock, and control.

You can order replacement parts for WFW9400SW03 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A Whirlpool Duet dryer typically lasts 10 to 13 years with normal household use. With consistent airflow maintenance (lint screen and venting) and avoiding chronic overloading, it’s common to see around 15 years of service.

Typical lifespan and what changes it

Most electric and gas dryers in the Whirlpool Duet family land in the same range; the biggest difference is how hard the dryer works and how well heat and airflow are managed.

• Normal use: 10 to 13 years
• Light use and good maintenance: up to about 15 years
• Heavy family use or restricted venting: often shorter

Maintenance that extends dryer life

Even though this Sears PartsDirect page is for the Whirlpool WFW9400SW03 washer, the same laundry-room habits that protect a front-load washer also help a matching Duet dryer run cooler and with less strain.

• Clean the lint screen every load
• Keep the exhaust vent run short and unobstructed
• Avoid overloading; it overheats the motor and stresses drum support parts
• Use the correct cycle and heat setting for the fabric load
• Listen for early warning noises (squeal, thump, grinding) and address them promptly
• Keep the laundry area dry to reduce corrosion on electrical connections

Quick “replace or repair” guide

Use this as a practical decision tool when your Duet dryer starts acting up.

What you’re seeing	What it often means	What we recommend
Long dry times, hot cabinet	Airflow restriction	Clean venting and confirm strong exhaust airflow
Loud squeal or rumble	Wear in drum support or drive components	Repair soon to prevent secondary damage
Intermittent heat	Heating circuit issue	Diagnose before replacing major assemblies
Multiple issues plus age 12+ years	Stacked wear items	Compare repair cost vs. replacement

Why it matters

Dryer lifespan is mostly about heat management and airflow. When airflow is restricted, temperatures rise, run times increase, and components wear faster. Keeping airflow strong is the simplest way to protect performance and energy use.

For washer care tips that also help your laundry setup run better overall, use the Whirlpool WFW9400SW03 Owner's manual. If you’re ordering washer parts for this model, you can shop the parts list for WFW9400SW03 or search by model on Sears PartsDirect.

Last updated: February 2026
