On a Maytag dryer like model HYG3460AWW, an F3 code points to a temperature-sensing problem (the dryer is not reading heat correctly). Start by resetting power, then focus on airflow and the heating sensor circuit using the troubleshooting steps in the HYG3460AWW owner's manual.

What to check first (fast, no tools)

• Unplug the dryer (or switch off the breaker) for 2 minutes, then restore power.
• Clean the lint screen and confirm the lint screen housing is not packed with lint.
• Check the exhaust vent for kinks, crushing, or a clogged outside hood.
• Run a timed dry cycle and confirm the drum tumbles and airflow feels strong at the outlet.
• If the code returns quickly, move to sensor and heat-system checks.

Common causes on gas dryers

F3 is usually triggered when the control cannot trust the temperature feedback. Typical causes include:

• Restricted venting causing overheating and abnormal temperature readings
• A failing radiant/flame sensor such as the sensor WP338906
• Ignition or burner issues that cause unstable heat (for example, a weak igniter)
• Wiring connection problems at the sensor, thermostat, or control

Quick symptom guide

What you notice	Most likely direction	What we recommend
Dryer runs but no heat	Ignition or gas heat circuit	Check igniter and sensor connections; test components
Dryer heats then stops heating	Coils or sensor dropping out	Consider the dryer valve coil kit 279834 and inspect wiring
Dryer shuts off or won’t restart	Overheat protection opened	Check venting first; then inspect thermal fuse/thermostat

Why it matters

When temperature feedback is wrong, the dryer can under-dry, overheat, or shut down to protect itself. Fixing airflow first prevents repeat failures and helps protect parts like the thermal fuse, thermostat, and burner components.

Safety notes before testing

• Disconnect power before removing panels or handling wiring.
• If you smell gas, stop and have the gas supply and dryer checked by a qualified technician.

Last updated: February 2026

A Maytag dryer typically lasts 10 to 13 years. Many Maytag gas dryers like model HYG3460AWW reach 15 years with basic upkeep, especially keeping airflow clear and cleaning lint regularly as outlined in the HYG3460AWW owner's manual.

Typical lifespan ranges

These are realistic expectations for most household dryers:

• Average dryer lifespan: 10 to 13 years
• Well-maintained units: 14 to 16 years
• Heavy use (large households): closer to 8 to 12 years
• Light use (small loads, good venting): often 13 to 16 years

Usage and care level	What to expect	Common reason dryers fail early
Good venting, lint cleaned, normal loads	14 to 16 years	Wear parts finally reach end of life
Long vent run, occasional lint buildup	10 to 13 years	Overheating and longer dry times
Frequent overloading	8 to 12 years	Belt, rollers, motor strain

What shortens a dryer’s life (and what we do instead)

Most “early failures” come from heat and friction. We focus on these habits:

• Clean the lint screen every load and keep the lint screen housing clear
• Keep the exhaust duct unobstructed so the burner and thermostats do not overheat
• Avoid overloading; heavy loads strain the drum support system
• Stop using the dryer if you smell burning or hear loud squealing or thumping
• Replace common wear parts before they damage other components

Parts that commonly wear as dryers age

If your HYG3460AWW starts squealing, thumping, or not tumbling, these are frequent culprits:

• Dryer drum belt 341241 (broken belt, drum will not turn)
• Drum glides, rollers, idler components (noise, rough tumbling)
• Thermal safety devices (no heat after overheating event)
• Gas ignition components (no heat or intermittent heat)

Why it matters

Knowing the typical life expectancy helps you decide whether to repair or replace. If your dryer is within the 10 to 13 year window, replacing a wear item like a belt is often a practical fix; beyond that, multiple failing parts can make a full overhaul less cost-effective.

Last updated: February 2026

For Maytag dryer model HYG3460AWW, incomplete drying is usually caused by restricted airflow (lint filter or venting), an overloaded or mixed-fabric load, or a heat issue on gas models (gas supply off or burner components cycling incorrectly). Start with airflow and load size first; they fix most cases.

Quick checks that fix most “not drying” problems

• Clean the lint filter after every load; a clogged filter lengthens dry time.
• Confirm the outside exhaust hood opens and closes freely.
• Inspect the vent for lint buildup; rigid 4-inch metal duct dries best.
• Dry one wash load = one dryer load; overloading restricts tumbling and airflow.
• Separate heavy items from lightweight items; heavy items can stay damp.
• For very small loads, add a few towels to improve tumbling.

Heat and cycle behavior (what’s normal vs. a problem)

Auto Dry cycles can seem slow at first; the timer may not advance much until the load starts drying, then it advances faster. Also, it’s normal to hear the gas valve or heat source cycle on and off during drying.

Symptom	Most likely cause	Best first action
Clothes warm but still damp	Vent restriction or overloaded drum	Clean filter; check vent and hood; reduce load
Clothes cool and damp	No heat or cool-down portion of cycle	Verify cycle setting; confirm gas supply is on
Bulky items damp in spots	Load needs repositioning	Pause and rearrange blankets/comforters

Parts that commonly affect drying performance

If airflow and loading are correct but drying is still poor, these parts are common suspects:

• Dryer thermal fuse kit LA-1053 (can open if the dryer overheats, often from vent restriction)
• Dryer valve coil kit 279834 (gas models; weak coils can cause intermittent heat)
• Sensor WP338906 (radiant sensor; can affect burner operation)

Why it matters

Restricted venting and overheating conditions can cause repeated shutdowns, longer cycles, and premature failure of safety parts like a thermal fuse. Keeping the exhaust path clear improves drying time and efficiency.

For cycle tips and loading guidance specific to your dryer, use the HYG3460AWW owner's manual.

Last updated: February 2026

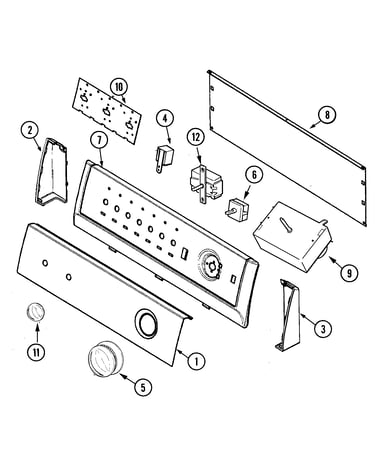

On a Maytag dryer like model HYG3460AWW, the model number is typically on the identification label; most often you will find it on the back center of the control panel. Check your HYG3460AWW owner's manual for the exact label location and what information to record.

Common places to check on Maytag dryers

Look for a sticker or metal tag with the model and serial number in these spots:

• Back center of the control panel (most common for HYG3460AWW)
• Inside the dryer door opening on the cabinet frame
• Rear panel near the top edge
• Side panel near the door opening (less common)

What to write down (and why)

When you find the label, record these items:

• Model number (example: HYG3460AWW)
• Serial number
• Fuel type (gas or electric, if listed)
• Any revision codes or additional letters/numbers

Why it matters

The model number and serial number ensure you get the correct Maytag dryer parts and troubleshooting info. Even small model variations can change which belt, igniter, sensor, or thermostat fits.

Quick ID label checklist

What you see	What it means	What to do
Model and serial together	Main ID tag	Write both down before ordering parts
Worn or smudged label	Hard to read characters	Use a flashlight; take a photo and zoom
Multiple numbers	Some are manufacturing codes	Use the line labeled “Model” for parts lookup
