On the Kenmore 66513269K113 Quiet Guard dishwasher, the filter is in the bottom of the tub, under the lower rack, around the sump and lower spray arm area. You access it by pulling out the lower rack and lifting or twisting the filter assembly out for cleaning.

How to find and remove the filter

• Turn off power at the breaker and avoid reaching into standing water.

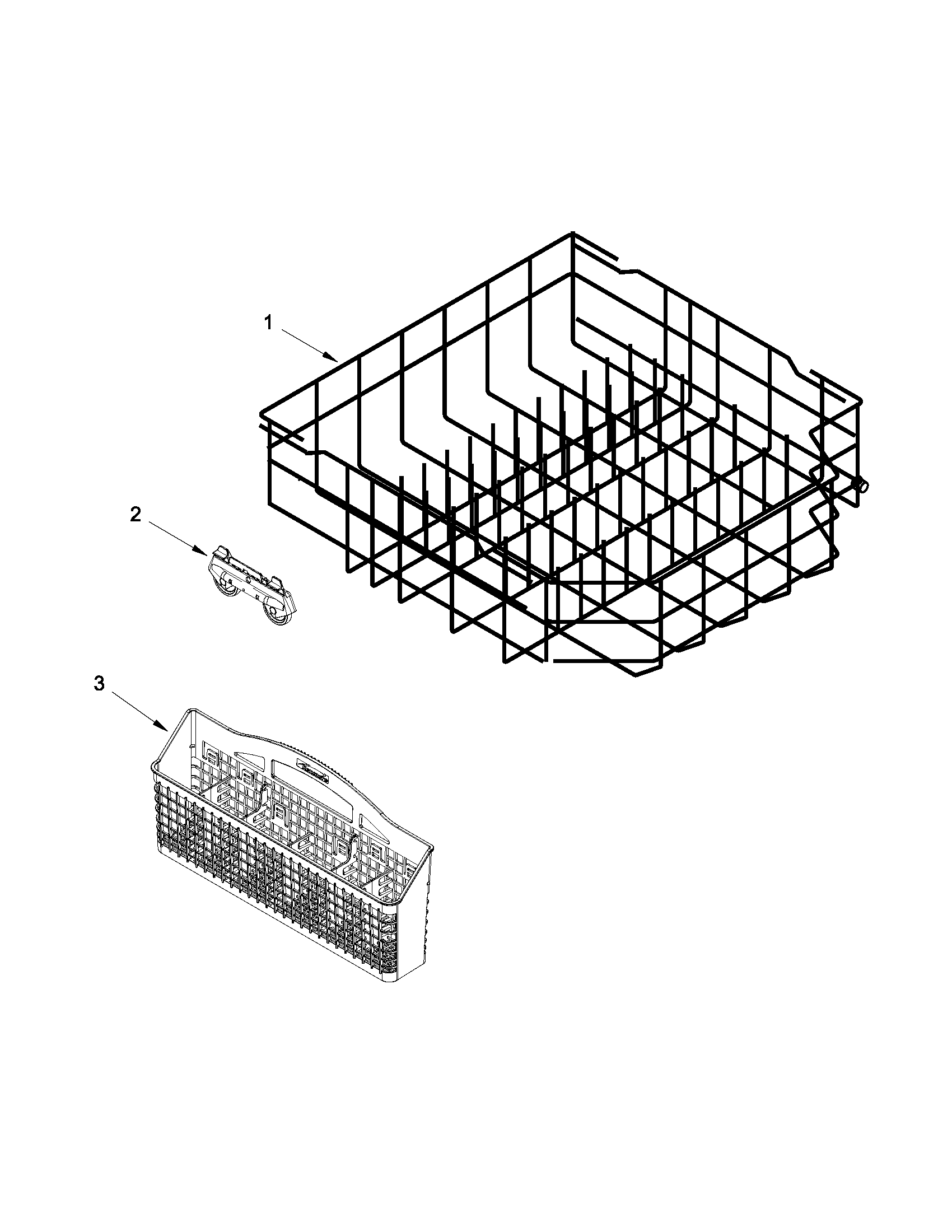

• Open the door and slide the lower rack out.
• Look at the very bottom center of the tub (the sump area) near the lower spray arm.
• Remove the lower spray arm if your filter design requires it.
• Lift the filter basket/assembly straight up or rotate it counterclockwise to unlock (common Quiet Guard style).
• Rinse the filter under warm water; use a soft brush for grease and debris.

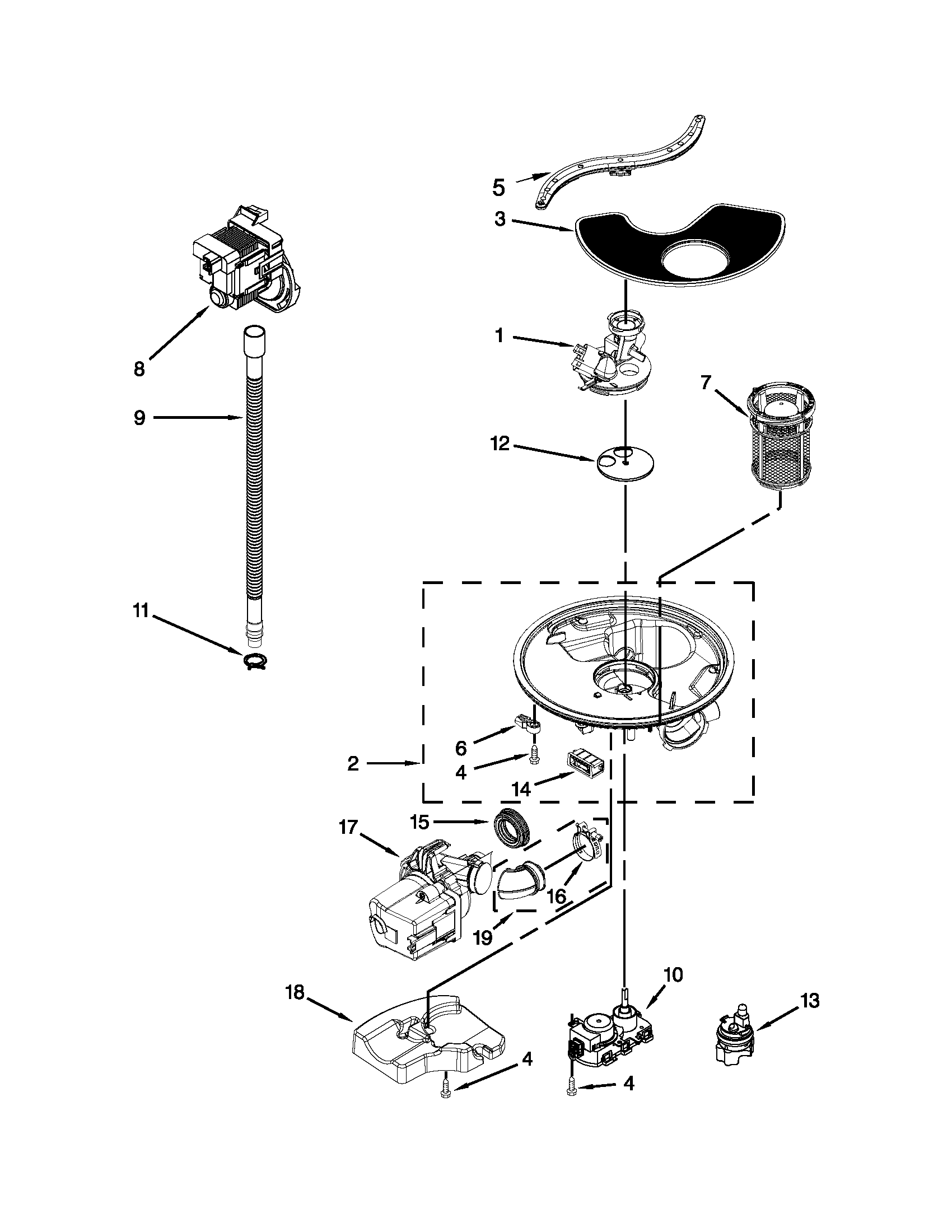

What you should see in the sump area

What you see	What it usually is	What it does
Round or oval screen/basket	Filter assembly	Traps food particles to protect the pump
Lower spray arm hub nearby	Spray arm mount	Distributes wash water
Pooling water in the bottom	Normal small amount	Keeps seals from drying out

If the dishwasher is not draining or cleaning well

A clogged filter often shows up as poor wash performance, gritty dishes, or water left in the bottom. Check these common causes while you are in the sump area:

• Food debris packed into the filter screen

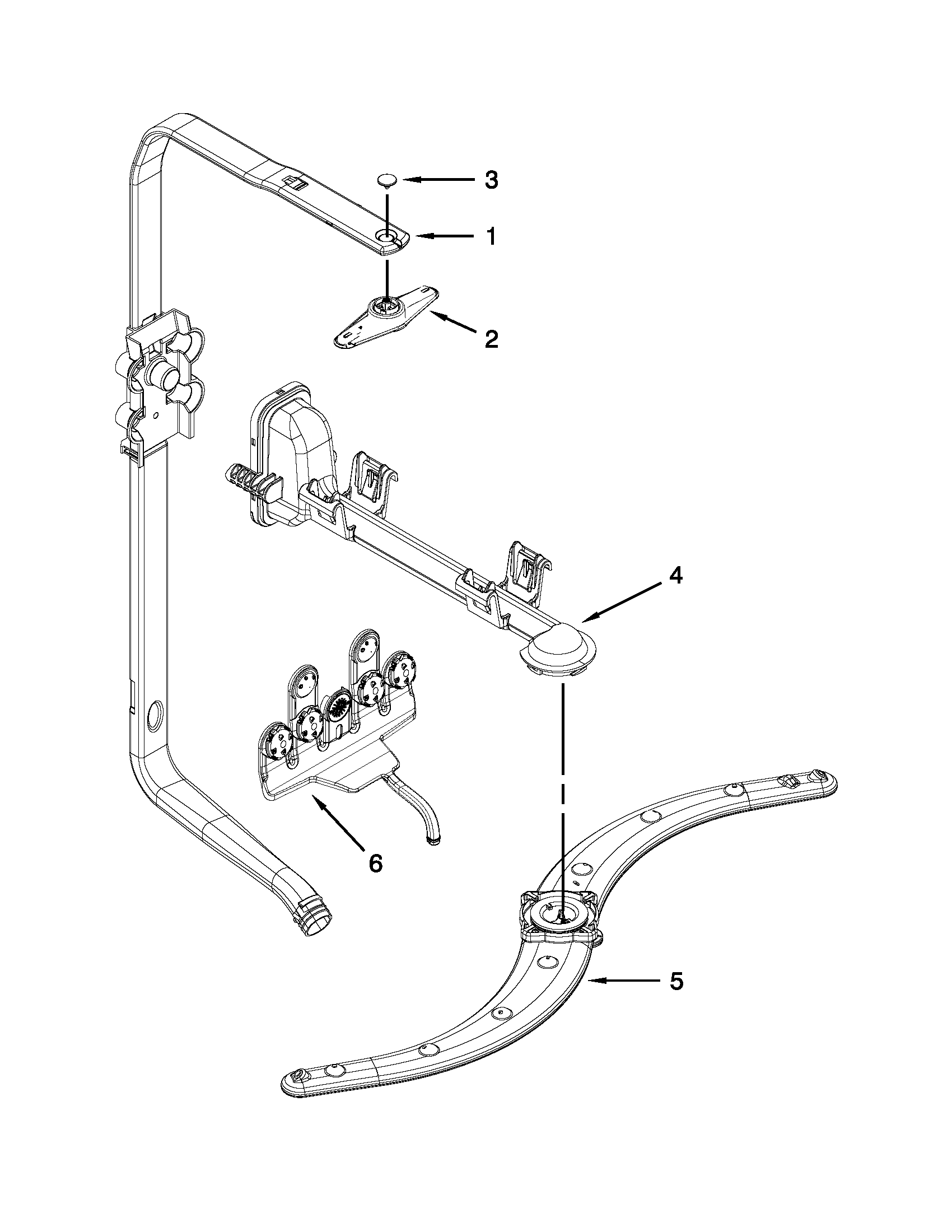

• Blocked spray arm holes (rinse the arm and clear holes)
• Kinked or restricted drain hose routing
• Weak or noisy drain pump

If you suspect a drain problem after cleaning the filter, the dishwasher drain pump WPW10348269 is a common repair part for this model.

Why it matters

Keeping the filter clean helps the circulation system move water correctly, reduces odors, and prevents extra strain on the pump and motor assembly.

For diagrams and model-specific access notes, use the 66513269K113 owner's manual.

Last updated: January 2026

Common problems we see on Kenmore dishwashers like model 66513269K113 include poor draining, weak cleaning, door or rack issues, and no-start symptoms. Many of these trace back to a clogged drain path, a failing pump or valve, or a door that is not fully latching.

Most common symptoms (and what usually causes them)

• Not draining or standing water: blocked filter/sump area, kinked drain hose, or a weak drain pump
• Dishes not getting clean: clogged spray arm holes, low water fill, or circulation issues
• Won’t start: door not latched, power supply issue, or control problem

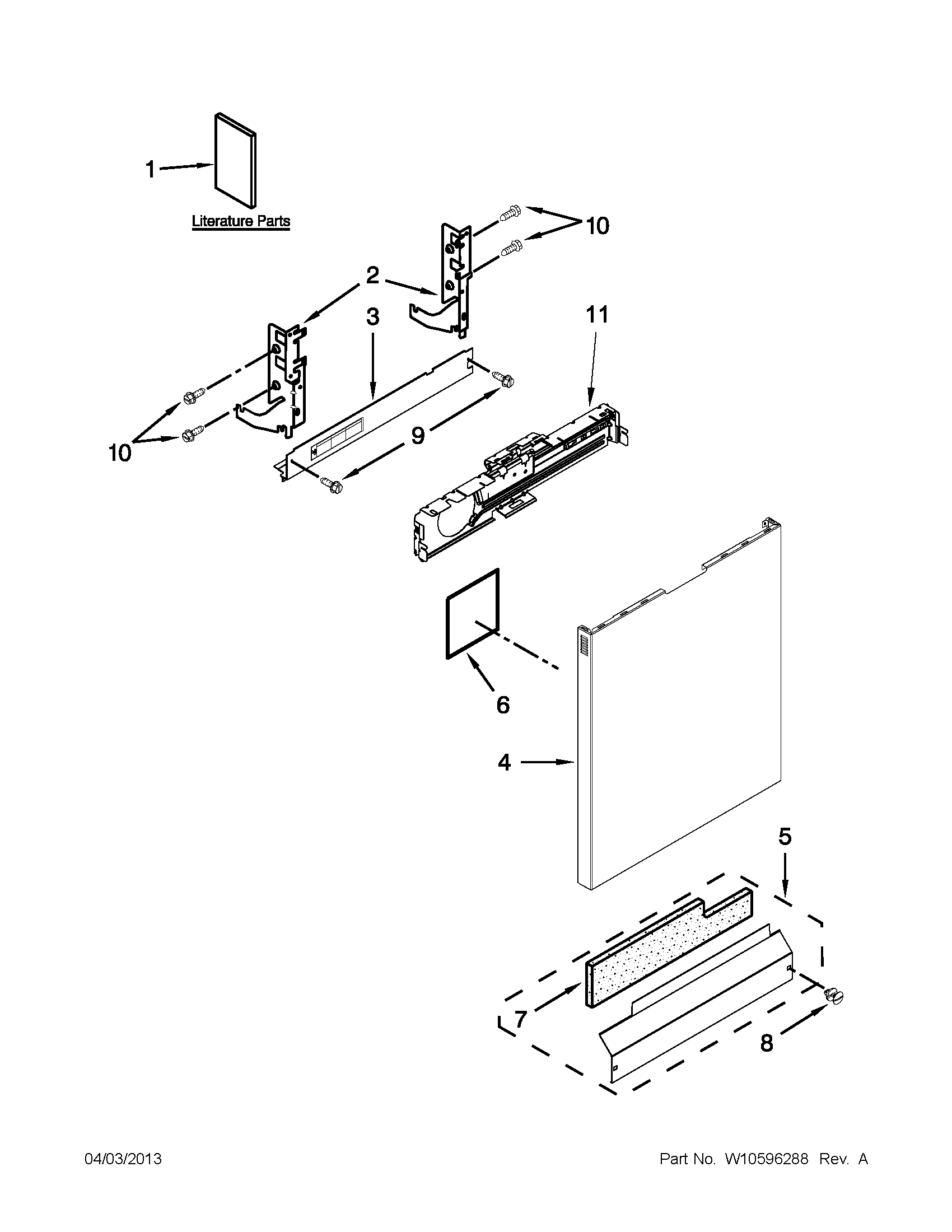

• Door won’t close or drops open: hinge or balance link problems
• Burning smell: overheating from a failing motor, heater circuit issue, or wiring problem

Quick checks you can do first

1. Confirm power and latch: make sure the door closes tightly and latches.
2. Verify water supply: confirm the shutoff valve is fully open.
3. Run a short cycle check: start the shortest cycle; after about 2 minutes, open the door and confirm there is water in the tub.
4. Inspect the drain path: check for a kinked hose and clear obvious debris.
5. Look for spray arm blockage: remove and rinse the spray arm if holes are plugged.

For model-specific operating steps and checks, use the 66513269K113 installation guide.

Parts that commonly fix these issues

Symptom	Common part to inspect/replace	Example part for this model

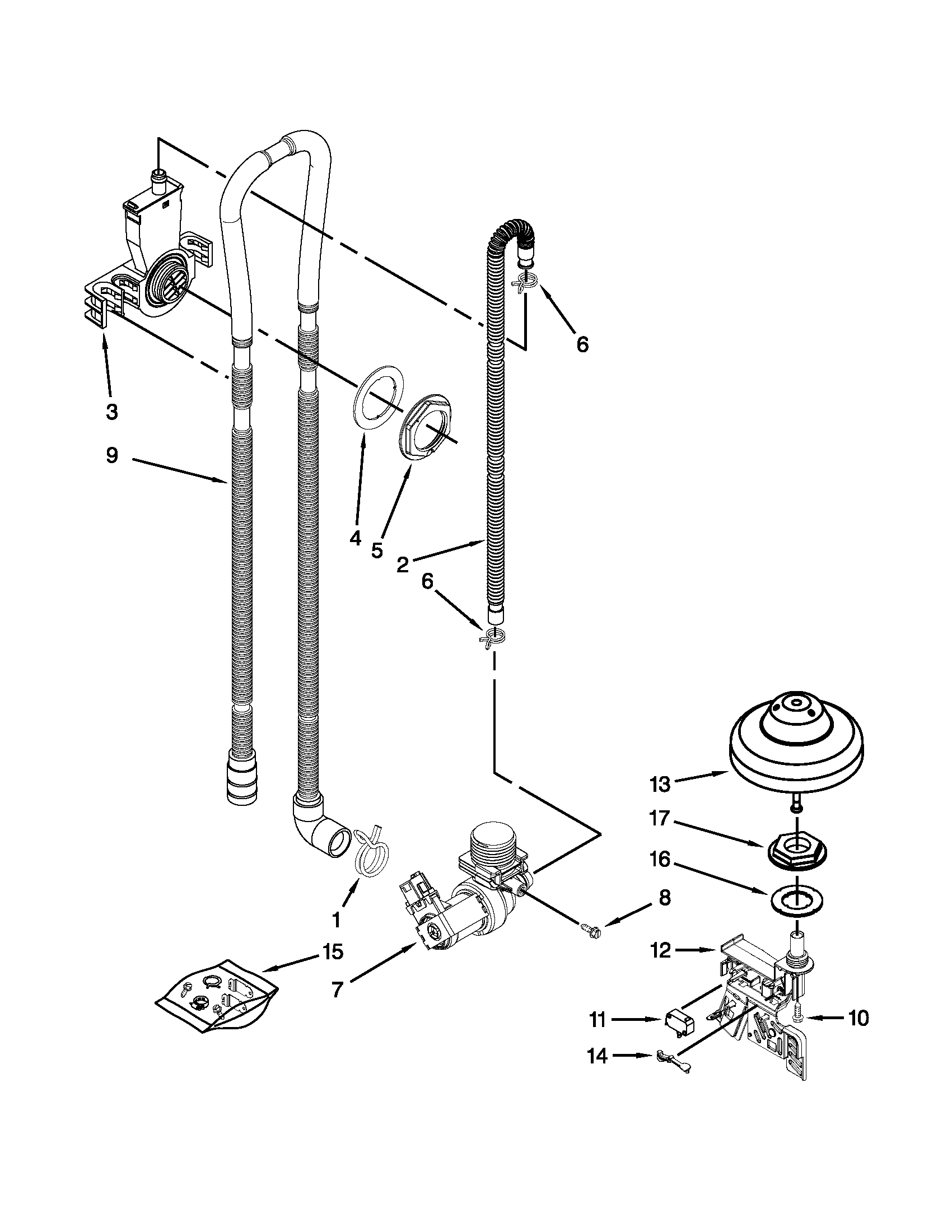

Not draining	Drain pump, drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Not filling well	Water inlet valve	Dishwasher water inlet valve W11175771
Poor wash	Spray arm, diverter	Dishwasher spray arm WPW10491331, dishwasher diverter motor W10537869
Door problems	Hinge, balance link	Dishwasher door hinge W11612302, dishwasher door balance link 8194001

Why it matters

Catching a drain, fill, or door-latch problem early helps prevent repeat wash failures, standing water odors, and strain on the pump motor and control.

Last updated: January 2026

To hard reset a Kenmore dishwasher model 66513269K113, we recommend doing a control reset first (canceling the current cycle and restarting). If the controls stay unresponsive, do a power reset by turning the dishwasher off at the breaker for about 1 minute, then restoring power and starting a new cycle; see the 66513269K113 owner's manual.

Quick reset options (start here)

• Cancel/Drain reset: Press Cancel/Drain (or Cancel) once, then wait for the drain to finish.
• Control-panel reset: Press a valid cycle and press Start/Resume.
• Power reset (hard reset): Turn OFF the circuit breaker (or unplug if accessible) for 60 seconds, then turn it back on.
• Door reset: Close the door fully and latch it; then press Start/Resume.

What to check if it still will not reset

A “hard reset” often fails because the dishwasher is stuck in a safety condition (door not latched, not draining, or not filling).

• Make sure the door is closing smoothly and latching.
• Confirm the unit can drain; a clogged drain path can keep the control from restarting.
• Confirm the water supply is on and the fill line is not kinked.
• Verify the power cord is plugged into a grounded 3-prong outlet (no adapter or extension cord).
• If the door drops open or slams shut, adjust door spring tension so the door stays where you place it; see the 66513269K113 installation guide.

Common parts involved when a reset does not “stick”

Symptom after reset	Most common area	Example part for this model
Hums but will not drain	Drain system	Dishwasher drain pump WPW10348269
Will not fill with water	Fill system	Dishwasher water inlet valve W11175771

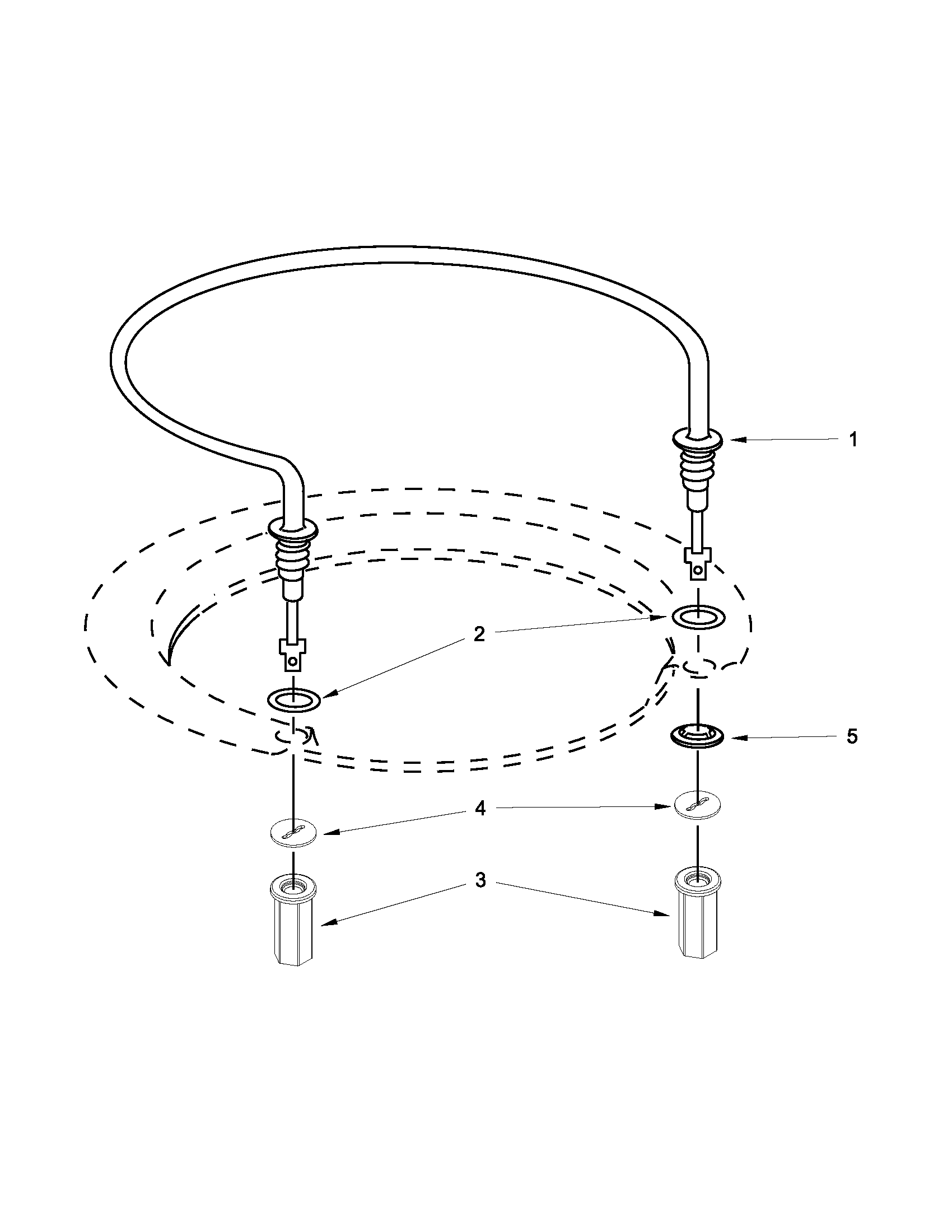

Stops mid-cycle, poor heating	Heating circuit	Dishwasher heater W10703867

Why it matters

Resetting clears a stalled cycle and lets the control reinitialize. If the dishwasher immediately returns to the same problem after a reset, that points to an underlying issue (drain, fill, door latch/tension, or a failing component) that needs correction.

Last updated: January 2026

If the Start/Resume button won’t start your Kenmore dishwasher model 66513269K113, the most common causes are a door that is not fully latched, a missed start sequence (door not closed within 3 seconds), or a power issue at the breaker or fuse. Use the steps in the 66513269K113 installation guide to confirm basic operation checks.

Quick checks that fix most “won’t start” problems

• Close the door firmly until you feel the latch catch; then press Start/Resume and close the door within 3 seconds (otherwise the Start/Resume light can flash and the cycle will not begin).
• Check the home circuit breaker or house fuse for the dishwasher circuit.
• Confirm the cycle is actually selected (some cycles will not start until a selection is made).
• Make sure the water supply valve under the sink is turned on.
• Power reset: turn off the breaker (or unplug if accessible) for 5 minutes, then restore power and try again.

What to inspect if the button still won’t respond

If the console lights up but the dishwasher will not start, we focus on the “start permission” chain: door latch, user interface, and control.

• Door latch/switch: If the control does not sense a tight latch, it will not start.

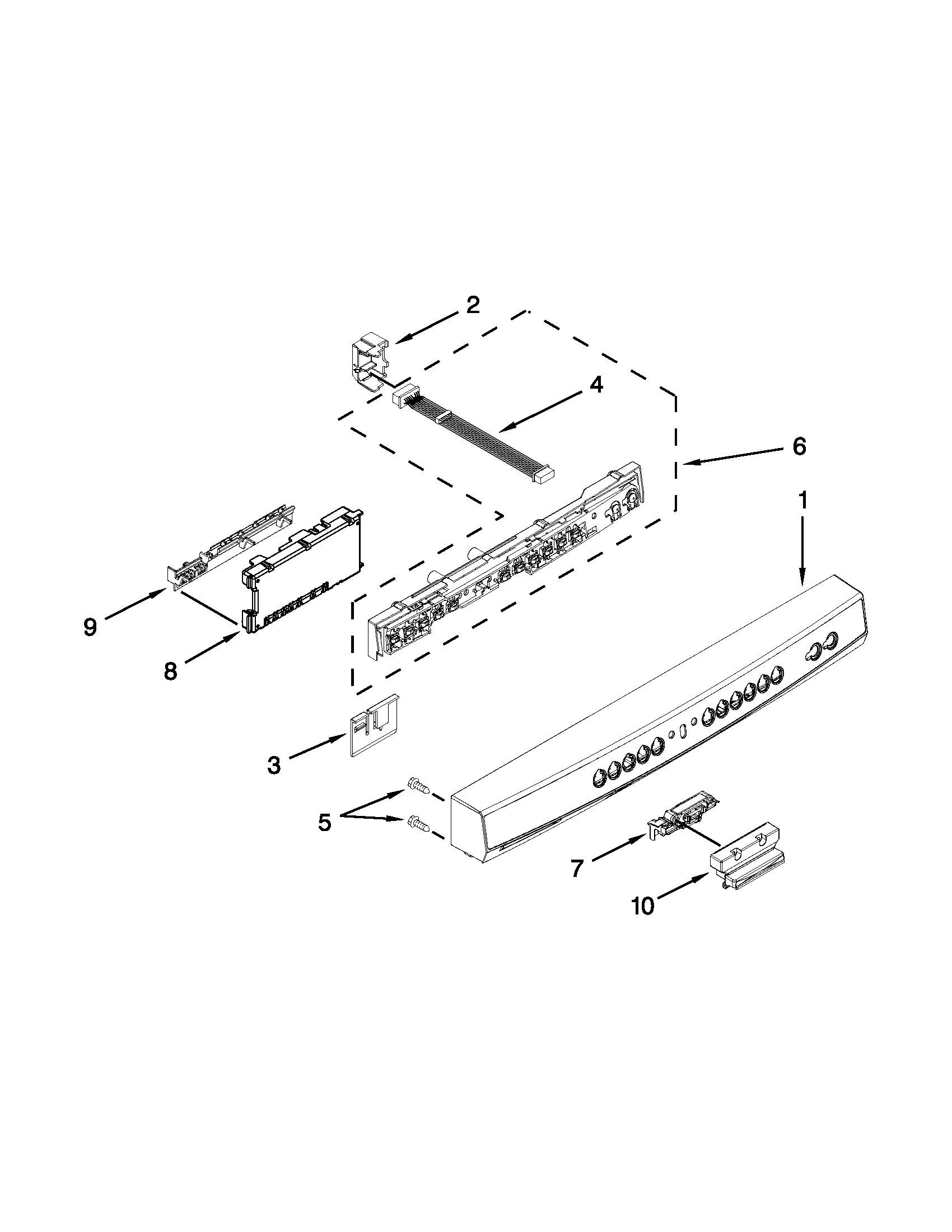

• Control panel/console: A worn keypad or moisture intrusion can prevent the Start/Resume input.
• Electronic control: A failed control can ignore button presses or fail to run the cycle.

Parts that are commonly involved

Symptom	What it often points to	Example part for this model
Start/Resume light flashes, won’t run	Door not closed within 3 seconds or not latched	Check latch alignment first
Starts sometimes, then stops responding	Console/keypad issue	Console (white) or Console (black)
No response to Start/Resume, other odd behavior	Control board issue	Dishwasher electronic control W10595569

Why it matters

A dishwasher that won’t start is usually protecting against running with an unlatched door (leaks) or without proper power and water. Fixing the latch or start sequence is often faster and cheaper than replacing electronic parts.

When replacement makes sense

If the door is definitely latching and power and water are good, but Start/Resume still won’t initiate a cycle, the next most common repair path is the console or control board. For wiring and diagnostic guidance, use the 66513269K113 owner’s manual.
