Kenmore 10654532400 side-by-side refrigerator Parts

Kenmore model numbers are read left to right; the first three digits identify the manufacturer family, and the remaining digits narrow down the exact design and feature set. For your Kenmore side-by-side refrigerator model 10654532400, the 106 prefix is the key identifier we use to match the correct parts and documentation in the 10654532400 owner's manual.

Where to find the model number on this refrigerator

On Kenmore 10654532400, the model and serial number label is typically located inside the fresh food (refrigerator) compartment on an interior wall.

• Open the refrigerator door and look along the side walls near the crisper area
• Check the upper side wall near the light housing
• Wipe condensation or residue off the label so all digits are readable
• Record both the model number and serial number for parts lookup and service

How to interpret a Kenmore model number (quick breakdown)

Kenmore numbers usually follow a pattern where the prefix points to the manufacturing source, and the rest identifies the platform and variations.

Section of model number	Example from your model	What it tells us
Prefix (first 3 digits)	106	Manufacturer family used for parts matching
Remaining digits	54532400	Series and feature variations within that family

Why the full model number matters when ordering parts

Small digit changes can mean different door hardware, water system routing, or ice maker style. Using the complete model number helps us match the correct replacement part the first time.

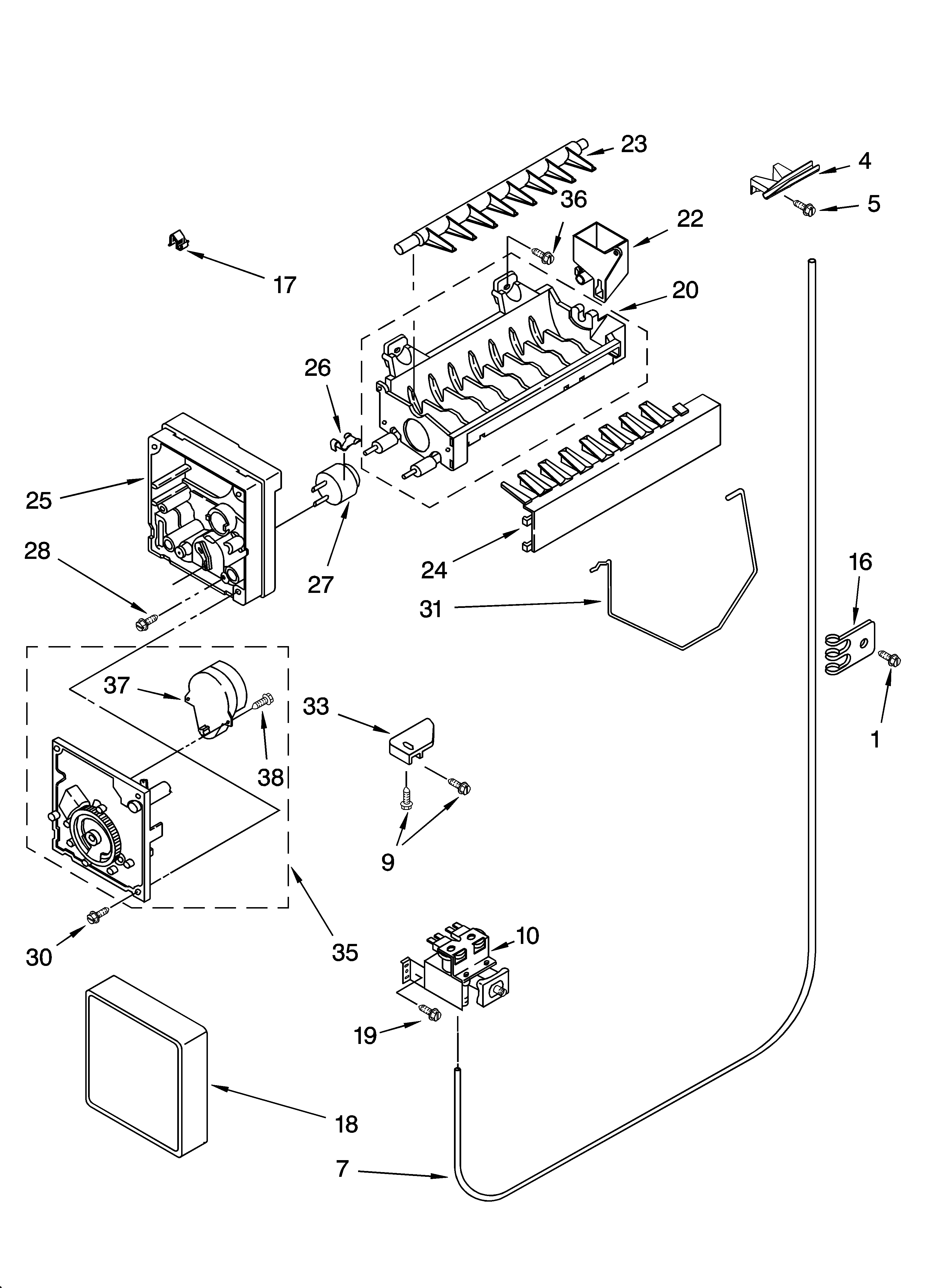

• Ice maker and bin fit can vary by series
• Water inlet valve wiring and tubing connections can differ

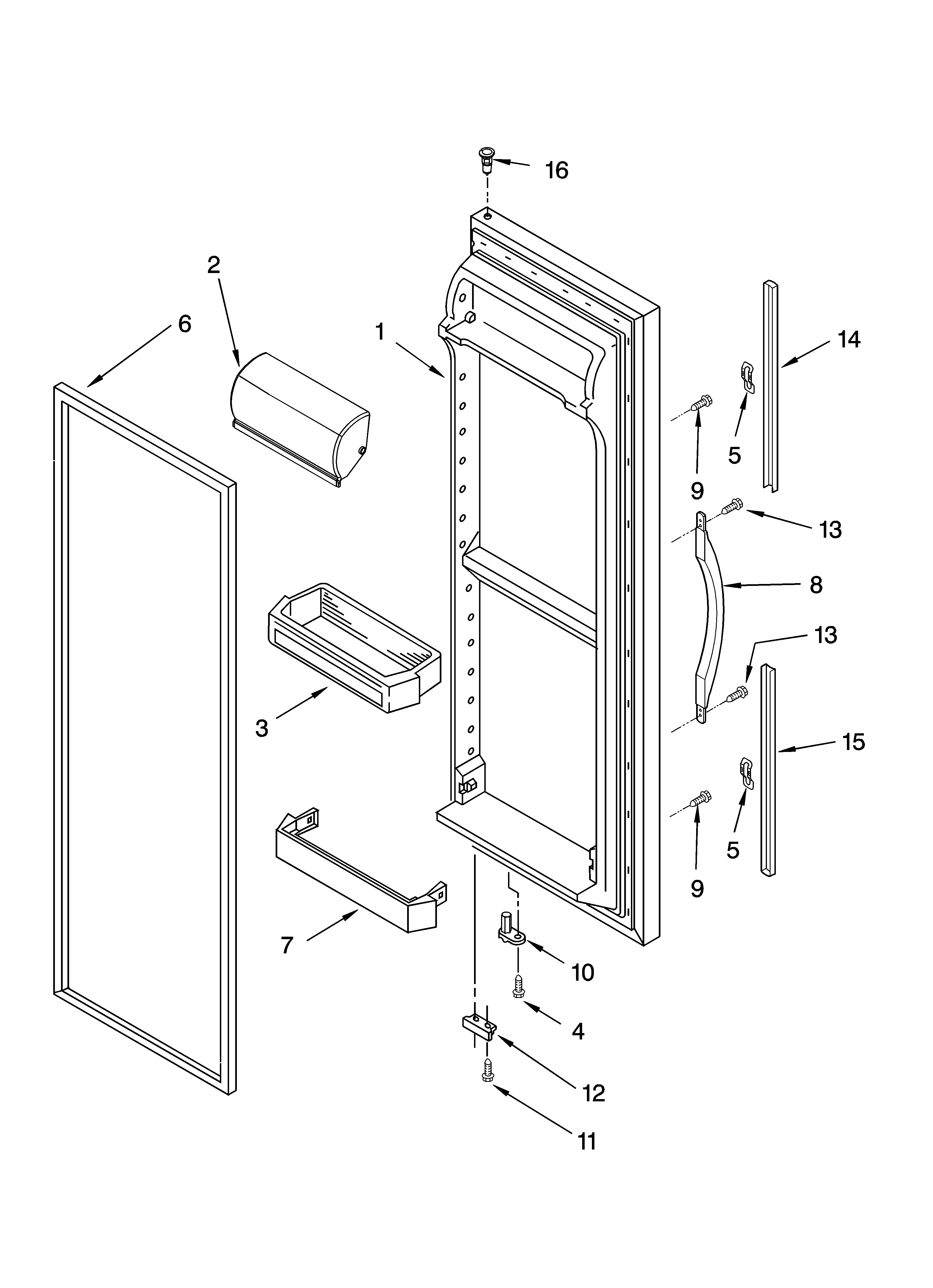

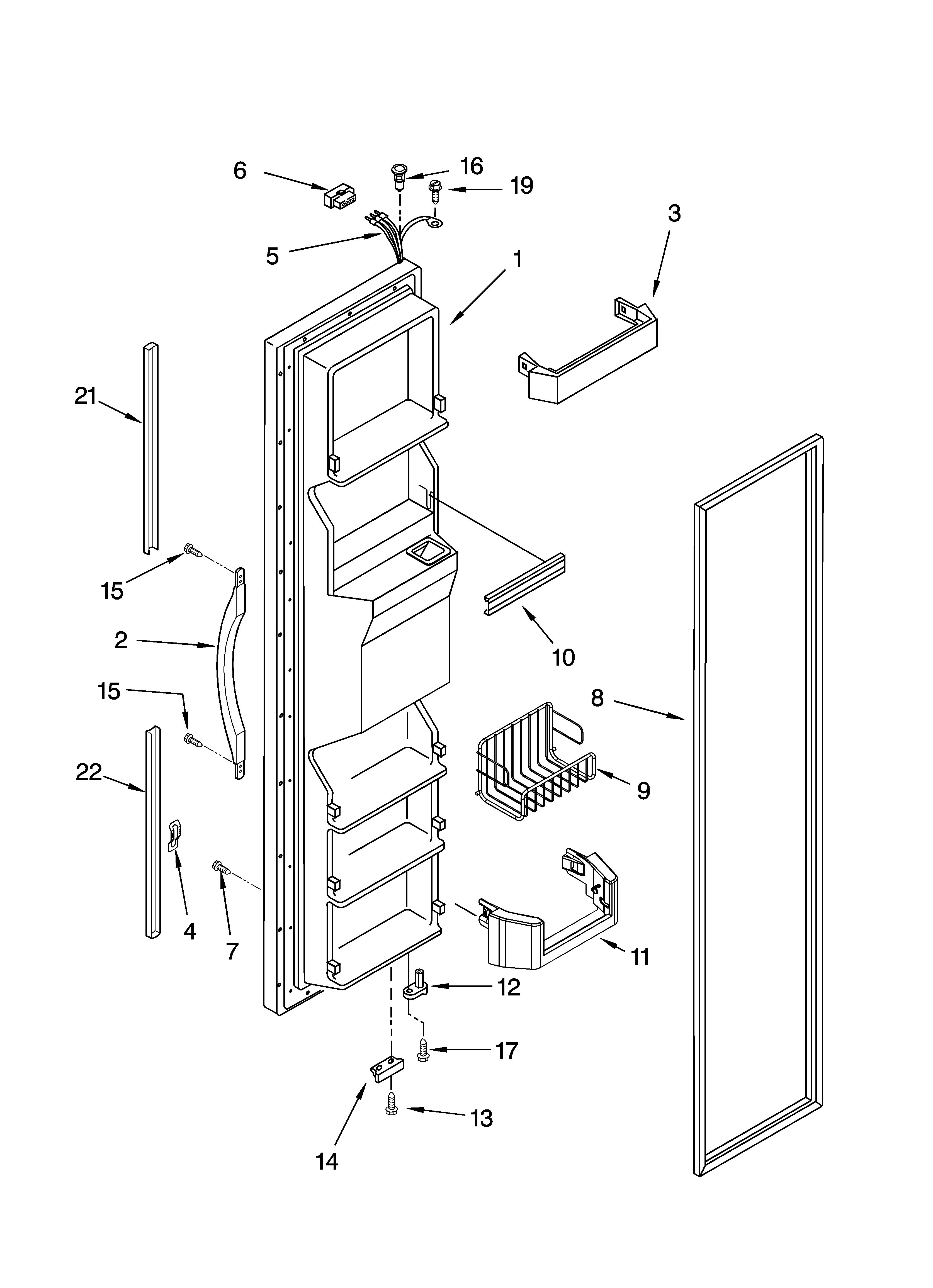

• Door cams and gaskets can be series-specific

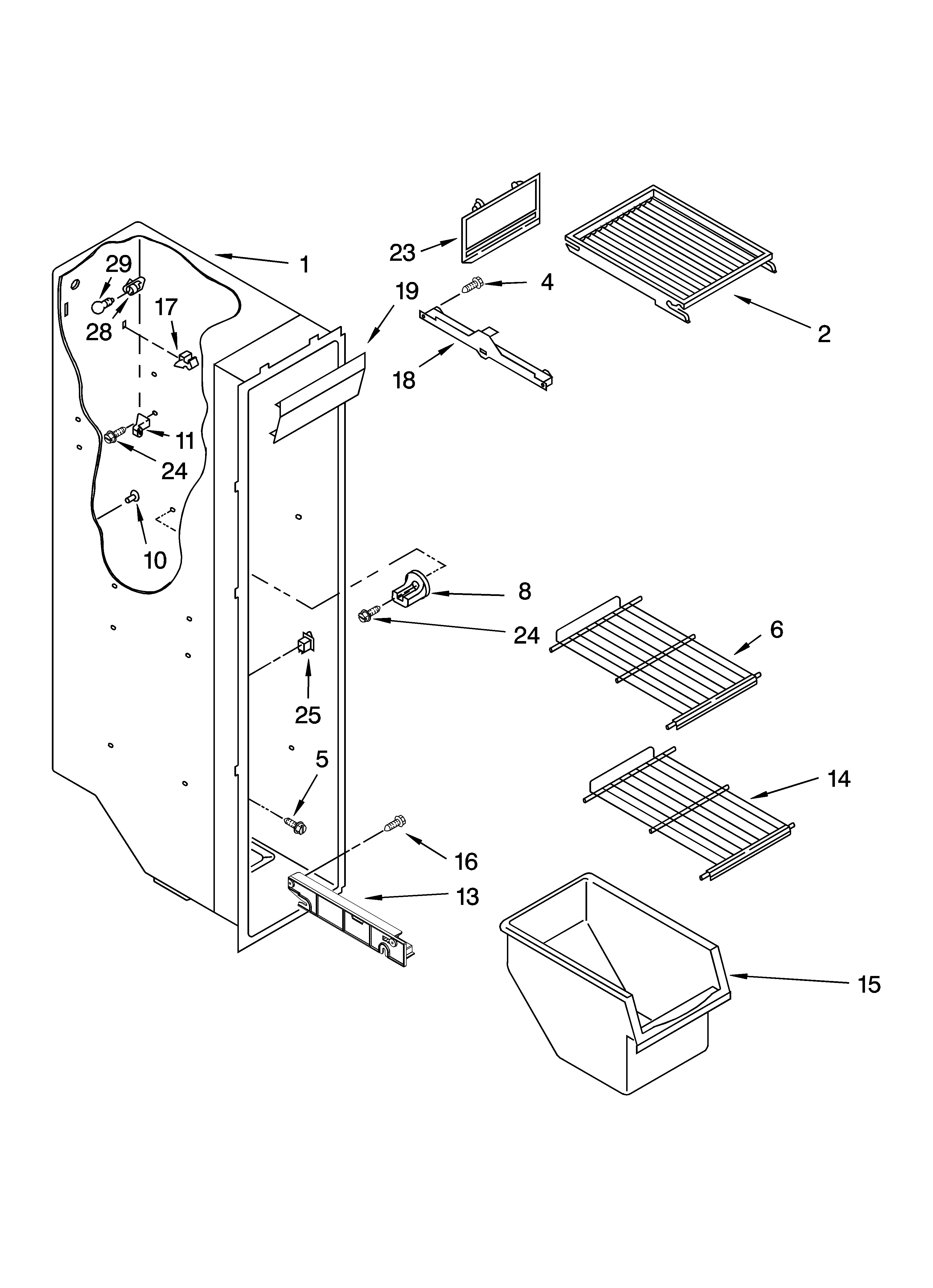

• Shelves and pans often change by revision

If you are troubleshooting ice or water issues on this model, common matches include the refrigerator inlet valve W10408179 and the ice maker assembly 4317943 when symptoms point to fill or harvest problems.

Why it matters

Reading the model number correctly prevents wrong-part returns and speeds up repairs, especially on systems like the ice maker, water filter housing, and door sealing components.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 33 to 36 inches wide (cabinet width). For Kenmore model 10654532400, use the exact cabinet width and required clearances listed in the 10654532400 installation guide so the refrigerator fits your opening and the doors can swing fully.

What width to plan for

When customers ask “how wide,” there are usually two widths that matter:

• Cabinet width: the metal refrigerator box that must fit between cabinets
• Door and handle width: can stick out past the cabinet and affect walkways
• Door swing clearance: extra space needed if the unit sits next to a fixed wall
• Ventilation clearance: space around the cabinet for airflow

Typical Kenmore side-by-side width ranges

Type	Typical cabinet width	Notes
Standard side-by-side	33 to 36 in.	Most common size range
Narrow side-by-side	32 to 33 in.	For tighter kitchens
Counter-depth side-by-side	35 to 36 in.	Depth changes more than width

How to measure your space correctly

Use a tape measure and check more than one spot; walls and cabinets are often out of square.

• Measure the opening at the front and at the back
• Measure between the tightest points (trim, panels, or cabinet faces)
• Confirm you have clearance for door swing next to a wall
• Leave space for water line connections if you have an ice maker

Why it matters

A refrigerator that is even slightly wider than the opening can be impossible to install. Proper side and top clearance also supports airflow, stable temperatures, and reliable ice maker performance.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10654532400 are cooling complaints (often airflow or defrost related), water leaks, ice maker or dispenser issues, moisture buildup, and unusual noises. Many fixes start with checking door use, clearing air vents, and confirming the temperature controls are set correctly per the 10654532400 owner's manual.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: blocked air vents, frequent door openings, controls set incorrectly, or a defrost problem causing ice buildup.
• Moisture buildup inside: blocked vents, high room humidity, or food not wrapped tightly.
• Doors hard to open: dirty or sticky door gaskets.
• Leaks or puddles: commonly a clogged defrost drain or water supply issue.
• Ice maker not making ice: water supply restriction, inlet valve issue, or ice maker failure.

Quick checks we recommend first (no parts needed)

• Make sure air vents are not blocked by food packages.
• Limit long door openings; get items out at one time and close doors promptly.
• If your model has digital controls, turn the unit OFF then ON to reset.
• Clean and dry door gaskets if they feel sticky.
• Confirm the refrigerator is level if it wobbles or doors do not feel right.

Common problems and likely fixes (parts examples)

Problem	What to check first	Part that often solves it (if failed)
No ice	Water supply, frozen fill tube, dispenser settings	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
No water to ice maker/dispenser	Kinked line, clogged filter, low pressure	Refrigerator inlet valve W10408179
Frost buildup, warm fridge	Blocked vents, heavy door use	Refrigerator defrost bi-metal WPW10225581 or refrigerator heater WP2323198

Why it matters

Cooling, moisture, and ice maker problems usually trace back to airflow and water flow. Catching a blocked vent, sticky gasket, or early defrost issue helps prevent food spoilage, ice jams, and repeated temperature swings.

Last updated: February 2026

A Kenmore 10654532400 side-by-side refrigerator usually stops cooling because power is interrupted, controls are set incorrectly, airflow is blocked, or a defrost or sealed-system component is failing. We recommend checking the simple items first, then moving to fan and defrost checks using the 10654532400 owner's manual.

Quick checks (fastest fixes first)

• Confirm the unit has power; reset the breaker or replace a blown fuse.
• Make sure the refrigerator and freezer controls are not set to OFF.
• If your model has digital controls, turn the unit OFF then ON to reset.
• Check for blocked air vents in either compartment; remove packages that block airflow.
• Limit door openings and verify doors close fully (warm air quickly raises temps).
• After installation or a big load of warm food, allow up to 24 hours to cool completely.

Cooling system causes (when the basics check out)

If the refrigerator runs but temperatures stay warm, these are common culprits:

Symptom	Most likely area	What to check next
Freezer warm and fresh food warm	Compressor or sealed system	Listen for compressor running; check condenser cleanliness and airflow behind/under unit
Freezer cold but fresh food warm	Air circulation issue	Vents blocked, damper issue, or evaporator fan not moving air
Frost buildup, then warming	Defrost system	Defrost heater, defrost thermostat, or control/timer issues
No ice and no water, warm temps	Water supply unrelated to cooling	Focus on cooling checks first; water issues are separate

Parts that can be involved (model-matched examples)

• Refrigerator defrost bi-metal WPW10225581 (defrost thermostat; can stop defrosting and restrict airflow with ice)
• Refrigerator heater WP2323198 (defrost heater; failure can lead to heavy frost and poor cooling)

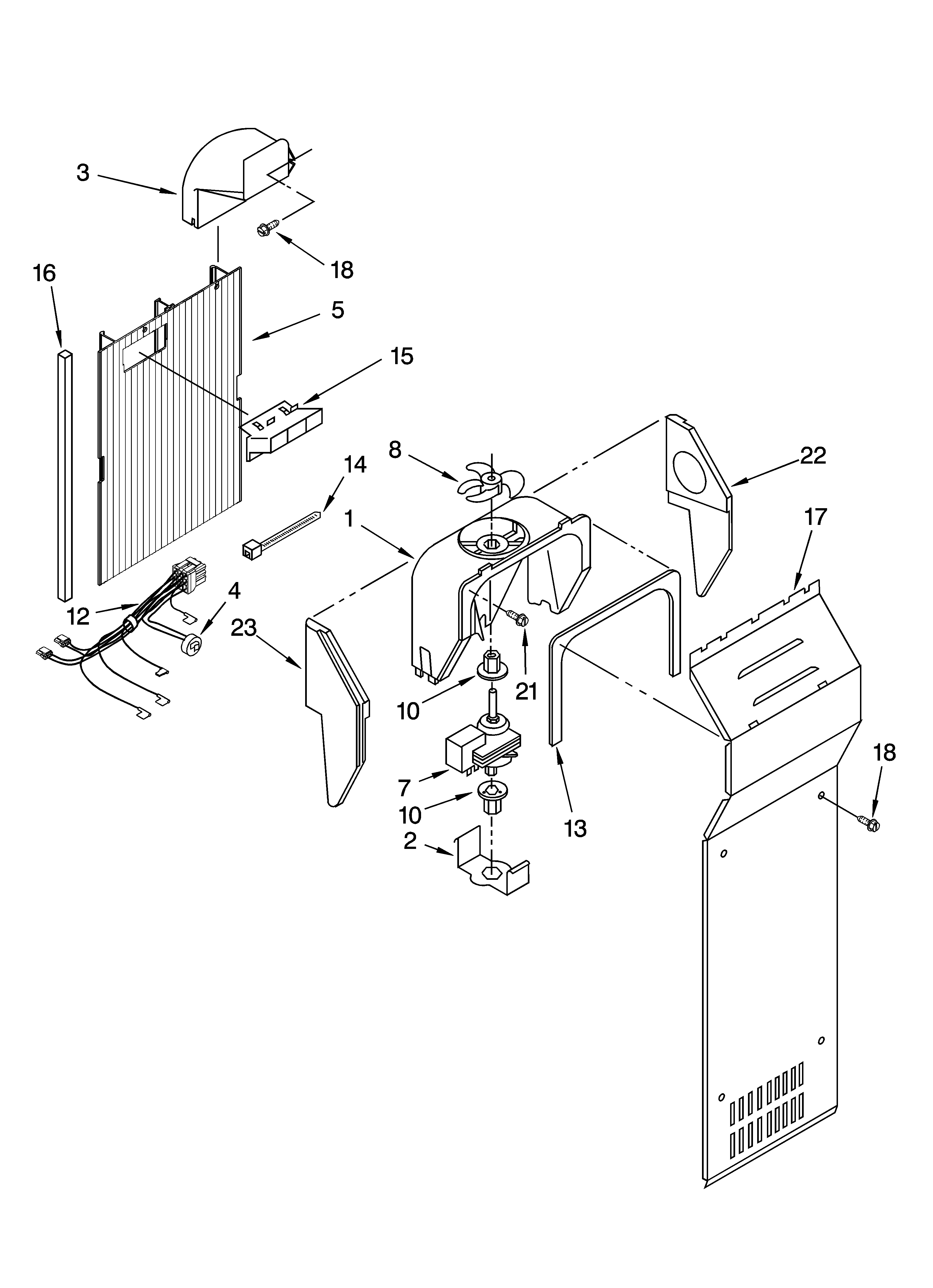

• Refrigerator evaporator fan blade WP2169142 (if the fan is damaged or not moving air, cooling won’t circulate)

Why it matters

When airflow is blocked or the defrost system fails, the freezer can ice up and the refrigerator section warms even if the compressor is running. Catching a vent blockage or control setting early can prevent food loss and reduce strain on the compressor.

Last updated: February 2026

The cubic-foot capacity for Kenmore model 10654532400 is listed in the product specifications section of the 10654532400 owner's manual. Use that spec as the correct total volume; it is the value manufacturers use for comparisons and accessory fit.

How we recommend confirming the exact capacity

Use these quick checks so you are reading the right spec for your exact refrigerator:

• Match the full model number 10654532400 on the ID label inside the fresh food compartment
• Look for a “Capacity” or “Product specifications” section in the manual
• Note whether an ice maker and ice bin are installed (they reduce usable space, not the rated cubic feet)
• Confirm shelf and bin configuration if you are comparing storage space
• Keep the manual’s product record info with your purchase date and serial number for future service

Rated capacity vs. usable space (what changes and what does not)

Accessories and layout affect how much you can store, but they do not change the rated cubic feet.

Measurement	What it means	What can change it
Rated capacity (cu. ft.)	Manufacturer’s published interior volume	Does not change with shelves or ice maker
Usable space	What you can practically fit	Ice maker, bins, shelves, food shape

Why it matters

Knowing the rated cubic feet helps when comparing refrigerators, planning kitchen storage, and choosing correctly sized accessories such as bins and shelves.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10654532400 side-by-side refrigerator often reaches the upper end of that range when airflow, door sealing, and cleaning are kept up per the 10654532400 owner's manual.

Typical lifespan range (what we see most often)

Refrigerator longevity depends more on maintenance and operating conditions than brand name alone.

• Average: 10 to 15 years
• Common “long life” outcome with good care: 15 to 20 years
• Shortened lifespan drivers: dirty condenser area, poor door sealing, frequent power interruptions, and delayed repairs

Lifespan range	What it usually indicates	What to do next
0 to 9 years	Heavy use, airflow issues, or recurring cooling problems	Check temps, clean, address small issues early
10 to 15 years	Normal expected service life	Keep up preventive maintenance
16 to 20+ years	Strong maintenance history and stable operating conditions	Plan for wear parts and occasional repairs

Maintenance that extends life

The Use & Care Guide for this model includes a dedicated Refrigerator care section (cleaning, light bulbs, vacation care, troubleshooting). We recommend focusing on these high-impact items:

• Clean the condenser area and keep airflow clear around the cabinet
• Keep door gaskets clean so doors close and seal consistently
• Set and verify temperatures (fresh food about 37°F, freezer about 0°F)
• Replace failed small components promptly (fans, defrost parts, water valve)
• Keep the ice maker and water system from freezing or leaking

Parts that commonly affect longevity

When cooling performance or icing issues are ignored, the sealed system has to work harder. These model-compatible parts are often involved in “wear and tear” repairs:

• Refrigerator defrost bi-metal WPW10225581 (helps prevent frost buildup that blocks airflow)
• Refrigerator heater WP2323198 (supports the defrost cycle)
• Refrigerator inlet valve W10408179 (helps prevent water/ice maker supply problems)

Why it matters

A refrigerator that is running warm, frosting up, or not sealing well can still “run,” but it runs longer and harder. That extra runtime increases energy use and accelerates wear on major components.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10654532400, the model number is printed on the model and serial number label located inside the fresh food (refrigerator) compartment, typically on an interior side wall. We use that label to match the correct parts and service information.

How to find the label quickly

• Open the refrigerator (fresh food) door, not the freezer door
• Look along the inside left or right wall near the front edge
• Check near the crisper area if you do not see it at eye level
• Use a flashlight; the label can be easy to miss in low light
• Write down both the model number and serial number exactly as shown

What you should record (and why)

The label includes key identification details that help ensure you get the right Kenmore replacement parts (like an ice maker, water inlet valve, or door gasket) and correct troubleshooting steps.

Item on label	What it’s used for
Model number	Matches parts diagrams and compatible replacement parts
Serial number	Identifies production details for service and support
Purchase date (your notes)	Helpful for maintenance history and service calls

Why it matters

Kenmore model numbers can look similar across 106-series refrigerators; using the exact model number from the inside-compartment label prevents ordering the wrong part and saves time during repairs.

For additional identification tips and refrigerator care details, use the 10654532400 owner’s manual.

Last updated: February 2026
