Craftsman 917273013 tractor Parts

To look up the model number for your Craftsman riding mower, we start by finding the model and serial tag on the tractor itself; on model 917273013, it’s typically on the frame under the seat or on the underside of the seat, then you use that exact number to search parts and diagrams.

Check these common tag locations first:

• On the frame directly under the seat (lift the seat up)
• On the underside of the seat pan
• Near the rear fender area around the seat mounting points
• On the frame rail near the rear wheels
• On a sticker or metal plate with both model and serial information

After you locate the tag, use the model number exactly as printed (letters and numbers matter).

• Search the model number to pull up the correct parts list and diagrams
• Match your part by name and ID before ordering
• Use the serial number to confirm production variations when parts differ

A common example for this page is model 917273013.

Using the exact Craftsman model number prevents ordering the wrong belt, steering part, or electrical component for your riding mower. It also helps us show the right diagrams for assemblies like the deck drive and steering.

If you’re troubleshooting while identifying parts, our riding mower and tractor common questions guide can help you narrow down symptoms before you order.

Last updated: February 2026

The most common issues we see on the Craftsman 917273013 front-engine lawn tractor involve the mower deck drive system, starting and safety interlocks, steering wear, and fuel delivery. These problems usually show up as blades not engaging, no-crank conditions, loose steering, or stalling.

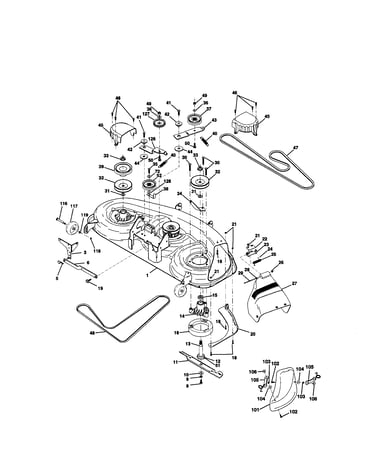

• Blades will not engage or deck stops under load: worn or stretched deck belt, idler/pulley wear, or PTO clutch issues.

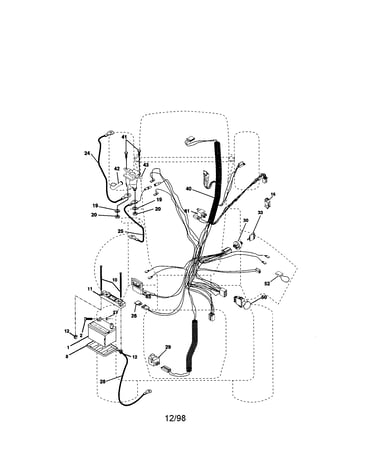

• Engine will not crank: faulty safety switch (seat/brake/PTO interlock), bad ignition key, or wiring connection problems.

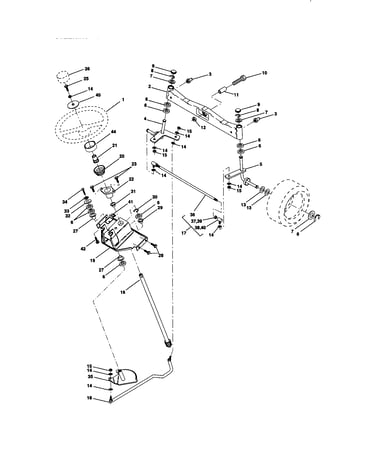

• Steering feels loose or wanders: worn tie rods, tie rod ends, drag link, or sector gear wear.
• Runs rough, stalls, or leaks fuel: fuel tank, fuel line connections, or tank stem/grommet issues.
• Uneven cut or vibration: damaged blade, worn mandrel/spindle components, or loose fasteners.

• Set the parking brake, disengage PTO, and confirm the operator presence switch is being pressed.
• Inspect the deck belt for glazing, cracking, or slack; check pulley alignment and belt routing.
• Wiggle the front wheels and steering linkage to spot play at joints.
• Look for fuel seepage around the tank outlet and stem area.
• Check battery terminals and ground connection for corrosion and looseness.

On a riding mower, small wear items (belts, switches, steering joints) cause most “won’t start” and “won’t cut” complaints. Fixing the root cause protects the PTO clutch, mandrel assembly, and deck components from bigger damage.

Last updated: March 2026

Craftsman model 917273013 does not map to one single “model year” the way cars do; the most reliable way to date it is by using the product identification label on the tractor (typically under the seat or on the rear fender pan) and matching the serial/date code to the manufacturer’s format.

Look for a sticker or metal tag that includes the model and a serial number. Common locations:

• Under the seat (lift the seat and look on the seat pan)
• Rear fender pan area (behind the seat)
• Frame rail near the engine compartment
• Near the transaxle area on the frame

If the label is missing or unreadable, keep the tractor’s key parts consistent while you troubleshoot and repair; for example, the molded ignition key 532140403 confirms you are shopping the correct ignition-key style for this platform.

Capture these details from the ID label:

• Full model number (already 917273013, but confirm it matches the label)
• Serial number (entire string, including letters)
• Any separate “date” or “DOM” code
• Engine brand and engine model/type code (from the engine shroud label)

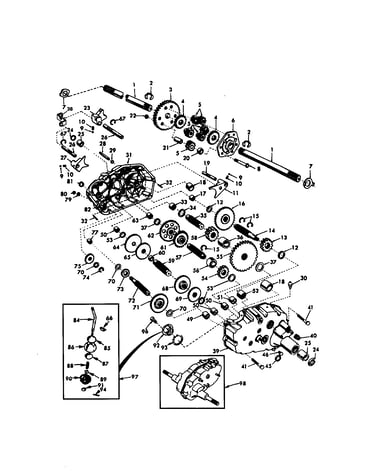

• Transmission type (gear drive vs hydrostatic)

On many Craftsman tractors in the 917.xxxxxxx family, the 917 prefix identifies the Craftsman/AYP-built product family, while the exact production date is tied to the serial/date code on the ID label.

Knowing the build date helps us match the correct diagrams and parts for your Craftsman riding mower, especially for systems that change over time like the PTO circuit, belts, and steering components.

Last updated: February 2026
