Maytag
Washer

Model # MVWB835DW2 Official Maytag washing machine

Here are the diagrams and repair parts for Official Maytag MVWB835DW2 washing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |

30mm Spiral W10275082
#17

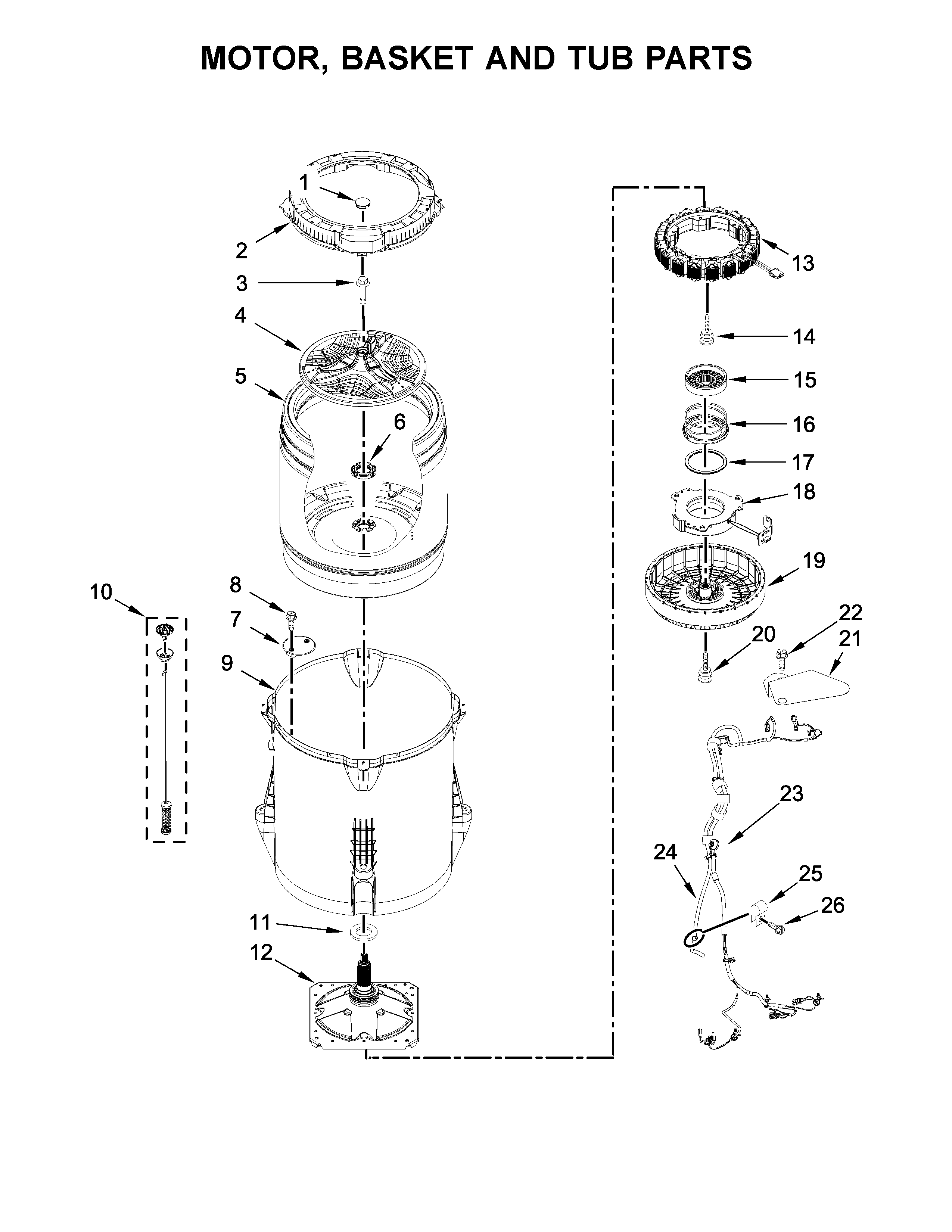

Motor, basket and tub parts diagram

30mm spiral

Part #W10275082

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
BEST SELLER
$33.95
28% OFF MSRP : $47.00
In Stock
Slider W10447975
#15

Motor, basket and tub parts diagram

Slider

Part #W10447975

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10447975. Substitute parts can look different from the original.
BEST SELLER
$33.95
28% OFF MSRP : $47.00
In Stock
Spring Support W10006494
#16

Motor, basket and tub parts diagram

Spring support

Part #W10006494

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
BEST SELLER
$33.95
28% OFF MSRP : $47.00
In Stock
Clutch Assembly W10817398
#18

Motor, basket and tub parts diagram

Clutch assembly

Part #W10817398

Replaced by #W10754448

?
Manufacturer substitution
This part replaces W10817398. Substitute parts can look different from the original.
BEST SELLER
$78.59
16% OFF MSRP : $94.00
In Stock
Washer Lid Lock Assembly W10787878
#14

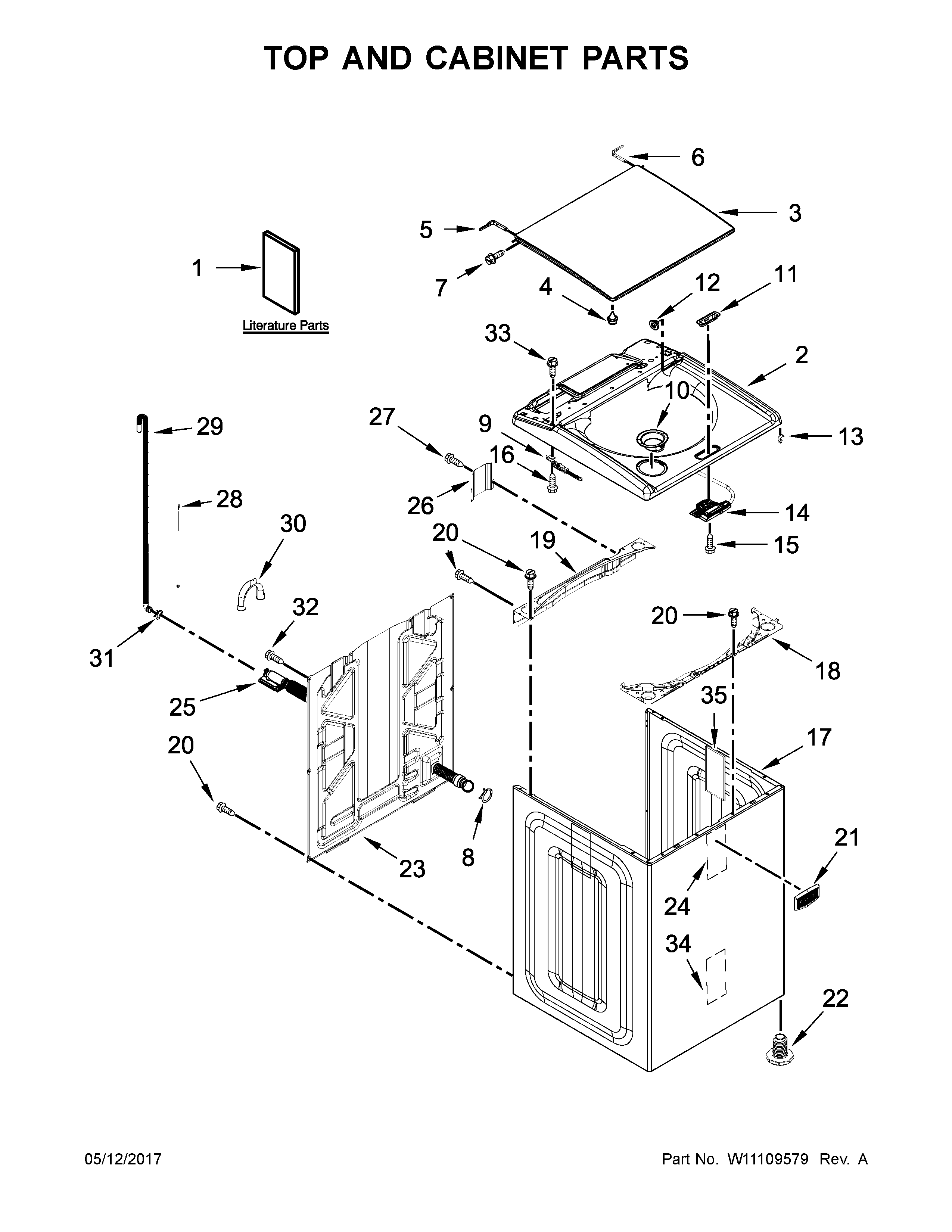

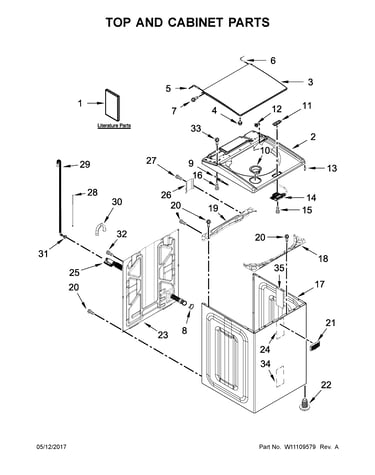

Top and cabinet parts diagram

Washer lid lock assembly

Part #W10787878

Replaced by #W10810403

?
Manufacturer substitution
This part replaces W10787878. Substitute parts can look different from the original.
BEST SELLER
$117.22
8% OFF Phone Price : $127.22
In Stock
Washer Water Inlet Valve W10758828
#14

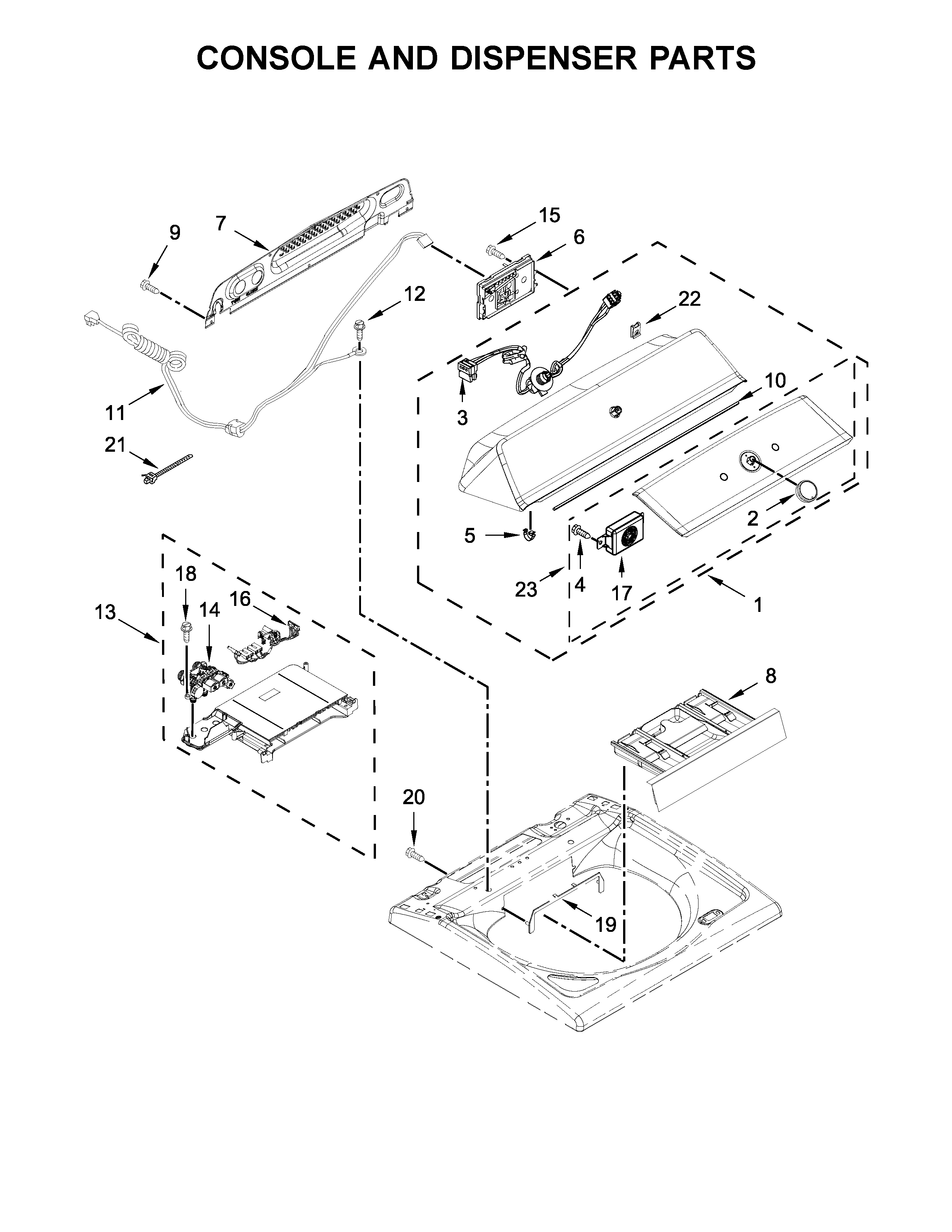

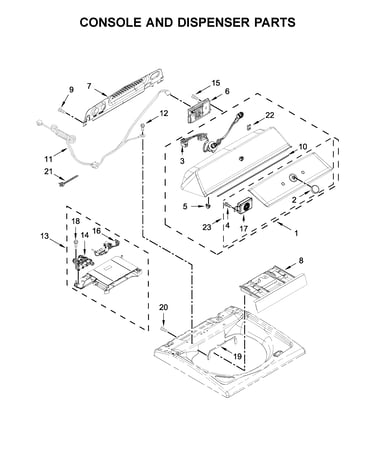

Console and dispenser parts diagram

Washer water inlet valve

Part #W10758828

Replaced by #W11165546

?
Manufacturer substitution
This part replaces W10758828. Substitute parts can look different from the original.
BEST SELLER
$61.58
26% OFF MSRP : $83.00
In Stock
Washer Drain Pump W10727777
#1

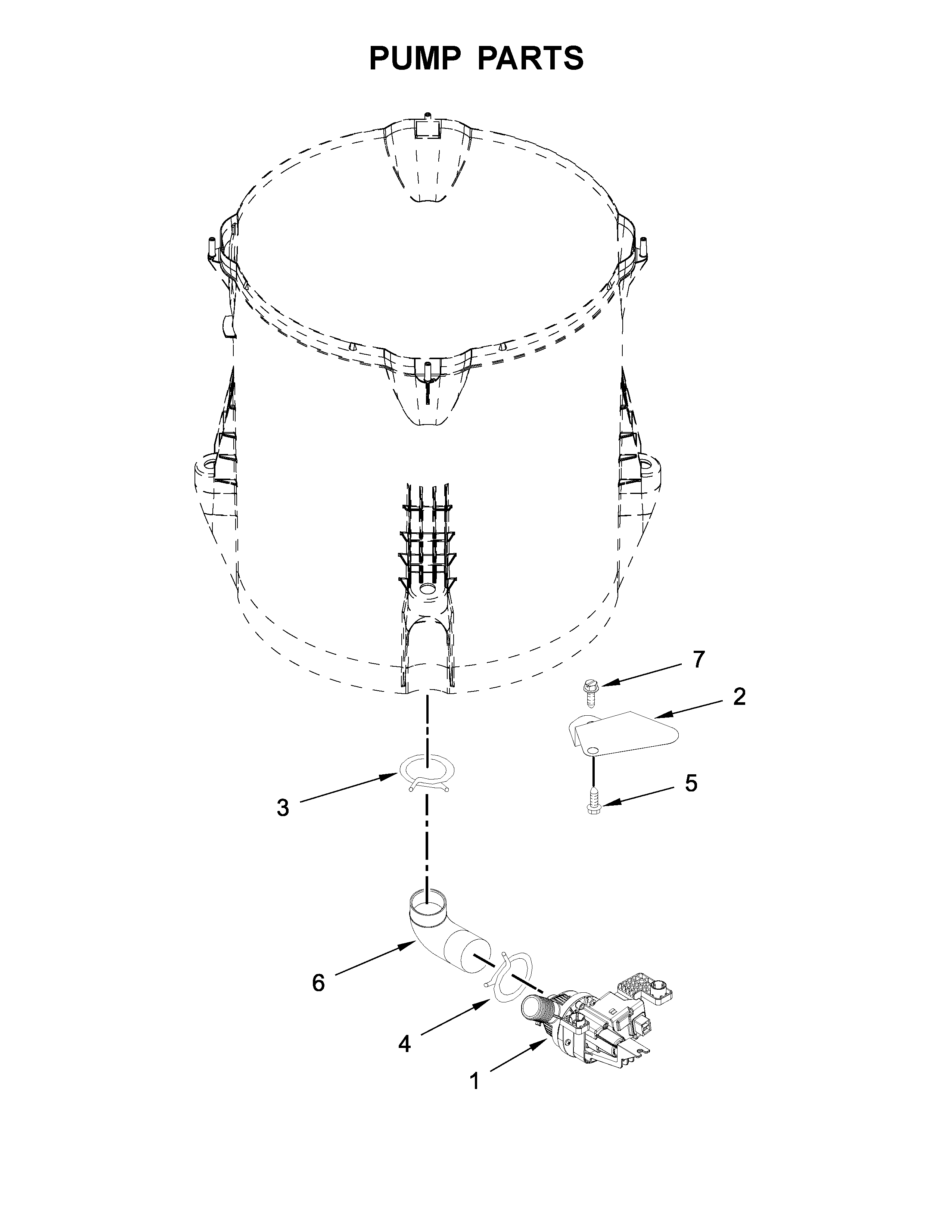

Pump parts diagram

Washer drain pump

Part #W10727777

Replaced by #W10876600

?
Manufacturer substitution
This part replaces W10727777. Substitute parts can look different from the original.
BEST SELLER
$107.51
17% OFF MSRP : $130.00
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91
46% OFF MSRP : $22.00
In Stock
Washer Washplate Screw W10625252
#3

Motor, basket and tub parts diagram

Washer washplate screw

Part #W10625252

Replaced by #W10752187

?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.13
78% OFF MSRP : $14.00
In Stock
Impeller-fla W10834917
#4

Motor, basket and tub parts diagram

Impeller-fla

Part #W10834917

Replaced by #W10902814

?
Manufacturer substitution
This part replaces W10834917. Substitute parts can look different from the original.
BEST SELLER
$101.54
9% OFF Phone Price : $111.54
In Stock
